Buhel D01 User manual

HELMET COMMUNICATION SYSTEM
DISPOSITIVO VIVAVOCE PER CASCHI
SISTEMA DE COMUNICACION DE CASCO
SYSTEME DE COMMUNICATION POUR CASQUE
HEADSET FUR MOTORRADHELM
DISPOSITIVO MAOS LIVRES PARA CAPACETES
ヘルメット通信システム
头盔通信产品
BUHEL D01
INSTRUCTION MANUAL

THANK YOU VERY MUCH FOR PURCHASING OUR PRODUCT
BUHEL D01 IS A BLUETOOTH° HELMET COMMUNICATION SYSTEM THAT
ALLOWS YOU TO GET PHONE CALLS, MUSIC AND INFORMATIONS WHILE
RIDING YOUR MOTORCYCLE OR SKIING.
D01 CAN WORKS AND COMUNICATES WITH MOBILE PHONES AND MUSICAL
READERS EQUIPPED WITH BLUETOOTH° TECNOLOGY.
D01 CAN BE FITTED AND USED ON ANY COVERING EARS HELMETS, WITHOUT
EFFECTING STRUCTURES; IT DOESN’T AFFECT HELMET HOMOLOGATION
AND CAN BE REMOVED AT ANY TIME JUST PULLING.
PLEASE READ THIS OWNER’S MANUAL CAREFULLY PRIOR TO USAGE FOR A
SAFE AND PROPER HANDLING OF THE PRODUCT.
PLEASE KEEP THIS OWNER’S MANUAL AVAILABLE FOR REFERENCE

Safety Instructions
●Review this “Safety Instructions”before using the product for safe and correct usage.
●All of the following contains important safety instructions and must be strictly followed.
●Descriptions of sign and terminology are as follows.



Warning
Caution
Prohibited
Compulsory
Caution
WARNING
Wrong usage may cause serious or fatal injury to people.
What not to do.
Explicit description is given or attached to the sign.
Action/instructions which must be followed.
Explicit description is given by or attached to the sign.
indicates matter requiring special attention.
Explicit description is given by or attached to the sign.
DO NOT disassemble or modify the product. Such act may cause malfunction,
electric shock or fire.
If anything unusual such as smoke, heat or bad smell is detected, immediately
disconnect the power and stop the usage. Continued use may cause electric shock
or fire.
DO NOT throw the product into the fire. Built-in battery may explode.
Conversation on the cell phone at the time of drive is extremely dangerous. Please
pull off the road for the telephone call.
Wrong usage could result in injury.
Please do not try to change the setting or talk on the cell phone while driving, it may
cause a accident.
Please note we hold no responsibilities for damage or loss at the time of using this
device.
< Terminology >
< Sign >

CAUTION
Do not change the mic when it gets wet. With water exposure, it may cause fire,
electrification or failure.
DO NOT expose the product to open flame or under the direct sunlight for a
prolonged period of time. Such environment may cause malfunction or fire.
DO NOT drop or apply shock to the product. Such act may cause irreparable
damage to the product.
DO NOT lick, bite or put the product into the mouth. Such act may result in serious
injuries/accidents. Take utmost caution around children.
At the time of battery charge, if any strange odor or high heat, please immediately
pull the plug from the body. It may cause smoke generation or smoke.
Do not leave the product in a state of charge long after the charging is completed.
Such condition may cause smoking/ignition.
Charge battery at least once every six months even if the product is not in use for an
extended period of time. Over discharge may require battery replacement.
In case of water immersion, fallen, damaged case on impact, unusual sounds,
smoke generation or strange odor, it may cause fire, electrification or failure. Please
turn off the power and do not use. Please contact your local dealer after checking no
smoke on the body. Do not intend to repair by yourself to prevent the accident.
Do to bring closer to the magnetic card at magnetic of installed board.
CARE To clean, wipe with a moist or antistatic cloth only, never with a dry cloth ( risk
of electrostatic charging ) or a strong cleaning agent.
Emergency procedure
Note on Battery Charge

Instruction Manual

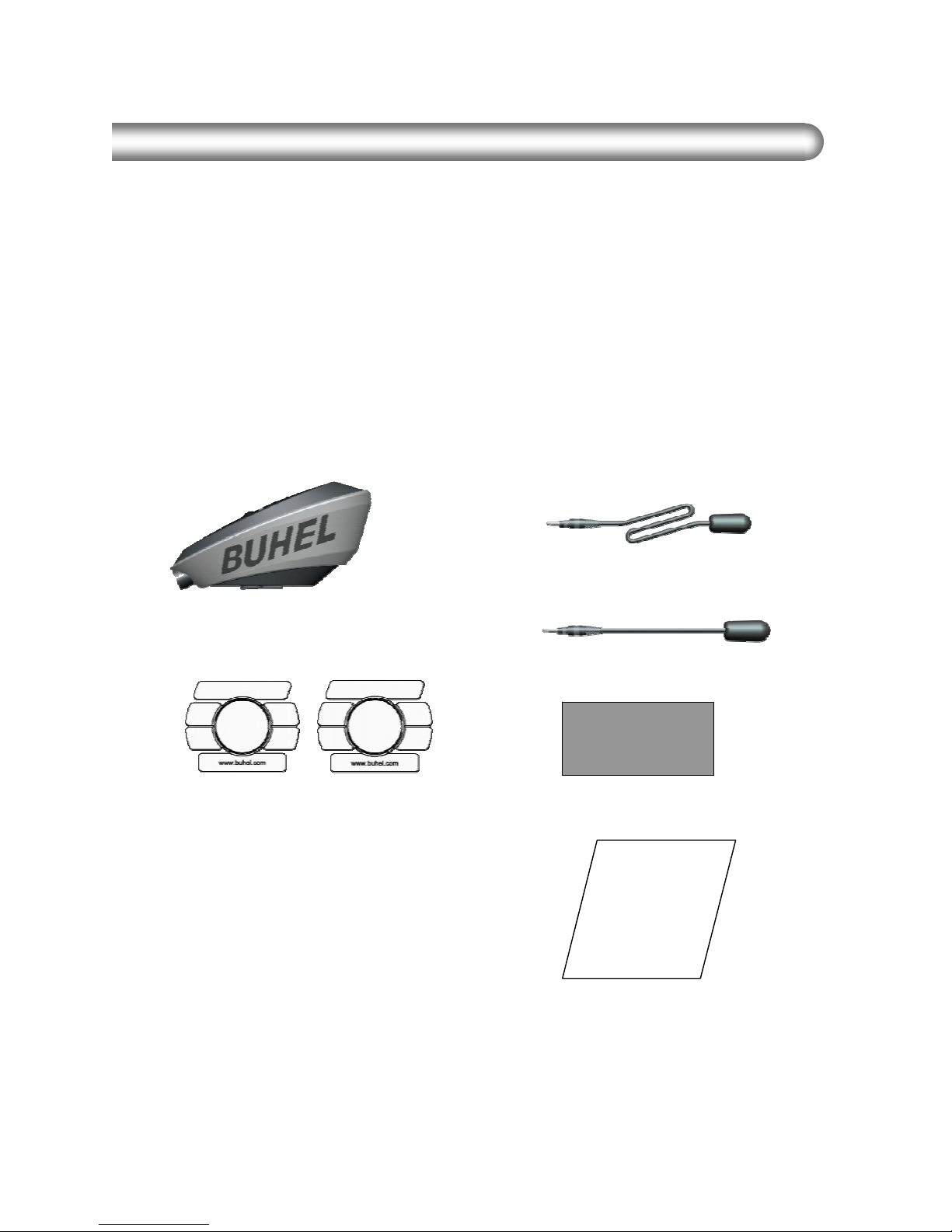

Kit ChecklistD01
Ensure that the package contains all of the following.
D01 Body
Body(D01)
FULL FACE MIC(F.F. MIC)(D01/FFM)
OPEN FACE MIC (O.F. MIC)(D01/OFM)
Baseplate(D01/BP)
Magic band female part
Instruction Manual
x 1
x 1
x 1
x 2
x 1
x 1
FULL FACE MIC(F.F. MIC)
OPEN FACE MIC (O.F. MIC)
Baseplate Magic band female part

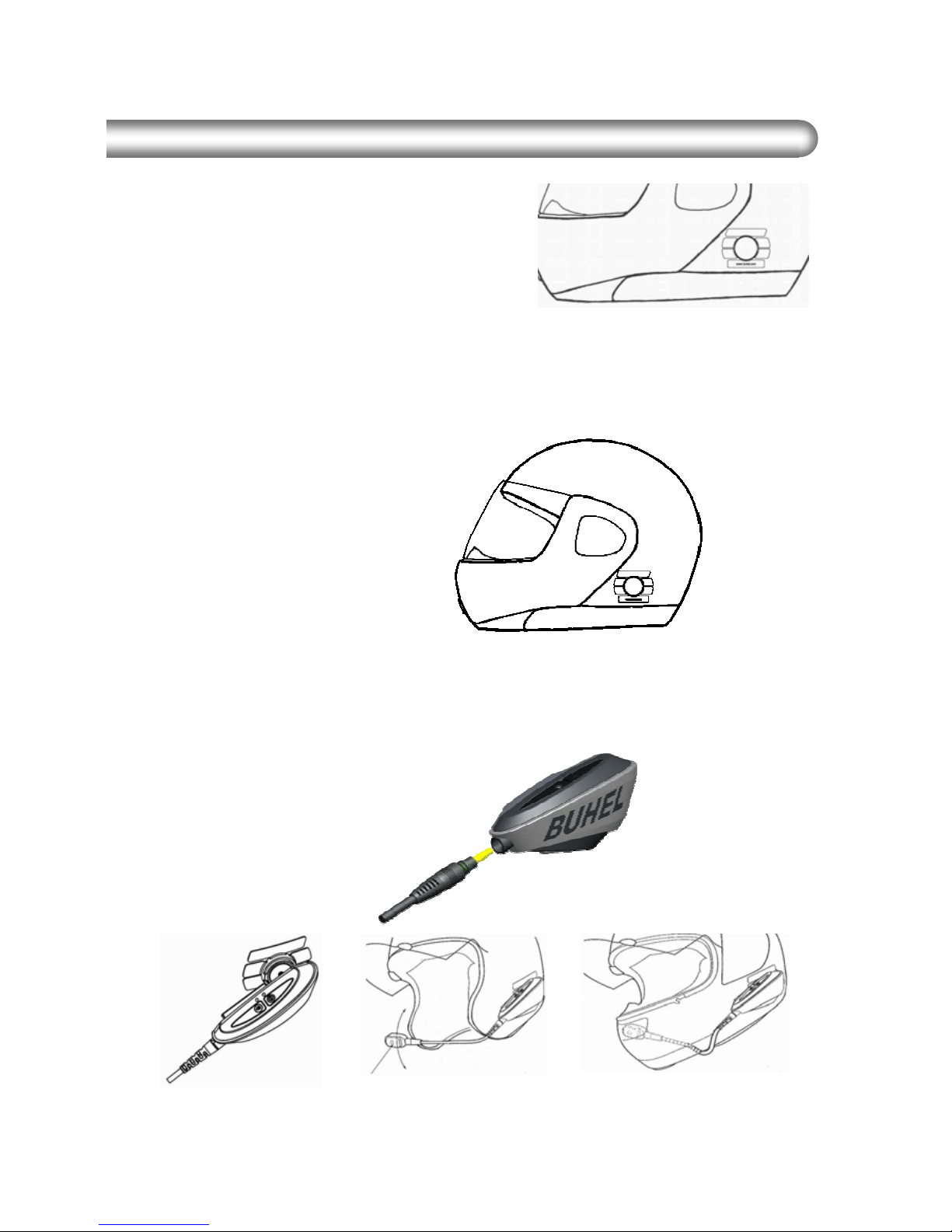

How to Fit
Base plate’s attachment
Printed line must be down and parallel to the helmet border
After wiping oil or dirt on the face of helmet, peel paper liner of base plate and attach base plate
firmly on the helmet.
Important: Please make sure to attach the base plate on the helmet left side and near to left ear
position
Mic attachment
Put the lower side of charged D01 parallel to baseplate printed line and fix D01 on baseplate by using
magnet. ( make sure that D01 is correctly fitted by smoothly turning it )
On full face helmets fix F.F. Mic closed to the mouth by using hook and loop Tape.
On open face and flip up helmets adjust O.F. Mic closed to mouth by bending O.F. Mic boom
Attaching mic unit on the D01.
Insert mic connector D01.

Operation before using
Please charge battely before to use D01.
2Power/Pairing LED
4Power/Pairing switch
1charging indicator
3Volume switch

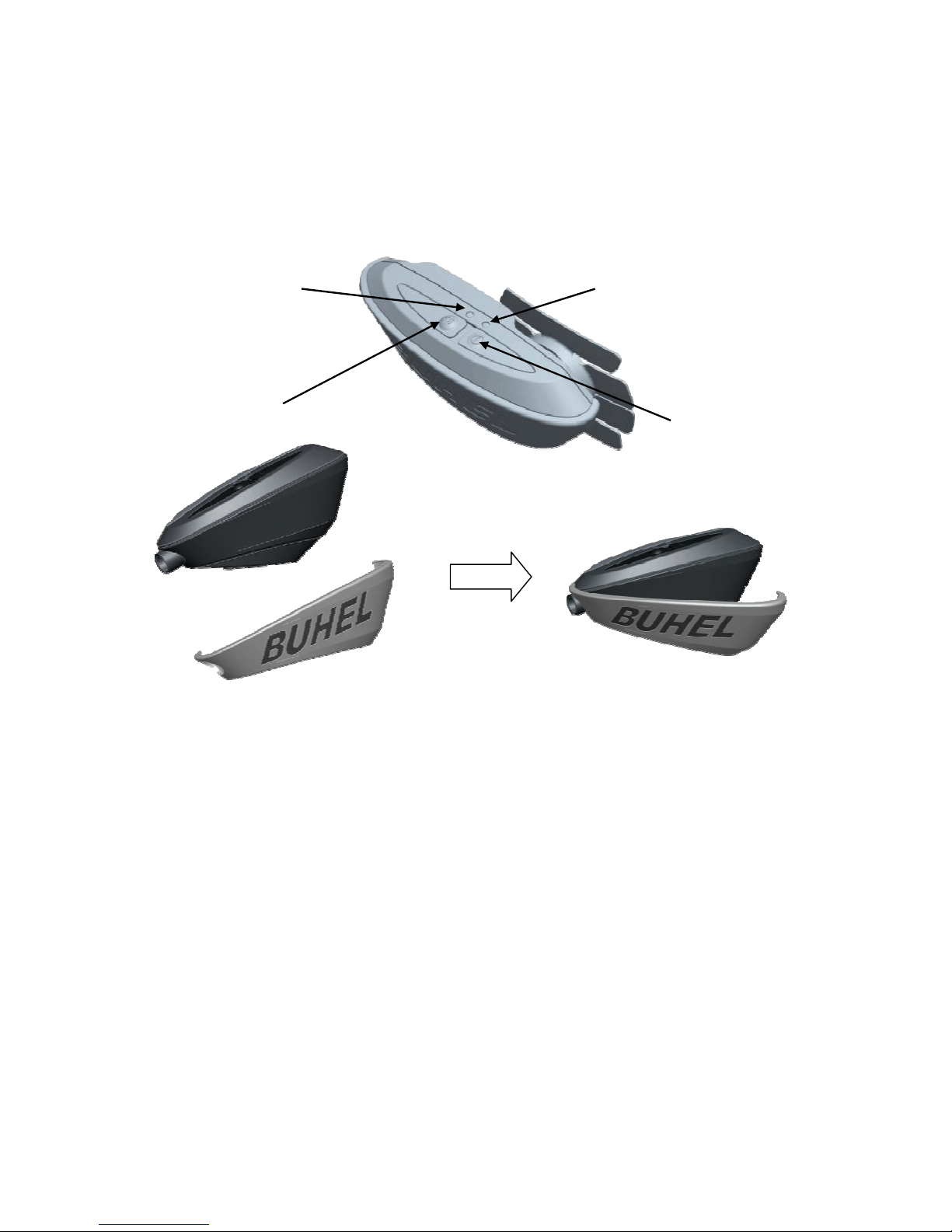

Cover’s attachment.
Insert cover’s hole into D-01’s hole at front.(Mic’s attachment part)
Then, squeeze rear cover into the body.
Decorative Cover
Body D01

How to Use
1. ON/OFF power switch.
Push Power/Pairing button from 3 to 6 seconds. Blue indicator 2 flashes slow
as the power turns ON. Another push to the
Power/Pairing button 4from 3 to 6 seconds turns the power OFF and the indicator goes out.
2. Volume control
The volume can be controlled in five levels.
The volume increases by one level as each time the volume button 3is pushed.
Another push at maximum level brings back to the lowest level.
（1, 2, 3, 4, 51, 2, 3・・・）
3. Reconnect with the mobile phone
Once the pairing with your mobile is completed, automatic reconnection and wait mode is achieved
by turning the power switch ON.
Some mobile phones may require the following procedure.
Turn ON the power switch of the product. Select ［Temco BT- 0 2 ］from the Bluetooth equipment list
on your mobile screen. Connect the product with your mobile.
4. To answer incoming Call
Once the headset is in wait mode, switching to a talk mode is automatic when there is an incoming
call on your mobile.Pressing the Power/Pairing button 4switch to a talk mode.
If there is an incoming call on your mobile while listening to the music, volume is minimized and
automatic connection with the mobile is made（automatic switch function）.
5. To end a call
Wait for the other party to hang up or push Power/Pairing button 4 to end a call.
Talk mode changes to a wait mode.
The mode switches back automatically to the music mode if you were listening to music.
6. To block incoming call
Press Power/Pairing button 4 from 3 to 6 seconds while the phone is ringing. The call is blocked
without answering.
7. To switch a call
Push the volume control button 3from 3 to 6 seconds while talking on the headset.
The call is switched from the headset to your mobile phone.
Also, while talking on the mobile, push the volume control button 3 on the headset from 3 to 6
seconds to switch the call from the mobile to the headset
8.Redial
Push the volume control button 3from 3 to 6 seconds while in a wait mode. Previous number can
be redialed from the headset.

* For switching a call or redialing, depending on each cell phones, pairing time could be change. If
any boink sound may come from the body, release the finger from the bottom.
Pairing
To achieve wireless connection with your Bluetooth mobile phone, initial setting called “Pairing” is
required. Pairing enables listening to a music and phone call without radio interference by other
equipment. Paring is needed only when the product is used for the first time. From the second time
on, a push to the power switch to ON is all that is required. Directions for the pairing are as follows:
1. At the time of power off, press and hold paring bottom 4until fast blue blinking comes from
indicator 2. (Approximately 7 seconds.) You can see LED light on for 3 seconds, keep to press
bottom 4for fast blue blinking.
2. Search for the Bluetooth equipment on the Bluetooth setting screen of your mobile phone.
（For detail, refer to your mobile phone manual.）
3. Name of our product（Temco BT-02）appears on the screen as the search is completed.
4. Input ［0000］if the password is requested.
5. The blue indicator 2changes from fast to slow flash when the pairing succeeds.
*D01 is adapted for audio profile, hands free profile and headset profile. Depending on suitable
profile, you need to follow above procedure from 1 to 5.
If you use cell phone for call and bluetooth transmitter for audio profile at same time, need paring for
each profile. ( Please check each manuals for further notice.)
【Attention】
Lower battery indicates fast flashing twice as the time of slow blinking in a standard mode.
（Blue indicator 2）. You can also hear beaping sounds from the speaker while internal
blinking. Please recharge the battery if the light flashes accordingly this.
＊Standard mode …●…………●…………●…………●…………●…………●………
＊Lower Battery mode …●…………●…●●…●…………●…………●…●●…●………
Special Instructions for Power/Pairing Button
LED display and the headset mode change according to the duration of the Power/Pairing button
pushed at “OFF” and doing nothing after the Button is released as shown in the following chart.
Shaded part shows the normal workable range. Please use in the workable range.

Duration of Power/Pairing Button pushed at “OFF”
 Less than 3
sec.
3 to 6 sec. More than 6 sec.
Duration of doing
nothing after
releasing the
Button
――0 to 120 sec. →More than 120
sec.
LED
Display
Lights out Slow blinking in
Blue
Blinking in
Blue
→ Light out
Before the Pairling
Body
operation
Power ”OFF”
Power ”ON”
but Headset is
not workable
Pairing Mode →
Power ”OFF”
LED
Display
Lights out Slow blinking in
Blue
Blinking in
Blue
→Lights out
After the Pairing
Body
operation
Power ”OFF” Waiting Mode Pairing Mode →Power “OFF”
*If nothing is done while in Pairing Mode, the mode is cancelled after 120 seconds and the power
shuts “OFF”. The same occur when the pairing process fails.
When using the headset after the pairing is completed, pushing the Power/Paring button for more
than 6 seconds in a row, brings back the paring mode.
If in a wrong mode, turn the power “OFF” and push again the Power/Pairing button for the mode of
your choice.
Note
Rechargeable high-performance lithium polymer battery is used, but it is expendable. Although the
battery under normal use has a long life, such characteristic deteriorates with time. For maximum
performance, usage under normal temperature is recommended.
In outdoor use under strong wind condition, party on the other end may have difficulty hearing your
voice. In such case, move to less windy location.

Specifications
Type Electret’s Condenser
Frequency
Response
200Hz 〜8000Hz
Microphone
Sensitivity
-47dB ± 4dB at 1kHz (0dB= 1V/Pa)
Microphone
Directivity Non-directional
Type Magnetic
Frequency
Response
300Hz 〜3000Hz
Receiver
Output Level 92dB±5dB at 1kHz (0dB=1uN/1mW)
Size（WxHxD）103 x 50 x 35
Weight 60 g
Built-in Battery 3.7V 400mA lithium polymer battery
Time of use Approximately 5 hours
Communication
method
Bluetooth
Body
Profile HFP / HSP / A2DP
Troubleshooting
If problem arise, refer to the following before requesting repair service.
Common Problem Check point
●Electric power does
not turn ON
●Battery is fully charged.
●Power/Pairing Button is pushed 3 to 6 seconds.
●Other party’s voice is
inaudible.
●Pairing process with mobile phone is completed.
●The headset is connected to your mobile phone.
●Volume level is adjusted to an audible level.
●Volume level of the mobile is properly adjusted.
●Other party s voice is
hardly audible
●Volume control is properly adjusted.
●Volume control of the mobile is properly adjusted.
●Other party can not
hear you.
●Pairing process with the mobile is completed.
●The headset is connected to your mobile phone.
●Too noisy or windy environment.

●Your mobile phone
does not recognize the
headset at pairing
process.
●The Power/Paring button is pushed for more
than 6 seconds.
●Pairing process is
completed but there is
no connection with the
mobile phone.
●Wrong Bluetooth equipment is selected when
setting the mobile phone.
●When a call is made on
the mobile, there is no
automatic connection
with the headset.
●Some mobile are not automatically connected.
To connect, push the volume button from 3 to 6
seconds.
To charge battery
D01 uses lithium polymer battery. If any bleep sounded, it may be low battery. Please charge
battery
Warranty
In case of malfunction in spite of correct usage that is consistent with this Owner’s Manual and if it
occurs during the valid warranty period, we provide free of charge repair service or replace
defective product. Temco and Buhel shall not be liable for any incidental or consequential damages
resulted from malfunctioning of the product.
Warranty period: Two years from the date of purchase for D01 Device, one year for removable and
expendable components.
When requesting repair service, Warranty Card must be attached to the product and presented to
the dealer from whom you purchased. Warranty Card without the date of purchase and store
stamp/signature will not be considered as proof of purchase and free of charge repair will not be
provided.
IMPORTANT NOTE: FOR E.C. COUNTRIES, CUSTOMERS MUST EXHIBIT, TOGETHER WITH
THE CERTIFICATE, A VALID RECEIPT ISSUED BY THE DEALER, SHOWING THE DATE OF
PURCHASE OF THE PRODUCT
The following are some of the examples which will not qualify for free of charge repair service. You
will be asked to pay.
Warranty period is expired.
If Warranty Card is not presented or incompletely filled or if there is an evidence of tampering.
Malfunction is caused by mishandling, improper repair work, unauthorized modification and
adjustment, disassembling and wrong cable connection.

Damage resulting from transporting the product after the purchase, traveling, or mishandling of the
product such as dropping.
Damage caused by abnormal voltage or use of unspecified voltage.
Damage caused by acts of God; caused by fire, natural disaster, sea wind.
Replacement of expendable supply such as battery.
Repair service done during warranty period does not extend warranty period.
Defective devices or components returned to be replaced will become Buhel’s property.
Warranty
Model name D01
name
Address
Phone number
Date of purchase Dealer info AND STAMP
Term of warranty
TWO YEARS
On fourth LAST page:
DISTRIBUITED BY
BUHEL SRL
VIA DELLA RESISTENZA 37
20090 BUCCINASCO ( MILANO ) ITALY
TEL. [phone] – FAX [phone]
[email protected] www.buhel.com
ENGINERED BY TEMCO JAPAN CO., LTD - JAPAN
MADE BY TEMCO SHANGHAI CO., LTD – CHINA
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:1. This device may not cause harmful interference, and 2. This device must accept any
interference received, including interference that may cause undesired operation.
