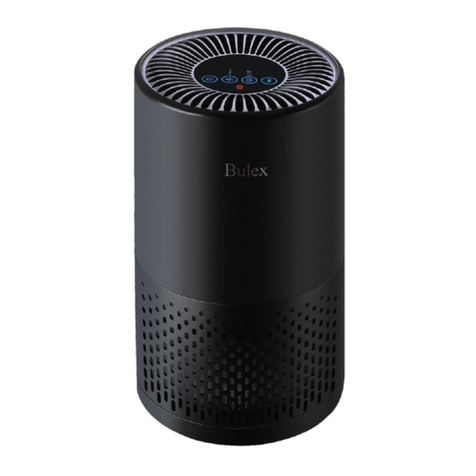

Bulex AF-3222 User manual



Model No. 

Contents
Important Safety Instructions
Technical Specifications
Packing List
Getting to Know Your Air Purifier
1.Product Overview
2.Control Panel Overview
3.Filters Overview
Getting Started
Using the Air Purifier
Cleaning the Air Purifier/Pre-Filter
Replacing the Filters
Storing the Air Purifier
Troubleshooting
Warranty Information
Disclaimer
Contact Us
---------------------------------------
----------------------------------
--------------------------------------------------------------
--------------------------------------------------------------------
-------------------------------
-------------------------------------------------------
--------------------------------------------------
-----------------------------------------------------------
----------------------------------------------------
-----------------------------------------------------------------------
----------------------------------------------------------------------
-----------------------------------------------------
------------------------------------------------------
---------------------------------------------------------------
---------------------------------------------------------------
------------------------------------------------
1
5
6
6
6
6
7
8
9
11
12
13
14
16
17
18

Important Safety Instructions
PLEASE READ AND SAVE THESE SAFETY
INSTRUCTIONS BEFORE USING THIS AIR PURIFIER
When using electrical appliances, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and
personal injury, including:
Read all instructions before operating the appliance.
Do not expose the appliance to rain, or use it near water, in a bathroom,
laundry area, or other damp places.
Do not use the appliance where combustible gases or vapors are
present.
Do not place objects in front of the air outlet or air inlet, so as not to
block the air inlet and outlet. Do not insert fingers or other foreign
objects into the air outlet or air inlet.
Do not let water or any other liquid or flammable detergent enter the
appliance to avoid electric shock and/or a fire hazard.
Do not clean the appliance with water, any other liquid, or a (flammable)
detergent to avoid electric shock and/or a fire hazard.
Do not spray any flammable materials such as insecticides or
fragrances around the appliance.
Check if the voltage indicated on the appliance corresponds to the
local power voltage before you connect the appliance to the electrical
outlet.
Always switch the appliance OFF and unplug it from the electrical
outlet after using and before cleaning, moving, and changing the
filters. Be sure to remove the plug from the outlet. Never handle the
power plug with wet or damp hands.
Do not lay power cords under furniture or electrical appliances. Keep
the power cord away from heavy traffic areas to avoid tripping people.
1．
2．
3．
4．
5．
6．
7．
8．
9．
10．


Do not put the cord under carpets or similar coverings or near heat
vents and open flames.
Place the appliance near a power outlet and avoid using extension
cords.
Do not use the plug in or near a power outlet equipped with an electric
air freshener to avoid damage to the plug.
Do not use the appliance outdoors. For indoor use only.
The marked electrical rating of the cord must be as great as the rating
of the appliance.
Do not hang it on the edge of the counter or table to avoid being
pulled by children or being tripped unintentionally.
If the power cord, plug, or motor is damaged, the device does not work
normally, or if it malfunctions or is damaged in any way, do not operate
the appliance. Discard the air purifier or return it to an authorized
service facility for inspection and/or repair.
Close supervision is necessary when the appliance is used by or near a
child or disabled person.
This appliance is not a toy. Children should be supervised to ensure
they do not play with the appliance.
11．
12．
13．
14．
15．
16．
17．
18．
19．
WARNING: To reduce the risk of fire or electric shock,
do not use this appliance on windows or with any
solid-state speed control device.


This appliance is not a substitute for proper ventilation, regular cleaning,
or use of an exhaust fan or hood while cooking.
A loose fit between the AC outlet (receptacle) and plug may cause
overheating and a distortion of the plug. Contact a qualified electrician
to replace the loose or worn outlet.
Never use the appliance unless it is fully assembled and with filters in
place.
The appliance must be used in its upright position.
Make sure the appliance is assembled/connected properly after cleaning
the pre-filter or replacing the filters.
If the appliance will not be used for a long period of time, unplug it
from the power outlet, and clean the appliance and filters before
storing.
Make sure that you plug the appliance into a proper AC power outlet.
Always place and use the appliance on a dry, stable, level, and horizontal
surface. Make sure the appliance cannot be easily knocked over by a
person or object.
Leave at least 20cm/8in free space behind and on both sides of the
appliance and leave at least 30cm/12in free space above the appliance.
Do not place anything on top of the appliance.
Do not sit, stand, or place heavy objects on the appliance.
Do not place the appliance directly below an air conditioner to
prevent condensation from dripping onto the appliance.
Make sure all filters are properly installed before you switch on the
appliance.
Only use the original Bulex filters specially intended for this appliance.
Do not use any other filters.
1．
2．
3．
4．
5．
6．
7．
8．
9．
10．
11．
12．
13．
14．
Cautions


Do not use the filter as fuel or for similar purposes.
Avoid knocking against the appliance (the air inlet and outlet in particular)
with hard objects.
NEVER tilt, move or attempt to change or replace a filter while the
appliance is operating. Switch OFF and unplug it from the power
outlet first. Do not move the appliance by pulling the power cord.
Do not use this appliance when using indoor smoke-type insect repellents
or in places with oily residues, burning incense, or chemical fumes.
Do not use the appliance near gas appliances, heating devices or
fireplaces.
Do not use the appliance in a room with major temperature changes,
as this may cause condensation inside the appliance.
Use this appliance for its intended household use as described in this
manual. Do not use attachments not recommended or sold by the
appliance manufacturer.
The appliance does not remove carbon monoxide (CO) or radon (Rn).
It cannot be used as a safety device in case of accidents with combustion
processes and hazardous chemicals.
Always wash your hands thoroughly after changing or cleaning the
filter.
15．
16．
17．
18．
19．
20．
21．
22．
23．
*SAVE THESE INSTRUCTIONS*


DO NOT ATTEMPT TO MODIFY THIS PLUG OR DEFEAT
THIS SAFETY FEATURE IN ANY WAY.
Important Note about the Plug
THIS APPLIANCE HAS A POLARIZED PLUG
(one blade is wider than the other). To
reduce the risk of electric shock, this plug is
intended to fit in a polarized outlet in only
one way. If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit,
contact a qualified electrician.
Technical Specifications
AF-3222
8.27*8.27*13.58 inches
5.67 lbs
Touch Panel
Black, White
Sleep Mode≤32
High Speed Mode≤50
AC120V,60Hz
2,4,8-Hours
45W
≥80cfm 136m³/h
Model No.
Dimensions
Net Weight
Control
Color
Noise Level (dB)
Timer
Rated Voltage
Rated Power
CADR
Description/Item Value


Important Safety Instructions
Packing List
1. Product Overview
Main Unit(with power cord)
Filter（in the main unit)
User Manual
1
1
1
Thank you for choosing the Bulex air purifier! To achieve the optimal
performance of the appliance, please kindly read this user manual
carefully before use.
Air Outlet
Control Panel
Main Unit
Air Inlet
Bottom Cover

Packing List Quantity

3. Filters Overview
Multiple levels of cleaning include a combination HEPA filter that
captures pet dander, pollen, and an activated carbon filter to remove
odors.
Note: If you need any help during replacing the filter, please feel free to
contact us via email : [e-mail]
Pre-Filter: Capture initial dust and allergen particles.
Activated Carbon Filter: Absorb formaldehyde, benzene, and other
noxious gases.
HEPA Filter: Capture dust, smoke, pollen, and other allergens.
Depth Filter: Deeply purify the air.
Pre-Filter
HEPA Filter
Depth Filter
Activated Carbon
Filter

2. Control Panel Overview
On/Off
Button
Fan Speed
Button
Filter Reset Button
Timer
Button
Night Light
Button

Getting Started
Before operating the air purifier
Carefully take out your air purifier from the box and remove all
packaging materials.
Place the unit on a firm, level, and horizontal surface.
Before using it for the first time, please open the bottom cover
and take out the filters, remove the wrapping bag of the filters,
then insert the filters and close the cover (See chapter “Replacing
the filters”).
Plug the power cord into the right voltage AC outlet.
Make sure the side with the clip is pointing towards outside when
installing filters.
Wash your hands thoroughly after installing filters.
If you need any help during setting up, please feel free to contact
us via email : [e-mail]
Step 1:
Step 2:
Step 3:
Step 4:
Notes


Using the air purifier
1. Turning on and off
3. Setting the timer
2. Changing the fan speed
Insert the plug of the air purifier into the power outlet.
Touch the Power On/Off button to turn on the air purifier, and
the Power On/Off button indicator light turns blue.
Touch the Power On/Off button again to switch off the air purifier,
and the Power On/Off button indicator light turns red.
There are several fan speeds available. You can touch the Fan Speed
button to repeatedly select the fan speed you need (Low (I) , Medium
(II), High (III), Sleep ( ).
With the timer, you can have the air purifier operate for a set number of
hours. When the set time is over, the air purifier will automatically switch
off.
Each time that you touch this button , the fan speed is adjusted
from Low (I) to Medium (II) to High (III) to Sleep ( ). The default fan
speed is at the Low (I) speed. The Fan Speed button indicator light
turns blue and automatically indicates the selected fan speed.
In the sleep mode, the air purifier operates quietly at a very low speed.
All indicator lights will go off after 3 seconds in the sleep mode.
You can turn on the indicator lights manually by touching any
button.
Notes


4. Turning on and off the night light
5. Resetting the filter timer
This air purifier is equipped with a filter reset indicator to make sure that
the air purification filter is in optimal condition when the air purifier is
operating. When the filters need to be replaced (The filter lifetime is 2,000
hours with normal usage), the Filter Reset button indicator light turns
orange.
Touch and hold the Filter Reset button for 3 seconds to turn off
the Filter Reset button indicator light after replacing the filters.
When the air is heavily polluted, you can replace the filters even the
filter reset indicator light may not be on. Touch and hold the Filter
Reset button for 3 seconds to reset the filter lifetime counter manually
after replacing the filter.
With the Night Light button, you can switch on or off the night light.
Touch the Timer button repeatedly to choose the number of
hours you want the air purifier to operate. The available intervals for
the timer are 2, 4, and 8 hours. The Timer button indicator light turns
blue and automatically indicates the selected timer.
The timer is deactivated by default.
Touch the Night Light button to turn on the night light, and the
Night Light button indicator light turns blue.
Touch the Night Light button again to switch off the night light,
and the Night Light button indicator light turns white.
Always switch off and unplug the air purifier before replacing the
filters.
Notes


Cleaning the Air Purifier/Pre-Filter
1. Cleaning the body of the air purifier
2. Cleaning the pre-filter
Clean the inside and outside of the air purifier regularly to prevent dust
accumulation.
Use a soft, dry cloth to clean both the interior and exterior of the air
purifier.
The air outlet can also be cleaned with a dry, soft cloth.
If the pre-filter is very dirty, use a soft brush to brush away the dust.
Always turn off the air purifier and unplug it from the electrical
outlet before cleaning.
Never use abrasive, aggressive, or flammable cleaning agents
such as bleach or alcohol to clean any part of the air purifier.
The filters are NOT washable.
Do not attempt to clean the filter with a vacuum.
Wash your hands after handling the filter.
Notes


Replacing the filters
When the filter reset indicator turns orange and flashes, it reminds you
to check and replace the filter. After replacing the filter, press and hold the
Filter Reset button for 3 seconds, and the filter reset indicator will go
out.
Note: If you need any help during replacing the filter, please feel
free to contact us via email : [e-mail]
Step 1: Switch off the air purifier
and unplug it.
Step 2: Remove the bottom cover.
Hold the unit firmly and rotate the
bottom cover counterclockwise to
unlock and open it.
Step 3: Take out the used filter
according to the filter reset
indicator light status.
Discard the used filters.
Step 4: Remove all packaging
materials from the new filters.


Step 5: Insert the new filter.
Make sure that the one with
cover is pointing towards
outside.
Step 6: Reattach the bottom
cover.
Step 7: Close the bottom cover.
Rotate clockwise until the“ ”in
bottom cover reaches “ ” and
upon hearing a “click” sound.
Step 8: Reset the filter timer.
Touch and hold the Filter Reset
button for 3 seconds to turn off
the Filter Reset button indicator
light and reset the filter timer
Towards outside
3 seconds
Storing the Air Purifier
Turn off the air purifier and unplug it from the wall outlet.
Clean the air purifier and the pre-filter (See chapter “Cleaning”).
Air dry all parts thoroughly before storing.
Wrap the filters separately in air-tight plastic bags.
Store the air purifier and filters in a cool, dry location.
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:


Troubleshooting
This chapter summarizes the most common problems people encounter
when using air purifiers. If you are unable to solve the problem based on
the information below, please feel free to contact us via email :
[e-mail]
Problem Possible Causes Solutions
The unit is connected to
incorrect power socket.
The unit is not plugged in
or the power socket is not
switched on.
The filter has worn out but
has not been replaced, so
the filter protection
function is activated and
the unit stops working.
The unit is not switched
on.
The fan speed is at the
Low (I) setting.
The air inlet or outlet is
blocked.
There is not enough free
space around the unit to
ensure ventilation.
Check the power voltage.
Check whether the unit is
plugged in and fits tightly
with the socket. Check
that the power socket is
switched on.
Check whether the filter is
replaced. (See chapter
“Replacing the filters”)
Check whether the unit is
switched on.
Check whether the fan
speed is set at the Low (I) /
Sleep ( ) mode.
Check whether the
blockage is removed.
Check whether there is at
least 20 cm/8 in of free
space around the unit, and
whether there is at least 30
cm/12 in of free space
above the unit.
The unit does
not work.
Insufficient air
flow


Problem Possible Causes Solutions
The filter is clogged and
not replaced.
The wrapping bag of the
filter is not removed.
The filter is inserted
upside down.
Foreign objects contact
the fan.
The unit is placed on an
uneven surface.
The room size exceeds the
expected size the unit
covers.
The Filter Reset button is
not correctly operated.
Check whether the filter is
cleaned or replaced.
Check whether the
wrapping bag is removed.
Check whether the clip of
filters points towards
outside.
Check whether the foreign
objects are removed.
Check whether the unit is
placed on level and flat
place.
Select the right air purifier
as per the actual room
size.
Touch and hold the Filter
Reset button for 3
seconds to reset it.
Insufficient air
flow
Excessive noise
The air purifier
cannot reach
the optimum
purification
capacity.
The filter
replacement
indicator light
remains on
after the filter is
replaced.


Warranty Information
This product is warranted to be free from defects in materials and
workmanship for a period of (2)TWO-YEAR from the date of original
purchase.
Bulex will provide repair and replacement services for faulty products free
of charge during the warranty period.
If you need any warranty service, please feel free to contact us via email
: [e-mail]
1. Warranty Period:
2. Repair and Replace:
Accident, misuse, abuse or alteration of the product;
Serving by unauthorized persons;
Use with unauthorized accessories;
Connecting it to incorrect current and voltage;
Wrapping cord around appliance causing premature wear and breakage;
Any other conditions beyond our control;
No responsibility, obligations or liability is assumed for the installation or
maintenance of the product.
3. This Warranty SHALL NOT be Applicable in the
following Cases:


Disclaimer
Thank you for purchasing our product! By using this product, you hereby
signify that you have read the Disclaimer and all warnings carefully and
that you understand and agree to abide by the terms and conditions
herein. The user should observe safe and lawful practices including, but
not limited to, those set forth in this document. Our company therefore
holds no liability for damages caused by force majeure, used by a third
party, incorrect use, non-compliance with this user manual or intentional
misconduct on the part of the user.
Except for the scope prohibited by the applicable laws, the company is not
responsible for any incidental, indirect, special or consequential damages,
including but not limited to the loss of profits, income or data due to the
violation of explicit or implied warranties or conditions mentioned in this
user manual.
Information in this user manual is for informational purposes only. It is
subject to change without prior notice, due to the manufacturer’s
continuous development program. This document supersedes and
replaces all information supplied prior to the publication hereof.


Contact Us
If you encounter any problems when using Bulex products, please feel
free to contact us through the following methods or scan the QR code to
get a quick response and a 100% satisfactory solution.
Note: Any questions about the warranty service can also contact us
through the following methods or scan the QR code.
Amazon Platform: “Contact Seller”
Official Website : http://bulex.afterservice.vip
Email Address : [e-mail]

