ASSEMBLY& OPERATING INSTRUCTIONS
MODEL #45551CE 770mm PEDESTAL CE CART
MODEL #45551 30” PEDESTAL CSA CART
FOR USE WITH ANGUS , LONESTAR SELECT & OUTLAW GRILL HEADS
1
CSA
CE

2018
TABLEOF CONTENTS PAGE#
HARDWARE LIST ……………………………………………………………………………………………………………3
ASSEMBLY INSTRUCTIONS ……………………………………………………………………………………………....4
CLEANING &MAINTENANCE …………………………………………………………………………………………......9
CLEANINGTHE GRILL CART ……………………………………………………………………………….………9
PARTS LIST…………………………………………………………………………………………………………………..10
EXPLODEDILLUSTRATION………………………………………………………………………………………………..11
LIMITEDWARRANTY………………………………………………………………………………………………………..12
READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRILL CART IS PROPERLY
INSTALLED, ASSEMBLED AND CARED FOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
SERIOUSBODILY INJURY AND/OR PROPERTYDAMAGE. IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY
OR OPERATION,CONSULT YOUR DEALER OR APPLIANCE SERVICE REPRESENTATIVE.
-NOTE TO INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.
-NOTE TO THE CONSUMER: RETAIN THESEINSTRUCTIONS FOR FUTURE REFERENCE.
*FOR WARRANTY PURPOSES,PLEASE RECORD YOUR MODEL NUMBER, SERIAL NUMBER, DATE OF
PURCHASE & A COPY OF YOUR RECEIPT OR INVOICE IN THE BACK OF YOUR MANUAL ON PAGE 10.
2

2018
HARDWARE LIST
1B – 6 x10mm Phillipsflat head screw (4x)
*CE only*
1A – 5 x 12 mmAllen pan head screw
(14x) 1C – 8 x 20 mm Allen pan head screw
(16x)
1D – 8.5x16 mmSmallflatwasher (16x) 1F – ¼”x1” Philips pan head (4x) 1E – ¼” X¾” flatwasher (4x)
1G– 5.3x15 mm Washers (14x)
5mmAllen Key (1x)
1H– Washer single coil M8.0x4.0 (16x)
3
3mmAllen Key (1x)

2018
ASSEMBLY INSTRUCTIONS
Before attemptingtoassembleyour grill cart, check that all the necessary parts are included by using the illustrated
parts list.Inspect parts for any damage and contact our service center or local dealer for replacement of any
damaged parts. Do notassembleor operate a grill cart thatappears to be damaged. For your safety,Bull
recommends the assistance ofanother person when assembling larger and/or heavier items.
Step. #1 Remove the four casters,screws and washers from the included package. Assemblethe casters onto the
bottompanel of the cart body with four 8 X 20 mm phillips head screws (1C) ,fourSingle coil washers(1H) and four
8.5 X 16mm medium flat washers (1D) per caster.Be sure to attachthe two casters with brakes on the same end.
Note: Hand tighten all casterscrews prior to tightening with a screwdriver. Failure to do so maycause irreparable
damage to thecasterscrews.Youmayfind it easier to do this if you flipthe cart upside down.
4
Detail F
3
4
2
1
Item No. Part Number Qty Description
116514 4SWIVEL CASTORS
21D 16 WASHER 8.5 x 16
31C 16 8 x 20MM ALLEN PAN HEAD SCREW
41H 16 WASHER SINGLE COIL - M8.0 x 4.0

2018
ASSEMBLY INSTRUCTIONS (Cont.)
CE VERSION ONLY WITH CYLINDER SUPPORT
Step #2: For CE versions only ,fix the cylinder support bracket underneath the cart using the 4 (1B) screws suplied.
5
1
Item No. Part Number Qty Description
1 1B 4 6x10MM PHILLIPS FLAT HEAD SCREW
2 35050 1 CE CYLINDER SUPPORT
2

2018
ASSEMBLY INSTRUCTIONS (Cont.)
Step #3:Use two 1 x ¼”(1F)Philips pan head screwsand two ¼” x¾” washers (1E) for each handle and attachthe handles on
the exterior ofeach door.
6
2
3
1

2018
ASSEMBLY INSTRUCTIONS (Cont.)
Step #4. Ensure the swivel casters are inthe locked position inorder to prevent the cart from moving and causing injury.Place the grill head
onto the cart (this step will require at least 2 people). Attachthe grill head tothe cart body using six 5 x 12 mm phillips head screws (1A) and six
flatwashers 5.3 x 15 mm (1G) . Use the 3mmHexagon wrench supplied. Tighten as needed.To prevent damage to the grill do not liftthe unit by
the shelves. Alignthe slotson the bottom.ofthe grill head to the slotsof thecart. Tighten as needed.
7
34
3
4
2
5
11
Item No. Part Number Qty Description
1 45520 2 SIDE SHELF HANDLE
2 45522 1 SIDE SHELF LEFT
3 1A 14 5 X 12MM ALLAN PAN HEAD SCREW
4 1G 14 5.3 X 15 MM WASHERS
5 45521 1 SIDE SHELF RIGHT

2018
ASSEMBLY INSTRUCTIONS (Cont.)

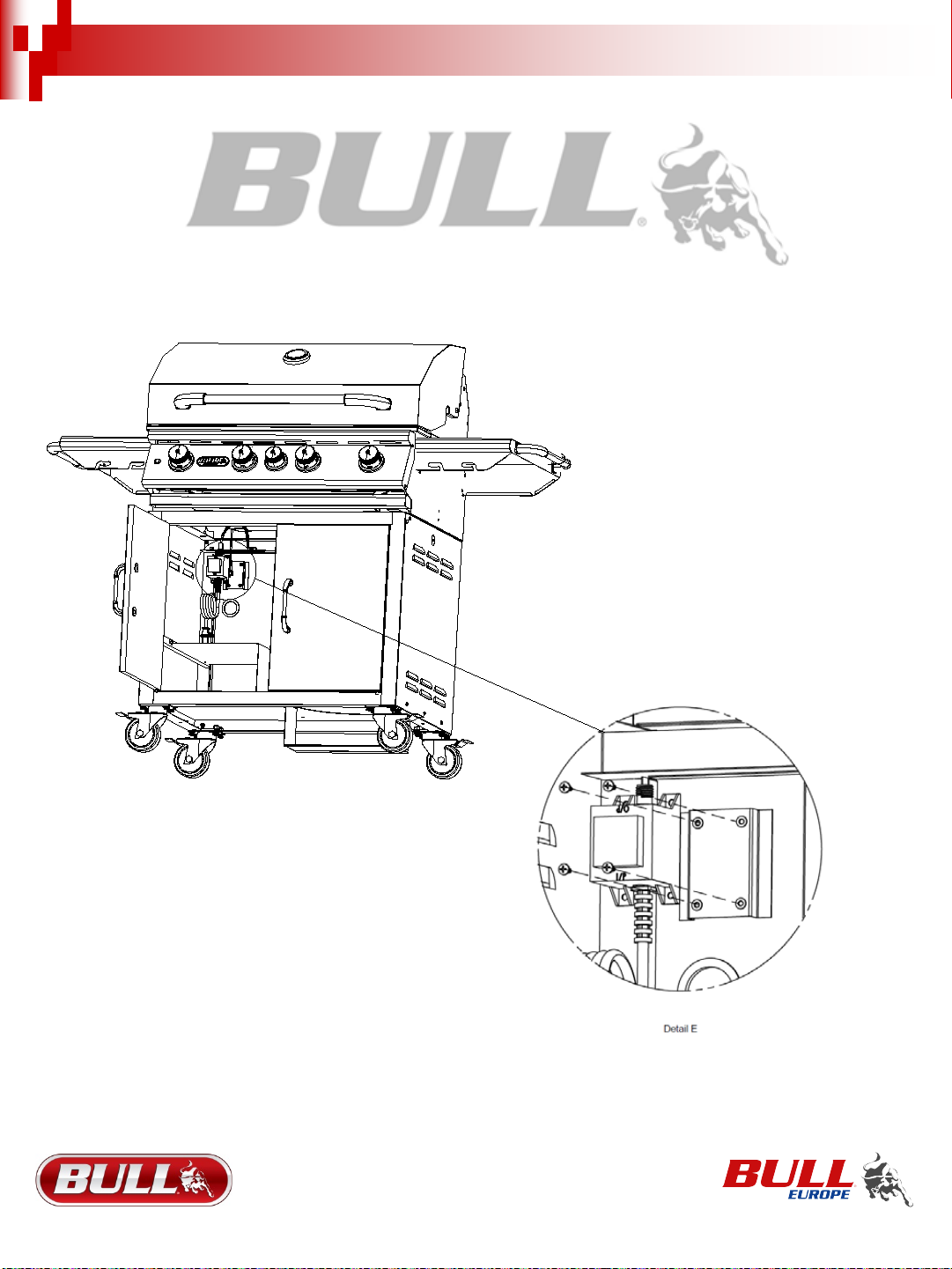

Step #5. If your grill head is equippedwith an interior light system, attachthe grill head transformer to the plate on theinsideleft of
the cart. The screws are already pre-assembled onto theplate.
Your grillcart is now completelyassembledand ready for use!
Please read and understand all safety, warningand use instructionsin the grill manual before use.
8

2018
CLEANING & MAINTENANCE
CLEANINGTHE GRILLCART
2 easy steps to help you clean your grill cart:
Make sure the grill head and cart are cool to thetouch.
Wipedown the cart with stainless steel cleaner.
STAINLESSSTEEL CLEANINGAND MAINTENANCE
Stainless steel is a corrosion resistant chromium/nickelalloy steel that is both durable as well as strong with an outstandingluster.
The goal of your cleaning and maintenanceroutine should be to keep the stainlesssteel’s protectivechromium oxidelayer intact.
This is what prevents corrosion. Contraryto popular belief,stainless steel is NOT rustproof, especially in the environment of a
swimmingpool. Chlorine, bromine, some fertilizers and otherelements are extremely caustic chemicals for stainless steel. These
chemicals combined with heatand humiditygreatly increase the corrosiveness of thesechemicals. Regular cleaning is thebest
way to prevent corrosion and addyears of enjoyment toyour Bull stainless steel products.
WARNING! Do notremove the secondary tank prevention bar. Storing a secondtank in your cart could cause serious injury.
9
DO NOT REMOVE PANTRY SHELF

2018
PARTS LIST
MODEL#45551CE 770mmPEDESTALCE CART
MODEL #45551 30” PEDESTALCSA CART
FOR USE WITHANGUS, LONESTARSELECT & OUTLAWGRILLHEADS
HOW TO ORDER REPLACEMENTPARTS
Please refer to the parts list on this page.
To make sure you obtainthe replacement parts for your grill cart, thefollowing information is required to assure the
correct part.
1. Reference number of replacementpart needed.
2. Descriptionof replacementpartneeded.
3. Quantity of parts needed.
IMPORTANT: Useonly factoryauthorized parts. The useof any part that is not factory authorized canbe
dangerous and will void your warranty.
IMPORTANT: Keep this assembly and operating instructionmanual for referral, and for replacement parts ordering.
Serial number location: Please record your serial number on the limitedwarranty page of this manual. It isimportant
that this step is completed in order toensure that correct parts are provided.
•Warranty period may vary depending Distributorand Country regulations.
•Example:Minimumis 2 years in Europe.
10

2018
EXPLODED ILLUSTRATION
MODEL#45551CE 770mmPEDESTALCE CART
MODEL #45551 30” PEDESTALCSA CART
FOR USE WITHANGUS, LONESTARSELECT & OUTLAWGRILLHEADS
11
5
6
15
16
16
13
12
15
14
9
17
10
11
1
3
4
2
8
7
18

2018
LIMITED WARRANTY
REGISTERING YOUR GRILL
Inorder tovalidate your BullLimitedWarranty, you must completetheWarranty Registration Card within 90days from theProof of
Purchase.You may register your unit either online at
www.bullbbq.com forWorldwide customers except EMEA (Europe, Middle East and Africa)
or by sending inthe completed hard copy along with a copy of theProof of Purchaseto:
BullOutdoor Products,Inc.,2483 W. Walnut Ave.,Rialto,CA92376. ATTN:Warranty ServiceCenter
www.bullbbq.eu for EMEAcustomers(Europe, Middle East and Africa)
or by sending inthe completed hard copy along with a copy of theProof of Purchaseto:
Bull Europe Ltd.,ZamcoBuildings ,MillStreet,Qormi,Qrm3103,Malta
Bull Outdoor Products Inc.and BullEurope Ltd warrants tothe original purchaser at theoriginal siteof delivery withproof of purchase of
each Outdoor Gas Grill that when subjectto normal residential use,it is free from defects in workmanship and materials for the periods
specifiedbelow. This warranty excludes grills used in rental or commercialapplications. Itdoes not apply to rust, corrosion, oxidation or
discoloration, which may occur due tomoisture or overheating, unless the affectedcomponent becomes inoperable. Itdoes not cover
labor or labor related charges. There will be a shipping andhandling charge for the delivery of thewarranty part(s).
Our obligation under this warranty is limitedto repair or replacement, at our option, of the product during the warranty period.The extent
of any liabilityof BullEurope Ltd under this warranty is limitedtorepair or replacement.This warranty does not cover normal wear of
parts,damage resulting from any of the following: negligent use or misuse of the product, use on improper fuel/gas supply,use contrary
tooperating instructions,or alteration by any person other than our factoryservice center. The warranty period is not extended by such
repair or replacement.
Warranty claim procedure: Ifyourequire service or parts foryour Bull grill or if you have any questions about warranty, please contact
your local dealer or our Warranty ServiceCenters fordirect assistance.
Bull Outdoor Products Inc.
Our hoursof operation are 8AMto 4 PMPST.Our phone number is(800) 521-2855 and our FAXnumber is(909) 770-8627.
Bull Europe Ltd.
Our hoursof operation are 8AMto 5PMGMT+1.Our phone number is [phone] and our FAXnumber is+356 22792 120.
Product repair as provided under thiswarranty isyour exclusiveremedy. Bull Outdoor Products Incand BullEurope Ltd.shall not be
liablefor any incidentalor consequential damages forbreach of any express or implied warranty on its products.Excepttothe extent
prohibited by applicablelaw, any impliedwarranty or merchantabilityor fitnessfor a particular purpose on this product to the duration of
theabove warranty. Some EU Countries do not allow the exclusionor limitationof incidental or consequential damages, or allow
limitationson how long an impliedwarranty lasts,sothe above limitationsor exclusions maynot apply to you.This warranty gives you
specificlegal rights, and you may have other rights, which vary from Country to Country.
Model Number
Serial Number
Date of Purchase
*Attacha copy of your receipt orinvoice here*
