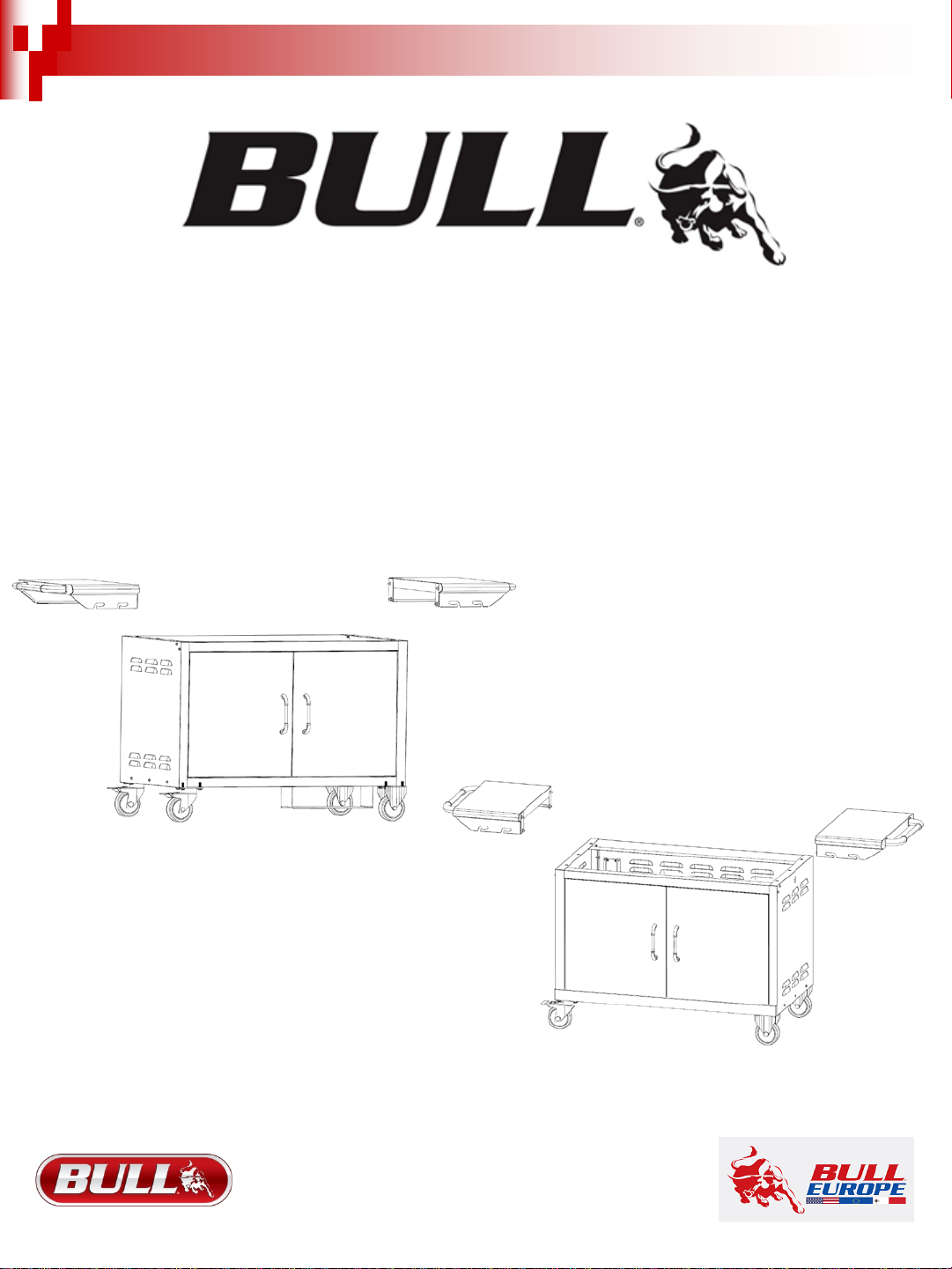

Bull PEDESTAL CE CART Quick reference guide

2017
ASSEMBLY& OPERATING INSTRUCTIONS
MODEL #55510CE 970mm PEDESTAL CE CART
MODEL #55510 39” PEDESTAL CSA CART
FOR USE WITHANGUS , BRAHMA GRILL HEADS
1
CE
CSA

2017
TABLEOF CONTENTS PAGE#
HARDWARE LIST ……………………………………………………………………………………………………………3
ASSEMBLY INSTRUCTIONS ……………………………………………………………………………………………....4
CLEANING &MAINTENANCE …………………………………………………………………………………………......9
CLEANINGTHE GRILL CART ……………………………………………………………………………….………9
PARTS LIST…………………………………………………………………………………………………………………..10
EXPLODEDILLUSTRATION………………………………………………………………………………………………..11
LIMITEDWARRANTY………………………………………………………………………………………………………..12
READ THE FOLLOWING INSTRUCTIONS CAREFULLY AND BE SURE YOUR GRILL CART IS PROPERLY
INSTALLED, ASSEMBLEDAND CARED FOR. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN
SERIOUSBODILY INJURY AND/OR PROPERTYDAMAGE. IF YOU HAVE QUESTIONS CONCERNING ASSEMBLY
OR OPERATION, CONSULT YOUR DEALER OR APPLIANCE SERVICE REPRESENTATIVE.
-NOTE TO INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION.
-NOTE TO THE CONSUMER: RETAIN THESEINSTRUCTIONS FOR FUTURE REFERENCE.
*FOR WARRANTY PURPOSES,PLEASE RECORD YOUR MODEL NUMBER, SERIALNUMBER, DATE OF
PURCHASE & A COPY OF YOUR RECEIPT OR INVOICE IN THE BACK OF YOUR MANUAL ON PAGE 10.
2

2017
HARDWARE LIST
1B –6 x 10mm Phillipsflat head screw
(4x) * CE only.
1A –5 x 12 mmAllenwrench pan head
(14x) 1C –8 x 20 mmPhillipshead screw
(16x)
1D –8.5 x 16 mm Smallflat
washer (16x) 1F – ¼”x 1”Philips pan head (4x)
1E –¼” X¾” flat washer (4x)
1G– 5.3 x 15 mm Washers (14x) 3 mmHexagon Wrench
1H washer single coil M8
3

2017
ASSEMBLY INSTRUCTIONS
Before attemptingtoassemble your grill cart, check that all the necessary parts are included by using the illustrated
parts list.Inspect parts for any damage and contact our service center or local dealer for replacement of any
damaged parts. Do not assemble or operate a grill cart that appears to be damaged. For your safety,Bull
recommends the assistance ofanother person when assembling larger and/or heavier items.

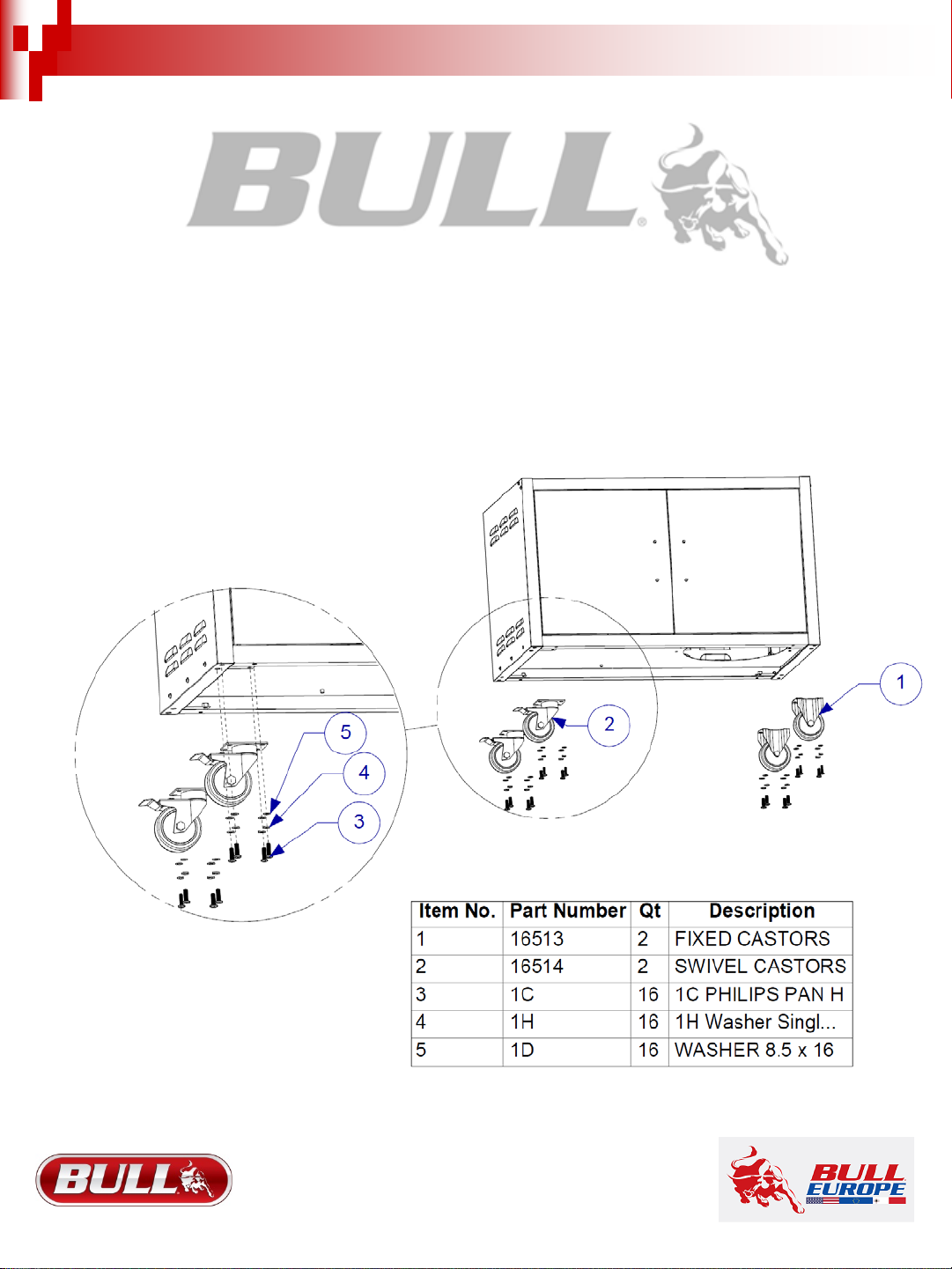

Step. #1 Remove the four casters,screws and washers from the included package. Assemblethe casters onto the
bottom panel of the cart body with four 8 X 20 mm phillips head screws (1C) ,fourSingle coil washers(1H) and four
8.5 X 16mm medium flat washers (1D) per caster. Be sure to attachthe two casters with brakes on the same end.
Note: Hand tighten all casterscrews prior to tightening with a screwdriver. Failure to do so maycause irreparable
damage to the casterscrews.Youmay find it easier to do this if you flipthe cart upside down.
4

2017
ASSEMBLY INSTRUCTIONS (Cont.)
CE VERSION ONLY WITH CYLINDER SUPPORT

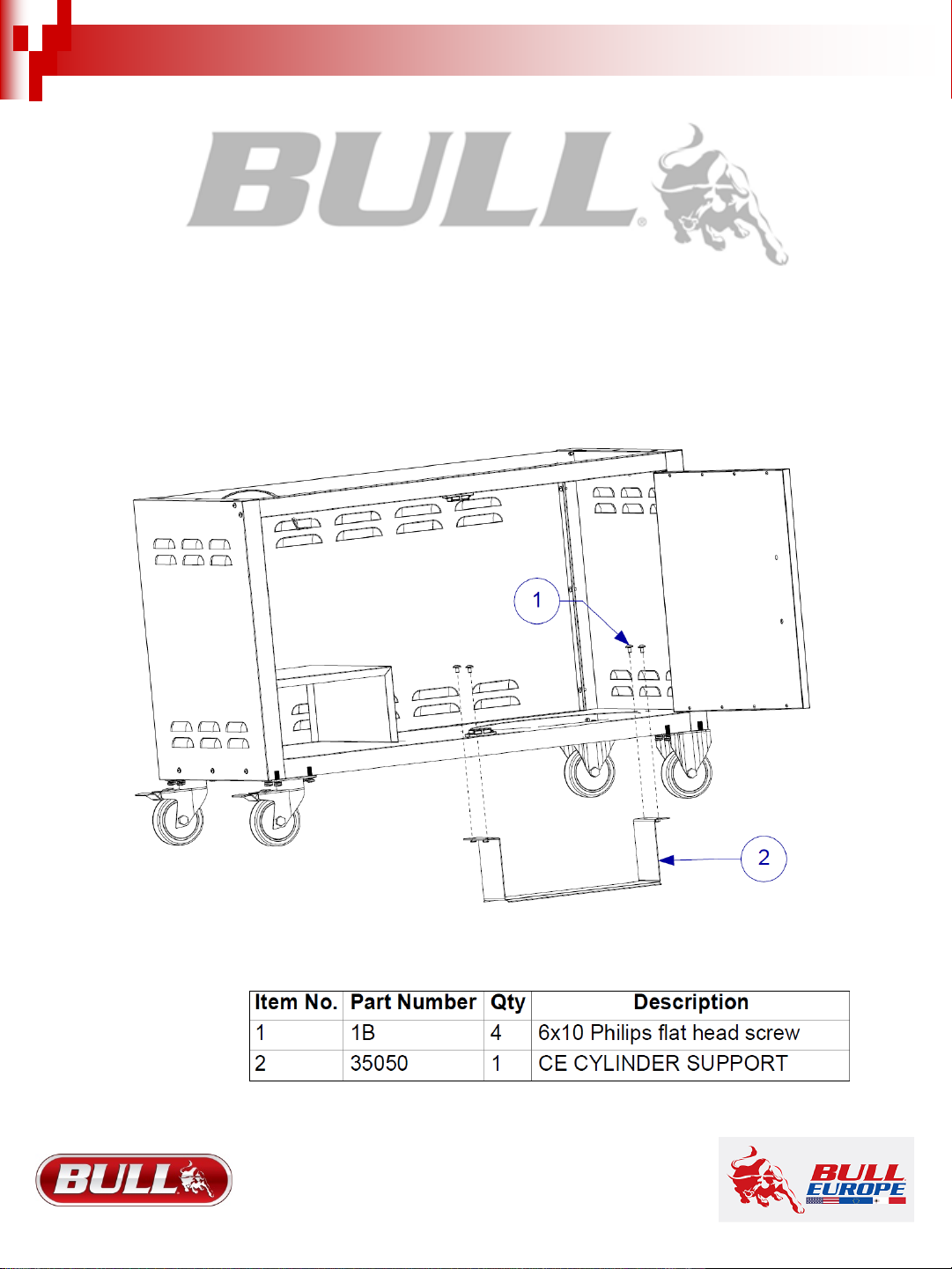

Step #2: For CE versions only ,fix the cylinder support bracket underneath the cart using the 4 (1B) screws suplied.
5

2017
ASSEMBLY INSTRUCTIONS (Cont.)

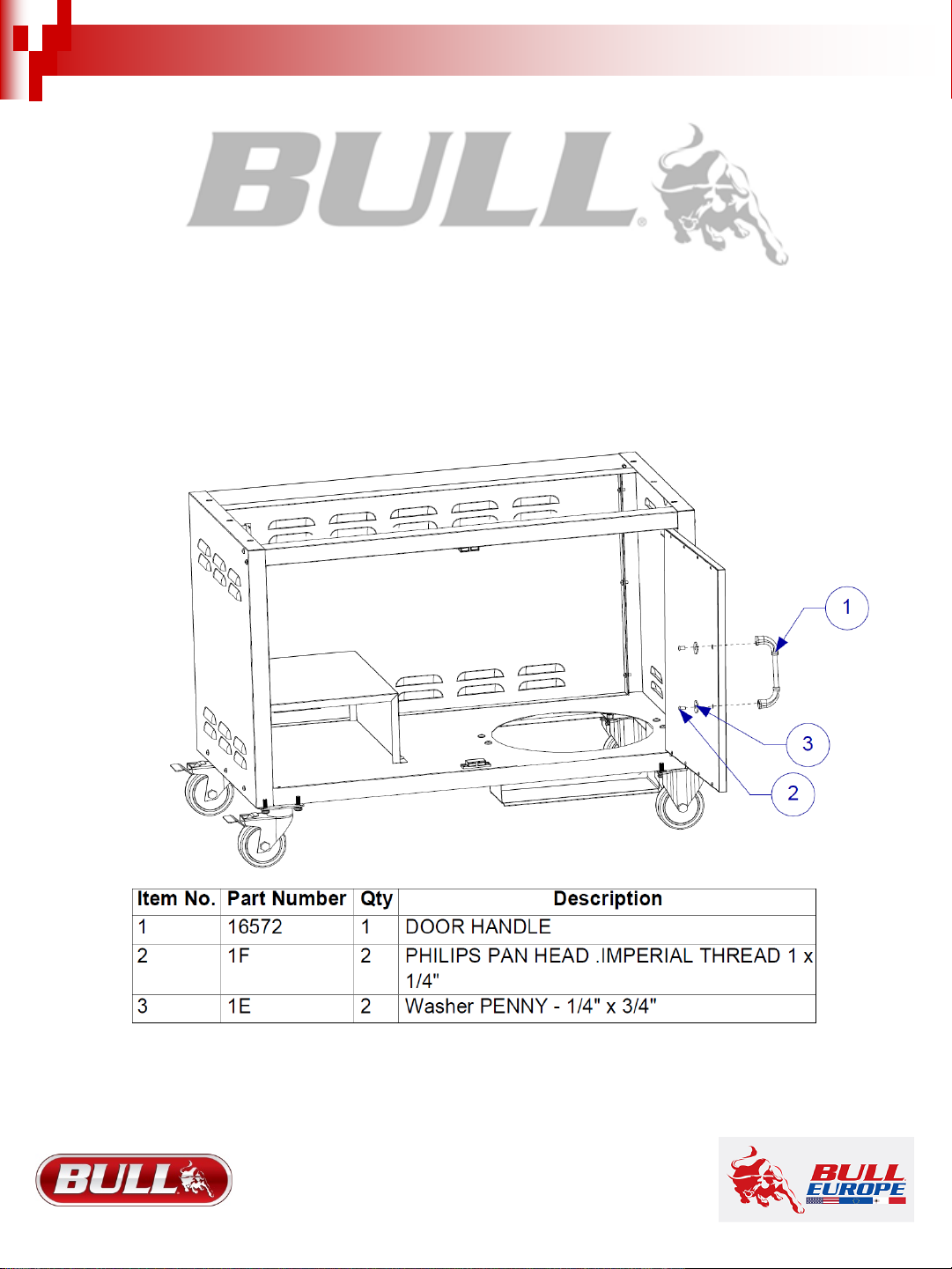

Step #3: Use two1 x ¼” (1F)Philips pan head screws and two ¼” x ¾”washers (1E) for each handle and attachthe handles on
the exterior of each door.
6

2017
ASSEMBLY INSTRUCTIONS (Cont.)

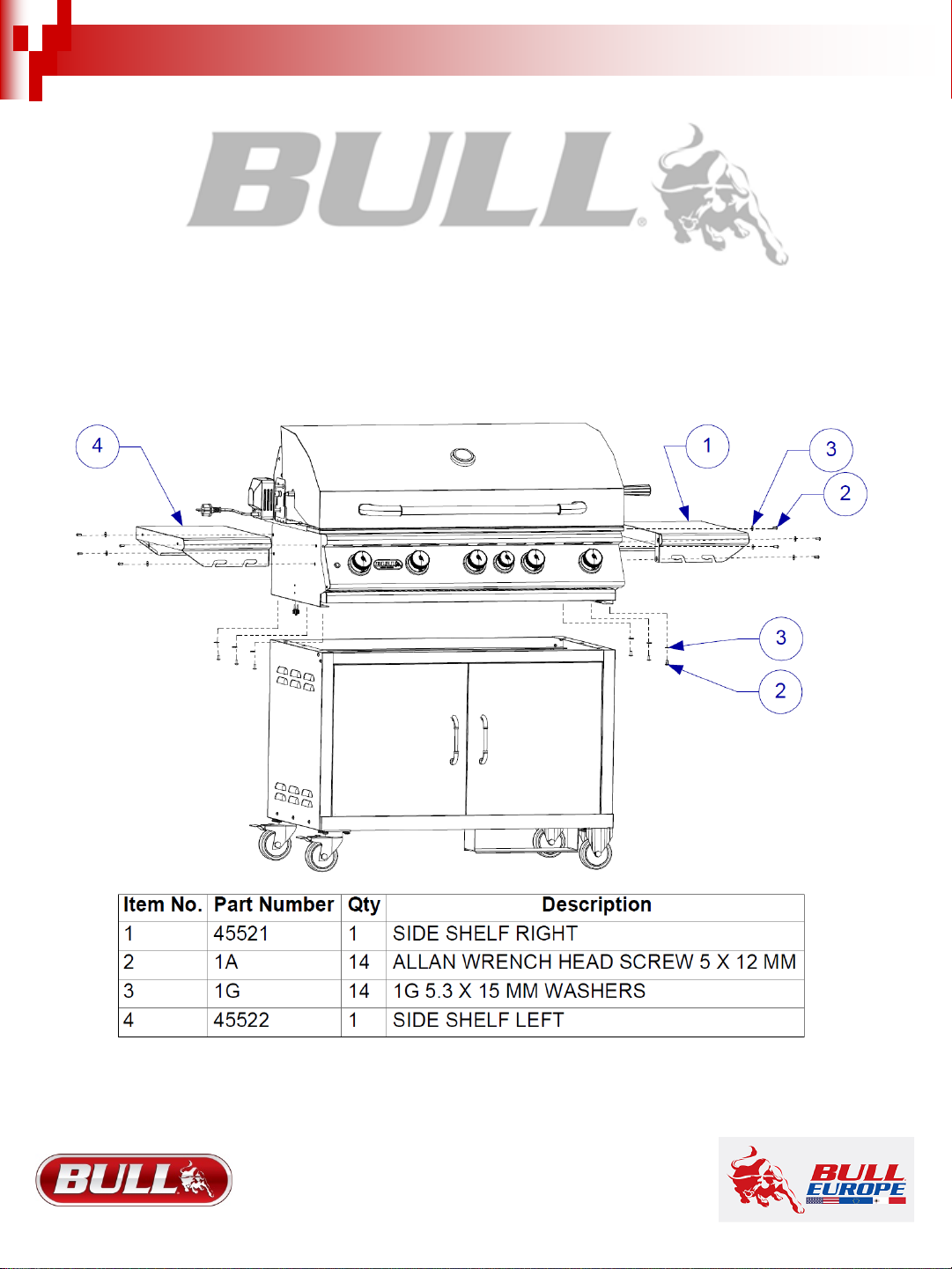

Step #4. Ensure the swivel casters are in thelocked position inorder to prevent the cart from moving and causing injury. Place the grill head
onto the cart (this step will require at least 2 people). Attachthe grill head tothe cart body using six 5 x 12 mm phillips head screws (1A) and six
flat washers 5.3 x 15 mm(1G) .Use the 3mmHexagon wrench supplied. Align the slots on the bottom. ofthe grill head to the slots ofthe cart.
Tighten as needed.
7

2017
ASSEMBLY INSTRUCTIONS (Cont.)

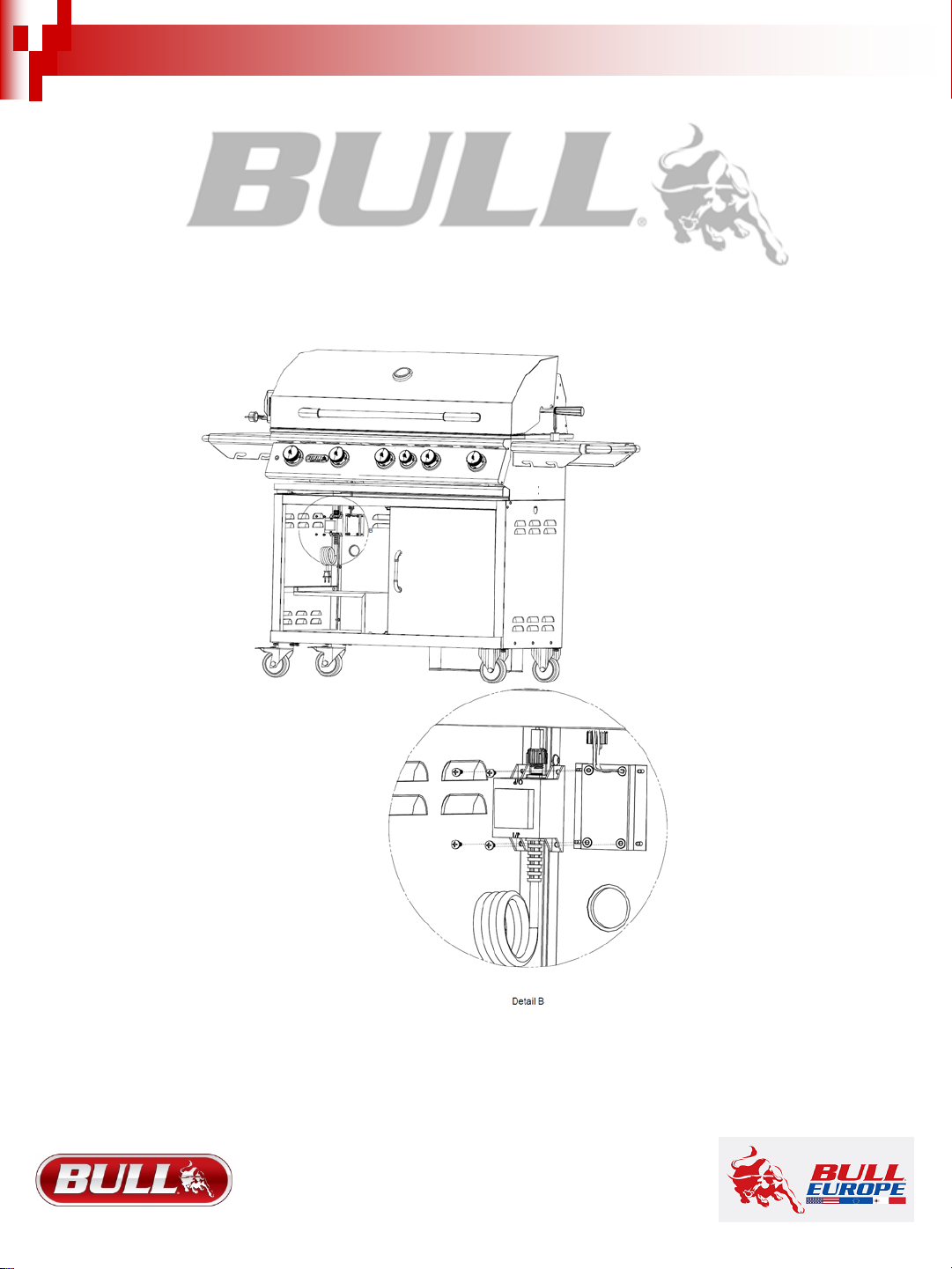

Step #5. If your grill head is equippedwith an interior light system, attachthe grill head transformer to the plate on the inside leftof
the cart. The screws are already pre-assembled onto the plate.
Your grill cart is now completelyassembledand ready for use!
Please read and understand allsafety, warning and use instructions in the grill manual before use.
8

2017
CLEANING & MAINTENANCE
CLEANINGTHE GRILLCART
2 easy steps to help you clean your grill cart:
Make sure the grill head and cart are cool to the touch.
Wipe downthe cart with stainless steel cleaner.
STAINLESSSTEEL CLEANINGAND MAINTENANCE
Stainless steel is a corrosion resistant chromium/nickelalloy steel that is both durable as well as strong with an outstandingluster.
The goal of your cleaning and maintenanceroutine should be to keep thestainless steel’s protectivechromium oxide layer intact.
This is what prevents corrosion. Contrary to popularbelief, stainless steel is NOT rustproof, especially in the environment of a
swimmingpool. Chlorine, bromine,some fertilizers and other elements are extremely caustic chemicals for stainless steel. These
chemicals combined with heat and humiditygreatly increase the corrosiveness of these chemicals. Regular cleaning is the best
way to prevent corrosion and addyears of enjoyment to your Bull stainless steel products.

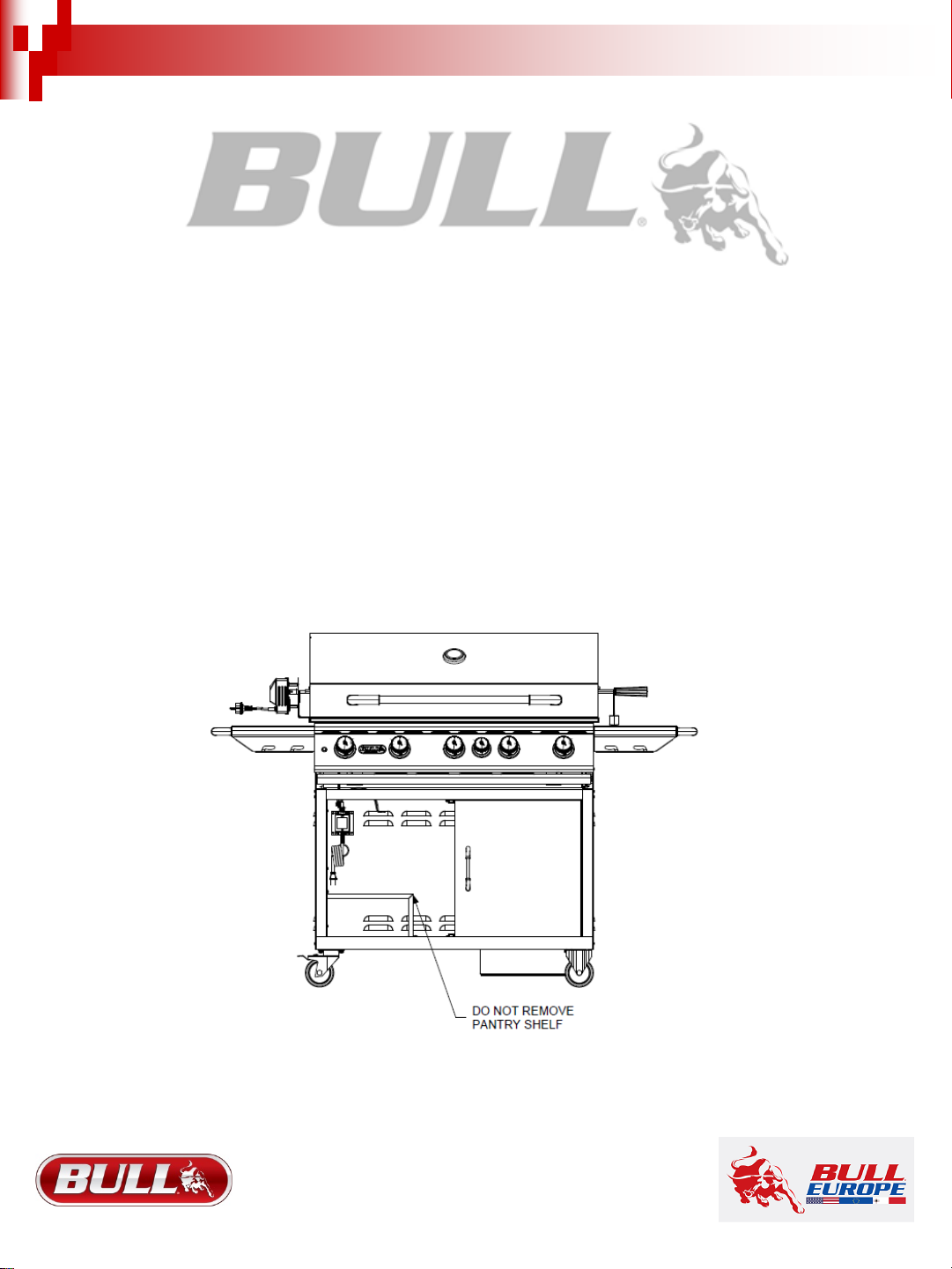

WARNING! Do notremove the secondary tank prevention bar. Storing a secondtank in your cart could cause serious injury.
9

2017
PARTS LIST
HOW TO ORDER REPLACEMENTPARTS
Please refer to the parts list on this page.
To make sure you obtain thereplacement parts for your grill cart,the following information isrequired to assure the
correct part.
1. Reference numberof replacementpartneeded.
2. Descriptionof replacementpartneeded.
3. Quantity of parts needed.
IMPORTANT: Use only factory authorized parts. The use of any part that is not factory authorized can be
dangerous and will void your warranty.
IMPORTANT: Keep this assembly and operating instruction manual for referral, and for replacement parts ordering.
Serial number location: Please record your serial number on the limitedwarranty page of this manual. It isimportant
that this stepis completed in order to ensure that correct parts are provided.
•Warranty period may vary depending Distributor andCountry regulations.
•Example:Minimumis 2 years in Europe.
MODEL #55510CE 970mm PEDESTAL CE CART
MODEL #55510 39” PEDESTAL CSA CART
FOR USE WITHANGUS , BRAHMA GRILL HEADS
10

2017

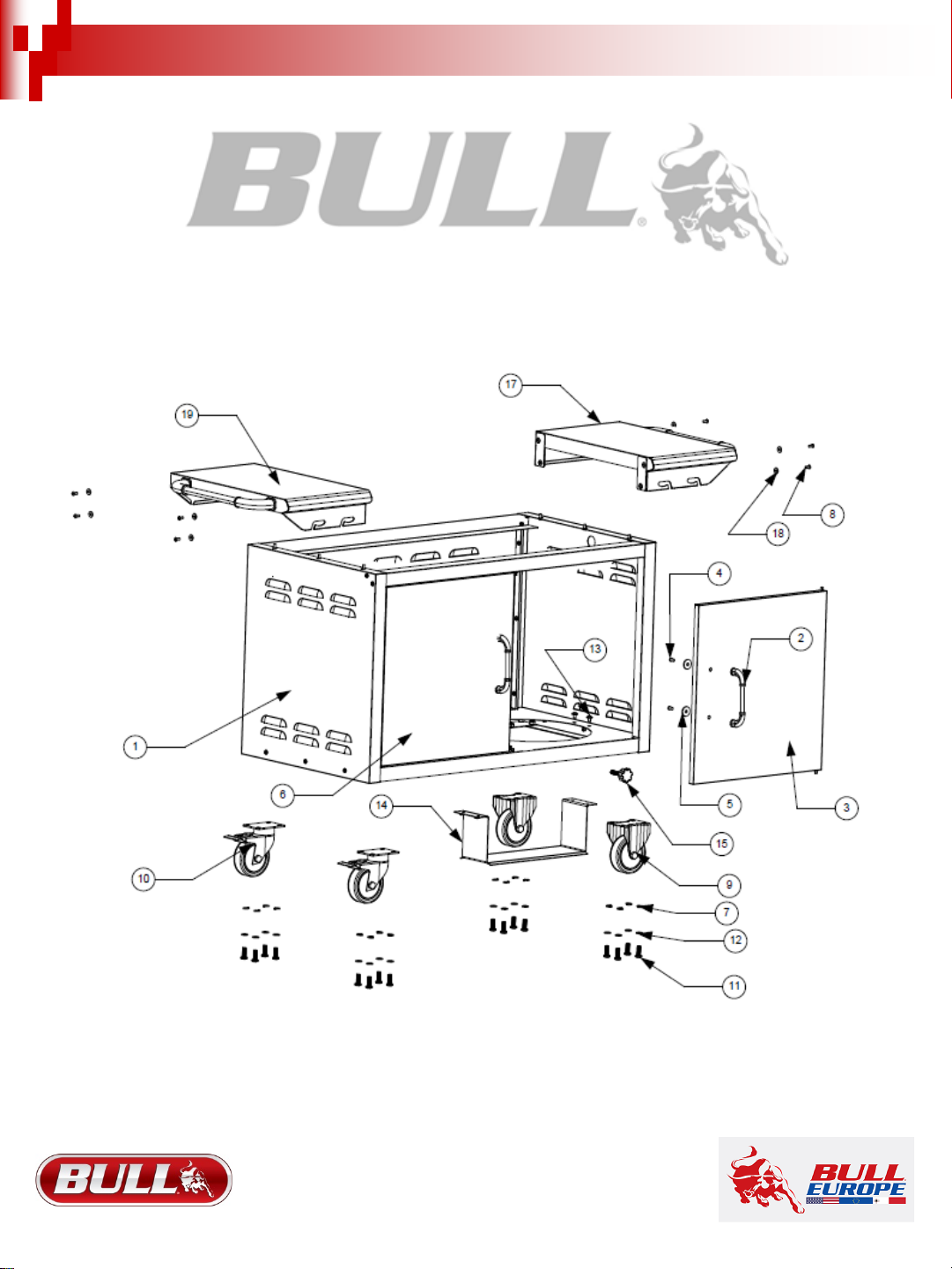

EXPLODED ILLUSTRATION
MODEL #55510CE 970mm PEDESTAL CE CART
MODEL #55510 39” PEDESTAL CSA CART
FOR USE WITHANGUS , BRAHMA GRILL HEADS
11

2017
LIMITED WARRANTY
REGISTERING YOUR GRILL
In order to validate your Bull Limited Warranty, you mustcompletethe Warranty Registration Card within 90 days from the Proof of
Purchase. You may register your unit either online at
www.bullbbq.com forWorldwide customers exceptEMEA
or by sending in the completed hard copy along with acopy of the Proof of Purchase to:
Bull Outdoor Products, Inc.,2483 W. Walnut Ave.,Rialto, CA 92376. ATTN:Warranty ServiceCenter
www.bullbbq.eu for EMEAcustomers
or by sending in the completed hard copy along with acopy of the Proof of Purchase to:
Bull Europe Ltd.,ZamcoBuildings ,MillStreet,Qormi,Qrm3103,Malta
Bull Outdoor ProductsInc. and BullEurope Ltd warrants to the original purchaser at the original siteof delivery with proof of purchase of
each Outdoor Gas Grill that when subject to normal residential use, it is freefrom defects inworkmanship and materials for the periods
specified below. This warranty excludes grills used in rental or commercial applications. It does not apply to rust, corrosion, oxidation or
discoloration, which may occur due tomoisture or overheating, unless the affected component becomes inoperable. It does not cover
labor or labor related charges. There will be ashipping and handling charge for the delivery of the warranty part(s).
Our obligation under this warranty is limitedto repair or replacement, at our option, of the product during the warranty period. The extent
of any liability of Bull Europe Ltd under this warranty islimitedto repair or replacement. This warranty does not cover normal wear of
parts, damage resulting from any of the following: negligent use or misuse ofthe product, use on improper fuel/gas supply, use contrary
to operating instructions,or alteration by any person other than our factory service center. The warranty period is not extended by such
repair or replacement.
Warranty claim procedure: If you require service or parts for your Bullgrill or if you have any questions about warranty, please contact
your local dealer or our Warranty ServiceCenters for direct assistance.
Bull Outdoor ProductsInc.
Our hours of operation are 8AM to 4 PMPST.Our phone number is [phone] and our FAX number is [phone].
Bull Europe Ltd.
Our hours of operation are 8AM to 5PMGMT+1. Our phone number is + 356 22792 113 and our FAXnumber is + 356 22792 120.
Product repair as provided under this warranty is your exclusiveremedy. Bull Outdoor Products Inc and BullEurope Ltd. shall not be
liable forany incidental or consequential damages for breach of any express or implied warranty on its products. Except to the extent
prohibited by applicable law, any impliedwarranty or merchantability or fitnessfor a particular purpose on this product to the duration of
the above warranty. Some EUCountries do not allow the exclusionor limitationof incidental or consequential damages, or allow
limitationson how longan implied warranty lasts,so the above limitationsor exclusions may not apply to you. This warranty gives you
specificlegal rights, and you may have other rights, which vary from Country to Country.
Model Number
Serial Number
Date of Purchase
*Attacha copy of your receipt orinvoice here*
