Bullmax BMEA-H35 Assembly instructions

Owner’s Manual & Safety Instructions
EARTH AUGER
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in
the back of the manual near the assembly diagram (or month and year of purchase if product has no
number). Keep this manual and the receipt in a safe and dry place for future reference.
WARNING
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL
When unpacking, make sure that the product is
intact and undamaged. If any parts are missing or
broken, please email [e-mail]
as soon as possible
MODEL: BMEA-H50
MODEL: BMEA-H50
MODEL: BMEA-H35
MODEL: BMEA-H35
MODEL: BMEAW-H50W
MODEL: BMEAW-H50W
Copyright©2015 by HAWK GROUP PTY LTD. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Hawk Group.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.

Table of contents
1. Introduction
2. Specications
3. Precautions
4. Selecting the correct auger and assembly
5. Starting engine
6. Drilling
7. Airlter
8. Spark plug
9. Gear
10. Fuellter
11. Cleaningmufer
12. Maintenance
13. Parts lists and exploded diagrams
14. Warranty
Page 2

Page 3

2. Specifications
Page 4

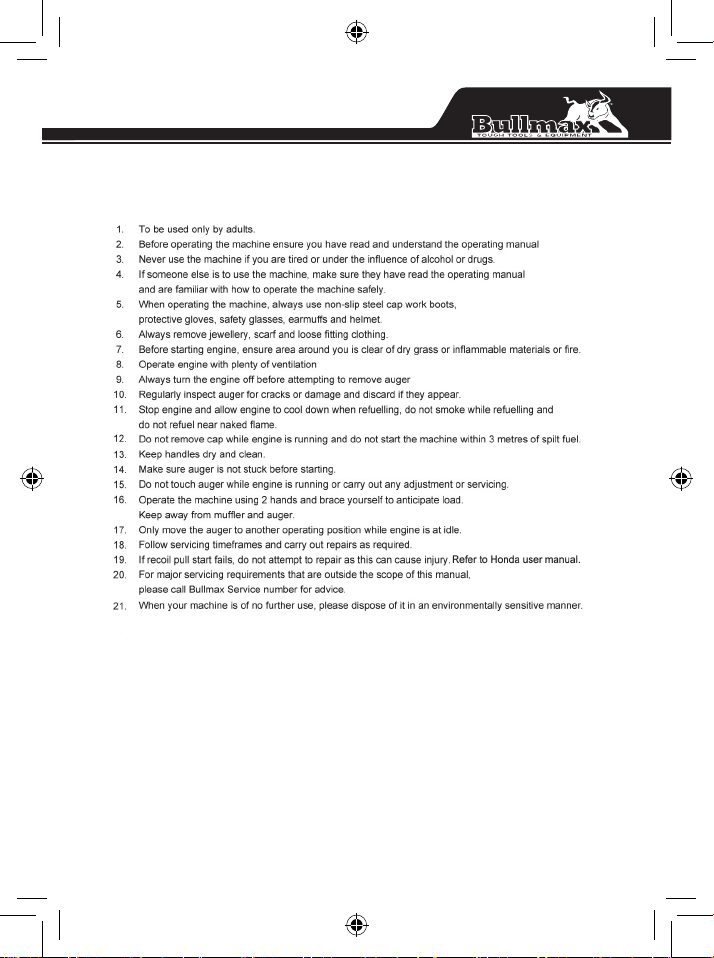

3. Precautions
Page 5

5. Starting engine: Refer to Honda User Manual
7. Air filter: Refer to Honda User Manual
6. Drilling
4. Selecting the correct auger and assembly
Page 6

8. Spark plug: Refer to Honda User Manual
10. Fuel filter: Refer to Honda User Manual
11. Cleaning muffler: Refer to Honda User Manual

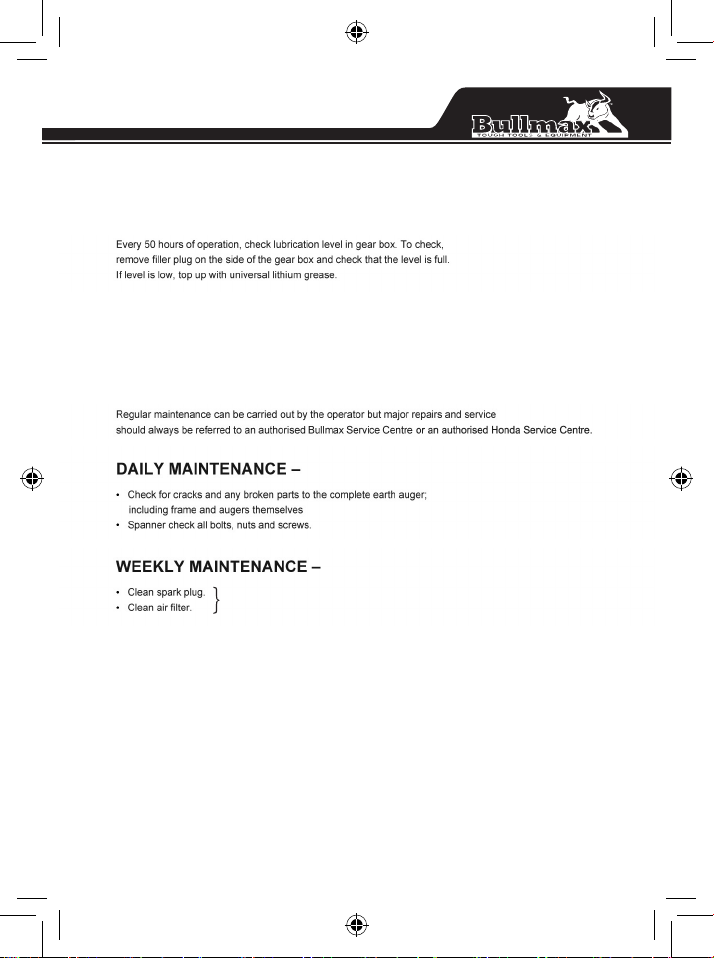

12. Maintenance
9. Gear
Refer to Honda User Manual
Page 7

Page 8

Page 9

13. Parts Lists and Exploded Diagrams
BMEAW-H50W
No.
Bullmax 1 Man Wheeled Auger
Qty
1
Engine ASSY Honda GX50
1
pcs
2
Connection board
1
pcs
3
Screw M6*25
4
pcs
4
AVS (Metal)
2
pcs
5
AVS (Rubber)
2
pcs
6
Mount frame
1
pcs
7
Screw M8*45
2
pcs
8
Umbrella metal gasket M8.5*20*1.5
4
pcs
9
Screw nut M8
2
pcs
10
Blockage cover
2
pcs
11
Screw M8*35
4
pcs
12
Gear case assy – HY-GC02-2007
1
pcs
13
Screw M6*50
4
pcs
14
Armrest
1
pcs
15
Screw M5*40
1
pcs
16
Umbrella metal gasket M6
1
pcs
17
ON/OFF & Trigger ASSY
1
pcs
17B
Throttle cable
1
pcs
18
Short shaft (size: 65*20*8)
2
pcs
19
Screw M10*50
2
pcs
20
Screw nut M10
2
pcs
21
Wheel frame
1
pcs
22
Wheel 12‘’
1
pcs
23
Screw M20*220
1
pcs
24
Screw nut M20
2
pcs
25
Bearing 6004-2RS
2
pcs
26
D Type clip
1
pcs
27
HY-HJJQ-S Auger bit (φ250* L 800mm)
1
pcs
28
HY-HJJQ-S Auger bit blade (φ250mm)
1
pcs
29
Screw M5*12
2
pcs
30
HY-HJJQ-S Auger bit Saw teeth blade (φ250mm)
1
pcs
Page 10

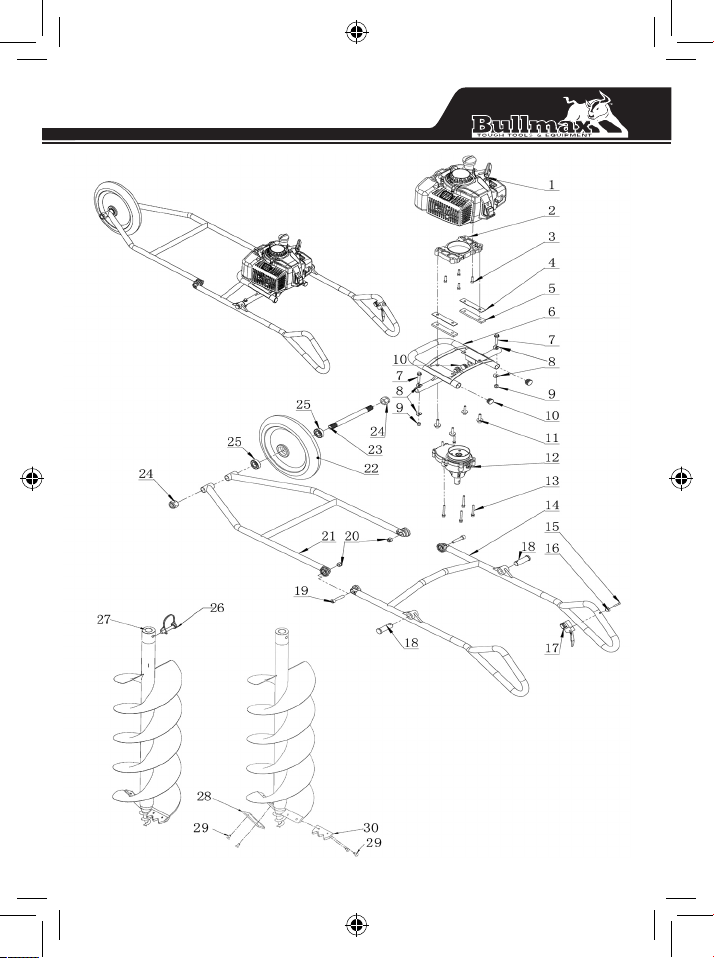

1 Man Wheeled Auger
BMEAW-H50W
Page 11

BMEA-H50
No. Bullmax 2 Man Earth Auger Qty
1
Engine ASSY Honda GX50
1
pcs
2 Gear case assy – HY-GC03-2012 1 pcs
3
Screw M6*25
4
pcs
4 AVS (Metal) 1 pcs
5
AVS (Rubber)
1
pcs
6 Handle 1 pcs
7
Screw M5*40
2
pcs
8 ON/OFF ASSY 1 pcs
9
Trigger with ON/OFF
1
pcs
10 Umbrella gasket 2 pcs
11
Screw M6*25
5
pcs
12 Spring reducer ASSY (1-10) 1 pcs
13
D Type clip
1
pcs
14 Double throttle line 1 pcs
15
HY-HJJQ-S Auger bit (φ150* L 800mm)
1
pcs
HY-HJJQ-S Auger bit (φ200* L 800mm) 1 pcs
HY-HJJQ-S Auger bit (φ300* L 800mm)
1
pcs
16
HY-HJJQ-S Auger bit blade (φ150mm) 1 pcs
HY-HJJQ-S Auger bit blade (φ200mm)
1
pcs
HY-HJJQ-S Auger bit blade (φ300mm) 1 pcs
17
Screw M5*12
2
pcs
18
HY-HJJQ-S Auger bit Saw teeth blade (φ150mm) 1 pcs
HY-HJJQ-S Auger bit Saw teeth blade (φ200mm)
1
pcs
HY-HJJQ-S Auger bit Saw teeth blade (φ300mm) 1 pcs
Page 12

300-800
200-800
150-800
2 Man Earth Auger
BMEA-H50
Page 13

BMEA-H35
No.
Bullmax 1 Man Earth Auger
Qty
1
Engine Assy: Honda GX35
1
pcs
2 Contractor plate 1 pcs
3
Screw M6*25
4
pcs
4
AVS (Metal)
2
pcs
5
AVS (Rubber)
2
pcs
6
Screw
1
pcs
7
Umbrella gasket
1
pcs
8
handle
1
pcs
9
Trigger
1
pcs
9B
Throttle cable
1
pcs
10
Screw
4
pcs
11
Gear case assy – HY-GC03-2012
1
pcs
12
Screw
4
pcs
13
D-Clip
1
pcs
14
HY-HJJQ-S Auger bit (φ100* L 800mm)
1
pcs
HY-HJJQ-S Auger bit (φ150* L 800mm)
1
pcs
HY-HJJQ-S Auger bit (φ200* L 800mm) 1 pcs
15
Spring reducer ASSY (1-10)
1
pcs
16
HY-HJJQ-S Auger bit blade (φ100mm)
1
pcs
HY-HJJQ-S Auger bit blade (φ150mm)
1
pcs
HY-HJJQ-S Auger bit blade (φ200mm)
1
pcs
17
Screw M5*12
2
pcs
18
HY-HJJQ-S Auger bit Saw teeth blade (φ100mm)
1
pcs
HY-HJJQ-S Auger bit Saw teeth blade (φ150mm)
1
pcs
HY-HJJQ-S Auger bit Saw teeth blade (φ200mm)
1
pcs
Page 14

150-800 200-800100-800
1 Man Earth Auger
BMEA-H35
Page 15

Gear case ASSY (for BMEAW-H50W)
BMEAW-H50W: Gear box model #: HY-GC02-2007
No.
Bullmax 1 Man
Wheeled Earth Auger
Qty
1
Connection board
1
pcs
2
Clutch drum
1
pcs
3
Spring clip 47mm
1
pcs
4
Bearing 6303-2RS
1
pcs
5
Input shaft
1
pcs
6
Up cover
1
pcs
7
Gear case gasket
1
pcs
8
Locate nut 5*10
2
pcs
9
Bearing R10
2
pcs
10 Double gearwheel 1 pcs
11
Output gearwheel
1
pcs
12 Spring clip 19mm 2 pcs
13
Screw M6*10
1
pcs
14
Gear case
1
pcs
15
Oil seal 20*35*7
1
pcs
16
Bearing 6004-2RS
2
pcs
17
Output shaft
1
pcs
18
Screw M6*38
2
pcs
19
Screw M6*50
4
pcs
Page 16

Gear case ASSY
(for BMEA-H35 & BMEA-H50)
BMEA-H35: Gear box model #: HY-GC03-2012
BMEA-H50: Gear box model #: HY-GC03-2012
No.
Bullmax 1 Man and 2 Man
Earth Auger
Qty
1
Clutch drum
1
pcs
2
Bearing 6301-2RS
2
pcs
3
Screw M6x10
1
pcs
4
Gear case - Top
1
pcs
5
Input shaft
1
pcs
6
Bearing 6201-2RS
3
pcs
7
Big gear wheel
1
pcs
8
Gear case gasket
1
pcs
9
Nut 1E40
4
pcs
10
Gear case - middle
1
pcs
11
Screw M5x25
4
pcs
12
Gear case gasket
1
pcs
13
Output gear wheel
1
pcs
14
Gear case - bottom
1
pcs
15
Bearing 6004-2RS
1
pcs
16
Spring clip 42mm
1
pcs
17
Oil Seal 20x45x7
1
pcs
18
Screw M5x40
4
pcs
Page 17

Spring reducer ASSY (1-10)
No.
Bullmax Earth Auger Cushioning Spring
Qty
1
D Type clip
1
pcs
2 Screw nut M8 2 pcs
3
Spring gasket
2
pcs
4
Umbrella metal gasket M8.5*20*1.5
2
pcs
5
B Casing
1
pcs
6
Screw M8*55
2
pcs
7 B shaft 1 pcs
8
Spring
1
pcs
9
A Casing
1
pcs
10
A shaft
1
pcs
Page 18

14. Warranty
Engine – Genuine Honda 3yr warranty. Refer Honda warranty terms
and conditons.
Gear Box and Auger Assy –
Page 19
