Bunker Indust RECOVERY-KIT002A User manual

USER MANUAL
COMPLETE RECOVERY KIT
SKU: RECOVERY-KIT002A
V1.0

IMPORTANT NOTE
Vehicle OCCUPANTS and BYSTANDERS have been KILLED by flying projectiles (such as tow
balls) when recovery straps have been attached incorrectly. NEVER attach recovery straps to
vehicle fittings such as tow balls, tow bars, tie-down points or tow hooks. ONLY attach
recovery straps to an APPROVED recovery point/device that is suitably rated for use with the
straps. BEFORE attempting a vehicle recovery all passengers must exit the vehicles and stand
as far away as possible.
BUNKER INDUST, a disruptive force that aims to help people pursue their passions in the great
outdoors with rugged looks and impeccable safety, is a professional provider of a full lineup of
4x4 upgrades and accessories that enable off-road enthusiasts to upgrade their vehicles and
pursue an outdoor lifestyle.
At BUNKER INDUST, we regularly spend time outdoors to understand your desire to have an
ideal rig. But that move is challenging and time-consuming. But it's what sets us apart.
Because we are driven by enthusiasm, not commission, and share the same passion for
vehicle upgrade as you do.
When you decide to build a vehicle to hit the trails, BUNKER INDUST is here to prepare it with
virtually all the off-road parts required to keep you safe, and make sure your vehicle looks and
performs as you want it to.
BUNKER INDUST, Build Your Own Legend.
WARNING
INCORRECT USE MAY RESULT IN INJURY OR DEATH
1

Exceeding the capacity of this product will cause it to fail. Do NOT use this product if it is
damaged in any way and always inspect prior to use.
Only use the snatch strap for the purpose it was designed for.
Never use your strap for lifting or conventional towing.
Persons intending to use this product should consider completing a nationally recognised four
-wheel drive training course, or contact a four-wheel drive club for comprehensive advice on
the proper selection and use of the recovery product.
If you have any doubts about whether the recovery procedure is within the minimum breaking
limit of your strap, DO NOT USE IT.
It is recommended that the minimum breaking strength of the strap should be between 2 and
3 times the vehicle's gross vehicle mass.
The strap must be suited to the gross vehicle mass of the lighter of the two vehicles used in
the recovery process.
Always drape the winch dampener over your strap while in use.
Be aware that a strap can lose up to 20% strength when wet.
Do not tie knots with the snatch strap.
Never over-tighten the shackle pin. Forces exerted on the shackle by vehicle recovery can
cause the pin to seize. The correct method is to tighten the pin until it seats, then back off the
pin approximately 1/2 to 1 full turn.
WARNINGS
SAFETY
Familiarise yourself with safe operating procedures before attempting to use the snatch strap.
Never attempt to recover a vehicle without all the necessary equipment.
All passengers should exit the vehicle. Passengers and spectators should stand more than 1.5
times the length of the recovery strap away from vehicles engaged in the recovery. Avoid
standing in the path of the vehicle performing the recovery.
Ensure good communication is maintained between participants and bystanders at all times.
This is best achieved by use of UHF radio.
2

CONTENTS

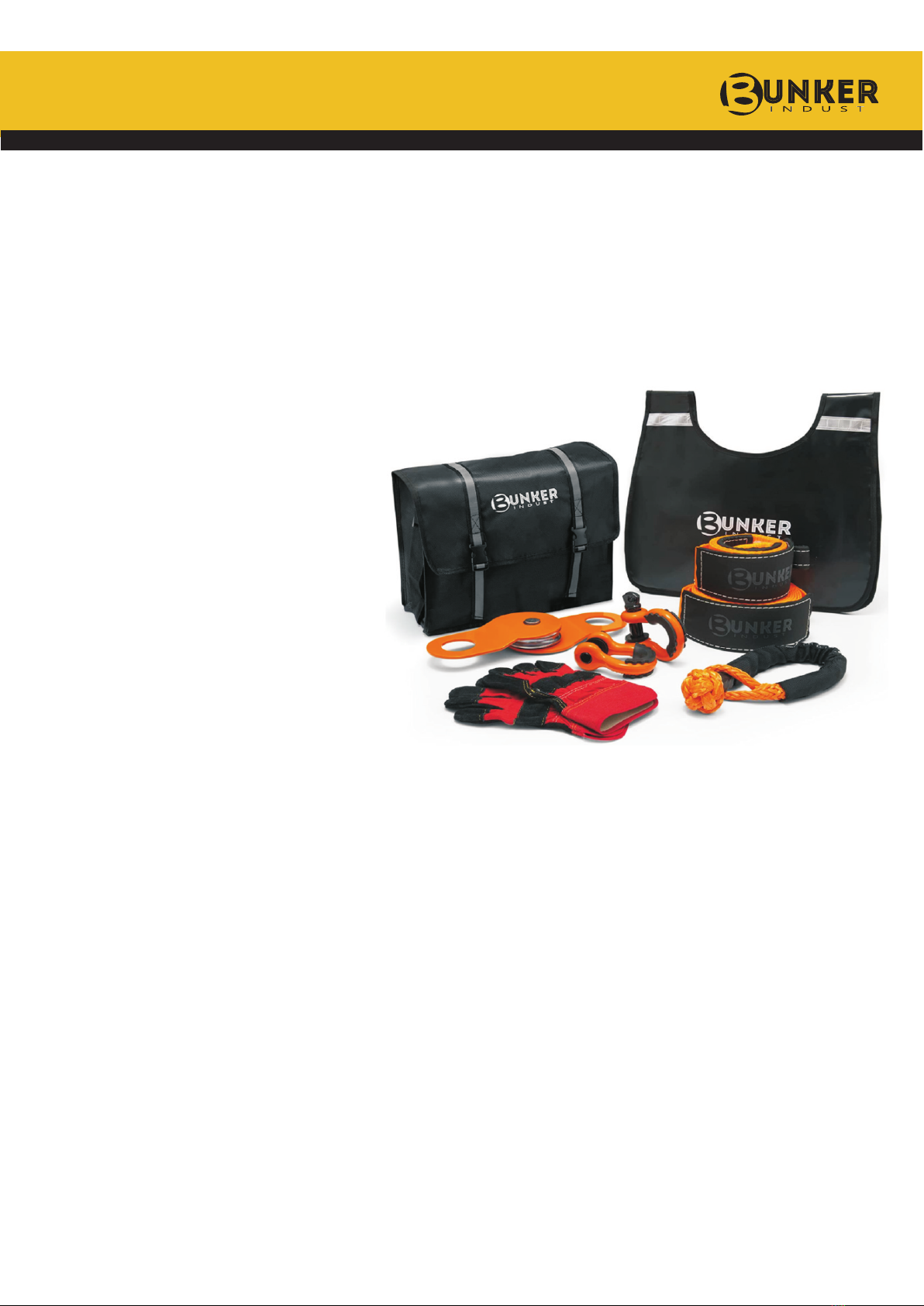

1 PC(s) BUNKER INDUST Snatch Strap (20ft)
1 PC(s) BUNKER INDUST Snatch Strap (8ft)
1 (Pair) BUNKER INDUST Bow Shackles
1 (Pair) BUNKER INDUST Bow Shackle Isolators
1 PC(s) BUNKER INDUST Soft Shackle
1 (Pair) BUNKER INDUST Leather Recovery Gloves
1 PC(s) BUNKER INDUST Snatch Block
1 PC(s) BUNKER INDUST Winch Dampener
1 PC(s) BUNKER INDUST Carry Bag
Snatch Strap (Short): 8ft
Snatch Strap (Long): 20ft
Snatch Strap Width: 3in
Snatch Strap Color: Neon Orange
Bow Shackle Color: Neon Orange/Black
Soft Shackle Color: Neon Orange
Snatch Block Color: Neon Orange
Leather Glove Color: Red/Black
Winch Dampener Color: Black
Carry Bag Color: Black
Snatch Strap Material: Polyester
Snatch Strap Sleeve Material: Polyester
Bow Shackle Material: PVC Coated Forged Iron
Bow Shackle Isolator Material: PP
Soft Shackle Material: UHMWPE
Soft Shackle Sleeve Material: Polyester
Snatch Block Material: PVC Coated Forged Iron
Leather Glove Material: Split Cowhide Leather
Winch Dampener Material: PVC
Carry Bag Material: Oxford Fabric
Breaking Strength (Snatch Strap): 32,000lbs (Single)
Maximum Load Capacity (Bow Shackle): 4.75T (Single)
Maximum Load Capacity (Soft Shackle): 11T (Single)
Maximum Load Capacity (Snatch Block): 8T (Single)
SPECIFICATIONS
3

USING THE SNATCH STRAP
The method for using a snatch strap is quite simple; however, improper use can cause
serious damage or injury.

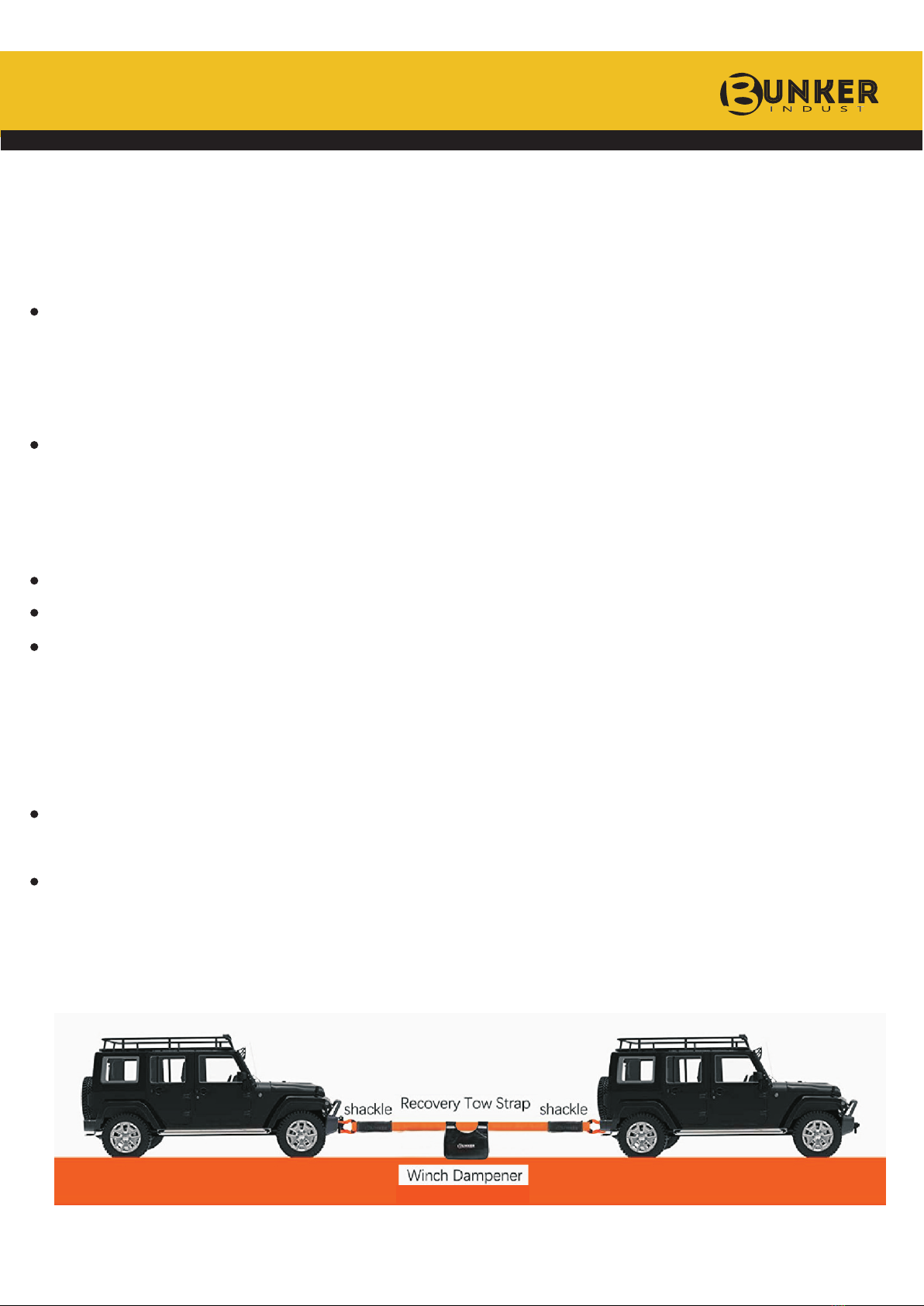

The recovery vehicle should be placed within reach of the snatch strap and if possible directly
in line with the direction of pull. If this is not possible due to insufficient length, two straps may
be joined using the correct method. Never join snatch straps with a bow shackle, as this may
become a lethal missile in the event of strap breakage.
The strap should be unrolled and connected to an approved recovery point on each vehicle
with a bow shackle / soft shackle ensuring that the strap is not twisted. Approximately 2~3m
of slack strap should be left between the vehicles. NEVER attach recovery straps to vehicle
fittings such as tow balls, tow bars, tie-down points or tow hooks.
Fix the dampener to the strap approximately mid-way between the vehicles.
Clear all bystanders from the recovery area to a safe distance.
With communications maintained between both vehicles, the recovery vehicle should gently
accelerate to take up the slack and proceed on, allowing the strap to pull out the stranded
vehicle. For best results the stranded vehicle can assist by trying to drive at the same time. If
the vehicle is not recovered on the first attempt, a little more speed by the recovery vehicle
may be needed.
Once free, the recovered vehicle should take care not to run over the snatch strap as damage
to the strap may occur.
Only once both vehicles are stationary and secured should the snatch strap be removed.
NOTE: Be aware that the recovery strap will be under greater load if the vehicle is bogged in
mud, sand or is heavily laden.
4

USING THE SOFT SHACKLE
Pass the soft shackle through the eyes of the recovery point and the recovery strap.
Open the eye of the soft shackle by sliding it along the rope and increasing the diameter
sufficiently to pass over the knotted end.
Slide the eye loop over the knotted end and then pull the eye loop tight around the shackle
and snug against the knotted end to create a secure connection.
1.
2.
3.

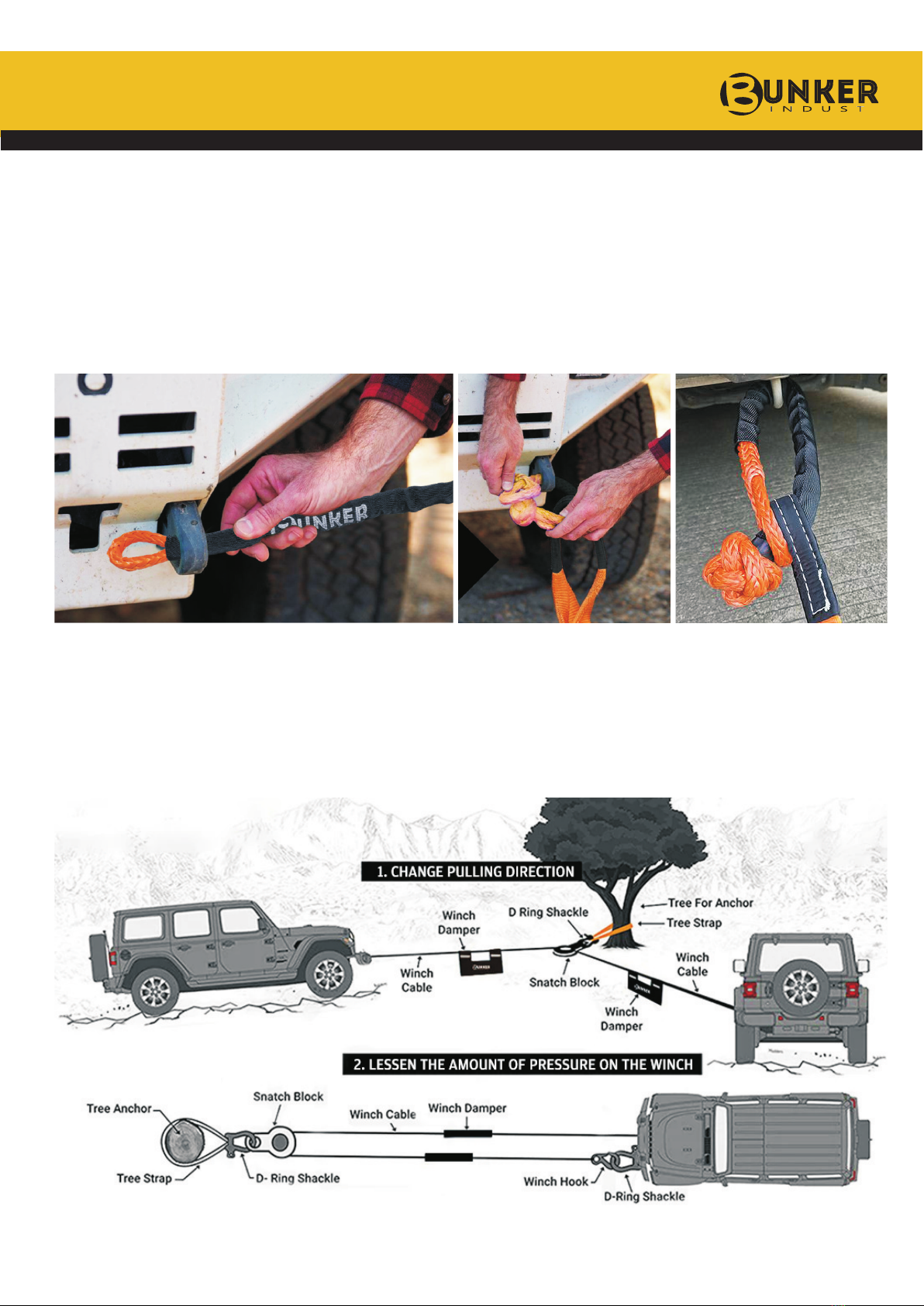

USING THE SNATCH BLOCK
A snatch block has two main purposes. It can be used to alter the direction of pull if straight
ahead isn't the best option. It can also be used to lessen the amount of pressure on the winch
to extend its lifespan.
5

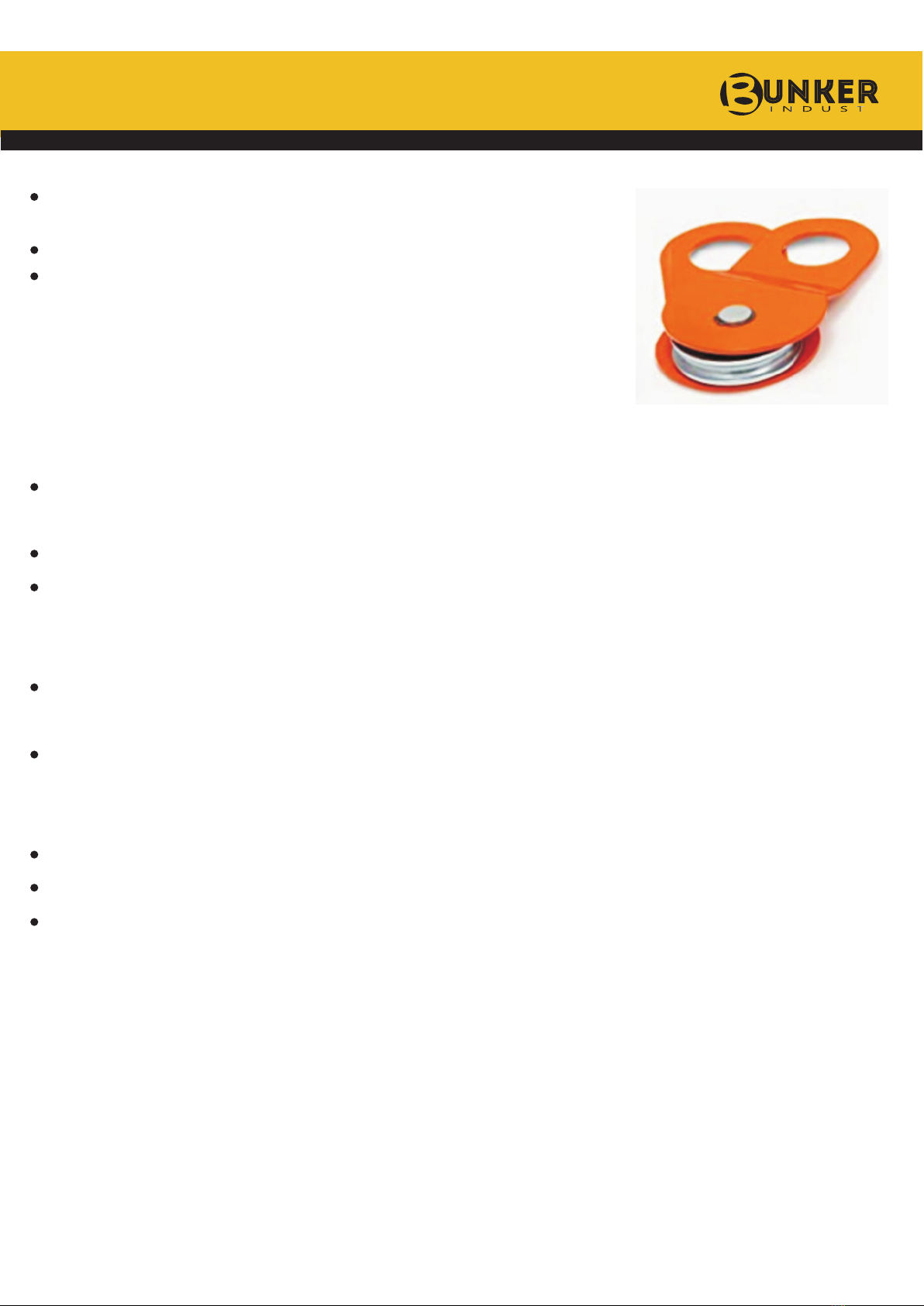

To attach the snatch block to the rope, slide the plates so
that they are 90 degrees apart.
Place the rope around the pulley and realign the plates.
Attach the pulley to the anchor point via a shackle through
the side plate holes.
Inspect the entire length of any strap for nicks and cuts before and after use. If damaged, the
strap may fail and should be replaced.
Avoid kinks and twists in the webbing & keep clear of all sharp and hot surfaces.
Always ensure your snatch block is clean. Remove any foreign matter from the working
surfaces of the pulley. After cleaning a small amount of lubrication can be placed on the
bearing for continuous trouble-free use.
Inspect all bow shackles for damage. Pins that are hard to turn suggest that the shackle has
been overstressed and should be replaced.
Clean your straps in warm water with a mild detergent and allow to dry thoroughly before
storage. The ingress of foreign material such as sand and grit can permanently damage the
fibres of the strap.
Never pressure wash snatch strap.
Always coil your straps during storage.
When storing, ensure strap is completely dry and not stored in direct sunlight or wet/humid
environment.
GENERAL CARE AND MAINTENANCE
6

BUNKER INDUST warrants that each complete recovery kit that is purchased while this
Warranty is in effect will be free from defects in materials and workmanship for a period of 1
year from the date of receiving the product from BUNKER INDUST or its authorized distributor
/dealer. If it is believable to be defective during the 1-Year Warranty Period, BUNKER INDUST
will, at its option, replace it with the same or similar product or will issue a refund for the
defective BUNKER INDUST product.
And BUNKER INDUST will pay for the cost of shipping or transportation of a defective
component.
This warranty terminates if a purchaser transfers the product to any other person. And please
retain your purchase receipt for your records.
Please ensure that the BUNKER INDUST complete recovery kit should be used and maintained
in accordance with warnings listed in the user manual, and should be used for the purpose for
which it was designed.
THIS LIMITED WARRANTY DOES NOT COVER:
normal wear and tear;
fitting the product other than in accordance with the product information and any relevant
vehicle safety and compliance laws, including incorrect fitting;
using the product other than for the purpose for which it was originally designed or other than
in accordance with the product information and any relevant vehicle safety and compliance
laws, including unusual, improper or negligent use or misuse or overloading;
improper repair or maintenance or failing to repair or maintain;
alteration, abuse, acts of nature, terrorism, vandalism, collision, road hazards or adverse
conditions.
If further information or investigation is required or if the claim does not meet the
requirements under our warranty, BUNKER INDUST'll let you know.
WARRANTY
