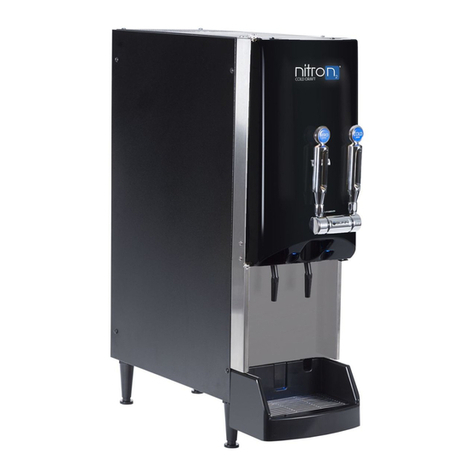

Bunn COLD DRAFT nitron 2 Configuration guide

LOADING
Frozen Concentrates
NOTE: Loading frozen concentrate in the product cabinet may cause damage to the machine. This damage is not
covered by warranty.
1. Thoroughly mix the thawed concentrate by vigorously shaking the product container.
2. Open the dispenser door.
3. Prior to placing the product container in the dispenser, make sure that the o-ring on the container adapter is
lubricated. This will ease removal of the container when it becomes necessary.
4. Place the product container in the desired position and press it firmly into the bottle adapter opening.
5. Open the vent hole in the product container. (If required)
Note: Concentrate in the container must be completely thawed and be within the temperature range of 35-40 degrees F
(1.6-4.4 degrees C.) Product outside of this temperature range, especially below, may produce an “out of ratio” drink.
Ambient Concentrates (Optional)
1. Install an Ambient Concentrate Conversion Kit (BUNN-O-MATIC part number 33699.0002) per the instructions
provided in the kit.
2. Attach the concentrate product hose to the appropriate concentrate line located at the rear of the dispenser.
3. Attach the other end of the product hose to the product container through an appropriate fitting.
NOTE: Although the dispenser is designed to accept ambient concentrates, the Nitro Coffee cascade performance
may be reduced due to ambient product mixing with the cold nitrogenated water.
PRIMING
1. Open the dispenser door
2. Load concentrate per instructions in section titled Loading.
3. Close the dispenser door.
4. Place a large container under the appropriate dispense nozzle.
Pull and hold the tap handle, until concentrate dispenses from the dispense nozzle.
Note: This may take several seconds, depending on the installation and set pump speed.
55076.0001A 07/18 ©2018 Bunn-O-Matic Corporation
(Continued)
Care & Cleaning Instructions

Recommended Daily Cleaning Instructions
The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces
on Bunn-O-Matic equipment. Do NOT clean this equipment with a water jet device.
55076.0001 070918
13. Dispense from each station un-
til product flows from the dispense
nozzle.
Weekly: 1. Remove air filter from
dispenser rear panel by lifting
upwards out of brackets.
2. Wash and rinse filter. Shake out
excess water and re-install filter in
rear panel brackets.
-
-
5. Open dispenser door and recon-
nect the BIB connectors back onto
the BIB’s.
6. Remove dispense nozzles and
drip tray. Wash all parts in warm
soapy water.
7. Use brush to clean through
dispense nozzles.
Brush/PN: 49827.0000
8. Use brush to clean the
nozzle Nitro Stout Insert.
-
9. Use brush to clean nozzle con-
nection ports on machine.
11. Apply small amount of food
grade lubricant to nozzle o-rings.
10. Use a warm damp cloth, wipe
down cabinet interior and splash
panel behind nozzles.
12. Replace drip tray and nozzles.
Be sure to install Nitro nozzle in
left dispense station.
Dirty
Clean
1. Open dispenser door. Brush and
lubricant stored inside
cabinet. Lube/PN: 44023.0001
2. Locate the product tubes with BIB
connectors and disconnect from the
Bag-in-Box.
3. Close door, place an empty
container under the dispense
nozzles.
4. Dispense from each station
until clear water flows from the
dispense nozzle.
SCHOLLE/ASTRA DAILY RINSE INSTRUCTIONS
