Burn Fitness Products S-III User manual

S-III USER MANUAL

2
Product Specifications
Product Dimensions
56in x 36in x 60in
Product Weight
280lbs
Max User Weight
300lbs
Applicable Standards
ASTM F2276-10
Standard Specification for Fitness Equipment
ASTM F2810-10
Standard Specification for Elliptical Trainers
For Consumer Use Only
S-III rev 01

3
Contents
General Information .............................................................................................. 5
Precautions............................................................................................................ 5
Storing ............................................................................................................... 5
Moving............................................................................................................... 5
Placement .......................................................................................................... 5
User ................................................................................................................... 5
Minimum Clearance........................................................................................... 5
Personal Safety .................................................................................................. 5
Equipment ......................................................................................................... 6
Narrow Doorways .............................................................................................. 6
Product Labeling .................................................................................................... 7
Assembly ............................................................................................................... 8
Parts List ............................................................................................................ 8
Steps ................................................................................................................ 11
①.................................................................................................................... 11
②.................................................................................................................... 12
③.................................................................................................................... 13
④.................................................................................................................... 14
⑤.................................................................................................................... 15
⑥.................................................................................................................... 16
⑦.................................................................................................................... 17
⑧.................................................................................................................... 18
⑨.................................................................................................................... 19
⑩.................................................................................................................... 20
S-III....................................................................................................................... 21
S-III rev 01

4
Console Instructions ............................................................................................ 22
Upper Screen Indicators................................................................................... 22
Lower Screen Indicators and Controls.............................................................. 23
QUICK START Mode ......................................................................................... 24
WARM UP Mode .......................................................................................... 25
MANUAL Mode ............................................................................................ 26
FAT BURN Mode .......................................................................................... 27
TRAINING Mode........................................................................................... 28
RANDOM HILL Mode.................................................................................... 29
PERSONAL Mode.......................................................................................... 30
HEART RATE Mode....................................................................................... 31
BMI EVALUATION Mode............................................................................... 32
Advanced Settings............................................................................................ 33
Service & Troubleshooting................................................................................... 34
Maintenance Schedule..................................................................................... 34
Troubleshooting............................................................................................... 34
Cleaning ........................................................................................................... 34
Warranty Information...................................................................................... 34
Registration...................................................................................................... 34
Specifications....................................................................................................... 35
Contact Information ............................................................................................ 36
S-III rev 01

5
General Information
Please read this manual before use of the S-III.
Precautions
Storing
The S-III should be stored in a dry dust free environment.
Moving
Tilt the S-III up from the back to engage the wheels on the front of the
machine.
Note: The S-III is heavy. Employ additional help if necessary.
Placement
The S-III should be placed on a solid level surface. Locate the S-III near an
electrical outlet to minimize cord length.
User
The S-III should not be used by persons weighing more than 300lbs. Wear
appropriate exercise clothing without loose articles that could be caught in
the S-III’s moving parts during a workout.
Minimum Clearance
For access to, passage around and emergency dismount allow for 19.7in on
at least one side and 19.7in either behind the S-III pedals.
Personal Safety
Stop exercising if you feel faint, dizzy or experience pain. Do not insert any
object or body parts into any openings.
S-III rev 01

6
Equipment
Inspect the S-III before use to ensure working order. The S-III is for home
use only.
Narrow Doorways
Reverse Assembly Step ②for one or both sides to allow the S-III to fit
through narrow openings.
S-III rev 01

7

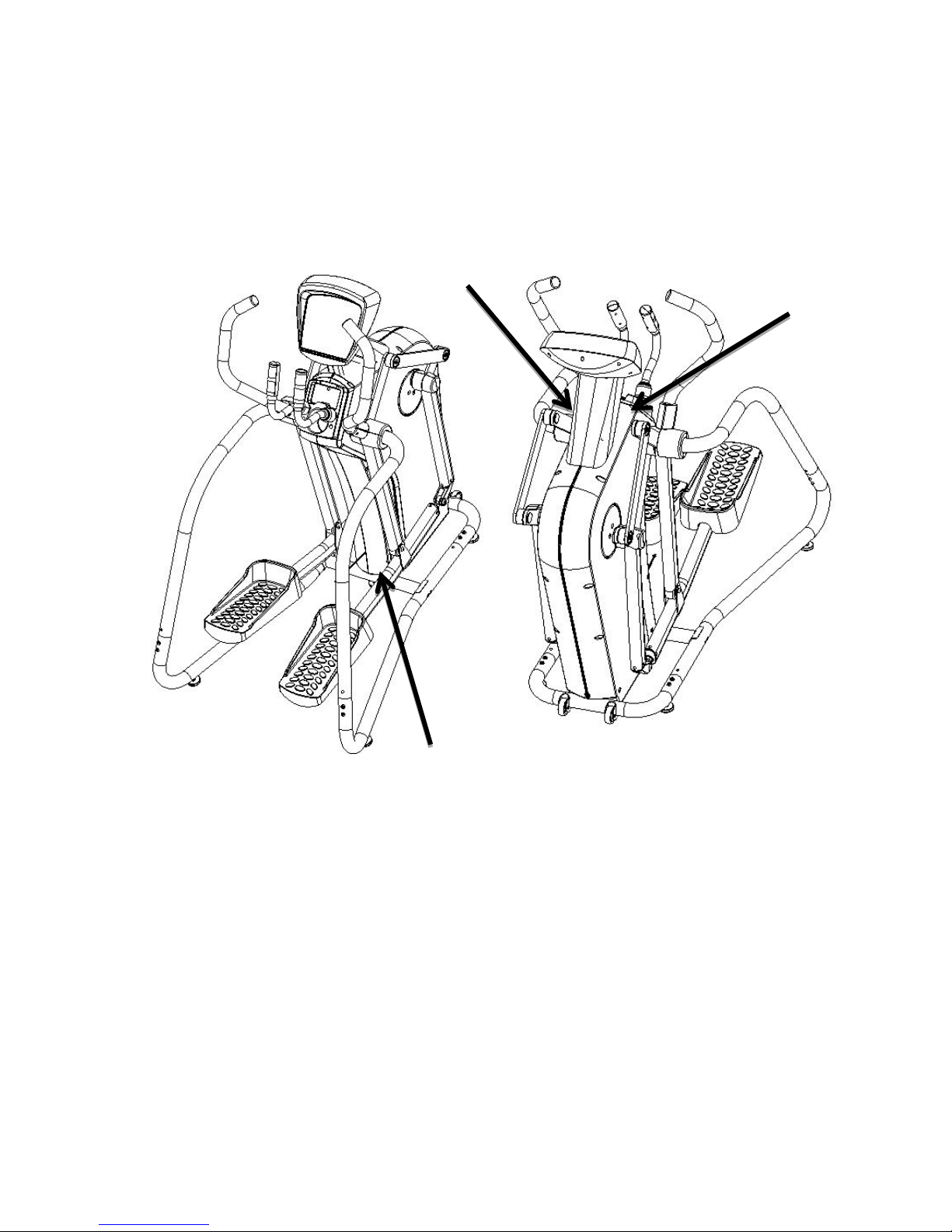

Product Labeling
Warning Label
Caution Label
Serial Number Label
S-III rev 01

8
Assembly
Unpack the S-III Base and Console Boxes carefully saving all parts.
Parts List
Before starting assembly verify all parts are present.
Hardware
S-III rev 01

9
S-III rev 01

10
S-III rev 01

11
Steps
①
S-III rev 01

12

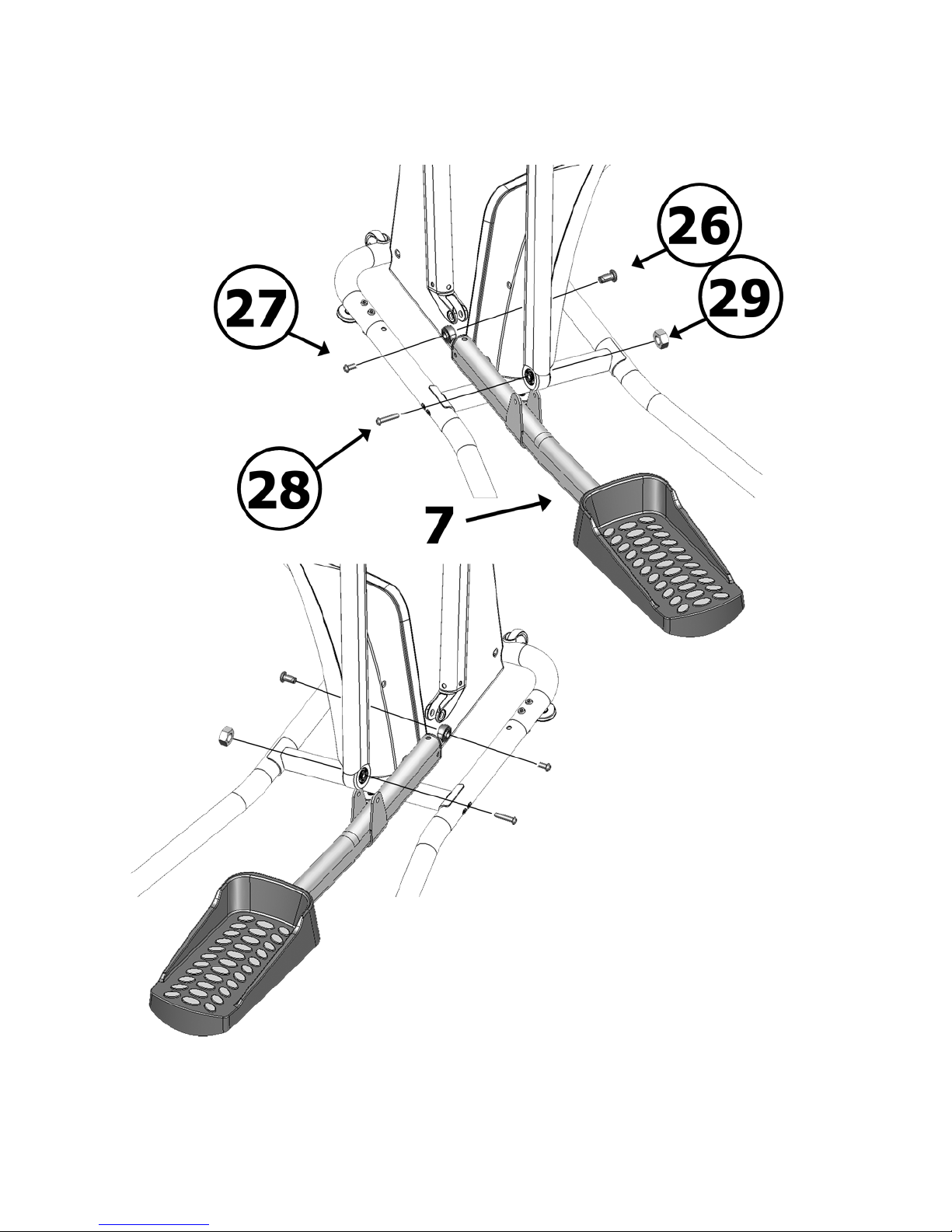

②
S-III rev 01

13

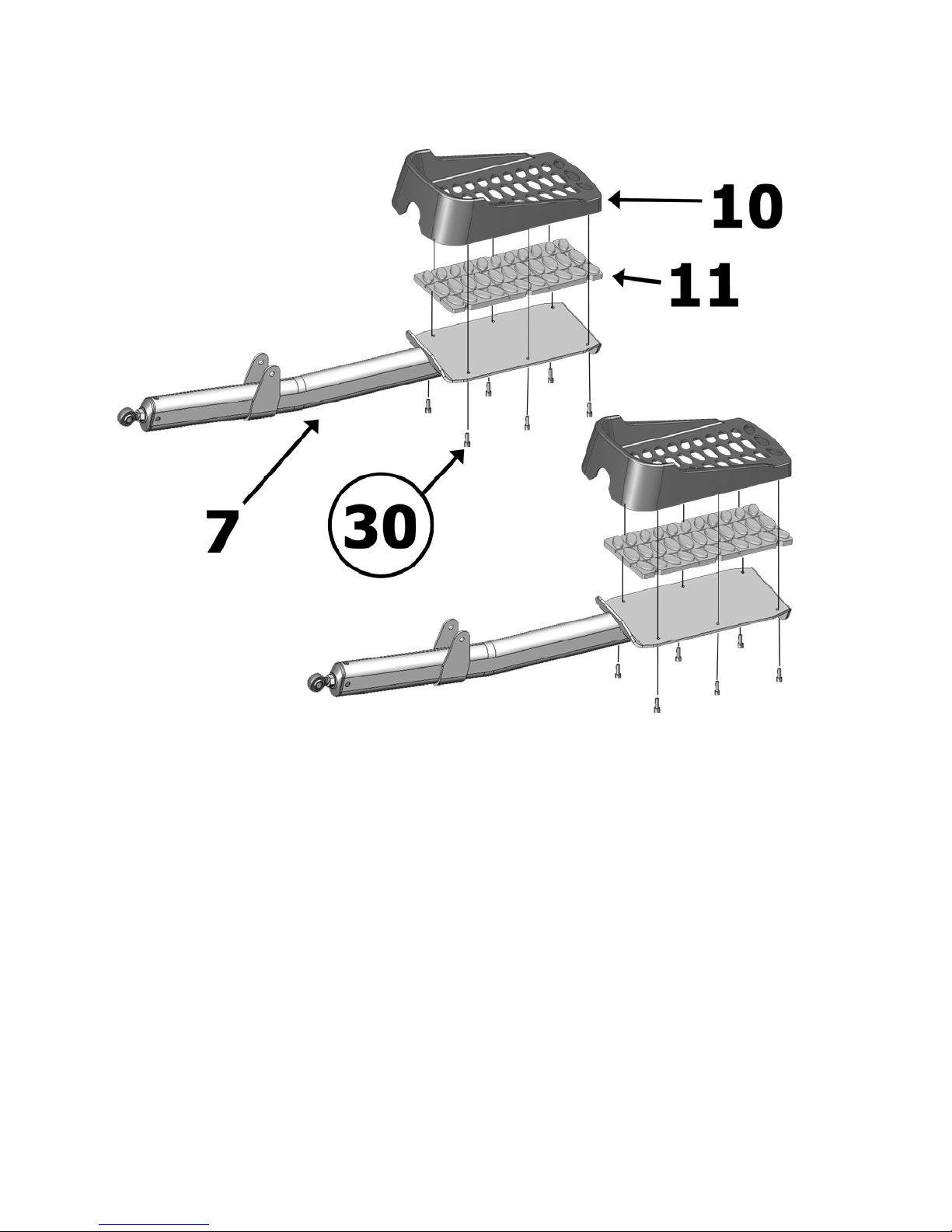

③
S-III rev 01

14
④
S-III rev 01

15
⑤
S-III rev 01

16
⑥
S-III Model Only
S-III Model Only
S-III Model Only
S-III rev 01

17

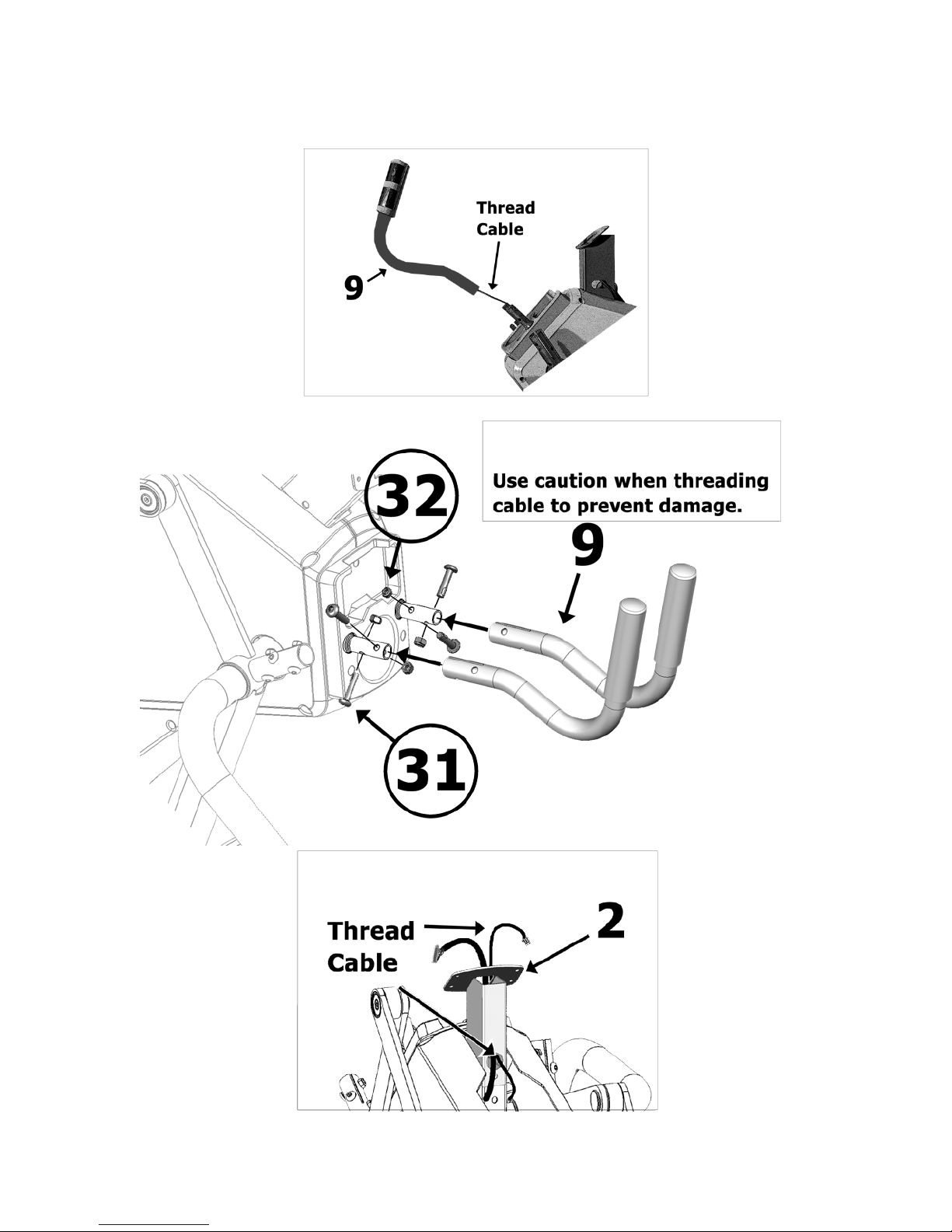

⑦
S-III Model uses Moving
Multi-Grip Handle Bars
S-III rev 01

18

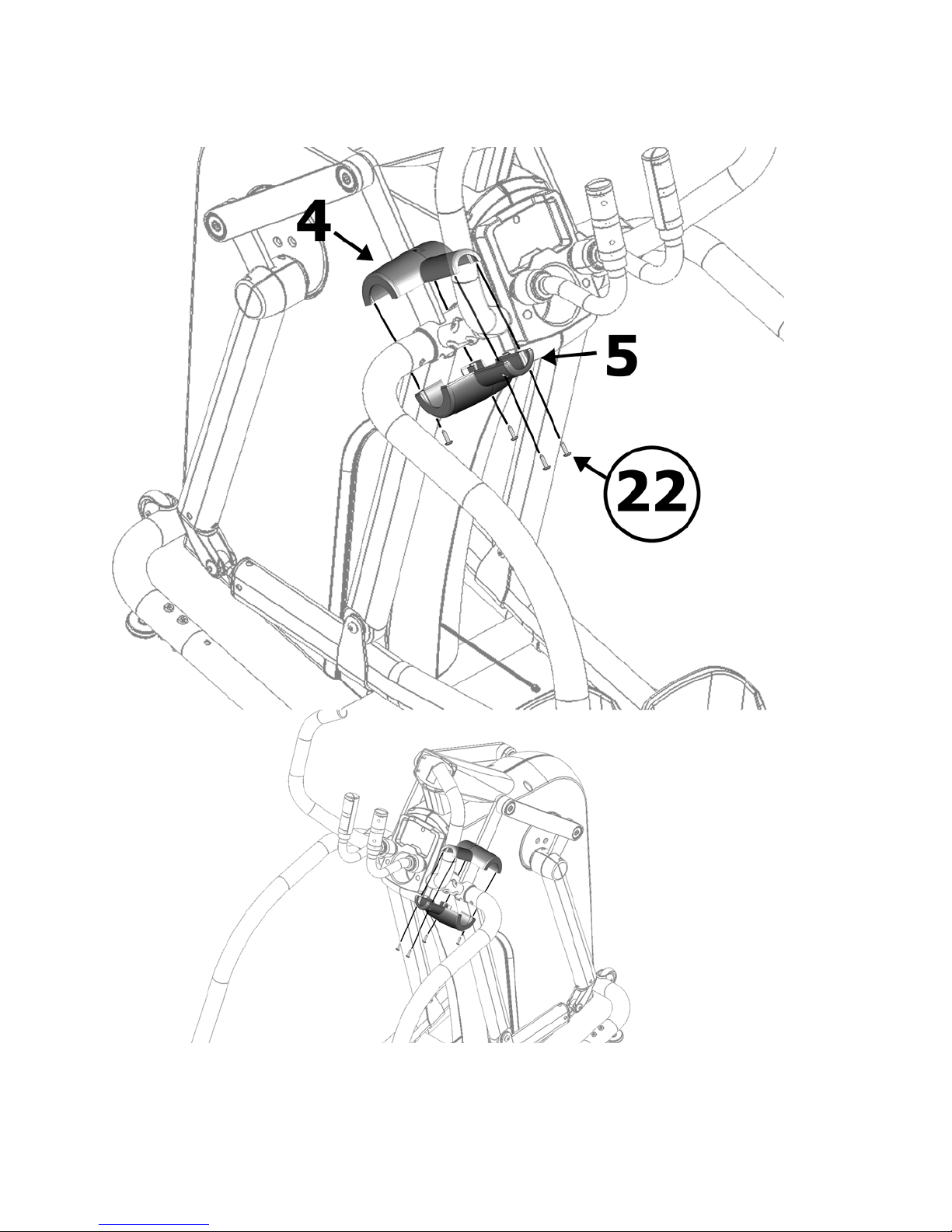

⑧
S-III rev 01

19
⑨
S-III rev 01

20
⑩
S-III rev 01
