Bush DWFS124C Assembly Instructions

RETRO DISHWASHER
Installation & User Instructions - Please keep for future reference
DWFS124C
DWFS124B
DWFS124R
Important – Please read these instructions fully before installing or using
These instructions contain important information which will help you get the best from your
appliance and ensure safe and correct installation, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 257
7271

Customer Helpline: 0345 257 7271
CONTENTS
Technical specications ……………………………………………………………........
•Conformity with the standards and Test data … ……………………………………...
Safety information and Recommendations………………………................................ 5
•Recycling .......………………………... ............................................................................. 5
•Safety information ………………………………………………………………………. 5
•Recommendations …...………………………………………………………………….
•Items not suitable for dishwashing ……………………………………………………. 9
Installing the machine ……………………………………………………………………….
•Positioning the machine ………………………………………………………………... 9
•Water connections …………………...... ... ... ... ... ............................. ... ... ... ... .... . .. .... ..... ..... 10
•Electrical connection…………………… ………………………………………………..
•Prior to using the machine ……………………………………………………………... 16
Preparing the machine for use ……………………………………………………………. 16
•The importance of water decalcification ……………………………………………… 16
•Filling with salt …………………………………………………………………………… 16
•Testing strip………………………………………………………………………………. 16
•Adjusting salt consumption……………………………………………………………... 1
•Detergent usage ……………………........................................................................ 19
•Filling the detergent compartment……………………………………………………... 19
•Combined detergent ……………………………………………………………………. 19
•Filling with rinse aid and making the setting………………………………………….. 20
1

•Fitting the machine undercounter …………………………………………. ................

Loading your dishwasher .…………………………………………………………………….. 21
•Top basket…..……………………………………………………………………………….. 21
•Alternative basket loads …………………………………………………............................ 24
Programme descriptions .…………………………………………………………………….. 26
•Programme items ………………………………………………………………………….. 26
2
Switching on the machine and selecting a programme……………............................... 28
•Switching on the machine………………………………………………………………….. 28
•Programme follow-up……………………………………………………………………….. 28
•Changing a programme …………………………………………………………………… 28
•Changing a programme with resetting ………………………………………………... 29
•Switching the machine off ….…………………………………………………………… 29
Maintenance and Cleaning .............................................................................................. 30
•Filters ..………………………………………………………………………………………. 30
•Spray arms …………………………………………………………………………………. 31
•Hose filter ………………………………………………………………………………… 31
Failure codes and what to do in case of failure ……………………………………….. 32
Practical and useful information……………………………………………………………. 34
Getting familiar with your machine …………………………………...................………… 27
Customer Helpline: 0345 257 7271


13
Active Drying Unit: This system provides
better drying performance for your dishes.
Customer Helpline: 0345 257 7271

:
4
Capacity 12 place settings
Height 845 mm
Height (without worktop) 815 mm
Width 596 mm
Depth 598 mm
Net Weight 46 kg
Electricity input 220-240 V, 50 Hz
Total Power 2200 W
Heating Power 2000 W
Pump Power 100 W
Drain Pump Power 30 W
Water supply pressure 0.03 MPa (0,3 bar)-1 MPa (10 bar)
Current 10 A
Producer company has its right to amend design and technical
specifications reserved.The machine's service life is 10 years (the
duration required to keep spare parts for the machine to fulfil its usage
functions).
ConformitywiththestandardsandTestdata/ECDeclaration of
Conformity
All stages related to the machine are executed in accordance with the
safety rules provided in all relevant directives of the European
Community. 2004/108/EC, 2006/95/EC,IEC 436/DIN 44990, EN 50242
Important Note for User:For softcopy of this user manual, please
contact following address:
"[email protected]”.In your e-mail, please provide the
model name and serial number (20 digits) which you can find on the
appliance door.
Customer Help line 03452577271
Technical specifications

5
SAFETYINFORMATIONANDRECOMMENDATIONS
Recycling
•Certain components and the packaging of your machine
have been produced from recyclable materials.
•Plastic parts are marked with international abbreviations:
(>PE< , >PS< , >POM<, >PP<, )
•Cardboard parts have been produced from recycled paper
and they should be disposed of into waste paper collection
containers for recycling.
•Such materials are not suitable for being disposed of into
garbage bins. They should be delivered to recycling centres instead.
•Contact relevant centres in order to obtain information on
methods and points of disposal.
Safety Information
When you take delivery of your machine
•Check for any damage to your machine or to its packaging.
Never start a machine damaged in any way, make sure to
contact an authorised service provider.
•Unwrap the packaging materials as indicated and dispose
of them in accordance with the rules.
The points to pay attention during machine installation
•Choose a suitable, safe and level place to install your
machine.
•Carry out the installation and connection of your machine by
following the instructions.
•This machine should be installed and repaired by an
authorised service agent only.
•Only original spare parts should be used with the machine.
• Before installing, be sure that the machine is unplugged.
Customer Helpline: 0345 257 7271

6
•Check whether the indoor electrical fuse system is connected
according to the regulations.
•All electrical connections must match the values indicated
on the rating plate.
•Pay special attention and be sure that the machine does not
stand on the electricity supply cable.
•Never use an extension cord or a multiple socket for making
a connection. The plug should be comfortably accessible after
the machine has been installed.
• After installing the machine to a suitable place, run it unloaded
for the first time.
In daily use
•This machine is for household use; do not use it for any
other purpose. Commercial usage of the dishwasher will void the
guarantee.
• Do not get up, sit or place a load on the open door of the
dishwasher, it may fall over.
•Never put into the detergent and rinse aid dispensers of
your machine anything other than those detergents and rinse aids
which are produced specifically for dishwashers. Our company will
not be responsible for any damage that might occur in your machine
otherwise.
•The water in the machine's washing section is not drinking
water,do not drink it.
• Due to danger of explosion, do not put into the machine’s
washing section any chemical dissolving agents such as solvents.
•Check whether plastic items are heat-resistant before
washing them in the machine.
Customer Helpline: 0345 257 7271

7
Children should not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
•Do not put into your machine those items which are not
suitable for dishwashing. Also, do not fill any basket above its
capacity.Our company will not be responsible for any scratch or rust
to form on the inner frame of your machine due to basket
movements otherwise.
•The machine door should not be opened under any circumstances
while the machine is in operation, as hot water may splash out.
There is also a safety devices ensures that the machine stops if
the door is opened.
•Do not leave your dishwasher’s door open.
•Place knives and other sharp-ended objects in the cutlery
basket in a blade-down position.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
•This appliance is not intended for use by persons (including -
children) with reduced physical,sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Customer Helpline: 0345 257 7271

8
For your children’s safety
•After removing the machine’s packaging, make sure that the
packaging material is out of reach of children.
• Do not allow children to play with or start the machine.
• Keep your children away from detergents and rinse aids.
•Keep children away from the machine while it is open
because there may still be residues of cleaning substances inside
the machine.
•Be sure that your old machine does not pose any threat to
your children. Children are known to have gotten themselves locked
in old machines. To ensure such a situation does not happen, break
your machine's door lock and tear off the electrical cables.
In case of malfunction
•Any malfunction in the machine should be repaired by qualified persons.
Any repair work performed by anyone other than the authorised
service personnel will cause your machine to be outside the scope of
warranty.
•Prior to any repair work on the machine, be sure that the
machine is cut off from the mains.Switch off the fuse or unplug the
machine. Do not pull the cable when unplugging. Make sure to turn
off the water tap.
Recommendations
•For energy and water saving, remove coarse residues on
your dishes before placing the dishes into the machine. Start your
machine after having fully loaded it.
• Use the pre-wash programme only whenever necessary.
•Place hollow items such as bowls, glasses and pots into the machine
in such a way that they will face down.
•You are recommended not to load into your machine any dishes
different or more than indicated.
Customer Helpline: 0345 257 7271

9
Items not suitable for dishwashing:
•Cigarette ashes, candle wax, polish, paint, chemical
substances, iron-alloy materials;
• Forks, spoons and knives with wooden or bone, or ivory or
nacre-coated handles; glued items,items soiled with abrasive,
acidic or base chemicals.
• Plastic items that are not heat-resistant, copper or tin-coated
containers.
• Aluminium and silver objects (they may discolour, become
dull).
•Certain delicate glass types, porcelains with ornamental
printed patterns as they fade even after the first wash; certain
crystal items as they lose their transparency over time,
adhered cutlery that is not heat-resistant, lead crystal glasses,
cutting boards, items manufactured with synthetic fibre;
•Absorbent items such as sponges or kitchen rags are not
suitable for dishwashing.
INSTALLING THE MACHINE
Positioning the machine
When determining the place to put your machine on, take
care to choose a place where you can easily load and unload
your dishes.
Do not put your machine in any location where there is the
probability for the room temperature to fall below 0°C.
Before positioning, take the machine out of its packaging by
following the warnings located on the package.
Customer Helpline: 0345 257 7271Customer Helpline: 0345 257 7271

10
Position the machine close to a water tap or drain. You need
to place your machine, so that its connections will not be
altered once they are made.
Do not grip the machine by its door or panel in order to move
it.
Take care to leave a certain clearance from all sides of the
machine so that you can comfortably move it back and forth
during cleaning.
Make sure that the water inlet and outlet hoses do not get
squeezed while positioning the machine. Also, make sure
that the machine does not stand on the electrical cable.
Adjust the machine’s adjustable feet so that it can stand level
and balanced. Proper positioning of the machine ensures
problem-free opening and closing of its door.
If the door of you machine does not close properly, check if
the machine is stable on the floor where it stands; if not,
adjust the adjustable feet and ensure its stable position.
Water connection
Be sure that the indoor plumbing is suitable for installing a
dishwasher.
Customer Helpline: 0345 257 7271Customer Helpline: 0345 257 7271

11
Water inlet hose
Do not use the water inlet hose of your
old machine,if any. Use the new water inlet
hose supplied with your machine instead.
If you are going to connect a new or long
- unused water inlet hose to your machine
,run water through it for a while before
making the connection. Connect the water
inlet hose directly to the water inlet tap.
The pressure supplied by the tap should
be at a minimum of 0.03 Mpa and and at a
maximum of 1 Mpa.If the water pressure is
above 1 Mpa,a pressure-relief valve should
be fitted inbetween.
After the connections are made, the tap should be turned on
fully and checked for water tightness.For the safety of your
machine, make sure to always turn off the water inlet tap after
each wash programme is finished.
Customer Helpline: 0345 257 7271

12
Water outlet hose
The water drain hose can be connected
either directly to the water drain hole
or to the sink outlet spigot. Using a
special bent pipe (if available), the
water can be drained directly into the
sink via hooking the bent pipe over
the edge of the sink. This connection
should be at a minimum of 50 cm and
at a maximum of 110 cm from the floor
plane.
Warning: When a drain hose longer than 4 m is used, the
dishes might remain dirty. In that case, our company will not
accept responsibility.
Customer Helpline: 0345 257 7271

13
Electrical connection
The earthed plug of your machine should be connected to an
earthed outlet supplied by suitable voltage and current. If there is no
earthing installation, have a competent electrician carry out an
earthing installation. In case of usage without earthing installed, our
company will not be responsible for any loss of usage that might
occur.
The indoor fuse current value should be 10-16 A.
Your machine is set according to 220-240 V. If the mains voltage in
your location is 110 V, connect a transformer of 110/220 V and 3000
W inbetween. The machine should not be plugged in during
positioning.
Always use the coated plug supplied with your machine.
Running in low voltage will cause a decline in washing quality.
The machine’s electrical cable should be replaced by an authorised
service or an authorised electrician only. Failure to do so may lead to
accidents.
For safety purposes, always make sure to disconnect the plug
when a wash programme is finished.
In order not to cause an electric shock, do not unplug when your
hands are wet.
When disconnecting your machine from the mains supply, always
pull from the plug. Never pull the cord itself.
Customer Helpline: 0345 257 7271

14
FLWWLQJWKHPDFKLQH under D counter
If you wish to fit your machine under a counter, check
whether you have sufficient space under your countertop
and whether the wiring-plumbing is suitable to do so.1If you
decide that the space under the countertop is suitable for
fitting your machine, remove the worktop as shown in the
illustration. 2
Customer Helpline: 0345 257 7271

15
Adjust the machine feet according to the slope of the floor.3
Fit your machine by pushing it under the counter without
letting the hoses get crushed or bent.4
Warning: After removal of worktop, the machine should be
placed in such a closed place of which dimensions are shown
at fig.
Customer Helpline: 0345 257 7271

Prior to using the machine for the first time
•Check whether the electricity and supply water specifications match the values indicated by the
installation instructions for the machine.
•Remove all packaging materials inside the machine.
•Set the water softener.
•Add 2 kg salt into the salt compartment and fill with water up to a level at which it will almost
overflow.
•Fill the rinse aid compartment.
The importance of water decalcification
For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, white
lime residues will remain on the dishes and the interior equipment. This will negatively affect your
machine’s washing, drying and shining performance. When water flows through the softener system,
the ions forming the hardness are removed from the water and the water reaches the softness
required to obtain the best washing result. Depending on the level of hardness of the inflowing water,
these ions that harden the water accumulate rapidly inside the softener system. Therefore, the
softener system has to be refreshed so that it operates with the same performance also during the
next wash. For this purpose, dishwasher salt is used.
Filling with salt
Use softener salt specifically produced
for use in dishwashers. To fill softener
salt, first remove the lower basket and
then open the salt compartment cap by
turning it counter clockwise. (Diagram 1)
2 At first fill the compartment with 2kg
salt and water so it just overflows
(Diagrams 2 and 3 ) the funnel provided
will make filling4 easier. Refit the cap and
close it. If the salt warning lamp on the
control panel is lit fill the salt compartment
with salt again.
Fill the salt compartment with water
on first use only.
If you put a tablet into the salt
compartment, do not fill the
compartment completely. We
recommend that you use small-grained
or powder softener salt.
Do not put table salt into your machine,
otherwise, the function of the softener
compartment may decrease over time. When you start your dishwasher, the salt compartment gets
filled with water. Therefore, put the softener salt prior to starting your machine.
This way, overflowing salt gets immediately cleaned up through the wash operation. If you are not
going to wash any dishes immediately after putting in salt, then run a short washing program with an
empty machine in order to avoid any damage ( to prevent corrosion ) to your machine due to the salt
overflow while filling in the salt container.
PREPARING THE MACHINE FOR USE
16
SALT
Customer Helpline: 0345 257 7271

Testing strip
The washing effectiveness of your machine depends on the softness of the tap water. For this reason,
your machine is equipped with a system that reduces the hardness in mains water supply. The
washing effectiveness will increase when the system is correctly set. To find out the water hardness
level of water in your area, contact your local water company or determine the water hardness level
by using the test strip(if available).
Adjustingsalt consumption
Table of Water Hardness Level Settings
NOTE: Hardness level is adjusted to level 3 as a factory setting.
Open the
testing
strip.
Run
water
through
your tap
for 1
min.
Keep the
testing
strip in
water for 1
sec.
Shake the
testing strip
after taking it
out of water.
Wait for
1 min.
Make your machine’s water hardness
setting according to the result obtained
through the testing strip.
17
Customer Helpline: 0345 257 7271

Adjusting salt consumption
Adjust the water softener according to how hard your tap water is.

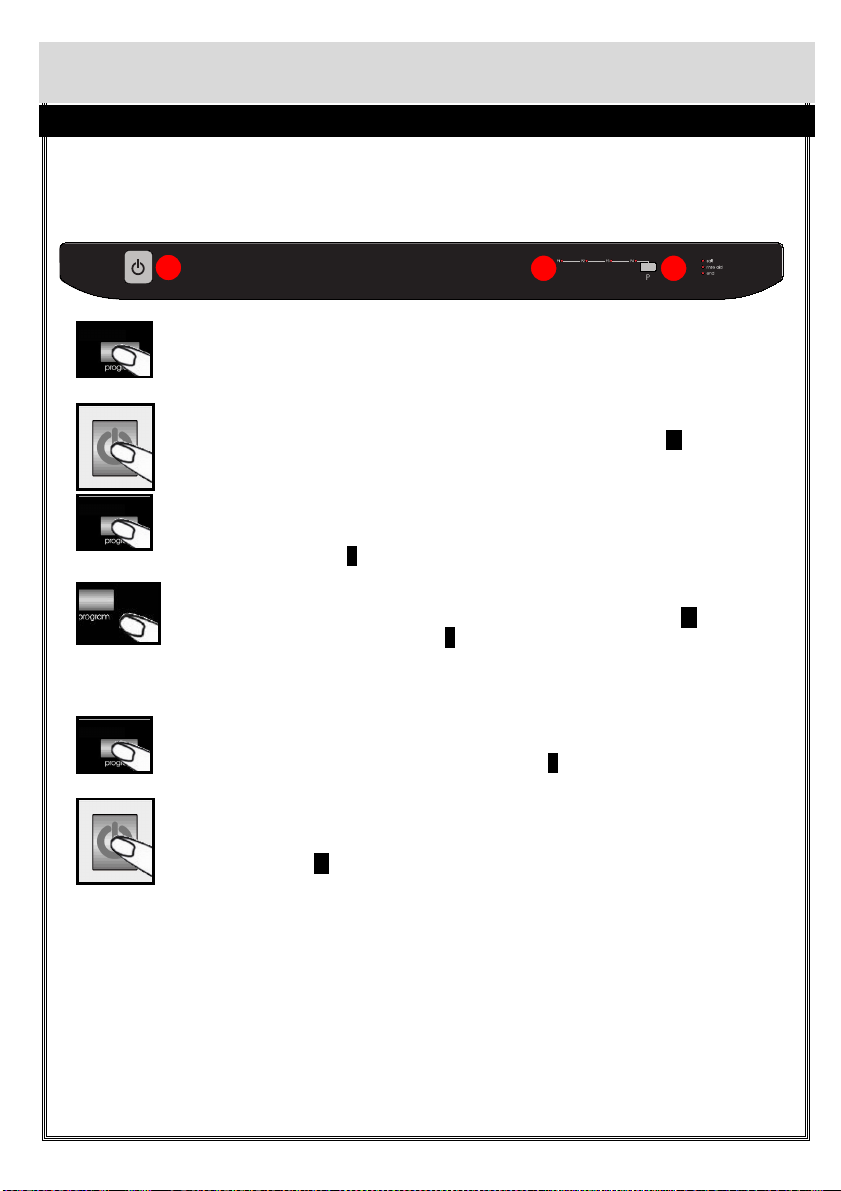

After resetting your machine, press the program selector button and keep it pressed
down. 2
Meanwhile, turn on the machine by pressing the Power On/Off button. 1
Keep the program selection button pressed until the LEDs” P1-P2-P3-P4-end of
program indicator flash. 3
After the LEDs “ P1-P2-P3-P4-end of program indicator” have flashed 2 ,
release the program selector button . 3
Your machine displays the latest entered water hardness setting.
You can adjust the levels by program selector button 3according to Table of
Water Hardness Level Settings.
After adjusting the water hardness level , press on/off button to save the
settings in memory. 1
18
123
Customer Helpline: 0345 257 7271

Detergent usage
Use a detergent specifically designed for use in domestic dishwashers.
You can find powder,gel,and tablet detergents in the market that have been designed for
household dishwashers.
Detergent should be put into the compartment prior to starting the machine. Keep your
detergents in cool, dry places out of reach of children.
Do not fill detergent into the detergent compartment more than required; otherwise it may cause
scratches on your glasses as well as lead to a poorly dissolved detergent.
Should you need more information concerning the detergent you will use, contact the detergent
manufacturer directly.
Filling the detergent compartment

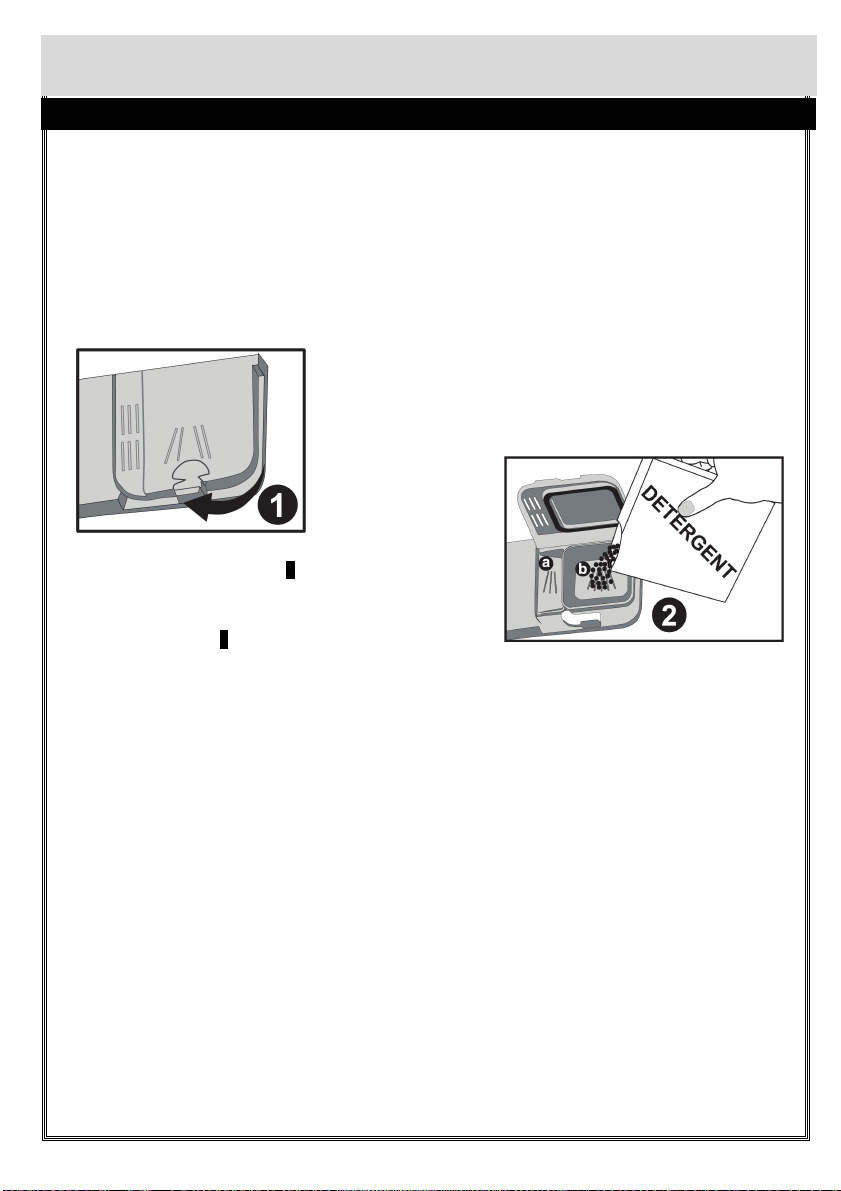

Push the latch to open the detergent container as shown in
the image.The detergent pod has level lines inside. It is possible
to measure the right detergent amount using these lines.
The detergent pod can take a maximum of 4 0 cm 3
deterg ent.
Open the dishwasher
detergent and pour
into the larger
compartment a 25 cm3
if your dishes are
heavily soiled or 15
cm3 if they are less soiled.2 If your dishes have been
kept dirty for a very long time, or if there is dried food
waste on them, or if you have fully loaded the
dishwasher, pour a 5cm3 detergent into the pre-wash
compartment and start your machine.
You may have to add more detergent into your machine, depending on the degree of soil and
on the water hardness level in your area.
Combined detergents
Detergent manufacturers also manufacture combined detergents that are called 2 in 1 – 3 in
1- 5 in 1 etc ...
Generally, combined detergents produce sufficient results under certain usage conditions only.
Such detergents contain rinse aid and/or salt in preset amounts.
Points to consider when using this type of product:
•Always make sure to check the specifications of the product you will use or whether or not
it is a combined product.
•Check if the detergent used is appropriate for the hardness of mains water that the machine is
connected to.
•Observe the instructions on the packaging when using such products.
•If such detergents are in the form of tablets, never put them into the interior section or the
cutlery basket of the dishwasher. Always put the tablets into the detergent compartment in
the detergent dispenser.
19
Customer Helpline: 0345 257 7271
