Bush WQP8-9347 Assembly Instructions

BUSH – Integrated Dishwasher
Installation & User Instructions – Please keep for future reference 478
/
7130
These instructions contain important information which will help you get the best from your
appliance and ensure safe and correct installation, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: 0845 600 4632
Important – Please read these instructions fully before installing or using
Issue 1 – 07/09/10

Contents
Safety Information 2
Parts 3
Installation 4-9
Aesthetic panel installation 4-6
Water supply connection 7
Drain hose connection 7
Position the appliance 7
Water pressure 8
Electrical connection 9
User Instructions 10-17
Before first use 10-12
Loading your dishwasher 13-15
Wash cycle table 16
Using your appliance 17
Care and Maintenance 18
General 18
Trouble Shooting 19
Error codes 19
Technical Specifications 20
Product codes
WQP8-9347
1

Safet
y
Information
Im
p
ortant
–
Please read these instructions full
y
before installation
Before use During use
The installation of this appliance is best carried out
by 2 people.
yDispose of all packaging carefully and
responsibly.
yThe appliance is designed for indoor use only
and must be protected from rain, moisture and
extreme temperature variations.
yThis appliance is designed for household use.
Do not use the appliance for industrial and
commercial use, or any other purpose.
yThe appliance MUST be positioned on a firm
level base.
yDo not place the appliance near a heat source or
in direct sunlight.
yOnly suitable household utensils should be
placed in the dishwasher. Avoid utensils that are
non-heat-resistant, metal decorated, etc.
yDo not use detergent not designed for
dishwasher. This may damage the appliance.
yDo not spray water on the appliance. It may
cause electrical parts failure or electric shock.
yDo not stand or sit on the door when it is open. It
may cause deformation or failure of your
dishwasher. The appliance could tip forward.
yDo not put any heavy objects on top of the
appliance. It will damage the appliance.
yThis appliance is fitted with a safety function that
automatically stops the operation of the
dishwasher when it is exposed to heavy
disturbance on its mains.
yThe appliance is to be connected to the water
supply using new hose set and that old hose set
should not be used.
yThe door should not be left in open position since
this could present a tripping hazard.
yThis appliance must be positioned so that the
plug is accessible.
yThis appliance is not intended for use by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety. Children should be supervised to
ensure that they do not play with the appliance.
yThis appliance is not intended for use by young
children or infirm persons unless they have been
adequately supervised by a responsible person to
ensure that they can use the appliance safely.
Young children should be supervised to ensure
that they do not play with the appliance.
yDo not touch the visual heating element during or
immediately after use.
y Do not operate your dishwasher unless all enclosure
panels are properly in place. Open the door carefully
if the dishwasher is operating, there is a risk of water
squirting out.
yWARNING: Knives and other utensils with sharp
points must be loaded in basket with their points
down or placed in a horizontal position. Avoid
damage to the door seal.
yLoad plastic items so that they do not come into
contact with the visible heating element.
yDishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed. Avoid
contact with skin and eyes and keep children
away from the dishwasher when the door is open.
yThe door should not be left open, since this could
increase the risk of tripping.
yKeep detergents away from children.
yDo not attempt to repair the appliance yourself.
Contact the Customer Helpline: 0845 600 4632.
2

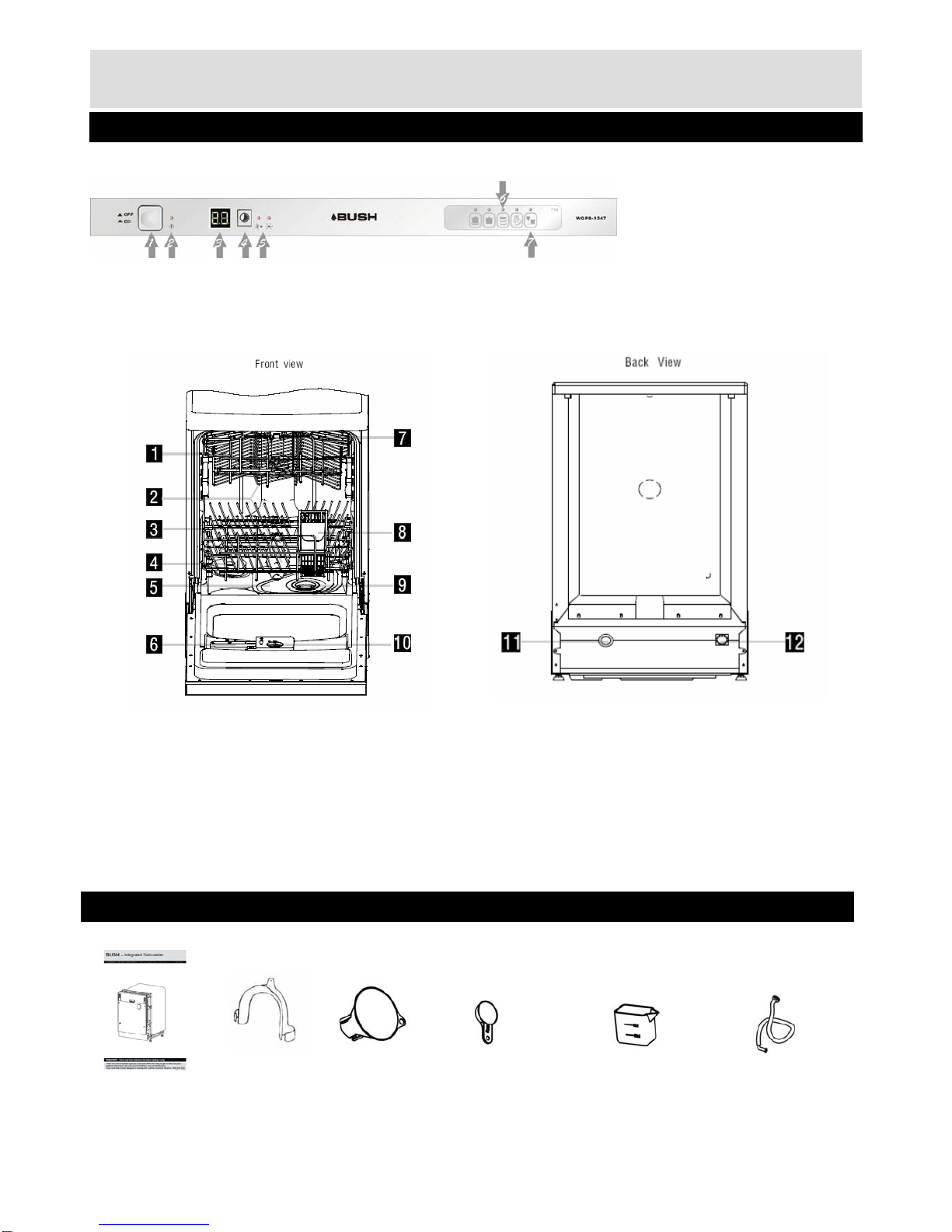

Part
Please familiarize yourself with the parts and accessories listed below
1. Upper basket
2. Spray arms
3. Lower basket
4. Salt container
5. Main filter
6. Detergent dispenser
7. Cup shelf
8. Cutlery basket
9. Coarse basket
10. Rinse aid dispenser
11. Drain pipe connector
12. Inlet pipe connector
If you have damaged or missing parts,
call the Customer Helpline: 0845 600 4632
Accessories included
3
1. ON/OFF button
2. Power on light
3.Display
4.
Delayed Start Button
5. Salt and Rinse Aid Warning
Light
6. Program indicator light
7. Program Key-press
Instructions x 1 Hose x 1 Salt Filler x 1 Measuring Spoon x 1 Measuring Cup x 1 Inlet Hose x 1

Installation

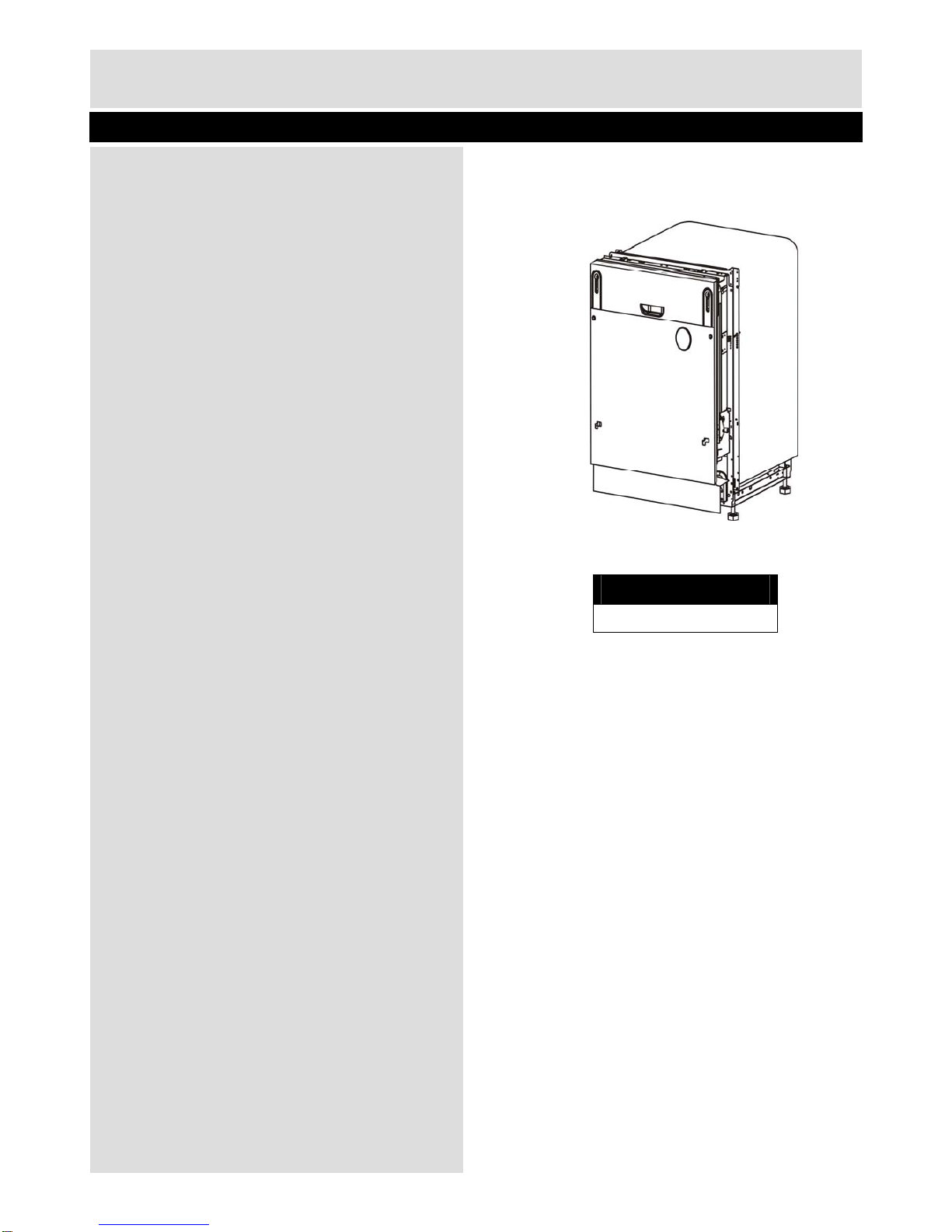

Aesthetic
p
anel installation

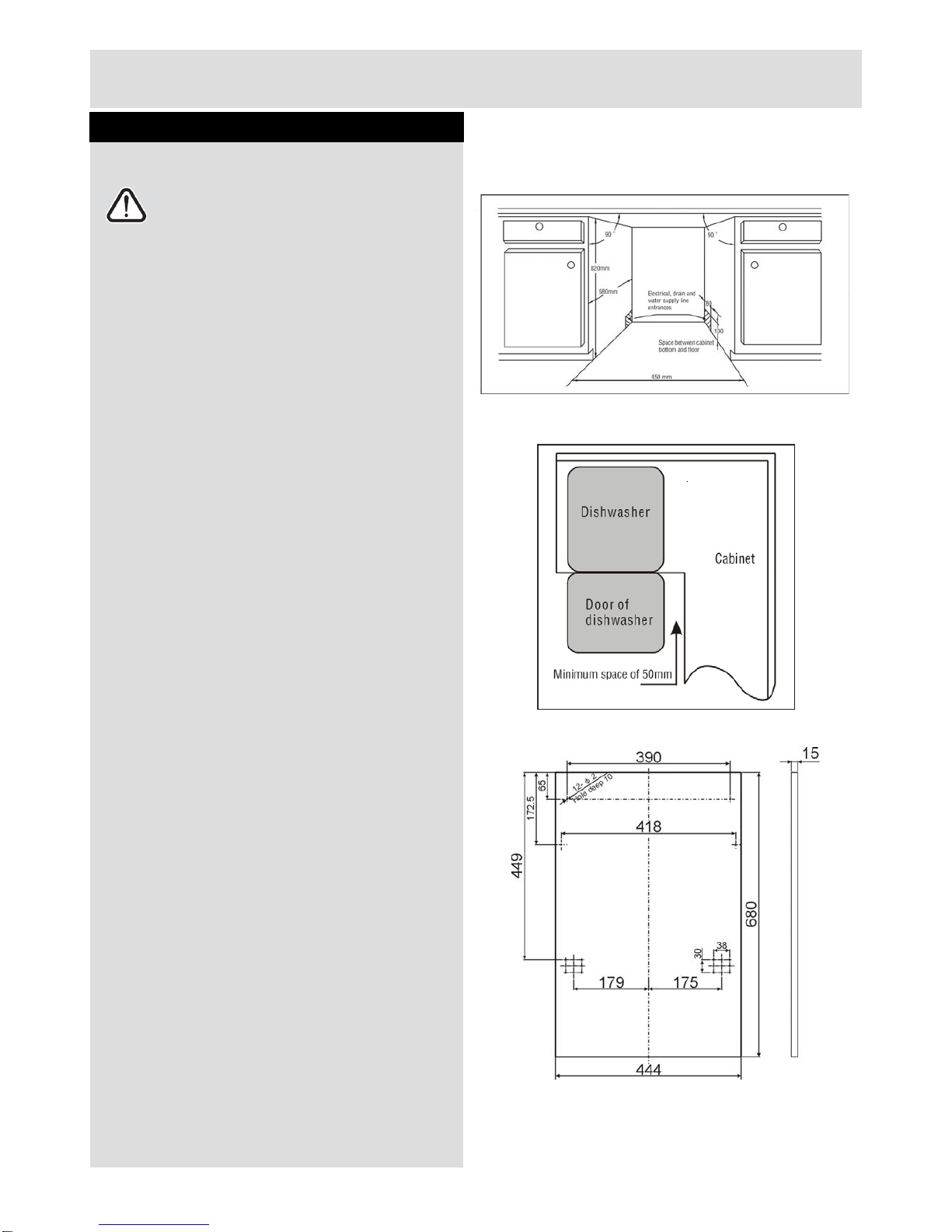

Cabinet dimensions
Note: Less than 5mm between the top of
dishwasher and cabinet and the outer door
aligned to cabinet.
50mm minimum space when door is opened.
The aesthetic panel should be processed in
accordance with the illustrated dimensions
(unit: mm)
4

Installation
Aesthetic
p
anel installation
1. Install the hook on the aesthetic wooden
panel and put the hook into the slot of the
outer door of dishwasher.
2. After positioning of the panel, fix the panel
onto the outer door by screws and bolts.
a. Take away the cover
b. Pin up the screw
c. Get back the cover
5

Installation
A
esthetic
p
anel installation
1. Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the
template for positioning of the brackets.
2. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten
the left and right door springs. Failure to do this could cause damage to your dishwasher
(Illustration 2).
3. Connect the inlet hose to the cold water supply .
4. Connect the drain hose. Refer section "Water supply connection" at page 7.
5. Connect the power cord.
6. Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is
flush with edge of work surface.
7. Place the dishwasher into position.
8. Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the
screws on the left and right hand side of the cabinet (Illustration 5A). To adjust the front feet, use a
wrench and turn the front feet until the dishwasher is level (Illustration 5B).
9. The dishwasher must be secured in place. There are two ways to do this:
a. Normal work surface-secure to the work surface by using two woodscrews ensuring the
dishwasher weight is not being hit by the surface (Illustration 6).
b. Marble or granite work top-secure the bracket to the side panel of the dishwasher and secure
the dishwasher to the furniture housing. Put the rubber
cap over the screw (Illustration 7).
Note: When level the dishwasher, please pay attention
not to let the dishwasher tip over.
6

Installation
Water su
pp
l
y
connection
Caution: 2 people are required to unpack
and handle the appliance, it is recommended that
gloves are worn.
yCarefully remove all packaging materials
including the foam base, dispose of correctly.
yConnect the cold water supply hose to a
threaded ¾” connector and make sure that it is
fastened tightly in place.
yIf the water pipes are new or have not been
used for an extended period of time, let the
water run to make sure that the water is clear.
This will prevent the water inlet to be blocked
and damage the appliance.
yIt can also connect the machine to a hot water
supply where it does not exceed 60°C.
Drain hose connection
1. Make a hooked end at the end of drain hose
with the plastic U-bend fitting (provided). The
hooked end should be dropped into a
drainage standpipe between 40cm and
100cm from the floor level.
2. The free end of the hose must not be
immersed in water to avoid the flow back.
3. You may connect the water inlet hose onto
the kitchen sink tap. You must obtain a
correct adaptor to match the inlet hose
connector for a secure connection. However,
permanent plumbing is recommended.
4. If leakage is observed, immediately shut off
the water supply and check the hose
connections fully. Tighten connections if
necessary.
Position the appliance
1. The dishwasher must be installed on a solid
level surface.
2. Position the appliance in the desired location.
The back should rest against the wall behind
it, and the sides along the adjacent cabinets
or wall. The water supply and drain hoses
can be positioned either to the left or right
side to facilitate proper installation.
3. To level the dishwasher, adjust the 4 level
screws (feet) under the dishwasher.
7

Installation
Water
p
ressure
For best operating results, incoming water
pressure should be between 0.04 and 1 Mpa.
Your dishwasher cleans by spraying a mixture of
hot clean water and detergent (under pressure)
against the soiled surface of dishes. The water
is pumped through a rotating spray arm, drained
through a filter removing food and soiled
particles and pumped back through the spray
arm.
To prevent dishwasher damage, the temperature
of the incoming water supply should not exceed
60°C.
Note: Hard water conditions will adversely affect
the performance of your dishwasher. To
minimise this condition, it is recommended to
periodically operate/rinse the dishwasher in
empty condition using 1 cup of white vinegar (at
least once a week).
Important: Once you open the water
supply (even if it is closed immediately
thereafter), the water inlet hose will be
pressurised.
8

Installation
Electrical connection
Any electrical work that is required to
install this appliance MUST be carried out by
a qualified electrician.
Warning: THIS APPLIANCE MUST BE
EARTHED
Before making any electrical connections,
ensure that:
yElectrical safety is only guaranteed when the
earth system of your house is in accordance
with the related local regulations.
yDo not bend, stretch or pull the supply cable to
avoid electric shock.
yEnsure the power socket is suitable for the
maximum power of the appliance (fuses in the
power circuit must be 13 amp).
yThe supply voltage should be the same as that
indicated in the technical specifications and
the appliance rating plate.
yThe appliance should be earthed and in
compliance with the applicable law.
yWhen installed, the power socket must be
within easy reach.
yIf the socket outlets in your home are not
suitable for the plug supplied with this unit
check with a qualified electrician for
replacement.
yThe use of adapters, multiple connectors or
extension cables are not recommended.
yThe appliance must be connected to a 220-
240 volt 50Hz AC supply by means of a three
pin socket, suitably earthed and protected by a
13 amp fuse.
yShould the fuse need to be replaced, a 13
amp fuse approved to BS1362 must be used.
yThe plug contains a removable fuse cover that
must be refitted when the fuse is replaced. If
the fuse cover is lost or damaged, the plug
must not be used until a replacement cover
has been fitted or the plug is replaced.
yA damaged plug should be cut off as close to
the plug body as possible, the fuse should be
removed and the plug disposed of safely.

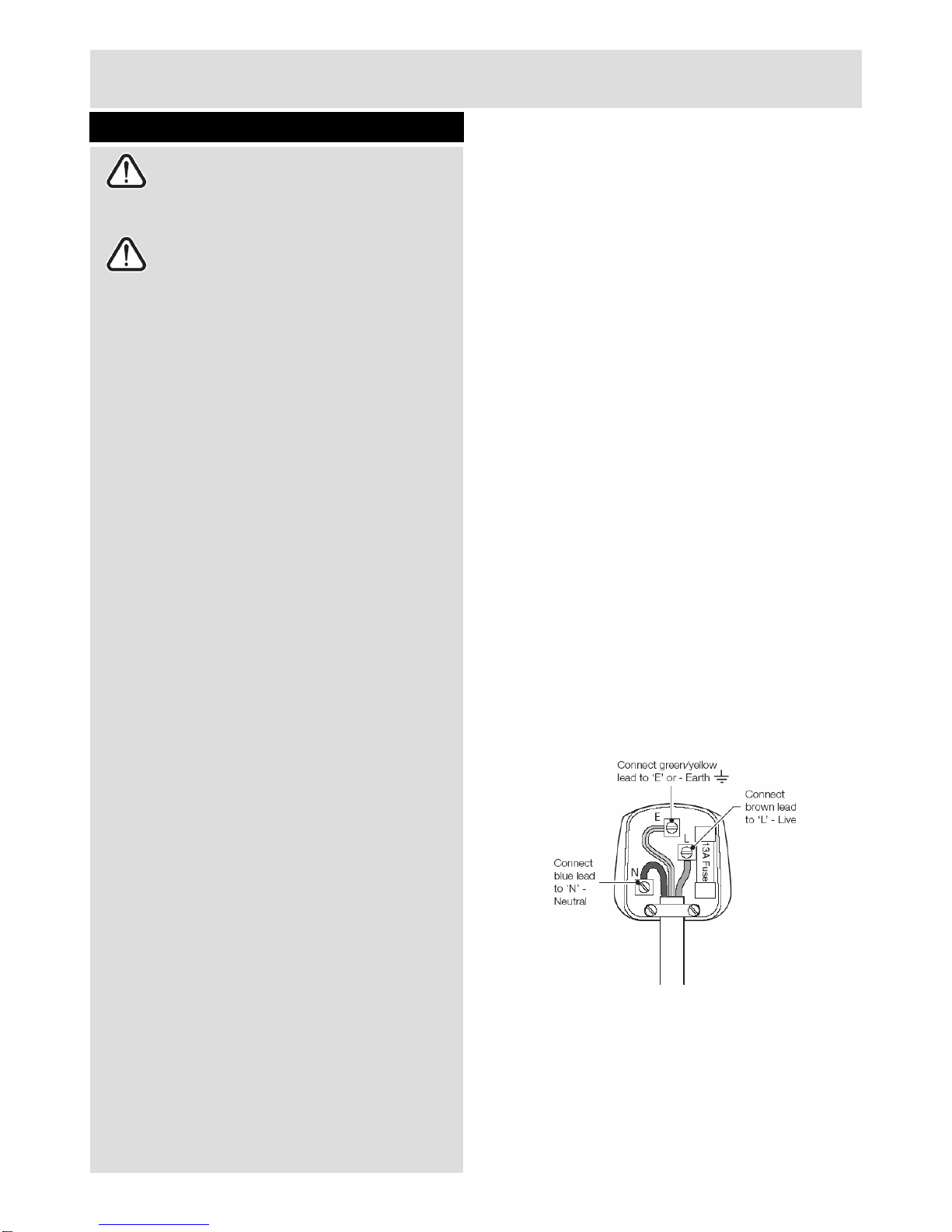

Plug replacement (UK & Ireland only)
Should you need to replace the plug; the wires in
the power cable are coloured in the following
way:
Blue – Neutral ‘N’
Brown – Live ‘L’
Green & Yellow – Earth ‘E’
As the colours of the wires in the power cable
may not correspond with the coloured markings
identifying the terminals in your plug, and
proceed as follows:
The green & yellow wire must be connected to
the terminal in the plug that is marked with the
letter E or by the earth symbol.
The blue wire must be connected to the terminal
that is marked with the letter N.
The brown wire must be connected to the
terminal that is marked with the letter L.
If power supply cord is damaged, it must
replaced by the manufacturer or its service
agent or a similar qualified person in order to
avoid a hazard.
9

User Instructions
Before first use
Before using your appliance for the first time:
ySet the water softener
yPour ½ litre of water inside the salt container
and then fill with dishwasher salt
yFill the rinse aid dispenser
yFill in detergent
Water Softener
The dishwasher is designed with a softener to
eliminate the minerals and lime from the water
supply. The hardness of the water supply varies
from place to place and will affect the
dishwasher performance. The amount of salt
consumed can be adjusted based on the
hardness of the water used. This is intended to
optimise and customize the level of salt
consumption.
Adjusting salt consumption
1.Unscrew and remove the cap from the salt
container.
2.There is a ring on the container with an arrow.
Rotate the ring in anticlockwise direction from
“-“ sign towards “+” sign, based on the table at
right.
Loading the salt into softener
1. Remove the lower basket and then unscrew
and remove the cap from the salt container.
(Fig 1)
2. Fill 1L of water into the salt container.
3. Place the funnel end (supplied) into the hole
and add around 1kg of salt. It is normal if a
small amount of water coming out from salt
container. (Fig 2)
4. Screw the cap tightly back clockwise.
5. Immediately after filling the salt, a washing
cycle should be started (soak or rapid
program suggested). Otherwise the filter
system or pump may be damaged by salty
water.
Important:
yOnly use dishwasher salt
yAdd the salt again when the salt warning light
at control panel is on.
yIt takes time to dissolve the salt so the salt
warning light may still come on even the salt
container is filled.
Water
hardness
(°
Clarke)
Selector
position Salt consumption
(gram/cycle)
Autonomy
(cycle/
1kg)
0 ~ 10 / 0 /
10 ~ 28 - 20 50
28 ~ 56 Mid 40 25
56 ~ 75 + 60 16
10

User Instructions
Before first use

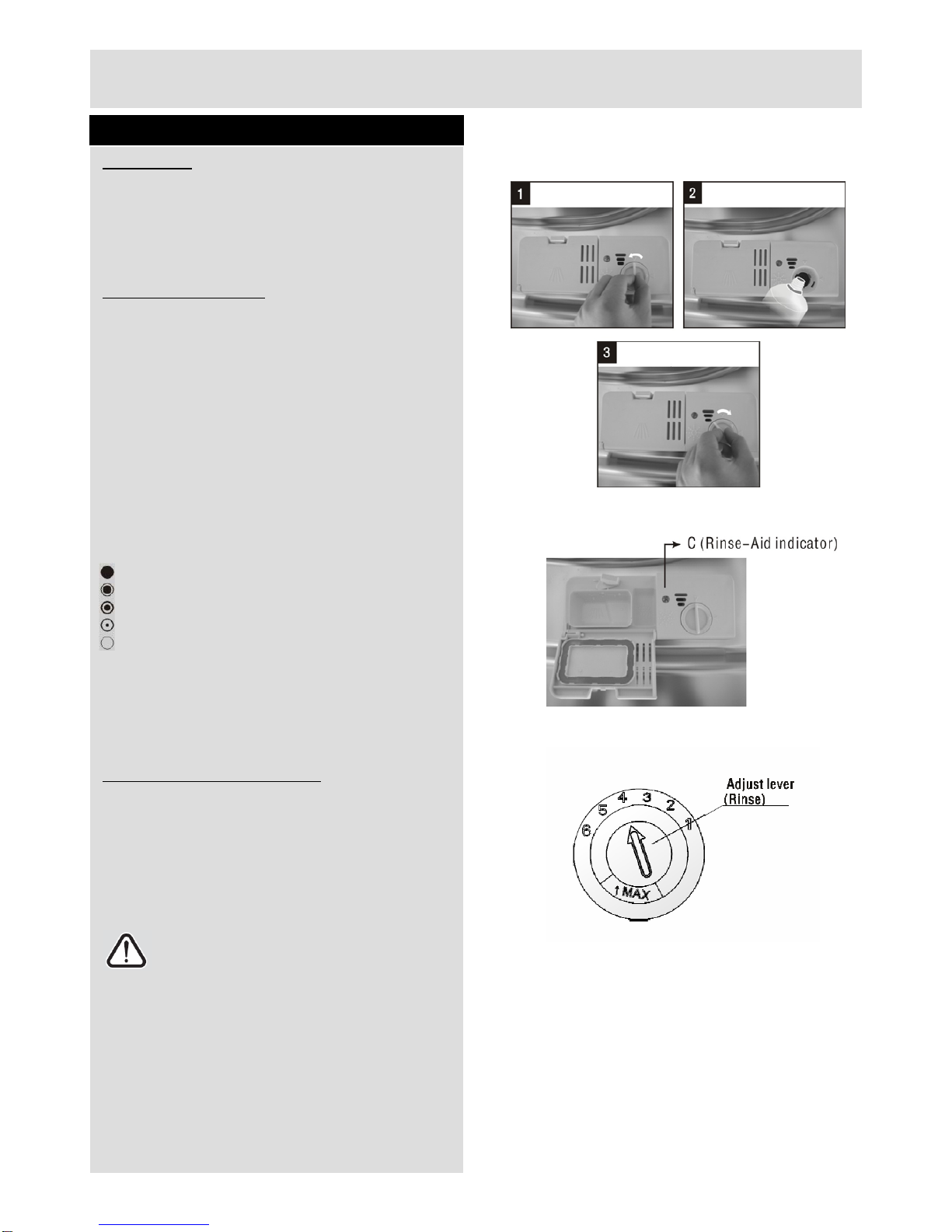

Rinsing Aid
A rinsing aid is specially formulated to rinse
away food and detergent residues that can be
left behind on your dishes. Use regularly, a
rinse aid will automatically provide you with
cleaner dishes every time you wash.
Loading the rinsing aid
1. Turn the dispenser cap to ‘open’ arrow and lift
it out.
2. Fill the rinsing aid slowly into the container
until it just reaches the bottom of the filling
cap
3. Replace the cap by turning to ‘close’ arrow.
There is a rinse-aid indicator on the dispenser
Full
3/4 Full
1/2 Full
1/4 Full – Require refill
Empty – Require refill
Adjusting rinsing aid dispenser
The rinse aid dispenser has six scales. Always
start with the dispenser set on "4". If spots and
poor drying is a problem, increase the amount of
rinse aid dispensed by removing the dispenser
lid and rotating the dial to "5". You could adjust
the dial to the next higher lever until your dishes
are spot-free.
Note:
Increase the dose if there are drops of water or
lime spots on the dishes after wash. Reduce the
dose if there are sticky whitish stains on your
dishes or a bluish film on glassware or knife
blades.
11

User Instructions
Before first use
Detergent
Use only detergent specifically made for use in
dishwashers, as other types may damage the
dishwasher.
The dispenser must be filled before the start of
each wash cycle following the instructions
provided in the wash cycle table. Your
dishwasher uses less detergent and rinse aid
than conventional dishwasher. Generally, only
one tablespoon of detergent is sufficient for a
normal wash load. Heavily soiled items need
more detergent. Always add the detergent just
before the start of the dishwasher, otherwise it
could get damp and will not dissolve properly.
Loading the detergent
1.The detergent dispenser (recessed area)
located at the inside of the door.
2.Open the lid by pressing the release button.
3.Pour the detergent. The marking indicates the
dosing levels:
A– Detergent for main wash cycle. ‘MIN’
means approximately 20g of detergent.
B– Detergent for pre-wash cycle,
approximately 5g of detergent.
4.Close the lid until it locks in place.
Note: follow the detergent manufacturer’s
guidelines. Dishwasher detergent is corrosive!
Keep it out of reach of children.
12

User Instructions
Loading your dishwasher
13
Preparing your dishes prior washing
yScrape off all food residuals from the dishes.
yRemove excessive quantities of oil or
grease.
yEmpty any liquids from glasses and cups.
yDishes with dried-on foods are more difficult
to wash and may not come clean in a
normal wash cycle.
yArrange all items with recessed or curved
sections on a slant to drain water away.
yCups, pots and glasses etc should be
placed upside down.

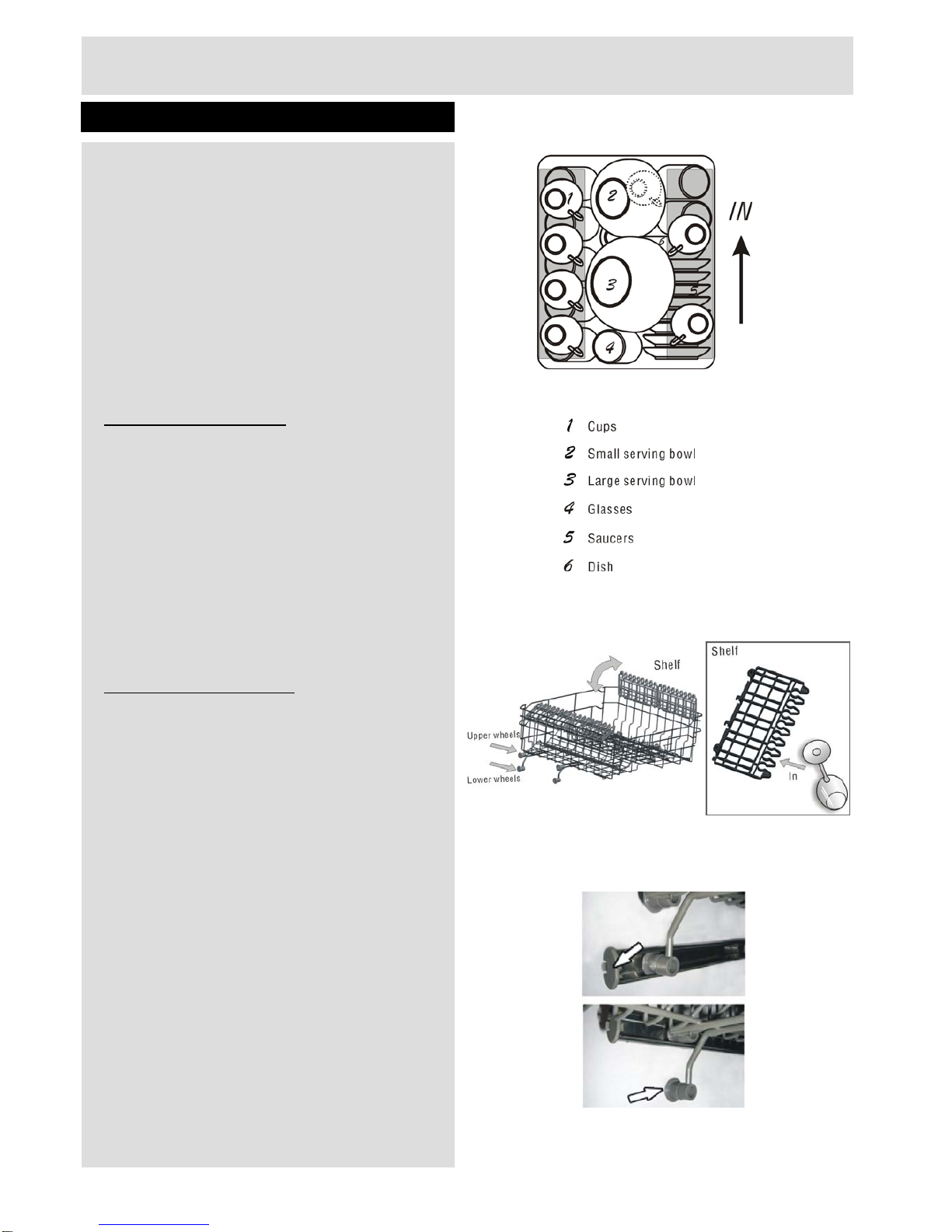

Loading the upper basket
The upper basket is designed to hold more
delicate and lighter dishware such as glasses,
coffee and tea cup and saucers, plates, small
bowls and shallow pans (as long as they are
not too dirty). Position the dishes and
cookware so that they do not get moved by
the spray of water.
Adjusting the upper basket
The height of the upper basket can be
adjusted in order to create more space for
large utensils both for the upper/lower basket.
The height of the upper basket can be
adjusted by placing the wheels on different
height of the rails. Long items, serving cutlery,
salad servers and knives should be placed on
the shelf so that they do not obstruct the
rotation of the spray arms. The shelf can be
folded back or removed when not in use

Loading your dishwasher
User Instructions

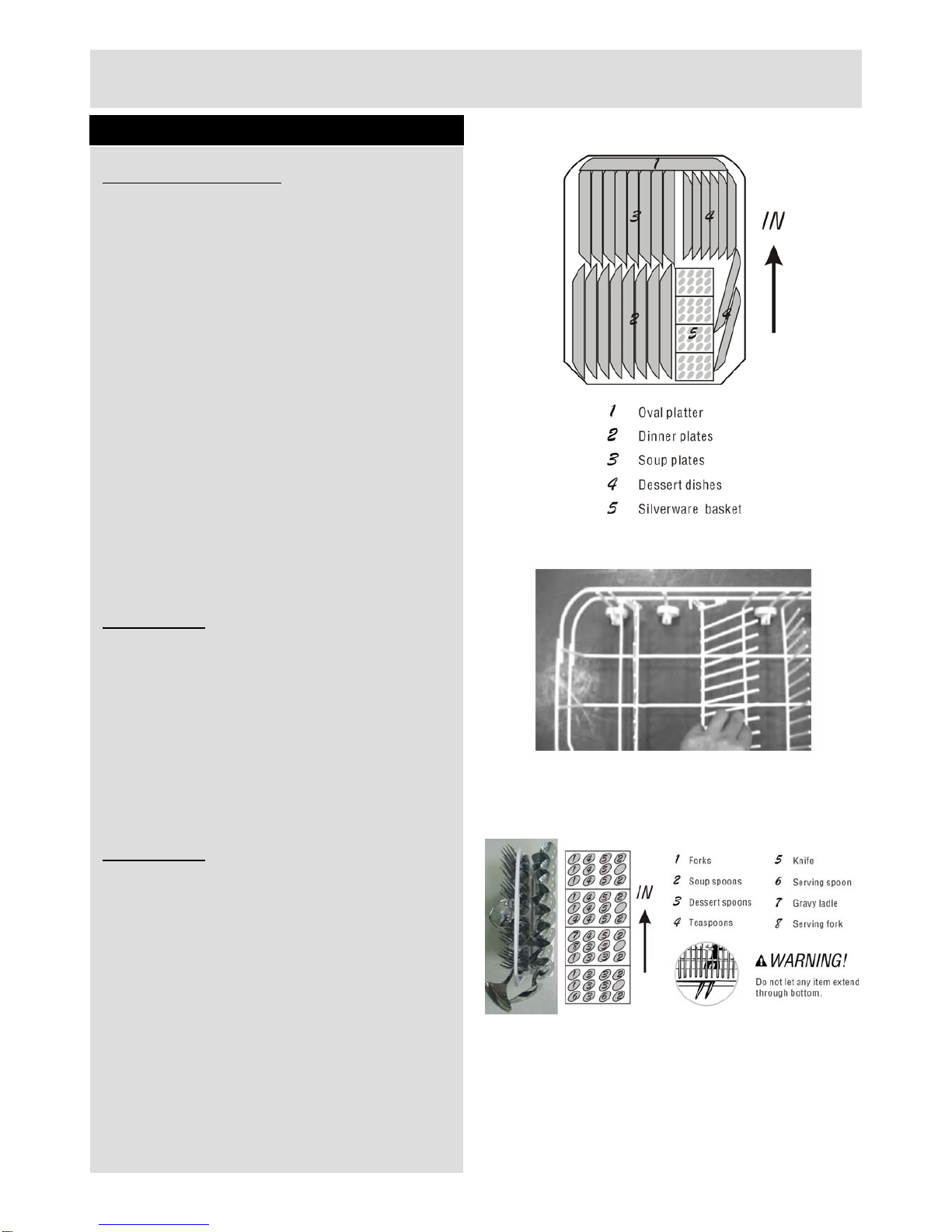

Loading the lower basket
yPut large items which are most difficult to
clean into the lower basket.
yLocate sharp items so that they are not likely
to damage the door seal.
yLoad sharp knives with the handles up to
reduce the risk of injuries.
yDo not load plastic items unless they are
marked "dishwasher safe" or the equivalent.
yDo not load glasses over the dish rack pins.
Glasses loaded over dish rack pins are not
properly supported and are likely to get
damaged.
yItems with wooden or bone handles and items
joined together with glue are unsuitable as
they cannot resist hot water.
Folding spikes
For better stacking of pots and pans, the spikes
can be folded down as shown in right.
Cutlery basket
Cutlery should be placed in the cutlery basket
with the handles at the bottom. If the rack has
side baskets, the spoons should be loaded
separately into the appropriate slots, especially
long utensils should be placed in horizontal
position at the front of the upper basket as
shown.
14

User Instructions
Loading your dishwasher
NOTE: For ease of loading/unloading large size dinner plates from the dish rack it may be necessary to
remove the cutlery basket. When loading/unloading is complete, return the cutlery basket to its original
position.
Warning
yDo not touch the heating element during or immediately after use.
yDo not tamper with controls.
yDo not abuse, sit or stand on the open door or dish-rack of the dishwasher. The machine may topple
over.
yProtect cables and hoses from high temperatures.
yTo reduce the risk of injury, do not allow children to operate or play with the dishwasher.
15

User Instructions
Wash cycle table
Program
Cycle selection
information Description of cycle Detergent
pre/main Run time
(min) Energy (Kwh) Water (L) Rinse Aid
Strong
For the heaviest
soiled loads,
such as
pots,pans,casserole
dishes and dishes
that have
been sitting with
dried food
on them for a while.
Pre-wash
Pre-wash(50℃)
Wash (60 ℃)
Rinse
Rinse (70 ℃)
Drying
4/20g 135 1.19 13

Normal
For normally soiled
loads,
such as pots,
plates,glasses
and lightly soiled
pans.
standard daily cycle.
Pre-wash
Pre-wash
Wash (50 ℃)
Rinse
Rinse (70 ℃)
Drying
4/20g 146 0.92 13

Economy
(IEC-EN
50242)
For lightly soiled
loads,such
as
plates,glasses,bowls
and
lightly soiled pans.
Pre-wash
Wash (45 ℃)
Rinse
Rinse (60 ℃)
Drying
20g 121 0.74 11

Rinse
For dishes that
need to be
rinsed and dried
only.
Wash(45 ℃)
Rinse
Rinse (60 ℃)
Drying
113 0.71 8.5

Rapid
A shorter wash for
lightly
soiled loads that
do not
need drying.
Wash (40 ℃)
Rinse
Rinse (55 ℃)
15g 22 0.37 6
16

User Instructions
Using your appliance
To operate the dishwasher:
1. Make sure the water inlet and drain hoses are correctly and securely connected.
2. Push the door release button to open the door.
3. Fill the detergent, water softener and rinsing aid to the dishwasher.
4. Draw out the lower and upper basket. Load the dishes on the dish rack and cutlery inside the cutlery
basket. Make sure that the rotating spray arm can turn freely all the way round. If necessary remove
any obstacles.
5. Open the water supply.
6. Select the desired washing program by pressing the Program button. Close the door firmly.
The dishwasher will start to work in 3 seconds.
7. The dishwasher is designed to stop if the door is opened accidentally during operation.
8. The dishwasher stops automatically at the end of the program. You will hear 8 sec. buzzer sound. The
power pilot light will remain illuminated until the power is switched off.
9. After washing, dishes should be allowed to cool down for about 15 minutes as they are hot to handle.
Dishes will cool quicker if the door is opened slightly.
10. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
basket onto the dishes in the lower one.
11. After unloading the dishes, remove and clean the filter and return to its position.
Note: This is normal when you noted small amount of water being pumped-out from the drain hose prior
to the start of a wash cycle. This is because the pump retains a small amount of water from the previous
cycle.
Program Selection Change
You can modify the washing program when the dishwasher just runs for a short time. Otherwise, the
detergent may have already been released, and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled.
Press the button of the desired program more than 3 seconds until it's indicator is on, the machine will
operate in new program after 10 seconds.
Note: If you open the door during the washing cycle, the machine will pause. When you close the door,
the machine will resume operation after 10 seconds.
The program lights show the state of the dishwasher:
All program lights off – Stand by
One of the program lights on – Pause
One of the program lights blinking – Run
Delay function
After selecting the wash cycle program, you can set the desired delay start time by pressing the delay
button. You can select 1-24h from the program. The dishwasher will start operation after the selected
delay time is elapsed.
17

Care and Maintenance
General
Important: Always unplug the appliance from the power socket during cleaning and
maintenance.
yNever use any sharp instruments or abrasive substances, soap, household cleaner, detergent or wax
polish for cleaning.
yClean the external surfaces with a damp soft cloth only. Never use abrasive products or solvents as it
may damage the dishwasher.
yOne of the factors that cause odour is the food that remains trapped in the seals. Periodic clean the
seal with a damp sponge will prevent this from occurring.

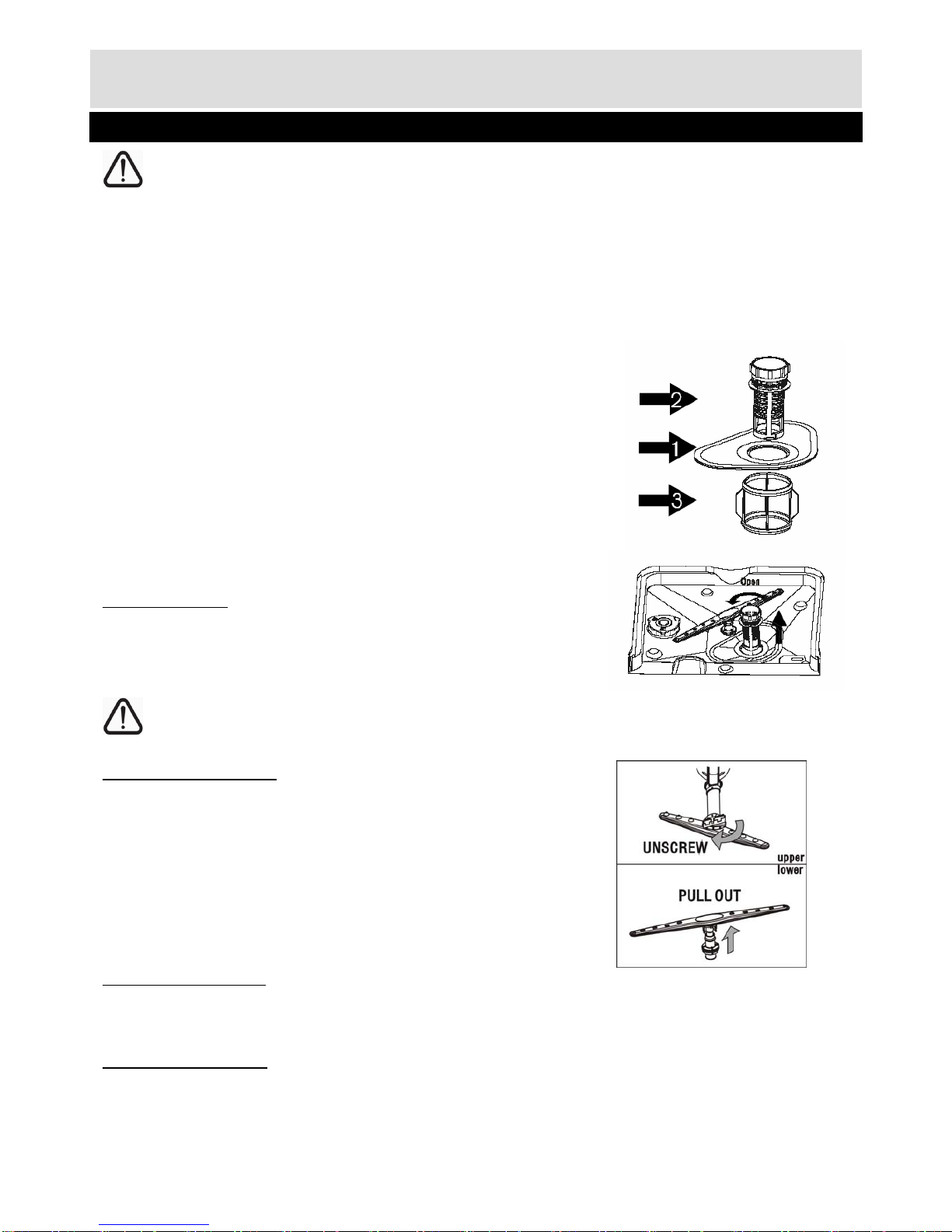

The filter system consists of a main filter, coarse filter and fine filter.
yMain filter (1) - Food and soil particles trapped in this filter are
pulverized by a special jet on the lower spray arm and washed down
the drain.
yCoarse filter (2) - Larger items such as pieces of bones that could
clog the drain are trapped in the coarse filter. To remove an item
caught in this filter, gently squeeze the taps on the top of this filter
and lift it out.
yFine filter (3) - This filter holds soil and food residues in the sump
area and prevents it from being re-deposit on the dishes during a
cycle.
Cleaning the filter
1. Remove the filter from the bottom.
2. Clean the filter thoroughly under the running water tap.
3. Return the filter to its position
Warning: Under no circumstances may the dishwasher be used without filters.
Cleaning the spray arms
It is necessary to clean the spray arms regularly as hard water
chemicals will clog the spray arm jets and bearings.
1. Remove the upper spray arm by screw off the nut clockwise and
then remove the arm.
2. Remove the lower spray arm by pulling out the spray arm upward.
3. Wash the arms in soapy and warm water and use a soft brush to
clean the jets.
4. Replace them after rinsing them thoroughly.
Not use for long period
If you are not using the dishwasher for a long period of time it is recommended to remove the plug, turn
off the water supply and leave the door ajar to prevent odors from forming within the dishwasher.
Moving the dishwasher
If you need to move the dishwasher, try to keep it in vertical position. Avoid over tilting during the
transportation.
18

Trouble Shooting
In the unlikely event of difficulties with your appliance please follow the trouble shooting guide below. If
the problem persists, contact the retailer if the machine is still under guarantee. If the machine is out of
guarantee, contact an approved service agent on 0845 600 4632.
Problem Possible cause Solution
Dishwasher does not
start yThe mains plug is not plugged in.
yDoor is not closed.
yWater supply is not turned on.
yInsert the mains plug.
yClose the door.
yTurn on the water supply.
Dishwasher does not
load water yLow water supply pressure.
yThe water supply hose is crimped or
bent.
yFilter is clogged.
yCheck the water pressure.
yEnsure the hose is not crimped or
bent.
yClean the filter.
Dishes not clean yImproper or over loading.
ySpray arm not rotating freely.
yNot enough detergent and/or
improper detergent is used.
yImproperly prepared dishes.
yArrange dishes so spray action
reaches all surfaces. Do not
overload the dishwasher.
yMake sure nothing (i.e. cutlery) is
obstructing spray arm rotation.
yUse proper dishwasher detergent.
yRemove excessive food and liquids
from dishes before loading.
Dishwasher does not
drain yThe drain hose is crimped or bent. yEnsure the hose is not crimped or bent.
Noise ySpray arm is knocking against an item
in basket.
yItems of crockery are loose in the
wash cabinet.
yInterrupt the program and re-arrange
the items which are obstructing the
spray arm.
yInterrupt the program and re-arrange
the items of crockery.
Unsatisfactory drying
result yImproper loading.
yToo little rinse aid.
yDishes are removed too soon.
yWrong program has been selected.
yLoad as suggested in instructions.
yIncrease the rinse aid amount or
refill the rinse aid dispenser.
yDo not empty the dishwasher
immediately after wash.
yWashing temperature is lower in
short program. Choose a program
with a long washing time.
Error codes Description Possible causes
E1 Longer inlet time. Faucets is not opened, or water intake is restricted,
or water pressure is too low.
E3 Longer heating time,
but not reaching required
temperature
Malfunction of temperature sensor or of heating
element.
E4 Overfilled. Too much inlet water. .
E6 Failure of temperature sensor Open circuit or break of temperature sensor
E7 Failure of temperature sensor Short circuit or break of temperature sensor
Warning:
- If overflow occurs, turn off the water supply before contacting the customer helpline.
- If there is water in the base pan because of overfill or small leak, the water should be removed before
restarting the dishwasher.
