Bush 5552766 User manual

Instruction manual

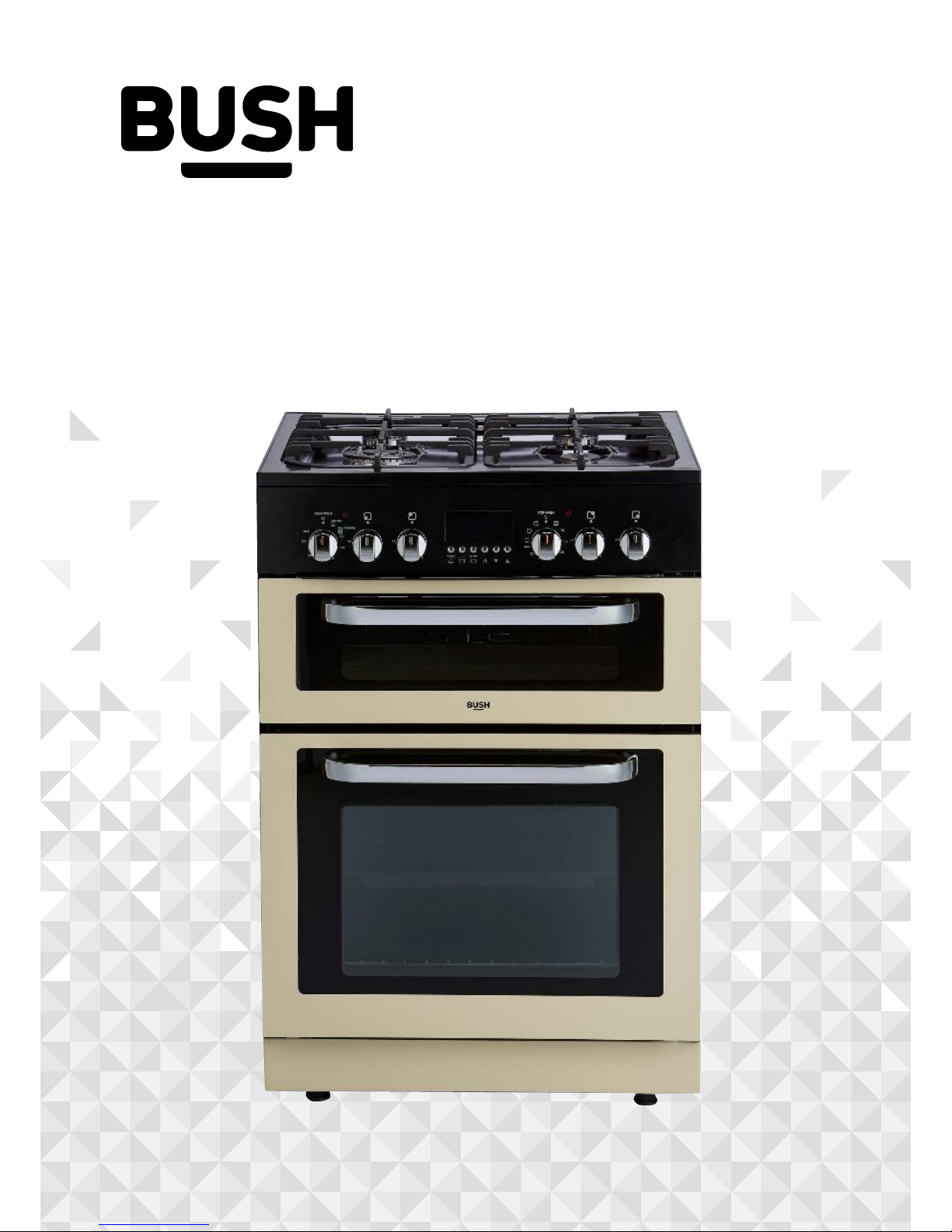

Dual Fuel 60cm Cooker
5552766 BDFDX60C
5559367 BDFDX60B
5556762 BDFDX60I

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
You’ll soon be enjoying your new Dual Fuel 60cm
Cooker
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just simple,
step-by-step guidance to get you up and running
Help and Guidance
We’re here to help you get the most from your Dual Fuel 60cm Cooker. Should you
require any guidance, a simple solution can often be found online at:
www.argos-support.co.uk
If you still require further assistance, call one of our experts on 01759 487838.

3
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Contents
Product support
Troubleshooting 30
Help and assistance 31
Declaration of conformance to product
standards 32
Disposal 32
Guarantee 33
6
Safety information
Safety information 6
Getting to know your Dual Fuel
60cm Cooker
Ready? Let’s begin 10
Accessories 11
Installing your Dual Fuel 60cm
Cooker
Installation requirements 14
Unpacking 14
Connections (electrical, water, gas) 15
Using your Dual Fuel 60cm
Cooker
First use of Dual Fuel 60cm Cooker 14
Standard and advanced functions/use 19
Care and Maintenance
Cleaning 26
Maintenance actions 26
Technical specifications 27
1
2
3
4
5

1Safety information

Safety information
Important - Please read these instructions fully before
installing or operating
Safety information6
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
INSTALLATION WARNINGS
IMPORTANT: This product MUST be installed by a
qualied Gas Safe registered installer in accordance
with local regulations. Particular attention should be
given to the ventilation requirements.
IMPORTANT: Prior to Installation ensure that the local
supply conditions (gas type and pressure, electricity
voltage and frequency) are compatible with the
requirements of your cooker
IMPORTANT: Carefully unpack and examine
the appliance for any damage. If you think there
is a defect, do not use the appliance and contact
Argos Product Support on 01759 487838.
Packaging materials should be collected together and
disposed of immediately as they may be harmful to
children.
IMPORTANT: Keep the electrical cable (not supplied)
of your cooker away from the hot areas of your cooker;
do not let the cable touch the appliance. Keep the
cable away from sharp edges and heated surfaces.
IMPORTANT: Ensure that the electric supply cable is
not trapped or damaged during installation.
IMPORTANT: In the event that the cable connecting
your cooker becomes damaged, it must be replaced
by a suitably qualied person.
This cable must not be replaced by an
unauthorised person.
IMPORTANT: Protect your cooker against atmospheric
e󰀨ects. Do not expose your cooker to e󰀨ects such as
sun, rain, snow etc.
IMPORTANT: The materials surrounding the appliance
(cabinets) must be able to withstand a minimum
temperature of 100°C
IMPORTANT: When using your oven for the rst time
your cooker may give o󰀨 an unusual odour from the
heating elements and insulation materials. This is
normal for new cookers. To eliminate this odour run
the oven at 250 degrees for 40-60 mins with the oven
empty.
DURING USAGE
IMPORTANT: Children and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge should not be allowed to
use the cooker unless supervised and warned of the
hazards involved
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching hot parts.
WARNING: Cooking on a hob with fat or oil can be
dangerous and should not be left unattended.
WARNING: NEVER try to extinguish a cooking re
with water. Instead switch o󰀨 the appliance and cover
ame e.g. with a lid or a re blanket.
CAUTION: Cookers may topple forward if a child
climbs onto the cooker door. Children should be
supervised in the kitchen at all times and this cooker
must be secured to the wall using the xing points
provided to prevent accidents.
CAUTION: Do not allow children in the kitchen when
cooking or while cooker parts may still be hot. Many
parts of the cooker will become hot and present a
considerable hazard to children.
CAUTION: When the oven is hot never touch the oven
glass by hand or with tools.
CAUTION: Before starting to use your appliance,
ensure curtains, paper or ammable items are kept
away from your appliance.
Do not keep ammable materials inside of or around
your cooker.
CAUTION: Take care when closing the oven door that
there is nothing obstructing it from closing as this may
break the glass door.
IMPORTANT: When using the grill the oven door must
be kept closed.
IMPORTANT: Position pans over the centre of the
burners and turn handles to a safe position where they
can not be knocked or grabbed.

Safety information
Important - Please read these instructions fully before
installing or operating
Safety information 7
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
IMPORTANT: Make sure the cooker control knobs are
all in the o󰀨 position when not in use
IMPORTANT: If you do not intend to use your cooker
for a long period of time turn o󰀨 the gas and electric
supply to the cooker
CAUTION: Using gas cooking appliances results in
the production of heat, moisture and the products of
combustion. Ensure that the room where your cooker
is installed is well ventilated particularly while the
cooker is in use. Keep natural ventilation holes open
or install a mechanical ventilation device (extractor
hood) Prolonged intensive use of your cooker may call
for additional ventilation (by opening a window) or by
increasing the level of mechanical ventilation where
present.
GENERAL SAFETY WARNINGS
IMPORTANT: This appliance has been designed for
non-professional, domestic use only. Do not use this
cooker for commercial use or any other application
e.g. room heating
WARNING: Danger of re: do not store ammable
items on or near the cooking surfaces or inside the
oven.
IMPORTANT: Do not try to lift or move this cooker by
pulling on the door handle
WARNING: Ensure that the appliance is switched o󰀨
before replacing the lamp to avoid the possibility of
electric shock.
IMPORTANT: Your appliance is produced in
accordance with all applicable local and
international standards and regulations.
IMPORTANT: Maintenance and repair work must only
be performed by authorized service technicians.
Installation and repair work that is carried out by
unauthorised technicians is dangerous and could
invalidate your guarantee
IMPORTANT: When the door of the oven is open, do
not hang or lean anything on it. You may unbalance
your appliance or damage the door or door hinges.
IMPORTANT: Do not hang towels, dishcloths or
clothes from the cooker or its handles.
CLEANING AND MAINTENANCE
IMPORTANT: Always turn the appliance o󰀨
before operations such as cleaning or
maintenance. You can do this by switching the cooker
o󰀨 using cooker isolation switch.
IMPORTANT: Do not remove the control knobs
to clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFETY
OF YOUR APPLIANCE,
WE RECOMMEND YOU ALWAYS USE
OUR AUTHORIZED SERVICE AGENTS AND
ORIGINAL SPARE PARTS.
FOR ASSISTANCE CALL
ARGOS PRODUCT SUPPORT
01759 487838.

Getting to know your
Dual Fuel 60cm Cooker 2

Getting to know your Dual Fuel 60cm Cooker
You’ll be up and running in no time
Getting to know your Dual Fuel 60cm Cooker
10
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your Dual Fuel 60cm Cooker and ensure safe and
correct installation and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.

Getting to know your Dual Fuel 60cm Cooker
You’ll be up and running in no time
Getting to know your Dual Fuel 60cm Cooker 11
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
1 - Control panel
2 - Oven controls + heat indicators
3 - Gas hobs X 4
4 - Grill pan with removable handle
5 - Wire shelves X 2
6 - Oven doors
7 - Top oven
8 - Main oven
3
1
2
4
58
67
Accessories
Positioning of the shelf
Grill pan and handle set 2 wire shelves

Installing your
Dual Fuel 60cm Cooker 3

Installing your Dual Fuel 60cm Cooker
Bringing it all together
Installing your Dual Fuel 60cm Cooker
14
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Installation requirements
THIS COOKER MUST BE INSTALLED
ACCORDING TO BS 6172: 2010 BY A SUITABLY
QUALIFIED GAS SAFE REGISTERED INSTALLER
This modern cooker was manufactured with
parts and materials of the highest quality and was
designed to meet your cooking needs. You should
read this manual so that you are able to use
the cooker correctly and to avoid any potential
problems with using the cooker. The following
information outlines the required rules for correct
installation and service of your cooker. This is
particularly important for the technician who will
install the appliance.
Positioning
The furniture close to the cooker must be
manufactured resistant to temperatures up to
100°C
If the kitchen furniture are higher than the hob
plate of the cooker, it must be at least 10cm away
from the cooker’s side.
Surrounding furniture, cabinets and extractor fans
should be positioned in accordance with the
diagram shown in figure 3. If fitted, the extractor
fan must be at least 65cm above the hob.
If no fan is fitted the minimum distance between
the hob and any cabinet or other structure must
be 70cm.
First Use
IMPORTANT: When using your oven for the first time
your cooker may give o an unusual odour from
the heating elements and insulation materials. This
is normal for new cookers. To eliminate this odour
run the oven at 250 degrees for 40-60 mins with the
oven empty.
Unpacking
Carefully unpack and examine the appliance for
any damage. If you think there is a defect, do not
use the appliance and contact Argos Product
Support on 01759 487838.
Packaging materials should be collected
together and disposed of immediately as they
may be harmful to children.
Levelling feet
The height and level of the appliance can be
adjusted by rotating the feet located underneath
the appliance at each corner. Rotate in a
clockwise direction to decrease the height and
anti clockwise to increase the height.

Installing your Dual Fuel 60cm Cooker
Bringing it all together
Installing your Dual Fuel 60cm Cooker 15
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838.
Connections
Electrical
• IMPORTANT: Electrical connections must
be carried out by a suitably qualified
person and in accordance with all
relevant local building and installation
regulations.
1. See the rating label at the rear of the product for the
appliance’s load rating.
2. The cooker must be connected to a dedicated
circuit suitably rated for the load of the appliance (see
rating label at rear of appliance) as shown in the wiring
diagrams below. It must be connected via a suitably
rated cable to a double pole isolator cooker switch also
suitably rated for the appliance.
3. The electrical cable should not touch the hot
parts of the appliance.
The electrical cable (not supplied) should not be
routed through any area that may be aected by
heat from the oven, especially the area directly
behind the oven.
Gas
This appliance must be installed by a suitably
qualified gas safe registered gas installer to
standard BS 6172: 2010
! Failure to do this
will invalidate your warranty
Fixing to the wall
Before using the appliance fix it securely to the wall
using the chains on the back of the cooker. This will
prevent the cooker from toppling forward if excess
weight is placed on the oven door. Since the chains
must be attached to wall fixings suitable for your wall
type, the wall fixings are not supplied with the cooker
(Figure 4).
Figure 4

Using your Dual Fuel 60cm Cooker 4

Using your Dual Fuel 60cm Cooker
Getting the most from your appliance
Using your Dual Fuel 60cm Cooker
18
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Ignition
Press the knob of the burner you want to
operate and turn the knob in the counter-
clockwise direction so that the knob is in max.
position and with your other hand, press the
ignition button at the same time. Press the
ignition button immediately.
Manual Ignition of the Gas Burners
In the case of electricity failure resulting in loss
of electronic ignition follow this procedure.
To ignite one of the burners, press and turn
its knob counter-clockwise so that the knob
is in max. position, ignite with a match,
taper or another manual aid to its upper
circumference. Move the ignition source away
as soon as you see a stable flame.
Flame failure device:
This cooker is equipped with a flame failure device
In order for these to work correctly and to prevent
the flame going out when you first ignite your
burners, keep the knob pressed and hold or 10
seconds after the burner has ignited
Control of the hob burners
The knob has 3 positions: O (0), max (big flame
symbol) and min (small flame symbol). After
you ignite the burner in max. position you can
adjust the flame length between max. and min.
positions.
Do not operate the burners when the knob
position is between max. and o positions.
After the ignition, check the flames visually. If you
see yellow tips, lifted or unstable flames; turn the
gas flow o, and check the assembly of burner
caps and crowns. Also, make sure that no liquid
has spilled into the burner caps.
If the burner flames go out accidentally, turn the
burners o, ventilate the kitchen with fresh air, and
do not attempt re-ignition for 90 sec.
When turning the hob o󰀨, turn the knob in the
clockwise direction so that the knob shows “0”
position or the marker on the knob points
upwards.
Using the hobs
Conventional
Cooking using
Top and Bottom
Elements
Bottom Element
Only
Top Element
Only Grill Fan Cooking Defrost

Using your Dual Fuel 60cm Cooker
Getting the most from your appliance
Using your Dual Fuel 60cm Cooker 19
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Your hob has burners of dierent diameters. The
most economic way of using gas is to choose
the correct size gas burners for your cooking
pan size and to bring the flame to the minimum
position once the boiling point is reached. It is
recommended to always cover your cooking pan.
Cookware Selection
In order to obtain maximum performance from
the main burners, use pots with the following flat
bottom diameters. Using smaller pots than the
minimum dimensions stated below will cause
energy loss.
Rapid Burner: 22-26cm
Medium Burner: 14-22cm
Auxiliary Burner: 12-18cm
Make sure that the tips of the flames do not
spread out of the outer circumference of the
pan, as this may also harm the accessories
around the pan (handles etc.)
When the burners are not in use for
prolonged periods, always turn the main gas
control valve o.
WARNING:
Use only flat bottomed pans and with a
suciently thick base.
Ensure that the base of the pan is dry before
placing it on the burners.
The temperature of accessible parts may be
high when the appliance is operating. So it is
important to keep children and animals out
of the reach of the burners during and after
cooking (until the cooker has cooled down).
After use the hob remains very hot for a
prolonged period of time, do not touch it and
do not place any object on top of the hob.
Never place cutlery or lids on the hob as they
will get hot and could cause serious burns.
SAFETY ADVICE IN THE CASE OF A
COOKING PAN FIRE
1. Turn o the burner.
2. Cover the pan with a fire blanket or damp
cloth. This will smother the flames and
extinguish the fire.
3. Leave the pan to cool for at least an hour
before attempting to move it. Injuries are
often caused by picking up a hot pan and
rushing outside with it.
NEVER USE A FIRE EXTINGUISHER TO PUT
OUT A PAN FIRE
as the force of the extinguisher could tip the
pan over.
Never use water to extinguish oil or
fat pan fires.

20
Using the Main Fan Oven
Turn the Main Oven knob clockwise and
align the marker on the control knob with the
required temperature (°C)
The indicator light on the control panel will go
out and the thermostat will turn the element
o when the selected temperature has been
reached inside the oven. These will come
back on once the thermostat falls below the
set value.
Fan only defrost
The fan can be used without heat to defrost
food (DEFROST)
IMPORTANT! Before using this method
of defrosting refer to the food packaging
defrosting information
Always turn the control knob to o (l) when
cooking has finished.
Please note: The appliance incorporates a
safety thermostat which cuts the electric
supply to the oven if the temperature
becomes excessive.
When using your oven for the first time your
cooker may give o an unusual odour from
the heating elements. This is normal for new
cookers. To eliminate this odour run the oven
at 250 degrees for 40-60 mins with the oven
empty.
Using the Top Oven
Turn the control knob (TOP OVEN) clockwise
and align the marker on the knob with the
required temperature.
The indicator light on the control panel will
go out when the selected temperature has
been reached inside the oven.
Always turn the control knob to o (l) when
cooking has finished.
Please note: The appliance incorporates a
safety thermostat which cuts the electric
supply to the oven if the temperature
becomes excessive.
For using the
Bottom element
Top element
Grill
Turn the control knob counter clockwise and
align the marker with the desired function.
These elements are set to operate at their
maximum output (fixed)
The TOP OVEN door must be
closed for all operations
Always use the handle when handling the grill
pan

21
Buttons
1. Alarm
2. Start cooking
3. Stop cooking
4. Manual control
5. Down
6. Up
1 2 3 4 5 6
The electronic timer functions
1. Clock with alarm
2. Set cooking time
3. Set food ready time
4. Timer
5. Buzzer volume control
6. LED brightness control
Setting the time
To set the time, ensure that no automatic cooking
program is in progress (there should be just the
time and the manual control icon displayed as
shown in the image above).
Press the manual control button (4) the double
point icon between the hours and minutes will
set the clock. Press and hold the up and down
buttons for faster adjustment.
Setting the timer (alarm)
With this feature you can set the alarm to
sound after lapsed period of time.
2) Input the period of time
to be counted down.
Cancelling the timer (alarm)
Automatic oven cooking control
If you want to start cooking in your oven
immediately, you just need to input the length
of cooking time.
You have now set your oven to
cook for 2 hours and 15 minutes.
Please do not forget to turn
the oven knob to the required
temperature
At any time during cooking you can press the
stop cooking button (3) to see the time that
the food will be ready.
Display icons
Auto program has been set.
Auto program food is now ready.
Note, Alarm is now sounding
Auto program now cooking.
Using the Timer

22
Delayed cooking program
Once you have set the length of cooking
time, you can use this feature to have your
food ready at a set given time.
For example,
To have you food ready at 21:30 press the
stop button (3) then set the desired ready
time. After a few seconds the display will
switch to clock mode.
We have now programmed our oven to have
our food ready at 21:30. The cooking time
was pre-programmed as 2 hours and 15
minutes so your oven will start cooking at
19:15 and ensure that your food is ready at
21:30.
As advised before do not forget to set the
oven temperature control to the desired
temperature.
Resetting after loss of mains power
If the cooker has been turned off or had
and 12:00 will be displayed. Any cooking
program will have been cancelled.
oven is inoperative.
Press the manual control button once to get
your oven operational. Press the manual
button once again to set the clock (see
setting the time section).
Alarm volume
Press and hold the key to hear the current
alarm tone. Releasing and pressing the
same button will allow you to scroll through
the 3 available tones.
Note, the default setting is the highest tone
level of the three.
LED brightness
By pressing and releasing the key, you can
scroll through the three available brightness
settings.
Note, the default setting is the highest
brightness level of the three.

Care and maintenance 5
