Fusion™ 1600 ARC™ - Laser Rangefinder Binocular
201042
An advanced Fusion of our finest technologies.
The ultimate in efficiency, our new Fusion 1600 ARC melds the best of 10x42 Bushnell binoculars with world-
leading laser rangefinding capabilities. Every detail is magnified with rich contrast and stunning clarity from edge
to edge using premium fully multi-coated optics and BAK4 prisms. At the push of a button, it displays the exact
distance to your target from 10 to 1,600 yards. With built-in Angle Range Compensation, BOW Mode delivers
Line-of-sight, degree of angle, and true horizontal distance and RIFLE Mode provides line-of-sight, degree of angle,
and bullet-drop / hold-over data. With new Vivid Display Technology™, RainGuard® HD anti-fog coating and a
fully waterproof design to ensure reliability and clarity in all conditions, it’s the best of all worlds.
This booklet will help you achieve optimum performance by explaining its adjustments and features as well as how to
care for this device. To ensure optimal performance and longevity, please read these instructions before using you’re
Fusion 1600 ARC™ laser rangefinder.
Fusion_1600_ARC_Translated.indd 4 12/21/09 9:56 AM

5
HOW OUR DIGITAL TECHNOLOGY WORKS
The Fusion™ 1600 ARC™ emits invisible, eye safe, infrared energy pulses. The Fusion 1600 ARC‘s Advanced
Digital microprocessor and ASIC chip (Application-Specific Integrated Circuit) results in instantaneous and accurate
readings every time. Sophisticated digital technology instantaneously calculates distances by measuring the time it
takes for each pulse to travel from the rangefinder, to the target, and back.
RANGING ACCURACY
The ranging accuracy of the Fusion 1600 ARC is plus or minus one yard / meter under most circumstances. The
maximum range of the instrument depends on the reflectivity of the target. The maximum distance for most objects
is 1000 yards / 914 meters while for highly reflective objects the maximum is 1600 yards / 1463 meters. Note: You
will get both longer and shorter maximum distances depending on the reflective properties of the particular target and
the environmental conditions at the time the distance of an object is being measured.
The color, surface finish, size and shape of the target all affect reflectivity and range. The brighter the color, the longer
the range. White is highly reflective, for example, and allows longer ranges than the color black, which is the least
reflective color. A shiny finish provides more range than a dull one. A small target is more difficult to range than a
larger target. The angle to the target also has an effect. Shooting to a target at a 90 degree angle (where the target
surface is perpendicular to the flight path of the emitted energy pulses) provides good range while a steep angle on
the other hand, provides limited ranging. In addition, lighting conditions (e.g. the amount of sunlight) will affect
the ranging capabilities of the unit. The less light (e.g. overcast skies) the farther the unit’s maximum range will be.
Conversely, very sunny days will decrease the unit’s maximum range.
Fusion_1600_ARC_Translated.indd 5 12/21/09 9:56 AM

6
GETTING STARTED
INSERTING THE BATTERY
The battery compartment is located between the objective barrels. Simply remove the battery cap by rotating it
counter clockwise and insert a CR-123 3-volt lithium battery into the compartment negative end first, then replace
the battery cap.
NOTE: It is recommended that the battery be replaced at least once every 6 months.
SETTING THE DISPLAY FOCUS AND DIOPTER ADJUSTMENT
Before you begin using your laser rangefinder binoculars, a few simple, one-time adjustments should be made to
ensure that you can get sharp focus of objects by just using the main focus knob on the binoculars. This process will
compensate for any variations in the eyesight or vision of the individual user:
1. Leave the rubber eyecups in their “up” position if you are not wearing glasses, or twist them down if you are.
Grasp the left and right sides of the binocular, and pull them apart or push them together while looking
through the binocular to adjust the eyepiece spacing until your view is a single circular image.
2. While looking through the binoculars, press the power button to turn on the display. Look through just the
right side of the binocular-you will see a red aiming circle in the center. Point the binocular at a plain
background.
3. Rotate the display focus (right eyecup) until the circular reticle appears as sharp as possible to your right eye.
This compensates for any difference between your vision and the correct focus for the laser.
4. Next, continuing to look through the right side only, aim at a distant object (preferably one containing fine
detail such as a tree or sign), and adjust the binocular’s center focusing knob until it appears as sharp as
possible to your right eye.
Fusion_1600_ARC_Translated.indd 6 12/21/09 9:56 AM

7
5. Finally, view the same object through only the left side of the binocular, and rotate the diopter adjustment
(left eyecup) until it appears sharp to your left eye (do not touch the center focus knob while doing this).
This compensates for any vision differences between your left and right eyes.
Once set, note the number on the left and right binocular tubes that the index mark on each eyecup is lined up with.
With the display focus and diopter adjustment set to these positions, you should be able to obtain sharp viewing of
objects at any distance by simply adjusting the center focus knob while you look through the binocular. There is no
need to re-adjust the display focus or diopter adjustment, unless you share the binocular with another user, or if your
eyes become tired over a long period of use.
OPERATIONAL SUMMARY
While looking through the binocular, depress the power button once to activate the Vivid Display. Place the aiming
circle (located in the center of the field of view) upon a target at least 10 yards away, depress and hold the power
button down until the range reading is displayed near the bottom of the in-view display. Crosshairs surrounding the
aiming circle indicate that the laser is being transmitted. Once a range has been acquired, you can release the power
button. The crosshairs surrounding the aiming circle will disappear once the power button has been released (i.e. the
laser is no longer being transmitted). Note: Once activated, the display will remain active and display the last distance
measurement for 3 seconds. You can depress the power button again at any time to distance to a new target. As with
any laser device, it is not recommended to directly view the emissions for long periods of time with magnified lenses.
The maximum time the laser is transmitted (fired) is 10 seconds. To re-fire, press the button down again.
VIVID DISPLAY INDICATORS
Your Fusion 1600 ARC Vivid Display™ incorporates the following illuminated indicators:
Fusion_1600_ARC_Translated.indd 7 12/21/09 9:56 AM

8

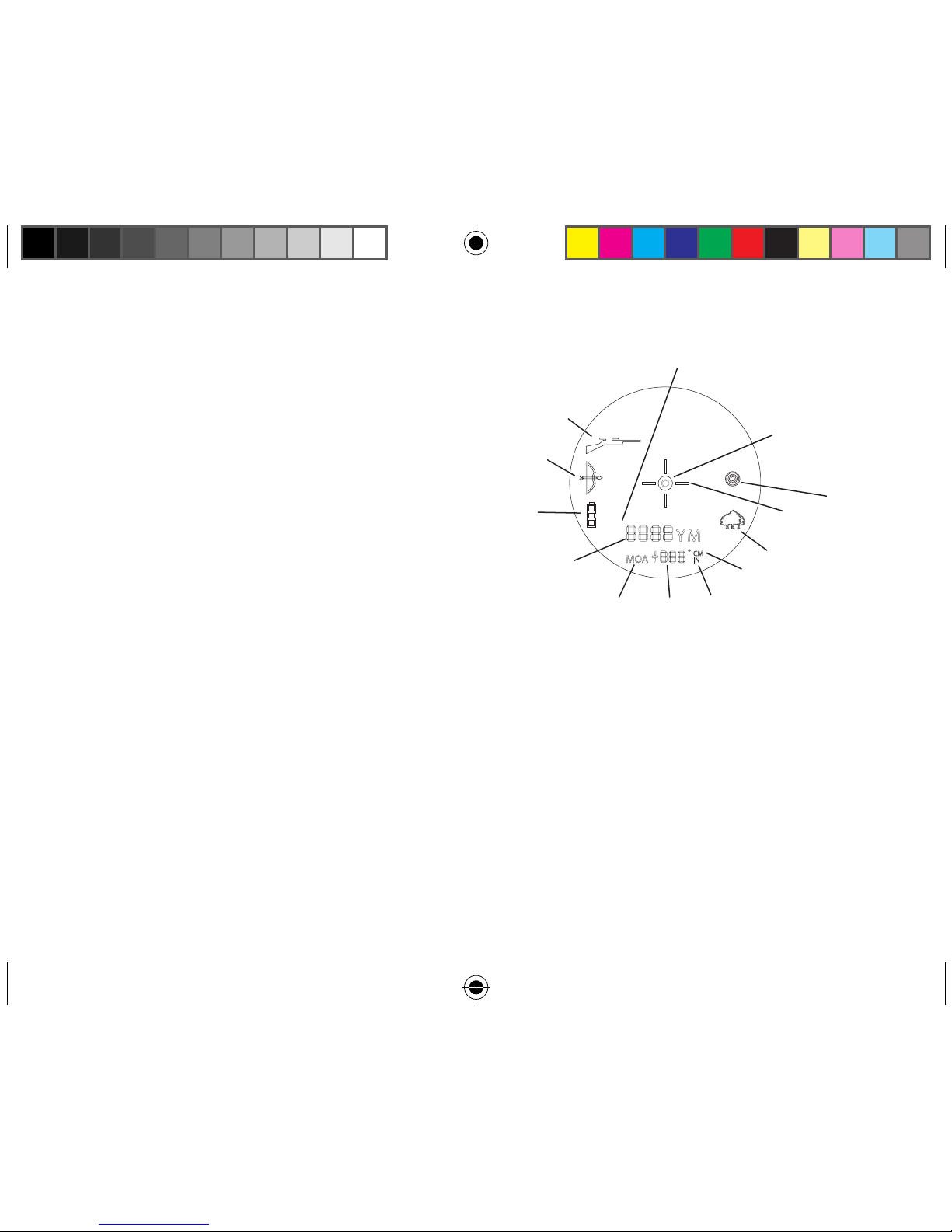

Angle Range Compensation Modes
Rifle Mode (1)
Bow Mode (2)
Battery Life Indicator (3)
Aiming Circle (4)
Active Laser (5)
Targeting Modes
BullsEye Mode (6)
Brush Mode (7)
Primary Numeric Display displays Line-of-sight Distance (8)
Holdover / Bullet-drop measure for Rifle Mode
MOA (9)
CM (10)
IN (11)
SD = Variable Sight-In Distance (12)
Secondary Numeric Display (13)
(Toggles from Degree of Angle to Holdover / bullet drop for Rifle mode)
(Toggles from Degree of Angle to True Horizontal Distance for Bow Mode)
SD
1
12
2
4
56
3
7
8
910
11
13
Fusion_1600_ARC_Translated.indd 8 12/21/09 9:56 AM

9
ANGLE RANGE COMPENSATION
The Fusion 1600 ARC is an advanced premium laser rangefinder binocular featuring a built-in accelerometer-based
inclinometer that digitally displays the exact angle from -90 to +90 degrees of elevation and is +/- 1.0 degree accurate.
The Bushnell® Fusion 1600 ARC™ solves a problem hunters have been faced with for years. The problem: Bow and
rifle hunters have struggled with extreme uphill and downhill angles because of how these angles alter true horizontal
distance to your target. The Solution: ARC’s integrated inclinometer provides elevation angle to allow for distance
compensation when targeting objects that are either uphill or downhill. This data is then combined with internal
algorithmic ballistic formulas.
ARC (ANGLE RANGE COMPENSATION) MODES

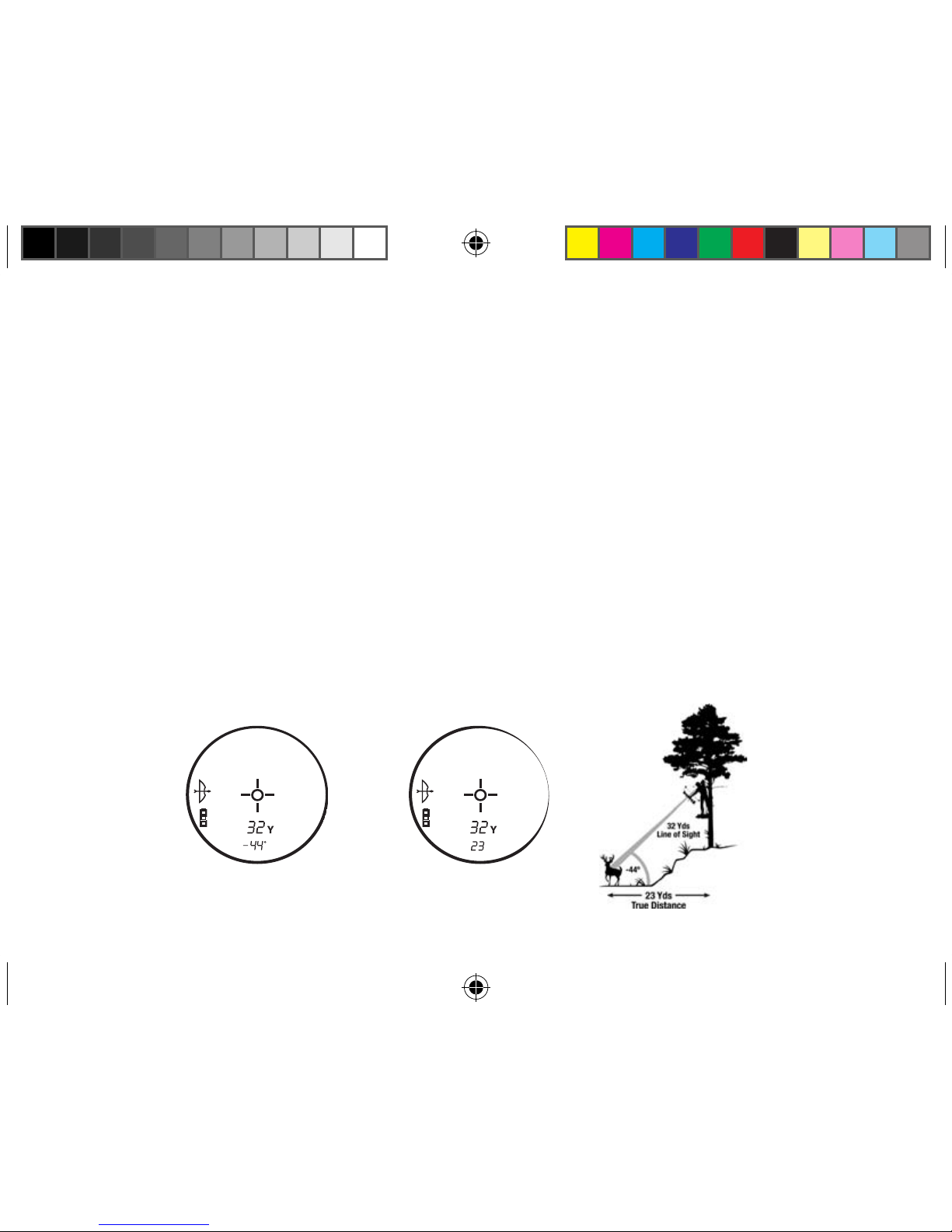

Bow Mode ( ): Displays line of sight distance, degree of elevation, and true horizontal distance from 10-99 yards /
meters and a maximum inclination of +/- 90°.

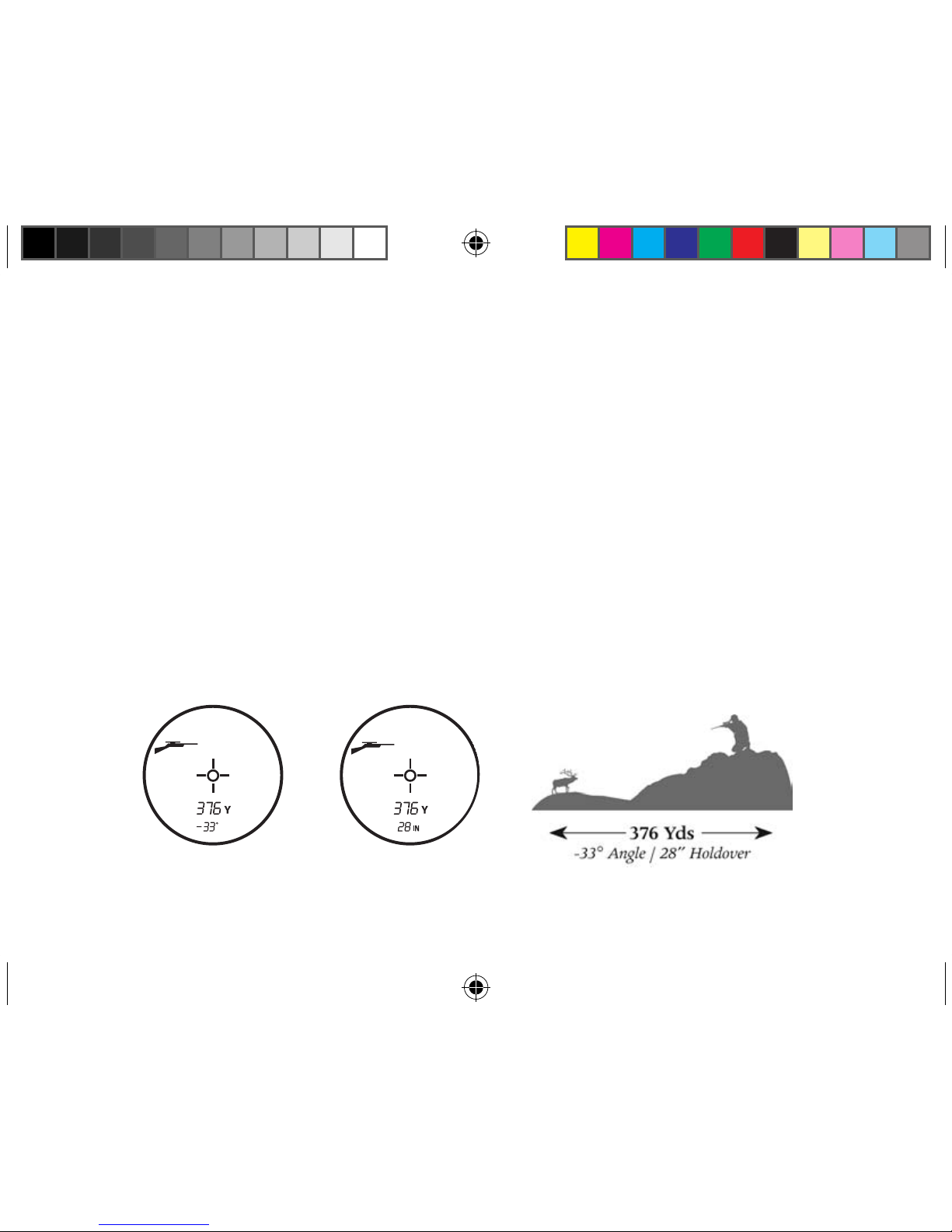

Rifle Mode ( ): Calculates and displays the amount of bullet drop, at the target in inches, centimeters or
MOA. The amount of bullet drop is determined by the line of sight distance to the target, degree of elevation,
along with the specific ballistic characteristics of the caliber and ammunition load. When you range your target,
the line of sight, degree of elevation, and bullet-drop/holdover in inches, centimeters, or MOA will be displayed
from 100 to 800 yards/meters with a maximum inclination of +/- 90°. One of eight ballistic groups (identified as
A, B, C, D, E, F, G, and H) for center fire rifles and two ballistic groups (Identified as I and J) for Black Powder /
Muzzleloaders can be selected by the user, with each formula representing a given combination of caliber and loads.
The ballistic groups are selected by the user in the SET-UP menu.
Regular Mode ( ): This mode does not provide any degree of elevation or compensated distance, but instead,
line of sight distance only.
BATTERY LIFE INDICATOR
Fusion_1600_ARC_Translated.indd 9 12/21/09 9:56 AM

10
Battery Indicator:
Full charge
2/3 battery life remaining
1/3 battery Life remaining
Battery Indicator Blinks - Battery needs to be replaced and unit will not be operable.
UNIT OF MEASURE OPTIONS
The Fusion 1600 ARC can be used to measure distances in yards or meters. The unit of measure indicators are located
in the lower right portion of the LCD.
ACTIVE LASER

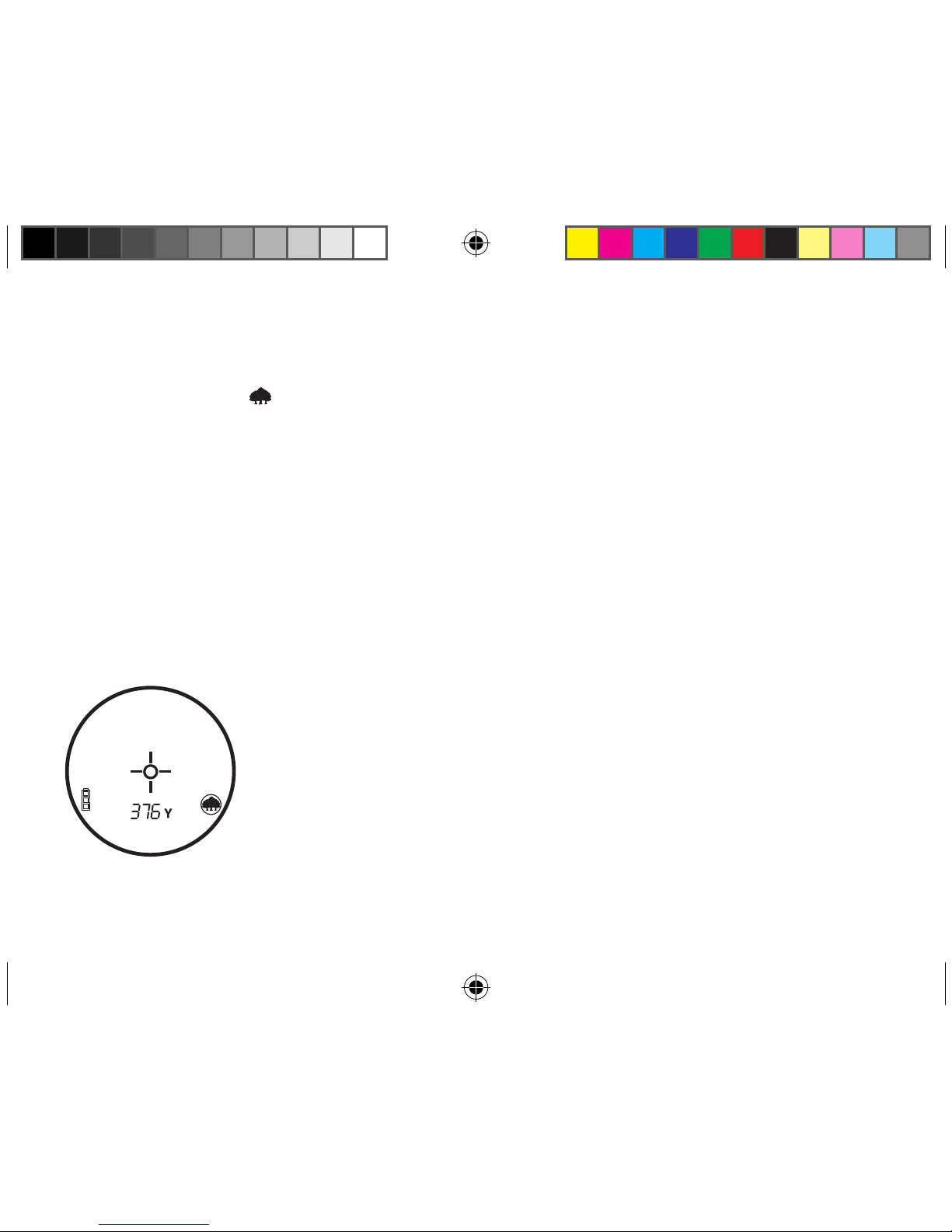

Crosshairs surrounding the aiming circle indicate that the laser is being transmitted. Once a range has been acquired,
you can release the power button. The crosshairs surrounding the circle will disappear once the power button has been
released (i.e. the laser is no longer being transmitted).
SELECTIVE TARGETING™ MODES
The Fusion 1600 ARC was especially designed with hunters in mind. The selective targeting modes allow you to
adjust the performance parameters of the unit to suit your specific situation and environment. To move from one
mode to another, press the POWER button once to turn on the unit. While looking through the eyepiece, press the
MODE button and quickly release. The different targeting modes available and mode indicators are listed below:
Standard with Automatic SCAN (LCD Indicator – none) This setting allows most targets to be distanced up to 1600
yards. Used for moderately reflective targets that are typical of most distancing situations. The minimum distance in
the standard mode is 10 yards. To use the Automatic SCAN feature, simply hold down on the POWER button for
Fusion_1600_ARC_Translated.indd 10 12/21/09 9:56 AM

11
approximately 3 seconds and move the rangefinder from object to object while leaving the POWER button depressed.
Automatic SCAN will allow the range to be continuously updated as multiple objects are targeted.
BullsEye™ (LCD Indicator - ) This advanced mode allows easy acquisition of small targets and game without
inadvertently getting distances to background targets that have stronger signal strength. When more than one object
has been acquired, distance of the closer object will be displayed and a crosshair will surround the BullsEye™ indicator
informing the user that distance to the closer object is being displayed in the LCD.
Once in this mode, press the POWER button to turn the unit on. Next, align the aiming circle onto the object (i.e.
deer) that you want distance to. Next, press and hold the POWER button and move the laser slowly over the deer
until crosshairs surround the BullsEye indicator. If the laser beam recognized more
than one object (i.e. deer and background trees), distance of the closer object (i.e. deer) will be displayed and
crosshairs will surround the BullsEye indicator informing the user that distance to the closer object is being displayed
in the LCD (Figure 1). There may be times when only the laser beam only sees one object in its path. In this case,
the distance will be displayed, but because more than one object was not acquired, crosshairs will not surround the
BullsEye indicator.
218
Figure 1
TIP: While pressing the POWER button, you can move the device slowly from object to object and intentionally
Fusion_1600_ARC_Translated.indd 11 12/21/09 9:56 AM

12
force the laser to hit multiple objects to ensure that you are only displaying the closest of the objects recognized by
the laser.
Brush™ (LCD Indicator - ) This advanced mode allows objects such as brush and tree branches to be ignored so
that distance only to background objects are displayed. When more than one object has been acquired, distance of
the further object will be displayed and a circle will surround the Brush™ indicator informing the user that distance
of the farthest object is being displayed in the LCD.
Once in this mode, press the POWER button to turn the unit on. Next, align the aiming circle onto the object that
you want distance to. Next, press and hold the POWER button and move the laser slowly over the object until a circle
surrounds the Brush indicator. If the laser beam recognized more than one object (i.e. close-up tree branch and a deer
in the background), distance of the further object (i.e. deer) will be displayed and a circle will surround the brush
indicator informing the user that distance to the farther object is being displayed (Figure 2). There may be times when
only the laser beam only sees one object in its path. In this case, the distance will be displayed, but because more than
one object was not acquired, the circle will not surround the Brush indicator.
Figure 2
TIP: While pressing the POWER button, you can move the device slowly from object to object and intentionally
Fusion_1600_ARC_Translated.indd 12 12/21/09 9:56 AM

13
force the laser to hit multiple objects to ensure that you are only displaying the furthest of the objects recognized by
the laser.
Once the device has shut off, the unit will always default back to the last targeting mode used.
MENU SETUP – SELECTION OF BOW, RIFLE, REGULAR MODES, UNIT OF MEASURE, SIGHT-IN DISTANCE, BALLISTIC CORRECTION AND DISPLAY
BRIGHTNESS
There are two ARC (Angle Range Compensation) modes and one REGULAR mode. The two ARC modes are BOW
mode and RIFLE mode.
To select between these modes, first turn the unit “ON” by pressing and releasing the POWER button. Next, press

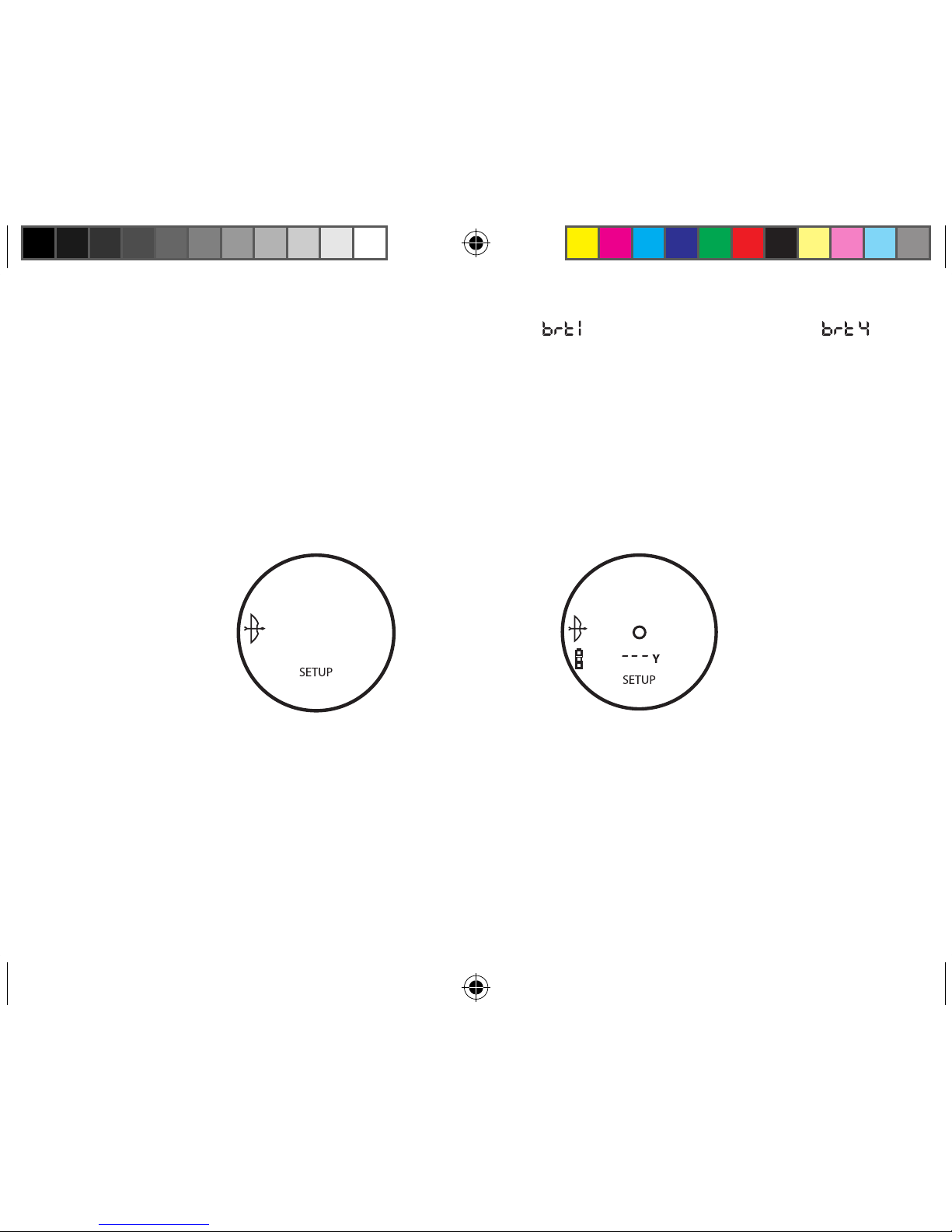

and hold the MODE button for three seconds. The “SETUP” display icon will light and the current compensation
mode will be identified by either the “BOW” symbol ( ), the “RIFLE symbol ( ) lit with one of the ballistic
groups (A thru J) displayed and flashing, or no indicators lit and the message ( ) flashing.
The modes can be cycled through in a circular fashion by pressing and releasing the mode button. The order of modes
is a follows: BOW, RIFLE A, RIFLE B, RIFLE C, RIFLE D, RIFLE E, RIFLE F, RIFLE G, RIFLE H, RIFLE I,
RIFLE J, REG, etc. When the bow selection is displayed, the “BOW” icon will flash and when a “RIFLE: selection
is displayed, the “RIFLE” icon and ballistic group will be flashing. When the ( ) is displayed, the message ( )
will flash within the display.
Once the desired distance compensation mode is displayed, select it by pressing and releasing the POWER button.
Following this selection, the current unit of measure, “Y” for yards or “M” for meters will flash in the display and the
SETUP icon is still lit. Pressing the MODE button will toggle the unit of measure. When the desired unit of measure
is displayed, press the POWER button to accept the unit of measure.
Fusion_1600_ARC_Translated.indd 13 12/21/09 9:56 AM

14
If the user chooses RIFLE mode, and after having determined unit of measure, the user has the following options:
1. Variable Sight-In (VSI™) - Allows the rifle hunter to choose from four sight-in distances (100, 150, 200, or
300 yards or meters) and provides holdover / bullet-drop data in inches, centimeters or MOA. The “SD” (Sight-
In Distance) indicator will turn on and the current Sight-In Distance number will blink within the display (I.e.
100, 150, 200, or 300). The Sight-In Distance options can be cycled through in a circular fashion by pressing and
releasing the mode button. Once the desired Sight-In Distance is displayed, select it by pressing and releasing the
power button.
2. And finally, if RIFLE mode was chosen, and as long as unit of measure and a sight-in distance was selected, you
have the option of determining how you would like hold-over / bullet-drop displayed. If measurement units are in
yards, you will be able to choose between inches, or MOA. The “CM” for centimeters or “IN” for inches will flash
in the display and the SETUP icon is still lit. Once the desired ballistic measure is displayed, select it by pressing and
releasing the power button. If units of measure selected previously was Meters, then your hold-over / bullet-drop will
automatically be displayed in centimeters.
DISPLAY BRIGHTNESS
Vivid Display Technology™ dramatically improves contrast, clarity and light transmission while increasing brightness
of the digital readout, making distance readings legible in low light environments.
There are four intensity settings to choose from and this is the last setting within the SETUP menu. Press the
MODE button for 3 seconds to get into the SETUP menu and continue pressing the power button until you
see “ ” for brightness flashing and SETUP Icon lit. The existing brightness setting will be flashing. Pressing the
Fusion_1600_ARC_Translated.indd 14 12/21/09 9:56 AM

15
MODE button will toggle between the four brightness settings. “ ” is the lowest intensity while “ ” Is
the brightest.
Simply press the MODE button until the desired brightness setting is displayed and select by pressing and releasing
the POWER button.
Upon returning to the normal operating menu, the current compensation mode and unit of measure will be identified
in the display as indicated below.
SETUP menu Normal Operating Menu
Fusion_1600_ARC_Translated.indd 15 12/21/09 9:56 AM

16
When the unit automatically powers down, operation will always return to the normal operation (i.e. away from
SETUP) with the last used ARC mode active (i.e. BOW, RIFLE, or REGULAR) along with the last used TARGETING
modes active (Standard SCAN, BULLSEYE, or BRUSH). If the unit turns off while in the SETUP menu, the unit will
always return to the last mode(s) still active.
Once the range is displayed, continue to hold the POWER button down for approximately 2 seconds while holding
the aiming circle on the object and keeping the unit as steady as possible so as to allow the inclinometer enough time
to measure angle. Then release the POWER button. Once you have released the power button, the line of sight will be
displayed along with unit of measure. Beneath the line of sight distance and unit of measure, the degree of angle will
be displayed for approximately 1.5 seconds, and will then automatically switch to the compensated range. The line of
sight distance, unit of measure and automatic toggle from degree of angle to compensated distance will continue for 5
seconds at which time the display will automatically shut off.
BOW MODE EXAMPLE
Line of sight is 32 yards, angle is -44 degrees, and the Angle Range Compensated distance is 23 yards. Instead of
shooting as 32 yards, shoot as 23 yards. If you were to shoot as if 32 yards, you would shoot over the top of the deer
because of the severe angle.
Line of Sight = 32Y
Compensated Distance = 23Y
Line of Sight = 32Y
Degree of Angle = -44°
Fusion_1600_ARC_Translated.indd 16 12/21/09 9:56 AM

17
If in BOW mode, the line of sight distance will display in the primary numeric display and the inclination and
horizontal distance will display in the secondary numeric displays. Bushnell determined through extensive testing and
interviews with high-profile bow hunting experts that multiple bow ballistic groups were not necessary. Bow-hunters
want to know true horizontal distance because that is how they practice shooting, and once they confidently know
that, they can make any necessary adjustments. Giving the bow-hunter anything else other than horizontal distance
creates additional confusion and uncertainty.
Many people mistakenly believe that uphill shots perform differently from downhill shots because of gravity. However,
it is not due to gravity, but more of an aberration of the sighting system used on bows. The sighting pin on a bow
resides several inches above the mechanical axis of the arrow. For example, when one is aiming 23 degrees up an incline,
the arrow is at a different angle.
RIFLE MODE EXAMPLE
Line of sight is 376 yards, angle is -33 degrees, and the bullet-drop/holdover is 28 inches. ARC not only takes into
account ballistic data based off your caliber and load from distances of 100-800 yards, but also compensates for any
uphill and downhill angles which also affect bullet-drop.
Line of Sight = 376 Yards
Holdover/Bulletdrop =
28 Inches
Line of Sight = 376 Yards
Degree of Angle = -33°
Fusion_1600_ARC_Translated.indd 17 12/21/09 9:56 AM

18
If in RIFLE mode, the ballistic group will be displayed in the bullet drop numeric field anytime that the primary
numeric display is showing dashes (i.e. no target acquired). When a target is acquired in RIFLE mode, the line of sight
distance will display in the secondary numeric displays. The “IN” icon (i.e. inches) will light next to the bullet drop
numeric display, if the unit of measure is set to Yards (Y). If the unit of measure is set to Meters (M), the bullet drop
will be calculated and displayed in centimeters and the “IN” icon will be turned off. If the bullet drop / hold over reads
“ ,” this means the compensated distance is beyond what can be displayed, and or beyond ballistic calculations and
user will need to hold low.
REGULAR MODE
This mode does not provide any degree of elevation or compensated distance, but instead, line of sight distance only.
The will still appear below the line of sight numeric display, but there will not be any information displayed in this
secondary numeric display.
KNOWING WHICH BALLISTIC GROUP TO SELECT
Bushnell engineers have worked with Sierra® Bullets’ ballistic programs and grouped many of the most popular
calibers and loads into eight ballistic groups (A,B,C,D,E,F,G,H). Once you know what caliber and load you are
shooting simply look through the chart to determine which one of the eight ballistic groups match with your particular
load and caliber. For Muzzleloaders, we have worked with PowerBelt Bullets to incorporate ballistic data into two
ballistic groups (I and J).
POPULAR CALIBER & LOAD COMBINATIONS
Federal Cartridge.224 dia. 22-250 Rem, 55 gr. Bear Claw at 3600 fps G
Federal Cartridge.224 dia. 22-250 Rem, 60 gr. Partition at 3500 fps F
Remington Arms .224 dia. 22-250 Remington Arms , 50 gr. V-Max at 3725 FPS H
Remington Arms .224 dia. 22-250 Remington Arms , 55 gr. PSP at 3680 FPS G
Fusion_1600_ARC_Translated.indd 18 12/21/09 9:56 AM

19
Winchester .224 dia. 22-250 Rem, 55 gr. Ballistic Silvertip at 3680 FPS H
Winchester .224 dia. 22-250 Rem, 55 gr. PSP at 3680 FPS G
Federal Cartridge .277 dia. 270 Win, 150 gr. Ballistic Tip at 3060 fps F
Federal Cartridge .277 dia. 270 Win, 150 gr. Partition at 3000 fps F
Remington Arms .277 dia. 270 Win, 140 gr. PSPCL Ultra at 2925 FPS E
Remington Arms .277 dia. 270 Win, 150 gr. SPCL at 2850 FPS D
Winchester .277 dia. 270 Win, 150 gr. Partition Gold at 2930 FPS E
Winchester .277 dia. 270 Win, 150 gr. PP-Plus at 2950 FPS E
Federal Cartridge .308 dia. 30-06 Spring, 180 gr. AccuBond at 2700 FPS D
Federal Cartridge .308 dia. 30-06 Spring, 180 gr. Bear Claw at 2700 FPS D
Remington Arms .308 dia. 30-06 Springfield, 180 gr. A-Frame at 2700 FPS D
Remington Arms .308 dia. 30-06 Springfield, 180 gr. BRPT at 2700 FPS D
Winchester .308 dia. 30-06 Sprg, 180 gr. FailSafe at 2700 FPS D
Winchester .308 dia. 30-06 Sprg, 180 gr. Partition Gold at 2750 FPS D
Federal Cartridge.308 dia. 300 WSM, 180 gr. AccuBond at 2960 fps F
Federal Cartridge.308 dia. 300 WSM, 180 gr. Bear Claw at 3025 fps F
Winchester .308 dia. 300 WSM, 180 gr. Ballistic Silver Tip at 3010 FPS F
Winchester .308 dia. 300 WSM, 180 gr. Fail Safe at 2970 FPS F
Remington Arms .308 dia. 300 R.S.A.U.M., 180 gr. PSPCL Ultra at 2960 FPS E
Remington Arms .308 dia. 300 Wby Mag, 180 gr. PSPCL at 3120 FPS F
Above are a few of the most popular caliber/load combinations. A complete list of approximately 2000 caliber and load
combinations can be found on Bushnell’s website (www.bushnell.com).
Fusion_1600_ARC_Translated.indd 19 12/21/09 9:56 AM

20
After you have determined which ballistic group corresponds to your caliber and load, select this ballistic group
(See MENU SETUP above). The internal formula will determine amount of bullet drop/holdover in inches or
centimeters based upon distance, angle, and ballistics of your caliber and load.
This state-of-the-art digital technology allows the hunter or shooter to know precisely where to hold for an effective
shot. This information should be treated as a helpful guide or tool and in no way should it ever replace practice and
familiarity with your rifle, cartridge and load. We encourage practice shooting at different ranges so you know how
your rifle, cartridge and load will perform under various conditions. Always know what is behind your bullet; if you
don’t know, don’t take the shot.
EXAMPLE
You have a 300 WSM and are shooting the following Winchester brand load: 180 gr. Ballistic Silver Tip bullet at 3010
FPS muzzle velocity. This combination falls under Ballistic Group “F”. After setting the rangefinder to ballistic group
“F”, go to the range and sight in your riflescope at 100 yards. If you then take a shot at a target at 317 yds, the bullet
drop will be 9 inches. If the shot is at angle of 27 degrees upward, then the corrected bullet drop will be 8 inches.
WHAT IF YOUR CALIBER IS NOT LISTED?
While we have taken great care to include as many calibers and brand names in our ballistics tables, new loads are
always being developed. In addition, some shooters load their own ammunition with unique ballistic characteristics.
If you cannot find your load in our ballistic tables, you can still use the bullet drop feature of the laser rangefinder. As
above, sight in your rifle at 100 yds. Then shoot the rifle, without adjusting the riflescope, at 300 yds. Measure the
bullet drop from the point of aim. Using this drop, select the ballistic group from below. If you will be shooting longer
distances then you may want to check the bullet drop at 500 yds. Because there is enormous variation in rifle barrels,
chambers, and hand loads, you should thoroughly test the ballistic setting before actual hunting. You may need to
move up or down one group depending upon your tests.
Fusion_1600_ARC_Translated.indd 20 12/21/09 9:56 AM
