Butterfly Avionics Butterfly Connect Stick User manual
Buttery Avionics

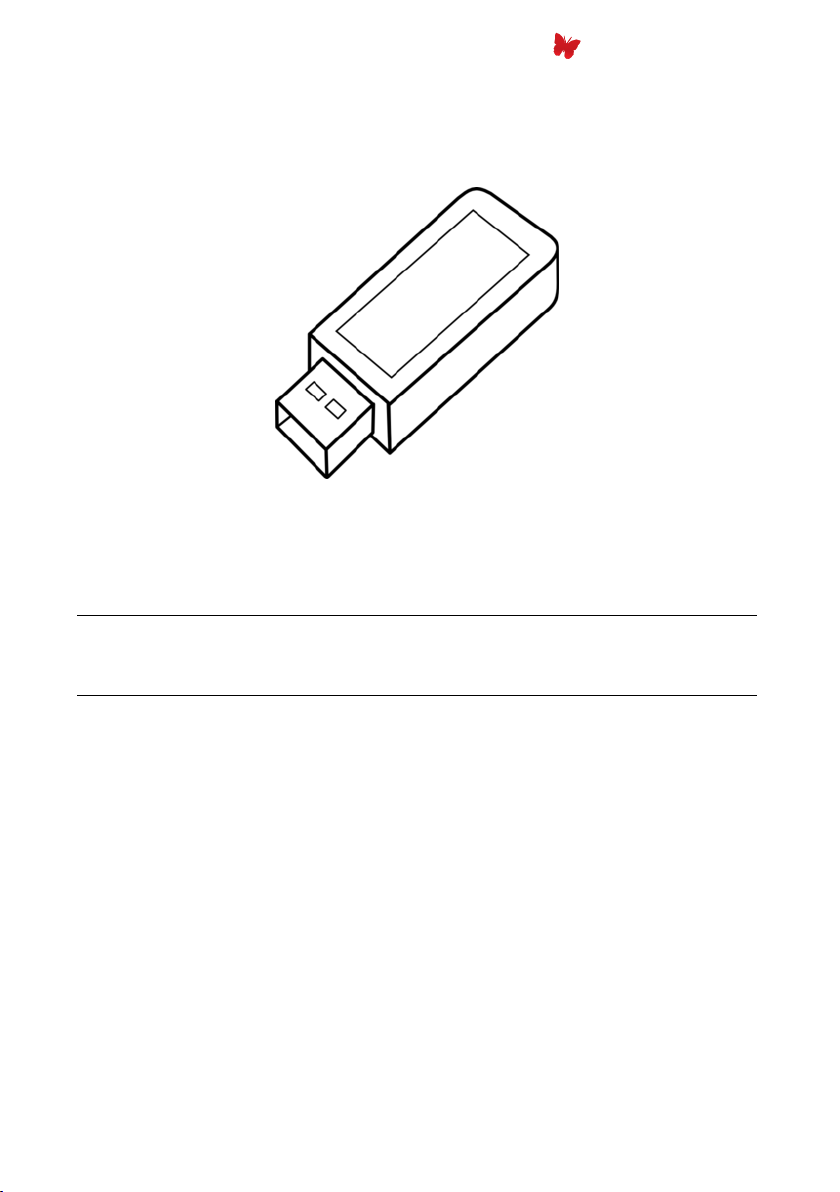

Butterfly Connect Stick
Manual
Document name: 18.B106.001-1.0-EN
Document version: 0.4
Release date: 21/05/2013
Butterfly Avionics GmbH – Hauptstrasse 93/1 – D-69207 Sandhausen
Phone: +49 (0) 6224 82 83 87 0 – Fax: +49 (0) 6224 82 83 87 7 – Internet: www.butterfly.aero – eMail:
support@butterfly.aero
Buttery Avionics
Notes
i Connect Stick Manual •18.B106.001-1.0-EN
Buttery Avionics
General Information
IMPORTANT!
Please read this manual carefully!
Please pay attention to the restrictions on use!
Document identification / revision status
This manual supports the following product types:
•P/N B104-001 ”Butterfly Connect”
Actual version: Connect Stick Manual •18.B106.001-1.0-EN, Version 1.0
Version history
Revision Date Status Author Changes, comments Approved
1.0 2013/05/21 Release M. Foerderer Translation from german
version
-
Referenced documents
Reference Title Version Date Author
18.T275T276.001-EN Vario Installation Manual 1.0 2013 Butterfly
Connect Stick Manual •18.B106.001-1.0-EN ii
CONTENTS
Buttery Avionics
Contents
1 General 1
1.1 Safety instructions and restrictions on use . . . . . . . . . . . . . . . . . . . . 2
1.2 Intellectual Property and Liability . . . . . . . . . . . . . . . . . . . . . . . . 2
2 Installation 3
2.1 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 Mechanical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 Initial Configuration 5
3.1 Butterfly Vario Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Connecting your iOS®-Device . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Nutzung von Daten in iGlide 6
4.0.1 Nutzung von Daten in iGlide . . . . . . . . . . . . . . . . . . . . . . . . . 6
1 Connect Stick Manual •18.B106.001-1.0-EN
1 GENERAL
Buttery Avionics
1 General
Butterfly Connect Stick is a very compact, lightweight USB-device wirelessly connecting Smart-
phones such as Apple®iOS®-devices to aircraft systems.
Butterfly Connect Stick creates an IEEE 802.11 b/g wireless AD-HOC network (WiFi®) and trans-
mits data from host devices like e.g. the Butterfly Vario via the TCP/IP protocol. Many Smartphone-
Apps are capable of displaying and using such data. Examples for data are current GPS-position,
pressure altitude, traffic or engine data.
Figure 1: System Diagram
1 - 8 Connect Stick Manual •18.B106.001-1.0-EN
Buttery Avionics
1 GENERAL
1.1 Safety instructions and restrictions on use
Installation and operation must be on the basis of non-interference with and no hazard to the exist-
ing suite of other equipment necessary for safe flying operation, or installed to comply with official
requirements. Installation and operation must comply with official regulations and requirements.
Never make safety critical decisions based on transferred information. Make sure to
the end users of your App that displayed data are for situational awareness only.
Butterfly Connect does not have a JTSO or FAA-TSO airworthiness certification.
1.2 Intellectual Property and Liability
Butterfly Avionics GmbH will not be liable for errors/changes/omissions in this document - specifi-
cations are subject to change without notice. Butterfly Avionics its associates, development team,
suppliers, manufacturers and data suppliers accept no responsibility for any damage or claims that
may arise from use of Butterfly Connect.
Trademarks referred to in this document are the property of their respective holders. Note that this
document as well as the interface described with it are proprietary and copyright protected. Any
non-licensed use, dissemination, copying, implementation, reverse engineering or decompilation
is forbidden by law and will be prosecuted.
Connect Stick Manual •18.B106.001-1.0-EN 2 - 8
2 INSTALLATION
Buttery Avionics
2 Installation
2.1 Connector
Butterfly Connect Stick features one central USB connector for power and data.
USB
Figure 2: USB Connector
2.2 Mechanical Installation
Carefully insert the stick into one of the Butterfly Vario USB ports and take care to insert it in the
correct direction.
The stick may be destroyed if trying to insert it in the wrong direction
3 - 8 Connect Stick Manual •18.B106.001-1.0-EN
3 INITIAL CONFIGURATION
Buttery Avionics
3 Initial Configuration
Butterfly Vario devices are compatible with vario-software version 1.06 or higher
3.1 Butterfly Vario Configuration
•Butterfly Vario Configuration - Power on Butterfly Vario
- Go to Menu then Setup then Device,
Peripherals, and set WiFi to Yes
- Go to Menu then Setup,Device and set your
data output as desired
When using iGlide, set LXWP as the main Vario dataset.
Changes only take effect after re-booting Butterfly Vario
3.2 Connecting your iOS®-Device
To create a connection to iOS®-devices, please follow the steps underneath:
These settings only have to be entered once at initiial configuration
•Connect iOS®-Devices - Power on Butterfly Vario
- Open the iOS®-Settings App on your
iOS®-Device.
- Go to Wi-Fi and make sure WiFi is active.
- In the Choose a Network..-field the Network of
your Butterfly Vario appears. It is always named
Butterfly Vario followed by a multi-digit number
code.
- Tap on the Butterfly Vario-Network to establish
a connection
- Tap on the little blue arrow next to the Butterfly
Vario-Network
- In the field IP-Address choose Static
- Enter the following IP-Address in the field
IP-Address:192.168.1.2
- Enter the following Subnet-Mask in the field
Subnet-Mask:255.255.255.0
Make sure that your iOS®-Device remains connected with the network. To prevent autoamtic
network switching activate Ask to Join Networks in the Wi-Fi menu.
5 - 8 Connect Stick Manual •18.B106.001-1.0-EN
