BVF 23-FA User manual

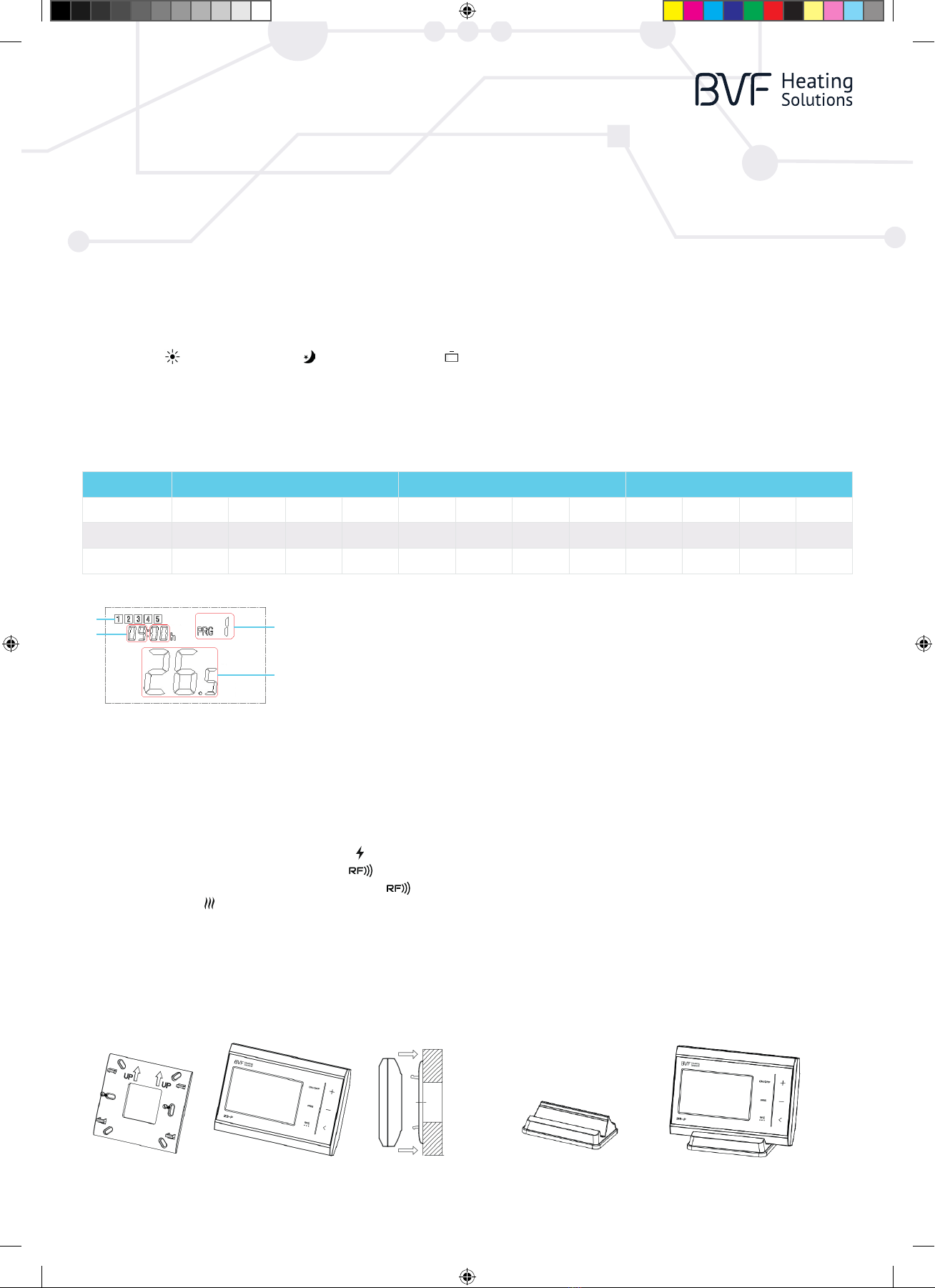

User manual
www.bvfheating.com
BVF 23-FA
RF Thermostat with plug receiver
TECHNICAL DATA
Thermostat Operating Voltage: 2 x AAA 1.5V, alkaline batteries
Receiver Current Load: 230V, 50/60Hz
Backup Storage: EEPROM
Maximum load: 230V / 16A
Frequency: 868MHz / 433MHz
Switching options: 5+1+1 day, 4 periods each day
Temperature settings: 5°C ~ 30°C, 0.5°C increments
Accuracy: +/- 0.5°C
Thermostat dimensions: 135mm x 88mm x 22mm
Receiver dimensions: 114mm x 86mm x 30mm
Color: White
IP protection rating: 20
Certifi cation: CE
PRODUCT FEATURES
• Large display can be clearly read with the background
lighting
• Easy to fi t without installation works
• Six buttons make it easy to use
• 4 periods of each day programmable (5+1+1)
• The display shows the set and the measured temperature
• The thermostat is supplied with a wall-fi xing fram and
desktop stand
1 + button Increase temperature (change value at settings)
2 – button Decrease temperature (change value at settings)
3 Back Back to main page
4 Menu Set time / Select Mode
5 PRG Programming
6On/Off Turn unit On /Off
7 Actual mode Displays actual mode
8 Temperature Displays actual temperature
9 Clock Displays actual time
10 Weekday Displays actual weekday
11 Cycle time Displays actual cycle time
12 Power on LED indicator
13 Heating on LED indicator
14 Setup in progress LED indicator
15 Pairing device button
The unit consists of two parts: 23-F controller and 23-A receiver. The controller has been developed to operate electric heating panels or conven-
tional electric heating units. Receiver part is designed for standard electric outlet. The controller can be accommodated anywhere in the room.
1. DISPLAY AND BUTTONS
1
11
10
2
9
47 56
3
8
12
14
13
15
BVF_23-F_ENG_v1.0_20170622.indd 1 2017. 06. 26. 12:08:01

User manual
www.bvfheating.com
2. TEMPERATURE CALIBRATION
You might need to calibrate the temperature sensor for the fi rst use. Turn off the controller, press and hold the MENU button for 3 seconds. Use
the +and – buttons to set the temperature value. This value can be adjusted within -8 to +8°C in 0,5°C increments.
3. SETUP TIME AND SELECT MODE
Set up actual time and weekday
After turning the controller on, press MENU button and hold 3 seconds, the time display will start fl ashing. Change the minutes by +and –
button. Press MENU button again, and change the hours. Press MENU button again and set the day of the week: 1-Monday; 2-Tuesday etc. After
setting up time and day push the BACK button to save changes.
Select mode
The controller off ers four diff erent pre-set modes. The PRG mode sets up temperature using 4 diff erent programmed cycle times a day. The
Comfort mode , Energy saving mode and the holiday mode keeps the assigned temperature all around the week.
You may switch between modes using MENU button.
4. SETUP PROGRAM MODE
Pre-set factory values of the program mode might be modifi ed easy as follows:
5. PAIRING WITH THE RECEIVER
The receiver is usually paired with the receiver; still in some cases you might need to repeat pairing, which is fast and easy:
1. Connect the receiver to the power outlet. The LED light turns on.
2. Push the pairing button on the receiver. The LED light starts fl ashing.
3. Turn thermostat off and press MENU for 3 sec. The LED turns off , pairing is ready. When you set the temperature higher than room
temperature, the LED will light.
Weekdays are displayed on the top left area of the screen (B) from Monday to Sunday (1-7). You can
adjust cycle times (D) and temperatures (C) for each period: one for the working days (1-5), one for
Saturday (6) and one for Sunday (7). All three periods have a daily routine of four cycles with its own
starting time and temperature value.
1. To modify values in program mode press PRG button for 3 seconds. Time starts fl ashing (A) Set
the starting time of the cycle within the period using +and – buttons, and after pushing PRG
button again, set the desired temperature value of the cycle.
2. Press PRG button and display will jump to the next cycle. Program all values of the working
days, then Saturday and Sunday.
3. You may save changes and return using the BACK button.
6. MOUNTING
Mounting on wall: Desktop:
Monday to Friday Saturday Sunday
Cycle 123412341234
Time 6:30 8:00 18:00 22:30 8:00 10:00 18:00 23:00 9:00 12:00 19:00 0:00
Temperature 21°C 18°C 21°C 16°C 21°C 21°C 21°C 16°C 23°C 21°C 16°C 21°C
B
AD
C
