JOGGING STROLLER KIT
OWNER’S MANUAL
English pg 1 –pg 07
Français pg 08 –pg 13

1
JOGGING STROLLER KIT
OWNER’S MANUAL
This Owner’s Manual should be kept for future reference.
BX Trailers
P.O. BOX 73238
ABU DHABI - U.A.E.
WWW.BXTrailers.COM
Additional instructions and manuals for using this carrier may be downloaded from WWW.BXTrailers.COM.
If you have any questions, please contact your authorized dealer or visit WWW.BXTrailers.COM.
All rights to this Owner’s Manual are retained by BX Trailers. No reproduction, in-full or in-part, is allowed without
the written authorization of BX Trailers. No unauthorized use of this Owner’s Manual is allowed including
unauthorized distribution or commercial use.
You must not use the child carrier before you have read and understood the entire
contents of this Owner’s Manual. Failure to comply with the instructions contained in this
manual may lead to an accident in which you and/or your passenger(s) could suffer
serious injury or death.
WARNING
!

2
Contents:
1. Introduction ................................... 3
2. Safety Guidelines ............................. 3
3. The Jogging Kit................................ 5
Package Contents............................. 5
Serial Number and Date of Manufacturing 5
Installation .................................... 5
Removal........................................ 6
Tracking Adjustment......................... 6
Storage ......................................... 6

3
1. Introduction
Congratulations!
Your child carrier is the evolution of child carriers. Your
carriers offer superior quality, outstanding features, great
performance, safety and comfort. In addition, the carrier is
packaged with cycling and strolling kits to provide you with the
versatility to meet all of your child transportation needs.
Other Kits and Accessories are available from your dealer.
Important:
BX Trailers is not liable for damages arising from
improper use of its products or use that goes beyond
what the product is designed for.
Improper use includes using the carrier on rough
terrain, transporting people and animals, overloading,
commercial use, excessive speed and modifications.
2. Safety Guidelines
General
1. It is extremely important that you read through,
understand and follow all instructions in the Owner’s
Manual. Failure to comply with the safety instructions may
result in injury or death to the user and/or the
passenger(s) of the carrier.
2. Always comply with local safety regulations and local Road
Traffic Act. The safety regulations and/or Road Traffic Act
may restrict the use of the carrier in some way.
3. This carrier is intended for carrying children during
daylight hours and travelling on light traffic roads,
sidewalks and smooth paths. Luggage may be added in the
designated area as long as it doesn’t affect the children’s
comfort or safety.
4. When using the child carrier in conditions of poor
visibility, it is highly recommended to install a safety-
approved light set onto the carrier and for the user to
wear bright and reflective clothing.
5. The passengers and cargo load must not exceed the limits
outlined on the specifications section.
6. The child’s head (with helmet) should be at least 10 cm
(4”) below the carriers top Aluminum frame.
7. Never carry dangerous cargo. This includes fuel, heavy or
sharp items.
8. Always secure the luggage in the carrier. Unsecured
luggage may move thus making the carrier less stable.
9. Only light items are to be placed in the inside pockets or
rear pocket. No cargo or load should be placed in the area
forward of the seat. This will affect the weight
distribution and balance of the carrier.
10.The carrier is intended to be pushed by people or towed
by a bicycle. It must never be towed behind motorized
vehicles or animals.
11.No child should be in the carrier when connecting to the
bicycle, converting the carrier with the different
conversion kits, or when carrying out maintenance or
repair work.
12.Do not use on icy roads or in inclement weather.
13.Collapse and extend the carrier with care, there is a risk
of pinching your hand or fingers while doing so.
14.Before each use, check the tire pressure. The pressure
must be between 30 psi (2.1 bar) and 35 psi (2.5 bar).
15.Before each use, check that the wheels are fully engaged.
16.Before each use, check that the folding lock is fully
engaged.
17.Regularly check all safety-related items for damage. This
includes; wheels, hitch arm, jogger arms, handlebar,
frame and plastic components. If any damage is found,
stop using the carrier immediately until the part has been
replaced by your Authorized Dealer.
18.The recommended maintenance work is essential for the
durability and safe operation of the carrier.
19.Only use original replacement parts. Repairs and
replacements have to be carried out by an Authorized
Dealer.
20.Never make alterations, additions or modifications to the
carrier. This will make the carrier unsafe and render the
warranty invalid.
21.Regularly check for tears in the fabric. Fabric tears
represent a high safety risk. If you find a tear in the
fabric, stop using the carrier immediately and contact
your Authorized Dealer.
22.Installation of any equipment that does not carry the
approval of the manufacturer is not allowed. This includes
car seats, seat supports, luggage racks, etc.
23.The carrier is equipped with self-locking nuts. If, for any
reason, a nut becomes loose, it must not be reused. The
loose nut must be replaced with a new one as it loses its
function after the first use.
24.Transporting the carrier on the roof of a vehicle may
damage the carrier and as such should not be done.
25.Do not use the carrier at temperatures below -20°C /-4°F
and do not store it at these temperatures as the windows
may become damaged and/or break.
Transporting Children
1. Children should never be left unsupervised in the carrier
and should be checked on frequently to make sure they
are safe and comfortable.
2. Children should be clothed appropriately for the weather.
3. If only one child is being carried in a two-seater carrier,
the central sitting position must be used. Otherwise, the
carrier becomes less stable which may lead to an accident
resulting in serious injury or death.
4. Children and cyclist must wear approved helmets (CPSC or
CE approved).
5. Children must be at least 1 year old and be able to sit up
without support in order to be transported in the carrier.
6. The maximum height of children to be transported in the
carrier is 116 cm (45.7“) and their head (with helmet)
should be at least 10 cm (4”) below the carrier’s top
aluminum frame.
7. No part of the child’s body, clothing or toys should come
into contact with the carrier wheels or the rear wheel of
the towing bicycle.
8. Always use the carrier’s cover to protect children from
insects and/or flying debris.
9. Never place items of luggage on the seat next to your
child.
10.Never carry animals together with your children.
11.Make sure the child does not bounce, fidget or lean out of
the carrier.
12.Fasten seatbelts correctly around the child and correctly
adjust to the height of the child. Failure to comply may

4
result in serious injury or death to the child in the event of
an accident.
13.Always have the parking brakes engaged as children get in
and out of the carrier. The parking brakes prevent the
carrier from accidentally rolling away.
Stroller and Jogging Stroller
1. Fasten seatbelts correctly around the child and correctly
adjust to the height of the child (as explained in the
carrier’s Owner’s Manual). Failure to do this may result in
serious injury or death to the child in the event of an
accident.
2. Before each use, check that the stroller caster is properly
installed and the handlebar is locked at the proper
adjustment.
3. Do not park on inclined paths.
4. Do not park on a street or any other place that might put
the stroller in harm’s way.
5. Always engage both parking brakes when the stroller is
stationary.
6. Never use the stroller for inline skating.
7. Never load the handlebar with cargo or any other item.
This may cause the stroller to tip backward.
8. Never use the parking brake to slow down the stroller.
9. When pushing the stroller, you must wear the wrist strap
around your wrist.
10.The stroller is intended for walking pace only (less than 8
km/h (5 mph)).
11.When using the carrier in a mode other than stroller, make
sure the stroller caster is completely removed or installed
in the storage position. Failure to do so may result in
injury or death.
Jogging Stroller
1. Fasten seatbelts correctly around the child and correctly
adjust to the height of the child (as explained in the
carrier’s Owner’s Manual). Failure to do this may result in
serious injury or death to the child in the event of an
accident.
2. Before each use, check that the jogger arms and front
wheel are fitted properly and the handlebar is locked at
the proper adjustment.
3. Do not park on inclined paths.
4. Do not park on a street or any other place that might put
the jogging stroller in harm’s way.
5. Always engage both parking brakes when the jogging
stroller is stationary.
6. Never use the jogging stroller for inline skating.
7. Never load the handlebar with cargo or any other item.
This may cause the jogging stroller to tip backward.
8. Never use the parking brake to slow down the jogging
stroller.
9. When pushing the jogging stroller, you must wear the wrist
strap around your wrist.
10.Do not allow any load to be applied onto the jogging
stroller’s wheel arms. This includes children stepping or
sitting on the wheel arms.
11.When using the jogging stroller, never exceed 16 km/h (10
mph). Slow down to walking pace (less than 8 km/h (5
mph)) around corners, on inclined paths, or on rough
terrain.
12.When using the carrier in a mode other than stroller, make
sure the stroller caster is completely removed or installed
in the storage position. Failure to do so may result in
injury or death.

5
3. The Jogging Kit
The Jogging Kit is sold separately.
Package Contents
Two wheel arms, 16” wheel, quick-release axle and two
storage straps.
Serial Number and Date of Manufacturing
The Serial Number sticker and the Date of Manufacturing
sticker are placed on the right wheel arm.
Installation
Procedure:
1. Tip the carrier backward so it is resting on the handlebar.

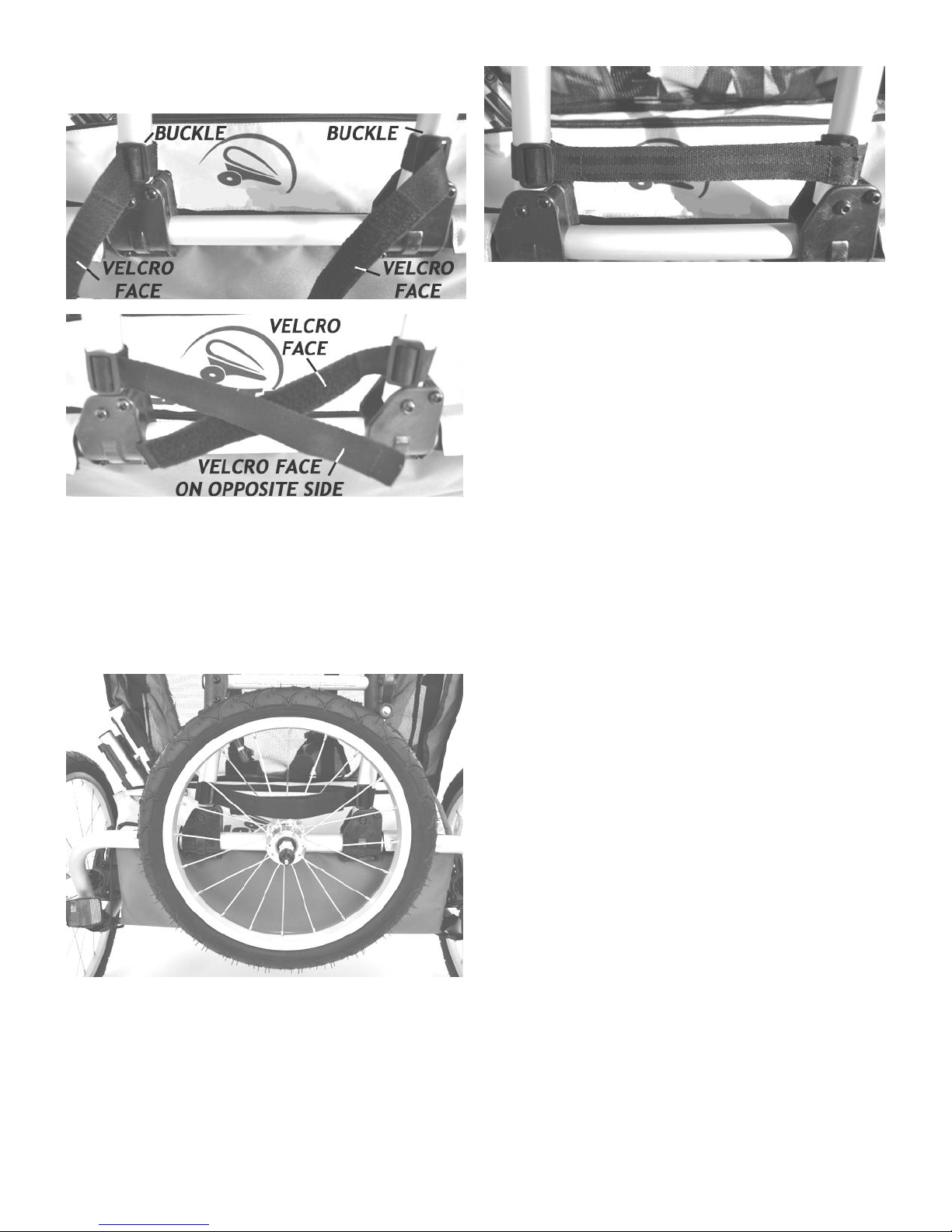

1. Insert the right wheel arm in the right receiver so that the
dropout is toward the centre of the carrier, the guides on
the wheel arms are aligned with the openings in the
receiver and the button is facing outward (reference the
provided pictures).
2. Push the wheel arm all the way in the receiver.

6
3. Twist the wheel arm all the way up (toward the top of the
carrier).
4. Verify that the button is protruding through the hole in the
outside face of the receiver.
5. Repeat the preceding two steps for the left wheel arm.
6. Install the quick-release axle (with washer and two
springs) through the wheel axle then install the nut. Make
sure the small diameter of each spring is toward the wheel
(reference the provided pictures).
7. Insert the wheel into the dropout of the wheel arms.
8. Open and close the quick-release lever with your right
hand while gradually tightening the nut with your left
hand.
9. Continue tightening the nut until you feel resistance when
the lever is the middle position (between fully open and
fully closed).
10.Grip the wheel arm with your fingers and use the palm of
your hand to close the lever.
11.When the lever is at the close position, it will be parallel
to the wheel arm and the inscription “CLOSE” (on the side
of the lever) will be facing away from the wheel.
12.Check by pulling the wheel as hard as you can with one
hand while holding the wheel arm with the other hand.
Removal
Procedure:
1. Open the quick-release axle and remove the wheel (you
might need to loosen the nut slightly).
1. Press down the button with one hand and while the button
is pressed down, twist the wheel arm all the way down
(toward the floor of the carrier).
2. Pull the wheel arm out.
Tracking Adjustment
Test your jogging stroller with all tires properly inflated and
with no load in the jogging stroller. If the jogging stroller rolls
to one side (rather than rolling straight), apply the following
procedure.
Procedure:
Jogging Stroller Rolling to the Right:
1. Remove the jogger wheel (16” front wheel).
2. Loosen the nut holding the dropout of the RIGHT wheel
arm.
3. Pull the dropout outward approximately 3.5mm (1/8 inch).
The dropout can move up to 7mm (1/4 inch).
4. Tighten the nut, install the wheel and test again.
5. If the jogging stroller is still rolling to the right, repeat
steps 1-4 (with pulling the dropout outward all the way).
Jogging Stroller Rolling to the Left:
1. Repeat the preceding procedure on the LEFT wheel arm.
Storage
Procedure:
Jogger Arms:
1. Open the zipper of the cargo compartment that is closest
to the seat back.
1. Insert the jogger arms in the cargo so that the end with
the dropout is completely inside the cargo compartment
and the other end is pointing upward (reference picture).
2. Close the zipper to hold the jogger arms in place.

7
Jogger Wheel:
1. The Jogging Kit includes two storage straps.
2. Assemble the straps on the tubes (back of the carrier) so
that the buckle is between the tubes and the loose end of
the strap is toward the side of the carrier (reference
preceding pictures).
3. Insert the loose end of the strap in the close opening of
the buckle and tighten around the tube (reference
preceding pictures).
4. Insert the loose end of the strap in the second opening of
the buckle and tighten around the tube (reference
preceding pictures).
5. Rest the wheel on the lower frame so that it is located
between the two tubes and that the quick-release lever is
toward the carrier.
6. Thread the straps between the spokes of the wheel, pull
as tight as possible and then fasten the velcro faces
together.
7. Once the wheel is removed from the storage location,
make sure the velcro faces are fastened together.
Warning:
-Your carrier is provided with an Owner’s Manual. It is
extremely important that you read through, understand
and follow the safety instructions in the Safety Guidelines
(including Jogging Stroller Safety Guidelines) at the
beginning of the Owner’s Manual. Failure to comply with
the safety instructions may result in injury or death.
-When using the carrier in a mode other than stroller, make
sure the stroller caster is completely removed or installed
in the storage position. Failure to do so may result in
injury or death.
-When storing the jogger arm in the cargo compartment,
make sure they are secured well and there is no chance
they will come in contact with the wheel.
