BZB Gear BG-12GCSA User manual

BG-12GCSA
USB-C 12G-SDI Video Capture Box with Scaler, HDMI 2.0/12G-SDI
loopout, Audio
User Manual

BZBGEAR BG-12GCSA PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-12GCSA PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Specifications 6
Operation Controls and Functions 7
Connection Diagram 8
Video Streaming 9
Troubleshooting 18
USB Pin Definition 18
Tech Support 19
Warranty 19
Mission Statement 19
Copyright 20
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-12GCSA PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-12GCSA PRODUCT MANUAL
Introduction
The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI
2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video
signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed
data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.
Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD
(4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed
SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image
buffer technology, which effectively avoids video tearing. The high sampling rate and
accuracy ensure that the captured videos have a high degree of sharpness, rich details, and
fewer color edges.
Features
●SDI video and audio streams over USB 3.1 Type-C Gen 1
●UVC1.0/1.1/1.5
●Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
●HDMI up to 4K2K@60
●SDI input & loopout resolutions:
720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60,
[email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50,
[email protected], 1080p@60, [email protected], 4K2K@24, 4K2K@25, [email protected],
4K2K@30, 4K2K@50, [email protected], 4K2K@60,
●Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps,
2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
●Auto 12G/6G/3G/HD-SDI detection
●Deinterlacer & scaler (upscale to 1080p@120Hz)
●Mic in allows embedding to SDI audio
●SDI audio extraction
●Volume control knobs to adjust the MIC/Headphone volume.
●Auto-detection on video format to ensure plug-play operations
●Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
●Compatible with most 3rd party software such as OBS Studio and AMCap
●USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0
(YUY2/NV12) (capture up to 1080@15)
●Low Latency (3~4ms at 1080P)
●USB-C reversible
Packing List
●1x CAP-30CI-12G
●1x USB 3.0 A to C Cable (host to device)
●1x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-12GCSA PRODUCT MANUAL
Specifications
Model Name
BG-12GCSA
Technical
Role of usage
Video Capture Device
Input/loopout Video bandwidth
[SDI][ 11.88 Gbps, 11.88/1.001 Gbps]
Output bandwidth
Up to 5 Gbps (USB-C)
Video support(USB-C)
Up to 4K2K@30/1080P@120
Video support(Loopout)
Up to 4K2K@60
Input Video Support
[12G-SDI] 4K2K @50/59.94/60Hz
[6G-SDI] 4K2K @23.98/24, 25, 29.97, 30Hz
[3G-SDI] 1080p50/59.94/60
[HD-SDI] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, 1080p
@23.98/24/25/29.97/30Hz
Audio Input
SDI Embedded Audio & Stereo audio Input
Audio Support
HDMI output/ SDI loopout up to 7.1ch, Toslink up to 5.1ch,
Stereo audio up to 2ch
Recording Video Format
RGB/YUY2/NV12 (USB3.1 Gen 1), YUY2/NV12 (USB2.0)
ESD protection
Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up
4-layer board [impedance control — differential 100Ω; single 50Ω]
Cable equalization
[12G-SDI] Input up to 30m; Loopout up to 70m
[6G-SDI] Input up to 70m; Loopout up to 120m
[3G-SDI] Input up to 200m; Loopout up to 200m
Firmware update
USB-C Port
Input
1x BNC(SDI) + 1x 3.5mm
Output
1x USB-C + 1x HDMI 1x BNC(SDI) + 1x 3.5mm + 1x Toslink
HDMI connector
Type A [19-pin female]
USB connector
USB 3.1 Type C (SuperSpeed USB)
Software compatibility
(not a complete list)
OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸ VLC (OS
X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows),
Hangout (Windows), TeamViewer (Windows)
OS Support
Windows 7 /8.1 /10/11, Mac and Linux OS
Mechanical
Housing
Metal enclosure
Dimensions
[L x W x H]
Model
137 x 81 x 30mm [5.4" x 3.2" x 1.2"]
Package
198 x 137 x 74mm [7.8" x 5.4" x 2.9"]
Carton
420 x 400 x 300mm [1'4"x 1'3" x 11.8"]
Weight
Model
207g[7.3 oz]
Package
492g[1 lbs]
Power supply
5V DC
Power consumption
8 Watts [max]
Operation temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-12GCSA PRODUCT MANUAL
Operation Controls and Functions
Front and Rear Panel
No.
Name
Function Description
1
STEREO AUDIO OUT
Audio extracts from SDI input
2
STEREO AUDIO IN
Connect to analog stereo audio source
3
TOSLINK OUT
Audio extracts from SDI input
4
STEREO AUDIO OUT
VOLUME KNOB
Adjust the stereo audio out sound level
5
STEREO AUDIO IN
VOLUME KNOB
Adjust the stereo audio in sound level
6
LED INDICATOR
SDI input signal indicator LED
7
+5V DC
5V DC power jack
8
USB-C OUT
Connect to a USB host
9
LED INDICATOR
USB-C LED signal indicator
[Red]* Connect the device to the USB 2.0 port on the host
[Blue] Connect the device to the USB 3.0 port on the host
10
HDMI OUT
Connect to a HDMI display
11
SDI IN
12G/6G/3G/HD-SDI Input
12
SDI LOOPOUT
12G/6G/3G/HD-SDI loopout
*If you plug the capture device into the USB 3.0 port on the host, but the LED indicator
lights up red, it means that the current device is working at the USB 2.0 specification. There
could be an issue with the USB cable or USB port.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-12GCSA PRODUCT MANUAL
Connection Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-12GCSA PRODUCT MANUAL
Video Streaming
Create a Video Streaming
Users can create video streams on their streaming service platform. The steps below show
how to complete video streaming settings from Twitch and YouTube.
Twitch

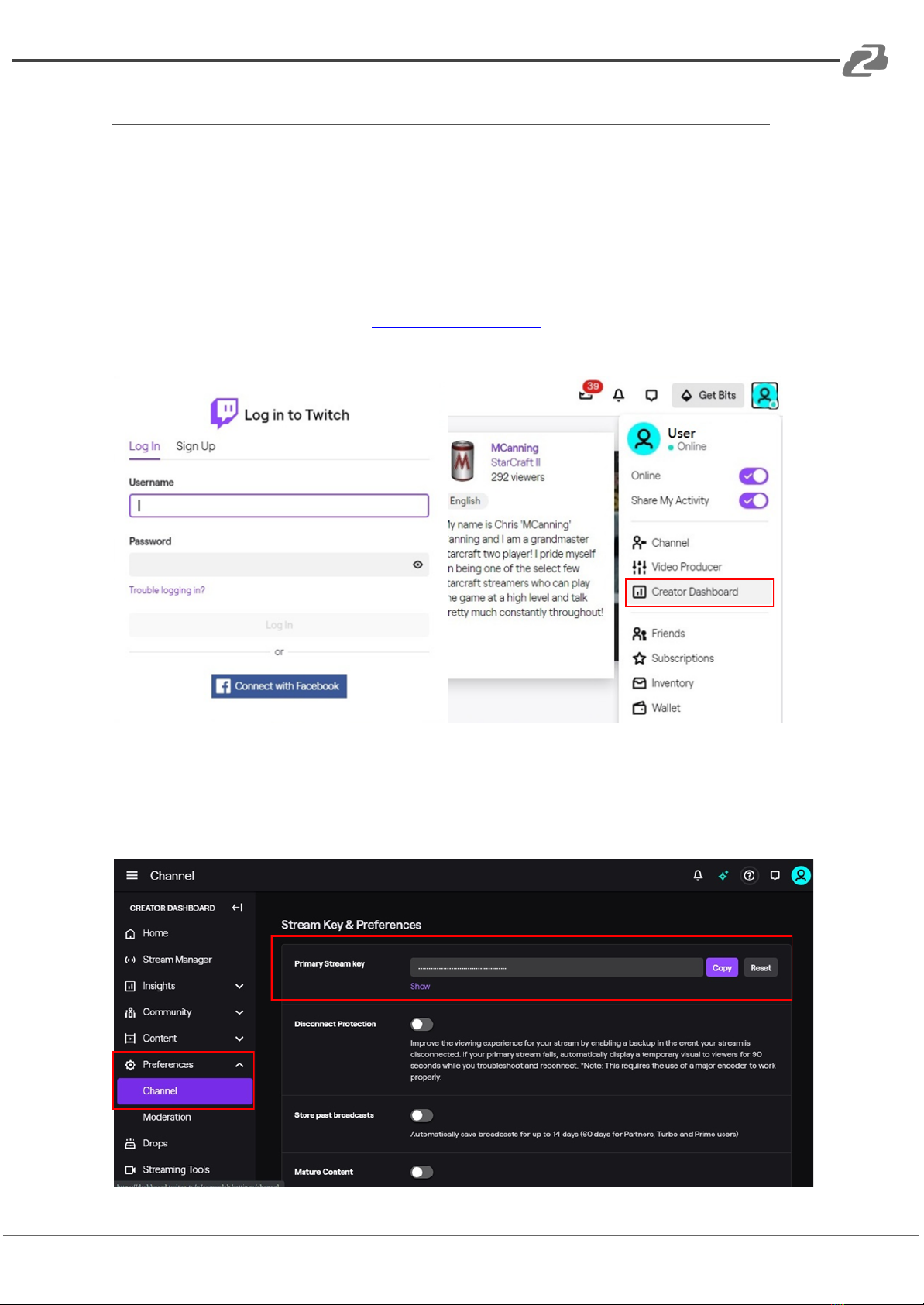

1. Browse to the Twitch website (https://www.twitch.tv/) and log in. Next, select "Creator
Dashboard" from your account drop-down menu at the top right of the screen.
2. Find "Preferences" in the left menu, and click "Channel", then you will see "Primary
Steam key" on the screen. Copy the "Primary Steam key" and paste it into the
"Stream Key" field in the OBS, then click "Start Streaming" in the software.
* Please refer to steps 4-6 of the OBS software control program.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-12GCSA PRODUCT MANUAL
3. Go back to Twitch and select "Channel" from your account drop-down menu.
At this point, you will see the players live stream..
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-12GCSA PRODUCT MANUAL
YouTube

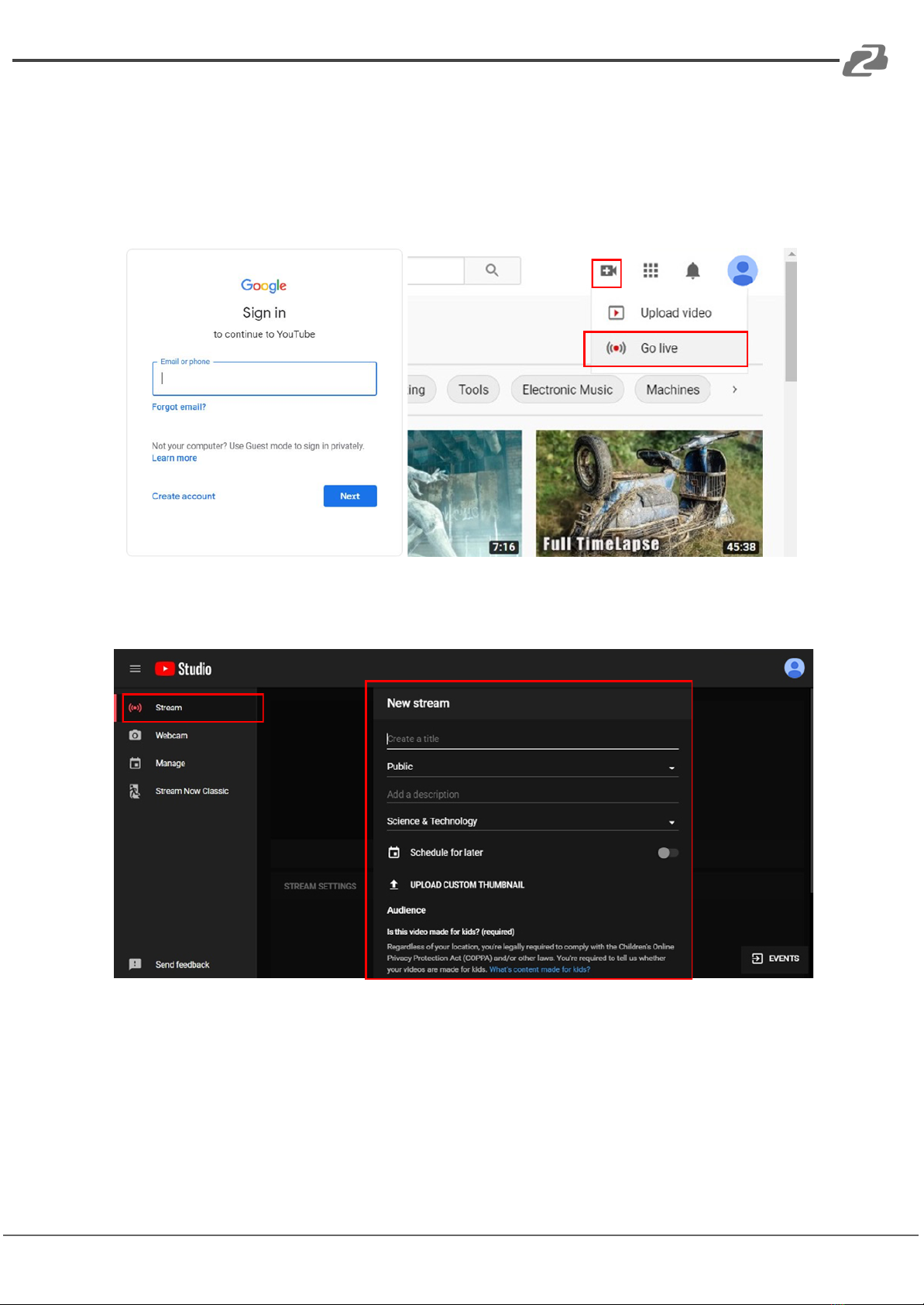

1. Browse to the YouTube website (https://www.youtube.com/) and log in. Next, click "Go
live" from the "Create" icon menu at the top right of the screen.
* If you are using YouTube for the first time to create a video stream, you need to wait 24
hours to enable the function.
2. Click "Stream" in the left menu, and fill in the relevant information for the live video to
create a new stream.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-12GCSA PRODUCT MANUAL

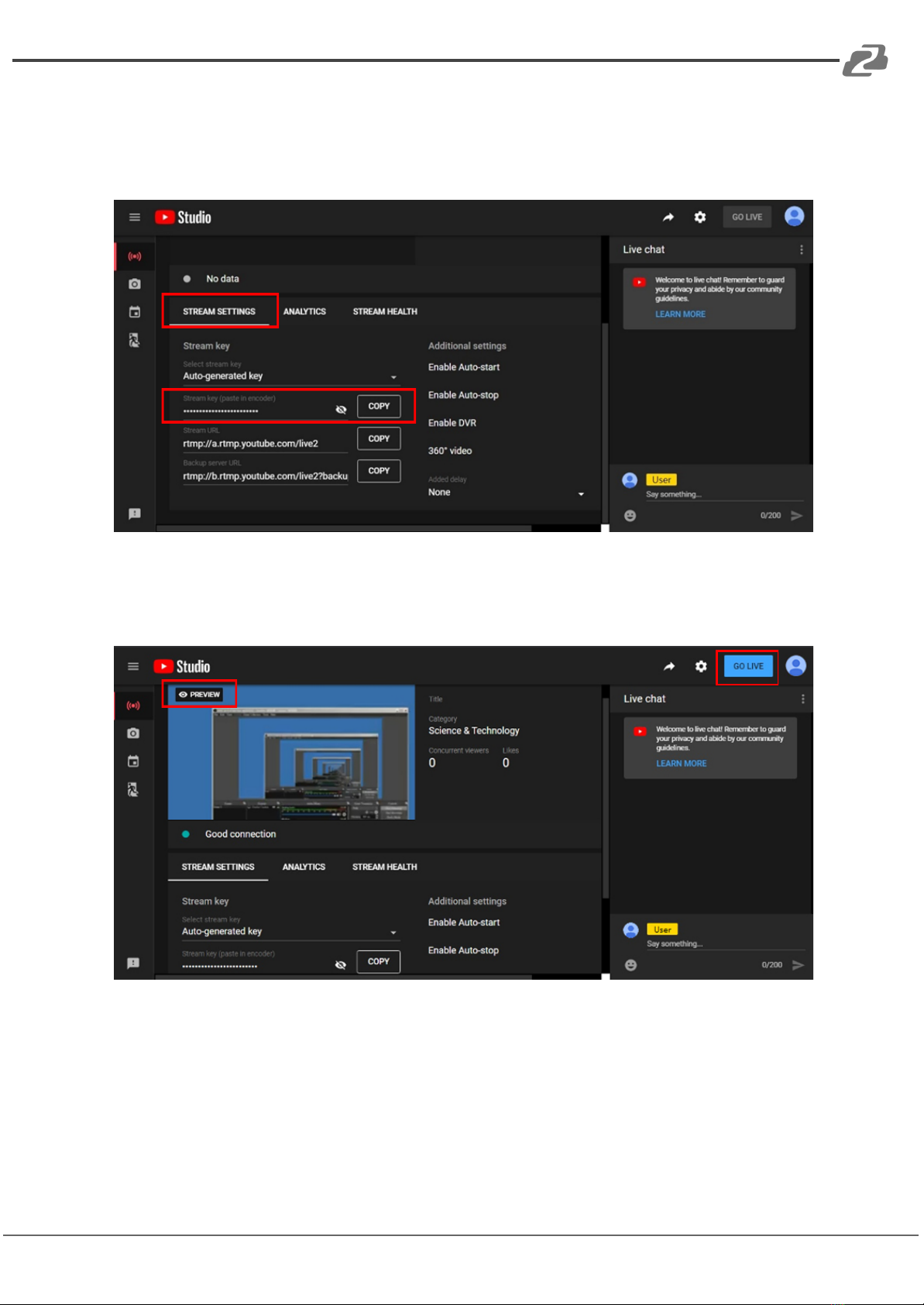

3. You will see the "Stream key" from the “STREAM SETTINGS” below. Copy the
"Stream key" and paste it into the "Stream Key" field in the OBS, then click "Start
Streaming" in the software.
* Please refer to steps 4-6 of the OBS software control program.
4. Next, go back to YouTube, and then wait for 30-60 seconds, the player will display the
live preview. At the same time, the "GO LIVE" button at the top right will turn blue,
please press this button.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 12

BZBGEAR BG-12GCSA PRODUCT MANUAL
5. The player on YouTube will start live streaming.
Stream and record videos with OBS
OBS is a popular USB capture freeware and has excellent compatibility. Please start with
OBS if users are not familiar with USB capture devices.
Download the software
Browse to the download page of the OBS official website
(https://obsproject.com/download), then select the suitable computer operating system and
start downloading.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 13

BZBGEAR BG-12GCSA PRODUCT MANUAL
Start the software control program
After downloading the software, please open it and follow the below steps to complete the
video streaming settings.
1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the
name of the scene to create a new scene.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 14

BZBGEAR BG-12GCSA PRODUCT MANUAL

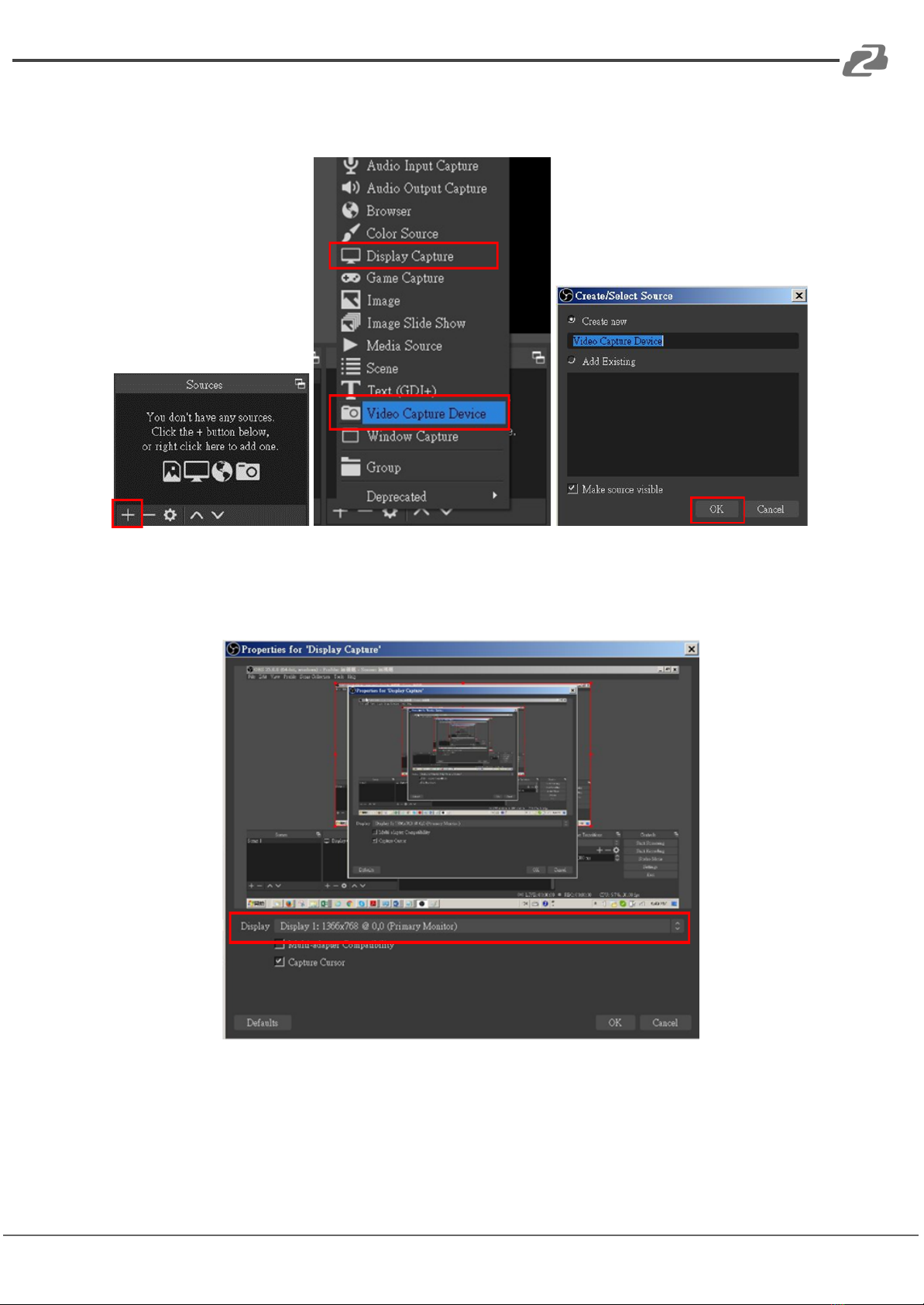

2. Find the "Source" window, click "+" in the lower left corner, and then select "Display
Capture" or "Video Capture Device" to create a new source.
3. Next, you can set display capture properties. If you select "Display Capture" in step 2,
you can select the primary monitor or other extended monitor as the display source. If
you select "Video Capture Device" in step 2, you can select a USB video device as the
display source. After all settings are completed, click “OK”.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 15

BZBGEAR BG-12GCSA PRODUCT MANUAL
4. Click "Settings" and then select "Stream" to perform streaming settings. Users can
choose service providers, including Twitch, YouTube, etc.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 16

BZBGEAR BG-12GCSA PRODUCT MANUAL

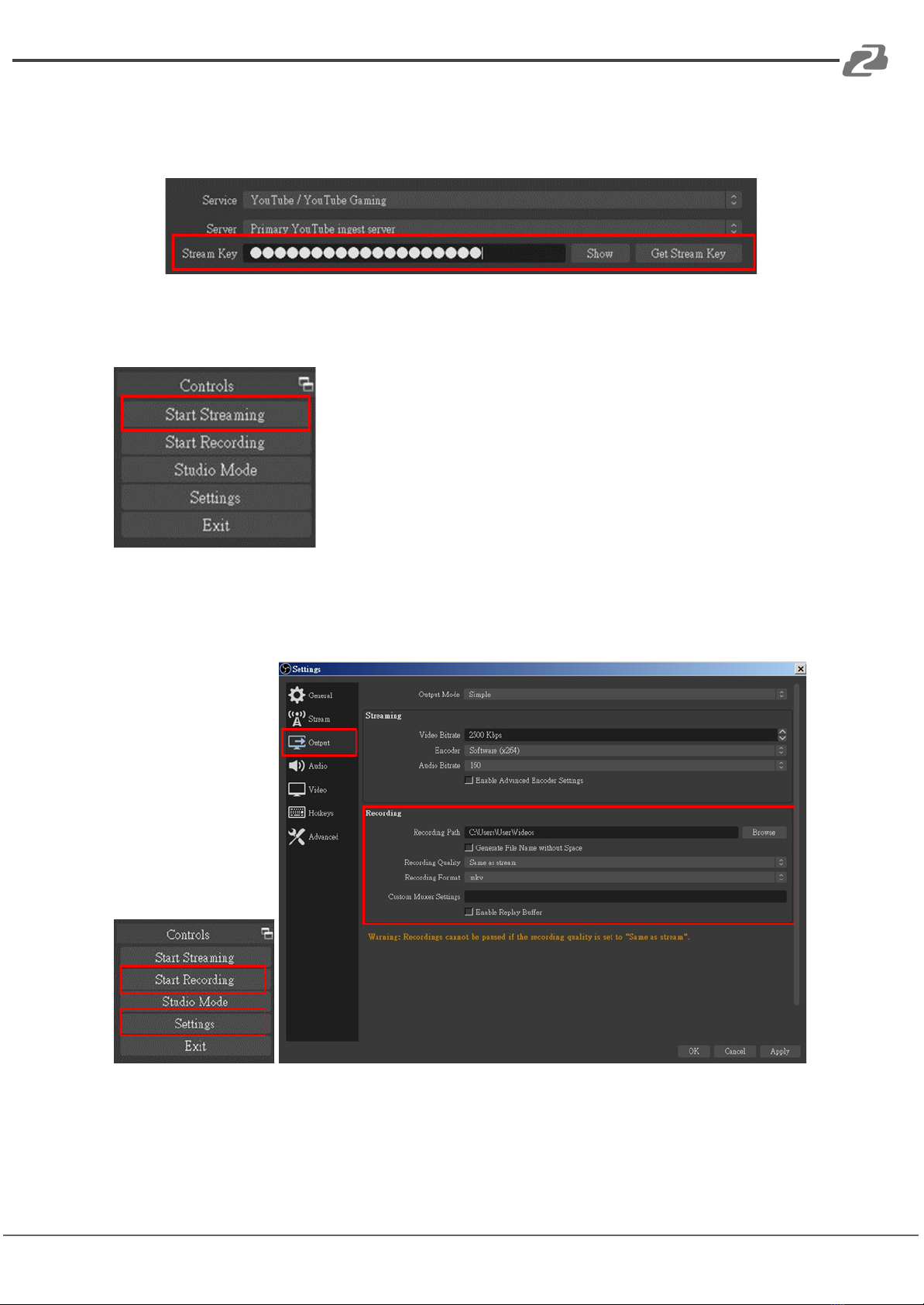

5. Paste the stream key provided by the service provider into the "Stream Key" field, then
click "Apply" and "OK" after setting. In addition, users can click "Get Stream Key" at
this step to open the service provider website.
6. Please click "Start Streaming". At this time, the screen after clicking "Start
Streaming" will be displayed in the live video.
7. On the other hand, users can also click "Start Recording" to record videos with OBS.
Besides, you can click "Settings" and then select "Output" to set “Recording Path”
and “Recording Format”.
The procedures the manual demonstrates are based on the interface that each website
provides at the time when the manual is written. Please note that the above procedures are
subject to change due to platform updates.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 17

BZBGEAR BG-12GCSA PRODUCT MANUAL
Troubleshooting
Most of the issues experienced by users are not from the USB capture device itself, but
from the sophisticated software and hardware combination of PC or laptop. Please follow
the following suggestions if help is required:
1. OBS is a popular USB capture freeware and has excellent compatibility. Please
download it and start with OBS if users are not familiar with USB capture devices.
https://obsproject.com/download
2. Due to the complexities of operating systems and computer hardware, different USB
ports on the PC or laptop may have different performance or limitations. Please try
all USB ports to see if there are any differences.
3. Please use the USB cable in the box. We do not guarantee the overall performance
when the USB capture box works with some other USB cables.
4. HDMI/SDI cable quality may also play an essential role when capturing video. Please
be sure that HDMI/SDI cable can do 4K2K@60 HDMI/SDI signal transmission or
better. Try different cables when the device is not able to work as expected.
5. If audio has noise when using the PotPlayer software, please adjust the audio
renderer to WaveOut on the software. The setting path is:
PotPlayer→Audio →Audio Output →Audio Renderer →WaveOut
6. If there are problems such as video flipping or wrong direction when using VLC
software, please rotate, flip or transpose the video in the VLC software to correct the
video. The setting path is:
Tool →Effects & Filters →Video Effects →Geometry →Transform
USB Pin Definition
P1
P2
VBUS
A4, B4, A9, B9
1
VBUS
Dn1
A7
2
D-
Dp1
A6
3
D+
GND
A1, B1, A12, B12
4
GND
SSTxn1
A3
5
SSRX-
SSTxp1
A2
6
SSRX+
GND
A1, B1, A12, B12
7
GND
SSRxn1
B10
8
SSTX-
SSRxp1
B11
9
SSTX+
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 18

BZBGEAR BG-12GCSA PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 19

BZBGEAR BG-12GCSA PRODUCT MANUAL
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 20
