Introduction
The BG-UHD-42MG2 is a HDMI 2.0 matrix switcher which is designed to enable the user to
switch between any of the four connected HDMI sources to send video and audio to either
of the two connected HDMI displays. This matrix supports all the latest features HDMI 2.0,
4K UHD resolutions (4K@60Hz YUV 4:4:4), HDR (High Dynamic Range), Deep Color, and
High-Definition audio.
The BG-UHD-42MG2 also features audio extraction for each output via Coaxial RCA or a
3.5mm mini stereo jack. Each source can be routed to any display using the manual
selection buttons, IR remote control, or RS-232 interface.
Features
●Independent switching and control of up to four 4K HDR HDMI sources to up to two
individual 4K HDR HDMI display devices.
●Allows any source to be displayed on multiple displays at the same time
●4K UHD video including HDR (up to 4K@60Hz 4:4:4)
●Dolby TrueHD and DTS-HD master audio pass through
●Extract audio from HDMI output via Coaxial RCA or a 3.5mm mini stereo jack
●Multiple switching modes, push button, IR remote control, and RS-232 control
●IR Matrix functionality to control the sources or displays
●Advanced EDID management
●HDCP 2.2 compliant
Packing List
●1 x MT0402-NA1
●1 x 12V2A DC power supply
●1 x Remote control
●4 x IR Emitter
●3 x IR Receiver.
●1 x pair of mounting ears.
●1 x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL
Specifications
Data Rate
Bandwidth
6 Gbps per color
Switcher
Video Input Connectors
4x HDMI Type A, 19-pin, female
Video Output Connectors
2x HDMI Type A, 19-pin, female
Audio Output Connectors
2x Coaxial RCA(SPDIF), 2x 3.5mm Stereo mini
Dimensions
255mm x 105mm x 40mm, w/o feet
RS232 Serial port
1x DB9, female
IR input ports
2x 3.5mm stereo jack
IR output ports
4x 3.5mm mono jack
Rack-Mountable
rack ears included
Shipping Weight
1.5KG
Enclosure Material:
Metal
Power Supply
12V2A DC
Environment
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Operation Controls and Functions
Front Panel
No.
Name
Function Description
1
IR window
Receive IR signals from the included IR remote for control of this unit only
2
Power LED indicator
Indicate the power status of the matrix
3
HDMI output routing
buttons 1-2
Press either of these buttons to sequentially switch through the available inputs for the
associated output
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL
Rear Panel
No.
Name
Function Description
4
IR Out port
3.5mm mono phone-jack, connect to IR emitter cable included
5
IR In port
3.5mm stereo phone-jack, connect to IR receiver cable included
6
Coaxial output
RCA (S/PDIF) audio extracted from HDMI output1
7
L/R output
3.5mm stereo phone-jack, audio extracted from HDMI output1 (PCM)
8
Power switcher
Press to power on/off the matrix
9
EDID DIP switch
EDID management
10
HDMI Inputs
Connect to HDMI source devices
11
HDMI Outputs
Connect to HDMI display devices
12
RS-232
DB9 female connector, connect to a DTE or DCE
13
IR extension
receiver input
3.5mm stereo phone-jack, connect to IR receiver cable included
14
Power port
Use included 12V/2A DC power supply to power the matrix
3
2
1
0
EDID type
Combination of DIP positions
0
0
0
0
HDMI 1080p@60Hz, Audio 2CH PCM
0
0
0
1
HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
0
0
1
0
HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
0
0
1
1
HDMI 1080i@60Hz, Audio 2CH PCM
0
1
0
0
HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
0
1
0
1
HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
0
1
1
0
HDMI 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, Audio 2CH PCM
0
1
1
1
HDMI 4K@60Hz 4:2:0,4K@30Hz 4:4:4,Audio 5.1CH PCM/DTS/DOLBY
1
0
0
0
HDMI 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, Audio 7.1CH PCM/DTS/DOLBY/HD
1
0
0
1
HDMI 4K@60Hz 4:4:4, Audio 2CH PCM
1
0
1
0
HDMI 4K@60Hz 4:4:4, Audio 5.1CH PCM/DTS/DOLBY
1
0
1
1
HDMI 4K@60Hz 4:4:4, Audio 7.1CH PCM/DTS/DOLBY/HD
1
1
0
0
DVI 1280x1024@60Hz, Audio None
1
1
0
1
DVI 1920x1080@60Hz, Audio None
1
1
1
0
DVI 1920x1200@60Hz, Audio None
1
1
1
1
Software Control EDID
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL

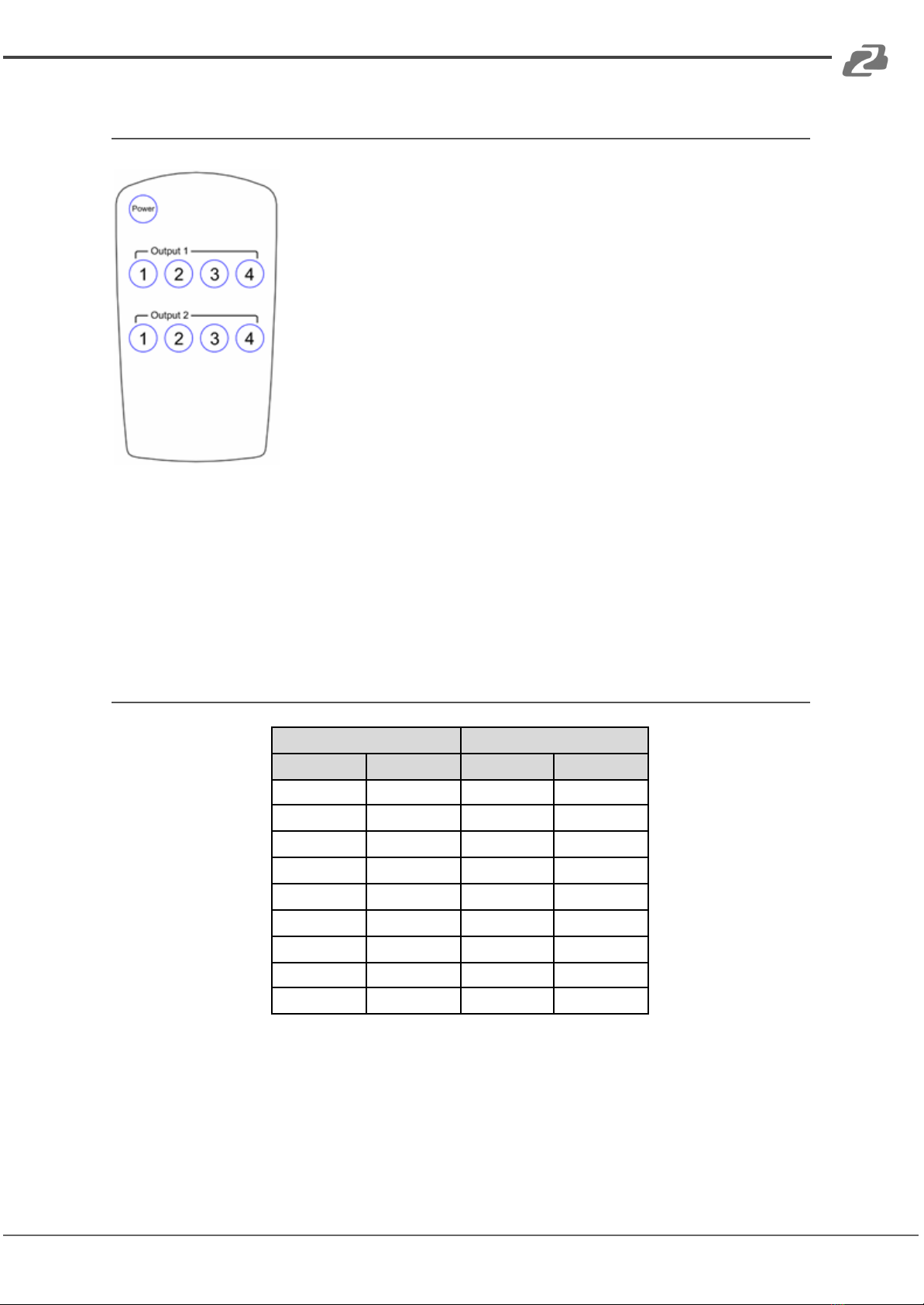

Remote Control
●Power Button – Press to enter standby mode
●Output 1 button 1 to 4 – Press to select input from 1 to 4
●Output 2 button 1 to 4 – Press to select input from 1 to 4
RS-232 Pin Assignment
MT0402-NA1
Remote Control Console
PIN
Assignment
PIN
Assignment
1
NC
1
NC
2
Tx
2
Rx
3
Rx
3
Tx
4
NC
4
NC
5
GND
5
GND
6
NC
6
NC
7
NC
7
NC
8
NC
8
NC
9
NC
9
NC
●Baud Rate: 57600 bps
●Data Bit: 8-bit
●Parity: None
●Stop Bit: 1-bit
●Flow Control: No
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-UHD-42MG2 PRODUCT MANUAL
Application Diagram
