BZB Gear BG-UHD-KVM41 User manual

BG-UHD-KVM41
HDMI 2.0 4x1 Switcher with KVM USB3.0
All Rights Reserved
User Manual

Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
August, 2019. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to
the dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a
commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever
measures may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would
void the user’s authority to operate the equipment.

SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before
using the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material
for possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and
injury to persons.
Do not dismantle the housing or modify the module. It may result in electrical
shock or burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install
this product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the module
immediately.
Do not twist or pull by force ends of the cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit.Always unplug the power
to the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

Table of Contents
1. Product Introduction ..............................................................................................1
1.1 Features....................................................................................................... 1
1.2 Package List................................................................................................. 2
2. Specification..........................................................................................................3
3. Panel Description ..................................................................................................4
3.1.1 Front Panel.........................................................................................4
3.1.2 Rear Panel.........................................................................................5
4. System Connection ...............................................................................................6
4.1 Usage Precaution.........................................................................................6
4.2 System Diagram........................................................................................... 6
5. Button Control........................................................................................................7
6. Table Grommet Control .........................................................................................7
7. RS232 Control.......................................................................................................8
7.1 RS232 Control Software ..............................................................................8
7.2 RS232 Command.......................................................................................10
7.2.1 Device Control..................................................................................10
7.2.2 Signal Switching............................................................................... 11
7.2.3 Audio Setting.................................................................................... 11
7.2.4 EDID Management...........................................................................12
7.2.5 HDCP Setting...................................................................................12
7.2.6 Baudrate Setting ..............................................................................13
7.2.7 Display Control.................................................................................13
8. Firmware Upgrade...............................................................................................14
9. Panel Drawing.....................................................................................................15
10. Troubleshooting & Maintenance........................................................................16
11. Customer Service..............................................................................................17
12. Second Year Assurance ....................................................................................18
13. Mission Statement.............................................................................................19

1
1. Product Introduction
Thanks for choosing the professional BG-UHD-KVM41 HDMI 2.0 4x1 Switcher. The
switcher features four HDMI video inputs and one HDMI output. It supports HDMI
video resolution up to 4Kx2K@60Hz 4:4:4 HDR 10 and Dolby Vision. The switcher
provides one stereo audio output for audio de-embedding, and provides four type-B
USB ports and three type-A USB ports for KVM management, the four HDMI
computers can be controlled via one keyboard, one mouse and one monitor. In
addition, the switcher features four GR ports to connect BG-SC-GRHU table
grommets for source selection and black screen setting. The switcher can also be
controlled via RS232 and front panel buttons.
1.1 Features
4x1 HDMI 2.0 Switcher with KVM.
Supports video resolution up to 4Kx2K@60Hz 4:4:4, HDR 10 and Dolby Vision.
HDCP 2.2 compliant.
Compatible with Windows, Linux and Mac OS.
3.5mm stereo audio output for audio de-embedding.
Convenient and cost-effective USB 3.0 peripheral sharing.
Controls four HDMI computers via one keyboard, one mouse and one monitor.
KVM auto-switching based on TMDS/5V detection.
Controllable by buttons, RS232 commands and BG-SC-GRHU table grommets.
Simplifies wiring for easy installation.

2
1.2 Package List
1x BG-UHD-KVM41HDMI 2.0 4x1 Switcher
2x Mounting Ears with 4 Screws
4x Plastic Cushions
4x 3-pin Terminal Blocks
1x RS232 Cable (3-pin to DB9)
1x Power Adapter (12V DC 2A)
1x User Manual
Note: Please contact your distributor immediately if you found any damage or defect
in the components.

3
2. Specification
Video Input
Input
(4) SOURCE 1~4
Input Connector
(4) Female type-A HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision
HDMI Standard
2.0
HDCP Version
2.2
Video Output
Output
(1) DISPLAY
Output Connector
(1) Female type-A HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4, HDR10, Dolby Vision
HDMI Standard
2.0
HDCP Version
2.2
Audio
Output
(1) AUDIO OUT
Output Connector
(1) 3.5mm mini stereo audio jack
Audio Format
PCM 2CH
Frequency Response
20Hz to 20KHz, ±1dB
Max Output Level
2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316 mV)
nominal consumer line level signal.
THD+N
< 0.05%, 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or
max level).
SNR
> 80dB, 20Hz - 20KHz bandwidth.
Crosstalk Isolation
< -80 dB, 10 kHz sine at 0dBFS level (or max level before clipping).
L-R Level Deviation
< 0.05 dB, 1 kHz sine at 0dBFS level (or max level before clipping).
Output Load Capability
1Kohm and higher (supports 10x paralleled 10k ohm loads).
Noise Level
-80dB
Control
Control
(1) FW, (4) PC 1~4, (3) DEVICES 1~3, (4) GR 1~4, (1) RS232
Control Connector
(1) Micro-USB, (4) Type-B USB, (3) Type-A USB, (5) 3-pin
Terminal Blocks

4
General
Bandwidth
18Gbps
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Type-A USB Power Supply
1A
System Power Supply
Input:100V~240VAC; Output: 12V DC 2A
System Power Consumption
14W(Max)
Dimension (W*H*D)
200mm x 40mm x 100mm
Net Weight
685g
3. Panel Description

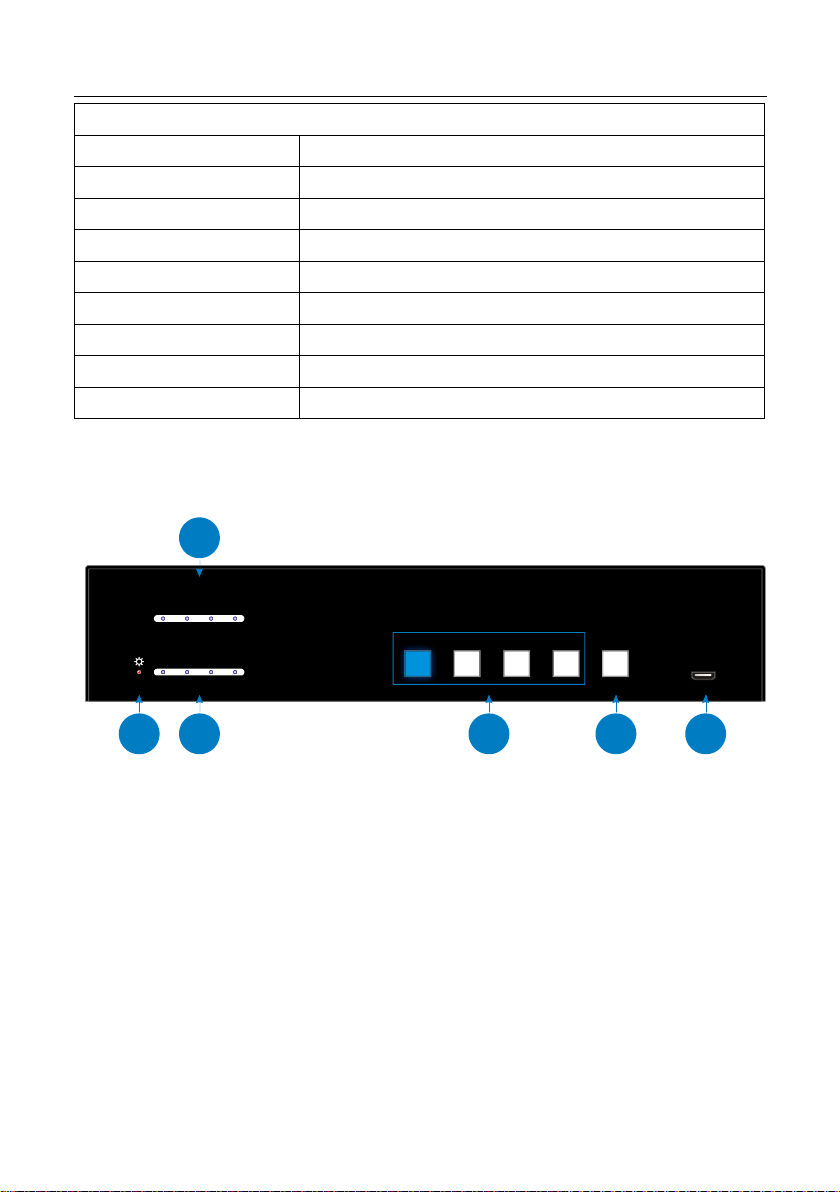

3.1.1 Front Panel
①POWER LED: The LED illuminates red when power is applied.
②PC LEDs: Total four LEDs, any one of which illuminates blue to indicate its
corresponding type-B USB port is connected to an active PC.
③SOURCE LEDs: Total four LEDs, any one of which illuminates blue to indicate
its corresponding HDMI port is connected to an active source device.
④SOURCE BUTTONs: Four buttons for input source selection, one of which
illuminates blue to indicate which source device is selected.
⑤AUTO: Press it to enable auto switching mode, and it will illuminate blue. Press
again can exit auto switching mode.
⑥FW:Micro-USB port for firmware upgrade.
Note: All the input source LEDs will go out when pressing Black Output button on
1 2 3 4 AUTO
1 2 3
FW
4PC
1 2 34SOURCE
12
3
456

5
the HUG Table Grommet
3.1.2 Rear Panel
①SOURCE1~SOURCE4: Four type-A female HDMI input ports to connect HDMI
source devices (PC, Blu-ray Disc™ or DVD player, etc.).
②PC1~PC4: Four type-B USB ports to connect PCs. The PC can be a source
device connected to the corresponding HDMI input port.
③DEVICES (1~3): Three type-A USB ports to connect USB devices (Keyboard,
Mouse or camera, etc.). These USB devices are used to control the PC which is
connected to the selected HDMI input port and the corresponding type-B USB
port. These type-A USB ports can power these USB devices with 1A.
④DISPLAY: Type-Afemale HDMI output port to connect display device (e.g.
Projector).
⑤AUDIO OUT: 3-pin terminal block to connect speakers or amplifiers for audio
output.
⑥GR1~GR4: Four 3-pin terminal blocks to connect four BG-SC-GRHU table
grommets for source selection and black screen setting.
⑦RS232: 3-pin terminal blocks to a control device (e.g. PC) to control the
switcher.
⑧DC 12V: Power port for power adapter connection.
GR4 DC 12VDISPLAY
GR1
GR3
GR2 RS232
Tx Rx
OBSM OBSM
SOURCE 1
PC 1 PC 2 PC 3 PC 4
SOURCE 2 SOURCE 3 SOURCE 4
DEVICES
OBSM OBSM
1 32
AUDIO OUT
14568
237

6
4. System Connection
4.1 Usage Precaution
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated
and safe.
All devices should be connected before power on

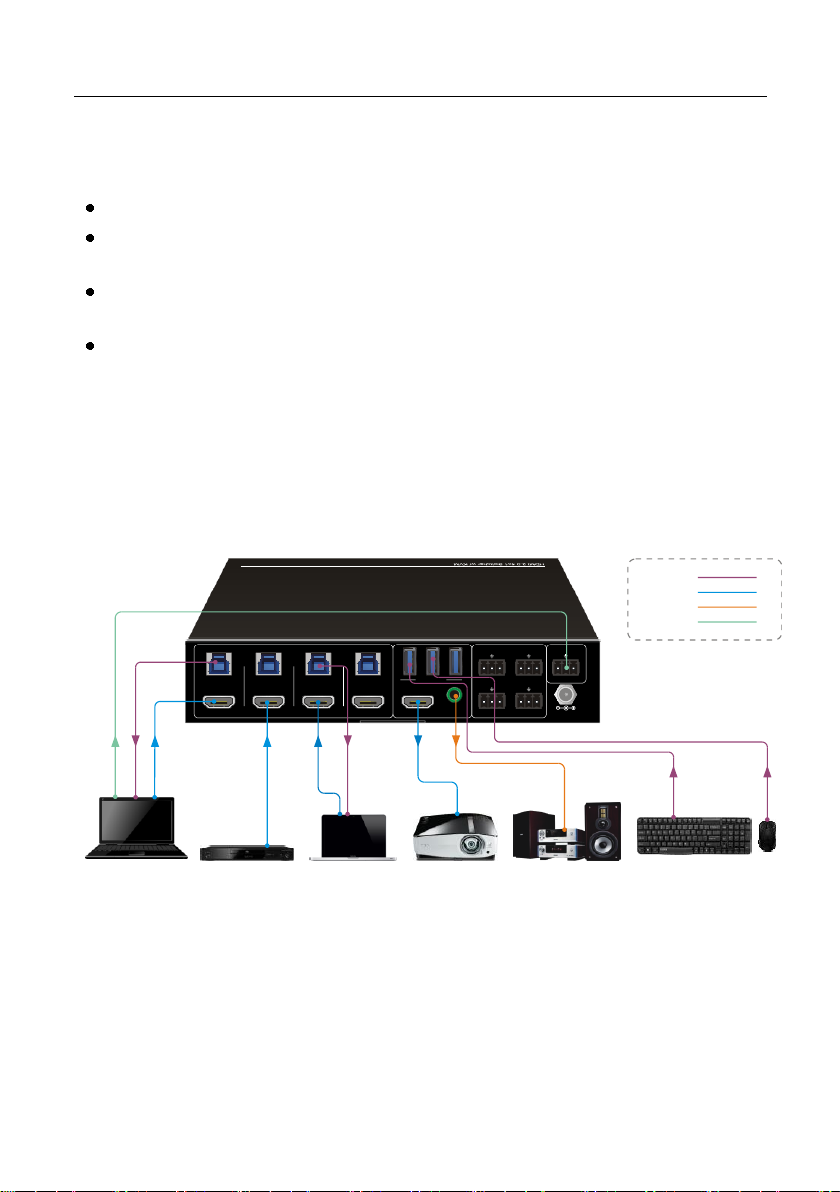

4.2 System Diagram
The following diagrams illustrate typical input and output connections that can be
utilized with this switcher:
The switcher is used alone:
GR4 DC 12VDISPLAY
GR1
GR3
GR2 RS232
Tx Rx
OBSM OBSM
SOURCE 1
PC 1 PC 2 PC 3 PC 4
SOURCE 2 SOURCE 3 SOURCE 4
DEVICES
OBSM OBSM
1 32
AUDIO OUT
Laptop MouseKeyboard
Blu-Ray MacBook Projector Speaker
HDMI:
USB:
Control:
Audio:

7
5. Button Control
Manual Switching
Press button 1~4 to the corresponding HDMI input source.
Auto Switching
Press AUTO to enable auto switch mode, and then the button LED will illuminate
blue.
When in auto mode, the switcher follows the rules in the certain circumstances:
The switcher will automatically switch to the first available active input starting at
input 1 to 4.
Press the source button (1, 2, 3or 4) can directly change the input source.
New Input: Upon detecting a new input, the switcher will automatically select the
new source.
Detection input signal source: 5V(Default) or TMDS.
Reboot: Once power is restored to the switcher, if the last selected source is still
available, the switcher will still output this signal, otherwise, the switcher will
switch to the first available active input starting at input 1.
Source Removed: When an active source is removed, the switcher will switch to
the first available active input starting at input 1.
Press AUTO again can exit auto switch mode, but the input source will remain
the current setting.
Note: The factory default is auto switching mode.
6. Table Grommet Control
The BG-SC-GRHU table grommet can be used for input source selection and black
screen.
Press Show Me on table grommet to select HDMI source.
Press Black Output on table grommet to let display be black screen.

8
7. RS232 Control
Connect the switcher to the control device (e.g. PC) with RS232 cable and set the
parameters in the right manner, the control device is capable to control this switcher
by RS232 commands.
7.1 RS232 Control Software
Installation: Copy the control software file to the computer connected with this
switcher.
Uninstallation: Delete all the control software files in corresponding file path.
Basic Settings
First of all, please connect all needed input devices and output devices, then to
connect it with a computer which is installed with RS232 control software.
Here take the software CommWatch.exe as example.
Double-click the following icon:

9

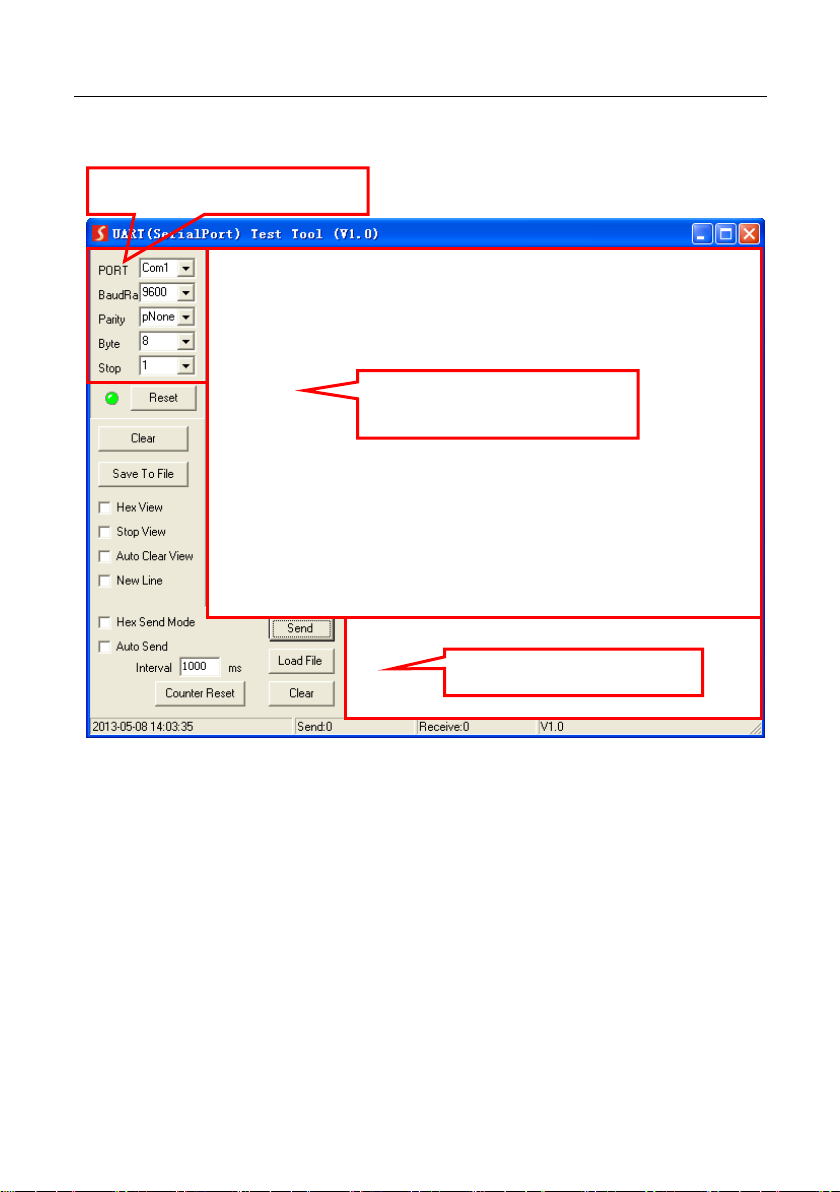

The interface of the control software is shown as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the
parity bit correctly, then the RS232 commands can be sent in Command Sending
Area.
Baud rate: 9600;
Data bit: 8;
Stop bit: 1;
Parity bit: none.
Parameter configuration area
Monitoring area, indicates if the
command sent works.
Command sending area

10
7.2 RS232 Command
Note: All commands need to be ended with “<CR><LF>”.
7.2.1 Device Control
Command
Description
Command Example and Feedback
#GET_FIRMWARE_VE
RSION
Get the software version.
@V1.0.0
#SET_KEYPAD_LOCK
0
Unlock the front panel
buttons (Factory default).
@FRONT PANEL UNLOCK!
#SET_KEYPAD_LOCK
1
Lock the front panel buttons.
@FRONT PANEL LOCK!
#GET_KEYPAD_LOCK
Get the locking status of
front panel buttons.
@FRONT PANEL UNLOCK!
@FRONT PANEL LOCK!
#SET_HDMI_DETECTI
ON_MODE 0
Set the detection method of
HDMI source input to 5V.
@INPUT_SIGNAL_DETECTION 0!
#SET_HDMI_DETECTI
ON_MODE 1
Set the detection method of
HDMI source input to
TMDS.
@INPUT_SIGNAL_DETECTION 1!
#GET_HDMI_DETECTI
ON_MODE
Get the detection method of
HDMI source input.
@INPUT_SIGNAL_DETECTION 0!
@INPUT_SIGNAL_DETECTION 1!
#GET_STATUS
Get the system status.
@RS232 QUERY STATUS!
@BG-UHD-KVM41
@V1.0.0
@FRONT PANEL UNLOCK!
@HDMI OUT SWITCH TO AUTO MODE!
@HDMI IN SWITCH TO 1!
@OUTPUT_HDCP 0!
@INPUT_SIGNAL_DETECTION 1!
@IIS OUT ON!
@RS232 BAUDRATE IS 1!
#FACTORY_RESET
Restore factory default
@FACTORY DEFAULT!
@BG-UHD-KVM41
@V1.0.0
@HDMI OUT SWITCH TO AUTO MODE!
@OUTPUT_HDCP 0!
@IIS OUT ON!
@INPUT_SIGNAL_DETECTION 0!
@HDMI IN SWITCH TO 1!
@USB SWITCH MODE TO 0!
@RS232 BAUDRATE IS 1!

11
Command
Description
Command Example and Feedback
#REBOOT
Reboot the device.
@REBOOT
#HELP
Get all commands and its
usage.
7.2.2 Signal Switching
Command
Description
Command Example and
Feedback
#SET_AV H1
Switch to HDMI source 1.
@HDMI IN SWITCH TO 1!
#SET_AV H2
Switch to HDMI source 2.
@HDMI IN SWITCH TO 2!
#SET_AV H3
Switch to HDMI source 3.
@HDMI IN SWITCH TO 3!
#SET_AV H4
Switch to HDMI source 4.
@HDMI IN SWITCH TO 4!
#GET_AV
Get the current HDMI source.
@HDMI IN SWITCH TO 1!
#SET_AUTO_SWITCH
1
Enable auto switching (Factory default).
@HDMI OUT SWITCH TO
AUTO MODE!
#SET_AUTO_SWITCH
0
Disable auto switching
@HDMI OUT SWITCH TO
MANUAL MODE!
#GET_AUTO_SWITCH
Get the auto switching status.
@HDMI OUT SWITCH TO
AUTO MODE!
@HDMI OUT SWITCH TO
MANUAL MODE!
7.2.3 Audio Setting
Command
Description
Command Example and
Feedback
#SET_IIS 1
Turn on stereo audio output.
@IIS OUT ON!
#SET_IIS 0
Turn off stereo audio output.
@IIS OUT OFF!
#GET_IIS
Get the stereo audio output status.
@IIS OUT ON!
@IIS OUT OFF!

12
7.2.4 EDID Management
Command
Description
Command Example and
Feedback
#SET_EDID_MODE
[PARAM]
[PARAM]= 0000~0011
[PARAM]=0000, set the EDID mode to
Pass-through (Factory default). If the
source device can’t read EDID from
display device, it will use the built-in
EDID: 3840x2160@60Hz Deep Color
Stereo Audio.
[PARAM]=0001/0010/0011, set the EDID
of source device to user-defined EDID
0001/0010/0011.
#SET_EDID_MODE 0000
@EDID_MODE 0000!
#GET_EDID_MODE
Get the EDID mode.
@EDID_MODE 0000!
#EDIDR [PARAM]
Get the EDID value.
[PARAM]= 0000~0011
@EDID HEX STRING OF
'0000':
00 FFFF FF FF FF FF 00 41
0C F2 08 50 12 00 00
… …
#UPLOAD_USER_EDI
D [PARAM]
[PARAM]=0001/0010/0011, upload
user-defined EDID. When the command
applied, system prompts to upload the
EDID file (.bin). Operation will be
cancelled in 10 seconds.
#UPLOAD_USER_EDID
0001
@PLEASE SEND THE
EDID FILE!
… …
@RECEIVED THE FILE,
LENGTH=256!
@EDID0001 UPDATE
SUCCESSFULLY!
7.2.5 HDCP Setting
Command
Description
Command Example and
Feedback
#SET_OUTPUT_HDCP
0
Set the HDCP mode of HDMI output to
PASSIVE mode (Factory default).
The HDCP of HDMI output automatically
follows the HDCP version of source
device.
@OUTPUT_HDCP 0!
#SET_OUTPUT_HDCP
1
Set the of HDMI output to ACTIVE mode.
If the input video has HDCP content, the
@OUTPUT_HDCP 1

13
Command
Description
Command Example and
Feedback
HDCP version of HDMI output is HDCP
1.4 for broader video solution.
If the input video has no HDCP content,
the HDMI output has no HDCP too.
#GET_OUTPUT_HDC
P
Get the HDCP mode of HDMI output.
@OUTPUT_HDCP 0!
7.2.6 Baudrate Setting
Command
Description
Command Example and
Feedback
#SET_RS232_BAUD 1
Set RS232 baudrate to 9600.
@RS232 BAUDRATE IS 1!
#SET_RS232_BAUD 2
Set RS232 baudrate to 19200
@RS232 BAUDRATE IS 2!
#SET_RS232_BAUD 3
Set RS232 baudrate to 38400
@RS232 BAUDRATE IS 3!
#SET_RS232_BAUD 4
Set RS232 baudrate to 57600
@RS232 BAUDRATE IS 4!
#SET_RS232_BAUD 5
Set RS232 baudrate to 115200
@RS232 BAUDRATE IS 5!
#GET_RS232_BAUD
Get the RS232 baudrate.
@RS232 BAUDRATE IS 1!
7.2.7 Display Control
Command
Description
Command Example and
Feedback
#SET_THE_DISPLAY_
TO 0
Set the display to output black screen,
and no audio output.
@THE DISPLAY SIDE
SCREEN IS BLACK!
@THE DISPLAY IS
ALREADY OFF!
#SET_THE_DISPLAY_
TO 1
Wake up the display screen.
@WAKE UP THE SCREEN!
@THE DISPLAY IS
ALREADY ON!
#GET_THE_DISPLAY
Get the status of display screen.
@THE DISPLAY IS OFF!
@THE DISPLAY IS ON!

14
8. Firmware Upgrade
Please follow the steps as below to upgrade firmware by the FW port on the front
panel:
1) Prepare the latest upgrade file (.bin) and rename it as “FW_MERG.bin” on PC.
2) Power off the switcher, and connect the FW port of switcher to the PC with USB
cable.
3) Power on the switcher, and then the PC will automatically detect a U-disk named
of “BOOTDISK”.
4) Double-click the U-disk, a file named of “READY.TXT” would be showed.
5) Directly copy the latest upgrade file (.bin) to the “BOOTDISK” U-disk.
6) Reopen the U-disk to check the filename “READY.TXT” whether automatically
becomes “SUCCESS.TXT”, if yes, the firmware was updated successfully,
otherwise, the firmware updating is fail, the name of upgrade file (.bin) should be
confirm again, and then follow the above steps to update again.
7) Remove the USB cable after firmware upgrade.
8) After firmware upgrade, the switcher should be restored to factory default by
sending command.

15

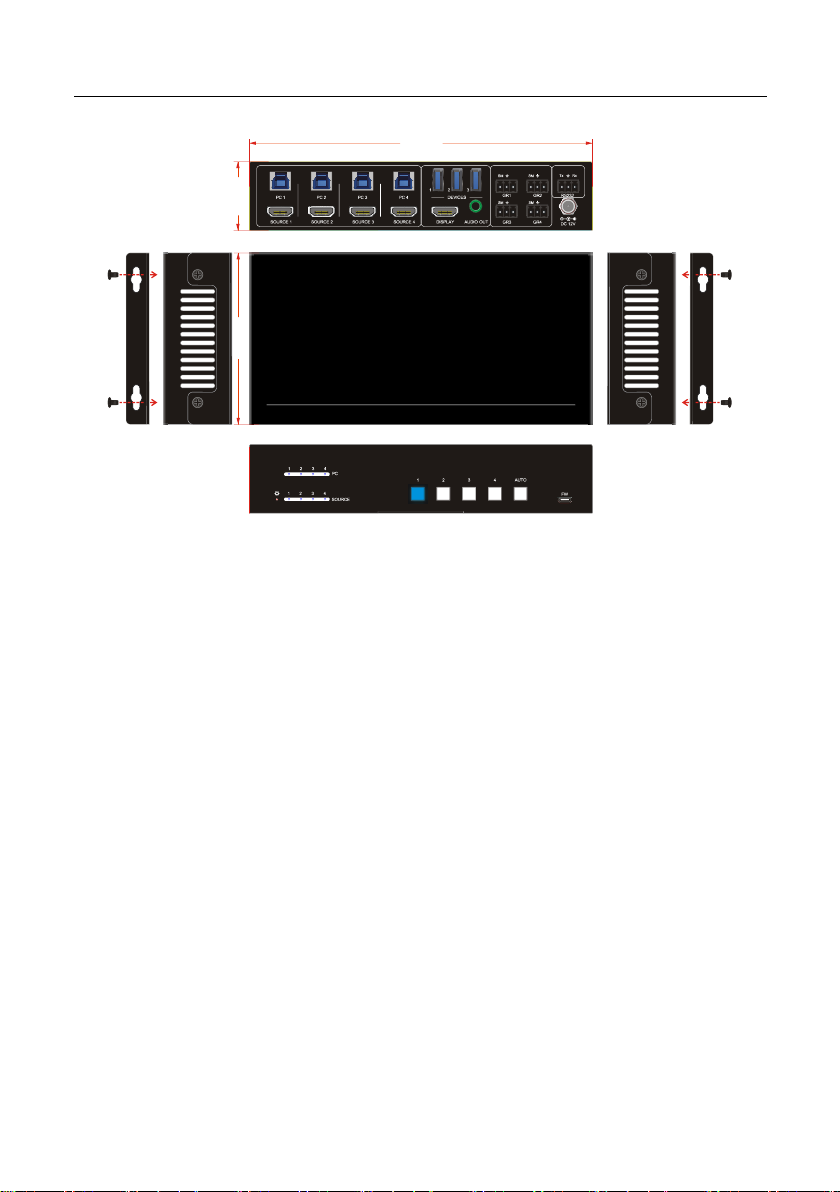

9. Panel Drawing
BG-UHD-KVM41 Switcher
HDMI2 0 4x1 Switcherw USB3 0 . / .
200.00 mm
40.00 mm
100.00 mm
BO BO
BOBO

16
10. Troubleshooting & Maintenance
Problems
Potential Causes
Solutions
Output image with white
noise.
Bad quality of the
connecting cable.
Try another high quality
cable.
Fail or loose connection.
Make sure the connection
is good
No output image when
switching.
No signal at the input /
output end.
Check with oscilloscope
or multimeter if there is
any signal at the input/
output end.
Fail or loose connection.
Make sure the connection
is good.
The switcher is broken.
Send it to authorized
dealer for repairing.
POWER indicator doesn’t
work or no respond to any
operation.
Fail connection of power
cord.
Make sure the power cord
connection is good.
Cannot control the device
by control device (e.g. a
PC) through RS232 port.
Wrong RS232
communication
parameters.
Type in correct RS232
communication
parameters.
Broken RS232 port.
Send it to authorized
dealer for checking.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.
