User Manual
USB 3.0 KVM Switch for 2 Computers
with Dual HDMI® and Multiple USB Ports
Model: 202073

2
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
INTRODUCTION……………………………...…….….… 1
PRODUCT OVERVIEW………………………...…….……2
CONNECTION INSTRUCTIONS …………………….…....3
TECHNICAL SPECIFICATIONS…………………..….…. 11
WARRANTY AND SUPPORT……………...……..…….. 12

1
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
www.cablematters.com
1. INTRODUCTION
1.1 Introduction
Thank you for your purchase from Cable Matters® Inc., the ‘Reliable Connectivity’
company. This User Manual provides an overview of the features and installation
of the
USB 3.0 KVM Switch for 2 Computers
with Dual HDMI® and Multiple USB Ports
Please read the instruction carefully before connecting, operating or configuring
this product. Please keep this manual for future reference.
Contact [email protected] for questions or product support.
1.2 Copyright and Trademarks
Cable Matters is a registered trademark or trademark of Cable Matters Inc. All
rights reserved. All other trademarks are the property of their respective owners.
USB Type-C® and USB-C® are trademarks of USB Implementers Forum. The
terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
This manual may make reference to trademarks, registered trademarks, and
other protected names and/or symbols of third-party companies not related in
any way to Cable Matters. Where they occur, these references are for illustrative
purposes only and do not represent an endorsement of a product or service by
Cable Matters, or an endorsement of the product(s) to which this manual applies
by the third-party company in question. Regardless of any direct acknowledge-
ment elsewhere in the body of this document, Cable Matters hereby acknowledg-
es that all trademarks, registered trademarks, service marks, and other protected
names and/or symbols contained in this manual and related documents are the
property of their respective holders.
1.3 FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) This device must not cause harmful interference, and
2) this device must accept any interference received, including interference that
may cause undesired operation.

2
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
2. PRODUCT OVERVIEW
2.1 Package Contents
Please check that the following items are contained in the box:
1 x USB 3.0 KVM switch
2 x 3-in-1 cables (a USB-B 3.0 cable, an HDMI cable and a 3.5mm audio cable)
2 x HDMI cables
1 x 5V power adapter
1 x User Manual
Note: All cables to connect USB devices and displays are sold separately
2.2 Product Description
The USB 3.0 KVM switch for 2 Computers is an ideal solution for sharing two
HDMI displays and USB peripheral devices between 2 different computers.
Enjoy easy access to the connected devices with buttons or hotkeys. No hassle
to unplug and re-plug your devices.

3
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
2.3 Product Features
• Connect to USB 3.0 devices for data transferring with transfer rate up to 5Gbps
• Connect two displays over HDMI. Supports up to one 4K@120Hz display or two
4K@60Hz displays.
• Switch between 2 computers with buttons or hotkeys
• LED light on the KVM switch indicates which connected computer has access to
all peripherals
• Plug and play, no driver required
3. CONNECTION INSTRUCTIONS

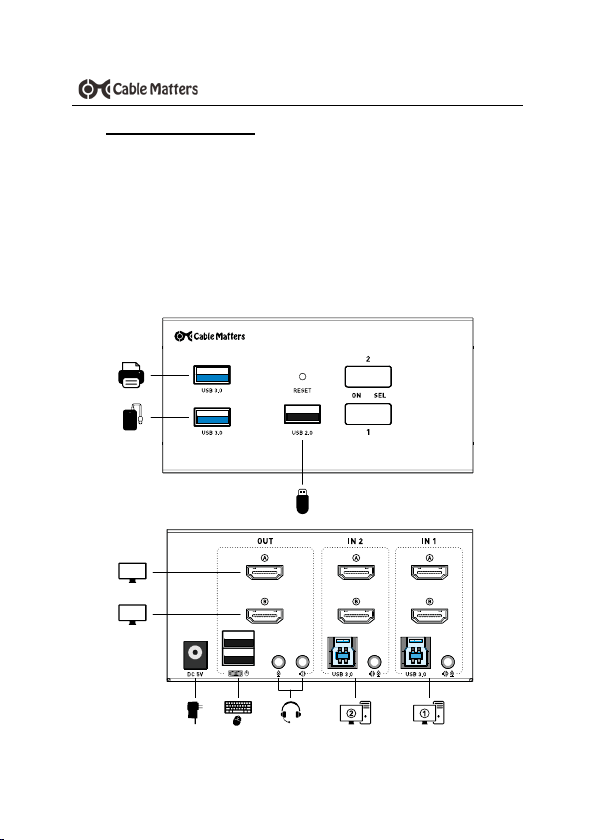

3.1 Panel Diagram
1. 2 x USB 3.0 ports for peripherals
2. Reset button for factory restore (5 seconds)
3. 1 x USB 2.0 port for peripherals
4. 2 x buttons for source switching with green LED lights indicating a
valid control
Indicator lights on the 1 & 2 buttons:
ON (Red) --- Host USB connection indicator
SEL (Green) --- Valid control indicator

4
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
1. DC 5V port for optional power
2. 2 x HDMI outputs for displays
3. 2 x USB 1.1 ports for keyboard & mouse
4. Microphone output jack
5. Speaker output jack
6. 4 x HDMI inputs for host computers
7. 2 x USB-B 3.0 Ports for host computers
8. 2 x 3.5mm audio inputs for host computers
Note: All cables to connect USB devices and displays to the KVM switch are
sold separately.
3.2 Working Mode
This KVM switch supports two working modes: single display mode and dual-
display mode.
Single-Display Mode: Connect all the HDMI Input/Output to HDMI A Port.
Leave the HDMI B Port unplugged.
Dual-Display Mode: Connect all the HDMI Input/Output to HDMI A & B Ports.

5
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
3.3 Connection Instructions
1. Power off all source equipment
2. Connect a 5V power adapter to the DC 5V port (Optional)
3. Connect the included 3-in-1 cable from the KVM switch to host computers.
Connect HDMI A & B input ports, the USB-B port and 3.5mm audio input in IN 1
section to host computer #1, and connect HDMI A & B input ports, the USB-B
port and 3.5mm audio input in IN 2 section to host computer #2
4. Connect up to 3 USB peripherals to the KVM switch through the USB-A ports
at the front
Note: The two USB 1.1 ports in the OUT section are recommended to connect
keyboard and mouse.
5. Connect HDMI displays to HDMI output A & B ports in OUT section

6
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
3.4 Hotkeys
This KVM switch supports hotkey control. See the hotkey combinations as below:
1. 【 CTL 】 + 【 SHIFT 】
Hotkey combination Description
【CTL 】+ 【CTL 】Switch to the other source device
【CTL 】+ 【SHIFT 】+ 【1 】 or
【2 】
Switch to the other source device
【CTL 】+ 【SHIFT 】+ 【→】 or
【↓】
Switch to the other source device
【CTL 】+ 【SHIFT 】+ 【←】 or
【↑】
Switch to the other source device
【CTL 】+ 【SHIFT 】+ 【B 】Buzzer on or off
【CTL 】+ 【SHIFT 】+ 【S 】Enable automatic switching mode,
the default lasting time is 5 seconds,
press 【ESC 】 to exit
【CTL 】+ 【SHIFT 】+ 【S 】+
【N 】
Set the automatic switching mode
interval, press 【ESC 】 to exit
【CTL 】+ 【SHIFT 】+
【SCROLL 】
Switch to hotkey mode【SCROLL】
+ 【SCROLL】
【CTL 】+ 【SHIFT 】+ 【NUM 】Switch to hotkey mode【NUM 】+
【NUM 】
【CTL 】+ 【SHIFT 】+ 【CAPS 】Switch to hotkey mode【CAPS 】+
【CAPS 】

7
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
2.【SCROLL 】 + 【 SCROLL 】
Hotkey combination Description
【SCROLL 】+ 【SCROLL 】+
【1 】 or 【2 】
Switch to the other source device
【SCROLL 】+ 【SCROLL 】+
【→】 or 【↓】
Switch to the other source device
【SCROLL 】+ 【SCROLL 】+
【←】 or 【↑】
Switch to the other source device
【SCROLL 】+ 【SCROLL 】+
【B 】
Buzzer on or off
【SCROLL 】+ 【SCROLL 】+
【S 】
Enable automatic switching mode,
the default lasting time is 5 seconds,
press 【ESC 】 to exit
【SCROLL 】+ 【SCROLL 】+
【S 】+ 【N】
Set the automatic switching mode
interval, press 【ESC 】 to exit
【SCROLL 】+ 【SCROLL 】+
【CTL 】
Switch to hotkey mode【CTL 】+
【CTL 】
【SCROLL 】+ 【SCROLL 】+
【NUM 】
Switch to hotkey mode【NUM 】+
【NUM 】
【SCROLL 】+ 【SCROLL 】+
【CAPS 】
Switch to hotkey mode【CAPS 】+
【CAPS 】

8
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
3. 【 NUM 】 + 【 NUM 】
Hotkey combination Description
【NUM 】+ 【NUM 】+ 【1 】 or
【2 】
Switch to the other source device
【NUM 】+ 【NUM 】+ 【→】 or
【↓】
Switch to the other source device
【NUM 】+ 【NUM 】+ 【←】 or
【↑】
Switch to the other source device
【NUM 】+ 【NUM 】+ 【B 】Buzzer on or off
【NUM 】+ 【NUM 】+ 【S 】Enable automatic switching mode,
the default lasting time is 5 seconds,
press【ESC 】 to exit
【NUM 】+ 【NUM 】+ 【S 】+
【N 】
Set the automatic switching mode
interval, press【ESC 】 to exit
【NUM 】+ 【NUM 】+
【SCROLL 】
Switch to hotkey mode【SCROLL 】
+ 【SCROLL 】
【NUM 】+ 【NUM 】+ 【CTL 】Switch to hotkey mode【CTL 】+
【CTL 】
4.【 CAPS 】 + 【 CAPS 】
Hotkey combination Description
【CAPS 】+ 【CAPS 】+ 【1 】 or
【2 】
Switch to the other source device
【CAPS 】+ 【CAPS 】+ 【→】 or
【↓】
Switch to the other source device
【CAPS 】+ 【CAPS 】+ 【←】 or
【↑】
Switch to the other source device
【CAPS 】+ 【CAPS 】+ 【B 】Buzzer on or off

9
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
【CAPS 】+ 【CAPS 】+ 【S 】Enable automatic switching mode,
the default lasting time is 5 seconds,
press 【ESC 】 to exit
【CAPS 】+ 【CAPS 】+ 【S 】+
【N 】
Set the automatic switching mode
interval, press【ESC 】 to exit
【CAPS 】+ 【CAPS 】+
【SCROLL 】
Switch to hotkey mode【SCROLL 】
+ 【SCROLL 】
【CAPS 】+ 【CAPS 】+ 【NUM 】Switch to hotkey mode【NUM 】+
【NUM 】
【CAPS 】+ 【CAPS 】+ 【CTL 】Switch to hotkey mode【CTL 】+
【CTL 】
Note: 1. Press the two keystrokes for the hotkey combination within 5 seconds,
otherwise, the hotkey control will not work.
2.【N】refers to the keystrokes【1】~【9】. Time interval settings:
Automatic switching interval
Nsecond
15
210
315
420
525
630
735
840
960

10
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
3.5 Troubleshooting Tips
• Verify that all cables are securely connected including:
The 3-in-1 cable to the host computers
HDMI cables to the displays/monitors
• Connect the included power supply if a high power-consumption
USB device is connected to the KVM switch such as a hard drive
• Check if any driver is required for the attached USB devices
• Restart the KVM switch by unplugging and re-plugging the cables
• Try a lower display resolution and refresh rate if get blank screen
• Make sure the HDMI port and USB port in IN 1 section is connect-
ed to PC #1, and the HDMI port and USB port in IN 2 section is
connected to PC #2.
Contact [e-mail] with any questions

11
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
4. TECHNICAL SPECIFICATIONS
KVM Switch Connections
USB-B Input 2 x USB-B 3.0
USB-A Output 2 x USB-A 3.0, 1 x USB-A 2.0 and 2 x
USB-A 1.1
Power 1 x DC 5V
Display Input 4 x HDMI
Display Output 2 x HDMI
Microphone Output 1 x microphone jack (pink)
Speaker Output 1 x speaker jack (green)
Audio Input 2 x 3.5mm TRRS audio jack (black)
Maximum Resolution 1 x 4K@120Hz or 2 x 4K@60Hz
Dimensions
Switch (L x W x H) 5.20 x 3.62 x 2.56 Inches
Environmental
Operating Temperature 32°F to 122°F
Storage Temperature -4°F to 140°F
Regulatory Approvals
USB 3.0 KVM Switch FCC, CE, RoHS
Warranty Limited One-Year

12
www.cablematters.com
USB 3.0 KVM Switch for 2 Computers
5. WARRANTY AND SUPPORT
5.1 Customer Support and Contact Information
Cable Matters offers lifetime technical support as an integral part of our commit-
ment to provide industry leading solutions.
Email us with any questions at [email protected].
5.2 Warranty Information
This product is backed by a limited one-year warranty. In addition, Cable Matters
warrants its products against defects in materials and workmanship for the periods
noted, following the initial date of purchase. During this period, the products may
be returned for repair, or replaced with equivalent products at our discretion. The
warranty covers parts and labor costs only. Cable Matters does not warrant its
products from defects or damages arising from misuse, abuse, alteration, or
normal wear and tear.
5.3 Limitation of Liability
In no event shall Cable Matters Inc. (including their officers, directors, employees
or agents) be liable for any damages (whether direct or indirect, special, punitive,
incidental, consequential, or otherwise), loss of profits, loss of business, loss of
data, or any pecuniary loss, arising out of, or related to the use of this product
exceeding the actual price paid for the product (as allowed by state law).
Cable Matters® is a registered trademark or trademark of Cable Matters Inc. All
rights reserved.

www.cablematters.com
