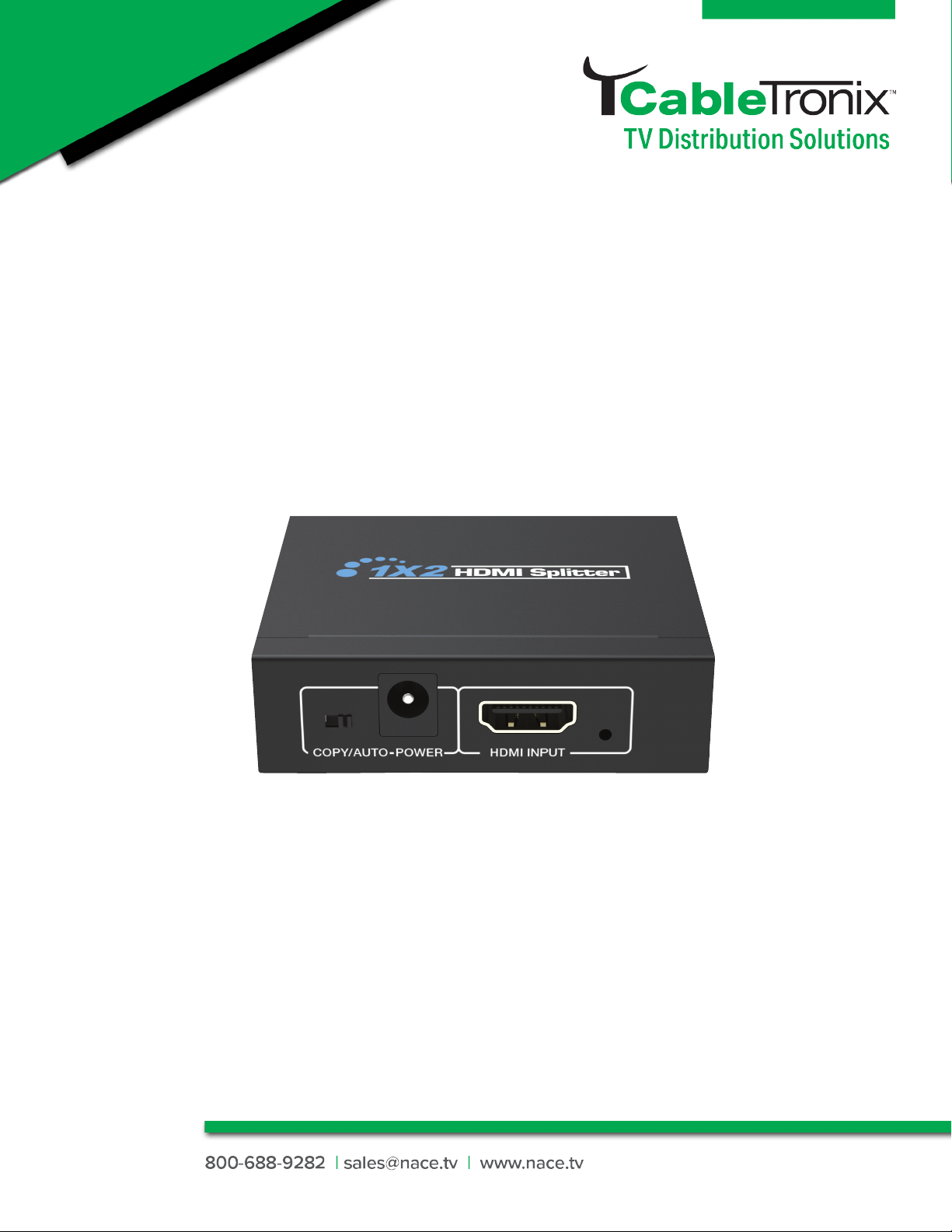

Cable-Tronix CT-HDVD-MINI1X2SPL-V2 User manual

Manual
CT-HDVD-MINI1X2SPL-V2
User Manual

CT-HDVD-MINI1X2SPL-V2 Manual
2
Table of Contents
1.0. Introduction.......................................................................................................................... 3
2.0. Features. ............................................................................................................................. 3
3.0. Package Contents. .............................................................................................................. 3
4.0. Specications. ..................................................................................................................... 4
5.0. Operation Controls and Functions....................................................................................... 5
6.0. Application Example. ........................................................................................................... 7
7.0. Warranty ...........................................................................................................................8-9
Safety
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.

CT-HDVD-MINI1X2SPL-V2 Manual
3
3.0 Package Content
Before attempting to use this unit, please check the packaging and make sure the following
items are contained in the shipping carton:
• 1 x HDMI 1 × 2 Splitter
• 1 x 5V/1A Power Adapter
• 1 x User Manual
1.0 Introduction
This HDMI Splitter can distribute 1 HDMI input signal source to 2 HDMI displays simultaneously.
Supported video resolution is up to 4K×2K@30Hz. It supports digital audio formats: DTS-HD/
Dolby true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD. The product supports HDMI signal input
debounce and output amplication functions, and is perfectly compatible with all current HDMI
source devices and display devices.
2.0 Features
• HDMI 1.4b and HDCP 1.4 compliant
• Supports video resolution up to 4K×2K@30Hz
• Supports 3D video format
• Supported color depths: 30-bit, 36-bit and 48-bit/pixel
• Supported audio formats: DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD
• Compact design for easy and exible installation

CT-HDVD-MINI1X2SPL-V2 Manual
4
4.0 Specications
Technical
HDMI Compliance HDMI1.4b
HDCP Compliance HDCP1.4
Video Bandwidth 2.97Gbps
Video Resolution Up to 4K×2K@30Hz
Audio Formats DTS-HD/Dolby-true-HD/LPCM 7.1/DTS/Dolby- AC3/DSD
Color Depth 30bit, 36bit and 48bit/pixel
ESD Protection Human body model: ± 8 kV (air-gap discharge)
± 4 kV (contact discharge)
Connection
Input Ports 1 x HDMI Type A (19-pin female)
Output Ports 2 x HDMI Type A (19-pin female)
Mechanical
Housing Metal Enclosure
Silkscreen Color Black
Dimensions 2.36" x 2.75" x 0.787" (60 x 70 x 20mm)
Weight 0.27 lbs (125 g)
Power Supply DC 5V/1A
Power Consumption 1.5W
Operation Temperature 32 - 104°F (0 - 40°C)
Storage Temperature -4°F - 140°F (-20 - 60°C)
Relative Humidity 20 - 90% RH (non-condensing)
Warranty 1 year - Can be extended to 3 years

CT-HDVD-MINI1X2SPL-V2 Manual
5

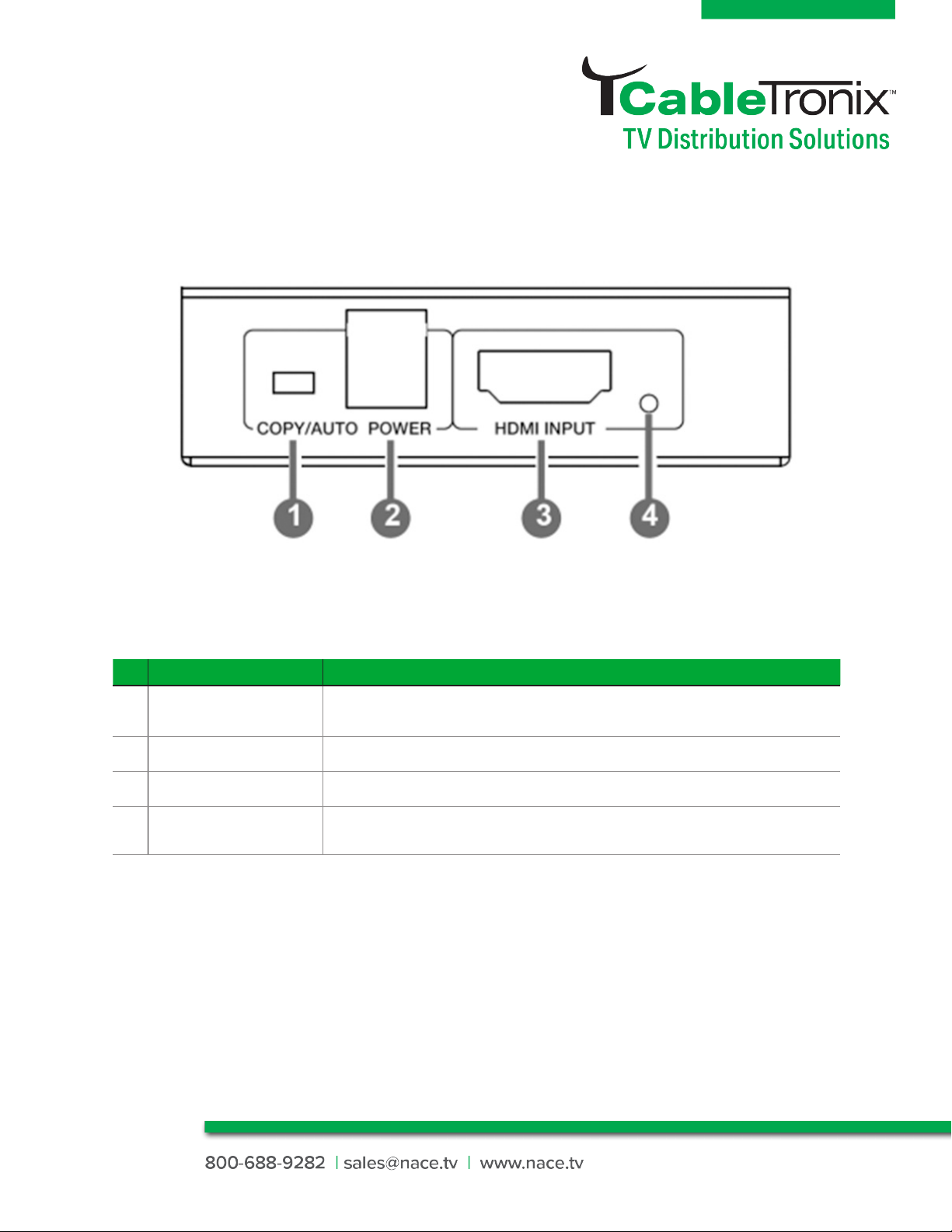

5.0 Operation Controls and Functions
No Name Function Description
1 EDID switch
Use the switch to set EDID mode:
• Copy mode: Copy the EDID of HDMI OUTPUT 1 port to the input port.
• Auto mode: Compare the EDID of two HDMI output ports automatically, and
merge a new EDID to the input port.
2 DC 5V 5V DC power supply port.
3 HDMI INPUT HDMI signal input port. Connect to an HDMI source device such
as DVD with HDMI cable.
4 Input LED Red LED is on when there is HDMI signal input.
Front Panel

CT-HDVD-MINI1X2SPL-V2 Manual
6
No Name Function Description
1 HDMI OUTPUT 1 HDMI signal output port 1. Connect to an HDMI display device such
as HDTV or Monitor.
2 OUTPUT 1 LED Red LED is on when the HDMI OUTPUT 1 port outputs HDMI signals.
3 OUTPUT 2 LED Red LED is on when the HDMI OUTPUT 2 port outputs HDMI signals.
4 HDMI OUTPUT 2 HDMI signal output port 2. Connect to an HDMI display device such
as HDTV or Monitor.
Rear Panel

CT-HDVD-MINI1X2SPL-V2 Manual
7

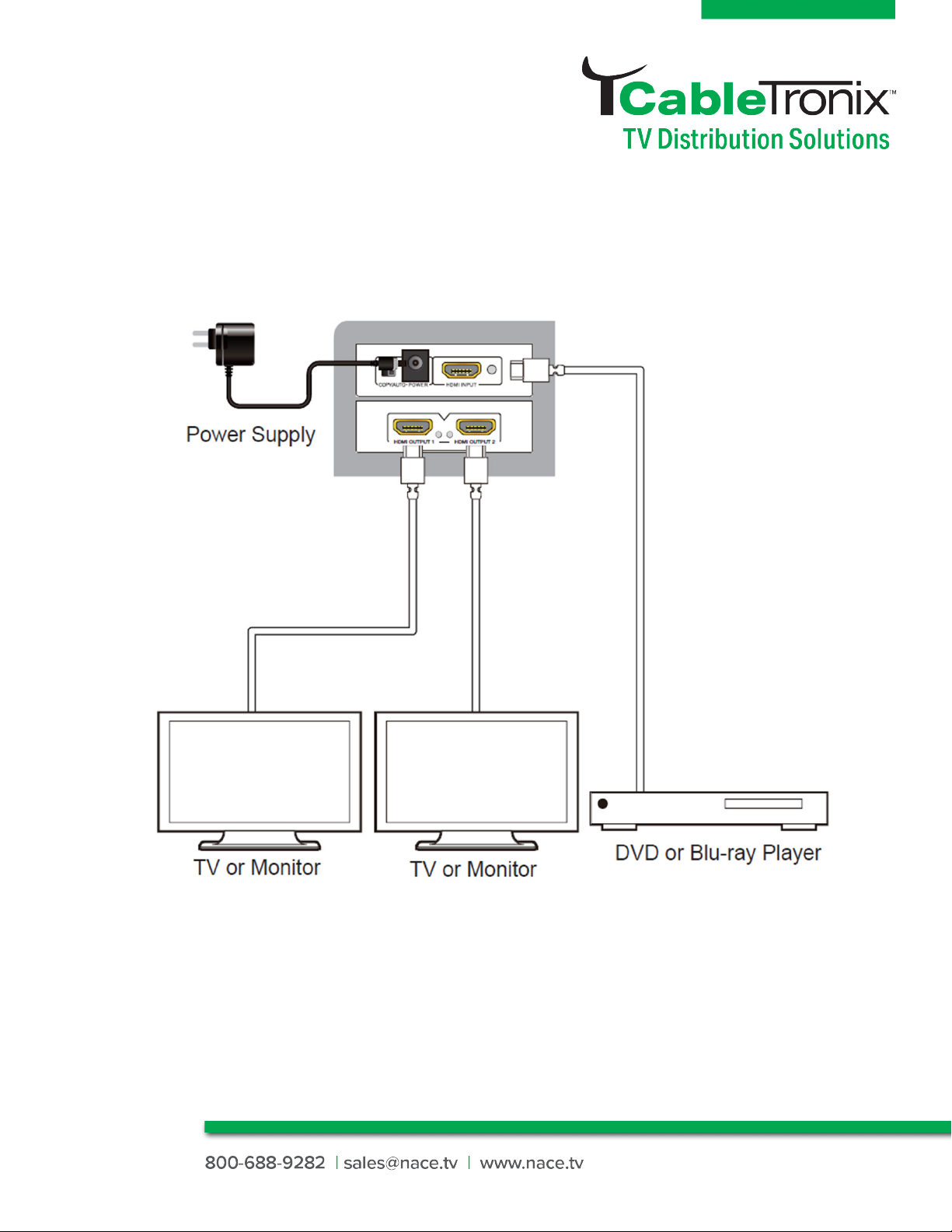

7.0 Application Example

CT-HDVD-MINI1X2SPL-V2 Manual
8
8.0 CableTronix 1-Year Limited Warranty
CABLETRONIX. (the “Company”) warrants to the Original Purchaser that the item purchased is
free from defects in workmanship or material under normal use. This warranty starts on the date
of shipment of the hardware to the Original Purchaser.
During the warranty period, the Company agrees to repair or replace, at its sole option, without
charge to Original Purchaser, any defective component. To obtain service, the Original Purchas-
er must return the item to the Company properly packaged for shipping. All defective products
must be returned to the Company within thirty (30) days of failure. Products must be returned
with a description of the failure and Return Merchandise Authorization (RMA) number supplied
by the Company. To receive a RMA number and a return shipping address on where to deliver
the hardware, call 610-429-1821. The shipping, and insurance charges incurred in shipping to
the Company will be paid by Original Purchaser, and all risk for the hardware shall remain with
the Original Purchaser until such time as Company takes receipt of the hardware. Upon re-
ceipt, the Company will promptly repair or replace the defective unit, and then return said unit to
Original Purchaser, shipping prepaid. The Company may use reconditioned or like-new parts or
units, at its sole option, when repairing any hardware. Repaired products shall carry the same
amount of outstanding warranty as from original purchase. Any claim under the warranty must
include dated proof of purchase or invoice. In any event, the Company’s liability for defective
hardware is limited to repairing or replacing the hardware.
his warranty is contingent upon proper use of the hardware by Original Purchaser and does
not cover: if damage is due to Acts of God (including re, ood, earthquake, storm, hurricane or
other natural disaster), accident, unusual physical, electrical, or electromechanical stress, mod-
ications, neglect, misuse, operation with media not approved by the Company, tampering with
or altering of the hardware, riot, war, invasion, act of foreign enemies, hostilities (regardless of
whether war is declared), civil war, rebellion, revolution, insurrection, military or usurped power
or conscation, terrorist activities, nationalization, government sanction, blockage, embargo,
labor dispute, strike, lockout or interruption or failure of electricity, air conditioning, or humidity
control, Internet, network, or telephone service.
The warranties given herein, together with any implied warranties covering the hardware,
including any warranties of merchantability or tness for a particular purpose, are limited in
duration to one year from the date of shipment to the Original Purchaser. Jurisdictions vary with
regard to the enforceability of warranty limitations, and you should check the laws of your local
jurisdiction to nd out whether the above limitation applies to you.

CT-HDVD-MINI1X2SPL-V2 Manual
9
The Company shall not be liable to you for loss of data, loss of prots, lost savings, special, inci-
dental, consequential, indirect, or other similar damages arising from breach of warranty, breach
of contract, negligence, or other legal action even if the Company or its agent has been ad-
vised of the possibility of such damages, or for any claim brought against your by another party.
Jurisdictions vary with regard to the enforceability of provisions excluding or limiting liability for
incidental or consequential damages. You should check the laws of your local jurisdiction to nd
out whether the above exclusion applies to you.
This warranty allocates risks of product failure between Original Purchaser and the Company.
The Company’s hardware pricing reects this allocation of risk and the limitations of liability
contained in this warranty. The warranty set forth above is in lieu of all other express warran-
ties, whether oral or written. The agents, employees, distributors, and dealers of the Company
are not authorized to make modication to this warranty, or additional warranties binding on
the Company. Accordingly, additional statements such as dealer advertising or presentations,
whether oral or written, do not constitute warranties by the Company and should not be relied
upon.
This warranty gives you specic legal rights. You may also have other rights which vary from
one jurisdiction to another.
