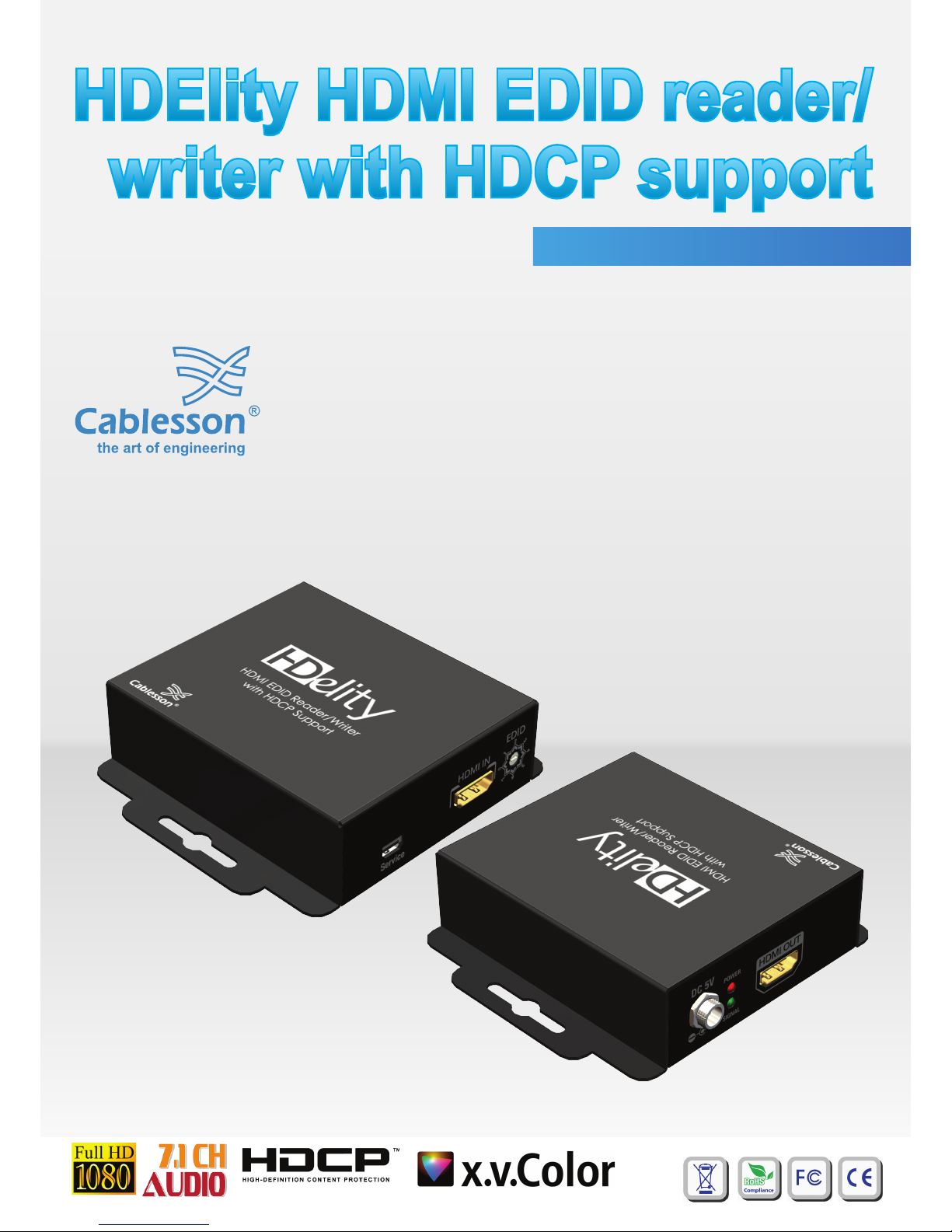

Cablesson 104026 User manual

HDElity HDMI EDID reader/
writer with HDCP support
User Manual

1
HDElity HDMI EDID reader/writer with HDCP support
Follow all instructions and warnings marked on this unit.
Do not attempt to service this unit yourself, except where explained in this manual.
Provide proper ventilation and air circulation and do not use near water.
Keep away from sharp objects that might damage the device and place the unit on a stable surface.
Only use the power adapter, power cords and connection cables designed for this unit.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.
1.
2.
3.
4.
5.
6.
Safety Notice
The HDElity HDMI EDID reader/writer with HDCP support has been tested for conformance to safety regulations
and requirements, and has been certified for international use. However, like all electronic equipments, the 104026
should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and
to minimize the risk of damage to the unit.

Introduction
The 104026 HDElity HDMI EDID reader/writer with HDCP support with USB control is a
device that can emulate the EDID (Extended Display Identification Data) information. It stores and recalls a
default EDID setting in non-volatile memory and supports HDCP handshaking. 104026 allows your
HDMI/DVI source boot directly from EDID Reader/Writer/Re-timer, and users can detach HDMI equipped
monitor at any time while installing 104026 between HDMI/DVI source and monitor. It can also read and
store the EDID of your HDMI/DVI display and even let you modify the EDID and upload the modified EDID
to displays. In addition, the software can allow user to assemble the EDID content based on the real demand.
2
Able to prevent PC from deactivating inactive HDMI/DVI ports
HDCP 1.1 compliant
Support HDMI Deep Color & 3D / DVI 1.1 compliant
Able to read and store the EDID of displays (monitors or projectors)
Able to overwrite the EDID into the EDID Reader/Writer/Re-timer or the HDMI displays
Built-in default EDID
Able to maintain HDMI/DVI video resolution
Re-synthesizes input HDMI stream and maintains or improves signal integrity.
Controllable by PC/Laptop via USB
Re-generate EDID content
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Features
Extended Display Identification Data (EDID) is a standard data format that contains basic information
about a monitor and its capabilities, including vendor information, maximum image size, color charac-
teristics, factory pre-set timings, frequency range limits, and character strings for the monitor name
and serial number.
The information is stored in the display and is used to communicate with the system through a Display
Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses
this information for configuration purposes, so the monitor and system can work together.
Note
HDElity HDMI EDID reader/writer with HDCP support

Package Contents
3
Specifications & Package Contents
Model Name
Technical
DVI compliance
HDCP compliance
Video bandwidth
Video support
Input
Output
HDMI connector
USB connector
Flash EEPROM
Mechanical
Housing
Dimensions
[L x W x H]
Model
Package
Carton
Weight
Model
Package
Fixedness
Power supply
Power consumption
Operation temperature
Storage temperature
Relative humidity
HDElity HDMI EDID reader/writer with HDCP support
104026
DVI 1.0 / HDMI Deep Color & 3D
Yes
Single-link 225MHz [6.75Gbps]
Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz]
Metal enclosure
1x HDMI
1x HDMI
Type A [19-pin female]
mini USB
256 byte [non-volatile]
91 x 79 x 21mm [3.6" x 3.1" x 0.8"]
40 x 200 x 75mm [5.5" x 7.9" x 3"]
420 x 400 x 300mm [1'5" x 1'4" x 11.8"]
240g[8.5 oz]
500g[1.1 lbs]
Wall-mounting case with screws
5V 3A DC
4 Watt [max]
0~40°C [32~104°F]
-20~60°C [-4~140°F]
20~90% RH [no condensation]
● 1x 104026
● 1x 5V supply unit
● 1x Installation software CD
● 1x User Manual
HDElity HDMI EDID reader/writer with HDCP support

4
Front Panel
Rear Panel
HDElity HDMI EDID reader/writer with HDCP support
1 2 3
64 5
0 = [Video] – supports up to HDMI 1.3 output. [Audio] – supports up to 7.1ch output
1 = [Video] – supports up to HDMI 1.3 output. [Audio] – lock to stereo audio output
2 = [Video] – locks to HDMI 1.2 output. [Audio] – supports up to 7.1ch output
3 = [Video] – locks to HDMI 1.2 output. [Audio] – lock to stereo audio output
4 = [Video] – DVI display mode. [Audio] – no audio output
5 = [Safe Mode] – uses default EDID1 with video supported up to 1080p
6 = [Manual Mode] – Learning EDID from HDMI output manually
7 = [Serial Command Mode] – Software can access 104026 only in this mode
+5V DC : Connect to 5V DC power supply.
LED INDICATOR:
[green]: signal indicator LED
[red]: power indicator LED.
HDMI OUT : Connect to a HDMI display with a HDMI male-male cable.
Mini-USB port : Connect to a PC for software operation
HDMI IN : Connects to a HDMI source with a HDMI male-male cable
MODE : Decide which mode 104026 is currently working at
1.
2.
3.
4.
5.
6.

5

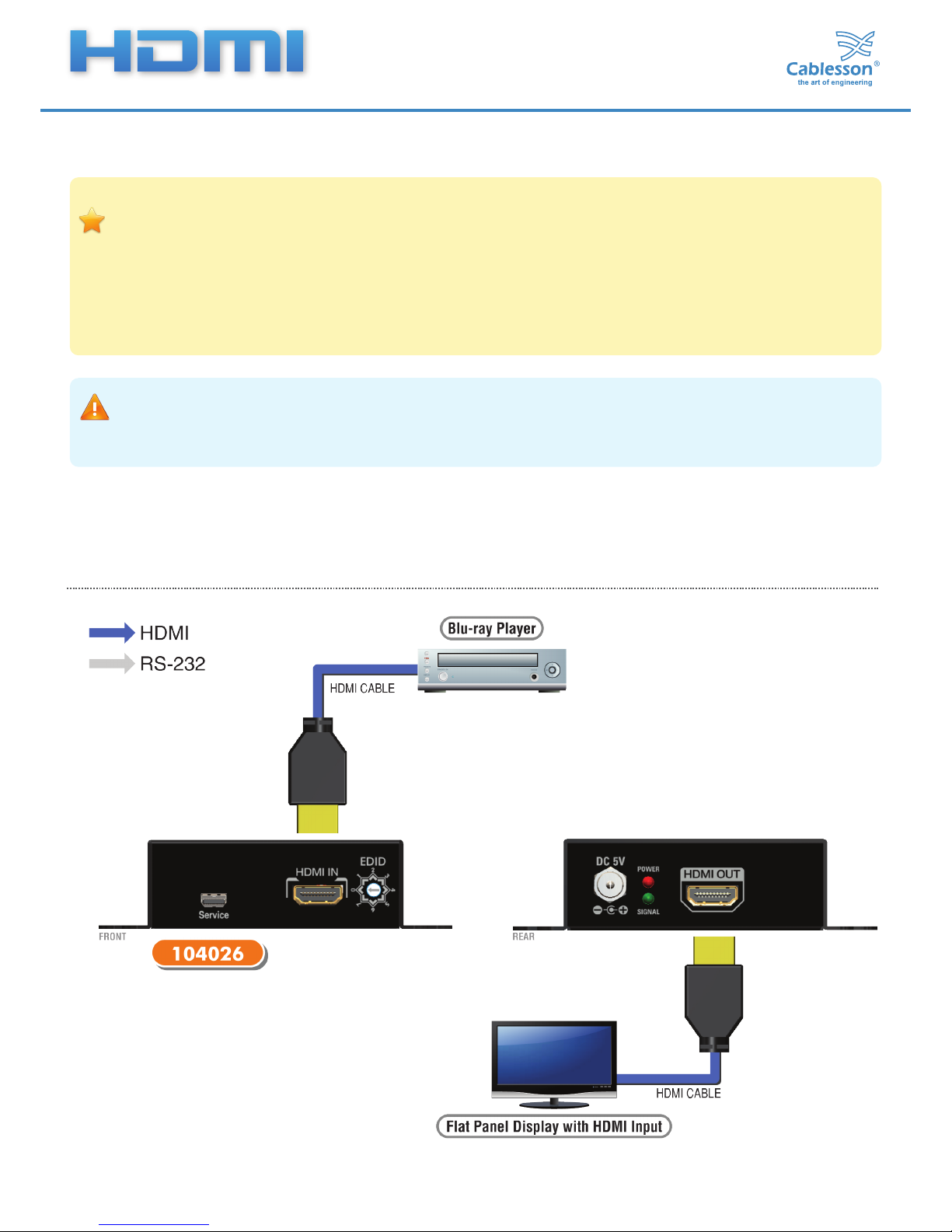

Connection Diagram
HDElity HDMI EDID reader/writer with HDCP support
*To avoid initiating undesired errors during switching between modes (e.g. changing from Recording
mode to Connection mode might overwrite the EDID of the display in the EDID Reader/Writer/Re-timer
by the default EDID), please unplug the power supply unit before changing one of the above modes. Plug
in the power supply unit after you have changed the pin position of the DIP switch.
*The EDID Reader/Writer/Re-timer may not work on the monitors with EDID write-protection.
CAUTION!
Please don’t plug HDMI cable into Source-HDMI connector when you are changing from one operation mode to another.

Hardware Installation
Connect the display device to the EDID Reader/Writer/Re-timer via Monitor-HDMI port.
Plug in the 5V DC power supply unit.
Set 104026 to the mode 6.
The EDID reading sequence is done when the green LED lights off.
Switch the rotary switch back to mode 0 ~ 4.
1.
2.
3.
4.
5.
Set 104026 to the mode 7.
Connect the display device to the EDID Reader/Writer/Re-timer via Monitor-HDMI port.
Plug in the 5V DC power supply unit.
Connect the 104026 to the serial port of PC.
Click on “HDMI Monitor Reader” button to read the EDID information from HDMI display.
The EDID reading sequence is done when the green LED lights off.
1.
2.
3.
4.
5.
6.
Set 104026 to the mode 7.
Connect the display device to the EDID Reader/Writer/Re-timer via Monitor-HDMI port.
Plug in the 5V DC power supply unit.
Connect the 104026 to the serial port of PC.
Click on “HDMI Monitor Writer” button to write the EDID information to HDMI display.
The EDID reading sequence is done when the green LED lights off.
1.
2.
3.
4.
5.
6.
1. Read the EDID from a HDMI display manually
2. Read the EDID from a HDMI display via software
3. Write an EDID to the HDMI display
6
HDElity HDMI EDID reader/writer with HDCP support
*The EDID Reader/Writer/Re-timer may not work on the monitors with EDID write-protection.

7
HDElity HDMI EDID reader/writer with HDCP support
Before running the software, please make sure the rotary switch is set to 7.
1) Getting started

8
HDElity HDMI EDID reader/writer with HDCP support
2) Create EDID
1. Firstly please select the EDID belonging to HDMI or DVI mode
2. HDMI Mode
3. DVI Mode
“Save EDID on Computer” to save the generated EDID as a file
“Save EDID to 104026” to copy the generated EDID to 104026
“Save EDID on Computer” to save the generated EDID as a file
“Save EDID to 104026” to copy the generated EDID to 104026

9
HDElity HDMI EDID reader/writer with HDCP support
3) View Display’s EDID
Read the EDID from the display and analyze it

10
HDElity HDMI EDID reader/writer with HDCP support
4) View 104026 EDID
Read the EDID from 104026 and analyze it

11
Limited Warranty
The SELLER warrants the 104026 HDElity HDMI EDID reader/writer with HDCP support to be free from
defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized
dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its
option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any
unauthorized modifications including static discharge and power surge. This warranty is offered by the SELLER for
its BUYER with direct transaction only. This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the
BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in
transit. Under no circumstances will a unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other
implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside United Kingdom are responsible
for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30 day warranty and must
be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER
assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be
liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this
manual, even if advised of the possibility of such damages. Also, the technical information contained herein regard-
ing the features and specifications of 104026 is subject to change without further notice.
HDElity HDMI EDID reader/writer with HDCP support

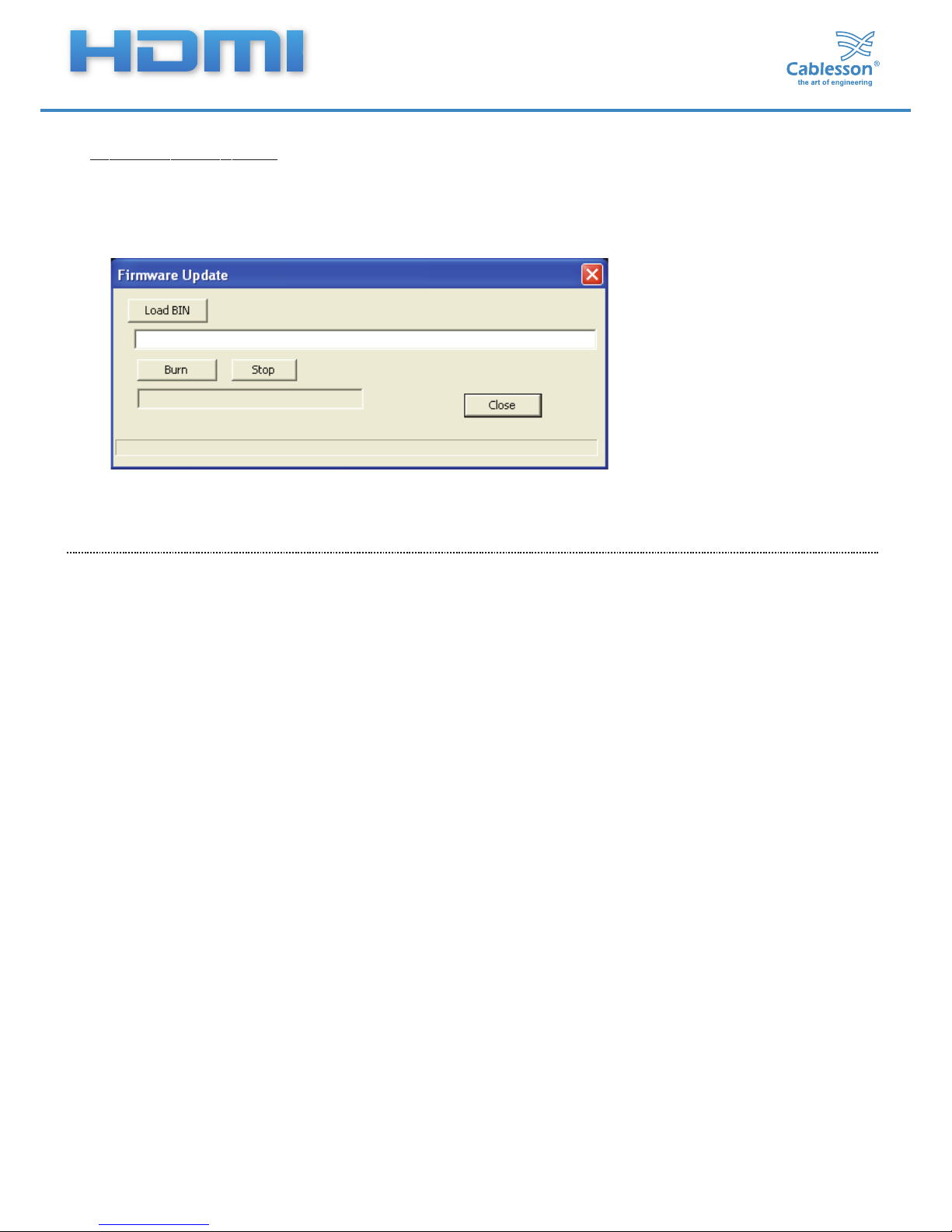

5) Firmware Update
1. Click “Load BIN” to load firmware file.
2. Click “Burn” and reboot HDSync.
3. Firmware is updated after the progress bar running 100 percentage!
