Cabletron Systems KBU64 Rackmount User manual

KBU64 Rackmount
User Manual
Fivemere Ltd. Cabletron Systems Ltd.
Fivemere House Network House
161 High Street Newbury Business Park
Aldershot London Road, Newbury
Hampshire, England Berkshire, England
GU11 1TT RG13 2PZ
Telephone: [44] (0)1635 580000
Fax: [44] (0)1635 44578

KBU64 RackmountUser Manual
80-10100001-09ii
Publication — 80-10100001-09
Publication Notice:
This manual has been compiled and checked for accuracy. However the
information contained in this manual does not constitute a warranty of
performance. Cabletron Systems Ltd. reserves the right to revise this
publication from time to time without notice. Cabletron Systems Ltd.
assumes no liability for losses incurred as a result of out of date or incorrect
information contained in this manual.
Proprietary Notice:
© 1991-1997, Cabletron Systems Ltd., all rights reserved.
This document may not in whole or part be copied, photocopied, reproduced,
translated, or reduced to any electronic medium or machine-readable form
without prior consent from Cabletron Systems Ltd.
Approval Notice:
This equipment is approved for connection to all United Kingdom
telecommunications services, including British Telecom PLC, Hull City
Council and Mercury Communications, and is subject to the conditions set
out in these instructions for use.
All users of this equipment in the UK, Europe and USA must make
themselves familiar with the statutory instructions contained in Section 7.
Pan European Approval:
Where the Pan European Approval CE Mark ‘168X’ is applied to the product;
this approval is for connection of the ISDN and X.21 interfaces within the
European Community (EC).
Where an EC country requires approval for connection of the V35 or V24
Link ports to a PTO’s Digital Leased Circuit (DLC), this approval is necessary
in that country before connection to the DLC can be permitted.
Approval in non EC countries is subject to local regulations in force, please
contact your Technical Support for information.
EMC Directive:
This product has been designed for use in Commercial and Light Industrial
environments and tested to relevant EMC Standards as listed in the
European O.J. All testing was carried out using screened interconnection
cables. Should the equipment be used in a different environment the user
may need to take additional EMC precautions.
Acknowledgements: Kilostream™ is a trademark of British Telecom PLC.
Fivemere Ltd. is a subsidiary of Cabletron Systems Inc., USA.

KBU64 RackmountUser Manual
80-10100001-09 iii
History Sheet
80-10100001-09 Issued separately for the R/M
due to USA requirements 21 January 1998

KBU64 RackmountUser Manual
80-10100001-09iv
TABLE OF CONTENTS
1KBU 64 RACKMOUNT SPECIFICATION 1–1
1.1 INTRODUCTION 1–1
2FRONT AND REAR PANELS AND INTERFACES 2–1
2.1 FRONT PANEL 2–1
2.2 REAR INTERFACE CARDS 2–1
2.2.1 LINK SETTINGS 2–3
2.2.2 COMMAND PORT - KBU 64 REAR INTERFACE CARDS 2–4
2.2.3 V35 REAR INTERFACE CARD 2–5
2.2.4 X21 REAR INTERFACE CARD 2–6
2.2.5 V24 REAR INTERFACE CARD 2–6
3MANAGER CARD 3–1
3.1 INTRODUCTION 3–1
3.2 FRONT PANEL 3–3
3.3 REAR PANEL 3–3
4CARD INSTALLATION 4–1
4.1 MANAGER CARD INSTALLATION 4–1
4.2 CONFIGURATION USING A MANAGER CARD 4–2
5INSTALLATION AND POWER SUPPLY REQUIREMENTS 5–1
6RACK SPECIFICATIONS 6–1
7REGULATORY REQUIREMENTS 7–1
7.1 UNITED KINGDOM AND EUROPE 7–1
7.2 ADDITIONAL UK REQUIREMENTS 7–1

KBU 64 Rackmount Specification
80-10100001-09 1–1
1 KBU 64 Rackmount Specification
1.1 Introduction
This manual describes the Rackmount version of the KBU64. The
standalone KBU 64 has its own manual, Publication 80-10100000. For
information on the command menus and parameters in the rackmount
version, you will need to refer to the standalone KBU 64 manual.
The rackmount KBU 64 is a dual channel rack mountable card that uses
the KBU 64 Card Frame as a host for power and management via the
Management Card. The rackmounted KBU 64 consists of a KBU card
and a rear interface card (card 'pair'), both cards connecting to a
motherplane for power source and management. Rear interface cards
may be ordered as X.21, V.24, or V.35 variants.
Power supply is via two switching supplies, which normally load share
when both are fitted.

KBU64 RackmountUser Manual
80-10100001-091–2
Fivemere Fivemere

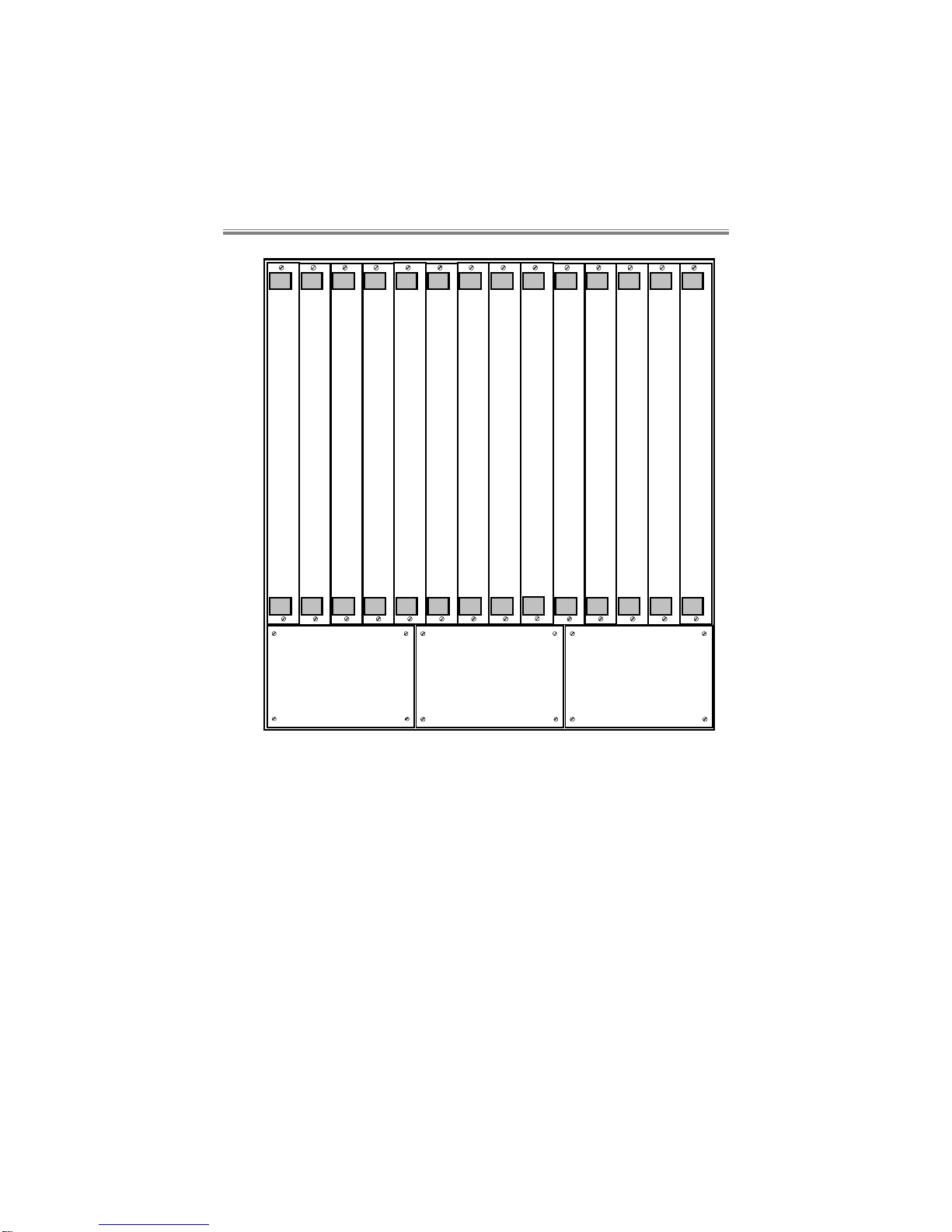

Figure 1.1 The KBU 64 Rackmount Version
Up to 13 KBU 64 card pairs may be fitted with either one or two power
supplies for resilience. The 1st card slot is for the Manager Card which
controls all cards within the rack via the KBU 64 polled management
system. If the Manager Card is not fitted, management of each card can
be performed by connecting a terminal directly to the command port of
the rear interface card. When fitted, the manager card must be placed in
slot 1, the left-hand most slot of the rack.

KBU 64 Rackmount Specification
80-10100001-09 1–3
The rackmount version of the KBU 64 is functionally the same as the
standalone in most respects, as it uses the same software. Therefore
most of the sections of your KBU64 Manual manual (Publication 80-
10100000) relating to KBU 64's operation are relevant.
The rackmount card functionality differs in the following ways:-
•There is a single 15 way command port on each KBU 64 rear card
for all commands and alarms. There is no separate alarm port or
alarm relay output on the cards. The command port has the same
function as the standalone 25 way command port.
•The Management Card (if fitted) provides a command port for
access to all KBU 64 cards in the rack.
•Standard physical interfaces are provided for X21 (15 way 'D'),
V35 (34 way MRAC), and V24 (25 way 'D'). This means that the
V11/V28 selection links are not provided as they are no longer
necessary. A choice of 3 rear interface cards exist to provide
these interfaces.
•The interface LED's are as for the standalone except that the Link
LED's have been omitted for front panel clarity.
•The ISDN cable is connected to the Rear Interface Card by an RJ
45 style plug.
•Power indication for each power supply is present on the Manager
Card.

Front and Rear Panels and Interfaces
80-10100001-09 2–1
2 Front and Rear Panels and Interfaces
2.1 Front Panel
See the KBU64 standalone manual (Publication 80-10100000) for the
description of operation.
2.2 Rear Interface Cards
With all 3 card types the USER ports are configured as physical DCEs,
the LINK ports as DTEs. The USER ports are female and the LINK are
male for X21 and V24, both USER and LINK ports are female for V35.
All three card types use standard pin connection and so require 1 to 1
cables for connection to both user equipment and link equipment.

KBU64 RackmountUser Manual
80-10100001-092–2
T 103
R 104
C 108
I 107
S 114
115
105
109
BACKUP
USER 1
Front Rear
(X.21) Rear
(V.35)
USER 2
T 103
R 104
C 108
I 107
S 114
115
105
109
BACKUP
B1 IN USE
B1 BACKUP
B2 IN USE
B2 BACKUP
ALARM 1
ALARM 2
USER 1
LINK 1
USER 2
LINK 2
COMMAND
IS D N
LINK 1
USER 2
LINK 2
USER 1
COMMAND
IS D N
COMMAND
IS D N
USER 1
LINK 1
USER 2
LINK 2
Rear
(V.24)
Figure 2.1 Front and rear Panel Layout

Front and Rear Panels and Interfaces
80-10100001-09 2–3
2.2.1 Link Settings
For all 3 types of Rear Interface Card the command port jumper settings
are as follows:
Without Manager Card
With
Manager
Card
Link Normal Polled Polled Only
JP8 IN IN X
JP9 OUT OUT X
JP10 OUT IN X
JP11 IN OUT X
JP12 IN IN OUT
JP13 IN IN OUT
JP14 IN IN OUT
'X' = don't care

KBU64 RackmountUser Manual
80-10100001-092–4
2.2.2 Command Port - KBU 64 Rear Interface Cards
The command port on each of the Rear Interface Card types is a female
15 way 'D' type and uses the same V28 level circuits as the standalone
KBU 64. You can only use this command port when a Manager Card is
not fitted into the rack (please see section 3).
The pin assignments are as follows:
Pin No. Circuit No. Signal Name
1 101 Chassis Earth
2 103 Transmit Data
3 108 Data Terminal Ready
4 104 Receive Data
5 107 Data Set Ready
8 102 Signal Ground/Chassis Earth
10 105 Request to Send
12 109 Data Carrier Detect
15 106 Clear to Send
A standard cable (CAB0032) can be supplied to present a standard 25
way interface to the command terminal or PC. This cable has male
connectors at both ends.

Front and Rear Panels and Interfaces
80-10100001-09 2–5
2.2.3 V35 Rear Interface Card
The User and Link connectors are both 34 way female MRAC.
The pin assignments are as follows:
Pin
No. Circuit No. Signal Name Assuming configured as DTE
A 101 Chassis Earth Common return
B 102 Signal Ground/Chassis
Earth Common return
P 103A Transmit Data A Generator
S 103B Transmit Data B Generator
R 104A Receive Data A Load
T 104B Receive Data B Load
C 105 Request to Send Generator
D 106 Clear to Send Load
E 107 Data Set Ready Load
H 108 Data Terminal Ready Generator
F 109 Data Carrier Detect Load
Y 114A Transmit Clock A Load
AA 114B Transmit Clock B Load
V 115A Receive Clock A Load
X 115B Receive Clock B Load

KBU64 RackmountUser Manual
80-10100001-092–6
2.2.4 X21 Rear Interface Card
The User and Link connectors are both 15 way 'D'.
The pin assignments are as follows:
Pin
No. Circuit No. Signal Name Assuming configured as DTE
1 Ground Chassis Earth Common return
8 G Signal Ground/Chassis Earth Common return
2 Ta Transmit Data A Generator
9 Tb Transmit Data B Generator
3 Ca Control A Generator
10 Cb Control B Generator
4 Ra Receive Data A Load
11 Rb Receive Data B Load
5 Ia Indicate A Load
12 Ib Indicate B Load
6 Sa Signal Timing A Load
13 Sb Signal Timing B Load
2.2.5 V24 Rear Interface Card
The User and Link connectors are both 25 way 'D'.
The pin assignments are as follows:
Pin
No. Circuit No. Signal Name Assuming configured as DTE
1 101 Chassis Earth Common return
2 103 Transmit Data Generator
3 104 Receive Data Load
4 105 Request to Send Generator
5 106 Clear to Send Load
6 107 Data Set Ready Load
7 102 Signal Ground/Chassis Earth Common return
8 109 Data Carrier Detect Load
15 114 Transmit Clock Load
17 115 Receive Clock Load
20 108 Data Terminal Ready Generator

Manager Card
80-10100001-09 3–1
3 Manager Card
3.1 Introduction
The KBU 64 Manager Card is a discrete card for use with only
rackmount KBU 64 cards. Like the rackmount KBU 64, the Manager
Card also consists of a card pair. The rear card provides a command
port for management of all KBU 64 cards within its rack.
The Manager Card must always be fitted in slot 1, the slot on the left
when viewing the rack from the front.
Important
When the manager Card is used you cannot use the command port
of any KBU 64 Rear Interface Card. With the Manager Card fitted
you must remove links 12, 13 and 14 on every KBU 64 Rear
Interface Card to disconnect the card command interface. If you do
not do this the signal flow to the Manager Card will be corrupted.

KBU64 RackmountUser Manual
80-10100001-093–2

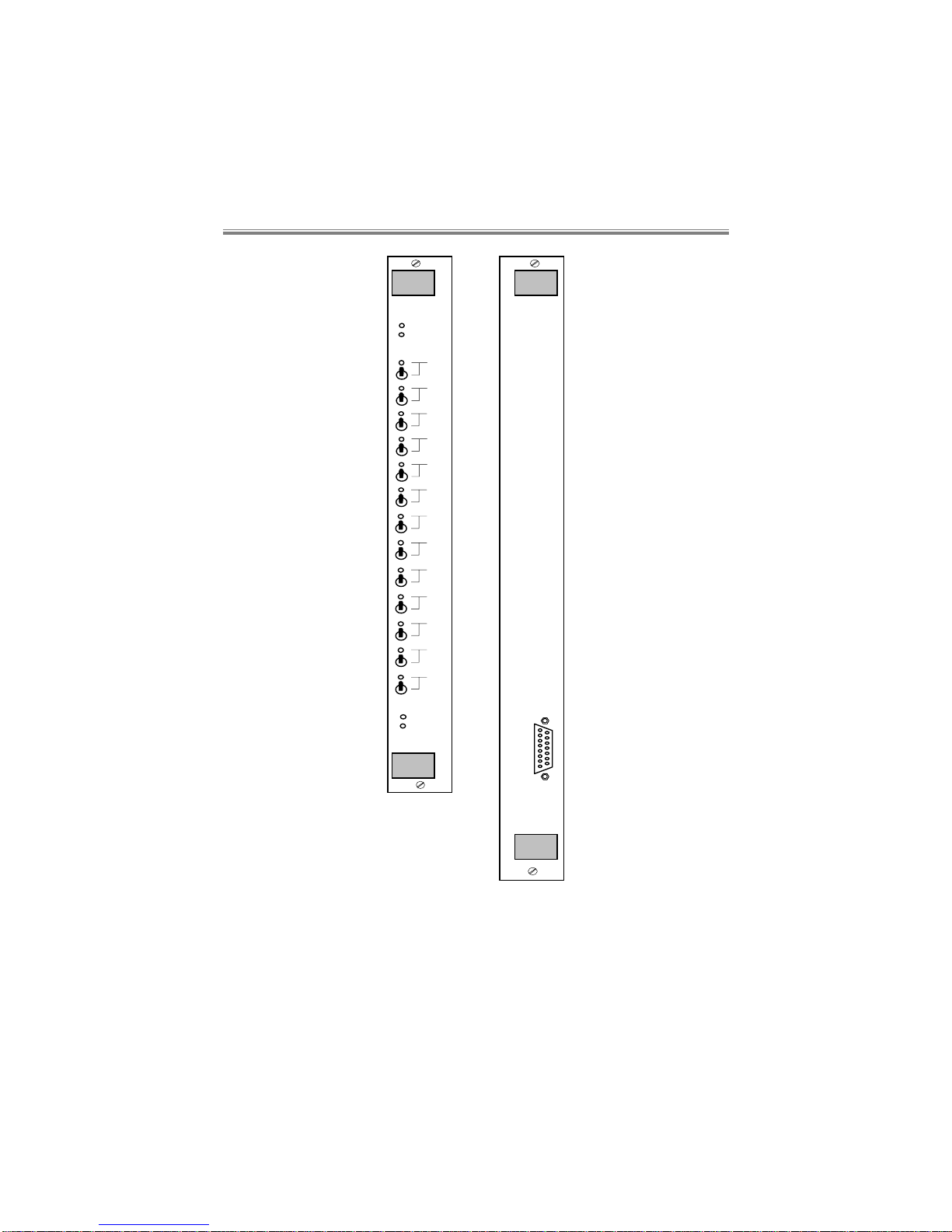

Front
RXD
TXD
Rear
COMMAND
1
OFF
2
OFF
3
OFF
4
OFF
5
OFF
6
OFF
7
OFF
8
OFF
9
OFF
10
OFF
12
OFF
13
OFF
11
OFF
PWR 1
PWR 2
Figure 3.1 Front and Rear Panels of the Manager Card

Manager Card
80-10100001-09 3–3
3.2 Front Panel
The front panel of the Manager Card has the following controls and
indicators:
• Transmit and receive data LED’s for the command terminal data
lines. These LED’s display data activity on both the transmit and
receive data circuits.
• AC power indication for each of the power supplies. These
LED’s are fed from the AC power sensing circuits from each
power supply.
• A lock out switch for each of the 13 channels. These are
provided to enable the user to set the poll number for individual
KBU 64 cards. Once the cards have been programmed ALL the
lockout switches must be set to enable the KBU 64s. The
lockout switches can also be used to isolate a KBU card that is
streaming unwanted alarms, so allowing other KBU cards to
have access from the Manager Card.
• An LED for each channel to indicate which channel is actively
selected and in communication with the Manager Card. When
another KBU 64 card is polled that card's LED will light and the
previously selected card LED will extinguish.
3.3 Rear Panel
The command port on Manager Rear Interface Card is a female 25 way
'D' type and uses the same V28 level circuits and pin connections as the
standalone KBU 64.

KBU64 RackmountUser Manual
80-10100001-093–4
The pin assignments are as follows:
Pin No. Circuit No. Signal Name
1 101 Chassis Earth
2 103 Transmit Data
3 104 Receive Data
4 105 Request to Send
5 106 Clear to Send
6 107 Data Set Ready
7 102 Signal Ground/Chassis Earth
8 109 Data Carrier Detect
15 114 Transmit clock
17 115 Receive clock
20 108 Data Terminal Ready
These command ports are PSV4/1 compatible and can therefore be
connected to external port sharing devices (PSV’s) for management of
multiple racks of KBU 64s in the same way as the standalone version.

Card Installation
80-10100001-09 4–1
4 Card Installation
Each KBU 64 ‘front’ card must be associated with an appropriate (V.24,
X.21, or V.35) rear interface card
i.e. they should always be installed in
pairs (although no damage will result in partial installation)
If the KBU 64s are to be managed individually via their rear panel
command port
and there is no manager card present then, after
connection of the user, link, and command cables, the KBU 64s can be
treated in the same manner as standalone KBU 64s for configuration
purposes.
When installing KBU cards in a rack make sure to configure the Rear
Interface Card straps correctly, depending on whether a Manager Card is
fitted. Refer to KBU64 Manual (Publication 80-10100000) - Link Settings.
4.1 Manager Card Installation
When the KBU 64s are to be managed with a KBU 64 rack manager
card then the manager card must be placed in slot 1, the slot on the far
left when viewing the rack from the front.
If the Manager command port is conected direct to a terminal/PC then
cable CAB0017 or CAB0018 is required (CAB0017 has a female
connector and CAB0018 a male connector at the terminal end). If
connected to a PSV port sharer please contact your Technical Support
for details.
With a directly connected terminal it may be necessary to force CTS or
DCD to the terminal, depending on the terminal’s requirements.

KBU64 RackmountUser Manual
80-10100001-094–2
4.2 Configuration Using a Manager Card
With the Manager Card pair and all KBU card pairs fitted the first task is
to set the individual KBU 64 poll numbers. Once all the units are
installed and a suitable terminal connected to the rack manager card
command port, the lockout switches should be set to disable access to
all the KBU 64s except one (for the sake of convenience it is better to
configure the left most KBU 64 first). The individual poll address can
then be set by typing the following commands:-
1> SET POLL xxx[CR]
where xxx represents the unique address in the range 001 to
999
Next, the KBU 64 card needs to be set for polled mode by typing
1> SET CONSOLE POLL[CR]
To check that the KBU 64 is responding, type
1> POLL xxx [CR]
where xxx represents the address that you have just set
The lockout switch for this KBU 64 should then be set to disable the KBU
64 and the next KBU 64 can be programmed by enabling via the lockout
switches
etc. etc.
Once all the KBU 64s have been programmed, the lockout switches
must be set to enable ALL the KBU 64s.

Installation and Power Supply Requirements
80-10100001-09 5–1
5 Installation and Power Supply Requirements
Safety
Warning: Before connecting the mains supply to the unit check the supply voltage as detailed
below.
The product is a high density rack mounted unit designed to sit in a 19"
communications cabinet, it has four fixing points, two down each side of
the front of the frame. All four fixing points must be securely fix the
frame.
The unit is supplied with a metal front cover in order to comply with the
European EMC Directive. To comply with the Directive this cover must
be fitted while the unit is operating.
On the rear of the unit there are two IEC mains sockets for connection to
two independent mains supplies. The primary earth connection is made
via these sockets.
Warning - this appliance must be earthed.
Mains cables, 2 metres in length are supplied with the unit. This should
be connected to a suitable mains supply. The mains plug is the primary
disconnect device for the unit. Ensure that the unit is installed near to a
socket outlet and that the outlet is easily accessible.
The mains cables supplied with the unit is fitted with a moulded 13 amp
plug for connection to a standard socket outlet. Should the plug not be of
the correct type for the outlets that it is to be connected to, the plug
