USER’S GUIDE ADDENDUM
SMARTSTACK ELS100-24
FIRMWARE REVISION 2.01
9033194

Cabletron Systems, Inc.
PO Box 5005
Rochester, N 03866-5005
This addendum is to be used in conjunction with the Installation and User Guide that ships
with the Cabletron SmartSTACK 100 ELS100-24TXG and/or ELS100-24TXM Ethernet
Switches.
This document contains proprietary information that is the property of Cabletron Systems,
Inc. No part of this publication may be reproduced, stored in a retrieval system, translated,
transcribed, or transmitted, in any form, or by any means, manual, electric, electronic, elec-
tromagnetic, mechanical, chemical, optical, or otherwise, without prior explicit written permis-
sion of Cabletron Systems, Inc. Furthermore, Cabletron Systems, Inc. reserves the right to
revise this publication and to make changes in content from time to time without obligation to
provide notification of such revision or changes.
© Copyright 1999 by Cabletron Systems
All Rights Reserved
Printed in the United States of America
Order Number: 9033194 August 1999
Cablet on Systems, SPECTRUM, LANVIEW, and Mic oMMAC are registered trademarks
and Sma tSwitch is a trademark of Cabletron Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trade-
marks of their respective companies.

9033194 Table Of Contents i
TABLE OF CONTENTS
SMARTSTACK ELS100-24 FIRMWARE REVISION 2.01 . . . . . . . . . . . . . . . . . . 1
A.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
A.2 User Interface Menu ierarchy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
A.3 SmartTrunking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
A.3.1 Configuring SmartTrunking: User Interface . . . . . . . . . . . . . . 5
A.3.1.1 SmartTrunking Configuration Menu. . . . . . . . . . . . . . . . . . . 5
A.3.1.2 Spanning Tree Trunk Configuration Menu . . . . . . . . . . . . . 9

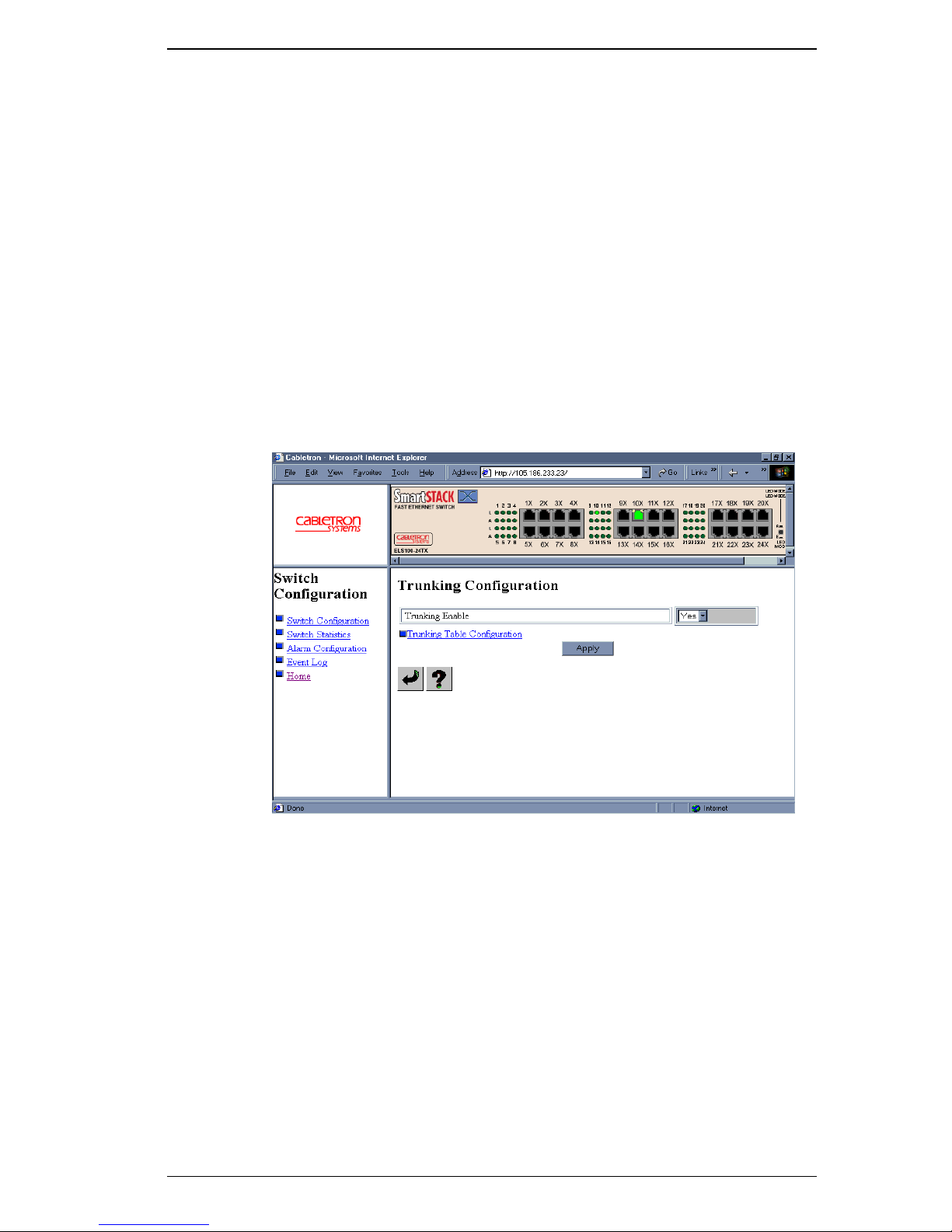

A.3.2 Configuring SmartTrunking: Web-Based Management . . . . 11
A.3.2.1 SmartTrunking Configuration . . . . . . . . . . . . . . . . . . . . . . 11
A.4 alf Duplex Support on 100Base-FX Ports . . . . . . . . . . . . . . . . . . 13
A.5 Read-only Password Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
A.6 Disable Serial Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A.7 Syslog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A.7.1 User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
A.8 MIB Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
A.8.1 802.1p and 802.1Q MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
A.8.2 Interfaces MIB: RFC 2233 . . . . . . . . . . . . . . . . . . . . . . . . . . 17
A.8.3 Cabletron Proprietary MIB . . . . . . . . . . . . . . . . . . . . . . . . . . 18
A.8.4 SmartTrunking MIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
A.9 Power Up Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
A.10 Web Management Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 1
ADDENDUM A. SMARTSTACK ELS100-24
FIRMWARE REVISION 2.01
A.1 Int oduction
The Cabletron SmartSTACK ELS100-24 firmware revision 2.01 supports
the following models of the ELS100-24 product family:
•ELS100-24TX
•ELS100-24TXM
•ELS100-24TXG
Firmware revision 2.01 provides the following new features:
•SmartTrunking - Allows multiple physical ports of the switch to be
aggregated together to form a single logical connection between
network devices.
•alf-duplex support on 100Base-FX ports - Enables half duplex
operation on 100Base-FX ports.
•Read-only password - Adds an additional password option to the
user interface (serial console and Telnet) for read-only access.
•Disable serial console option - Adds a variable to SNMP allowing the
serial console of the switch to be disabled or enabled.
•Syslog feature - Allows various types of errors encountered by the
switch software to be logged to an external server.
•MIB Enhancements
- 802.1p and 802.1Q MIB: Adds partial support for the IETF MIBs
for configuring 802.1p (priority) and 802.1Q (VLANs).
- RFC 2233 MIB: Adds support for the Stack Table portion of RFC
2233, extensions to the Interfaces MIB.
- Cabletron MIB Extensions: Adds several new variables to the
Cabletron MIB.
- SmartTrunking MIB: Adds a new proprietary MIB for configuring
SmartTrunking.
The following two features were available in the previous Cabletron
SmartSTACK ELS100-24 firmware version, but were not documented:
•Power Up Diagnostics - Allows you to enable a switch functionality
self-test upon initialization.
•Web Management Enable - Allows you to enable switch
management over the web.

2 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
A.2 Use Inte face Menu Hie a chy
Figure A-1 shows the user interface hierarchy for the Cabletron
SmartSTACK ELS100-24, firmware revision 2.01.
Figu e A-1. Use Inte face Menu Hie a chy
System
Configuration
Menu
SNMP Configuration Menu
System Name
System Location
System Contact
IP Address
Subnet Mask
Default Gateway
BootP/D CP Enable
Screen Timeout (minutes)
READ/WRITE Password
READ ONLY Password
Terminal Baud Rate
Power Up Diagnostics
Syslog Server IP Address
Lowest Syslog Severity Level
Web Management Enable
Switch
Configuration
Menu
Forwarding Table Configuration Menu
Spanning Tree Configuration Menu
VLAN Configuration Menu
Forwarding Table Aging Time (seconds)
Broadcast Cutoff Rate
Port Mirroring Enable
Mirrored Port Transmit Data Mirror Enable
Mirroring Port Receive Data Mirror Enable
Class of Service Configuration Menu
Trunking Configuration Menu
Port Menu ID
Port Name
Enable Status
Link Status
Auto Negotiated Status
Full Duplex Status
Speed (10/100Mbps)
Type
Flow Control Status
Configure
Switch
Statistics
Screen
ID
Transmitted
Received
Forwarded
Filtered
Dropped
Errored
Switch Summary
Port Statistics
Trunking Statistics
General
Information
Screen
Software Version
Serial Number
Base MAC Address
Up Time (minutes)
Power Up Count
Download Software Menu
Save Current Configuration
Return to Default Configuration
Logout
Reset
VLAN Enable
VLAN Menu
VLAN Port Menu
ID
VLAN Name
Ports in VLAN
VLAN Egress Ports
Configure
Port ID
Port Name
Type
Modify Port Type
Port #n Statistics
Port ID
Port Name
Priority Default
Configure
Port ID
Port Name
Path Cost
Port Priority
Port State
Select Port
SNMP Private Community Name
SNMP Public Community Name
Trap Destination #1-4
Community Name #1-4
Display Table
Make Entry Static
Add Static Entry
Delete Static Entry
Modify Static Entry
Search by Port#
Search by MAC Address
Spanning Tree Protocol Enable
Port Configuration Menu
ello Time (seconds)
Forward Delay (seconds)
Max Age (seconds)
Bridge Priority
SmartTrunking Configuration Menu
Class of Service Enable
Priority Threshold
Configure Port Priority
Frames Transmitted
Frames Received
Frames Forwarded
Frames Filtered
Frames Dropped
Frames Errored
Frames Transmitted Collisions
Frames Received Late Collisions
Frames Forwarded CRC/Alignment Errors
Frames Filtered Undersized Frames
Frames Dropped Oversized Frames
Broadcasts Transmitted Fragments
Broadcasts Received Jabbers
Multicasts Transmitted 64 Byte Frames
Multicasts Received 65 to 127 Byte Frames
Bytes Transmitted 128 to 255 Byte Frames
Bytes Received 256 to 511 Byte Frames
Pause Frames Transmitted 512 to 1023 Byte Frames
Pause Frames Received 1024 to 1518 Byte Frames
ID
Name
Ports in Trunk
Configure
Trunk Number
Add Ports
Remove Ports
Smart Trunk Name
Protocol Enable

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 3
A.3 Sma tT unking
SmartTrunking is a link aggregation feature that allows multiple physical
ports of the switch to be aggregated together to form a single logical
connection between network devices. All physical connections in the
logical connection carry traffic, as compared with previous software
versions in which Spanning Tree would block all traffic on all but one of
the physical connections.
Backg ound
A trunk is a group of ports that perform as a single logical port, connecting
the ELS100-24 switch with another network device. Compared with a
single port, the group of ports in a trunk feature increased bandwidth and
provide a level of connection resiliency - when one physical port link in the
trunk group goes down, the overall connection is not lost. When a port in
a trunk group is removed (link goes down or a cable is severed), traffic on
that port will be redistributed to other ports in the trunk group.
In the example in Figure A-2 below, three switches are connected
(stacked) through a series of trunk groups. Two physical ports are
combined to form each trunk group. The fiber ports in the top switch form
Trunk 1 which carries traffic to the network backbone.
Figu e A-2. T unking Application Example
SmartTrunking uses the DEC unt Group protocols - PLAP and LLAP -
to automatically establish and maintain a trunk connection. Use of these
protocols can be enabled or disabled as desired. When the protocols are

4 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
enabled, the switch is SmartTrunk-compliant and will automatically
configure to work with Cabletron products such as a Smart Switch Router
(SSR), SmartSwitch, SmartSTACK, etc. When the protocols are disabled,
the switch can be manually configured to interoperate with trunking
implementations used by other vendors.
SmartTrunking support in firmware revision 2.01 follows these
configuration rules:
•There can be up to 2 trunk groups configured per switch cluster
(group of 8 ports).
•Individual trunk groups can be defined only in one cluster, not across
clusters.
•There can be from 2-8 ports defined per trunk group.
•There can be up to 6 trunk groups defined per switch.
•Ports in a trunk group can operate in any combination of speed and
duplex mode (10 half with 100 full, for example).
•Ports in a trunk group must be in the same VLAN and have the same
VLAN mode (hybrid/access).
•The Gigabit Ethernet ports on the ELS100-24TXG cannot be
trunked.
Further information on SmartTrunking can be found in the Cabletron
Systems SmartTrunk User’s Guide. To examine this guide, see the
Cabletron Systems user manual website at:
http://www.cabletron.com/support/manuals
The implementation of SmartTrunking in firmware version 2.01 on the
ELS100-24 product line differs in several ways from the information
contained in the SmartTrunk User's Guide. The primary differences in the
ELS100-24 implementation are as follows:
•Full load balancing of traffic across ports in a trunk is not supported.
Unicast traffic is sent to the same port that the destination MAC
address of the packet was learned.
•Although it is highly recommended, Spanning Tree does not have to
be enabled to use SmartTrunking.
•The ports in a trunk are not required to operate in full duplex mode,
but can be operated in any combination of half duplex or full duplex.
•If a port in a trunk goes down, traffic on that port is redirected onto
other links in the trunk whether protocols are enabled or disabled.
•If protocols are disabled, inadvertently configuring a user-attached
port to a SmartTrunking trunk group will not result in the user losing
network connectivity.
•The concept of logical ports, each comprised of the physical ports in
a trunk group, is not implemented. In both the User Interface and
SNMP, both physical port and trunk numbers can be accessed.
owever, port-related configuration features, such as port mirroring,
VLANs, Class of Service, and Spanning Tree, are performed only on
a physical port basis, not a logical port (trunk) basis.

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 5
A.3.1 Configu ing Sma tT unking: Use Inte face
SmartTrunking can be configured through the user interface.
A.3.1.1 Sma tT unking Configu ation Menu
To configure Trunking, do the following:
1. Select Switch Configuration Menu from the Main Menu.
2. Select Trunking Configuration Menu. Figure A-3 shows the Trunking
Configuration menu.
Figu e A-3. T unking Configu ation Menu
Po ts that a e membe s of a t unk g oup a e indicated as
such by an aste isk ’ * ’ next to the po t numbe on the Po t
Menu of the use inte face.
TRUNKING CONFIGURATION Access Control: READ/WRITE
Trunking Enabled Yes
Trunking Protocol Yes
ID NAME PORTS IN TRUNK
---------------------------------------------------------------------------------------------
d. Protocol Enable e. Enable x. Previous Menu
Enter Selection:

6 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
Table A-1 describes fields and options available in the Trunking
Configuration menu.
Table A-1. T unking Configu ation Menu Desc iption
3. Select c from the Trunking Configuration menu to configure trunking.
The following message appears:
Enter Trunk Number (1-6):
4. Enter a trunk group number. In this example, enter the number 1.
Press [Enter].
Figure A-4 shows the Trunk Configuration menu with trunk group number
1.
Figu e A-4. T unk Configu ation Menu
Fields/Options Desc iption
Trunking Enabled Indicates whether trunking is enabled (Yes) or disabled
(No).
Trunking Protocol Indicates whether trunking protocols are enabled (Yes)
or disabled (No).
ID Lists the trunk group ID number.
Name Lists the trunk group name (1-14 characters).
Ports inTrunk Lists the ports in the trunk group.
Configure Option that allows you to create a new, or configure an
existing, trunk group.
Delete Option that allows you to delete an existing trunk
group.
TRUNK 1 CONFIGURATION Access Control: READ/WRITE
Name
Trunk Status CONNECTED
Trunking Protocol No
PORT ENABLED LINK STATUS
---------------------------------------------------------------------------------------------
a. Add Port(s) b. Remove Port(s) c. Trunk Name
d. Protocol Enable x. Previous Menu
c. Configure d. Delete x. Previous Menu
Enter Selection:

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 7
Table A-2 describes the Trunk Configuration menu.
Table A-2. T unking Configu ation Menu Desc iption
5. Select a to add ports. The following message appears:
Enter Port Number(s) or Range of Port(s) 1-26:
Field Desc iption
Name Lists the trunk group name. Use the Trunk Name op-
tion to create a trunk group name (1-14 characters).
Trunk Status Lists the trunk group status: PARTIAL (one or more of
the trunk group ports are linked and one or more are
not linked), CONNECTED (all ports in the trunk group
are linked), DISCONNECTED (no ports in the trunk are
linked).
Trunking Protocol Indicates whether trunking protocols are enabled (Yes)
or disabled (No).
Port Identifies the port by number.
Enabled Indicates whether the port is enabled (Yes) or disabled
(No).
Link Status Indicates port link status: connected or disconnected.
Selection Desc iption
Add Port(s) Allows you to add port(s) to the trunk.
Remove Port(s) Allows you to remove port(s) from the trunk.
Trunk Name Allows you to create a unique trunk group name (1-14
characters).
Protocol Enable Allows you to enable (Yes) or disable (No) the opera-
tion of the trunking protocols on this trunk.

8 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
6. In this example, a range of ports is entered to form a trunk group.
Enter 1-4 and press [Enter]. Figure A-5 shows the update to the
screen.
Figu e A-5. Adding a Range of Po ts to a T unk
7. To add a trunk name, enter c. The following message appears:
Enter Trunk Name:
8. Enter a trunk name. In this example, enter Backbone and press
[Enter]. This new name appears in the Name field.
9. Enter x to return to the previous menu. Figure A-6 shows the ports
that have been configured in trunk group 1.
Figu e A-6. Po ts Configu ed in a T unk G oup
10. To view Trunking Statistics, return to the Main Menu, and select
Switch Statistics, then Trunking Statistics. When displaying statistics
for a trunk group, the statistics are the sum of the statistics for all
physical ports in the trunk group.
TRUNK 1 CONFIGURATION Access Control: READ/WRITE
Name
Trunk Status CONNECTED
Trunking Protocol No
PORT ENABLED LINK STATUS
---------------------------------------------------------------------------------------------
1 Yes CONNECTED
2 Yes CONNECTED
3 Yes CONNECTED
4 Yes CONNECTED
a. Add Port(s) b. Remove Port(s) c. Trunk Name
d. Protocol Enable x. Previous Menu
Enter Selection:
TRUNKING CONFIGURATION Access Control: READ/WRITE
Trunking Protocol No
ID NAME PORTS IN TRUNK
---------------------------------------------------------------------------------------------
1 Backbone 1-4
c. Configure d. Delete e. Enable x. Previous Menu
Enter Selection:

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 9
When configuring trunk groups, consider the following:
•When adding or removing port(s), the following message appears:
Enter Port Number(s) or Range of Port(s)
You can enter individual ports, separated by a comma, or a range of
ports separated by a hyphen.
•Protocol Enable either enables or disables a proprietary Cabletron
protocol to be run by the switch for purposes of automatically
establishing and maintaining a trunk.
If the protocol is enabled, the switch uses the proprietary DEC unt
Group protocol to detect when multiple links are established between
two devices, and then automatically set up a trunk. Normally,
Spanning Tree would detect multiple links, and block all but one.
owever, with trunking, multiple paths are valid. Protocols should be
enabled when connecting the SmartSTACK switch to other
Cabletron devices, or any other devices using the DEC unt Group
protocol.
If the protocol is disabled, trunks should be manually configured
using the user interface, SNMP, or web access.
A.3.1.2 Spanning T ee T unk Configu ation Menu
Trunking operation relative to Spanning Tree can be viewed through the
user interface. To view trunking configuration for Spanning Tree, do the
following:
1. Select Switch Configuration Menu from the Main Menu.
2. Select Spanning Tree Configuration Menu.
3. Select Trunking Configuration Menu.
Figure A-7 shows an example of the Spanning Tree Trunk
Configuration menu.
Figu e A-7. Spanning T ee T unk Configu ation Menu
Table A-3 describes fields and options available in the Spanning Tree
Trunk Configuration menu.
SPANNING TREE TRUNK CONFIGURATION Access Control: READ/WRITE
TRUNK ID TRUNK NAME PAT COST PORT PRIORITY PORT STATE
-------------------------------------------------------------------------------------------------------------------------
2 Server3 2 0 DISABLED
3 Backbone 2 0 DISABLED
r. Refresh x. Previous Menu
Enter Selection:

10 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
Table A-3. Spanning T ee T unk Configu ation Menu Desc iption
Field/Option Desc iption
Trunk ID Lists the trunk group ID.
Trunk Name Lists the trunk group name.
Path Cost The contribution of the path through this port when it
is the root port to the total path cost from this bridge
to the root bridge: 10 for 100 Mbps ports, 100 for 10
Mbps ports.
Port Priority The relative priority of the port on the bridge.
Port State The current Spanning Tree state of the port on the
bridge, either: disabled, listening, learning, forward-
ing, or blocking.
Refresh Refreshes the screen to reflect latest system condi-
tions.

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 11
A.3.2 Configu ing Sma tT unking: Web-Based Management
SmartTrunking can be configured through a web browser-based utility
which allows you to configure and manage Cabletron SmartSTACK
ELS100-24 switches remotely. For more information, see the Cabletron
WebView, Web-Based Management for t e ELS100-24 User Guide. To
examine this guide, see the Cabletron Systems user manual website at:
http://www.cabletron.com/support/manuals
A.3.2.1 Sma tT unking Configu ation
To configure SmartTrunking, do the following:
1. Select the Switch Configuration link from the Main Menu of Cabletron
Webview.
2. Select Trunking Configuration menu. Figure A-8 shows the Trunking
Configuration menu.
Figu e A-8. T unking Configu ation Menu
3. To enable SmartTrunking on the switch, select "Yes" from the
Trunking Enable drop-down menu, then select Apply.

12 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
4. Select Trunking Table Configuration. Figure A-9 shows the Trunking
Table Configuration menu.
Figu e A-9. T unking Table Configu ation Menu
5. To create a new trunk group, select Create New Trunk. Figure A-10
shows the Create New Trunk menu.
Figu e A-10. C eate New T unk Menu
6. Enter the Trunk ID, the Trunk Name, the Trunking Protocol status,
and the ports in the trunk, then select Apply.

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 13
7. To modify an existing trunk group, first choose the trunk to modify by
selecting the radio button next to the appropriate trunk on the
Trunking Table Configuration menu (Figure A-9). Then select Modify
Trunk. Figure A-11 shows the Modify Trunk menu.
Figu e A-11. Modify T unk Menu
A.4 Half Duplex Suppo t on 100Base-FX Po ts
alf duplex support on 100Base-FX ports of the ELS100-24TXM has
been added in firmware revision 2.01. Previously, only full duplex
operation was supported on 100Base-FX ports. Figure A-12 shows the
Port Configuration menu and the Full Duplex option.
Figu e A-12. Po t Configu ation Menu
Half Duplex ope ation is enabled when you set Full Duplex
to No.
PORT 1 CONFIGURATION Access Control: READ/WRITE
a. Port Name Val d’Or
b. Port Enable Yes
c. Flow Control Enable Yes
d. Full Duplex No
e. Port Speed 100
x. Previous Menu
Enter Selection:

14 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
A.5 Read-only Passwo d P otection
Read-only password protection has been added in firmware revision 2.01.
This feature adds an additional password option to the user interface (for
serial console and Telnet) for read-only access. Previously only read/
write password protection was available. To configure read-only
password protection, do the following:
1. Select System Configuration Menu from the Main Menu (Figure
A-13).
Figu e A-13. System Configu ation Menu
2. Select READ ONLY Password. The following message appears:
Enter New Password:
3. Enter a password containing six to eight alphanumeric characters
and press [Enter]. The following message appears:
Re-enter New Password:
4. Enter the password again and press [Enter] to confirm. If the
password is re-entered correctly, the following message appears:
Password Changed
Press any Key to Continue
Refer to the Installation and User Guide, Chapter 3, “Setting
Password Protection” for more information.
SYSTEM CONFIGURATION Access Control: READ/WRITE
a. SNMP Configuration Menu
b. System Name
c. System Location
d. System Contact
e. IP Address 000.000.000.000
f. Subnet Mask 000.000.000.000
g. Default Gateway 000.000.000.000
h. BootP/D CP Enable Yes
i. Screen Timeout (minutes) 0
j. READ/WRITE Password
k. READ ONLY Password
l. Terminal Baud Rate 9600
m. Power Up Diagnostics Yes
n. Syslog Server IP Address 000.000.000.000
o. Lowest Syslog Severity Level warning
p. Web Management Enable Yes
x. Previous Menu
Enter Selection:

9033194 SmartSTACK ELS100-24 Firmware Revision 2.01 15
A.6 Disable Se ial Console
A new MIB variable was added to the Cabletron proprietary MIB allowing
the serial console of the switch to be disabled or enabled via SNMP.
Previously, the serial console was always enabled. The name of the
variable is SysComPortEnable as shown in the table in A.8.3 Cabletron
Proprietary MIB below.
A.7 Syslog
The syslog capability was added to firmware revision 2.01, enabling the
switch to forward information about errors and other conditions
encountered by the software. If the switch encounters an operational
error, it can be configured to log this occurrence to an external syslog
(UNIX) server.
A.7.1 Use Inte face
The IP address of the external syslog server is configured using the
Syslog Server IP Address option in the System Configuration menu. The
lowest severity condition to report is configured using the Lowest Syslog
Severity Level option in the same menu.
To configure syslog, do the following:
1. Select System Configuration menu from the Main Menu.
2. Select Syslog Server IP Address. The following message appears:
Enter Syslog Server IP Address:
3. In this example, the IP address of 24.1.133.111 is used. Enter the IP
address and press [Enter]. The forwarding address now appears in
the Syslog Server IP Address field (Figure A-14).
Make su e the switch IP add ess is eco ded in an easy to
locate place. If the se ial console is disabled, and the IP ad-
d ess of the switch is fo gotten, the switch cannot be man-
aged.
The web inte face can be also be used to configu e syslog.

16 SmartSTACK ELS100-24 Firmware Revision 2.01 9033194
Figu e A-14. Syslog Se ve IP Add ess
4. Select Lowest Syslog Severity Level. Eight different severity level
options are available by selecting o until the desired setting appears.
Table A-4 describes each of these severity levels and conditions. The
higher the severity, the lower the number.
SYSTEM CONFIGURATION Access Control: READ/WRITE
a. SNMP Configuration Menu
b. System Name
c. System Location
d. System Contact
e. IP Address 000.000.000.000
f. Subnet Mask 000.000.000.000
g. Default Gateway 000.000.000.000
h. BootP/D CP Enable Yes
i. Screen Timeout (minutes) 0
j. READ/WRITE Password
k. READ ONLY Password
l. Terminal Baud Rate 9600
m. Power Up Diagnostics Yes
n. Syslog Server IP Address 024.001.133.111
o. Lowest Syslog Severity Level warning
p. Web Management Enable Yes
x. Previous Menu
Enter Selection:
