1-1
Chapter 1
Introduction
The 9A426-02 ATM Module is a hardware-based switching module that supports
multiple interfaces simultaneously. The module’s interconnecting interfaces
include:
• Up to two front panel ATM interfaces via user-installed ATM Port Interface
Modules (APIMs)
• A fixed interface to the SmartSwitch 9000’s Internal Network Bus (INB)
• A user-configurable interface to the SmartSwitch 9000’s Flexible Network Bus
(FNB-1 or FNB-2)
Each data packet, regardless of the interface in which the packet enters the
module (ATM, FNB, or INB), is initially converted into a common format known
as a canonical frame. Each canonical frame’s header section contains source and
destination information. All canonical frames are forwarded to the module’s
group of SmartSwitch Application Specific Integrated Circuits (ASICs)
collectively known as the SmartSwitch Core.
The SmartSwitch Core can process data in two modes: as a traditional switch or as
a Secure Fast Switch (SFS). When operating as a traditional switch, the Fast Packet
Switch makes filtering/forwarding decisions based on Destination Address, with
standard IEEE 802.1d learning. When operating in SFS mode, all
filtering/forwarding decisions are based on a Destination Address-Source
Address pair, and the associated receive/transmit port.
Canonical frames that enter the 9A426-02 Module via the backplane interface
(FNB or INB) and are destined for the module’s front panel interface(s), are
converted by the module’s ATM Network Interface Block (ANIB) into 53 byte
ATM cells. The ANIB uses a separate set of ASICs to perform hardware-based
packet to cell conversions. This conversion process is an integral part of the
module’s ability to provide high-performance interconnections between legacy
LANs and ATM attached networks.

Introduction
1-2
Conversely, canonical frames destined for the FNB bus on the SmartSwitch 9000
backplane are converted into FDDI packets via the 9A426-02 Module’s FDDI
Network Interface Block (FNIB), and then forwarded onto the FNB.
Canonical frames destined for the INB bus on the SmartSwitch 9000 backplane are
converted into fixed length data packets via the 9A426-02 Module’s INB Network
Interface Block (INB NIB), and then forwarded onto the INB.
Features
Processor
The 9A426-02 Module is equipped with an advanced Intel i960 microprocessor.
This microprocessor provides a platform for all management functions within a
scalable RISC-based architecture.
SmartSwitch Core
The 9A426-02 Module incorporates the SmartSwitch Core, a collection of custom
Application Specific Integrated Circuits (ASICs) designed specifically for high
speed switching. The SmartSwitch ASIC bus is 64 bits wide with a bandwidth of
640 Mbps. Since all frame translation, address lookups, and forwarding decisions
are performed in hardware, the 9A426-02 Module can obtain a throughput
performance of greater than 750K pps.
Management
The 9A426-02 Module has one full implementation of SMT (Version 7.3) and
SNMP for local and remote management. Local management is provided through
the RS-232 Com ports on the SmartSwitch 9000 Environmental Module using a
standard VT-220™ terminal or emulator, or via telnet. Remote management is
achieved through Cabletron’s SPECTRUM or any SNMP compliant management
tool. Switching statistics of the selected FNB interface include frames filtered,
frames forwarded, and all Spanning Tree Protocol parameters.
Connectivity
The 9A426-02 Module has two front panelATM interfaces. AnATM Port Interface
Module (APIM) can be installed in one (or both) interface(s). The 9A426-02
Module also has one interface to the INB-2 backplane, and one user-configurable
interface to the SmartSwitch 9000 FNB backplane (either FNB-1 or FNB-2, or
neither).
Management Information Base (MIB) Support
The 9A426-02 Module provides MIB support including:
• IETF AToM MIB
• IETF FDDI MIB
• IETF Bridge MIB
• A host of Cabletron Enterprise MIBs

1-3
Introduction
LANVIEW LEDs
The 9A426-02 Module uses LANVIEW – Cabletron Systems built-in visual
diagnostic and status monitoring system. With LANVIEW LEDs, you can quickly
identify the device, port, and physical layer status at a glance.

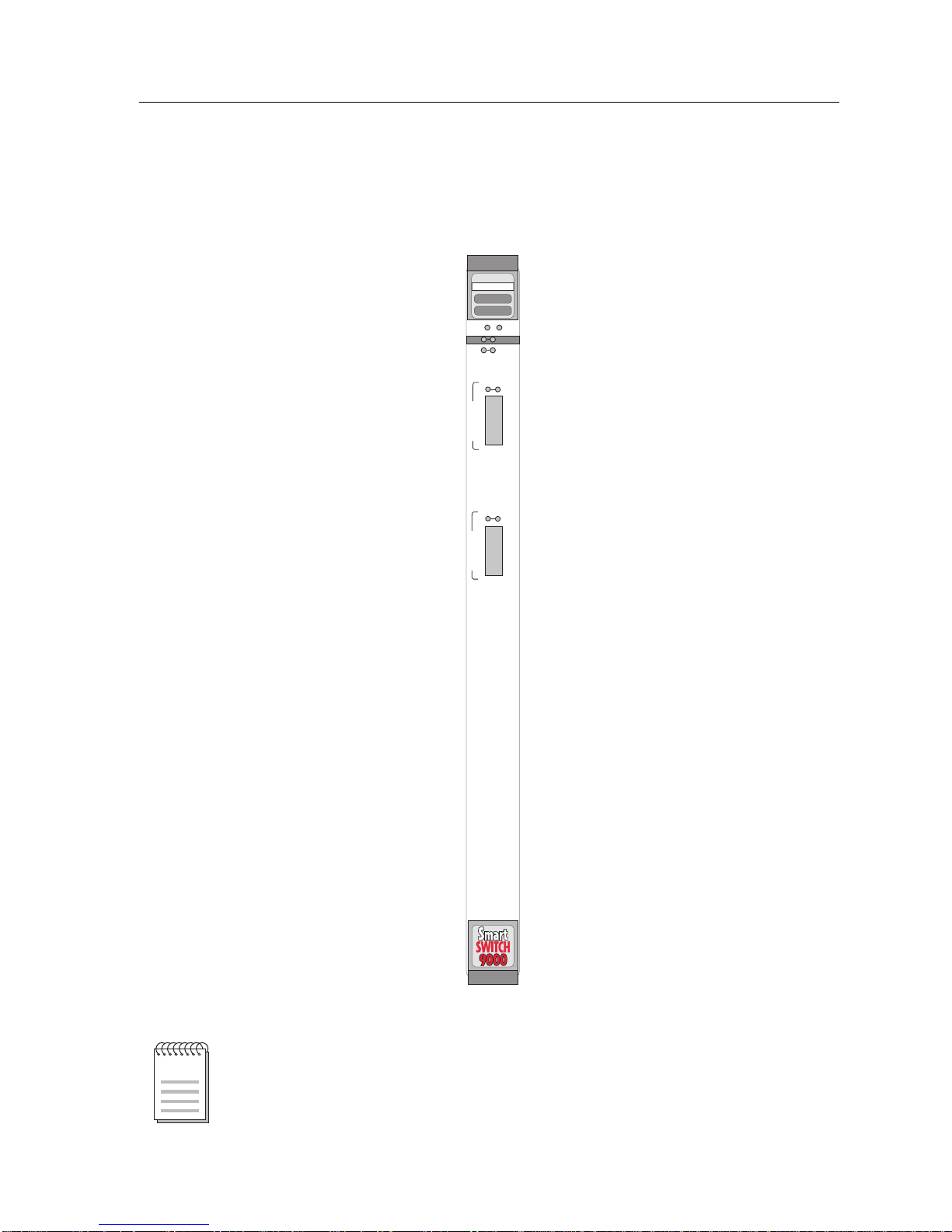

Figure 1-1. The 9A426-02 Module
SMB CPU
INB
ATM
9A426-02
FNB
A
T
M
1
A
T
M
2
For a complete list of supported MIBs, refer to the release notes provided in the
9A426-02 Module package.
NOTE

Introduction
1-4
Related Manuals
The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.
SmartSwitch 9000 Installation Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide
INB Terminator Modules Installation Guide
SmartSwitch 9000 Local Management User’s Guide
SmartSwitch 9000 9A426-01/9A426-02 Module-Specific Local Management
Appendix
Getting Help
For additional support related to this device or document, contact the Cabletron Systems Global Call
Center:
Before calling the Cabletron Systems Global Call Center, have the following information ready:
• Your Cabletron Systems service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g., changing mode switches,
rebooting the unit, etc.)
• The serial and revision numbers of all involved Cabletron Systems products in the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
Phone [phone]
Internet mail suppor[email protected]
FTP ctron.com (134.141.197.25)
Login anonymous
Password your email address
BBS [phone]
Modem setting 8N1: 8 data bits, No parity, 1 stop bit
For additional information about Cabletron Systems or its products, visit the
World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .
To send comments or suggestions concerning this document, contact the
Cabletron SystemsTechnical Writing Department via the following
email address: [email protected]
Make sure to include the document Part Number in the email message.

2-1
Chapter 2
Preparing and Installing
the 9A426-02 Module
This chapter describes the physical layout of the 9A426-02 Module and explains
how to prepare and install the module in a SmartSwitch 9000 chassis.
Unpacking the Module
1. Carefully remove the module from the shipping box. (Save the box and
packing materials in the event the module must be reshipped.)
2. Remove the module from the plastic bag. Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
3. Carefully examine the module, checking for damage. If any damage exists,
DO NOT install the module. Contact Cabletron Systems Technical Support
immediately.
The Module’s Physical Layout
The 9A426-02 Module has two major circuit boards on which components are
attached (see Figure 2-1). The module’s base-level circuit board is known as the
motherboard. The module’s second-level circuit board is known as the
daughterboard. The removable daughterboard attaches to the motherboard’s
connectors and standoffs. Both the motherboard and the daughterboard contain
components that are accessible to the user.
Never expose the module’s components to Electrostatic Discharge: Make sure you
have attached the module’s disposable grounding strap to your wrist and always
place the module on a non-conductive surface.
WARNING

Preparing and Installing the 9A426-02 Module
2-2

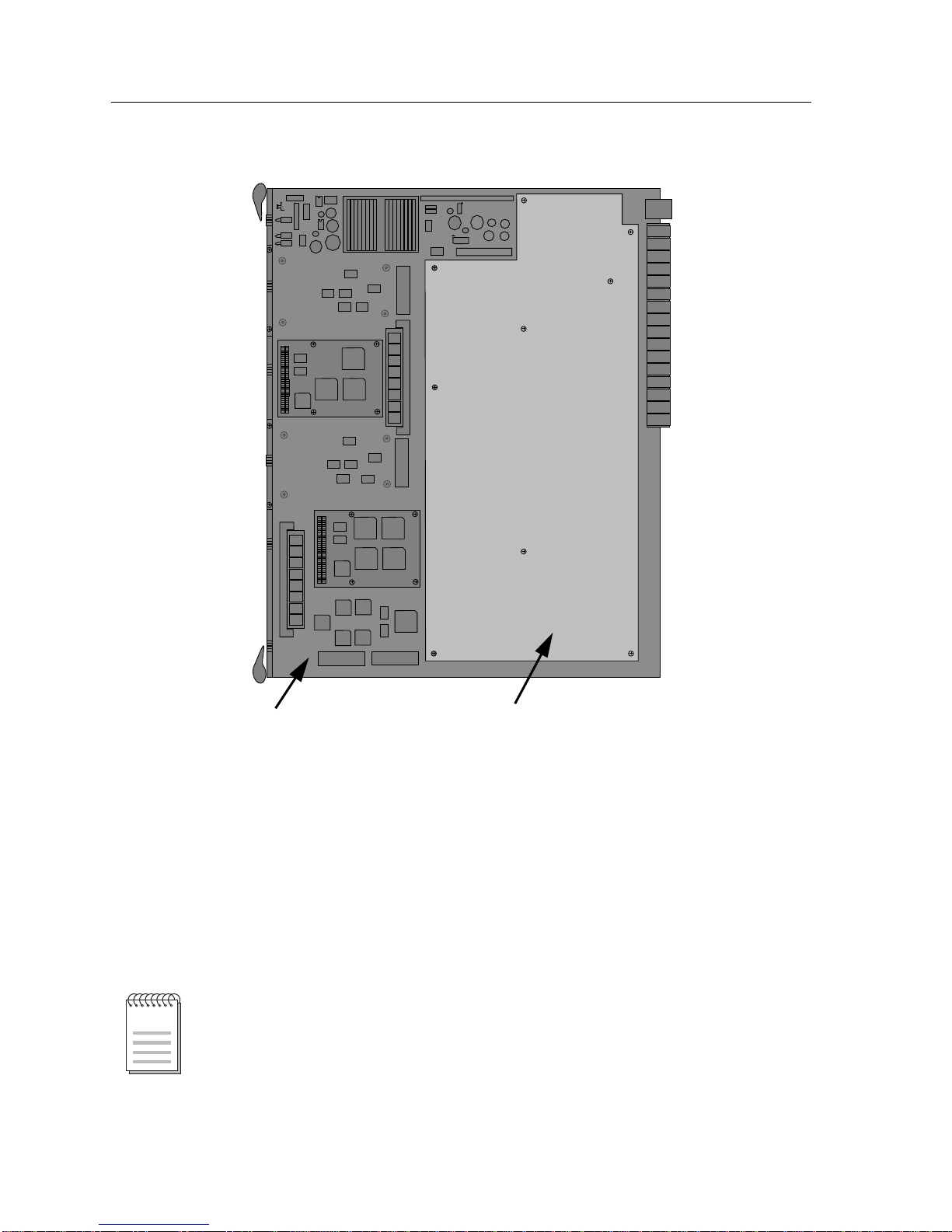

Figure 2-1. The 9A426-02 Module’s two major circuit boards
User-Accessible Components on the Module’s
Motherboard
The user accessible components on the module’s motherboard include two Look-
Up Engines, up to two user-installed ATM Memory Upgrade SRAM SIMMs, and
up to two user-installed
ATM Port Interface Modules ( APIMs). See Figure 2-2.
motherboard daughterboard
The User Accessible Components on the motherboard of a 9A426-02 Module are
positioned in close proximity to one another. Therefore, to attain easier access for
removing a desired component, you may opt to remove an additional component.
For example, you may remove an SRAM SIMM to gain better access for
removing a Look-Up Engine.
NOTE

2-3
Preparing and Installing the 9A426-02 Module
Figure 2-2. User Accessible Components on the 9A426-02 Module’s motherboard
Look-Up Engines
The 9A426-02 Module is shipped with two look-up engines (one for each front
panel port). These components are located at the front section of the module as
shown in Figure 2-2. Each Look-Up Engine stores MAC Address/Virtual Channel
Pairings.
To increase the capacity of a front panel portÕs Look-Up Engine, install the Look-
Up Engine Upgrade Kit (LUE-UGK). To increase the capacity of the moduleÕs
second front panel port, install an additional upgrade kit. Installation instructions
are included in each upgrade kit.
APIM
Look-Up
Engine
Look-Up
Engine
APIM
SRAM
SIMM
SRAM
SIMM

Preparing and Installing the 9A426-02 Module
2-4
SRAM SIMMs
Each front panel port on the 9A426-02 Module is equipped with two megabytes of
Static Random Access Memory(SRAM).
To increase the SRAM of a front panel port, install the SRAM SIMM from theATM
Memory Upgrade Kit (ATM-MEM-UGK) in the port’s corresponding SIMM
socket. To increase the SRAM of the module’s second front panel port, install an
additional SRAM SIMM in the port’s corresponding SIMM socket.
The SRAM SIMMs fit into the SIMM sockets located at the front section of the
module as shown in Figure 2-2. Installation instructions are included in the
upgrade kit.
APIMs
The preparation of the 9A426-02 Module includes the installation of at least one
ATM Port Interface Module (APIM) in one of the module’s front panel ports (if
desired, you can install two APIMs). The module is shipped with no installed
APIMs. You customize the module to your particular need by selecting from a
variety of APIMs, and then installing the selected APIM(s) in the module.
Figure 2-2 shows two APIMs installed in a 9A426-02 Module. Installation
instructions are provided in the following section.
Installing an APIM in the 9A426-02 Module
To install an APIM in the 9A426-02 Module, you must:
• Unpack the APIM
• Remove the 9A426-02 Module’s ATM-Port Retaining Plate
• Insert the APIM in the 9A426-02 Module
• Attach the 9A426-02 Module’s ATM-Port Retaining Plate
Throughout each of these procedures you must never expose the module’s
components to Electrostatic Discharge. Make sure you have attached the
module’s disposable grounding strap to your wrist and always place the module
on a non-conductive surface.

2-5
Preparing and Installing the 9A426-02 Module
Unpacking an APIM
1. Remove the APIM from the shipping box. (Save the box and packing
materials in the event the APIM must be reshipped.)
2. Remove the APIM from the non-conductive bag.
3. Examine theAPIM and check for damage. If damage exists, DO NOT proceed;
contact Cabletron Systems Technical Support. Otherwise, place the APIM
back into the non-conductive bag, set the APIM aside, and proceed.
Figure 2-3. An APIM-21
Removing the 9A426-02 Module’s ATM-Port Retaining Plate
1. Place the module (component side up) on a non-conductive, flat surface.
Position the module so that the module’s front (faceplate) is to the left and the
module’s back (backplane connectors) is to the right. See Figure 2-4.
2. Locate the module’s ATM-Port Retaining Plates. Each plate is secured by two
screws and is located on the right side panel of the module’s faceplate. See
Figure 2-4.
80 pin (female) connector
To install an APIM properly in the 9A426-02 Module, you MUST remove the
module’s ATM-Port Retaining Plate. Failure to do so can damage the module and
the APIM.
WARNING

Preparing and Installing the 9A426-02 Module
2-6
Figure 2-4. The 9A426-02 Module (APIM installation area in insert)
ATM-Port
Retaining
Plate
ATM-Port
Retaining
Plate

2-7
Preparing and Installing the 9A426-02 Module
3. Use a Phillips-head screwdriver to remove the two flathead securing screws
(see Figure 2-5). Set the screws aside.
4. Remove the ATM-Port Retaining Plate. Set the plate aside.
Figure 2-5. Removing the ATM-Port Retaining Plate
Inserting an APIM into the 9A426-02 Module
1. Remove the module’s ATM-Port Retaining Plate.
2. Locate the area on the module where APIMs can be installed (shown in
Figure 2-4). This area contains eight standoffs (short metal posts). There are
four standoffs (arranged in an irregular rectangle) for each APIM (see insert in
Figure 2-4). There is a round-head screw at each end of these four standoffs.
3. Use a phillips head screwdriver to remove the four round-head screws from
the four standoffs. Set the screws aside.
4. Remove the APIM from its non-conductive bag.
5. Locate the APIM’s 80-pin (female) connector (see Figure 2-3).
6. Align the APIM’s female connector with the 80-pin male connector in the
APIM area of the 9A426-02 Module. Also align the APIM’s mounting holes
with the four standoffs in the APIM area of the module (see Figure 2-6).

Preparing and Installing the 9A426-02 Module
2-8
Figure 2-6. Attaching an APIM to a 9A426-02 Module
7. Press down gently on theAPIM to lock its female connector into the 9A426-02
Module’s male connector.
8. Secure theAPIM to the module: Use a Phillips-head screwdriver to attach four
round-head screws to the four standoffs on the 9A426-02 Module.
9. Attach the 9A426-02 Module’s ATM-Port Retaining Plate (see next page).
Attaching the 9A426-02 Module’s ATM-Port Retaining Plate
1. Place the module (component side up) on a non-conductive, flat surface.
Position the module so that the module’s front (faceplate) is facing you.
2. Locate the area where the ATM-Port Retaining Plate attaches to the faceplate.
3. Place the ATM-Port Retaining Plate on the module (align the retaining plate’s
securing holes with the module’s securing holes). Make sure the Retaining
Plate’s faceplate (its smaller side) is flush with the module’s faceplate (see
Figure 2-7).
4. Secure the retaining plate to the module: Use a Phillips-head screwdriver to
attach two flathead mounting screws to the module.
Steps 1 through 9 explain how to insert one APIM in the 9A426-02 Module. To
insert a second APIM, repeat the same steps.
NOTE
