CableWorld CW-4000 Series User manual

CW-4000
PROFESIONAL DIGITAL TELEVISION EQUIPMENT
OPERATING INSTRUCTIONS
Dear User!
Digital television technology permits implementing
numerous features, which could not or hardly could
be achieved in analogue technology.
The CW-4881 Transport Stream Generator
&
Inserter has been designed for creative technicians,
who want to realize their ideas also in television
technique.
The device
comprises two flash memories. One of
them is always in operation state, and the other can be
programmed from the user’s PC.
1. MECHANICAL CONSTRUCTION
The CW-4881 Transport Stream Generator &Inserter
is built in standard 19" × 1 HU instrument frame. It is
delivered along with following accessories:
1. Power cord 1 ea.
2. Spare fuse T 1.25 A
(placed in the fuse holder mounting) 1 ea.
3. Crossover cable with RJ45 connectors 1 ea.
The power consumption of the device is very low
therefore no cooling or ventilation is needed, however
do not use it covered, blocking the natural airflow.
2. ELECTRICAL CONSTRUCTION
A CW-4881 Transport Stream Generator &Inserter is
a device of simple structure but very wide scope of
application.
The device is equipped with an own switching
mode power supply. The supply voltage of the
interface circuitries is 3.3 V; the signal processing
circuitries are supplied with a voltage as low as +1.2
V. The power consumption is low; the device is
suitable for continuous service.
Programming of the device is made through
CableWorld’s CW-Net system; the steps of putting in
operation the system is described in the
Using_CW_Net.pdf file at www.cableworld.eu.
All items of CableWorld software are available for
free download and use at www.cableworld.eu. The
software user manuals are available in the Help
menus and also on the web site, separately in pdf
format. The CW-4881 Transport Stream Generator &
Inserter can operate with all CableWorld software.
All CW-Net controlled CableWorld devices are
shipped with the IP address set to 10.123.13.101.
Prior to using them in network, the IP address must
be changed to avoid conflict between the IP
addresses.
For changing the IP address download, install and
use the SW-4800 software. All knowledge necessary
for this is included in the Help file of the software.
KÁBEL-TV RENDSZEREKET GYÁRTÓ ÉS FORGALMAZÓ MAGYAR - AMERIKAI KFT.
A HUNGARIAN - AMERICAN LTD. COMPANY FOR MANUFACTURE AND SALES OF CABLE TV EQUIPMENT
CW-4881 TS GENERATOR & INSERTER
07/07

CW-4881 TRANSPORT STREAM GENERATOR &INSERTER
3. GENERAL INFORMATION
The device is equipped with two flash memories of 4
Mbyte each, which can be loaded with optional 188
bytes packets by the user.
The device can be operated in 3 modes:
1. Transport stream packet inserter
In this mode the device receives the input transport
stream and inserts the packets stored in the memory
in the place of the null packets. This mode can be
used for inserting EPG, CAT, NIT etc. tables, set-top
box upgrade software, advertisements etc. in an
existing transport stream.
2. Continuous transport stream generator
In this mode the packet inserter inserts the packets
stored in the memory in a null packet stream
generated in the device. This mode has been
designed for generating new streams e.g. measuring
signals and special control signals, but it can also be
used as a starting-point for generating any complex
TS.
3. Transport stream burst generator
In this mode the packets stored in the memory will be
put to the output as individual packets, according to
the timing assigned to them. The Transport stream
burst generator mode can advantageously be used
for generating input signals for transport stream
remultiplexers, e.g. set-top box software upgrade at
multiple channels at the same time as well as
generating data streams and measuring signals for IP
networks and IP TV systems.
The device is suitable for continuous operation.
The switchover between both flash memories is
synchronized.
Programming one of the memories does not
influence the operation of the other one.
The content of the flash memory can be read back.
Technical data
ASI input and output
ASI signals according to TM 1449 Rec.1
ASI input loop-through type (2 × BNC socket)
Input voltage 200 … 880 mVpp
Input impedance 75 Ω
ASI output double type (2 identical outputs)
Output voltage min. 800 mVp-p
Output impedance 75 Ω(BNC)
Transmission parameters
Data format burst or continuous
Packet format 188 or 204
Format recognition automatic
Input data rate tested between 0 and 56 Mbit/s
Generated data rate 800 bit/s ... 80 Mbit/s
Raster 8 bit/s
Accuracy 1 × 10-4
General data
Service period continuous
Power requirements 90 ~ 264 V, 47 ~ 440 Hz
Power consumption max. 35 VA
Mass approx. 3.8 kg
Physical dimensions: 19” × 1 HU
Width 483.0 mm
Height 43.6 mm
Depth 473.0 mm
Operational temperature range+5 … +40oC
Relative humidity max. 80 %
Storage temperature range -25 … +45oC
Relative humidity max. 95 %

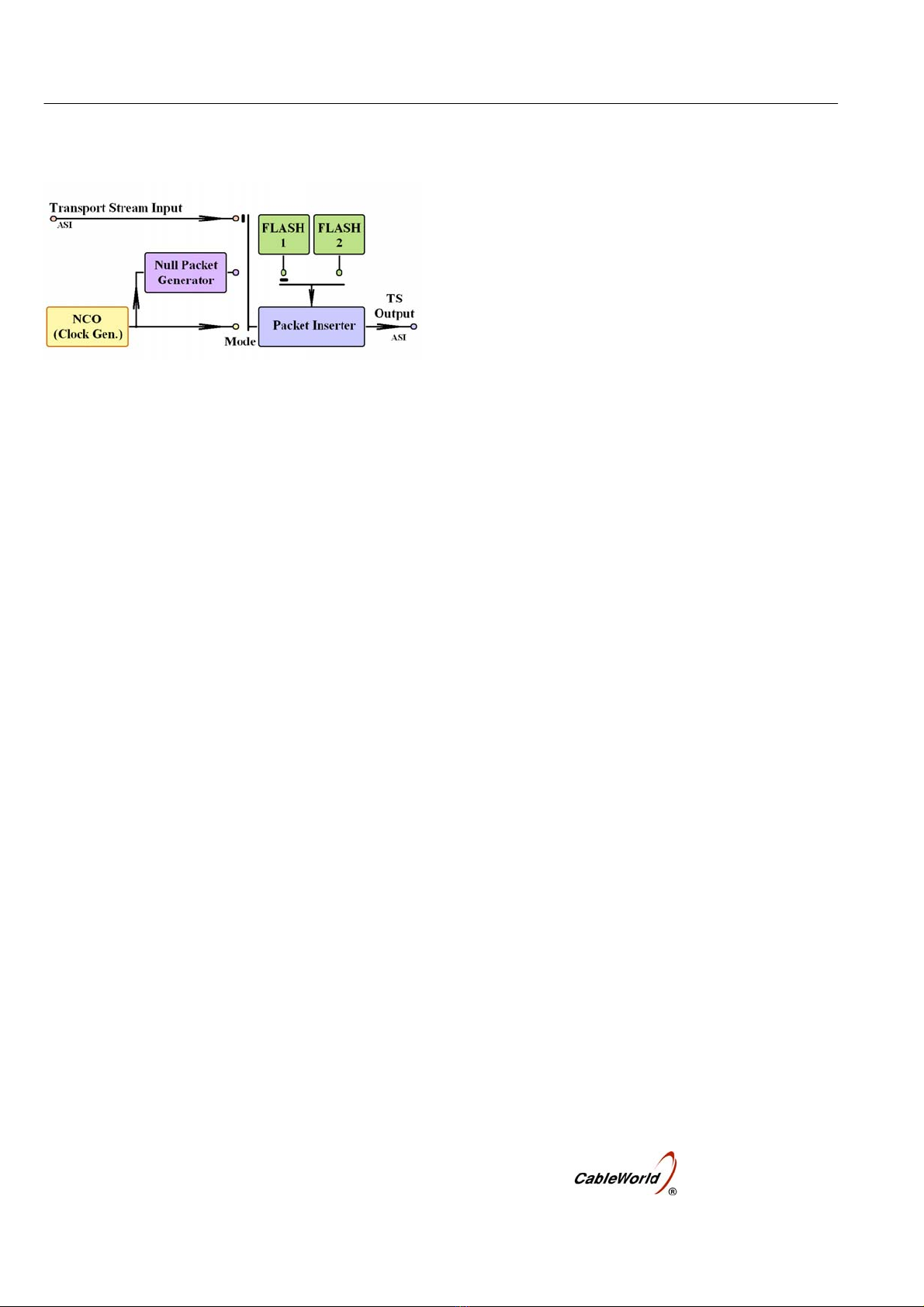

Structure of the CW-4881 TS Generator & Inserter
