Cadi.Sense Wireless Thermometer User manual

Cadi.Sense
Wireless Thermometer
User Manual
v3.21.1
T-S1-800.900-I10-B01

Cadi.Sense User Manual
T-S1-800.900-I10-B01 2
Contents
1. Introduction.........................................................................................................................................3
1.1 User Manual Version ............................................................................................................3
1.2 Safety Precautions................................................................................................................3
1.3 Preface ...................................................................................................................................3
1.4 International Awards and Recognition ............................................................................4
1.5 Intended Use of Cadi.Sense ...............................................................................................4
1.6 Package Contents................................................................................................................5
1.7 How Does Cadi.Sense Work? .............................................................................................6
1.8 About Normal Body Temperature and Fever..................................................................6
2. How to Setup and Use Cadi.Sense .................................................................................................7
2.1 Setup I – Quick Setup...........................................................................................................7
2.2 Setup II – Access Cadi.Sense Outside Your Home ........................................................8
2.3 Setup III (Advanced) – Port Forwarding for Your WiFi Router .................................... 10
2.4 Using iPhone or Android App to Access Cadi.Sense ................................................. 11
2.5 SmartNode LEDs – What They Mean .............................................................................. 11
2.6 Cadi.Sense Icons – What They Mean ............................................................................ 12
3. ThermoSensor .................................................................................................................................. 15
3.1 How to Paste ThermoSensor ............................................................................................ 15
3.2 How to Keep ThermoSensor............................................................................................. 17
4. Advanced Features........................................................................................................................ 18
4.1 How to Change SmartNode Password .......................................................................... 18
4.2 Resetting SmartNode ........................................................................................................ 18
4.3 Upgrading SmartNode Firmware.................................................................................... 19
5. Others................................................................................................................................................ 20
5.1 Frequency Asked Questions (FAQ)................................................................................ 20
5.2 Getting Technical Support ............................................................................................... 21
5.3 Standards Compliance .................................................................................................... 21
5.4 Specifications ..................................................................................................................... 22
5.5 Appendix A: More Information on Port Forwarding .................................................... 24
5.6 Appendix B: More About SmartNode............................................................................ 28

Cadi.Sense User Manual
T-S1-800.900-I10-B01 3
1. Introduction
1.1 User Manual Version
•Version: B01
•Issue date: 8 Aug 2012
•Please note that this version is subject to change or upgrade without notice.
•To view the latest User Manual, please go to www.cadisense.com
1.2 Safety Precautions
•DO NOT use the ThermoSensor or other electrical parts that come with the package if
there is any visible damage.
•DO NOT force open or attempt to service the ThermoSensor or other electrical parts
that come with the package. If you encounter any technical problem, please
contact Technical Support.
•DO NOT use the system on users who have an implanted cardiac device such as a
pacemaker or an internal cardioverter-defibrillator (ICD). This is to avoid
electromagnetic interference (EMI) between the ThermoSensor and the implanted
device.
•DO NOT place the ThermoSensor/dressing over injured, broken or scarred skin.
•DO keep the dressing and the ThermoSensor dry. Water trapped between the
ThermoSensor and the skin or dressing may affect the temperature reading.
•DO NOT allow babies or young children to handle the loose or detached
ThermoSensor to prevent choking accidents.
1.3 Preface
Thank you for choosing Cadi.Sense Wireless Thermometer, the next generation thermometry.
Cadi.Sense is a continuous and automatic temperature monitoring solution that is specially

Cadi.Sense User Manual
T-S1-800.900-I10-B01 4
designed for home use. This product revolutionizes the way temperature is measured by using
a temperature sensor “button”, called the ThermoSensor, which has been used in hospitals
since 2004.
By simply pasting the ThermoSensor (by sticking it to the inside of the diaper/undergarment),
temperature can be continuously and automatically measured and sent wirelessly to the
SmartNode receiver, enabling you to conveniently monitor your loved ones’ temperature,
without disturbing their rest and play, on your mobile devices or computers. The system allows
you to monitor the trend of the readings, enabling you to better manage fever. The readings
can be saved in spreadsheets for reference and further analysis.
1.4 International Awards and Recognition
The ThermoSensor has been given the following awards:
•Enterprise Challenge Innovator Award 2004, given to Cadi Scientific by The Enterprise
Challenge, a unit under the Singapore Prime Minister’s Office that funds innovative
proposals with the potential to create new value or significant improvements to the
delivery of public service.
•National Healthcare Group Scientific Congress Award 2006, given to Tan Tock Seng
Hospital for a clinical study on ThermoSensor presented at the congress.
•Asian Hospital Management Award 2007, given to Singapore General Hospital for its
technical service improvement project on wireless monitoring of vital signs including
temperature.
•Red Dot Design Award 2008, given to Cadi Scientific by Red Dot Institute, Germany, in
an international design competition with more than 12,000 submissions from more
than 60 countries.
•Frost & Sullivan Customer Service Leadership Award 2009 in the Southeast Asia
wireless sensor networks market.
•Microsoft Healthcare User Group Award 2010.
The clinical accuracy of the ThermoSensor in measuring body temperature has been found
in several clinical studies to be comparable to that of conventional methods. The device has
been used by patients in hospitals in Singapore, Malaysia and other countries. In addition,
the device complies with the regulatory requirements of the European Union (EU) and the U.S.
Food and Drug Administration (FDA).
1.5 Intended Use of Cadi.Sense
The Cadi.Sense is a wireless temperature monitoring system intended for use in monitoring
homed patient’s temperature automatically and continuously without disturbing their rest.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 5
1.6 Package Contents
•ThermoSensor (with casing)
•SmartNode
•Stick-Ons

Cadi.Sense User Manual
T-S1-800.900-I10-B01 6
1.7 How Does Cadi.Sense Work?
ThermoSensor measures your loved one’s temperatures periodically (every 30 secs)
and sends the temperature readings wirelessly to the SmartNode receiver.
SmartNode receives the temperature readings.
Cadi.Sense web-based application software enables you to view the
temperature readings in real time from a computer or smartphone via WiFi.
1.8 About Normal Body Temperature and Fever
The measured body temperature of a person depends on where it is measured, how it is
measured, when it is measured and how old the person is. In addition, the range of normal
body temperature varies from person to person. For temperature measured using
Cadi.Sense, a temperature higher than 37.8 °C should be considered a fever.
Please follow the step-by-step instructions closely to ensure that the ThermoSensor is properly
pasted.
Important Notes:
•Please note that the ThermoSensor may take about 10 minutes to heat up from room
temperature to the body temperature. A temperature reading is wirelessly sent every
30 seconds to your SmartNode, and this temperature reading will appear on the
Cadi.Sense application.
•Paste the ThermoSensor by sticking the adhesive part to the inside of the
diaper/undergarment, so that the sensor's metal part will touch the lower abdomen
(left or right) when the diaper/undergarment is properly worn. Note that temperature
readings may not be accurate if ThermoSensor is incorrectly pasted.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 7
2. How to Setup and Use Cadi.Sense
2.1 Setup I – Quick Setup
Pre-Requisites:
Get ready a mobile device (iPhone, Android phone, tablet or laptop). Write down the
information shown on your SmartNode plug here:
SSID (e.g., CADI_XXXX):
PWD (8 chars):
SmartNode ID:
Step 1:
Plug in the SmartNode to a power socket in the same room where the patient will be
resting. Then switch it on. (Note: SmartNode takes about 30 secs to start up.)
Step 2:
Turn on WiFi on your mobile device. Then connect it to SmartNode using the above SSID
and password (PWD, 8 chars).
Step 3:
Go to web browser and enter:
http://10.10.10.10
If Figure 1 appears, select your timezone and click “Save”. Otherwise Figure 2 shall
appear. Quick setup is done!
Figure 1 Figure 2 Figure 3
Setting date, time Main Page Home Page
and timezone (Sensor Selection) (Temperature Monitoring)

Cadi.Sense User Manual
T-S1-800.900-I10-B01 8
Note: After setting the timezone, date and time, Figure 2 shall appear. The pre-registered
sensor will be shown, with temperature displayed as “--” or “Lo”. If the sensor is still in the
casing, the reading will be shown as “--”. Otherwise if the sensor has been taken out from
its casing for more than 30 seconds, you may see “Lo” after clicking the Refresh icon. If
you have warm up the sensor by rubbing it in you hands for more than a minute, click the
Refresh icon and you may see numerical temperature value displayed. Please refer to
the section on “How to Paste ThermoSensor” to know more about the correct pasting
method.
Click the “Home Page” icon and Figure 3 shall appear.
2.2 Setup II – Access Cadi.Sense Outside Your Home
Pre-Requisites:
Note: Please go through Section 2.1 before proceeding further.
You need to have a WiFi router which is already setup and connected to the internet.
You also need to know your WiFi router’s SSID and password. Please check with your
internet service provider if you do not remember the SSID and/or password.
Step 1:
Click the “Advanced Settings” icon and Figure 4 will appear (if you cannot see the
“Advanced Settings” icon, please click the “Main Page” icon first). Click the
“Connect to WiFi Router” icon. When a screen (see Figure 5) appears and asks “Please
select your WiFi router”, click on your router’s SSID, key in your router’s password, then
click “Apply”.
Figure 4 Figure 5 Figure 6
Advanced Settings Connecting to your Successful connection
Menu WiFi router
Note (a): Now please be patient as SmartNode needs about a minute to connect to
your WiFi router and another minute to reboot.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 9
Note (b): If the connection is successful, the following text will appear: “SmartNode is
now connected to xxxxxx. To access SmartNode, please go to www.cadisense.com or
use the LAN URL. Please be patient as SmartNode needs about a minute to reboot.”
Figure 6 shall then appear. However if the connection is not successful, the following text
will appear: “Connection failed – please try again, or switch off and on SmartNode then
try again.”
Note (c): After successful connection to your WiFi router, SmartNode will remember the
router’s SSID and password (unless you have intentionally unmarked the default
“Remember Settings” during connection). So if you were to switch off and on SmartNode,
it will automatically re-connect to your WiFi router, taking about 2 minutes.
Step 2:
After successful connection to your WiFi router, you may not be able to use
“http://10.10.10.10” to access your SmartNode anymore. Nonetheless you can still
access it using the LAN URL (in the example shown in Figure 6, the LAN URL is
http://10.0.0.84).
Step 3:
You may now use a mobile device (iPhone, Android phone, tablet or laptop) to access
your Cadi.Sense anywhere in the world! Go to “www.cadisense.com”, then click
“Access Cadi.Sense”. Key in your SmartNode ID (which can be found on your
SmartNode, and you should have written it down in the beginning of Section 2.1),
password is “cadi”, default port is “50000”, then click “Login”. If your router has UPNP
enabled or if you have setup port forwarding (for details please refer to “Advanced
Setup – Port Forwarding for Your WiFi Router”), then Figure 8 shall appear, otherwise Figure
7 shall appear.
Figure 7. Cadi.Sense page without UPNP / Port Forwarding setup.
Figure 8. Cadi.Sense page with UPNP / Port Forwarding setup.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 10
2.3 Setup III (Advanced) – Port Forwarding for Your WiFi Router
Pre-Requisites:
Note (a): This section is for advanced users only. DO NOT PROCEED IF YOU ARE NOT
FAMILIAR WITH PORT FORWARDING.
Note (b): Please go through Sections 2.1 and 2.2 before proceeding further.
You need to be physically at the place where your WiFi router is, and you also need to
know your WiFi router’s admin password (if any). Please check with your internet service
provider if you do not remember the password.
Step 1:
(You may skip this step if you already know the LAN IP address of your WiFi router.) Go to
your device’s web browser and enter the LAN URL (please refer to Section 2.2 Step 2).
Click the “Advanced Settings” icon , then “MENU”, “More Settings - IP”. Write down
the following information shown on the screen:
Gateway:
(this is the LAN IP address of your WiFi router)
Step 2:
Go to your device’s web browser and enter the LAN IP address of your WiFi router, then
key in your WiFi router’s admin password (if any).
Step 3:
Find the UPNP setting and enable it (note: some router may not have this feature). You
may have to reboot your WiFi router for the setting to take effect (please check with your
WiFi router’s manual). You may have to reboot SmartNode (taking about 2 minutes) by
switching it off and on again.
Step 4:
If UPNP feature is not available or not working, then you have to carry out manual port
forwarding. Basically, the objective of manual port forwarding is to instruct your WiFi
router to allow external (outside home) access of your SmartNode. Different routers may
have different ways and names for carrying out port forwarding (also called virtual
server), but the main information to be keyed into your WiFi router are similar:
(1) Device IP Address (also called Local IP): the LAN URL (please refer to Section 2.2
Step2), which is the LAN IP address of SmartNode
(2) Public Port (also called external port): 50000
(3) Private Port (also called internal port, local port, or host port): 80
(4) Protocol: TCP
(5) Enable: Yes
Note: (a) Please refer to the section “More Information on Port Forwarding” for details on
several different WiFi routers. (b) You may have to reboot your WiFi router for the settings
to take effect (please check with your WiFi router’s manual). You may have to reboot
SmartNode (taking about 2 minutes) by switching it off and on again.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 11
2.4 Using iPhone or Android App to Access Cadi.Sense
Pre-Requisites:
If you are using a smartphone, download the Cadi.Sense app from iPhone App Store or
Android Market. It is an electronic health journal that helps keep track of your children’s
health throughout their growth. In addition, it also allows wireless monitoring of your
children’s temperature anytime and anywhere.
Step 1:
After installing and setting up the Cadi.Sense app, on the home tab, click “+” and enter
the necessary information to create a new profile for your child.
Step 2:
On the home tab, select your child, click another “+” sign and select “Cadi.Sense
Monitoring”. Key in your ThermoSensor ID (you may find it from the sensor as an 8-digit
hexadecimal number).
Step 3:
Select the monitoring tab and you are done!
2.5 SmartNode LEDs – What They Mean
•Power LED: lights up when power is on.
•Sensor LED: lights up when sensor is transmitting readings and within wireless reception
range (3 – 5 m) for the past 5 minutes.
•WiFi LED: lights up when SmartNode WiFi is ready for connection to mobile devices.
Blinks when there is WiFi activity.
•WPS / CadiSense.com LED: lights up when SmartNode is connected to the internet
and www.cadisense.com for the past 5 minutes.
Note: The WPS / CadiSense.com LED is also a button. Once you press and hold the
button for 5 seconds and release, WPS (WiFi Protected Setup) is initiated and the LED will
start blinking. If the WPS button on your WiFi router (if available) is also pressed within 2
minutes, then the wireless connection between SmartNode and your WiFi router will be
setup automatically, taking about 3 minutes. However please note that your SmartNode
SSID and password will be changed to your WiFi router's SSID and password, and so it is
NOT ADVISABLE to do WPS connection.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 12
2.6 Cadi.Sense Icons – What They Mean
Go to Home Page (Temperature Monitoring Page): View a single sensor
temperature in large font size.
Refresh: Manually refresh the current page to get the latest temperature. (Note:
page will actually refresh automatically every 5 minutes.)
Advanced Settings: View a list of all advanced settings, including connecting to
your WiFi router.
Set Timezone, Date & Time: Manually set the timezone, date and time if necessary.
Add ThermoSensor: Add a new sensor. (Note: concurrent monitoring of several
persons at the same time is possible, so long as each person wears a sensor and
they are within wireless reception range (3 to 5m) of SmartNode.)
Remove ThermoSensor: Remove a sensor. (Note: all data associated with the
sensor will be deleted. So before deleting, you may want to export the data using
the “Export Temperature History Data” icon that will be available only in laptop’s
web browser.)
Go to Main Page (Sensor Selection Page): View a list of all registered sensors.
Sensor Settings: 1) Key in the name/nickname of the person wearing the sensor
(default: empty); 2) Set the temperature scale to degrees Celsius or Fahrenheit
(default: Celsius); 3) Change the high temperature threshold (default: 37.8 degree
Celsius); 4) Turn on/off the alert message that will appear whenever temperature
exceeds the threshold.
Temperature Chart: View the temperature graph. (Note: the chart will appear only
after 15 minutes when the first record is stored.)
Temperature History: View a list of temperature records. (Note: the records will
appear in about every 15-minute interval. Readings below 32.1 degree Celsius will
be shown as “Lo”, and readings above 42.0 degree Celsius will be shown as “Hi”.)
Export Temperature History Data: Export data (temperature and date-time) in .csv
format for your further analysis on spreadsheets. (Note: this feature is available only
in laptop’s web browsers.)
Shift Forward 12 Hours: Shift the temperature chart/history forward 12 hours. (Note:
the temperature chart/history will show a 24-hour period, with the default period
being the current day from 00:00 to 23:59 hrs.)
Shift Backward 12 Hours: Shift the temperature chart/history backward 12 hours.
Jump To Date: Shift the temperature chart/history to a date of your choice.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 13
Click these icons and you will see the following screens:
Main Page Home Page Advanced Settings
(Sensor Selection) (Temperature Monitoring) Menu
multiple sensors view
Setting timezone, Add sensor Remove sensor
date and time (by entering Sensor ID) (by clicking inside
the red box)

Cadi.Sense User Manual
T-S1-800.900-I10-B01 14

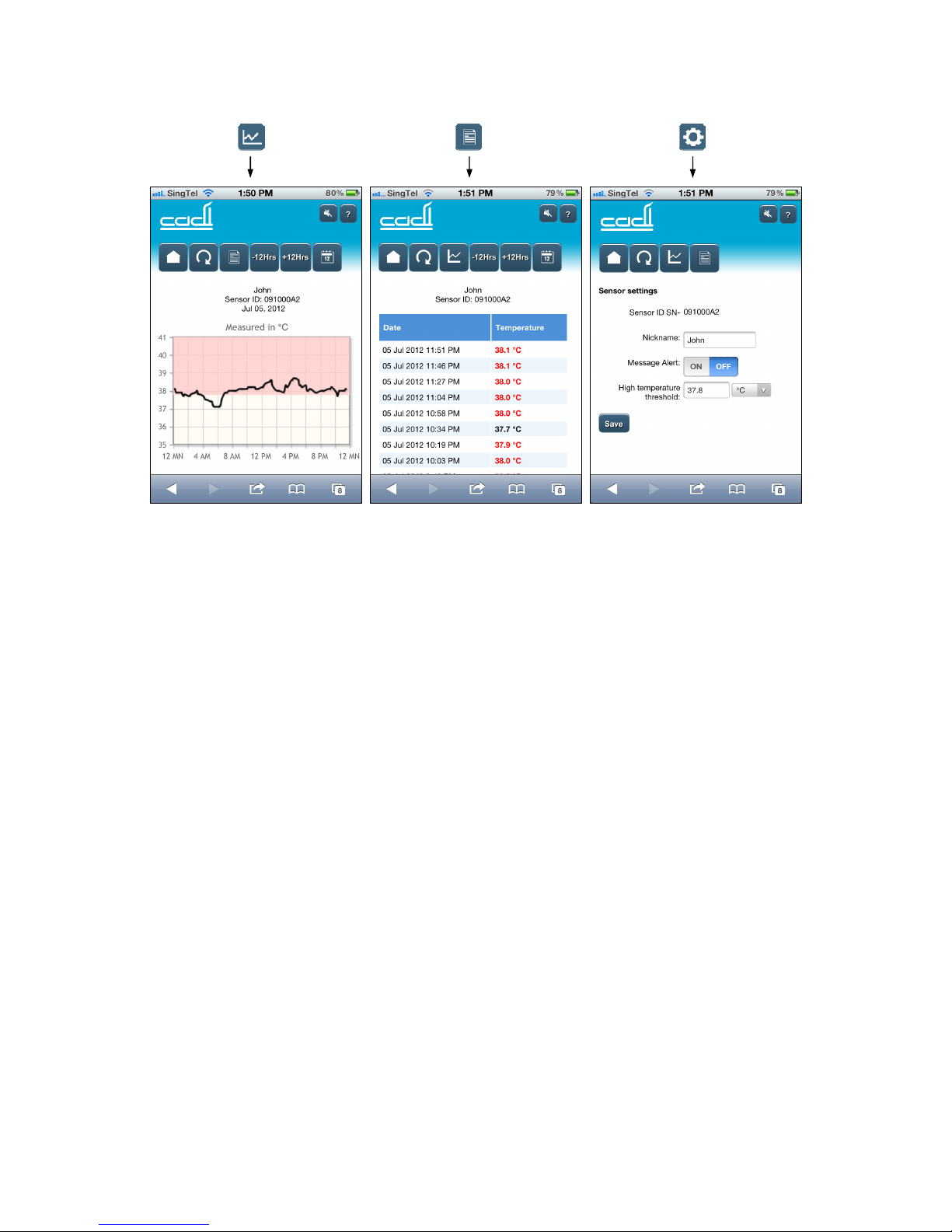

Temperature Chart Temperature History Sensor Settings
(name, alert, ° C or F,
temperature threshold)

Cadi.Sense User Manual
T-S1-800.900-I10-B01 15
3. ThermoSensor
3.1 How to Paste ThermoSensor
Step 1: Apply a small amount of body lotion onto the lower abdomen area.
Step 2: Take a Stick On and peel off the round paper liner to expose the adhesive.
Step 3: Paste the ThermoSensor on the adhesive, with the metal part facing outward and
away from the adhesive.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 16
Step 4: Remove the rectangular backing liner.
Step 5: Paste the ThermoSensor by sticking the adhesive part to the inside of the
diaper/undergarment, so that the sensor's metal part will touch the lower abdomen (left or
right) when the diaper/undergarment is properly worn (as shown in the picture).
Note (a): Please note that the ThermoSensor may take about 10 minutes to warm up
from room temperature to the body temperature. A temperature reading is wirelessly
sent every 30 seconds to your SmartNode, and this temperature reading will appear on
the Cadi.Sense application.
Note (b): To remove the sensor after usage, first peel off the Stick-On from the
diaper/undergarment, then remove the sticky residue from the sensor.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 17
3.2 How to Keep ThermoSensor
After every usage, please remember to keep your sensor back into the storage case properly
to switch off the sensor. The metal part of the sensor should face down and the barcode
side facing up. Make sure that the sensor fits nicely into the storage case and you are able
to close the cap of the case. This will ensure that the sensor switches off completely, thus
saving battery power and making your sensor last longer!

Cadi.Sense User Manual
T-S1-800.900-I10-B01 18
4. Advanced Features
4.1 How to Change SmartNode Password
Step 1:
Go to your device’s web browser and enter the LAN URL (please refer to Section 2.2 Step
2). Click the “Advanced Settings” icon, then “MENU”, “More WiFi Settings – Security”.
Change the password shown in “WPA Passphrase”. Then click “Apply”.
Note: After changing the SmartNode’s Password, your WiFi connection with SmartNode
will be disconnected. You have to reconnect to your SmartNode using its SSID (please
refer to Section 2.1) and your new password.
4.2 Resetting SmartNode
Warning: All data will be deleted after this hardware reset. So before resetting, you may
want to export the data using the “Export Temperature History Data” icon that will be
available only in laptop’s web browser.
Step 1:
Make sure SmartNode is switched on for at least 1 minute. Take a paperclip and bend
the tip outwards. Use the tip to press down and hold for 10 seconds the small round
“hole” situated just next to the LAN socket on the SmartNode. Then release it and
SmartNode will reset and reboot in 1 minute.
Note: Resetting SmartNode will restore all settings and configuration to the factory
defaults, except that:
•Upgraded firmware will stay and not revert back to the older version;
•Pre-registered sensor will be deleted. So you need to manually add sensor after
performing this hardware reset.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 19
4.3 Upgrading SmartNode Firmware
Note: This section is for advanced users only. DO NOT PROCEED IF YOU ARE NOT
FAMILIAR WITH FIRMWARE UPGRADING.
Warning: All data may be deleted after this firmware upgrade. So before upgrading, you
may want to export the data using the “Export Temperature History Data” icon that will
be available only in laptop’s web browser.
Pre-Requisites:
You need a laptop which is connected to the internet.
Step 1:
Download the latest firmware from www.cadisense.com into your laptop. Note that the
firmware typically appears as a file with extension “img”.
Step 2:
Connect your laptop to SmartNode physically using a LAN cable. Note that a LAN cable
is provided in your Cadi.Sense package box.
Step 3:
Go to your laptop’s web browser and enter “http://10.10.10.10/main.asp”. Click the
“Device Settings” icon. In the second row of the menu bar, scroll to the forth icon named
“Firmware Upgrade” and click it. Click the “Browse” button and select the filename of
the firmware that you have downloaded in Step 1. Then click “Apply”.
Step 4:
Reset SmartNode (please refer to Section 4.2).
Note: SmartNode takes about 3 – 5 minutes to upgrade the firmware. After firmware
upgrade, you may have to reboot SmartNode (taking about 2 minutes) by switching it off
and on again.

Cadi.Sense User Manual
T-S1-800.900-I10-B01 20
5. Others
5.1 Frequency Asked Questions (FAQ)
About ThermoSensor
1. Why do we place the ThermoSensor on the left or right side of the lower abdomen and not
elsewhere?
It is well known that the temperature of blood in a major artery closely reflects body
temperature, so measuring temperature from an area close to a major artery will give
readings that are more accurate than those measured from an area far from a major
artery. We recommend measuring temperature from the middle of the left or right lower
abdomen because that area is near a major artery called the external iliac artery.
2. How do I know whether ThermoSensor is working?
Take out ThermoSensor from its casing and the LED light will start to blink about every 5
seconds. If it is not blinking, it is likely to have run out of battery or faulty. In that case,
contact Technical Support to purchase a replacement.
3. The ThermoSensor is correctly contacted but the temperature seems to be lower than
expected. Why?
•Whenever a ThermoSensor is contacted to the skin, it will take about 10 minutes to
give an accurate temperature reading.
•If the ThermoSensor is not held closely against the skin, the temperature reading will
generally be lower than normal. Do ensure that the sensor is properly contacted with
the application area.
•If the ThermoSensor is placed in the incorrect application area, the temperature
reading will generally be lower than normal.
•The ThermoSensor may give lower readings for obese people because the thicker
layer of tissue between the iliac artery (see FAQ # 1) and the skin surface may affect
the transmission of heat from the artery to the skin surface. If you suspect this is
happening, we recommend that you check your child’s temperature with an ear
