Owner's Manual
with Assembly
Instructions
For Model M0410
25-2201-41625
®
Please read this manual and save it
Please read this manual and save it
with your original sales receipt.
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver
Tools needed for assembly: Phillips Screwdriver
(not included); Assembly Tool (included). Use only
(not included); Assembly Tool (included). Use only
with a Power Wheels® 12 Volt Lead Acid Rechargeable
with a Power Wheels® 12 Volt Lead Acid Rechargeable
Battery with Built-in Thermal Fuse and Power Wheels®
Battery with Built-in Thermal Fuse and Power Wheels®
12 Volt Charger with Type 12V Connector
12 Volt Charger with Type 12V Connector
(both included). Requires four "C" (LR14) alkaline
(both included). Requires four "C" (LR14) alkaline
batteries for FM Radio operation.
batteries for FM Radio operation.
Please read this manual and save it
with your original sales receipt.
Tools needed for assembly: Phillips Screwdriver
(not included); Assembly Tool (included). Use only
with a Power Wheels®12 Volt Lead Acid Rechargeable
Battery with Built-in Thermal Fuse and Power Wheels®
12 Volt Charger with Type 12V Connector
(both included). Requires four "C" (LR14) alkaline
batteries for FM Radio operation.

2
TABLE OF CONTENTS
A
M0410pr-0920
2
TABLE OF CONTENTS
M0410pr-0920
• Your new vehicle requires adult assembly. Please set aside at least
60 minutes for assembly.
• You must charge your battery for 18 - 30 hours before you use your
vehicle for the first time. We recommend that you start charging
your battery before beginning assembly. Please see Battery Charging
beginning on page 8 for detailed instructions.
• Read this manual carefully for important safety information and
operating instructions before using your vehicle. Keep this manual
for future reference as it contains important information.
• This vehicle is designed for use on: grass, asphalt and other hard
surfaces; on generally level terrain; and by children 3 years of
age and older.
• Use this vehicle ONLY outdoors. Most interior flooring can be
damaged by riding this vehicle indoors. Fisher-Price®will not be
responsible for damage to the floor if the vehicle is used indoors.
• To prevent damaging the motors and gears, teach your child to
stop the vehicle before switching direction. Do not tow anything
behind the vehicle or overload it. Do not exceed the maximum
weight capacity of 130 lbs (59 kg).
• This vehicle has adjustable play seat belts. Please note that the
adjustable seat belts are designed to be a play feature only and do
not function as protective safety restraints.
• For safety reasons, your vehicle has been pre-set so that it will only
operate at low speed. You must remove the high speed lock-out
screw to allow operation of the vehicle at high speed. Please see
page 26 for detailed instructions.
• If you have any questions about your Power Wheels®vehicle, please call
our toll-free service lines at 1-800-348-0751 from 9 AM to 7 PM (EST)
Monday through Friday and 11 AM to 5 PM (EST) Saturday. Trained
customer service representatives are available to take your call in English
or French. Habla Español? Si usted tiene alguna pregunta ó necesita
asistencia llame gratis 1-800-348-0755 para los Estados Unidos. Tenemos
representantes que hablan español para atender su llamada.
• For your convenience, Power Wheels®maintains an independently
owned and operated Authorized Service Center Network with more
than 300 authorized service centers nationwide. Our authorized
service centers will repair or replace parts under warranty at no extra
charge, and can perform non-warranty repairs for a minimal charge.
To find the authorized service center nearest you, please visit us
on-line at www.powerwheels.com or call 1-800-348-0751.
• To register your vehicle, please visit us on-line at
www.powerwheels.com.
IMPORTANT INFORMATION
A
TABLE OF CONTENTS
A Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
C Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
D Parts Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
E Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
F Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
G Decoration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
H Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
I Battery Care and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
J Safe Driving Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
K Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
L FM Radio Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
M Charge Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
N Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
O FCC Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
P Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Q Problems and Solutions Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

M0410pr-0920 3
WARNINGS AND CAUTIONS
B
M0410pr-0920
• In the unassembled state, this package contains small parts. Adult assembly is required.
• Use the charger in dry locations only.
• Prevent Injuries and Deaths
• Direct Adult Supervision Required
• Never Ride at Night.
• Keep Children Within Safe Riding Areas.
These areas must be:
- away from swimming pools and other bodies of water to prevent drownings
- generally level to prevent tipovers
- away from steps, steep inclines, cars, roads and alleys.
• Riding Rules
Make sure children know and follow these rules for safe driving and riding.
- Always sit on the seat.
- Always wear shoes.
- Only 2 (two) riders at a time.
ELECTRICAL HAZARD
WARNING
CAUTION
• Battery can fall out and injure a child if vehicle tips over. Always use battery retainer.
• PREVENT FIRE
- Never modify the electrical system. Alterations could cause a fire resulting in serious injury
and could also ruin the electrical system.
- Use of the wrong type battery or charger could cause a fire or explosion resulting in
serious injury.
- Use of Power Wheels®components in products other than Power Wheels®vehicles could
cause overheating, fire or explosion.
• The battery must be handled by adults only. The battery is heavy and contains sulfuric acid
(electrolyte). Dropping the battery could result in serious injury.
• Never allow children to charge the battery. Battery charging must be done by adults only. A
child could be injured by the electricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their connectors for excessive wear or damage each time
you charge the battery. If damage or excessive wear is detected, do not use the charger or the
battery until you have replaced the worn or damaged part.
• HOT motors. Handle carefully.
WARNING
RIDING HAZARD

M0410pr-0920
Vehicle
4
PARTS
C
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product
to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
Note: Some parts of this product have been packed with a protective foam cover. After removing the foam cover, you may notice a cloudy film
on the parts. Wipe these parts with a clean, dry, soft cloth to remove this residue.
M0410pr-0920

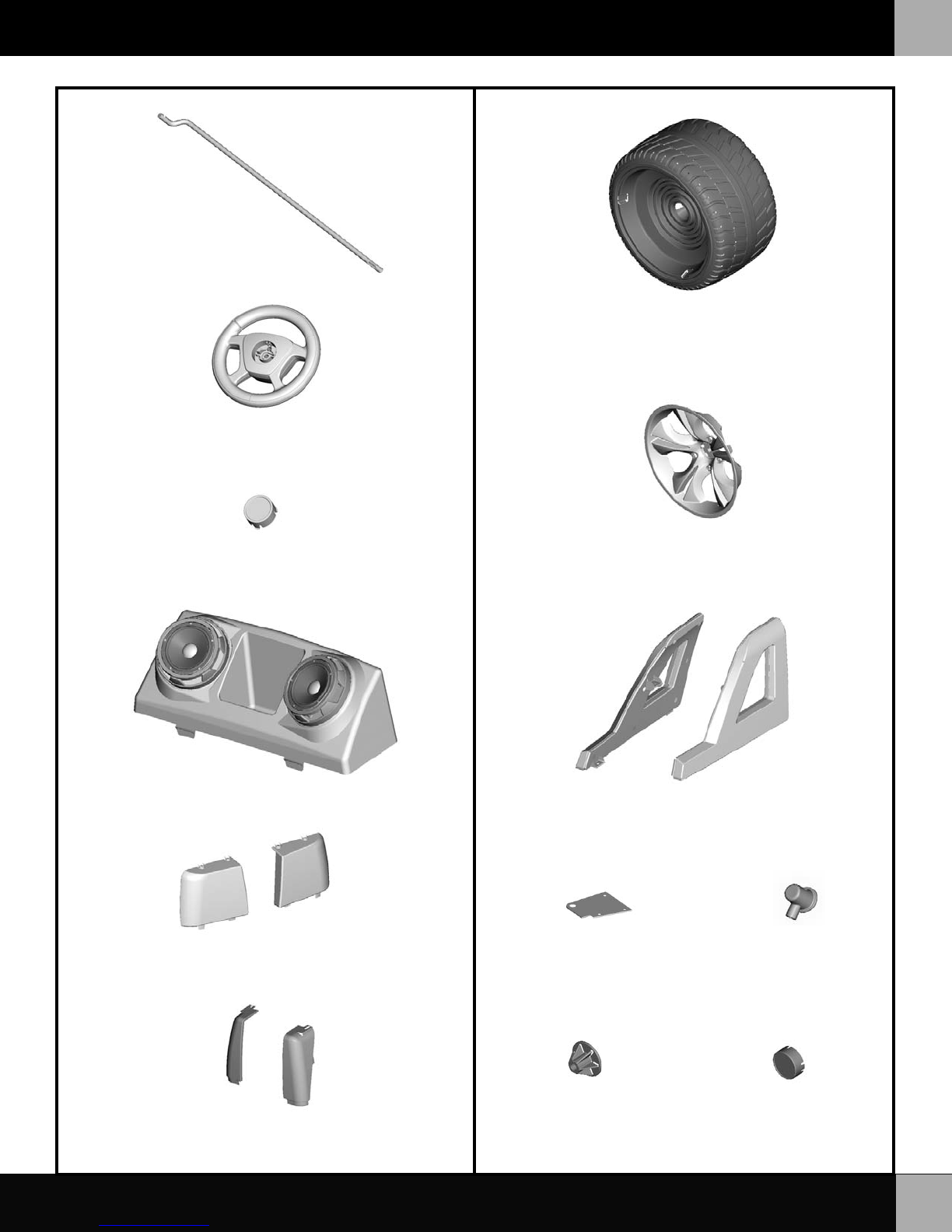

Front End
Bumper
2 Doors
(Left and Right)
Seat
Windshield/Dash
Grille Hood

PARTS
C
2 Front Wheels
(Left and Right)
2 Wheel Covers
Speaker Box
Assembly 2 Wings
(Left and Right)
Steering Wheel
M0410pr-0920 5
Steering Column
2 Headlights
(Left and Right)
2 Taillights
(Left and Right)
2 Door Plates
2 Bushings 2 Hubcaps
Steering Wheel Cap
Steering Column Cap

6
PARTS
C

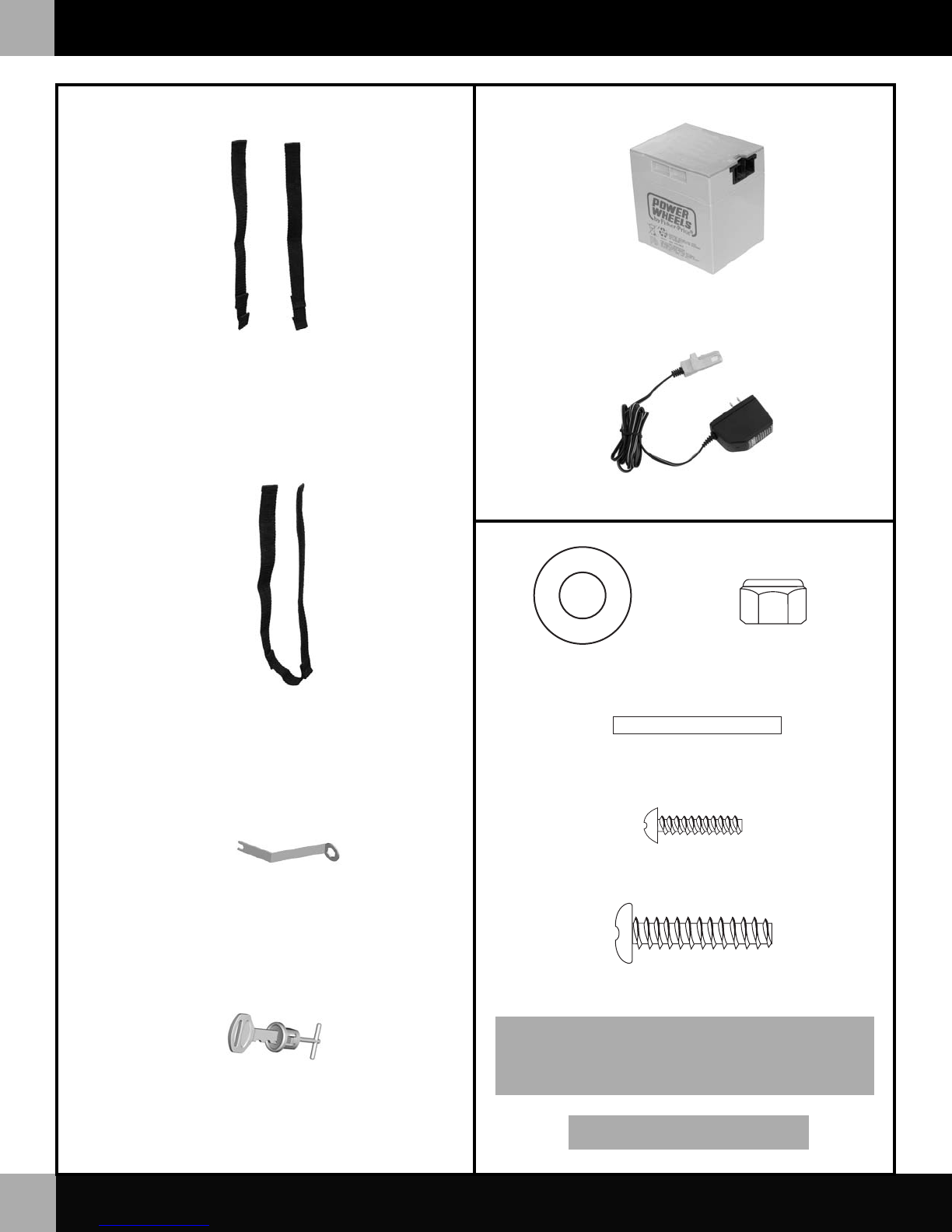

Key Assembly
Assembly Tool
2 Short Seat Belts
M0410pr-0920
Long Seat Belt
12 Volt Battery
12 Volt Charger
Fasteners Shown Actual Size
For your convenience, we included extra fasteners!
Note: Tighten and loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
#8 x 3/4" Screw – 37
7/16" Washer – 2 3/8" -16 Lock Nut – 2
5/32 x 11/2" Pin – 1
1/4x 11/4" Screw – 2

PARTS PICTURE
D
M0410pr-0920 7
5
21
25
7
8
15
6
11
19
9
1
16
2
23
13
14
3
4
Note: Some parts shown are assembled on both sides of the vehicle.
17
10
1 Vehicle
2 Front End
3 Bumper
4 Grille
5 Headlights - 2
6 Doors - 2
7 Hood
8 Windshield/Dash
9 Door Plates - 2
10 Seat
11 Short Seat Belts - 2
12 Long Seat Belt
13 Wings - 2
14 Front Wheels - 2
15 Wheel Covers - 2
16 Hubcaps - 2
17 Bushing - 2
18 7/16" Washers - 2
19 Speaker Box Assembly
20 Steering Wheel
21 Steering Column
22 Taillight - 2
23 12 Volt Charger
24 12 Volt Battery
3/8"-16 Lock Nuts - 2
¼" x 1¼" Screws - 2
#8 x ¾" Screws - 37
Label Sheet
Parts Not Shown
22
12
11
24
20
18
26
28
27
25 Key Assembly
26 Assembly Tool
27 Steering Column Cap
28 Steering Wheel Cap
29 5/32" x 1½" Pin - 1
29

8
BATTERY CHARGING
E
M0410pr-0920
Use the charger in dry locations only.
ELECTRICAL HAZARD
Important Notes
• Your new battery must be charged for at least 18 hours before
you use it in your vehicle for the first time.
• We recommend that you start charging your battery before
beginning assembly of your new vehicle.
• The battery must be upright while charging.
• The charger is not a toy.
• Do not short circuit the battery.
• You do not need to remove the battery from your vehicle to
recharge it.
• Before charging the battery, examine the battery case for cracks
and other damage which may cause sulfuric acid (electrolyte) to
leak during the charging process. If damage is detected, do not
charge the battery or use it in your vehicle. Battery acid is very
corrosive and can cause severe damage to surfaces it contacts.
• Do not charge the battery on a surface (such as a kitchen counter
top) which could be damaged by the acid contained inside the
battery. Take precautions to protect the surface on which you
charge your battery.
• Use only a Power Wheels®12 volt charger with "12V" connector
(input 120 VAC, 60 Hz with an output of 12 VDC, 1200 mA)
to charge your Power Wheels®12 volt battery.
Adults Note: Regularly examine the charger for damage to the
cord, plug, housing or other parts that may result in the risk of fire,
electric shock or injury. In the event of any damage, do not use
the charger until the damage has been properly repaired. Please
call 1-800-348-0751.
• If your battery is old and will not accept a charge, do not leave it in
the vehicle. Always remove a dead battery from the vehicle.
About Thermal Fuses
Your Power Wheels 12 volt battery is equipped with a built-in
thermal fuse. The thermal fuse is a self-resetting safety device which
automatically “trips” and shuts down operation of the vehicle if the
vehicle is overloaded or the driving conditions too severe. Once a fuse
has “tripped”, remove your foot from the pedal and wait approximately
25 seconds before operating the vehicle again. To avoid repeated
automatic shut-downs, do not overload the vehicle by exceeding
the 130 lbs (59 kg) maximum weight capacity or by towing anything
behind the vehicle. Avoid severe driving conditions, such as driving up
slopes or running into fixed objects, which can cause the wheels to
stop spinning while power is still being supplied to the motors
and make sure your child stops the vehicle before switching speeds
or direction.
If a thermal fuse in a battery continually trips under normal driving
conditions, please contact your local Power Wheels®Authorized
Service Center. For the location of the Authorized Service Center
nearest to you, visit us on-line at www.powerwheels.com,
or call 1-800-348-0751.
• Battery can fall out and injure a child
if vehicle tips over. Always use battery
retainer.
• PREVENT FIRE
- Never modify the electrical system.
Alterations could cause a fire resulting
in serious injury and could also ruin the
electrical system.
- Use of the wrong type battery or charger
could cause a fire or explosion resulting
in serious injury.
- Use of Power Wheels®components in
products other than Power Wheels®
vehicles could cause overheating, fire
or explosion.
• The battery must be handled by adults
only. The battery is heavy and contains
sulfuric acid (electrolyte). Dropping the
battery could result in serious injury.
• Never allow children to charge the battery.
Battery charging must be done by adults
only. A child could be injured by the elec-
tricity involved in charging the battery.
• Read the safety instructions on the battery.
• Examine the battery, charger and their
connectors for excessive wear or damage
each time you charge the battery. If
damage or excessive wear is detected, do
not use the charger or the battery until you
have replaced the worn or damaged part.
WARNING CAUTION

M0410pr-0920 9
BATTERY CHARGING
F
M0410pr-0920
E
Power Indicator
Charger
Connector
A
B
• Plug the charger connector into the battery A.
• Plug the charger into a standard wall outlet B.
Notes:
- If power flow to the wall outlet is controlled by a switch, make sure
the switch is “ON”.
- Use the charger only in a wall outlet. Do not plug the charger into
a ceiling outlet.
- The power indicator on the charger does not indicate the charge
status of your battery. The power indicator allows you to see that
there is power from the wall outlet.
• Before first-time use, charge the battery for at least 18 hours.
Never charge the battery longer than 30 hours.
• Recharge the battery for at least 14 hours after each use of your
vehicle. Do not charge the battery longer than 30 hours.
• Once the battery is charged, pull firmly on the charger connector
to disconnect it from the battery. Unplug the charger from the wall
outlet. The battery is now ready to be installed in your vehicle.
Please see the Battery Installation section on page 23 for detailed
instructions on installing your battery. If your battery is already
installed in your vehicle, simply re-connect the motor harness
connector to the battery. Close the hood.
WARNING
Children can be harmed by small parts,
sharp edges and sharp points in the
vehicle's unassembled state, or by electrical
items. Care should be taken in unpacking
and assembly of the vehicle. Children should
not handle parts, including the battery, or
help in assembly of the vehicle.
ASSEMBLY
1
• Slide a
7/16" washer onto a front axle.
• Fit a bushing (flat side first) onto the front axle.
• Repeat this procedure to assemble the other 7/16" washer and
bushing to the other front axle.
7/16" Washer
Front Axle
Bushing
RIGHT SIDE VIEW

10
ASSEMBLY
F
M0410pr-0920
2
Hint: There is a right and a left front wheel. Place the right wheel
(marked R) on the passenger side of the vehicle, and the left wheel
(marked L) on the driver side of the vehicle.
• Place a front wheel onto each front axle.
Front Axle
Front Wheel
3
• Fit a wheel cover onto each front wheel.
Front Wheel
Wheel Cover
4
• Place a
3/8"-16 lock nut (rounded side out) onto a front axle.
IMPORTANT: Tighten the lock nut firmly using the closed end of the
assembly tool.
• Repeat this procedure to fasten the other front wheel assembly with
the other 3/8"-16 lock nut.
3/8"-16 Lock Nut
Assembly Tool
5
• Align the slot in a hubcap with the rib in the wheel cover. "Snap" a
hubcap into the center of each wheel cover.
Wheel
Cover
Hubcap

M0410pr-0920 11
ASSEMBLY
F
M0410pr-0920

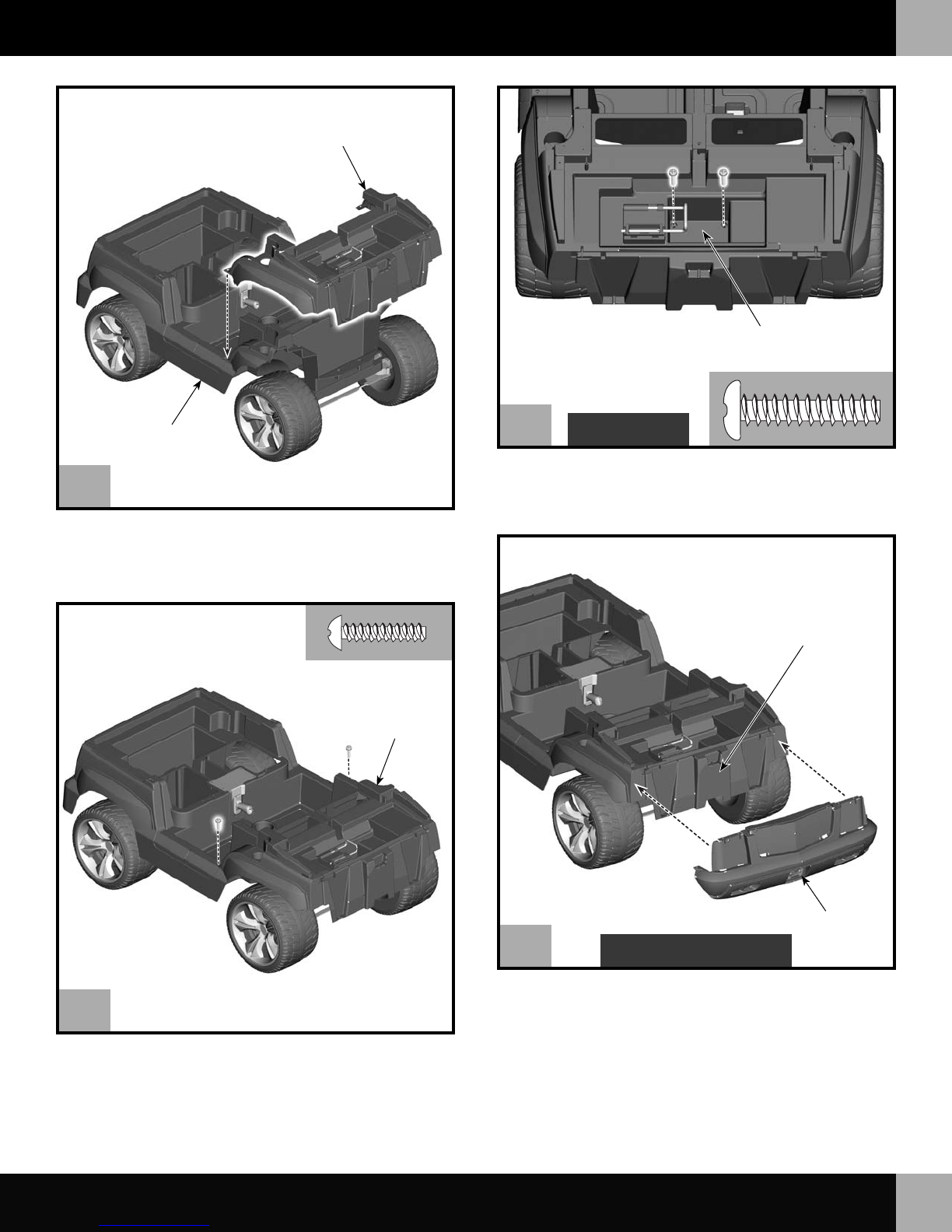

6
• Fit the front end onto the vehicle.
• Insert the tabs on the back edge of the front end into the slots in
the vehicle.
Front End
Vehicle
7
• Insert two #8 x 3/4"screws through the front end and into the
vehicle. Tighten the screws.
Front End
8
• Insert two
1/4"x 11/4" screws inside of the battery compartment and
into the front end of the vehicle. Tighten the screws.
Battery
Compartment
9
• Fit the bumper onto the front end.
Bumper
Front End
TOP VIEW
RIGHT SIDE VIEW

M0410pr-0920
12
ASSEMBLY
F
M0410pr-0920
10
• Insert seven #8 x 3/4"screws into the bumper and tighten.
Bumper
11
• Fit the grille onto the bumper.
• Push down to fit the tabs on the grille into the slots in the bumper.
Bumper
Grille
12
• Insert two #8 x 3/4"screws the top of the grille. Tighten the screws.
Grille
13
• Before applying the labels, wipe the surface of the vehicle with a
clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustration.
• For best results, avoid repositioning a label once it has been applied
to the vehicle.
25
24

13
ASSEMBLY
F
M0410pr-0920
14
• Fit the headlights (left and right) onto the bumper.
Headlights
15
• Insert two #8 x 3/4"screws into the top edge of each headlight.
Tighten the screws.
Headlights
16
• Fit the door pegs onto the holes near the front end of the vehicle.
Hint: There is a left and right door. They are designed to be
assembled one way.
Doors
17
• Fit the large hole on the plates to the door posts.
• Align the holes in the plates with the holes in the top side of
the vehicle.
Plates

14
ASSEMBLY
F
M0410pr-0920
18
• Insert three #8 x 3/4"screws into each plate and tighten.
19
• Separate the radio and dash connector wires from the motor
harness connector.
• Position the motor harness connector towards the front of the
vehicle and into the battery compartment.
• Position the dash connector and radio connector wires toward the
back of the vehicle.
Motor Harness
Connector
Dash
Connector
20
• Open the doors on the vehicle.
• Place the windshield/dash on top of the front end of the vehicle.
• Plug both dash connectors together.
• Plug both radio connectors together.
Hint: If the connectors do not fit together, do not force them. Simply
turn one of them over and try again!
Radio
Connectors
Dash
Connectors
Windshield/Dash
21
• Fit the tabs on the windshield/dash into the slots in the front end of
the vehicle.
Windshield/
Dash
Front
Radio
Connector
BACK VIEW
FRONT VIEW

M0410pr-0920 15

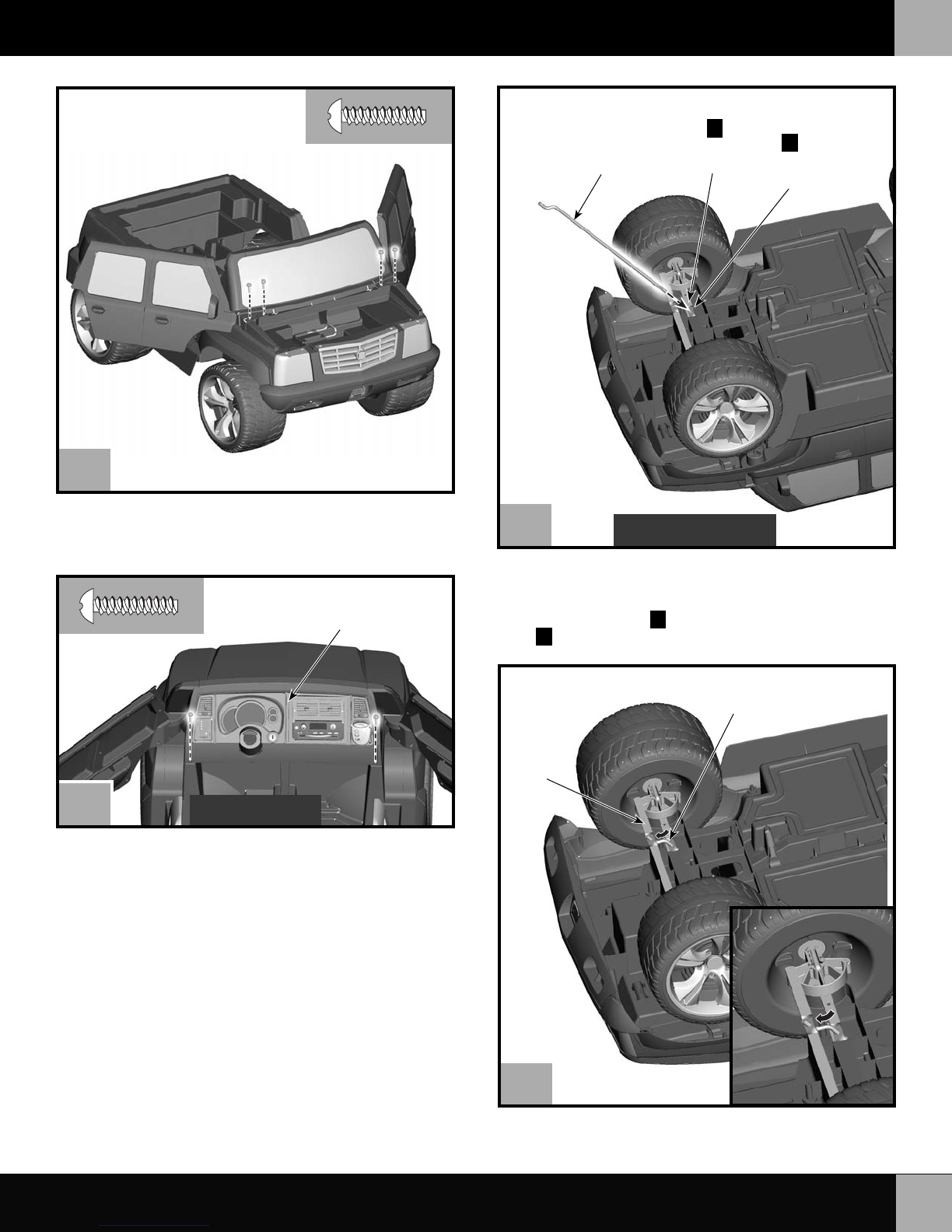

22
• Insert four #8 x 3/4"screws into the base of the windshield/dash.
Tighten the screws.
23
• Insert two #8 x 3/4"screws into the sides of the windshield/dash.
Tighten the screws.
• Close the doors on the vehicle.
Dash
24
• Wipe the steering column with a paper towel to remove any
excess lubricant.
• First, insert the straight end of the steering column down through
the hole in the metal bar A; then through the hole in the vehicle
floor B; and finally, out through the hole in the dash.
Steering
Column
Metal
Bar Hole
BOTTOM VIEW
25
• Insert the curved end of the steering column through the hole in the
steering rod.
Steering
Rod
Steering
Column
DASH VIEW
A
B
Vehicle
Hole
ASSEMBLY
F
IMPORTANT! Turn the vehicle on its side or over to complete
assembly steps 24-29.

M0410pr-0920
29
Steering
Column Cap

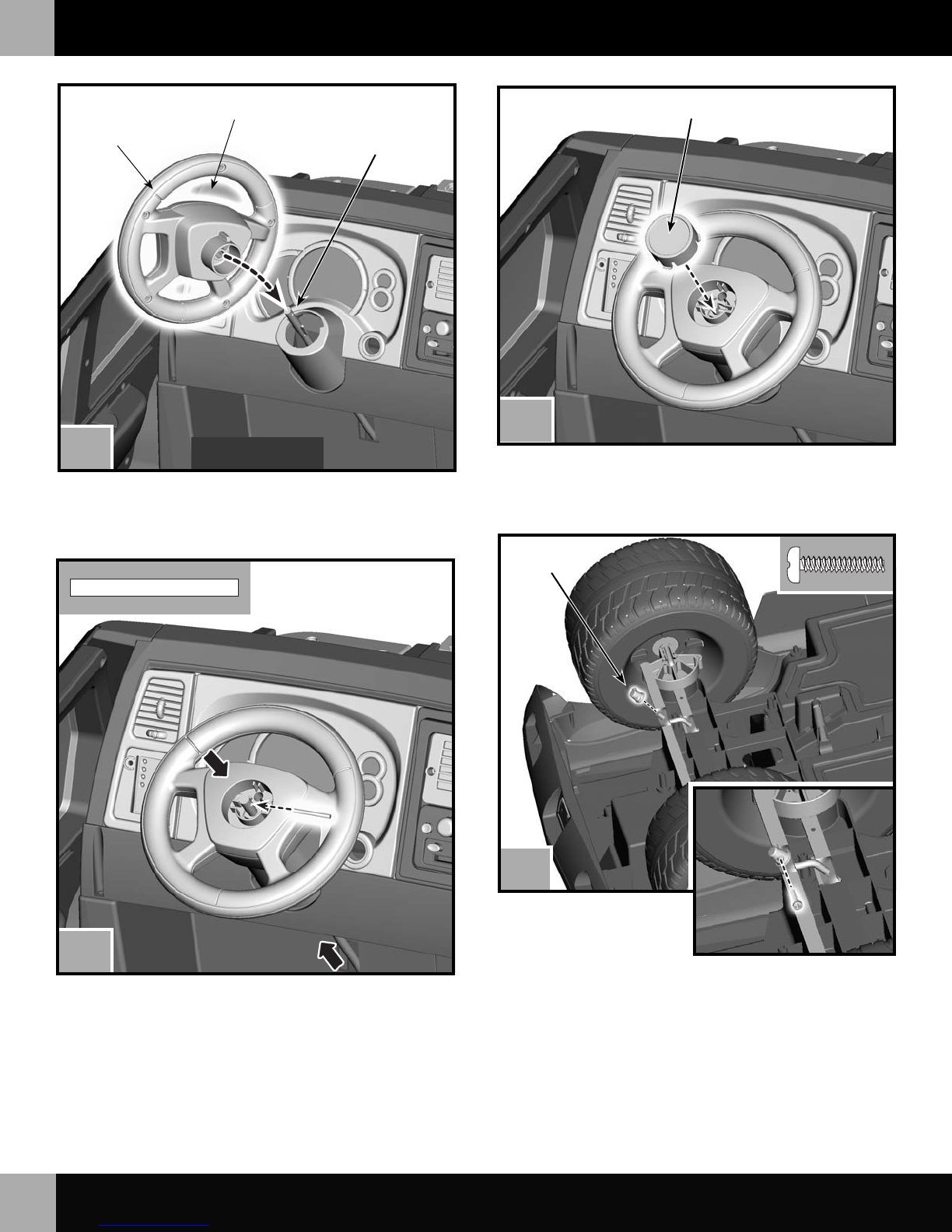

26
• Position the steering wheel so that the large opening is UP.
• Fit the steering wheel onto the steering column.
Steering Wheel Steering Column
27
• While pressing down on the steering wheel, grasp the steering
column under the dash and pull it up as far as it will go.
• Insert the
5/32" x 11/2"pin through the hole in the steering column.
• Grasp the steering column again and pull down to fit the pin into the
center of the steering wheel.
16
ASSEMBLY
F
• Fit the steering column cap
onto the end of the
steering column.
• Insert a #8 x 3/4"screw through the large opening in the steering
column cap and into the hole in the steering column. Tighten
the screw.
• Turn the vehicle upright.
Large Opening
Press Wheel
Press Wheel
Lift Steering
Column
28
• Insert and "snap" the steering wheel cap into the center of the
steering wheel.
Steering Wheel Cap
DASH VIEW
Press Wheel

17
M0410pr-0920

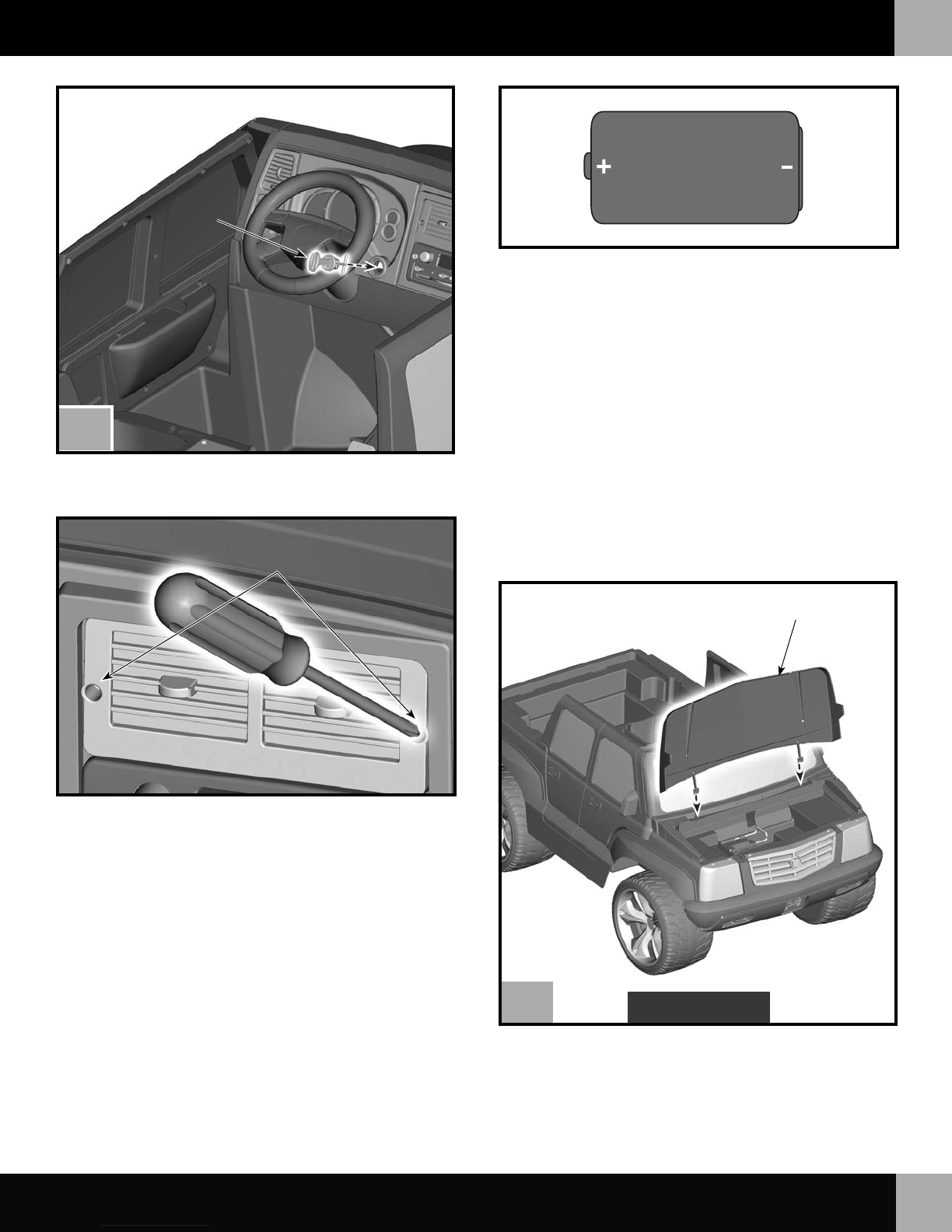

• Locate the FM Radio on the dash.
• Loosen both screws in the battery compartment door.
• Remove the battery compartment door.
• Insert four, new "C" (LR14) alkaline batteries.
Hint: We recommend using alkaline batteries for longer life.
• Replace the battery compartment door and tighten the screws.
• When sounds become faint or stop, it’s time for an adult to change
the batteries! Please refer to page 27 for general information and
tips for use of the FM Radio.
Battery Safety Information
In exceptional circumstances, batteries may leak fluids that can cause
a chemical burn injury or ruin your product. To avoid battery leakage:
• Do not mix old and new batteries or batteries of different types:
alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove
exhausted batteries from the product. Dispose of batteries safely. Do
not dispose of product in a fire. The batteries may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product before charging.
• If removable, rechargeable batteries are used, they are only to be
charged under adult supervision.
1.5V x 4
"C" (LR14)
31
• Fit the long tabs on the hood into the slots in the front end of
the vehicle.
Hood
Loosen These
Screws
FRONT VIEW
30
• Insert and "snap" the key assembly into the slot in the dash.
ASSEMBLY
F
Key
Assembly

33
• Insert the fastener end of a short seat belt strap through the slot
near the outer edge of the seat. Make sure the side of the seat belt
with the fastener faces the outer edge of the seat.
• Pull the short seat belt strap completely through the slot until the
last T-loop at the opposite end of the belt catches against the slot.
You will pull one T-loop through the slot.
• Repeat this procedure to assemble the other short seat belt strap.
• Insert each fastener end of the long seat belt strap through a slot in
the center of the seat. Make sure the fasteners face the outer edge
of the seat.
• Pull each side of the long seat belt strap evenly through the slots.
Make sure to pull each T-loop through a slot.
34
• Insert the two tabs on the front edge of the seat into the slots in
the vehicle.
Short Seat Belts
Slots
Seat
Long Seat Belt
M0410pr-0920
TOP VIEW
35
• Insert two #8 x 3/4"screws into the back of the seat. Tighten
the screws.
Seat
Seat
BACK VIEW
• Lower and fit the side tabs on the hood into the slots on each side
of the front end of the vehicle.
Hood
Tab
Slot
18
ASSEMBLY
F
32

36
• Before applying the labels, wipe the surface of the vehicle with a
clean, dry cloth to remove any dust or oils.
• First apply the inside edge of a label to the back end of the
vehicle. Next, apply the outside edge of the label to the side of
the vehicle. Then, smooth the center of the label. (The edges will
overlap slightly.)
• For best results, avoid repositioning a label once it has been applied
to the vehicle.
38
• Fit the wing tabs into the slots in the top edge near the rear of
the vehicle.
Hints:
• There is a left and right wing. They are designed to be assembled
one way.
• Make sure the tabs on the top of the taillights fit into the bottom of
each wing.
Wings
37
• Fit the taillights (left and right) onto the rear of the vehicle.
Taillights
19
M0410pr-0920
11
12
39
• Insert two #8 x 3/4"screws into each wing. Tighten the screws.
Taillight Tabs
ASSEMBLY
F

40
• Position the speaker box assembly over the back end of the vehicle.
• Plug both speaker connectors together.
Hint: If the connectors do not fit together, do not force them. Simply
turn one of them over and try again!
41
• Fit the speaker box assembly onto the vehicle.
Speaker Box Assembly
Speaker Connector
Speaker Box Assembly
42
• Insert three #8 x 3/4"screws into the top of the speaker assembly.
Tighten the screws.
Assembly is now complete.
M0410pr-0920
Speaker Connector
20
ASSEMBLY
F
