CAE SoundCam Safety guide

SoundCam
Starter
Guide

3. Main Menu
2. Hardware Turn on: Press & Hold
(~2 sec.), status LED
flashes while booting and
turns green when finished.
Turn Off: Press & Hold
until all battery level LEDs
are off
Check battery level: Press
Battery level indicatorPower jack
USB
Start Settings Turn Off
On/Off Button
and Status LED
Open recording Profile settings
1. Content
Includes: SoundCam, Power Supply

6.
4. Start System
6. Analyse Recording
5. Record Data
Distance
Scaling
Frequency filter
Sound
Record duration
Distance 1.
Scaling 2.
Frequency filter 3.
Sound
Record duration 4.
Close 7.
Create video 5.
Scaling
Marker selector
Sound
Time navigation 3.
1. Start
Open recording
Turn LEDs On/Off
5. Stop
Take snapshot
Set time marker
Turn LEDs On/Off
Start
4. Take snapshot
Set time marker
Open recording
1. Save recording
2. Play recording
Wait until
enabled

2.
1.

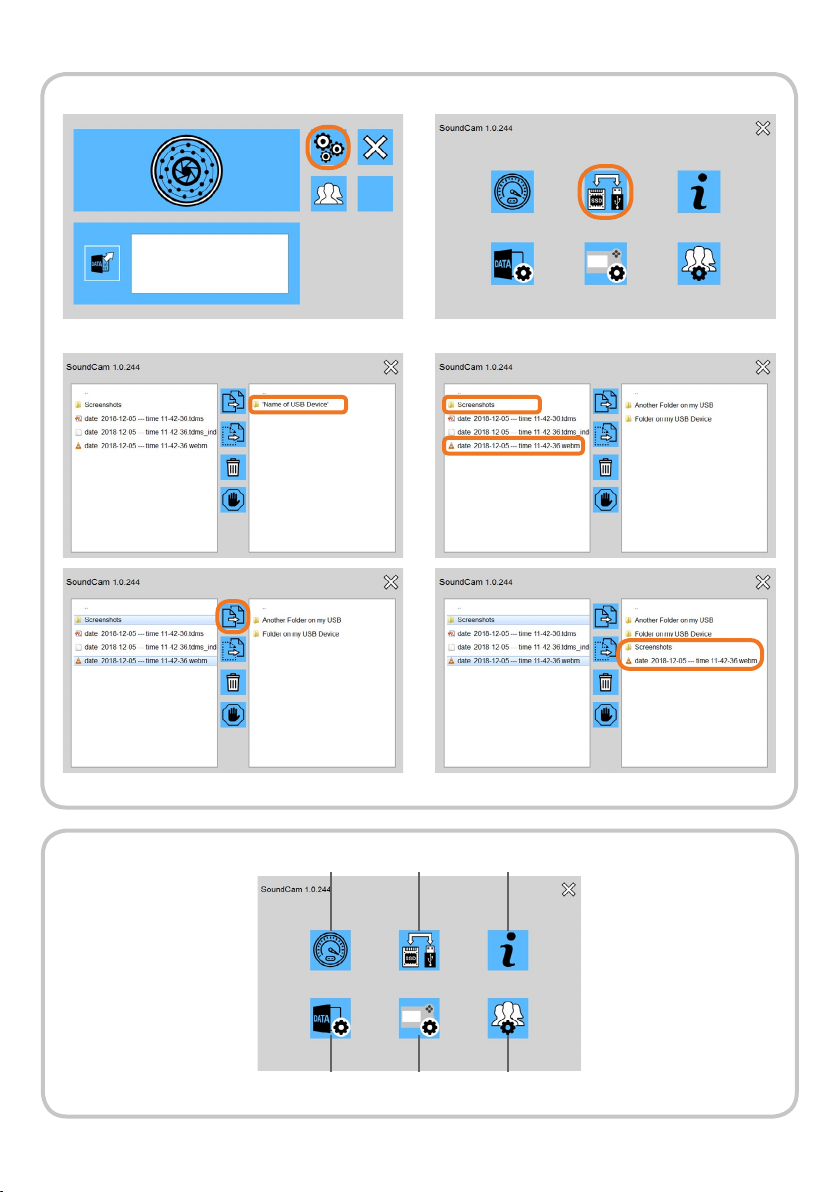

7. Copy Videos and Snapshots to USB Device
8. Settings
3. Plug your USB stick (not included in delivery content) into SoundCam
8. Remove USB stick and enjoy on your PC
4. Double-click
on your USB stick
5. Mark files
videos are *.webm
snapshots are *.png
6.
7. Copying done
Folder
settings
Camera and
beam settings
Button
settings
Copy
menu
Profile
settings
Info and
update

2.
1.
6. 8.
10.
11.
13.
3. Plug your USB stick (not included in delivery content) with the update file (*. swupd) into SoundCam
9. Remove USB stick
14. Follow instructions on the screen and confirm reboot to apply changes
4. Double-click
on your USB stick
7. Copying Done
5. Mark update file
12. Mark update file
9. Update Software on SoundCam

10. Record and Analyse Settings
Scaling settings:
Choose your scaling by clicking on the first dark blue
box:
auto: Max. found in the pictures is used as maximum.
smart: Removes background noise. Average level of
the picture is calculated and crest factor is added.
off: Set up maximum manual by clicking into the box.
Set up the dynamic range using the slider for auto
and off scaling.
For smart scaling set up dynamic range and crest
factor. Click on the dark blue box above the slider
to change between dynamic range and crest factor.
Sound setting:
Enable/disable sound by using the button abo-
ve the slider.
With enabled sound use the slider to increase/
decrease volume.
Scroll your measurement‘s timeline:
Use the up and down arrows or the slider to
scroll through your timeline of your measure-
ment.
Time marker settings:
Use the right/left arrow to jump to the next/
previous marker you have set.
Press the delete button to delete the current
selected marker.
Distance setting:
Set up the distance from the SoundCam to
your measurement object using the slider.
If the measurement object is further away then
350 cm set it to the max level 350cm.
You can also type in numbers by clicking into
the Distance box.
Frequency filter:
Select the frequency range you want to see in
the acoustic picture using the double slider.
You can also type in numbers by clicking into
the Max. Freq. or Min. Freq. box.
Attention!
Higher frequencies can be localized more ac-
curate than lower frequencies.
Record duration setting:
Select the time you want to record using the
drop down menu.
Attention!
Longer record times take longer to process
(e.g. saving, opening and creating a video)
Create video:
Use the first two buttons to place the start and
end point for the video if you do not want to
create a video over the whole timeline.
The third button removes the start and end
point.
Use the button on the bottom to create the
video.
Attention!
Longer record times take longer to create a
video.

11. More Information Online
Find the latest software, up-to-date FAQ
and much more on our website:
www.cae-systems.de/en/soundcam-owners
12. Important Dos and Don‘ts
Dos:
To clean, wipe the outer surface only with a soft, lint-free cloth.
To avoid mechanical damage, always remove the USB stick,
ethernet cable and power cable when not in use and seal the
ports with the silicone cover tightly.
Dust and water protection are only given if the port is sealed
with the silicone cover.
Don‘ts:
Do not touch the diaphragms of the microphones! Neither with
your fingers, any sharp tools, a brush nor anything else!
The diaphragms are a very thin and sensitive Gore-Tex diaphrag-
ms. It protects the microphones and makes the SoundCam dust
and water protected according to IP54.Touching the diaphragms
can easily damage it resulting in losing the dust and water pro-
tection of your SoundCam.
Do not clean with air pressure!
Do not clean with high-pressure cleaners or other machines!
Attention:
Dust and water protection according to IP54 is only given if all
ports are sealed with their silicone covers.
Scan me

SoundCam
CLEANING & USAGE INSTRUCTIONS
WARNING: Read Safety & Health Info
Read this guide for important safety and health information and the terms of the Limited Warranty that apply
to the SoundCam. Keep all printed guides for future reference. Failure to follow instructions and properly set up,
use, and care for this product can increase the risk of serious injury or death, or damage to the device or devices.
WARNING: Cleaning & Storage
Always handle your device with care to maintain its appearance. To clean, wipe the outer surface with a soft,
lint-free cloth.
Do not touch the diaphragm. Do not clean the device with harsh or corrosive cleaning agents, excessively high
amounts of water, pre-treated cleaning cloths or aggressive or alcoholic cleaning sprays. Store the device in a
dry and clean place. Do not clean with high-pressure cleaners or other machines. Do not clean with air pressure.
WARNING: Do Not Attempt Repairs
Do not attempt to take apart, open, service or modify the product, accessories or power supply. Doing so could
present the risk of electric shock or another hazard. Any evidence of any attempt to open and/or modify this
device, including any peeling, puncturing or removal of any of the labels, will void the Limited Warranty. For
repair contact your retailer.
WARNING: AC Adapter Safety
Failure to take the following precautions can result in serious injury or death from electric shock or fire or in
damage to the device.To select an appropriate power source for your device:
• Use only the power supply unit and AC power cord that came with your device or that you received from
CAE or an authorised retailer.
• Do not use non-standard power sources, such as generators or inverters, even if the voltage and frequency
appear acceptable. Only use AC power provided by a standard wall outlet.
• Do not overload your wall outlet, extension cord, power strip or other electrical receptacle. Confirm that they
are rated to handle the total current (in amps [A]) drawn by the device (indicated on the power supply unit) and
any other devices that are on the same circuit.
• On devices where the AC prongs may be folded for storage, before plugging the AC adapter into a power
outlet, make sure its prongs are fully extended. On devices where the AC prongs are removable and where the
power supply uses a universal adapter, before plugging the AC adapter into a power outlet, make sure the prong
assembly is of the proper configuration for the power outlet and fully seated into the adapter.
CAUTION: Cable and Cord Safety
Arrange all cables and cords so that people and pets are not likely to trip over or accidentally pull on them as
they move around or walk through the area. Do not allow children to play with cables and cords.
WARNING: Battery Safety
This device contains a built-in battery, improper use of which may result in explosion. Do not heat, open,
puncture, mutilate or dispose of the product in fire. Do not leave the device in direct sunlight for an extended
period of time, which could cause melting or battery damage. The battery in this device is not user replaceable
and should only be replaced by CAE or a CAE Authorised Service Provider. Contact your retailer for a battery
change request.
WARNING: Use Near Water
To reduce the risk of fire or shock, do not use this device near water and do not expose it to rain or moisture. Do
not attempt to dry device with a hair dryer or a microwave oven.
WARNING: Be Aware of Your Surroundings
In order to reduce the potential risk of injury due to distractions while using this device, be careful and attentive
while driving, riding a bicycle, or walking.
WARNING: Choking Hazard
This device may contain small parts which may be a choking hazard to children under 3. Keep small parts
away from children
WARNING: Photosensitive Seizures
A very small percentage of people may experience a seizure when exposed to certain visual images, including
flashing lights or patterns that may appear in video games. Even people who have no history of seizures or
epilepsy may have an undiagnosed condition that can cause these „photosensitive epileptic seizures“.
These seizures may have a variety of symptoms, including lightheadedness, altered vision, eye or face twitching,
jerking or shaking of arms or legs, disorientation, confusion, or momentary loss of awareness. Seizures may also
cause loss of consciousness or convulsions that can lead to injury from falling down or striking nearby objects.
Immediately stop using and consult a doctor if you experience any of these symptoms. If you or any of your
relatives have a history of seizures or epilepsy, consult a doctor before using.
WARNING: Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always, posted and can include fuelling areas,
such as below decks on boats, fuel or chemical transfer or storage facilities, or areas where the air contains
chemicals or particles, such as grain dust or metal powders.When you are in such an area, turn off your mobile
device, and do not remove or install battery chargers, AC adapters or any other accessory. In such areas, sparks
can occur and cause an explosion or fire.
CAUTION: Health Warning
Use of electronic input devices may be linked to serious injuries or disorders. When using a computer, as with
many activities, you may experience occasional discomfort in your hands, arms, shoulders, neck or other parts
of your body. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing,
aching, tingling,numbness,burning sensation or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY
SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you are not working at your computer.
Symptoms like these can be associated with painful and sometimes permanently disabling injuries or disorders
of the nerves, muscles, tendons or other parts of the body. These musculoskeletal disorders (MSDs) include
carpal tunnel syndrome, tendonitis, tenosynovitis and other conditions.
CAUTION: Heat Related
Concerns The device may become very warm during normal use. The device complies with the user-accessible
surface temperature limits defined by the International Standard for Safety of Information Technology Equip-
ment (IEC 62368-1:2014, modified + Cor.:2015). To reduce heat related concerns, follow these guidelines:
Set up your device on a stable work surface that allows for adequate air circulation under and around the device.
Use caution when operating your device on a pillow, blanket, or other soft material, because the material can
block the airflow which may result in the device overheating. If your device is on your lap and gets uncomfor-
tably warm, remove it from your lap and place it on a stable work surface.
REGULATORY INFORMATION
Disposal of Waste Batteries and Electrical & Electronic Equipment
NThis symbol on the product or its batteries or its packaging means that this product and any batteries it
contains must not be disposed of with your household waste. Instead, it is your responsibility to hand
this over to an applicable collection point for the recycling of batteries and electrical and electronic
equipment.This separate collection and recycling will help to conserve natural resources and prevent potenti-
al negative consequences for human health and the environment due to the possible presence of hazardous
substances in batteries and electrical and electronic equipment, which could be caused by inappropriate
disposal. For more information about where to drop off your batteries and electrical and electronic waste,
please contact your local city/municipality office, your household waste disposal service, or your retailer. This
product contains a Lithium-ion Battery.
Statement of Compliance with EU Directives
Hereby, CAE declares that this product is in compliance with the essential requirements and other relevant
provisions of Directives, 2014/35/EU, 2014/30/EU, and 2011/65/EU as applicable. The technical documenta-
tion as required by the Conformity Assessment procedure is kept at the address shown at the bottom of this
page.This equipment is intended to be used in all EU and EFTA countries.
MANUFACTURER‘S WARRANTY
This Manufacturer‘s Warranty („Warranty“) is granted to you by CAE Software und Systems GmbH („CAE“).
BY USING YOUR SOUNDCAM PURCHASED FROM CAE OR AN AUTHORIZED RETAILER, YOU AGREE TO THIS
WARRANTY. BEFORE USING IT, PLEASE READ THIS WARRANTY CAREFULLY. IF YOU DO NOT ACCEPT THIS
WARRANTY, DO NOT USE YOUR SOUNDCAM OR ACCESSORY. RETURN IT UNUSED TO YOUR RETAILER OR
CAE FOR A REFUND.
ThisWarranty is distinct from any statutory product warrantees owed by retailers and/or manufacturers under
any national law applicable to you. It is intended to grant You specific, and as the case may be, additional
rights, within the limits of what is permissible under such law, and not to restrict your rights under applicable
statutory product warrantee provisions. It cannot be transferred to any third party.
CAE warrants this product as free of defects in material, design and workmanship for the period of twelve
(12) months from the original date of receipt of product, unless applicable national laws stipulate otherwise.
If during the period of warranty this product proves defective under normal use and service you should return
the product to the retailer from whom it was originally purchased. The liability of CAE and its appointed
maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.
WARRANTY CONDITIONS:
1. The warranty is only valid with presentation of the proof of purchase consisting of original invoice or
sales slip confirmation, indicating the date of purchase, dealers name and model. CAE reserve the right to
refuse warranty service if this information has been removed or changed after the original purchase of the
product from the dealer.
2. CAE‘s obligations are to the repair of the defective part, and at its discretion replacement of the product.
3. Warranty repairs must be carried out by CAE. No reimbursement will be made for repairs carried out
by non-authorised service centres, and warranty cover will not be valid for any repairs or damage caused
by such repairs.
4. Repair or replacement under the terms of this warranty does not give right to extension to or a new starting
of the period of warranty. Repair or direct replacement under the terms of this warranty may be fulfilled with
functionally equivalent service exchange units.
5. The warranty is not applicable in cases other than defects in material, design and workmanship. The
warranty does not cover the following:
• Diminishment of consumable parts, such as battery, over time unless failure has occurred due to defects
in materials, design or workmanship.
• Periodic checks, maintenance, repair and replacement of parts due to normal wear and tear.
• Abuse or misuse, including but not solely limited to the failure to use this product for its normal purposes
or in accordance with CAE‘s instructions for usage and maintenance.
• The product has been used in conjunction with accessories not approved by CAE for use with this product.
• Failure of the product arising from incorrect installation or use not consistent with technical or safety
standards in current force, or failure to comply with product manual instructions.
• Accidents, Acts of God or any cause beyond the control of CAE caused by but not limited to lightning,
water, fire, public disturbances and improper ventilation. Un-authorised modifications carried out for the
product to comply with local or national technical standards in countries for which the CAE product was
not originally designed.
• Damage of the battery caused by overcharging or failure to use in accordance with the specific instructions
of care outlined in the product manual.
• Repairs performed by non-authorised service centres such as opening of the product by a non-authorised
person.
• The batteries are charged by other than CAE, approved battery chargers.
• Any of the seals on the battery enclosure or cells are broken or show evidence of tampering. - Exposure
to moisture, dampness or extreme thermal or environmental conditions or rapid changes in these conditions
- Spillage of food or liquid.
Disclaimer:
• CAE is not to be held responsible for ensuring for saving any stored data, for either in guarantee and out
of guarantee products.
6. This warranty does not affect the consumers statutory rights nor the consumers rights against the retailer
from their purchase/ sales agreement. This warranty will be the purchasers sole and exclusive remedy and
neither CAE nor its subsidiaries shall be liable for incidental or consequential damages for breach of any
express or implied warranty of this product.
7. If CAE repairs or replaces this product, the repaired or replaced product shall be warranted for the remai-
ning length of the original warranty period. Repaired or replaced products may include new and/or refurbis-
hed components and equipment.
COPYRIGHT
Information and views expressed in this document may change without notice. This document does not
provide you with any legal rights to any intellectual property in any CAE product. You may copy and use this
document for your internal, reference purposes.
© 2018 CAE Software und Systems GmbH, Linteler Straße 23, 33334 Gütersloh, Germany.
Tel.: [phone]; Internet: www.cae-systems.de/en
