Cafe C2Y366 User manual

36” and 48” Dual Fuel Professional Ranges
C2Y366, C2Y486
31-2000815 Rev. 0 11-20 GEA
Questions? Visit cafeappliances.com.
Installation Instructions
TM
Contents
Safety Information ..................................2
Design Information
Product Dimensions and Clearances................4
Installation Information
High Altitude Kit ................................7

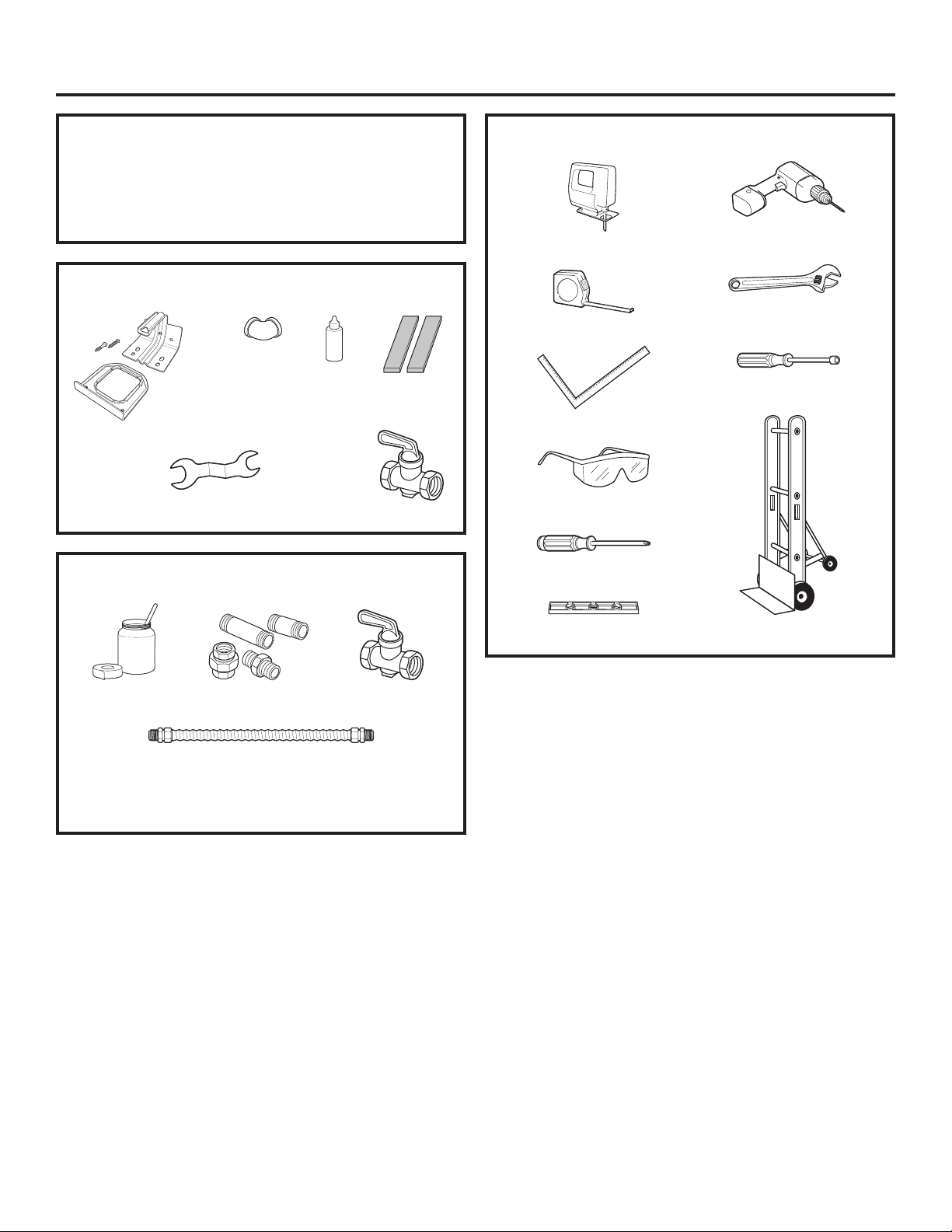

Materials Provided ..............................7
Materials Required (not provided) ..................7
Tools Required.................................7
Installation
Remove Packaging ............................8
Move the Range Indoors ........................9
Install Anti-Tip Device .........................10
Converting to Propane (LP) Gas or Converting
Back to Natural Gas From Propane (LP) .........11
Gas Supply..................................11
Electrical Connections .........................12
4-Wire Power Cord Installation ..................12
3-Wire Power Cord Installation ..................13
Roll Range into Position........................13
Level the Range..............................14
Replace Oven Door(s) .........................14
Check Burners ...............................15
Check Surface Burners ........................15
Finalize Installation............................15
When All Hookups Are Completed ...............15
Accessory Installation
Toekick.....................................16
UX12BS36PSS, UX12BS48PSS Accessory Installation
Optional Accessories—12” High Backsplash
Tools and Materials Required ...................17
Install 12” Backsplash .........................17
UXADBS36PSS, UXADBS48PSS Accessory Installation
Accessories—30” To 36” Adjustable Backsplash
Tools and Materials Required ...................18
Install the Wall Support Panels ..................19
Install Cover Panels ...........................19
English • Français • Español

231-2000815 Rev. 0
Safety Information
READ AND SAVE THESE INSTRUCTIONS
IN THE COMMONWEALTH OF MASSACHUSETTS
■This product must be installed by a licensed plumber
or gas fitter.
■ Whenusingballtypegasshut-offvalves,theyshall
be the T-handle type.
■ Aflexiblegasconnector,whenused,mustnotexceed
5 feet.
WARNING FIRE OR EXPLOSION HAZARD
Iftheinformationinthismanualisnotfollowedexactly,
afireorexplosionmayresultcausingpropertydamage,
personal injury or death.
Installation must be performed by a qualified installer.
Read these instructions completely and carefully.
Installationofthisrangemustconformwithlocalcodes,
orintheabsenceoflocalcodes,withtheNational
FuelGasCode,ANSIZ223.1/NFPA.54,latestedition.
InCanada,installationmustconformwiththecurrent
NaturalGasInstallationCode,CAN/CGA-B149.1or
thecurrentPropane(LP)InstallationCode,CAN/CGA-
B149.2,andwithlocalcodeswhereapplicable.This
range has been design-certified by CSA International
accordingtoANSIZ21.1,latesteditionandCanadian
GasAssociationaccordingtoCAN/CGA-1.1latestedition.
When installing a gas appliance the use of
oldflexibleconnectorscancausegasleaksand
personalinjury.AlwaysuseaNEWflexibleconnector.
Leak testing of the appliance shall be conducted
according to the manufacturer instructions.
The range must be electrically grounded in accordance
withlocalcodesor,intheabsenceoflocalcodes,in
accordancewiththeNationalElectricalCode(ANSI/
NFPA70,latestedition).InCanada,electricalgrounding
must be in accordance with the current CSA C22.1
CanadianElectricalCodePart1and/orlocalcodes.See
Electrical Connections in this section.
Do not install this product with an air curtain hood or
other range hood that operates by blowing air down on
the cooktop. This airflow may interfere with operation of
thegasburnersresultinginfireorexplosionhazard.
FOR YOUR SAFETY
If you did not receive an anti-tip bracket with your
purchase,contactusatcafeappliances.com to
receive one at no cost.
(InCanada,cafeappliances.ca.)
Forinstallationinstructionsofthebracket,visit:
cafeappliances.com.(InCanada,cafeappliances.ca.)
WARNING Beforebeginningtheinstallation,
switch power off at service panel and lock the service
disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting
meanscannotbelocked,securelyfastenaprominent
warningdevice,suchasatag,totheservicepanel.
Have a question or need assistance with your appliance? Try the Caféwebsite 24 hours a day, any day of the
year! You can also shop for more great Caféproducts and take advantage of all our on-line support services
designed for your convenience. In the US: cafeappliances.com. (In Canada, cafeappliances.ca.)

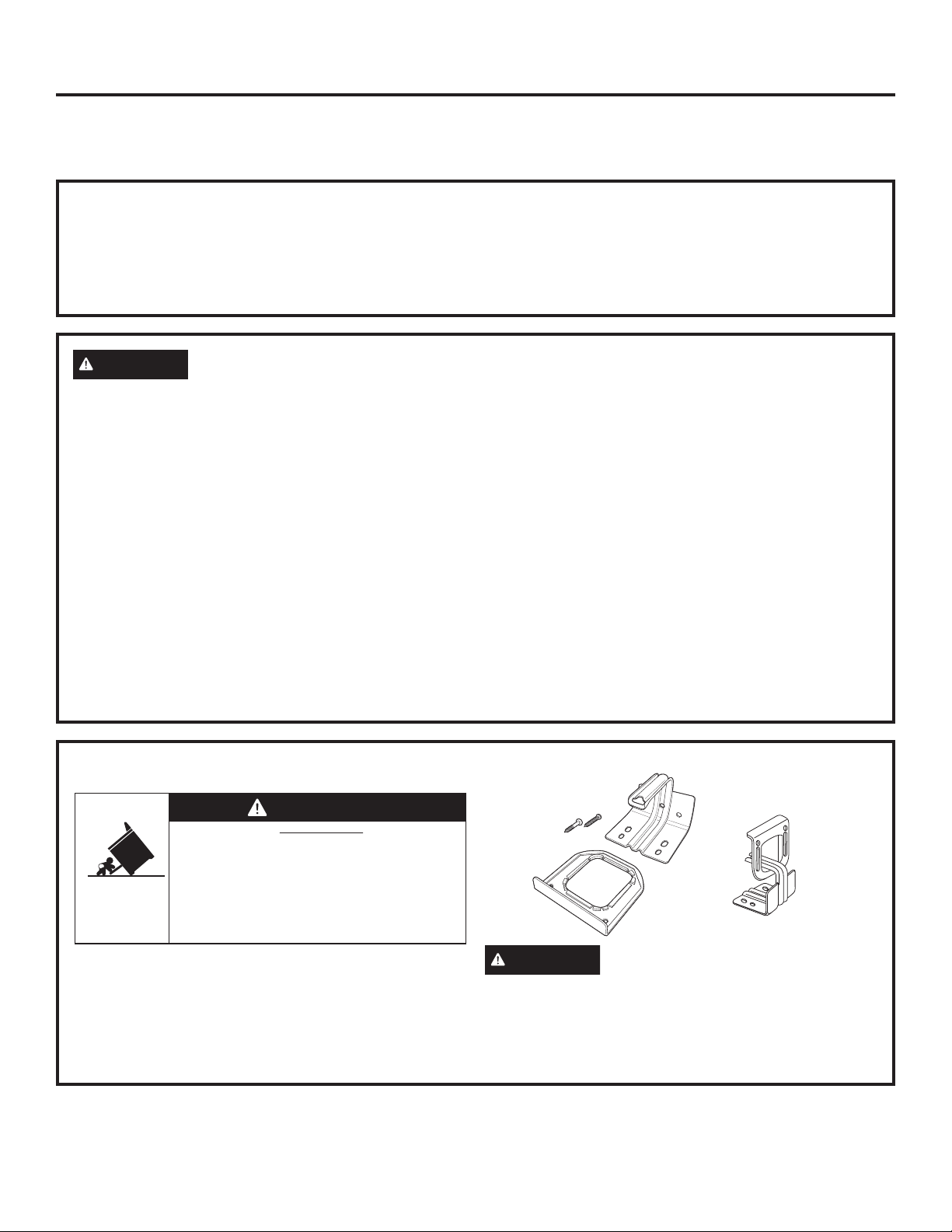

• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
Tip-Over Hazard
WARNING
Anti-Tip Bracket
Kit Included
Rear View

31-2000815 Rev. 0 3
Safety Information
READ AND SAVE THESE INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and carefully.
■IMPORTANT — Save these instructions
for local inspector’s use.
■IMPORTANT — Observe all governing
codes and ordinances.
■IMPORTANT — Remove all packing
material and literature from oven before connecting
gas and electrical supply to range.
■IMPORTANT — To avoid damage to
yourcabinets,checkwithyourbuilderorcabinet
supplier to make sure that the materials used will
notdiscolor,delaminateorsustainotherdamage.
This oven has been designed in accordance with
the requirements of UL and CSA International and
complieswiththemaximumallowablewoodcabinet
temperatures of 194°F (90°C).
■Note to Installer — Be sure to leave these
instructions with the consumer.
■Note to Consumer — Keep these instructions with
your Owner’s Manual for future reference.
■Servicer — The electrical diagram is in an envelope
attached to the back of the range.
■Proper installation is the responsibility of the
installer.
■Product failure due to improper installation is not
covered under warranty.
■Before installing your range on linoleum or any other
syntheticfloorcovering,makesurethefloorcovering
canwithstand180°Fwithoutshrinking,warpingor
discoloring. Do not install the range over carpeting
unlessasheetof1/4”thickplywoodorsimilar
insulator is placed between the range and carpeting.
■ForCaféPartsandAccessories,visitourwebsiteat
cafeappliances.com.
(InCanada, cafeappliances.ca.)
■Ifyoureceivedadamagedrange,youshould
contact your dealer.
VENT HOOD COMBINATIONS
A suitable overhead vent hood is required for models
with a grill and is recommended for all other models.
Duetothehighheatcapacityofthisunit,particular
attention should be paid to the hood and ductwork
installation to assure it meets local building codes.
Clearancestohorizontalsurfacesabovetherange,
measured to the cooking surface are below. Failure to
comply may result in fire hazard.
■Installations without a hood require 48” minimum to
combustibles.
■Acustomhoodinstallationwithexposedhorizontal
combustibles surfaces must have an Auto-On feature.
■Forotherinstallationswithahood,refertohood
installation instructions for specific hood clearances.
CAUTION These ranges weigh up to 700
pounds. Some disassembly will reduce the weight
considerably. Due to the weight and size of the range
and to reduce the risk of personal injury or damage to
theproduct:
TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION OF 36” AND 30” RANGES.
THREE PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION OF 48” RANGES.
Rating Label Location Rating Label Location
IF SOLD OUTSIDE THE U.S. AND
CANADA
WARNING If you wish to use this product with
Liquefied Petroleum (LP) gas containing greater than
10%butane,youmustpurchasetheHAPropane
conversionaccessorykit#CXBUPR01.Toorder,
please call 1.888.664.8403 or 1.787.276.4051. Failure
todosomayresultincarbonmonoxideorfirehazard.

431-2000815 Rev. 0
Design Information

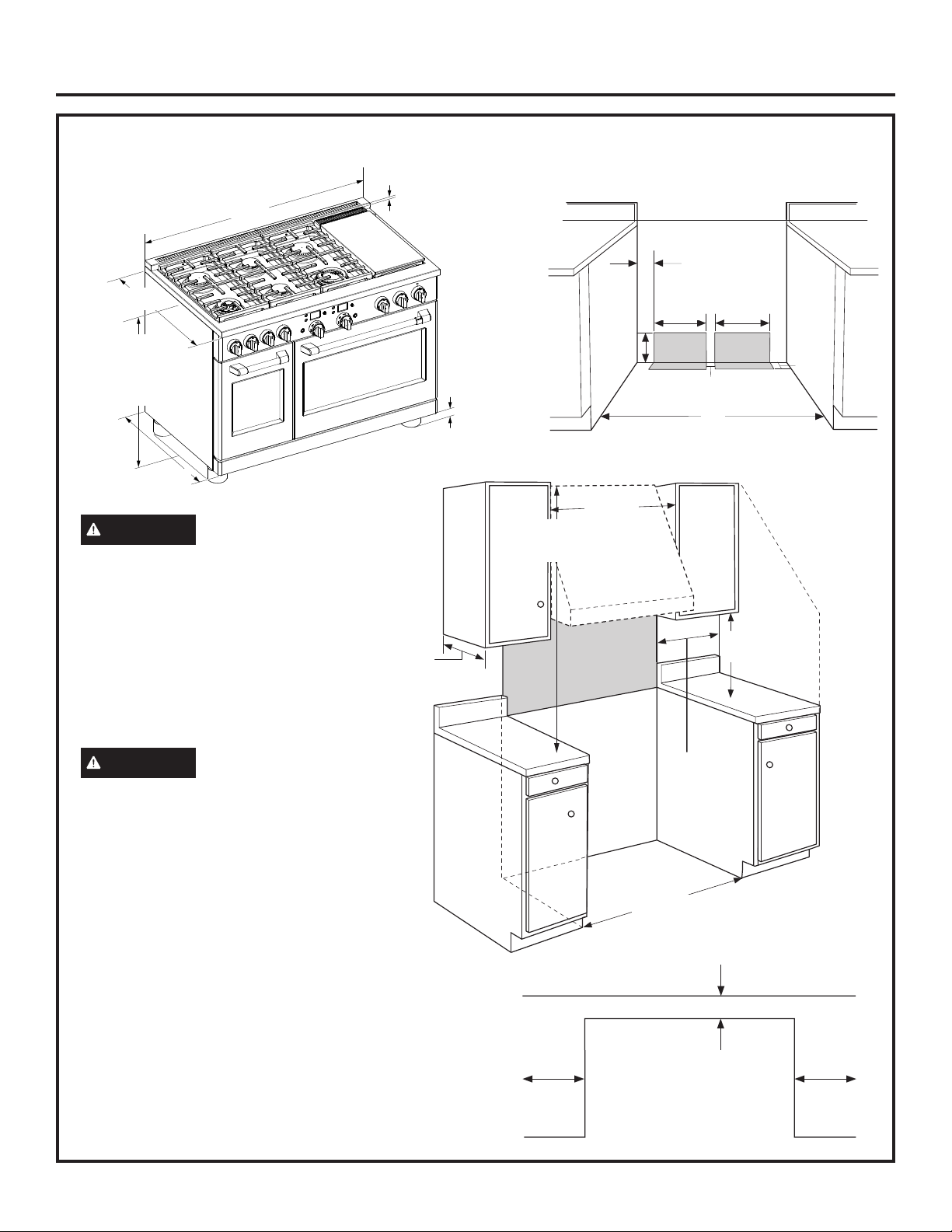

PRODUCT DIMENSIONS AND CLEARANCES
48” Range Models
16”
Max.
48” Min.
12” Minimum
to Adjacent Wall
Non-
Combustible
Material **
Universal Utility Locations
48”
Minimum to
Combustible
48”
Minimum
18”
Min.
3” Min. 3” Min.
Island
Cutout
Top View
2-1/2”Min.
WARNING
Installations without a
hood require 48” minimum to combustibles.
Acustomhoodinstallationwithexposed
horizontal combustible surfaces must have
an Auto-On feature. Refer to hood installation
instructions for specific hood clearances.
The surface of the entire back wall above
the range and below the hood must be
covered with a non-combustible material
suchasmetal,ceramictile,brick,marbleor
other stone.
CAUTION To prevent drafts from
affectingburneroperation,sealallopenings
in floor under appliance and behind
appliance wall.
** As defined in the National Fuel Gas Code (ANSI
Z223.1/CSAB149.1,CurrentEdition).Clearances
from non-combustible materials are not part of the
ANSIZ21.1/CSA1.1scopeandarenotcertifiedby
CSA. Clearances less than 12” must be approved by
localcodesand/ortheauthorityhavingjurisdiction.
ADDITIONAL CLEARANCES:
Allow 12” minimum clearance to an adjacent wall on
each side.
Working areas adjacent to the rangetop should have
18” minimum clearance between countertop and the
bottom of the wall cabinet.
Forislandinstallation,maintain2-1/2in.minimumfrom
cutout to back edge of countertop and 3 in. minimum
from cutout to side edges of countertop (see top view).
12”
Minimum
Each Side
Back
47-7/8”
Width
1” Countertop
to Cooking
Surface
35-1/4”to36-3/4”
Height to trim.
Trim to be flush
or higher than
countertop.
28-1/2”Depth
to Front of Door
293/8”Depthto
Front of Bullnose
Toekick/
leg Height
3-1/4”
to4-3/4”
48”
8”
14”
2”
16”
Gas/
Electric Electric
6-1/2”
2”

31-2000815 Rev. 0 5
Design Information
PRODUCT DIMENSIONS AND CLEARANCES
36” Range Models
16”
Max.
36” Min.
12” Minimum
to Adjacent Wall
Non-
Combustible
Material **
48” Minimum
to Combustibles
18”
Min.
3” Min. 3” Min.
Island
Cutout
Top View
2-1/2”Min.
WARNING
Installations without a
hood require 48” minimum to combustibles.
Acustomhoodinstallationwithexposed
horizontal combustible surfaces must have
an Auto-On feature. Refer to hood installation
instructions for specific hood clearances.
The surface of the entire back wall above
the range and below the hood must be
covered with a non-combustible material
suchasmetal,ceramictile,brick,marbleor
other stone.
CAUTION To prevent drafts from
affectingburneroperation,sealallopenings
in floor under appliance and behind
appliance wall.
** As defined in the National Fuel Gas Code (ANSI
Z223.1/CSAB149.1,CurrentEdition).Clearances
from non-combustible materials are not part of the
ANSIZ21.1/CSA1.1scopeandarenotcertifiedby
CSA. Clearances less than 12” must be approved by
localcodesand/ortheauthorityhavingjurisdiction.
ADDITIONAL CLEARANCES:
Allow 12” minimum clearance to an adjacent wall on
each side.
Working areas adjacent to the rangetop should have
18” minimum clearance between countertop and the
bottom of the wall cabinet.
Forislandinstallation,maintain2-1/2in.minimumfrom
cutout to back edge of countertop and 3 in. minimum
from cutout to side edges of countertop (see top view).
12”
Minimum
Each Side
Back
Universal Utility Locations
35-7/8”
Width
1” Countertop
to Cooking
Surface
35-1/4”to36-3/4”
Height to trim.
Trim to be flush
or higher than
countertop.
293/8”Depthto
Front of Bullnose
28-1/2”Depthto
Front of Door
Toekick/
leg Height
3-1/4”
to4-3/4”
36”
4-5/8”
13-3/8”
2”
11-3/8”
Gas/
Electric Electric
6-1/2”
2”
36”
Minimum

631-2000815 Rev. 0
Design Information
PRODUCT DIMENSIONS AND CLEARANCES
48” and 36” Range Models
12” Min. to combustibles or 0”
to a non-combustible material
above the cooking surface **
48-1/4”
With Oven Door Open
31-1/8”
To Front of Handle
35-1/4”
to
36-3/4”
30-36”
12”
(36” models
only)
13/16”
10-1/2”
29-3/8”
To Front Edge
28-1/2”
To Front of Door
Optional
Backsplash
Accessories
0” Clearance
to a back or
side wall below
the cooking
surface
7” Control Panel
Height
1”
**AsdefinedintheNationalFuelGasCode(ANSIZ223.1/CSAB149.1,CurrentEdition).Clearancesfrom
non-combustiblematerialsarenotpartoftheANSIZ21.1/CSA1.1scopeandarenotcertifiedbyCSA.
Clearanceslessthan12”mustbeapprovedbylocalcodesand/ortheauthorityhavingjurisdiction.
WARNING The 12” high stainless steel backsplash accessory must be
installed in combination with a custom non-combustible backsplash.
Thefinishedbacksplashmustcovertheentirebackwalluptothebottomofahood,
orwhenthereisnohood,48”tocombustibles.
(12” high stainless steel backsplash accessory is only available for the 36” model)

31-2000815 Rev. 0 7
Installation Information
TOOLS REQUIRED
MATERIALS REQUIRED (not provided)
INSTALLATION AT HIGH ALTITUDE
Over6000ft,productconfiguredfornaturalgasor
propane requires installation of kit (WB28X39728
for natural gas and WB28X39729 for propane gas).
Follow the instructions included with the kit.
MATERIALS PROVIDED
Oven Rack
Lubricant Runners
(to protect
flooring)
1/2”Pipe
Elbow
Anti-Tip
Bracket,Brace
and Screws
Leveling Leg
Wrench
Adjustable Wrench
1/4”DriverorWrench
Safety Glasses
Drill and
Appropriate Bits
Measuring Tape
Phillips #2 Screwdriver
Saber Saw
Carpenter’s Square
Level Hand Truck
Shut-Off Valve
Shut-Off Valve
Pipe Fittings
5-footmaximumlength,5/8”O.D.CSA-
approvedflexiblemetalgassupply
NOTE:Purchasenewflexibleline;donot
usepreviouslyusedflexiblegasline.
Pipe Thread
Sealant

831-2000815 Rev. 0
Installation
1REMOVE PACKAGING
CAUTION Stand clear. The ends of the cut metal
banding may snap toward you.
■Cutthemetalbanding.Liftthecartonstraightup.
■Locatethetworunnerstripsfromthetopofthe
packaging. These strips will be used to protect the
kitchen floor during installation.
■Removecornerposts.Disposeofpackagingmaterials.
■Removegrill/griddlecovers,grillgrateandburnergrates.
■Liftoutcast-irongriddlefluecover,greasetroughs
and pads.
■Cutthetiesholdingthegrillgratetothegrillframe.
■Liftoffburnercapsandremovefoampad,thenliftoff
burner heads and remove foam pad.
■Openovendoor(s)andremovepackaging.Remove
shelfholdingbroilerpan,tape,literaturepackage,shelf
lubricant and probe.
CAUTION Doors and passageways leading to the
installation location require at least 32” opening. If the
openingislessthan32”,theovendoor(s)andcontrol
knobs must be removed.
REMOVE THE OVEN DOOR(S) ONLY IF NECESSARY
to move the range through the doorways. To prevent
damagetothesidesoftherange,itwillbenecessaryto
pad the corners beneath the straps on the hand-truck.
To remove the oven door(s):
■Toremovetheovendoor(s):
■Fullyopenthedoor.
■Eachhingehasahingelock.Pullthehinge.
■Firmlygraspthedooratthetopsides.
■Closethedoortothenear-verticalposition.
■Liftthedoorupandpullstraightout.
Remove Foam Pads
Hinge
Lock
Griddle Flue Cover
Grease Troughs
Ties
Lock up and away from the front frame.

31-2000815 Rev. 0 9
Installation
2MOVE THE RANGE INDOORS
1. Tilt the range forward on the skid.
2. Lift the toekick out of the foam base.
3. Drive the blade of the hand-truck beneath the foam
block.
IMPORTANT: Do not remove the base foam block while
the hand-truck is in use. Place the hand-truck blade
underneath the base foam block and transport the range
to the final location.
4. Attach the hand-truck straps around the unit.
IMPORTANT: Place the hand-truck straps below the
ovendoorhandles.Toavoiddamagingthesidepanels,
place a pad between the hand-truck and the range.
5. Tilt the range to lower the hand-truck wheels off the
skid.
6. Place the appliance runners on the floor at the left
and right sides in front of the opening.
IMPORTANT: The runners provide a surface for
rolling the range into the final position and will protect
the floor finish. The runners must be removed before
leveling the range.
7. Move the range indoors. Position the range in front of
theinstallationlocation,ontotherunners.
Toekick
Toekick
Insert Blade Under
the Foam Block
You may need to remove
the front of the foam block
to fit through the doorway.
Hand-Truck
Straps Below
Oven Door
Handles
Range
Opening
Runners
for Rolling
the Range
into
Position

10 31-2000815 Rev. 0
Installation
3INSTALL ANTI-TIP DEVICE
Toreducetheriskoftippingtherange,therangemust
be secured by a properly installed anti-tip bracket. See
installation instructions shipped with the bracket for
complete details before attempting to install.
To check if the bracket is installed and engaged
properly,lookunderneaththerange.Theanti-tipbracket
should be inserted into the opening on the anti-tip brace
on the range. If the bracket arm misses the brace to the
leftorright,orthebracketarmisnotprotrudingthrough
thebraceopening,thebracketmustbereinstalled.
Iftherangeispulledfromthewallforanyreason,
always repeat this procedure to verify the range is
properly secured by the anti-tip bracket.
Ifyourrangehasnoanti-tipbracket,call1.800.626.8774
to receive one at no cost.
If the anti-tip device supplied with the range does not
fitthisapplication,usetheuniversalAnti-TipDevice
WB2X7909.
Read the AHAM Anti-Tip Safety Brochure packed with
the bracket.
Anti-Tip Parts Provided

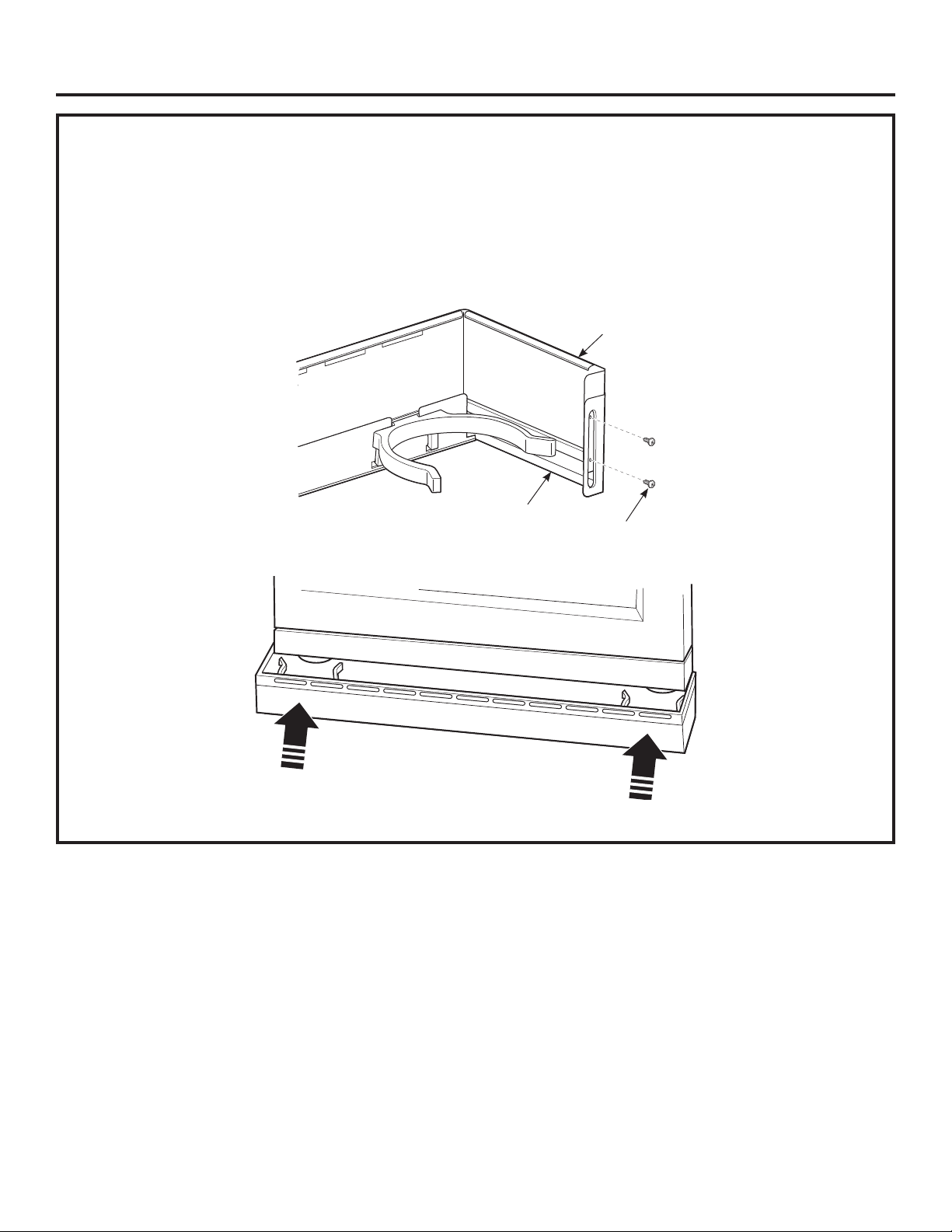

■Attachtheanti-tipbraceontothebottomoftherange
intherecessedarea.Install2hexscrews(provided)
through the brace and into the range.
NOTE: This anti-tip device may be installed on the
opposite side of the range.
■MeasureandmarkDimensionA(seetablebelow)
from the left (or right) side of the installation location.
Ifthecountertophasanoverhang,addthatdimension
to Dimension A.
■Placetheanti-tipbracketagainstthefloorandbackwall
at the marked location. Mark screw holes for fastening
the bracket to the wall sole plate and the floor.
■Drill1/8”pilotholesata20°angle.
■Securethebrackettothewalland/orfloorwithatleast
2 wood screws (provided).
For Concrete or Cement Construction: You must use
appropriate fastening hardware (not provided).
• A child or adult can tip the range and be killed.
• Install the anti-tip bracket to the wall or floor.
• Engage the range to the anti-tip bracket by sliding the
range back such that the foot is engaged.
• Re-engage the anti-tip bracket if the range is moved.
• Failure to do so can result in death or serious burns
to children or adults.
Tip-Over Hazard
WARNING
Anti-Tip Bracket
Anti-Tip Brace
4 Wood Screws
AHAM Anti-Tip
Safety Brochure
3HexHeadScrews(2
required,1extra)
Alternate Brace
Position
HexScrews
Anti-Tip Brace
Anti-Tip Bracket
A
Wall Sole Plate
Range A
30” 5-1/16”
36” 5-1/16”
48” 8-1/4”
