CAHABA JUNIPER CA101012 User manual

FOR WARRANTY ISSUES OR QUESTIONS, CONTACT CAHABA AT [phone].
©2018 CAHABA. ALL RIGHTS RESERVED. 1
PAGE 1
JUNIPER 60
INSTALLATION MANUAL
MANUEL D’INSTALLATION
MANUAL DE INSTALACIÓN
Measures: inch [millimeter]
Mesures: pouce [millimètre]
Medidas: pulgadas [milímetros]

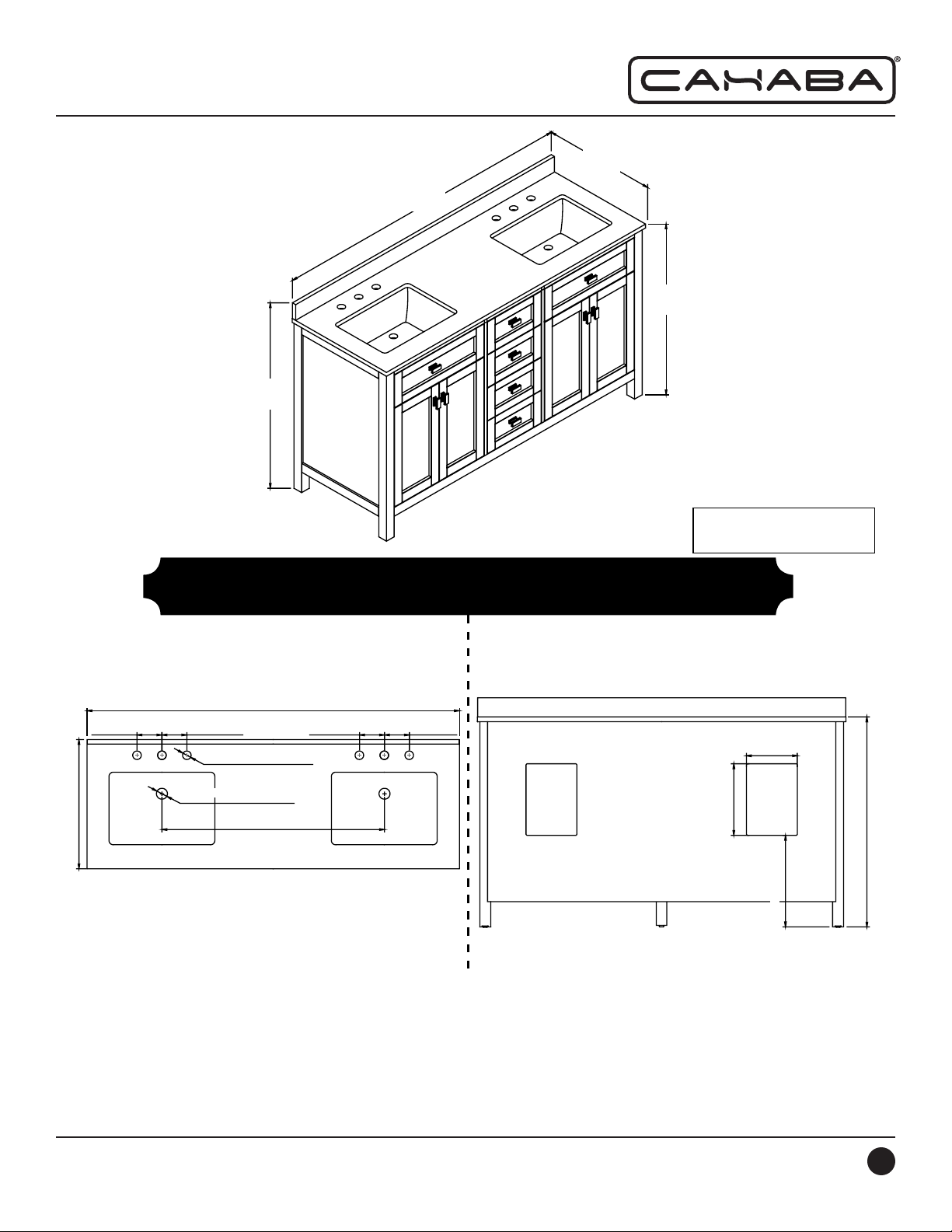

DIMENSIONS
DIMENSIONS
DIMENSIONES
60”
[1524]
34-1/2”
[876]
21”
[534]
60” [1524]
4” [102]
6-ø1-3/8” [6-ø35]
2-ø1-3/4” [2-ø45]
21” [534]
8-1/4” [210]
15” [381]
34-1/2” [876]
37-5/8”
[956]
4” [102] 4” [102] 4” [102]
35-7/8” [911]
11-3/4” [299]
Questions, problems, need help?
Call our customer service department at
866-837-2550, 9 a.m. - 5 p.m., EST, Monday - Friday
Questions, problèmes ou besoin d’aide?
Contactez notre service à la clientèle au
866-837-2550, du lundi au vendredi de 9h00 à 17h00 HNE.
Preguntas, problemas o necesita ayuda?
Llame a nuestro departamento de servicio al cliente al
866-837-2550, 9 am. – 5 pm., HDE, Lunes a Viernes.
http://cahabadesigns.com
JUNIPER 60” X 21” DOUBLE VANITY
CA101012 (White), CA101015 (Dove Gray)

FOR WARRANTY ISSUES OR QUESTIONS, CONTACT CAHABA AT [phone].
©2018 CAHABA. ALL RIGHTS RESERVED. 2
JUNIPER 60” X 21” DOUBLE VANITY
Parts
PAGE 2
PART LIST
LISTE DES PIÈCES
LISTA DE PIEZAS
PART #
# DE PIÈCE
PARTE #
DESCRIPTION DESCRIPTION DESCRIPCIÓN
QUANTITY
QUANTITÉ
CANTIDAD
A Countertop Comptoir Encimera 1
B Backsplash Dosseret Salpicadero 1
C Basin Lavabo Lavabo 2
D Tilt-down drawer Tiroir rabattable Cajón abatible 2
E Adjustable shelf Tablette ajustable Estante ajustable 1
F Door (left) Porte (gauche) Puerta (izquierda) 2
G Door (right) Porte (droite) Puerta (derecha) 2
H Drawer dividers set Séparateurs pour tiroir Divisores de cajón 2
I Drawer Tiroir Cajón 2
J Double depth drawer Tiroir double Cajón profundidad doble 1
K Pull-out tray Tablette coulissante Estante deslizante 1
L Power socket Source d’alimentation Fuente de alimentación 1
M Knob Poignée Manija 10
N Hinge Charnière Bisagra 12
O Drawer glides Coulisses Diapositiva 1
P Drawer glides Coulisses Diapositiva 3
QButtery hinge Charnière papillon Bisagra de mariposa 2
R Curling Iron Holder Support pour fer à friser Soporte para rizador 1
S Hair Dryer Holder Support pour sèche cheveux Soporte para secador de pelo 1
T Shelf holder Support pour tablette Soporte de estante 4
TOOLS REQUIRED (not supplied)
OUTILS REQUIS (non fournis)
HERRAMIENTAS NECESARIAS (no incluido)
BA
D
F
E
C
M
G
HI
J
N
O
Q
R
S
P
L
T
K

FOR WARRANTY ISSUES OR QUESTIONS, CONTACT CAHABA AT [phone].
©2018 CAHABA. ALL RIGHTS RESERVED. 3
JUNIPER 60” X 21” DOUBLE VANITY
Installation
PAGE 3
#1
INSTALLATION
INSTALLATION
INSTALACIÓN
A B
C D
24H!

FOR WARRANTY ISSUES OR QUESTIONS, CONTACT CAHABA AT [phone].
©2018 CAHABA. ALL RIGHTS RESERVED. 4
JUNIPER 60” X 21” DOUBLE VANITY
Installation
PAGE 4

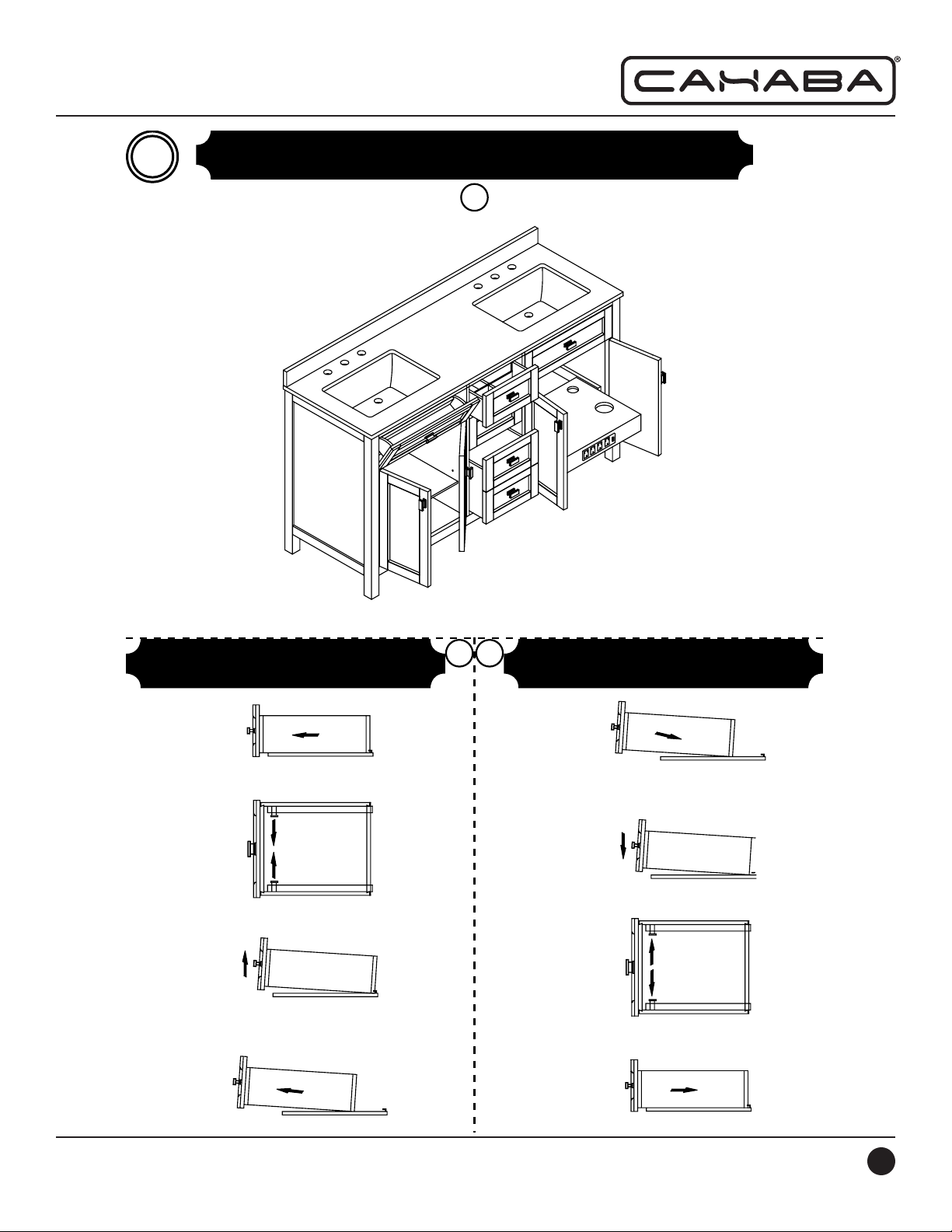

#1
DRAWER
TIROIR
GAVETA
A
B
C
REMOVE
RETIRER
RETIRAR
INSTALL
INSTALLER
INSTALAR
1
2
Pull-out tray
Tablette coulissante
Estante deslizante

FOR WARRANTY ISSUES OR QUESTIONS, CONTACT CAHABA AT [phone].
©2018 CAHABA. ALL RIGHTS RESERVED. 5
JUNIPER 60” X 21” DOUBLE VANITY
Installation
PAGE 5
1
2
4
#2
DRAWER
TIROIR
GAVETA
A
B C
REMOVE
RETIRER
RETIRAR
INSTALL
INSTALLER
INSTALAR
3
1
2
4
3
