CalderaSpas Utopia User manual

Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure the
safe, secure, and timely installation of your new spa. The following sections are guidelines on how to prepare for delivery
and set-up of your new spa. Specifically covered are site selection, delivery access, ground preparation, and electrical
requirements.
Remember to carefully read the Owner’s Manual that accompanies your spa and to complete the warranty card within ten
days of delivery. These items, along with other valuable information, included in the Owner’s Package which can be
located in the equipment compartment of your spa. You will also find your serial number, in the equipment compartment.
Watkins Manufacturing Corporation reserves the right to change features, specifications and design without notification
and without incurring any obligation.
DATE PURCHASED: ________________________________________________________________________
DATE INSTALLED: __________________________________________________________________________
DEALER: ____________________________________________________________________________________
ADDRESS: __________________________________________________________________________________
TELEPHONE: ______________________________________________________________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of exterior
surfaces (decks and spa enclosures). In addition, some communities have adopted residential barrier codes which may
require fencing and/or self-closing gates on the property to prevent unsupervised access to a pool (or spa) by children
under 5 years of age. Your Caldera®spa is equipped with a locking cover that meets the ASTM F1346-91 Standard for
Safety Covers and as a result, is usually exempt from most barrier requirements. As a general practice, your local Building
Department will inform you of any applicable barrier requirements at the time a permit is obtained for the installation of
an electrical circuit. Your Caldera dealer can provide information on which permits may be required.
2007 Utopia / Aquatic Melodies
®
/ Paradise
Pre-Delivery Instructions

Pre-Delivery Instructions
Page 2
SITE SELECTION AND PREPARATION
IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions and consult your
authorized Caldera®dealer if you have any questions.
You probably have a spot picked out for your new spa, whether it’s indoors or outdoors, on a patio or on a deck. Just make
sure you check the following:
• Always put your spa on a structurally sound, level surface. A filled spa can weigh a great deal. Make certain that
the location you choose can support the weight of your filled spa.
• Locate your equipment compartment, which houses all of the electrical components, in a place where water will
drain away from it. Allowing water into the equipment compartment can damage the electronics, or may result in
tripping your house’s circuit breaker.
• Leave yourself easy access to the circuit breakers in the subpanel.
• Never let water get into the subpanel. Your 230 volt spa’s subpanel is raintight when installed correctly with the
door closed.
• Leave access to the entire front of the spa (the removable panel provides access to the spa’s equipment) for
periodic spa care and maintenance.
• Note that on the Utopia and Aquatic Melodies®Series spas, the SpaGlo®exterior lighting fixtures are located on
only three sides, the side opposite the main control panel has no lighting.
INDOOR/BASEMENT INSTALLATION
Be aware of some special requirements if you place your spa indoors. Water will accumulate around the spa, so flooring
materials must provide a good grip when wet. Proper drainage is essential to prevent a build-up of water around the spa.
When building a new room for the spa, it is recommended that a floor drain be installed. The humidity will naturally
increase with the spa installed. Water may get into woodwork and produce dry rot, mildew, or other problems. Check for
airborne moisture’s effects on exposed wood, paper, etc. in the room. To minimize these effects, it is best to provide
plenty of ventilation to the spa area. An architect can help to determine if more ventilation must be installed.
Your Caldera dealer can help you with local information such as zoning regulations and building codes.
DECK INSTALLATION
To be certain your deck can support your spa, you must know the deck’s maximum load capacity. Consult a qualified
building contractor or structural engineer before you place the spa on an elevated deck or indoors. To find the weight of your
spa, its contents and occupants, refer to the Spa Specification chart (on back cover). This weight per square foot must not
exceed the structure’s rated capacity, or serious structural damage could result.
OUTDOOR AND PATIO INSTALLATION
No matter where you install your new spa, it’s important that you have a solid foundation to support it. Structural damage
to the spa resulting from incorrect installation or placement on an inadequate foundation is not covered under the spa’s
limited warranty. (See next page for specifics)

Page 3
GROUND AND SPA LEVELING
PREPARATION
Your Caldera spa has been engineered to perform on several types of
common yard surfaces. While a concrete slab is best for long-term
use*, other foundations are acceptable so long as a level base is

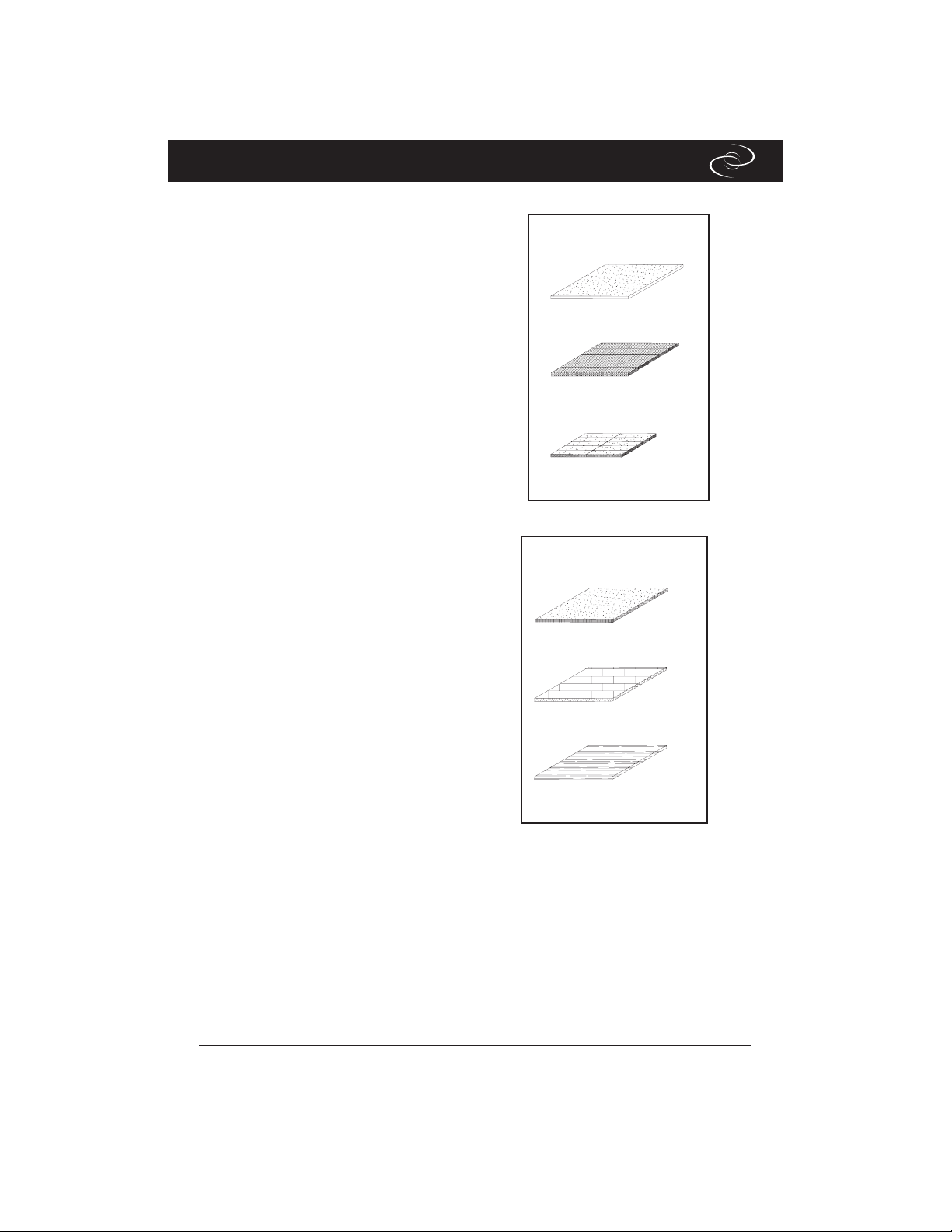

prepared prior to delivery. Three foundation base pictures, shown at
right, represent examples of alternatives to a concrete slab for spas
installed without gazebos or other accessories.
*NOTE: A reinforced concrete pad at least four inches thick or
structurally sound deck able to support the “dead weight” found in
the spa specification chart is required for the Geneva™, Niagara®,
Elation®and Moorea™spas, and recommended for the Aspire®,
Tahitian®, Hawaiian, Martinique®and Kauai®spas. The reinforcing
rod or mesh in the pad should be attached to a bond wire.
INSTALLATION NOTES:
• Concrete sloped at 1/2 inch per 10 feet is preferred so that rain
water and water spillover will run off and not puddle
underneath the spa (water under the spa for long periods of
time may cause the wood to deteriorate).
• If stepping stones or railroad ties are selected for the spa
foundation, they should be placed and leveled below the entire
spa to maintain even distribution of the spa weight.
• It is important to note that soft surfaces, even when stepping
stones are used to distribute the weight of the spa as evenly as
possible, will still have a tendency to settle unevenly, resulting
in an unlevel spa.
• Remember, placing the spa on grass or dirt may increase the
amount of debris which is inadvertently brought into the spa
water on the user’s feet.
If you are purchasing a deck package or a spa enclosure with your
spa, a solid foundation becomes mandatory. Placing them on any
surface other than a single level pad could create problems with their
installation. Pictured at right are a few of the recommended surfaces.
As a homeowner, it is your responsibility to provide a suitable, level
foundation for your spa. Keep in mind that most delivery crews are
not equipped to level and prepare spa sites.
If you are interested in having a concrete slab, brick surface, or wood deck installed, your Caldera dealer should be able to
suggest a qualified, licensed contractor.√
DELIVERY ACCESS
First, locate the dimensions of your spa on the chart that is found on the next page. The dimensions shown are the
measurements of the spa in the vertical position, laid on its side.
Next, contact your dealer to find the height and width added by the delivery cart which the dealer will use to deliver your
new spa. Use the height of the cart plus the dimension shown as H to determine the vertical clearance required to pass the
spa and cart. Use the width of the cart, or dimension W, whichever is greater, to determine the maximum width of
clearance necessary.
CONCRETE PADS
BRICK SURFACES
WOOD DECKING
FOUNDATIONS FOR SPAS
WITH GAZEBOS
RAILROAD TIES
PRE-CAST
STEPPING STONES
PEA GRAVEL
OR CRUSHED ROCK
FOUNDATIONS FOR SPAS ONLY
(No gazebo)

Pre-Delivery Instructions
Page 4
NOTE: It may be necessary to allow for additional over-head clearance if the spa will be rolled up or down an incline or
moved up or down a short flight of stairs.
Use the information in the picture below to determine the requirements for access to your desired location. It may be
necessary to remove a gate, part of a fence, or other movable obstructions in
order to roll the spa to its installation site. About ten percent of the time, a
crane is the only way to install the spa by lifting it to its final destination.
If the spa has to be taken off of the cart to go over a wall (either because the
entry area is too narrow, the eaves are too low, the corner is too tight, or the
stairway is too steep), a crane will be required. Don’t be alarmed!
The crane has a truck-mounted boom which can fit right in your driveway. It
is run by a licensed and insured operator. For a charge, the crane operator
will lift your spa over walls, buildings, or any other obstruction and place it as
close to the installation site as possible. The Caldera®spa delivery personnel
will supervise the crane delivery and complete the spa installation. Crane
delivery typically takes an average of 30 minutes to complete.
NOTE: If your spa delivery requires the use of a crane, you may be required
to pay for its services at the completion of the delivery.
Model Width W Length L Height H
Geneva™38” 7’ 5” 7’ 5”
Niagara®38” 7’ 5” 7’ 5”
Tahitian®36” 7’ 0” 7’ 0”
Elation®38” 7’ 7” 7’ 7”
Aspire®36” 7’ 0” 7’ 0”
Moorea™36” 7’ 7” 7’ 0”
Hawaiian 36” 7’ 0” 7’ 0”
Martinique®34” 7’ 5” 6’ 4”
Kauai®29” 7’ 0” 5’ 5”
How is your width and height clearance?
Protruding electric meters
A/C units
Do you have sufficient
overhead clearance?
Check low roof eaves,
overhanging branches,
rain gutters
Is the path clear?
Move away branches, dog
houses, firewood, etc.
If there is a 90 turn, can we
clear it? (The spa will not bend)
No more than 6 consecutive
stairs without a landing
Gas meters
Check all gates
HOUSE
BACK YARD
STREET

Page 5
NOTE: Watkins Manufacturing Corporation requires that the Geneva and Niagara be installed on a minimum 4” thick
reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The Geneva and Niagara must not be shimmed in any manner.

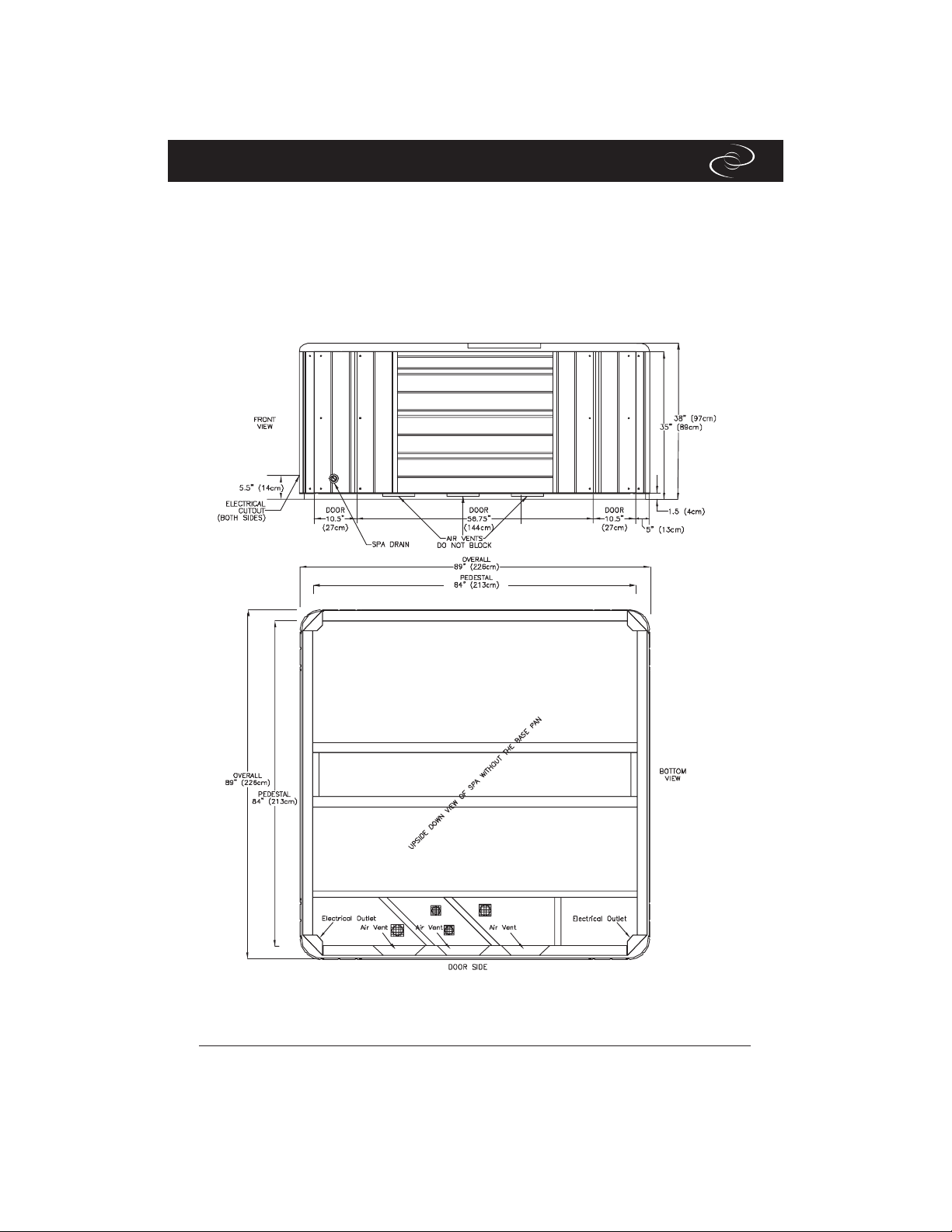

Geneva™and Niagara
®
Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.

Pre-Delivery Instructions
Page 6

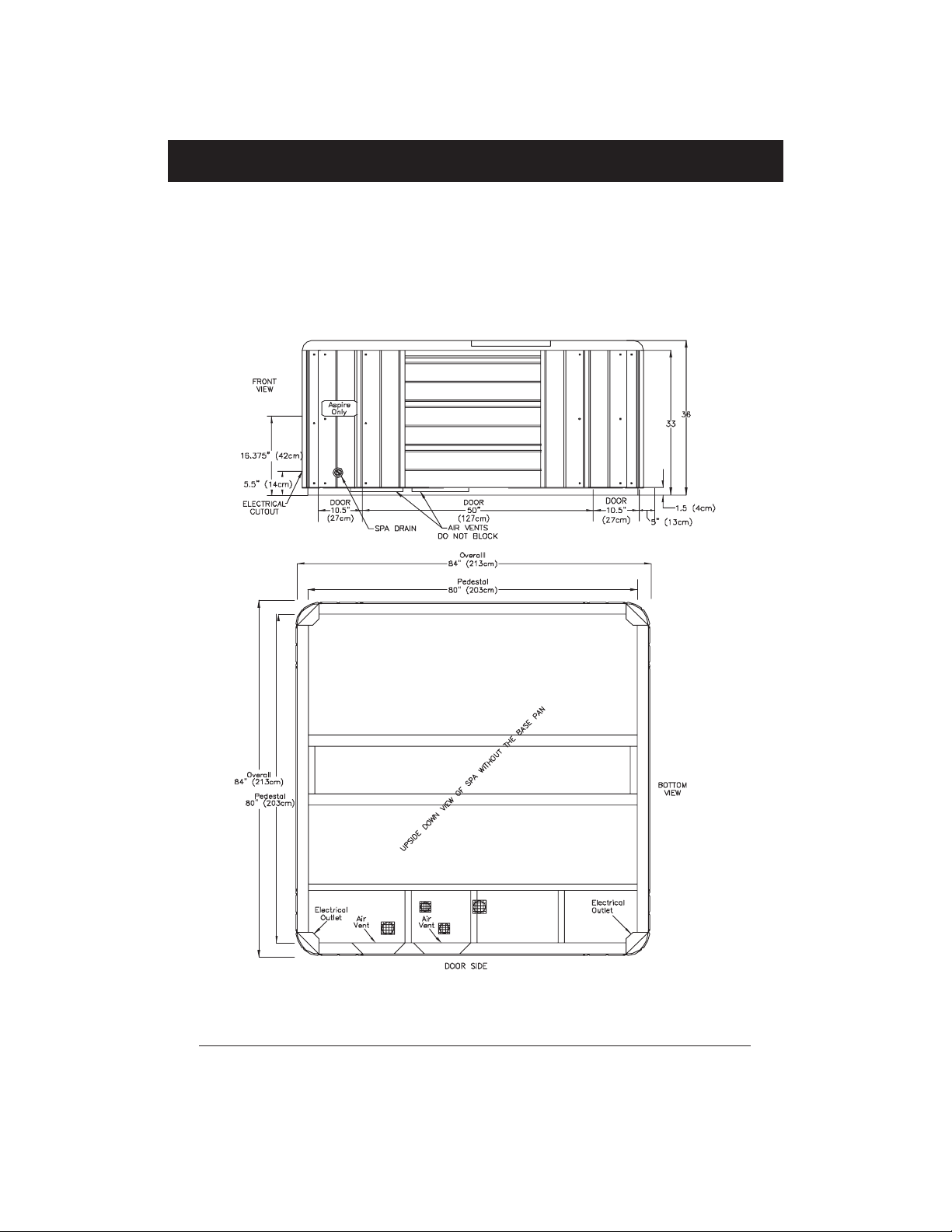

Tahitian
®
, Aspire
®
and Hawaiian
(Aspire is an Aquatic Melodies
®
model only) Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation recommends that the Tahitian, Aspire, and Hawaiian be installed on a
minimum 4” thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa
specification chart.
WARNING: The Tahitian , Aspire and Hawaiian must not be shimmed in any manner.

Page 7
NOTE: Watkins Manufacturing Corporation requires that the Elation be installed on a minimum 4” thick reinforced
concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The Elation must not be shimmed in any manner.

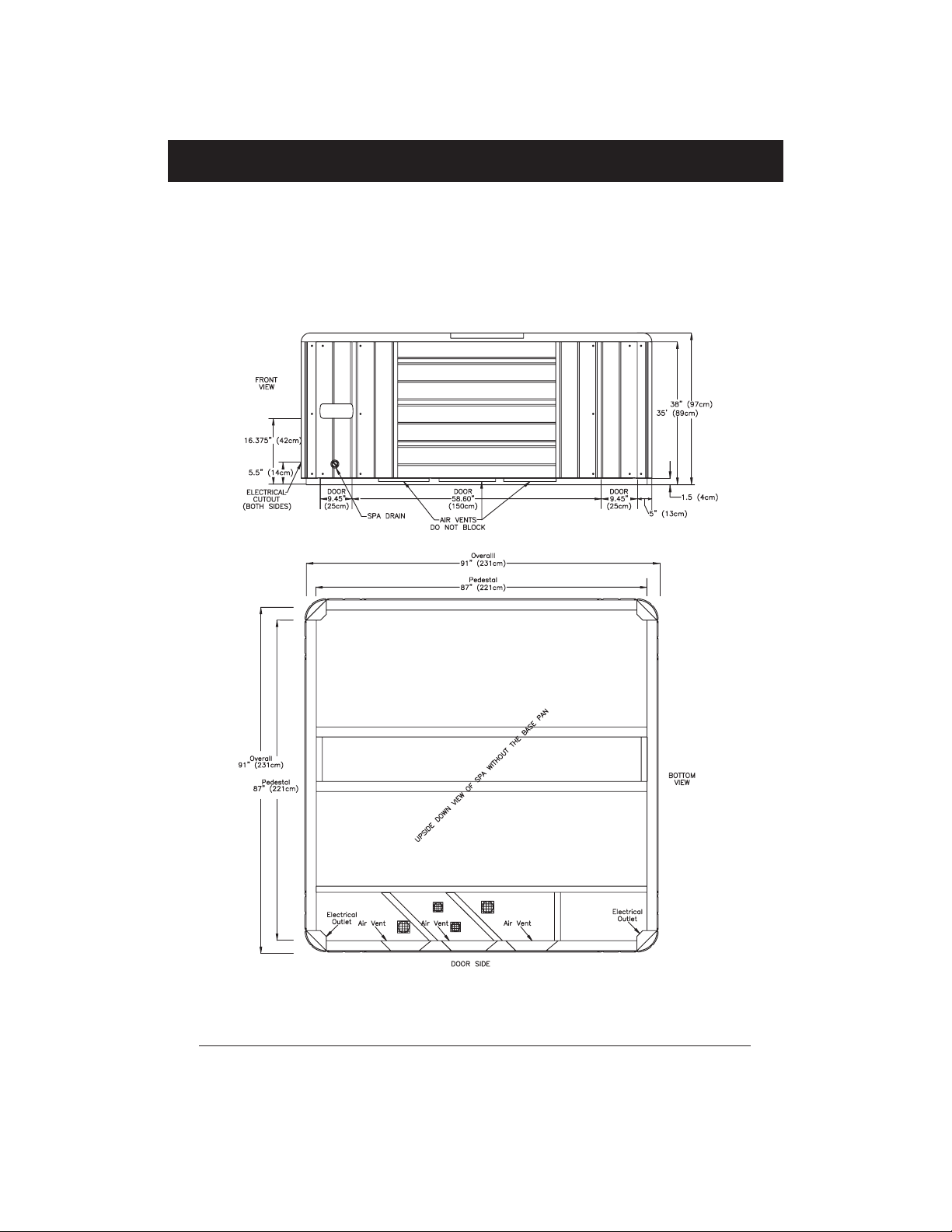

Elation
®
(Aquatic Melodies
®
model only) Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.

Pre-Delivery Instructions
Page 8
Moorea
TM
(Paradise model only) Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation requires that the Moorea be installed on a minimum 4” thick reinforced
concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The Moorea must not be shimmed in any manner.

Page 9

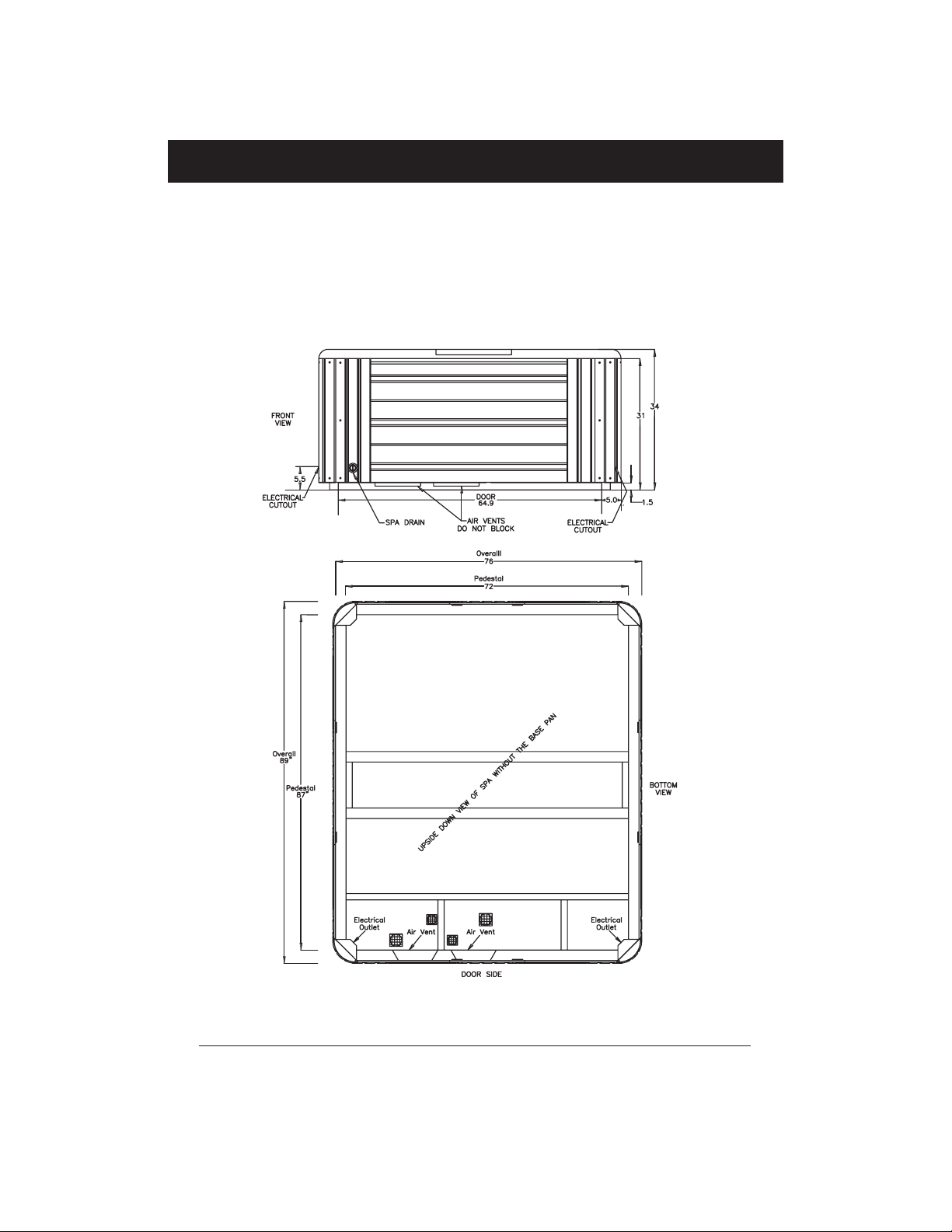

Martinique
®
(Paradise model only) Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation recommends that the Martinique be installed on a minimum 4” thick
reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The Martinique must not be shimmed in any manner.

Pre-Delivery Instructions
Page 10
NOTE: Watkins Manufacturing Corporation recommends that the Kauai be installed on a minimum 4” thick reinforced
concrete pad or structurally sound deck able to support the “dead weight” found in the spa specification chart.
WARNING: The Kauai must not be shimmed in any manner.
Kauai
®
(Paradise model only) Dimensions
NOTE: All dimensions are approximate; measure your spa before making
critical design or pathway decisions.

Page 11
ELECTRICAL REQUIREMENTS
To ensure you will have an opportunity to use your spa soon after delivery, it is very important that the required electrical
service has been installed. Unless otherwise stipulated by your dealer, THIS IS YOUR RESPONSIBILITY.
IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.

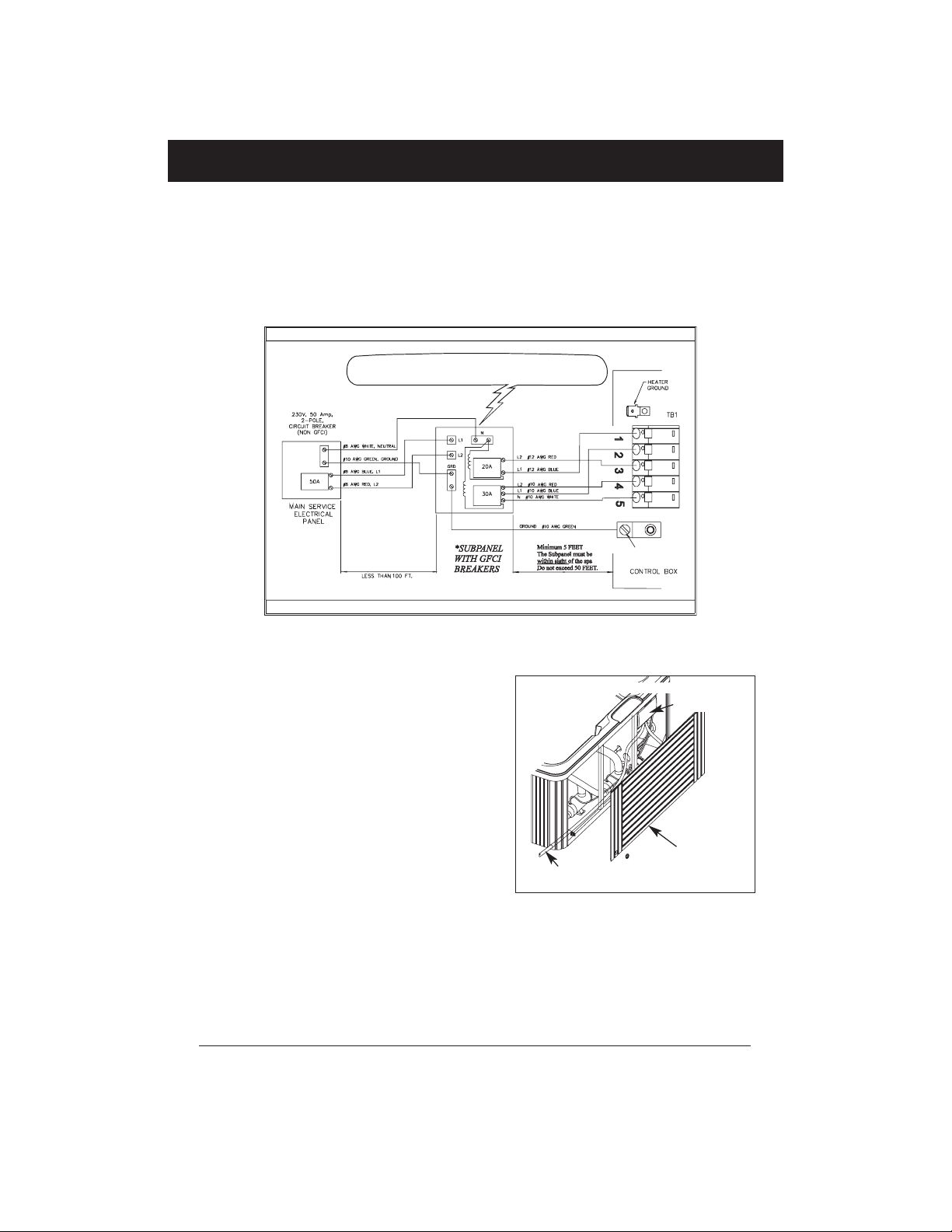

230 VOLT INSTALLATION
Your spa contains a control box designed to operate at 230V, 60Hz. Installation of a 50 amp. dedicated circuit is
recommended. The control box must be hard wired directly to a
subpanel protected by a Ground Fault Circuit Interrupter (GFCI).
The subpanel containing GFCI breakers is included with the spa.
IMPORTANT NOTE: All electrical connections to the control box
must be accomplished by a qualified electrician in accordance with
the National Electrical Code and in accordance with any local
electrical codes in effect at the time and place of installation.
All electrical connections must be made in accordance with the
wiring information contained in this manual and on the back of the
field wiring access panel of the control box. A licensed electrician
should install a four-wire electrical service (two line voltages, one
neutral, one ground) from the main electrical service panel to the
subpanel. The equipment pack requires a MINIMUM of 112 volts
per line under load.
The grounding conductor must be at least #10 AWG. Your electrician should mount the subpanel in the vicinity of the spa
but it should not be closer than five (5) feet from the spa water edge (NEC 680-38 to 41-A-3).
INSTALLATION NOTE: After the spa has been installed, your electrician can connect the conduit from the subpanel to
the spa’s control box and then complete the wiring connections in the control box.
NOTE: Complete step-by-step Installation and Wiring Instructions for all models are included in the Owner’s Manual
and with each sub-panel, which can be obtained from your dealer.
WARNING: Removing or bypassing the GFCI breakers in the subpanel at any time will result in an unsafe spa and will
void the warranty.
System Ground Terminal
GRD
WARNING!
THE EXACT PHYSICAL LOCATION OF THE TERMINALSON THE GFCI BREAKER
WILL VARY BETWEEN MANUFACTURERS. CONNECTING THE HOT WIRE TO THE
NEUTRAL TERMINAL WILL CAUSE IRREVERSIBLE DAMAGE TO THE CONTROL BOX.
** Refer to NEC 250-122 (table)
*PROVIDED WITH SPA. NOTE: ALL WIRING SHOULD BE COPPER.
230 Volt Permanently Connected
** Refer to NEC 250-122 (table)
NOTE: The wire connections to GFCI breakers are for reference only. Always ensure the white neutral wire is connected to the load neutral of the 30 amp breaker.
**
**
POWER CONNECTION ACCESS
230V WIRING ACCESS
OPENINGS ON RIGHT& LEFT HAND SIDE
DOOR
CONTROL BOX

Pre-Delivery Instructions
Page 12
POWER CONNECTION
To connect power to the spa, refer to “230 VOLT WIRING SCHEMATIC DIAGRAM” and “POWER
CONNECTION ACCESS” illustrations on page 11 , then proceed with the following steps:
When supplying power, remove the screws securing the equipment door (for Utopia and Aquatic Melodies®spas, always
remove the SpaGlo®exterior light fixtures and lift the fiber optic cable out of the fixture base before removing the doors).
Lower the panel one inch and remove the panel to allow access to the input power wiring.
NOTE: The 230V wiring diagram is located on the inside of the Control Box Cover.
IMPORTANT: The following must be followed to properly install the equipment compartment door.
• Place top of door or panel directly below bartop against the frame of the spa. For Utopia and Aquatic Melodies spas, first
lift the fiber optic cable out of the way.
• Push bottom of door or panel against the spa frame.
• Slide door or panel upward (pushing in on center of door to ensure door clips catch) until screw holes line up, making
sure that the exterior fiber optic light cable will fit into the fixture.
• Slightly pull on door or panel, if door remains against the spa then replace the screws.
• If the door does not lock into position, repeat the previous steps.
SERVICES AVAILABLE FROM YOUR CALDERA
®
SPA DEALER
Service Cost
Pre-Delivery site inspection ______________
Deliver spa to installation site ______________
Unwrap spa and haul away packaging material ______________
Set up spa ______________
Fill the spa with water ______________
Explain and test the spa’s operation
Lighting
• Sound system (Aquatic Melodies®spas only) • Set temperature control
• Control panel functions • Auxiliary panel functions (Utopia and Aquatic Melodies® spas only)
Explain the safety features
• GFCI • Heater high limit
General spa operation & maintenance orientation ______________
Water quality and maintenance orientation ______________
Adjust the water’s pH, Total Alkalinity and Calcium Hardness ______________
Sanitize the water ______________
Inspect the spa cover, place on spa, and install cover locks ______________
Review winterizing instructions ______________
Review Owner’s Manual & Warranty Card ______________
Follow-up call ______________
In-store spa water analysis ______________
TOTAL COST ______________

Page 13
ADDITIONAL PRODUCTS AVAILABLE FROM YOU CALDERA®
DEALER
• Monarch® CD Ozone Generator
• Monarch Silver Ion Purifier Cartridge
• Monarch MPS non-chlorine oxidizer
• Monarch MPS test strips
• Retractable cover system with clearance requirements
• ProLift®- 14” Clearance Required
• ProLift II - 24” Clearance Required
• Vinyl covers
• Spa upgrade jet kits
• Replacement Filter Cartridges
• Pillows

Pre-Delivery Instructions
Page 14
NOTES:

Page 15
NOTES:

WATKINS MANUFACTURING CORPORATION
1280 Park Center Drive
Vista, California 92081
[phone] extension 8432
© 2005 Watkins Manufacturing Corporation. Caldera, Geneva, Niagara, Tahitian, Hawaiian, Elation, Aquatic Melodies, Aspire,
Moorea, Martinique, Kauai, SpaGlo, Monarch, ProLift and The Home Relaxation Specialists are trademarks of Watkins
Manufacturing Corporation.
Part #62488 Rev. B (12-06)
7'5"x
6'4"
(226cm
x193cm)
Martinique®
34"
(86cm)
75
sq ft
(7 sq m)
320
gallons
(1,211 l)
710
lbs.
(322 kg)
4,420
lbs.
(2,005
kg)
100
lbs./sq ft
(490
kg/m )
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
7'0"x
5'5"
(213 cm
x 165cm)
Kauai
®29"
(74 cm)
50
sq ft
(5 sq m)
200
gallons
(757 l)
610
lbs.
(277 kg)
2,795
lbs.
(1,268
kg)
95
lbs./sq ft
(465
kg/m )
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
7'0"x
7'0"
(213cm x
213cm
Niagara®
7'5"x
7'5"
(226cm x
226cm)
38"
(97cm)
100
sq ft
(10 sq m)
500
gallons
(1,893 l)
920
lbs.
(417kg)
6,300
lbs.
(2,858 kg
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
7'5"x
7'5"
(226cm x
226cm)
GenevaTM
38"
(97cm)
100
sq ft
(10 sq m)
4,300 475
gallons
(1,798 l)
920
lbs.
(417 kg)
5,915
lbs.
(2,683
kg)
115
lbs/sq ft
(560
kg/m )
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
Tahitian®
36"
(91cm)
360
gallons
(1,363 l)
790
lbs.
(358 kg)
4,825
lbs
(2,189
105
lbs/ sq ft
(515
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
7'0"x
7'0"
(213cm x
213cm
AspireTM
36"
(91cm)
100
sq ft
(10 sq m)
380
gallons
(1,438 l)
800
lbs.
(363 kg)
5,180
lbs.
(2,350
kg)
105
lbs./sq ft
(540
kg/m )
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
Footprint
dimensions
Height
Effective
filterarea
Heater
(Watts)
Water
capacity
Dryweight
Filledweight*
Deadweight*
Electrical
Requirements
7'7"x
7'7"
(231cmx
231cm)
Elation®
38"
(97cm)
100
sq ft
(10 sq m)
500
gallons
(1,893 l)
930
lbs.
(422 kg)
6,135
lbs.
(2,783
kg)
115
lbs/sq ft
(560
kg/m )
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
7'0"x
7'0"
(213cm x
213 cm
Hawaiian
36"
(91cm)
75
sq ft
(7 sq m)
380
gallons
(1,438 l)
800
lbs.
(363 kg)
5,180
lbs.
(2,350
kg)
105
lbs./sqft
(540
kg/m )
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
Uto - 100
sq ft
(10 sq m)
115
lbs/sq ft
(560
kg/m )
2
2
2
2
2
2
2
2
4,300
4,300
4,300
4,300
4,300
4,300
4,300
4,300
50
sq ft
(5 sq m)
230 volt, 30 or 50
amp Single phase
GFCI
protected circuit
Moorea™
36"
(91cm)
420
Gallons
(1590 l)
870
Lbs.
(395 kg)
5,490
Lbs.
(2490 kg)
115
lbs/sq ft
591
kg/m )
7'0"x
7'7"
(213cmx
231cm) 2
UTOPIA / AQUATIC MELODIES
®
/ PARADISE SPECIFICATIONS
CAUTION: Watkins Manufacturing Corporation suggests a structural engineer or contractor
be consulted before the spa is placed on an elevated deck.
* NOTE: The “Filled weight” and “Dead weight” of the spa includes the weight of the
occupants (assuming an average occupant weight of 175 lbs).
Pre-Delivery Instructions
