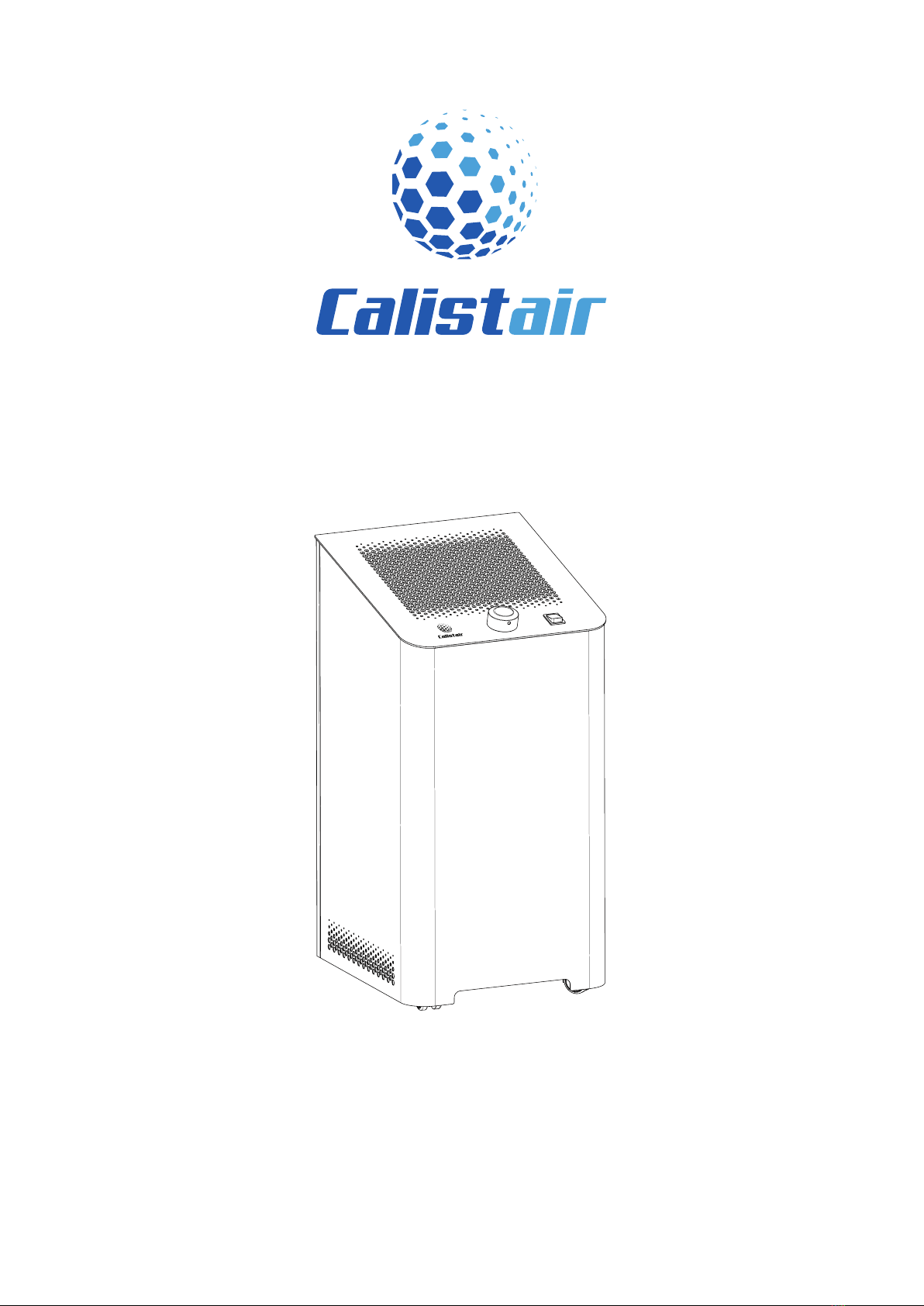

Calistair C300 Quick guide

CALISTAIR C300
TRANSLATION OF THE ORIGINAL
OPERATING INSTRUCTIONS
Year of construction 2020
Made in Europe
Ver. 18/12/2020
Decontamination plant
Read carefully before use

Ver. 18/12/2020 | Calistair C300 III
Table of contents
1. ABOUT THESE INSTRUCTIONS
1.1 Purpose and target group 5
1.2 Guarantee, warranty and liability 5
1.2.1 Guarantee 5
1.2.2 Liability 7
1.3 Validity of the instructions 7
1.4 Copyright 7
1.5 Other applicable documents 7
1.6 Representation conventions 8
1.6.1 Text markings 8
1.6.2 Representation of warnings 9
1.6.3 Symbols used 10
1.7 EC Declaration of Conformity 11
1.8 Manufacturer data 11
2. SAFETY
2.1 Personalqualication 12
2.2 Personal protective equipment 12
2.3 Safety components 12
2.4 Dangers 13
2.4.1 General dangers 13
2.4.2 Dangers during assembly, commissioning and operation 14
2.4.3 Dangers during maintenance, repair and cleaning 14
 2.4.4 Dangersduringnaldecommissioninganddisposal 15
2.5 Immediate action in case of accidents 15
3. DEVICE OVERVIEW
3.1 Device description 16
3.2 Intended use 17
3.3 Reasonably foreseeable misuse 18
3.4 Nameplate 18
3.5 Scope of delivery 19
3.6 Technical data 19

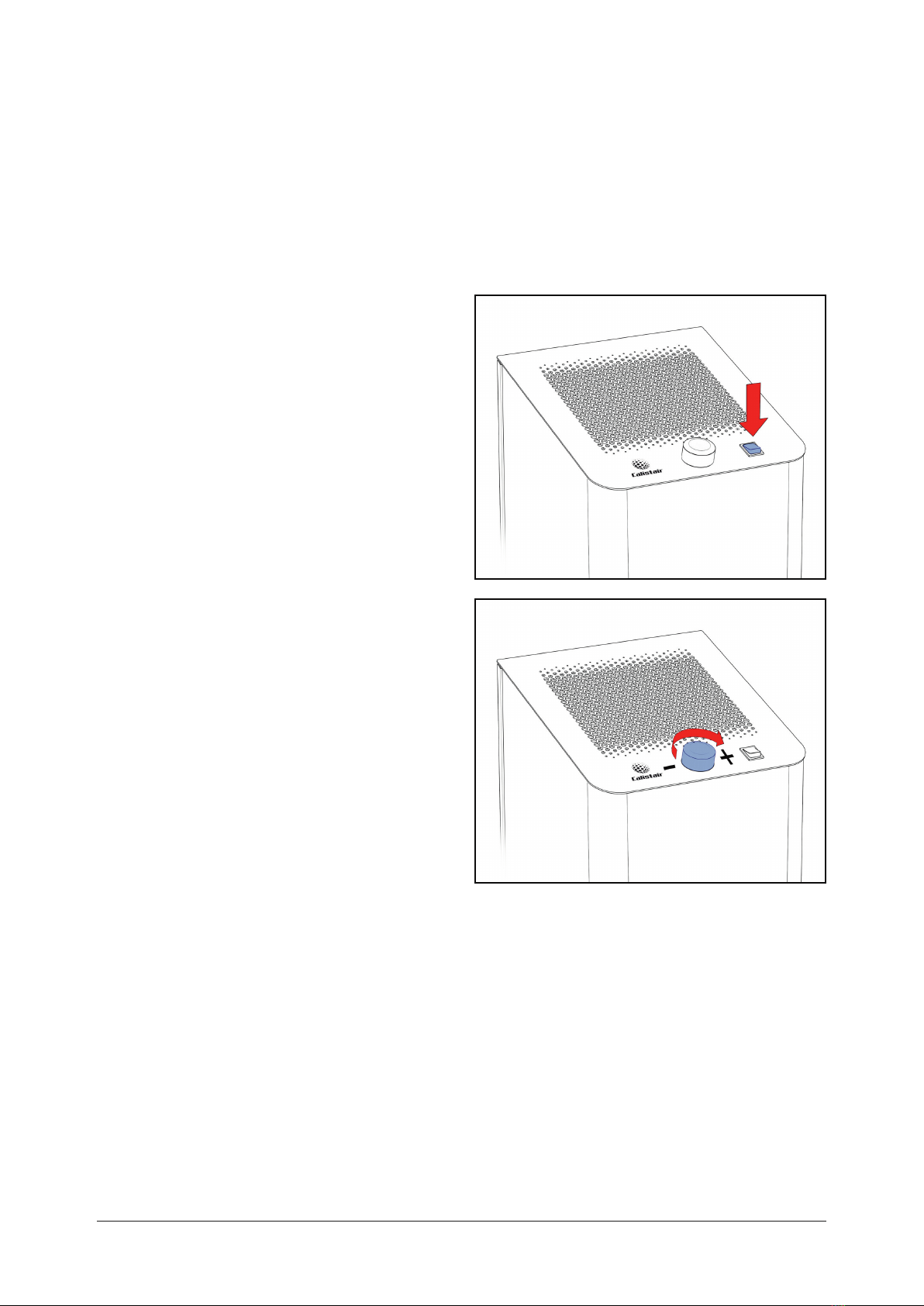

3.7 Description of the controls and display 20
3.7.1 Power switch 20
3.7.2 Adjustment wheel 20

Ver. 18/12/2020 | Calistair C300
IV
Table of contents
4. TRANSPORT, HANDLING, STORAGE
4.1 Transport 21
4.2 Handling and storage 22
5 ASSEMBLY, INSTALLATION, COMMISSIONING
5.1 Assembly 23
5.2 Place device 24
5.3 Commissioning 25
6 FACTORY SETTINGS 26
7 OPERATION
7.1 Operating modes 27
7.2 Switchon/switcho/regulatedevice 28
7.2.1 Switch on device 28
 7.2.2 Switchodevice 28
 7.2.3 Selectairowviaadjustmentwheel 28
8 MAINTENANCE 29
8.1 Changeprelter 31
8.2 Changehigh-performancelter(HEPAlter) 33
8.3 ChangeUVCuorescenttubes 34
8.4 ReplaceUVCuorescenttubeincaseofglassbreakage 37
9 CLEANING AND DISINFECTION 40
10.TROUBLESHOOTING 41
11. DECOMMISSIONING 42
11.1Disassembly 42
11.2 Disposal, scrapping 42
ANNEX
Parts lists 43
EC Declaration of Conformity 43
LIST OF ILLUSTRATIONS 43

5
Ver. 18/12/2020 | Calistair C300
The operating instructions are part of the product Calistair C300. They enable the safe handling
of the product. The operating instructions are intended for the end user.
The user must have carefully read the operating instructions and understood all contents before
startinganywork.Aprerequisiteforsafeworkingistheobservanceofallspeciedsafety
instructions. The product documentation must always be readily available.
All data about the device correspond to the knowledge at the time of printing.
For the rest of these instructions, the Calistair C300 will be referred to as “device”.
1.2 GUARANTEE, WARRANTY AND LIABILITY
1.2.1 Guarantee
- The guarantee period is 24 months from the date of purchase or delivery of the product, if
the latter is later.
- Calistairoersthisguaranteetocustomerswhoasconsumershavetheirresidenceor
habitualabodeorasentrepreneurshavetheirregisteredoceintheFederalRepublic
of Germany.
• Scope of warranty services
- Repair or replacement of the device by Calistair. Calistair has the right to choose whether
subsequent performance or subsequent delivery will be made. The performance of
warranty work requires the provision of proof of purchase or delivery by the customer.
1.1 PURPOSE AND TARGET GROUP
• ThedecontaminationplantCalistairC300isusedforhighlyecientcontrolofviruses
andotherairpollutants.Itprovideseectiveairdisinfection,amongotherthingsagainst
the SARS-CoV-2 virus. Bacteria, fungi, allergens as well as gaseous volatile and organic
compoundsarealsodemonstrablyeectivelyremovedfromindoorair.
• The Calistair C300 may be used by persons aged 8 years or older as well as persons with
reduced physical, sensory or mental abilities or lack of experience and knowledge, if they
have been supervised or instructed regarding the safe use of the device and understand the
resulting dangers. Children must not play with the device.
1. ABOUT THIS INSTRUCTION

6Ver. 18/12/2020 | Calistair C300
 -WarrantyworkisonlyauthorisedandcarriedoutbyCalistairorocialCalistaircontractors.
Repairworkbyyouorthirdpartiesexcludestheguaranteeforcomponentsaectedbythe
repair work.
- The guarantee assumed by Calistair does not constitute the assumption of a liability
without fault in the meaning of § 276 para. 1 p. 1 BGB [German Civil Code].
- As far as parts, components or devices are replaced within the scope of repair or
subsequent delivery, the parts, components or devices retained in favour of a replacement
part or replacement device remain with Calistair. There is no claim to the return of the
replaced parts, components or devices.
The statutory warranty claims remain unaected by this guarantee.
Guarantee coverage:
• The guarantee covers repairs to the device and / or replacement of the device at Calistair’s
discretion.
• The guarantee does not include
-lters,UV-Clampsandotherwearparts
- Intentional and unintentional damage by the user or third parties after transfer of risk,
damage resulting from non-compliant use
- Damage resulting from not performed, incorrectly performed or missed maintenance work
- Damage from external sources, such as liquids, transport, weather, power failures, power
surges, temperature or vibrations
- Damage as a consequence of negligent handling, incorrect use or careless use of the
device
- Damage as a consequence of using parts that are not Calistair original parts or that have
not been installed according to Calistair’s recommendations and instructions
- Repairs by unauthorised Calistair contractors
 -Modieddevicesand/ordevicesthatnolongercorrespondtotheoriginalcondition
Validity of the guarantee:
If the buyer is a contractor, the guarantee will only be valid in the country in which the device
was sold. If the customer takes the device abroad, it may expire.
Technical changes
Subject to technical changes in technology and design.

7
Ver. 18/12/2020 | Calistair C300
1.3 Validity of the instructions
The data in these operating instructions are valid for all product life phases:
• Transport and installation
• Assembly and commissioning
• Service and operation
• Maintenance and inspection
• Decommissioning and disposal
1.4 Copyright
Changes in construction and design as well as errors, printing and typesetting mistakes are
reserved. Calistair reserves the right to change the data contained in this document at any time
and without prior notice.
All representations and pictures are protected by copyright.
© Calistair, September 2020
1.5 Other applicable documents
In addition to these operating instructions, please observe the data sheet of the lamp
manufacturer for the low-pressure mercury vapour discharge lamp.
1.2.1 Liability
The warranty and liability shall expire due to the following points:
• Not intended use of the device
• Failure to observe the notes, rules and prohibitions in the operating instructions and other
applicable documents
• Unauthorisedstructuralmodicationofthedevice
• Inadequate monitoring of parts subject to wear
• Maintenance and servicing work not carried out properly and in good time

8Ver. 18/12/2020 | Calistair C300
1.6.1 Text markings
Handling instructions in a chronological order for service and operation of the device are
presented as follows:
Aconditiontobefullledinadvance.
 1)Handlingstep
Intermediate result
 2)Handlingstep
 3)Handlingstep
Repeat a handling instruction or handling steps.
Result of the handling instruction
Individual handling instructions without chronological sequence are presented as follows:
Handling step disordered
Representation of enumerations
Numbered and unnumbered enumerations are shown as follows:
1. Numbered enumeration
2. Numbered enumeration
• Enumeration, level 1
- Enumeration, level 2
- Enumeration, level 2
1.6 Representation conventions
The conventions used in these instructions for text and warnings are explained in the
following sections.

9
Ver. 18/12/2020 | Calistair C300
DANGER
Indicates the type and source of the danger.
The occurrence of the mentioned danger leads to irreversible personal
injury or death.
‣Listing of all measures that must be taken to avoid the consequences.
CAUTION
Indicates the type and source of the danger.
The occurrence of the mentioned danger can lead to reversible slight
personal injury.
‣Listing of all measures that must be taken to avoid the consequences.
NOTE
Indicates a potentially dangerous situation, which can lead to
damage to property if not avoided.
‣Listing of all measures that must be taken to avoid the consequences.
WARNING
Indicates the type and source of the danger.
The occurrence of the mentioned danger may lead to irreversible
personal injury or death.
‣Listing of all measures that must be taken to avoid the consequences.
1.6.2 Representation of warnings

10 Ver. 18/12/2020 | Calistair C300
Warning sign
General warning sign
Warning of hot
surface
Warning of UV radiation
Warning of hazardous
voltage
Mandatory sign
General mandatory sign
Use hand protection
Use mask
Prohibition sign
General prohibition sign
UV
1.6.3 Symbols used
Important information!
For marking important notes, additional information or tips

11
Ver. 18/12/2020 | Calistair C300
1.7 EC Declaration of Conformity
The manufacturer hereby declares that the device complies with Directive 2014/35/EU.
The device complies with all standards and regulations concerning the hazard due to
electromagneticelds.Allrelevantlegalguidelineswereobserved.TheEMCstandardlimitsset
at the time of manufacture of the product have not been exceeded.
All necessary measures have been taken for the product to protect health and safety, provided
the product is used for its intended purpose.
The declaration of conformity can be obtained from our customer service.
1.8 Manufacturer data
Calistair SAS
223 rue Pasteur
77000 Vaux-le-Pénil
Tel.: [phone]
www.calistair.com
Distribution:
Calistair GmbH
www.calistair-C300.com
[e-mail]
Phone:0800Calistair(0800225478247)

12 Ver. 18/12/2020 | Calistair C300
This chapter contains basic safety instructions for handling the decontamination plant
Calistair C300.
It is essential to observe all notes for operation and maintenance of the decontamination plant
Calistair C300 listed in this chapter.
2.1 Personal qualication
The user must have read and understood the operating instructions. The user must correspond
tothetargetgroupdenitioninchapter1.1.
2.2 Personal protective equipment
Cutting and skin injuries may occur during maintenance measures and repair work.
Therefore wear protective gloves.
2.3 Safety components
Two contact switches between the housing and the housing cover are used for safety shutdown.
Anothercontactswitchunderthelterisusedtoswitchothedevice.
Specicationofthecontactswitches:
• Single pole snap switch
• Normally open contact with quick action contact
• Plug connection 6.8 x 0.8 mm
• 1E4 T85
• Switching force 3.5 ± 0.5 N
2. SAFETY

13
Ver. 18/12/2020 | Calistair C300
2.4 Dangers
Despite safe construction and proper use, residual dangers for the user cannot be excluded.
2.4.1 General risks
• Use the device only properly and as intended in order to avoid damage and physical injury.
• Operate the device only for the intended purpose and under the permissible conditions.
• Never operate the device under the following conditions:
- If there is any damage to the housing or power cable.
- After the device has fallen down or fallen over or has been otherwise damaged or
subjected to severe vibration.
• Only operate the device in upright condition.
• Only operate the device in completely assembled condition.
• Do not sit or stand on the device.
• Do not place anything on the device.
• Make sure that no liquids enter the device.
• Do not insert any objects or foreign bodies into the device.
• Unplug the power plug from the socket and wait for the fan to stop completely before
moving, relocating or opening the device.
• Unplug the power plug from the socket when the device is not in operation.
• Make sure that the power cord of the device is undamaged. Only order a replacement power
cord from the manufacturer or customer service.
• Do not operate the device in an environment with very strong dust or gas exposure. There is
a risk of dust and / or gas explosion.
• Do not leave children unattended in a room with the device or the power cable. There is a
risk of personal injury.

14 Ver. 18/12/2020 | Calistair C300
2.4.2 Dangers during assembly, commissioning and operation
• Ensure that the device is in a safe position.
• Ensure free air inlets and free air outlet on the device.
• Onlyoperatethedevicewiththespeciedsupplyvoltage.
• Only operate the device at a grounded socket:
• Riskofsuocationduetofoilbag.
2.4.3 Dangers during maintenance, repair and cleaning
• Repairs other than those described in these operating instructions may only be carried out
by trained specialist personnel. Improper repairs can cause considerable danger for the user.
• Cleaning and maintenance work must not be carried out by children without supervision.
•
Waitforthefantostopcompletely(atleast30seconds)beforeanycleaningormaintenance.
• Never open the device while the power cable is plugged in.
• Onlyusespareandwearparts,e.g.UVCuorescenttubesandlters,whichare
recommended by the manufacturer and the parameters of which are suitable for the device.
• UVCuorescenttubesareanultravioletproductofriskgroup3.Theselampsemit
high-power UV radiation that can cause serious injury to skin and eyes.
• Avoid exposure of eyes and skin to unshielded products.
• NeverexposeyourselfdirectlytotheradiationofUVCuorescenttubes.
• EnsurethattheUVCuorescenttubesarecompletelycooleddownbeforechanging
(atleast30minutesafterthedeviceisswitchedo).
• Washyourhandscarefullyaftertouchingoneofthelterstoavoidcontamination.

15
Ver. 18/12/2020 | Calistair C300
2.5 Immediate action in case of accidents
Incaseofdangerandaccidents,ensurethatrstaidmeasurescanbetakenasquicklyas
possible.
In case of an accident:
 1)Switchodevice.
 2)Pullpowerplug.
 3)Removeaectedpersonsfromthedangerareaandsitorliedown.
 4)Informrescueservice:
- Where has something happened?
- What exactly has happened?
  -Howmanypeopleareaected?
- What type of injury / emergency exists?
- Waiting for further queries.
 5)Providerstaiduntiltherstaiderhasarrived.
- Stop bleeding.
- Cool burns for a short time with lukewarm water.
2.4.4 Dangers during nal decommissioning and disposal
• Pleasenotetheharmfuleectsonhealthandtheenvironmentthatcanbecausedby
mercury escaping when glass is broken.
• Ensure that dismantled components are handled properly when disposing of them.

16 Ver. 18/12/2020 | Calistair C300
Housing cover
Safety switch
Rear air intake
Fixed castors
Prelterinsert
UVCuorescenttubes
High-performancelter(HEPAlter)
Lateral air intake
Fan
Filter drawer
Housing
Adjustment wheel
Power switch
Reactor honeycomb plates
Power connection
Air outlet grid
3. DEVICE OVERVIEW
Safety switch
3.1 Device description

17
Ver. 18/12/2020 | Calistair C300
TheCalistairC300isadecontaminationplantwithahighlyeectivetechnologyforair
decontamination.
On the surface of the specially coated reactor honeycomb plates inside the device, UVC radiation
from the lamps stimulates a catalytic reaction. This reaction causes organic compounds such
as harmful gases, bacteria, viruses, fungal spores and unpleasant odorous substances to be
decomposed at molecular level and be thus neutralised.
This technology ensures a very high performance even with pollutants where conventional
lterairpuriersorpureUVairclariersfail.Thisapplies,forexample,totheeliminationof
formaldehydefromthebreathingair,whichmanypiecesoffurnitureoroorcoveringsrelease
over time.
Thepre-lterontheundersidelterscoarseparticlesfromtheair,suchashousedust,uor
hair. This means that the interior of the device remains largely free of coarse dust.
Withthehigh-performancelter,theroomaircanalsobecleanedofnedusts,allergensand
mineral air pollutants such as soot particles.
For more information on Calistair technology and cleaning performance,
please visit www.calistair-C300.com.
3.2 Intended use
The Calistair C300 is designed for use in private and commercial environments, e.g. in
practices,lawrms,companiesorprivaterooms.Thedeviceisnotintendedforindustrialusein
excessivelydirtyrooms.Theusermustcomplywiththeoperatingparametersspeciedinthese
instructions. The device may only be used for its intended purpose. Any other use beyond this
is not in accordance with the intended purpose. The user and not the manufacturer is liable for
any damage or injury of any kind caused by this.
Operate the device only under the following conditions:
• On level, stable and dry surfaces.
• Withinthetechnicalspecications,seechapter3.6Technicaldata.
• In the temperature range between 0 °C and 50 °C.
• At a humidity below 70 %.

18 Ver. 18/12/2020 | Calistair C300
3.3 Reasonably foreseeable misuse
Thepurposeofthedeviceisnolongerfullledifthedeviceisnotusedasintended.
The device must not be operated under the following conditions:
• Outdoors.
• Inhumidrooms,atover70%humidityornexttoahumidier.
• Nexttoheaters,replacesordevicesthatusegas.
• Inenvironmentswithstrongtemperatureuctuations,asthiscanleadtocondensation
water inside.
The device is not intended for drying objects.
3.4 Nameplate
The nameplate is located on the back of the device next to the power connection.
The nameplate contains the following information:
Manufacturer
Model / type
Voltage
Frequency
Performance
Backup
CE marking
Note “Read instructions”
Disposal information
Place of manufacture
Distribution

19
Ver. 18/12/2020 | Calistair C300
3.5 Scope of delivery
The following parts are included in the scope of delivery:
2xReactorhoneycombplates(pre-assembled)
4xUVCuorescenttubes(pre-assembled)
1xPrelterinsert(pre-assembled)
1xHEPAlterinsert(pre-assembled)
1x Power cable 230 V
1x Operating instructions
1x Quick start guide
1xAllenkey(2.5mm)
3.6 Technical data
General
Noiselevel(LEX,8h) 65dB(A)
Dimensions(WxDxH) 353 mm x 372 mm x 704 mm
Weight 24.5 kg
Airowrate 300 m³/h
Room size max. 60 m²
Electrics
Control voltage 220-240 V
Network frequency range 50-60 Hz
Performance 160 W
Protection class IP00
Operating mode Continuous operation

20 Ver. 18/12/2020 | Calistair C300
3.7 Description of the controls and displays
3.7.1 Power switch
The power switch is located on the top of the
device. For further information see chapter 6.
3.7.2 Adjustment wheel
The adjustment wheel is located on the top of
thedeviceandisusedtoregulatetheairow.
For further information see chapter 6.
