Introduction
Last updated: 一月 19, 2023 05:56. Revision #8490
Thank you for purchasing this Cambridge Audio Minx X201 subwoofer. Installed and used properly the subwoofer will deliver astonishing sound
quality, whether playing music or movies, whatever the listening environment. Please read this guide carefully, as it contains essential information in
getting the very best from your subwoofer.
Thank you for taking the time to read this manual; we do recommend you keep it for future reference.
© Copyright Cambridge Audio Ltd .
For upcoming news on future products, software updates and exclusive offers, make sure you register your product at
http://www.cambridgeaudio.com/register

5
What's included with the Minx X201?
Last updated: 一月 19, 2023 05:56. Revision #8491
1. Minx X201 Subwoofer.
2. Installation guide.
3. Safety guide.
4. UK mains lead (depending on where the X201 was purchased)
EU mains lead (depending on where the X201 was purchased)
CU mains lead (depending on where the X201 was purchased)

6
Front panel
Last updated: 一月 19, 2023 05:56. Revision #8492
1. 6.5" Subwoofer.

7
Rear panel
Last updated: 一月 19, 2023 05:56. Revision #8493
1. AC power socket.
2. Mains power switch – Switch the subwoofer between on and off.
3. Standby switch - Switch between ‘Force On’ (no standby), and ‘Audio Detect’. In audio detect mode the X201 will switch on when it detects an
incoming signal.
4. Crossover frequency control - Adjust the crossover frequency of the subwoofer.
5. Phase control - Adjust the phase settings of the subwoofer.
6. Volume control - Adjust the volume of the subwoofer.
7. Audio in/out.

8
Unboxing your Minx X201
Last updated: 一月 19, 2023 05:56. Revision #8494

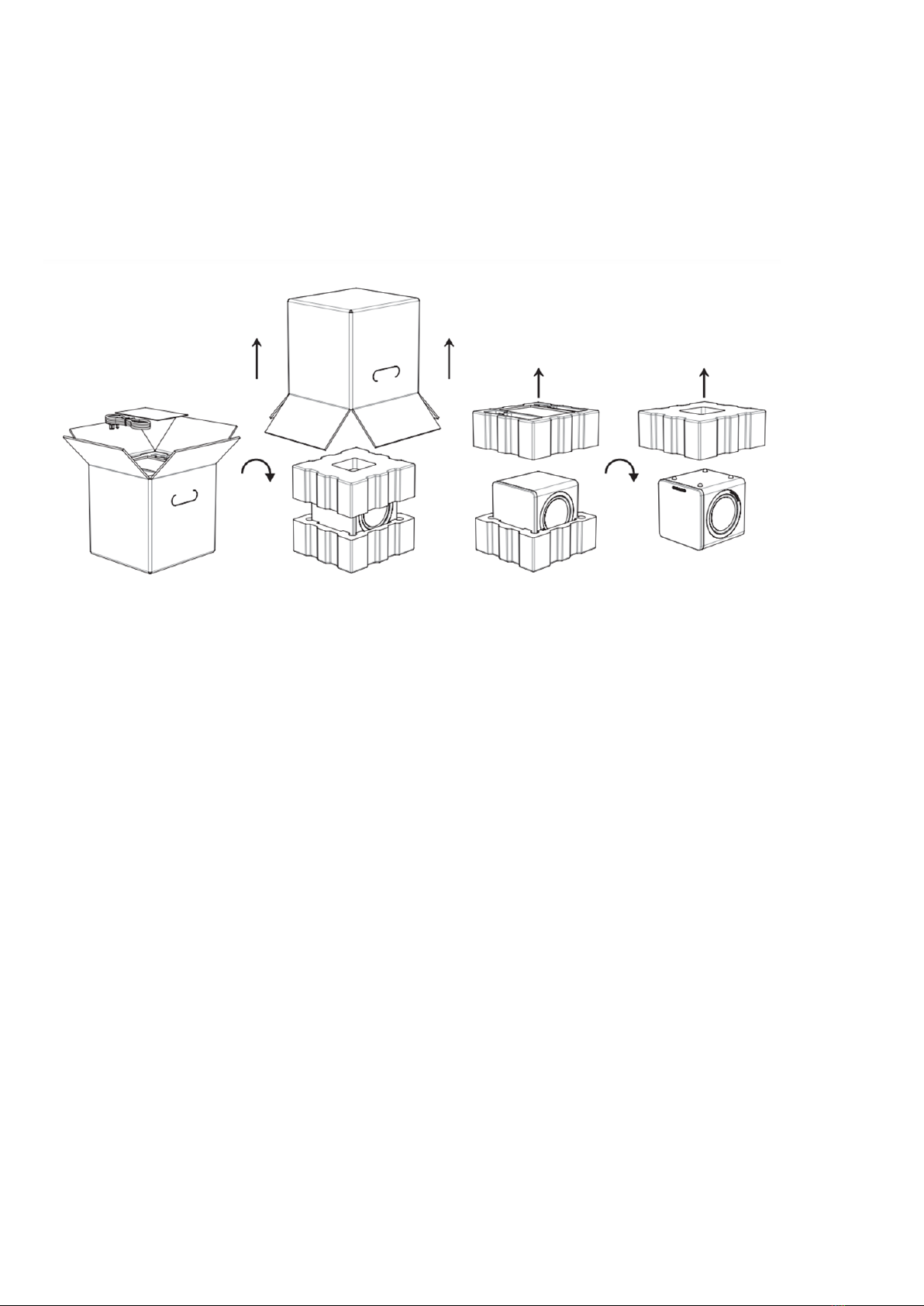

Follow the diagram and take care when unboxing your Minx X201 so not to damage the speaker cone.

9
Installation instructions
Last updated: 一月 19, 2023 05:57. Revision #8495
Dependent on your desired setup, there are a few different ways to connect your Minx X201 subwoofer.
1. If you are using a two-channel hi-fi system, then use the left and right line input connections to connect your Minx X201.
2. If you are using a receiver, or amplifier with a dedicated sub out then connect the Minx X201 using the left channel (LFE/Sub) input.
3. Once connected you can decide where to position your subwoofer. As low frequency content is largely unidirectional, you can experiment to find a
place that suits your setup. Please see the below diagram for several suggestions on placement dependent on your speaker configuration.

10
4. Use the crossover frequency, phase, and volume controls to adjust the subwoofer output to fit with the rest of your system, and your
requirements.
