Camsat CDS-5IPmini User manual

External wireless , miniature system
to transmit images and sound
IP cameras HD and UHD in the band 5.1 - 5.8 GHz
mini
User manual
www.camsat.comwww.camsat.com

Thank you for choosing the CDS-5IPmini. We trust that its unique features will come in very
handy.
Please, read this instruction manual to ensure safe operation and maximise efficiency of
the device.
The contents of this manual comprise proprietary information of CAMSAT and are intended
only for use by purchasers of the equipment described herein.
In order to copy or use any part of this manual for purposes other than the application or
maintenance of the described equipment, it is required that the customer should first obtain
a written consent from CAMSAT.
1EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide

Table of contents
Safety and maintenance tips...............................................................................................
Contents................................................................................................................................
1. Basic information...............................................................................................................
2. Description of the connectors and LED indicators.................................................................
System configuration............................................................................................................
1. Logging into the system....................................................................................................
2. Factory settings.................................................................................................................
3. Menu structure...................................................................................................................
4. Module assembly on the pole...........................................................................................
5. Connection to the system.................................................................................................
6. First system start-up.........................................................................................................
7. Scanning the usage of operation channels....................................................................
8. Radio transmission security............................................................................................
9. External antenna connection...........................................................................................
10. List of available frequencies..........................................................................................
11. Table with technical parameters...................................................................................
12. Instructions for combining the latest modules CDS-5IP mini with previous..............
generation CDS-5IP on one installation.
General warranty terms......................................................................................................
Device disposal...................................................................................................................
3
5
5
5
6
6
6
6
7
8
8
13
14
14
15
16
17
19
20
I
II
III
IV
V
2EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide

I. Safety and maintenance tips
Safety symbols
The warning about a potential electric shock due to high voltage inside the
product's casing.
In order to safely use our device, you should read and observe the tips contained
in this instruction manual.
The CDS-5IPmini module is maintenance-free. We recommend installing it on a
stable structure and connecting its power cables in a manner which would prevent
them from being accidentally damaged by the operator or any bystanders.
Note: Essential information
Note: This device can operate within the frequency and power ranges which
might be contradictory to laws applicable in selected countries.
The device is suitable for use in the European Union.
This device has been designed and manufactured with the utmost care for the safety of
its installers and users. For safety reasons, observe all the guidelines in this manual
and peripheral devices' manuals, such as the PC or IP camera.
Before installing the device, carefully read the entire instruction manual.
Ensure safe working conditions. The user's own modifications of the device will prevent
its legal use and render the warranty null and void. The device has passed through the
mandatory compliance assessment and it meets basic requirements in the European
New Approach Directives. The product is CE-marked.
Do not approach the device when it is on at the distance below 30cm.
Safety tips
!
!
3EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide

4EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
This device meets requirements of the European directive on radio equipment, tele-
communications terminals as well as on their mutual identification and compatibility
(Directive 1999/5/CE of the European Parliament and the Council of Europe, March
1999).
The CDS-5IPmini module is compliant with provisions related to the safety in using
electrical devices. Observe the following guidelines:
the power outlet must be earthed in compliance with applicable provisions,
before transferring the device or performing any other technical operations, discon-
nect the power supply,
do not use any damaged or worn power supply cables, as they pose a threat to the
user's safety,
installation works must be performed by sufficiently qualified technicians,
do not use the device in locations where flammable substances are kept,
secure the device so that children or unauthorised persons should
not gain access to it,
make certain that the device has been reliably fixed,
the device is off only after disconnecting its power supply cables and the cables
between it and other devices,
if the device is transferred to a room where the temperature is higher than where it
has previously been kept, water vapour may condensate inside its casing, which will
Wait until the condensed water evaporates.
R&TTE declaration of conformity
Distances and interferences
The transmission distance may vary, depending on the frequency, environment,
radio waves, buildings, weather conditions, etc.
1.
When the transmitter is near such equipment as the TV set, R-LAN wireless
network, another transmitter, or when it is placed between other radio devices,
then the video stream may be interrupted or the devices might even lose the
connection. If this occurs, increase the distance between the interrupted devi-
ces and the transmitter.
The signal reception may vary, depending on the transmitter's working height
and angle. If the signal reception is not stable, optimise the antenna settings.
Meteorological radars operating within the frequency ranges of 5,250-5,350
MHz and 5,650-5,850MHz have the highest priority. These radars can interrupt
the device operation or even prevent it entirely.
2.
3.
4.
Warning
The antennas used for the transmission from this transmitter must be installed
according to the instruction manual and they must be placed at least 30cm from all
persons. The transmitter is not compatible with another antenna nor transmitter.
*
*
*
*
*
*
*
*
*
*

5EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
1. Basic information
2. Description of the connectors and LED indicators.
II Contents
The CDS-5IPmini device is a small wireless module for video streaming from IP HD and 4K
(5.1-5.8Ghz) megapixel cameras.
The most important features of the CDS-5IPmini:
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
device is intended for streaming the signal from high-resolution IP cameras
(up to 10 Mpx),
CDS-5IP mini is both a transmitter and a receiver, integrated within one module
(transceiver),
it guarantees a continuous and reliable streaming capacity,

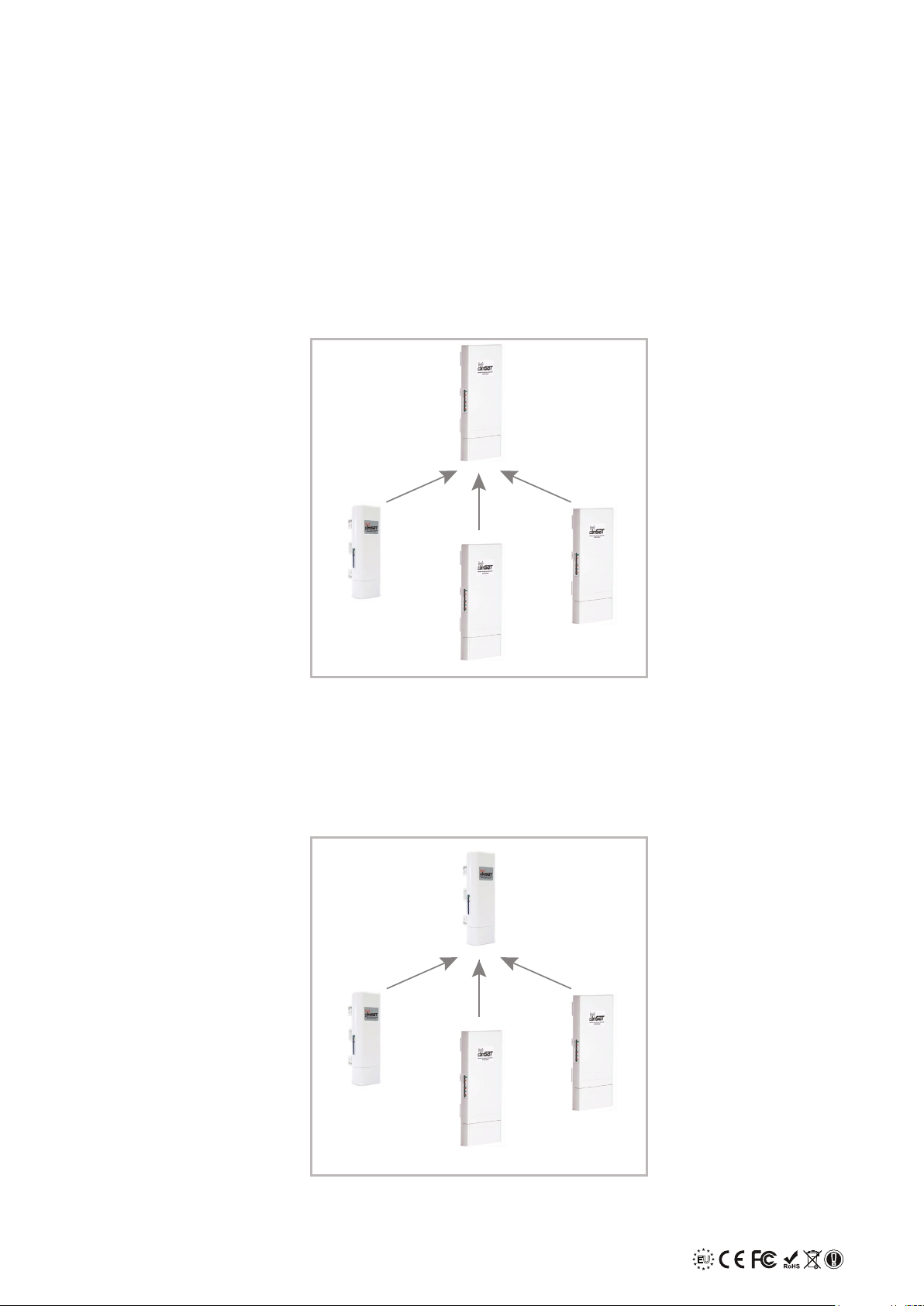

it works both in the point-to-point and point-to-multipoint topologies,
small dimensions of the device,
output power: 24dBm,
operating band: 5GHz,
transmission secured with a 64/128/152-bit code,
one receiver module can receive signals from four transmitters/cameras,
camera and module may be fed from one PoE 12-24V power supply,
LED radio signal level indicator,
built-in dual MIMO 5Ghz 2 x 13dBi antenna (LoS coverage < 2km),
outer casing IP55,
working temperature from -20 to 70,
iCAMSAT – a video communication protocol which guarantees reliable streaming of
nearly all frames in HD quality (available from March 2016).
CONNECTOR PANEL DESCRIPTION
LAN/PoE - a connector for connecting the network cable with the RJ45 connector,
enabling simultaneous data transmission and module power supply.
Reset -
Ground -
a button for resetting the module to its default settings; to reset
WKHPRGXOHSUHVVWKHEXWWRQDQGKROGLWIRUYHVHFRQGVXQWLOWKHʏ+Lʐ
ʏ0LGʐDQGʏ/2:ʐGLRGHVVWDUWWRLFNHUWKHQUHOHDVHWKHEXWWRQ
a screw terminal for connecting the module to its earthing – pole,
lightning conductor, lightning protection system, to name a few
ʇZLWKWKHFDEOHGHOLYHUHGWRJHWKHUZLWKWKHZKROHVHW
LAN/PoE Reset Ground
DESCRIPTION OF THE LED INDICATORS
PWR On – power supply/system is on
2ʇSRZHUVXSSO\V\VWHPLVR
LAN
WLAN
Signal strength
2ʇQR/$1FRQQHFWLRQ
2QʇFRQQHFWLRQHVWDEOLVKHG
)OLFNHUVʇGDWDUHFHSWLRQWUDQVPLVVLRQ
2ʇQRZLUHOHVVFRQQHFWLRQ
2QʇZLUHOHVVFRQQHFWLRQHVWDEOLVKHG
)OLFNHUVʇGDWDUHFHSWLRQWUDQVPLVVLRQ
9HU\JRRG/('ʇ+L0LG/2:
*RRG/('ʇ0LG/2:
3RRU/('ʇ/2:
G
Hi Mid LOW LAN WLAN PWR
SIGNAL INDICATORS
YR

1. Logging into the system
2. Factory settings
3. Menu structure
6EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide

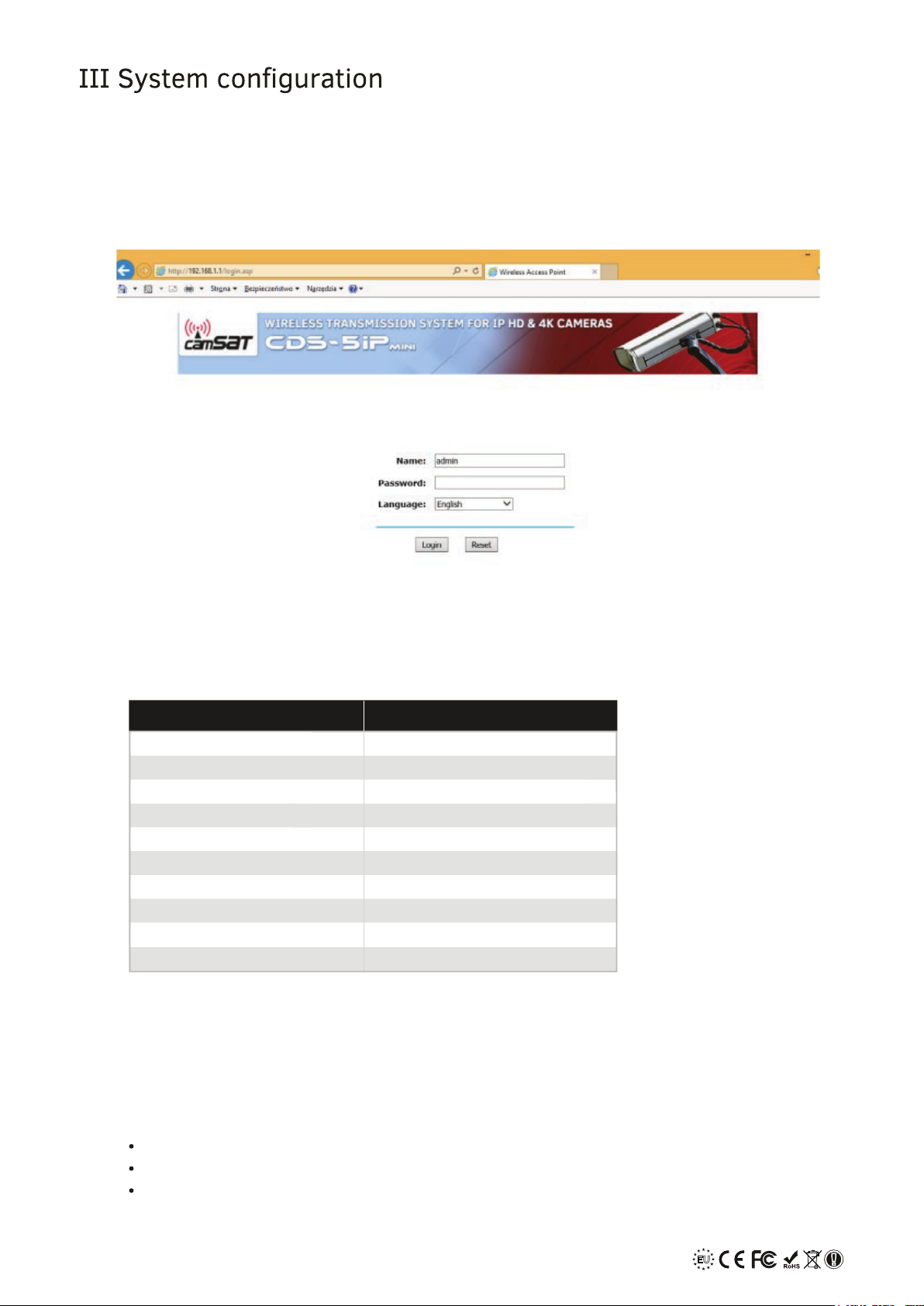

To log into the wireless CDS-5IPmini module, set the computer IP address in the same
subnet as the CDS-5IPmini device (default IP address: 192.168.1.1). Start your web
browser (we recommend the Internet Explorer) and type in the IP address of the
module. The login menu will be displayed on the screen:
STATUS
On the screen above, type in the login data (default name: admin, password: password)
and click the “Login” button to log into the module.
Information (basic information about the module settings)
Connections (list of active wireless connections, together with the connection quality)
Statistics (information about the amount of received/transmitted data)
FeatureDefault factory settings
User name admin
Password password
European Union
5500 MHz (CH100)
20 MHz
Device name CDS-5IP mini
Operation mode
Country/Region
Channel number
Band width
BRIDGE
192.168.1.1
Subnet mask 255.255.255.0
Gateway 0.0.0.0
IP address
Note: The device manufacturer is not responsible for the devices that are not properly
protected and for related damage of the equipment and other network infrastructure.

SYSTEM
Basic Settings (device name and region settings)

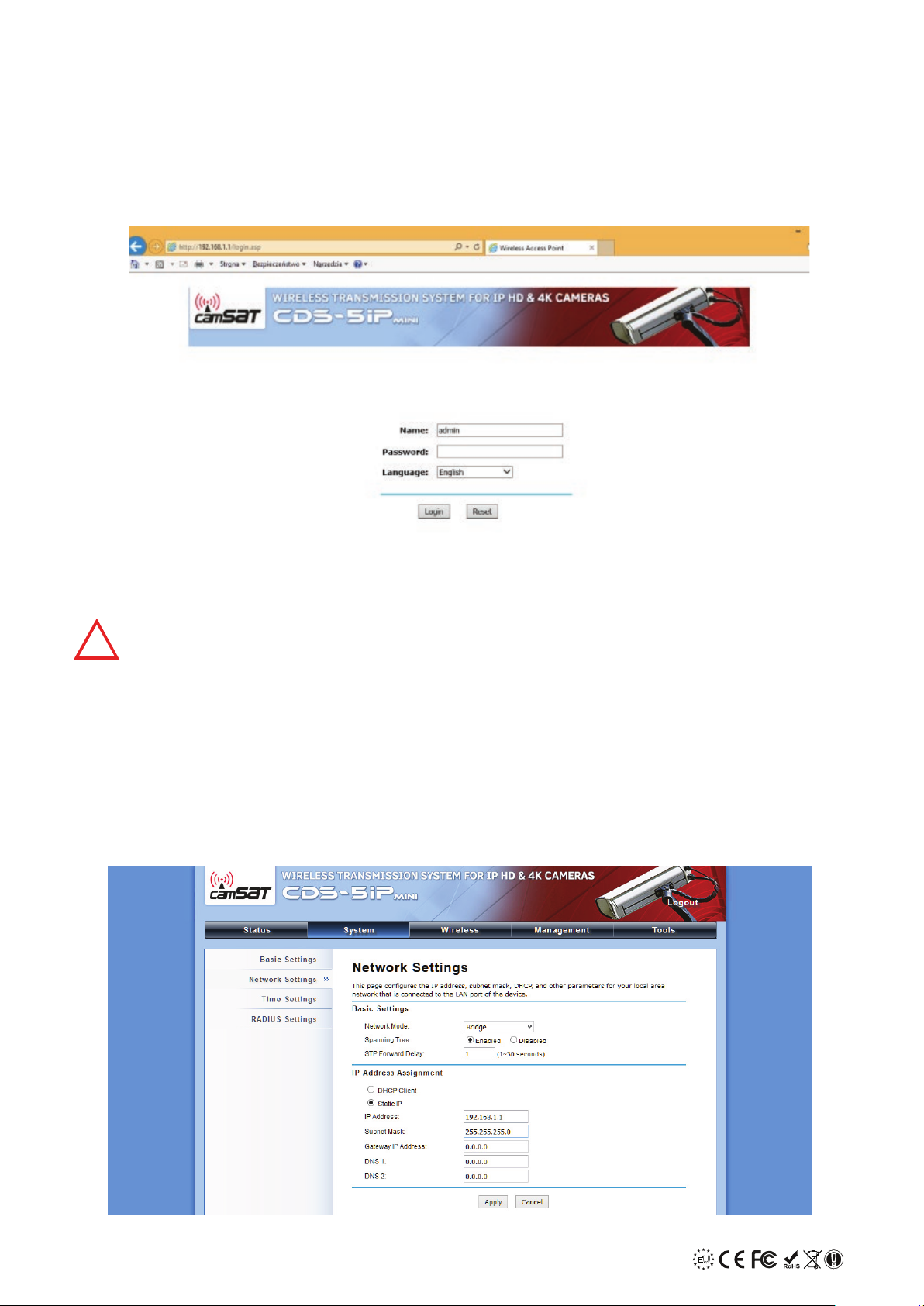

Network Settings (settings of the wireless system operation mode and IP address)
Time Settings (time settings, NTP server settings)
WIRELESS

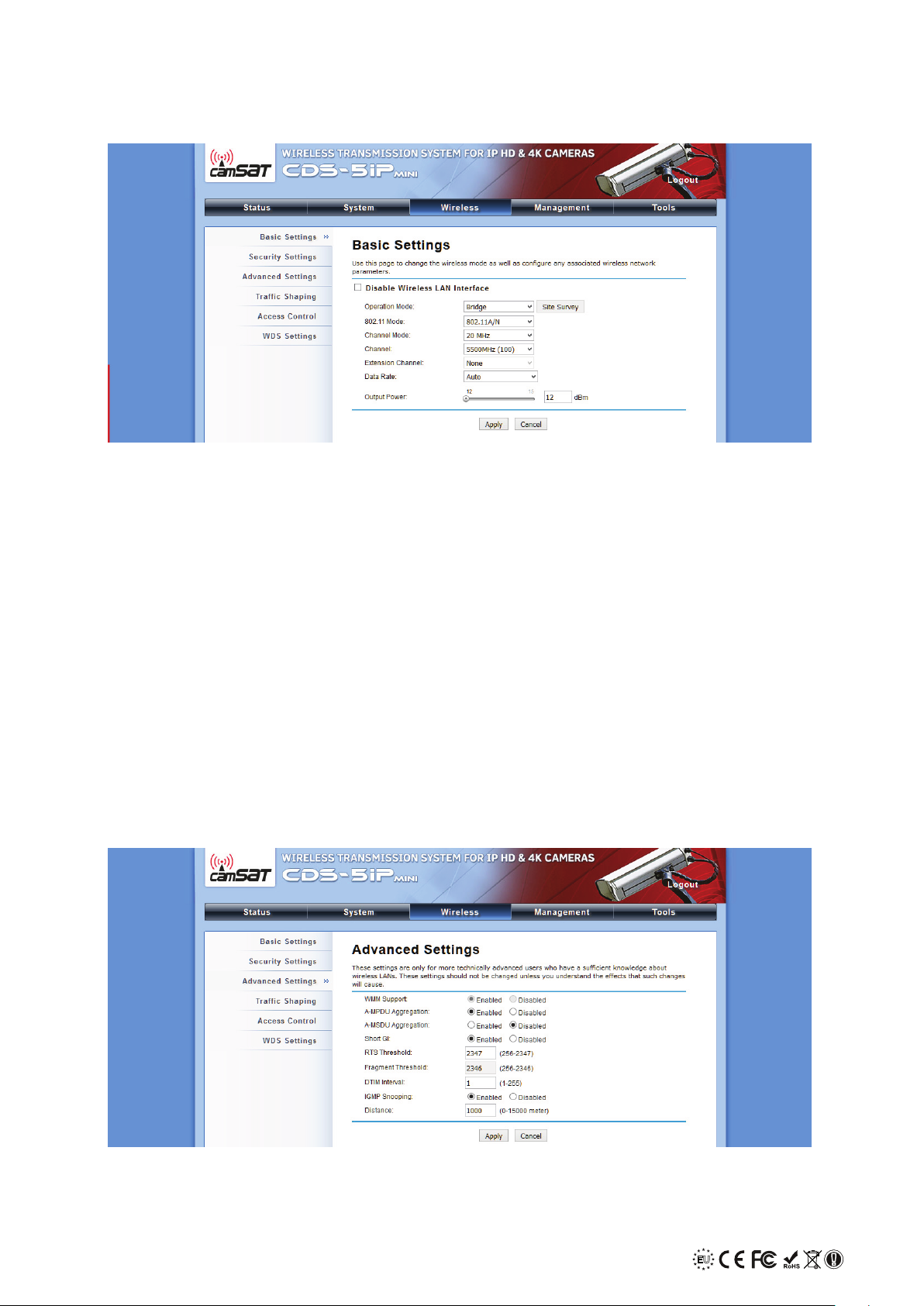

Basic Settings (basic configuration of the wireless connection: operating mode, chan-
nel, output power)
Security Settings (safety settings, transmission coding)
Advanced Settings (advanced settings of the wireless connection)

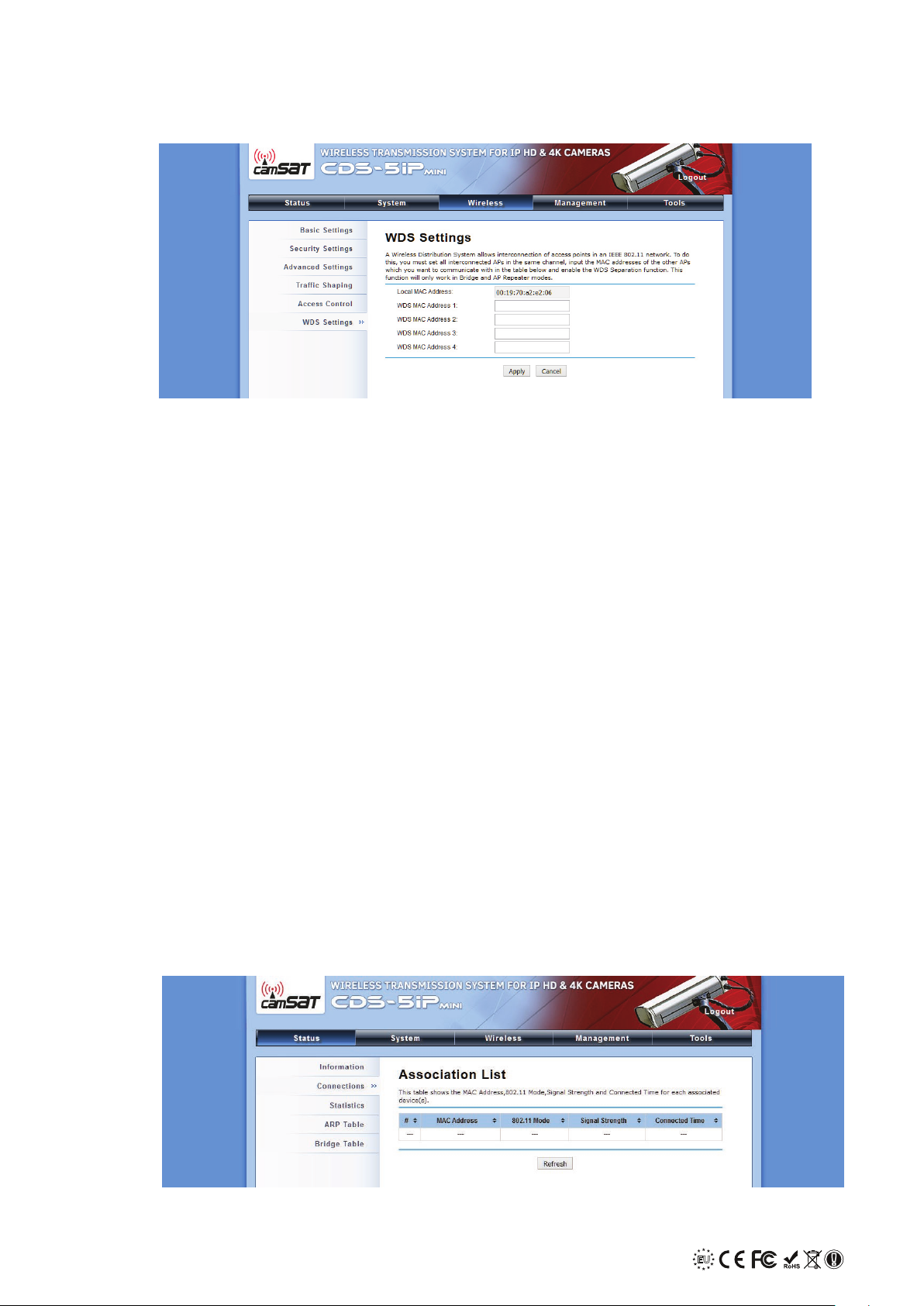

WDS Settings (WDS settings related to the recommended operation mode: Bridge)
MANAGEMENT

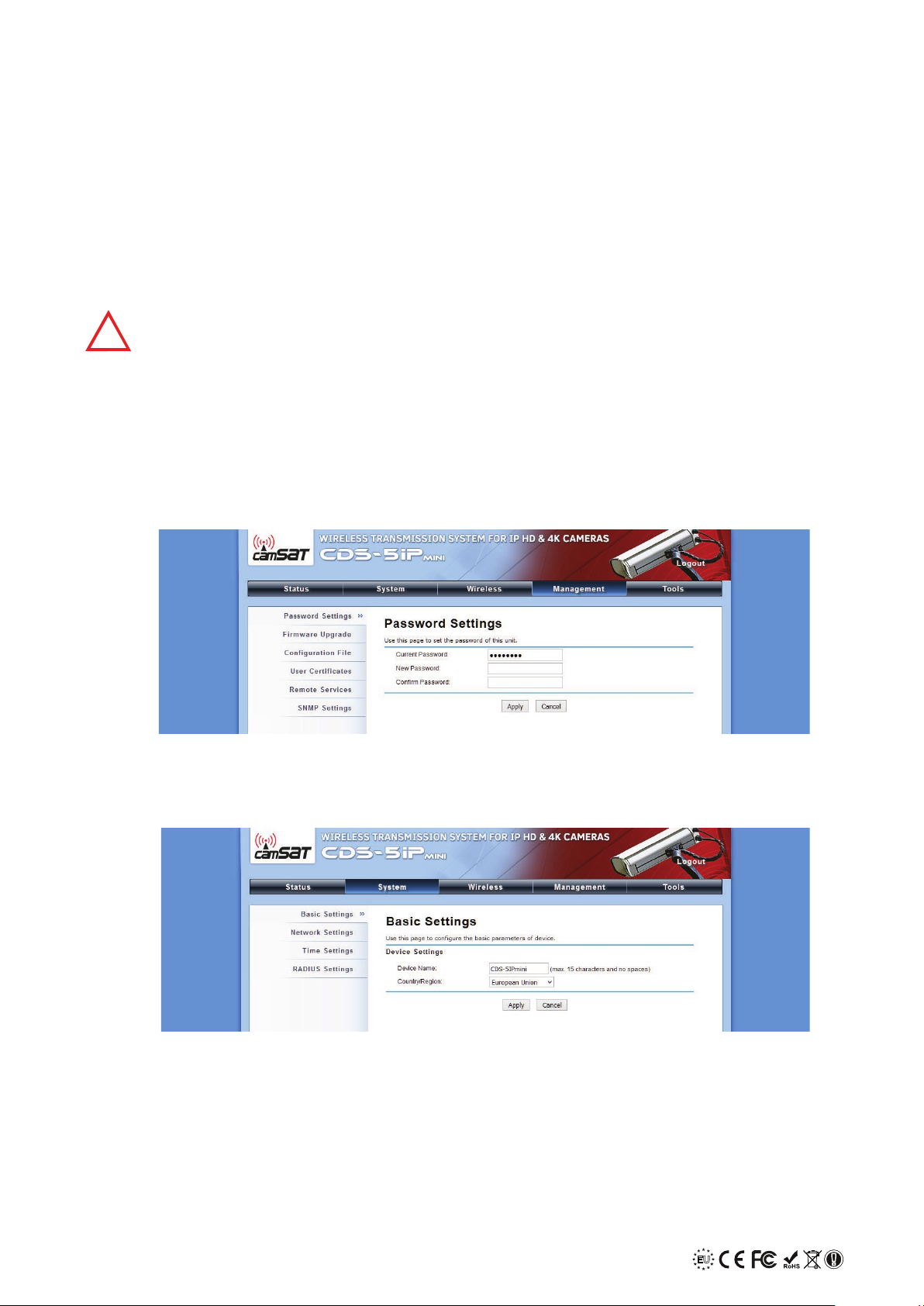

Password Settings (access data settings)
Firmware Upgrade (firmware update – for advanced users)
Configuration File (saving and loading of the module configuration and resetting the
module to its factory settings)
TOOLS
System Log (history of changes/logging on the CDS-5IPmini module)

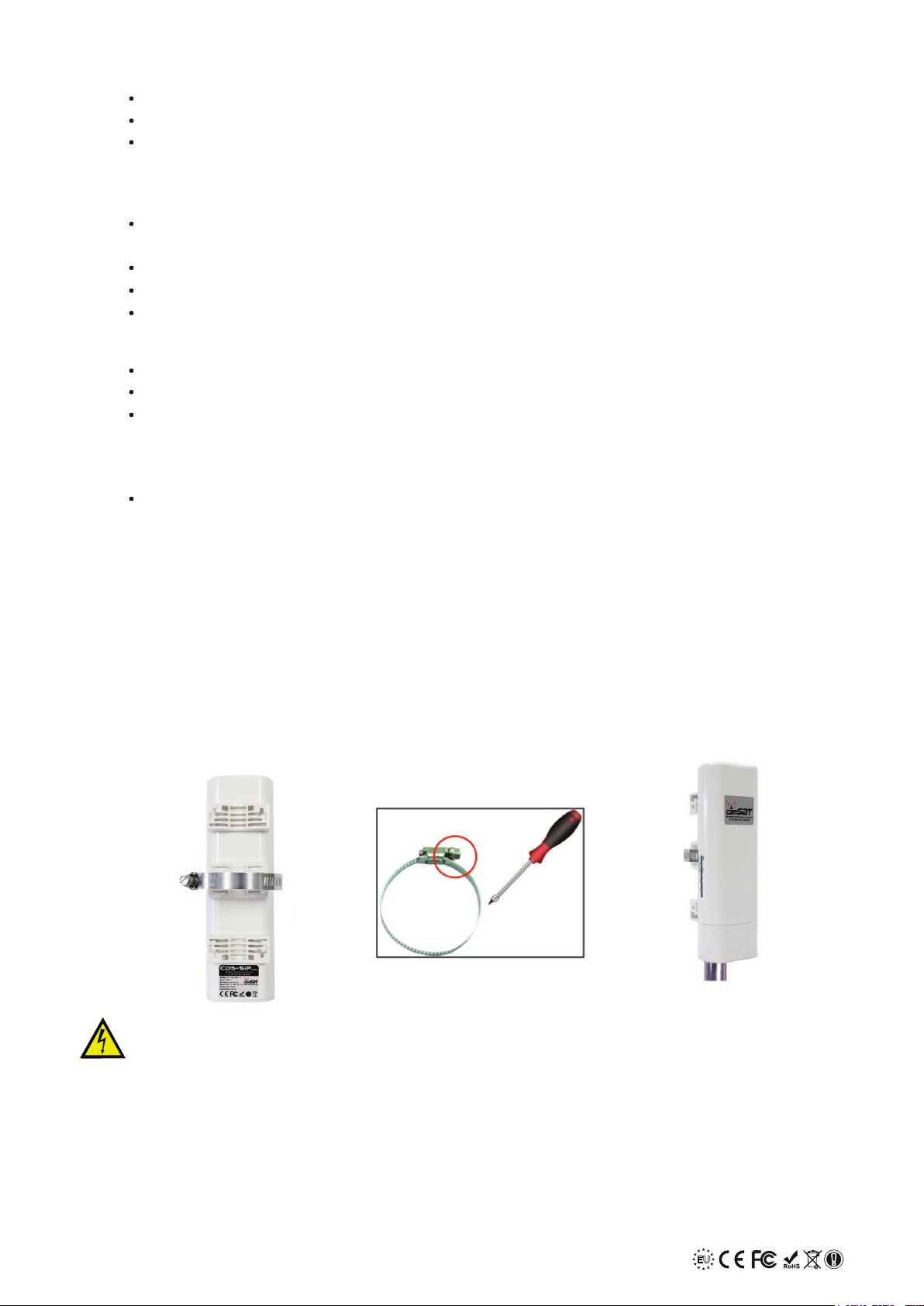

4. Module assembly on the pole:
Reverse the CDS-5IPmini unit. Insert the mounting clamps intended for the module
assembly on the pole into appropriate openings in the rear part of the device body.
Remember to loosen the mounting clamps with a screwdriver before pushing them
through the openings in the device body.
Stably fix the CDS-5IPmini module to the pole, firmly tightening the bolts of the moun-
ting clamps. The clamps are suitable for the assembly on poles with diameters between
32 and 70mm.
While installing units on outdoor poles, make sure to use overvoltage protection
for Ethernet cables. The pole must be earthed unconditionally. Failure to observe
these guidelines may result in damaging the equipment during lightning strikes.
This type of damage is not covered by the warranty.
7EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide

Note! Any remote changes in the radio link settings after mounting the units on
the poles should begin at the transmitter side. Otherwise, changing the operation
channel in the receiver unit, for instance, may result in breaking the connection
with the transmitter units and, therefore, it might render their remote re-configu-
ration impossible.
Insert the plug of the standard cable with the RJ45 termination into the LAN
connector in the CDS-5IPmini module. Connect the other termination to
the connector marked as “Data & Power Out” in the PoE unit delivered together with
whole set. Connect the computer / IP camera / recorder with the network cable to
the second connector in the power supply unit, marked as “Data In”.
Plug the power cord with the RJ45tip to LAN connector in CDS-5IPmini module and the
other end into the "POE" connector splitter. Connect computer / IP camera / recorder
to "LAN" connector in the manifold by network cable.
Then, connect the cable from the power supply to the camera and splitter.
To configure any CDS-5IPmini module, follow the proper sequence, beginning at the
receiver point. Configure the module in the workshop environment, without prior hang-
ing it on the structure. Before setting the radio system, configure the IP camera. Install
it on the computer and check whether the video is being received correctly.
a) Check the addresses of the IP cameras and the address of the CDS-5IPmini
module. Set the computer IP address so that all the devices work within one
subnet (recommended IP addresses: 192.168.1.0-192.168.1.254). It is not
acceptable to set two identical addresses within one local network.
8EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
5. Connection to the system.
Option 2
Option 1
6. First system start-up
!
LAN/PoE
Power Socket
Reset Ground
Data In Data &
Power Out
mini
LAN/PoE
POE
12V DC
LAN
Reset Ground
mini

Connect the CDS-5IPmini device to the computer according to the instructions in
pt. 5.
b)
Start your Internet browser, for instance the Internet Explorer. Type the IP
address of the CDS-5IPmini device in the address bar (default: 192.168.1.1). The
following logging menu should be displayed on the screen:
If the browser returns the error, go back to point 1 and make sure that the IP
address is correct.
c)
To log into the network user interface, type in the user name and password (default
user: admin, default password: password) and click the “login” button.
The CDS-5IPmini module management interface will be displayed.
d)
Start the configuration from the LAN parameters. In the System menu, select the Net-
work Settings tab. The following screen will be displayed:
e)
9EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
If there is already a device with the IP address: 192.168.1.1 in the local network,
disconnect it to configure the CDS-5IPmini. You can also temporarily disconnect
the computer from the local network.
!

10 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
Go to the Management menu and replace the default password in the Password
Settings tab with your own, to prevent unauthorised persons from logging onto
the device. In the New Password field, type in the new password and confirm it in
the Confirm Password field.
Click the Apply button to apply the change.
Select the Static IP to use the static IP address and type in the new IP address for
the CDS-5IPmini device (IP Address). The IP address must be in the same subnet as
the computer. Subsequently, enter the subnet mask (Subnet Mask) and the gateway
IP address (Gateway IP Address). Typing in the gateway IP address is necessary
only when the device will be used outside the local network. Remember to set the
unique IP address for the local network. Every CDS-5IPmini device must have a
unique IP address. The subnet mask and gateway must be identical in the entire local
network.
Click the Apply button to apply the changes.
f)
The next step is changing the device name. Go to the System menu and Basic
Settings tab. The following screen will be displayed:
In the Device Name field, type in your own device name. It is recommended typing
in a name associated with the location in which the specific unit will be mounted
within the structure.
Click the Apply button to apply the changes.
g)
The device may automatically reset and you may have to log in again.
!

h)
i)
11 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
The next step is setting the basic parameters of the network connection. Select the
Wireless menu and, then, the Basic Settings tab. The following screen will be displayed:
The next important step is setting the distance between the transmitter and receiver
devices. In the Wireless menu, select the Advanced Settings tab. The screen will be
displayed on which to change the Distance parameter. Type in the actual distance in
metres. If there are many transmitter points with various distances, type in the farthest
transmitter distance.
Click the Apply button to apply the change.
For the Operation Mode parameter, select the Bridge, which is a default option, recom-
mended for the use of IP cameras.
The next parameter is Channel. Select one of the eight operation channels. The chan-
nels of the receiver and transmitter devices must be identical. Remember to select the
channel which is not used in the area, to avoid interferences. More details can be found
in pt. 7 on page 13: Scanning the usage of operation channels. Click the Apply button
to apply the changes.

12 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
j) Type in mutual MAC addresses for the devices to communicate with each other. In the
Wireless menu, select the WDS Settings tab. The following screen will be displayed:
k) The last step is checking whether the transmission between the devices proceeds
correctly.
To check the information about the connected CDS-5IPmini devices, such as the
MAC address, signal strength, connection time, IP address, etc., open the Con-
nections tab in the Status menu. To display the up-to-date list of the current
connections, click the Refresh button. The sample screen with the list
of connections:
In the Local MAC Address field, there is the static MAC address of the device
which is currently being configured. In the WDS MAC Address 1 … WDS MAC
Address 4 fields, type in the MAC addresses of the devices interconnected with a
specific unit.
To configure the receiver device, enter the MAC address of all the transmitter
devices communicating with this receiver in the WDS MAC Address 1 … WDS MAC
Address 4 fields. To configure the transmitter device, enter only the MAC address
of the receiver device in the WDS MAC Address 1 field. Type in the device MAC
address in the following format: XX:XX:XX:XX:XX:XX
The MAC address of the unit can be found on the rear of the device or in the
STATUS tab.
Click the Apply button to apply the change.
Repeat the steps from b) to j) for every transmitter/receiver unit, connecting
them one by one to the computer.

That the list of the MAC addresses of the units operated in the Bridge mode is
displayed indicates that the configuration is correct. To be on the safe side, discon-
nect the transmitter units from the computer and check again if the transmission
proceeds correctly, by clicking the Refresh button. That the devices communicate
with one another indicates that the radio link has been configured and launched
correctly. Type the IP camera address in the address bar of the browser and check
the video streaming quality. Proceed to the installation of the units on the struc-
ture.
The CDS-5IPmini modules allow scanning the ether to detect frequencies used in the
area. This tool comes in very handy while setting the operation channel. Thanks to it,
we know which channels to omit, and which are free and can be used for the wireless
transmission of signals from IP cameras. The selection of a channel which is already
being used by another transmission lines may lead to interferences or even to the loss
of any transmission.
7. Scanning the usage of operation channels.
13 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
In the destination of checking the correctness of the configuration of devices,
parameters of the connection and stabilities of connecting after installing on the
object it is possible to carry out test using the order PING ( the order should be
name down in the command line of the Windows system).
To start the command line in the Windows system click Start button -> start (in
new systems click the text box)
->write down the CMD order.
An opened console, in which it is possible to write down model orders.
Testing the correctness of the connection with PING order
Model order 1.
The inspection or the computer can establish contact with the CDS-5IP device
mini, which the assigned address stayed to 192.168.1.1 (IP address 192.168. 1.1
is by default assigned to every new of device of CDS-5IPmini).
In the console table write down the order:
ping 192.168.1.1
and press “enter".
Model announcement which will be shown:
Reply from 192.168.1.1: of bytes = 32 time <1 ms TTL=64
If the response time of the device is shorter than 200-400 ms it means that the
configuration of devices is right.
To make sure that all devices are configured correctly it is possible to carry out an
order PING with the address of every device being found in the installation
(CDS-5IPmini, IP cameras, routers, recorders).

The Site Survey button will become active. Click it for the scanning to begin automati-
cally. After a while, the list of the frequencies used in the area will be displayed, togeth-
er with the strengths of their signals. The signals below -85 are considered as noises.-
Such frequencies and channels which are not on the list may be used for the wireless
Video transmission.
To scan the channels, temporarily switch the unit into the WIRELESS CLIENT mode.
To do so, go to the Wireless menu and select the Basic Settings tab. In the Operation
Mode menu, select the WIRELESS CLIENT parameter. Click the Apply button to apply.
8. Radio transmission security.
14 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
The CDS-5IPmini devices have the option of securing video transmission with an
encryption key or such algorithms as WPA-PSK and WPA-PSK2.
To secure the transmission, select the Security Settings tab in the Wireless menu. In
the drop-down menu, click Authentication and select the protection method:
If the WPA data encryption method is selected, a network key is required, the same for
all the CDS-5IPmini units. The user can select the encryption key type in the Data
Encryption menu:
64-bit WEP: consists of no more than 10 hexadecimal characters.
128-bit WEP: consists of no more than 26 hexadecimal characters.
152-bit WEP: consists of no more than 32 hexadecimal characters.
1.
2.
3.
Open System: This option enables connecting to any device unit without any
protection measures.
WPA-PSK: This is the simplified WPA mode, which does not need any special
server for authentication. Instead, it uses the WPA network key, pre-determined
for every radio link node. This is an efficient solution for big- and medium-sized
stationary structures.
WPA2-PSK: Because this is the new WPA version, only clients with the WPA2 are
available. If this option is selected, the data encryption will proceed according to
the AES algorithm and a password will be required for communication.

9. External antenna connection.
If the WPA data encryption method is selected, a network key is required, the same one
for all the CDS-5IPmini units. The user can select the encryption key type in the Data
Encryption menu:
The CDS-5IPmini version has an integrated directional antenna, which needs no addi-
tional adjustment.
The CDS-5IPmini-SMA version does not have the integrated antenna and it is not
acceptable to connect the module without any external antenna.
The CDS-5IPmini module is available in two versions:
CDS-5IPmini
CDS-5IPmini-SMA
The CDS-5IPmini-SMA module connection without the external antenna may
damage the device. This type of damage is not covered by the warranty.
If the CDS-5IPmini-SMA module is used, set the output power of the device by
adjusting it to the gain of the antenna used. The EIRP may not exceed the permis-
sible power described in regulations applicable in the country of use. If not sure
how to configure the settings, consult with the seller.
!
10. List of available frequencies for the default channel width of 20MHz.
15 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
Adjustment Range (intended use) Channel number Channel frequency
ETSI (European Union) 5,15 ~ 5,25 GHz
indoor
5,25 ~ 5,35 GHz
indoor
5,50 ~ 5,70 GHz
outdoor
36
40
44
48
52
56
60
64
100
104
108
112
116
120
124
128
132
136
140
5180
5200
5220
5240
5260
5280
5300
5320
5500
5520
5540
5560
5580
5600
5620
5640
5660
5680
5700
Use the respective channels according to their intended purpose:
Selecting other frequencies depends on legal regulations applicable in the coun-
try of use. If not sure what regulations are applicable in the country of use, con-
sult with the CDS-5IPmini module seller.
indoor – only inside buildings,
outdoor – only outside buildings.

16 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
11. Table with technical parameters.
TECHNICAL PARAMETERS
Video and sound
IP camera resolution support 4K, UHD, HD1080p, HD1080i, HD720p, PAL/NTSC and others
Estimated bandwidth (LoS)
Maximum output power
Sensitivity
Operating frequency
Modulation
Operating mode
Transmission coding
Antenna
FDPHUDV0SL[HOVHDFKb0ESVʇVWUHDPLQJRIIUDPHV
FDPHUDV0SL[HOVHDFKb0ESVʇVWUHDPLQJRIIUDPHV
FDPHUD0SL[HOVb0ESVʇVWUHDPLQJRIIUDPHV
FDPHUDV0SL[HOVHDFK[b0ESVʇVWUHDPLQJRIIUDPHV
FDPHUDV0SL[HOVHDFK[b0ESVʇVWUHDPLQJRIIUDPHV
1 km
1,5 km
2 km
or 2 km
or 2 km
24dBm @ MCS0
G%P#0ESV
FCC: 5725-5850 MHz
&(0+]')6EDQG
1&&1LJHULD0+]0+]
DSSS/OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
BRIDGE as well as AP/Client/AP Repeater/AC
:(3ELW:3$:3$:3$36.:3$36.;$XWKHQWLFDWLRQ
&'6,3PLQLGLUHFWLRQDODQWHQQDLQWHJUDWHGG%L0,02
CDS-5IP miniSMA: 2x SMA-RP 50 ohm to the external antenna
Wireless transmission
Power supply
6SHF\NDFMDSURGXNWX
Power consumption 12 Watt
Power supply 3DVVLYH3R(93LQ9'&3LQ9'&
7KHPRGXOHPD\EHIHGZLWKWKHYROWDJHRIb9'&YLDWKH3R(DGDSWHU
GLUHFWO\IURPWKHFDPHUDSRZHUVXSSO\WKH873)73FDEOHbPORQJDWPRVW
LAN
LAN ports [5-%DVH7;
Casing dimensions PP/PP:PP+
Weight J
Casing ingress protection
:RUNLQJWHPSHUDWXUH
Storage temperature
Humidity
Environmental directives
Warranty
IP55
-20°~ 70° C
-40° ~ 70° C
a
RoHs/REACH Compliant
24 months

12. Instructions for combining the latest modules CDS-5IPmini with previous gener-
ation CDS-5IP on one installation.
a) Examples of the use of different modules within in the same operating channel:
To connect the module CDS 5IPmini to an existing receiving point based on the
CDS-5IP module you should:
switch the receiver CDS-5IP to operation mode "MASTER",
switch all transmitting points (CDS-5IP) to operation mode "SLAVE",
set a new transmitting point CDS-5IPmini to the operation mode "CLIENT".
.
.
.
switch the receiver CDS-5IPmini to the operation mode "AP",
switch all transmitting points CDS-5IP to operation mode "SLAVE",
switch a transmitting point CDS-5IPmini to the operation mode "CLIENT".
.
.
.
Example 1: Use of existing receiving point created in the CDS-5IP and adding
additional transmitting points with new modules CDS 5IPmini.
Example 2: Use of the latest CDS-5IPmini module as a receiving point and adding
additional transmitting points using modules CDS-5IP and the CDS-5IPmini .
MASTER
SLAVE
SLAVE
CDS-5IP
CDS-5IP
CDS-5IPmini
CLIENT
The receiving point
CDS- 5IP
AP
SLAVE
SLAVE
CDS-5IP
CDS-5IP
CDS-5IPmini
CLIENT
The receiving point
CDS- 5IPmini
17 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide

To change the operating mode, go to the Wireless tab and select the Basic Settings
tab. In Wireless Mode menu, select the appropriate mode.
To connect devices with each other, all must be set to the same link name (SSID),
which should be entered in the Wireless → Basic Settings, SSID. You should set all
modules transmitting and receiving to same SSID and set to the same channel number.
To set the receiving unit CDS-5IP in master mode, go to the Wireless menu and select
the Basic Settings tab. Then set the Wireless Mode parameter to MASTER. The next
step is to set the wireless network name (SSID). The default name is "CAMSAT",
change it to a name that is refers to configurated location. Confirm changes with the
Apply button.
All transmitting units should be set in slave mode. Set this in the Wireless menu in the
Basic Settings. Set the Wireless Mode parameter to SLAVE. Then click the "Site
Survey". You will see a list of devices that currently operate in the MASTER mode.
Select the device with the SSID set earlier in the CDS-5IP unit operating in the master
mode from the list (the unit must be connected to the power supply). Selection is
confirmed by Selected button. Changes are confirmed by the Apply button. Repeat
these steps for all transmitting units.
You can use different kinds of receivers (radio links) connected to one DVR / NVR. Then
the recommended mode within each link is Video Bridge (CDS-5IP modules) and
Bridge (CDS 5IPmini modules).
Instructions for configuration CDS-5IP units in master / slave mode.
18 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IPMINI User Guide
Adding next transmitting points to an existing installation you must remember
not to exceed the available bandwidth, each transmitting point decreases the
capacity (this value depends on the distance, the camera resolution, the com-
pression applied etc.).
!
a) Examples of the use of different modules within one installation (separate channels
of operation):
CDS-5IP
CDS-5IP
CDS-5IP
BRIDGE
BRIDGE
BRIDGE
CDS-5IPmini
CDS-5IPmini
CDS-5IPmini
BRIDGE
The receiving point
CDS- 5IPmini
VIDEO BRIDGE
VIDEO BRIDGEVIDEO BRIDGE
VIDEO BRIDGE
The receiving point
CDS- 5IP
DVR / NVR

The device is supplied with a standard warranty card. The manufacturer declines
all other warranties. In no case the producer is liable for any damages (including,
without limitation, consequential, special, or incidental damages, or damages for loss
of profits, business interruption, loss of business information or other pecuniary loss)
arising out of the use or inability to use this product, even if the manufacturer has
been advised of the possibility of such damages.
Camsat grants a 24 month warranty for the CDS-5IPmini transmission kit
1. If the device is not be operating properly, make sure, before returning the device for
servicing, that everything was done according to the operating manual
2. If the faulty device is returned or send in for repairs, a thorough written description
of the signs of the device’s faulty operation, including the operating environment and
the manner in which they appear, should be enclosed
3. The prerequisite for exercising the warranty rights is enclosing the proof of pur-
chase, including the purchase date and description of damage, with the faulty device
4. Warranty repairs cover only faults occurring due to reasons inherent to the sold
device
5. Warranty repairs will be carried out in the shortest possible amount of time not
exceeding
14 days, counting from the moment of accepting the device for servicing If parts need
to be imported, the repair deadline may be extended After the repairs have been car-
ried out, the warranty period will be extended by the repair time
6. The warrantor is not responsible for the loss of the device configuration settings
resulting from device repair or malfunction
7. The warrantor may refuse to carry out warranty repairs or terminate the warranty if
it is determined that the seals placed on devices or components comprising it are
damaged
8. All repair services resulting from
The warranty does not cover
1. Mechanical damage of devices and failures occurring due to fortuitous events, such
as: fire, power grid overvoltage, electrical discharges, power supply, effects of chemi-
cal substances.
2. Damage occurring due to: improper handling of the device, using the device against
its intended use or the operating manual, customer’s negligence, improper use
(temperature, humidity, flooding, dust, sanding up, improper power supply voltage)
3. Claims on account of the technical parameters, if they are consistent with those
indicated by the manufacturer
4. Marks created during usage, such as scratches, soiling and localised wear are not
covered by warranty In cases not regulated by the terms of this warranty sheet, the
appropriate provisions of the Civil Code are applicableDevice
Warranty does not cover the traces generated during operation as scratches, dirt,
wipe .
IV General warranty terms
19 EUEU
POLISH
MARK
POLISH
MARK
CDS-5IMINI User Guide
