CSI SERIES GRID-TIED PV Inverter (12-20)kW
INSTALLATION AND OPERATION MANUAL
VERSION 1.0 (2020.4)

2
4
6
6
6
6
6
9
9
13
23
23
23
4
2
3
5
11
24
24
24
…………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
……………………………………………………………………………………………………………
………………………………………………………………………………………………………
……………………………………………………………………………………………………
………………………………………………………………………………………
……………………………………………………………………………………………………………………………
……………………………………………………………………………………………
………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………
……………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
4
……………………………………………………………………………………………
26
………………………………………………………………………………………………………………………………
26
………………………………………………………………………………………………………………………
30
39
40
43
……………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………
…………………………………………………………………………………………………………………………
………………………………………………………………………………………………………………
7
7
8
…………………………………………………………………………………
………………………………………………………………………………………………………………
……………………………………………………………………………………………………………
1. Introduction
2. Safety Instructions
2.1 Safety Symbols
2.2 General Safety Instructions
2.3 Notice For Use
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
3.3 Keypad
3.4 LCD
5. Installation
5.1 Select Location for the Inverter
5.2 Mounting the Inverter
5.3 Electrical Connections
7. Operation
6. Start & Stop
6.1 Start the Inverter
6.2 Stop the Inverter
1.1 Product Description
1.2 Packaging
7.2 Information
7.1 Main Menu
4. Product handing and storage
4.1 Product handling
4.2 Product Storage
7.3 Settings
7.4 Advanced Info.
7.5 Advanced Settings
8. Maintenance
9. Troubleshooting
10. Specifications
……………………………………………………………………………………………………………………………………
Contents

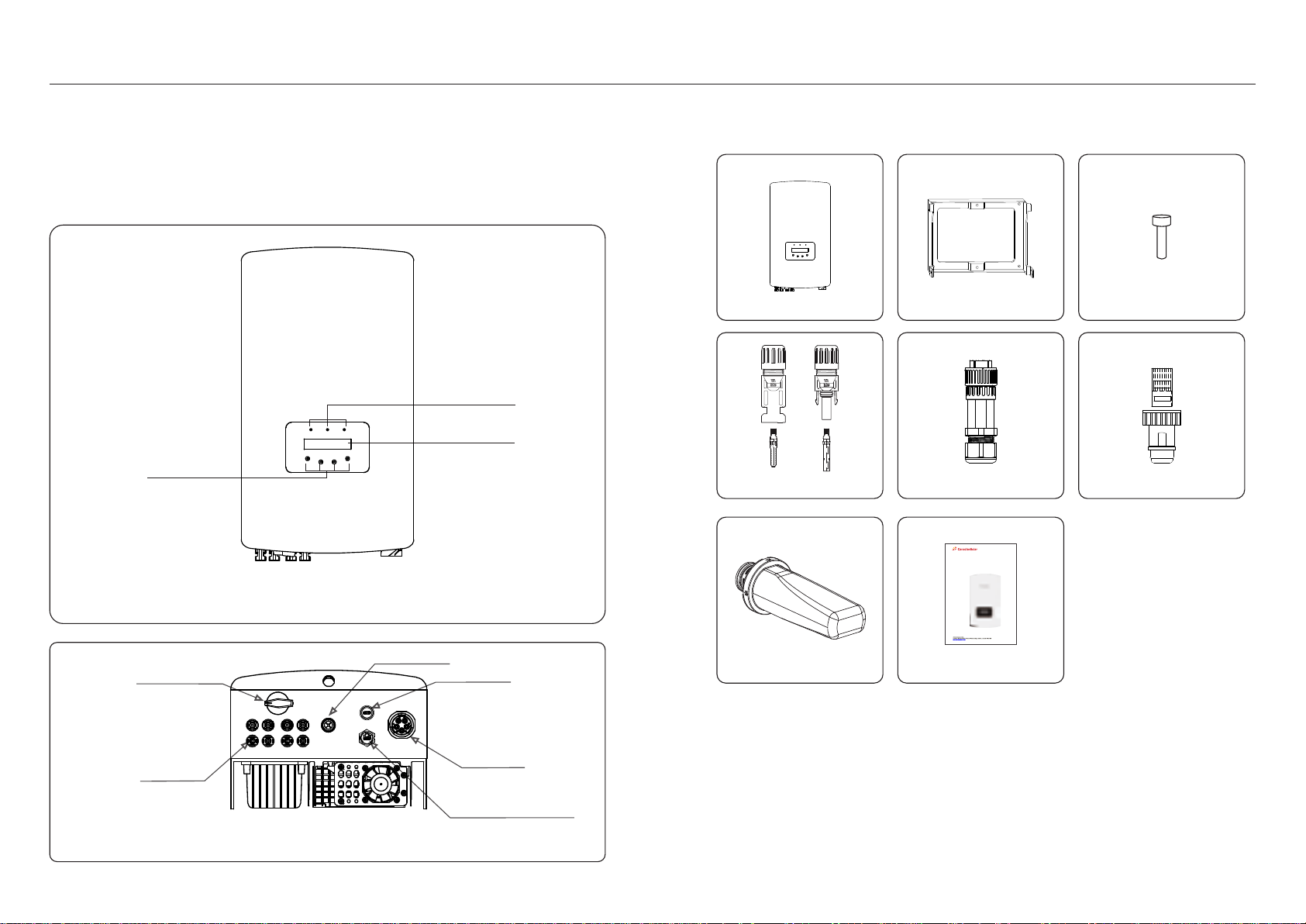

1.1 Product Description
.3..2.
LED lights
LCD display
4 buttons
Figure 1.1 Front view
Figure 1.2 Bottom view
Inverter x1 Back plate x1
1.2 Packaging
When you receive the inverter, please ensure that all the parts listed below are included:
Fastening screw x2
DC connector x4
User manual x1
1. Introduction 1. Introduction
If anything is missing, please contact your local Canadian Solar distributor.
Canadian Solar three phase inverters integrate DRM and backflow power control function,
that could suitable for smart grid requirement.
This manual covers the three phase inverter model listed below:
CSI-12K-T400GL01-E, CSI-15K-T400GL01-E, CSI-17K-T400GL01-E,
CSI-20K-T400GL01-E
AC connector x1
WiFi/GPRS Stickx1
（Optional）
DRM
(For UK and Belgium)
DC Switch
(optional)
DC input AC output
RS485 CT/Meter
RJ45 connector x1
(For UK and Belgium)
CSI SERIES GRID-TIED PV Inverter (12-20)kW
INSTALLATION AND OPERATION MANUAL
VERSION 1.0 (2020.4)

.5..4.
2. Safety Instructions 2. Safety Instructions
2.1 Safety Symbols
Safety symbols used in this manual, which highlight potential safety risks and important
safety information, are listed as follows:
2.2 General Safety Instructions
CAUTION:
Risk of electric shock from energy stored in capacitors of the Inverter.
Do not remove cover for 5 minutes after disconnecting all power sources
(service technician only). Warranty may be voided if the cover is removed
without unauthorized.
CAUTION:
The surface temperature of the inverter can exceed 75℃ (167F).
To avoid risk of burns, DO NOT touch the surface when inverter is operating.
The inverter must be installed out of reach of children.
2.3 Notice For Use
CAUTION:
CAUTION, RISK OF ELECTRIC SHOCK symbol indicates important safety
instructions, which if not correctly followed, could result in electric shock.
CAUTION:
CAUTION, HOT SURFACE symbol indicates safety instructions, which if not
correctly followed, could result in burns.
NOTE:
NOTE symbol indicates important safety instructions, which if not correctly
followed, could result in some damage or the destruction of the inverter.
WARNING:
WARNING symbol indicates important safety instructions, which if not
correctly followed, could result in serious injury or death.
WARNING:
Electrical installations must be done in accordance with the local and national
electrical safety standards.
WARNING:
Please don’t connect PV array positive(+) or negative(-) to ground, it could
cause serious damage to the inverter.
CAUTION:
The PV array (Solar panels) supplies a DC voltage when they are exposed to
sunlight.
WARNING:
To reduce the risk of fire, over-current protective devices (OCPD) are
required for circuits connected to the Inverter.
The DC OCPD shall be installed per local requirements. All photovoltaic
source and output circuit conductors shall have disconnects that comply
with the NEC Article 690, Part II. All Canadian Solar three phase inverters
feature an integrated DC switch.
CAUTION:
Risk of electric shock. Do not remove cover. There is no user serviceable
parts inside. Refer servicing to qualified and accredited service technicians.
The inverter has been constructed according to the applicable safety and technical
guidelines. Use the inverter in installations that meet the following specifications only:
1. Permanent installation is required.
2. The electrical installation must meet all the applicable regulations and standards.
3. The inverter must be installed according to the instructions stated in this manual.
4. The inverter must be installed according to the correct technical specifications.
5. To startup the inverter, the Grid Supply Main Switch (AC) must be switched on, before
the solar panel's DC isolator shall be switched on. To stop the inverter, the Grid Supply
Main Switch (AC) must be switched off before the solar panel's DC isolator shall be
switched off.

.6.
Light
1
2
3
POWER
OPERATION
ALARM
3. Overview
3.1 Front Panel Display
3.2 LED Status Indicator Lights
Status
ON
OFF
ON
OFF
OFF
ON
FLASHING
Description
The inverter can detect DC power.
No DC power or low DC power.
The inverter is operating properly.
The inverter has stopped to supply power.
The inverter is initializing.
Alarm or fault condition is detected.
Figure 3.1 Front Panel Display
Table 3.1 Status Indicator Lights
3.3 Keypad
3.4 LCD
There are four keys in the front panel of the Inverter(from left to right):
ESC, UP, DOWN and ENTER keys. The keypad is used for:
Scrolling through the displayed options (the UP and DOWN keys);
Access to modify the adjustable settings (the ESC and ENTER keys).
The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter,
which shows the following information:
Inverter operation status and data; Service messages for operator;
Alarm messages and fault indications.
4.1 Product handling
Please review the instruction below for handling the inverter:
1 The red circles below denote cutouts on the product package.
Push in the cutouts to form handles for moving the inverter (see Figure 4.1).
3
Figure 4.1 move the inverter
2.Open the carton, then handle both sides of inverter through the area denoted dotted line.
( see figure 4.2).
4. Product handing and storage
The inverter is operating without fault or alarm.
.7.
Figure 4.2 Inverter handles

.9..8.
4.2 Product Storage 5. Installation4. Product handing and storage
Storage temperature must be between -40℃ and 70℃ and the humidity should be
between 0 and 100% non-condensing.
Stacknomorethanthree(3)invertershigh.
If the inverter is not to be installed immediately, storage instructions and environmental
conditions are below:
Use the original box to repackage the inverter, seal with adhesive tape with the
desiccant inside the box.
Store the inverter(s) in a clean and dry place, free of dust and dirt.
Keep box(es) away from corrosive materials to avoid damage to the inverter enclosure.
Inspect packaging regularly. If packaging is damaged(wet, pest damage, etc),
repackage the inverter immediately.
Store the inverter(s) on a flat, hard surface - not inclined or upside down.
After long-term storage, the inverter needs to be fully examined and tested by qualified
service or technical personnel before using.
Restarting after a long period of non-use requires the equipment to be inspected
and, in some cases, the removal of oxidation and dust that has settled inside the
equipment will be required.
To select a location for the inverter, the following criteria should be considered:
Do not install in small closed spaces where air cannot circulate freely. To avoid
overheating, always make sure the flow of air around the inverter is not blocked.
Exposure to direct sunlight will increase the operational temperature of the inverter and
may cause output power limiting. Canadian Solar recommends inverter installed to avoid
direct sunlight or raining.
To avoid over heating ambient air temperature must be considered when choosing the
inverter installation location. Canadian Solar recommends using a sun shade minimizing
direct sunlight when the ambient air temperature around the unit exceeds 104°F/40°C.
5.1 Select a Location for the Inverter
Figure 5.1 Recommended Installation locations
WARNING: Risk of fire
Despite careful construction, electrical devices can cause fires.
Do not install the inverter in areas containing highly flammable materials or
gases.
Do not install the inverter in potentially explosive atmospheres.
NOTE:
Nothing should be stored on or placed against the inverter.

.11..10.
The visibility of LED status indicator lights and LCD should be considered.
Install vertically (+/- 5°) or tilted backward (<=15°).
Don't mount inverter on the tilted forward wall.
Don't mount inverter on the horizontal.
5.2 Mounting the Inverter
Dimensions of mounting bracket:
Figure 5.3 Inverter wall mounting
Refer to figure 5.4 and figure 5.5. Inverter shall be mounted vertically.
The steps to mount the inverter are listed below.
1. Refer to Figure 5.4, the holes for expansion bolt based on the hole diameter of bracket
(ST6.3*60 cross recessed hexagon head tapping screws, HJ0108 10*50mm fished
expandable tubular), using the percussion drilling with the 10mm drill need to stay
vertically on the wall.And the drill hole must be vertically on the wall.
And all drill holes' depth is 60mm.
Bracket
Suitable fixing screws
2. Make sure the bracket is horizontal. And the mounting holes (in Figure 5.4) are marked
correctly. Drill the holes into wall at your marks.
3. Use the suitable expansion screws to fix the bracket on the wall.
Figure 5.4 Inverter wall mounting
5. Installation5. Installation
≤15°
Vertical Backward
√ √
Inverted
× ×
Temperature of inverter heat sinker might 167℉/75℃.
Inverter is designed for working extreme environment, operation temperature range:
-15℉/25℃~149℉/65℃.
When 1 or more inverters are installed in one location, a minimum 500mm clearance should
be kept between each inverter or other object. The bottom of the inverter should be 500mm
clearance to the ground.
Figure 5.2 Inverter Mounting clearance
500mm
500mm
500mm
1000mm
500mm

+
-
DC 1
DC 2
DC SWITCH
COM
GRID
.12. .13.
Locking screws
Figure 5.5 Install the inverter
Figure 5.6 Fixed the inverter
WARNING:
The inverter must be mounted vertically.

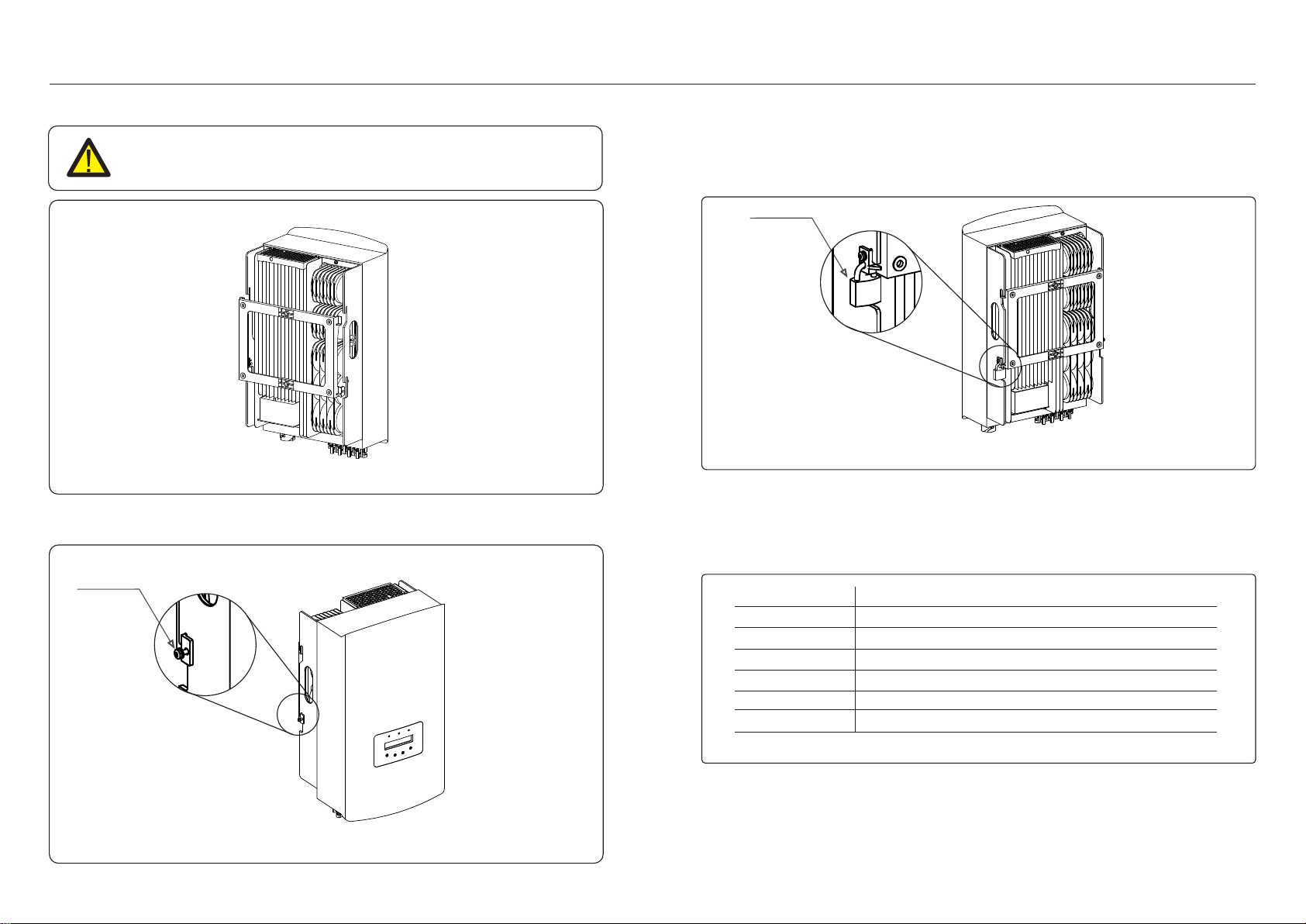

5. Anti-theft lock mount(optional)
Anti-theft lock( User-supplied) function is that inverter is fixed in bracket in case theft.
The lock is selected by 5mm(the keyhole diameter), and the lock of stainless steel is
preferred.
Anti-theft lock
Figure 5.7 Install security lock
5.3 Electrical Connections
Inverter designs quick-connect terminal, so top cover needn't open during electrical
connection. The sign meaning located the bottom of inverter, as shown below in table 5.1.
All electrical connections are suit for the local or national standard.
Positive DC input terminal
Negative DC input terminal
Connecting terminal of the Grid
Switch of DC input terminals
RJ45 and terminal block for RS485 communication port
DC input terminal
DC input terminal
Table 5.1 Electrical connection symbols
5. Installation5. Installation
The electrical connection of the inverter must follow the steps listed below:
1. Switch the Grid Supply Main Switch (AC) OFF.
2. Switch the DC Isolator OFF.
3. Assemble PV input connector to the Inverter.
4. Lift the inverter and hang it on the backet, and fixing both sides of inverter with
locking screws (accessories).

A
B
D
C
Grounding screw
.14. .15.
5. Installation5. Installation
2) Prepare OT terminals: M6.
Canadian Solar recommends 2 ground protection methods: Through grid terminal connection
and external heat sink connection.
If AC terminal is used to connect ground, please refer to the contents of 5.3.3.
If the heat sink is used to connect the ground, please follow the steps below:
1) Prepare the grounding cable: recommend to use the ≥ 6mm² outdoor
copper-core cable.
Important:
3) Strip the ground cable insulation to a suitable length(see Figure 5.8).
Figure 5.8 suitable length
Important:
4) Insert the stripped wire into the OT terminal crimping area and use the hydraulic
clamp to crimp the terminal to the wire (see Figure 5.9).
Figure 5.9 strip wire
Important:
For multiple inverters in parallel , all inverters should be connected to the
same ground point to eliminate the possibility of a voltage potential existing
between inverter grounds.
B (insulation stripping length) is 2mm~3mm longer than A (OT cable
terminal crimping area) 2mm~3mm.
After crimping the terminal to the wire, inspect the connection to ensure the
terminal is solidly crimped to the wire.
5) Remove the screw from the heat sink ground point.
Figure 5.10 Fixed cable
For improving anti-corrosion performance,
after ground cable installed, apply silicone or paint is preferred to protect.
Important:
5.3.1 Grounding
6) Connect the grounding cable to the grounding point on the heat sink,and tighten the
grounding screw, Torque is 3Nm(see figure 5.10).

+
-
4.0~6.0 4.0（12AWG）
（12~10AWG）
.17..16.
5. Installation5. Installation
Before connecting inverter, please make sure the PV array open circuit
voltage is within the limit of the inverter.
Before connection, please make sure the polarity of the output voltage of
PV array matches the“DC+”and“DC-”symbols.
Before connecting inverter, please make sure the PV array open circuit
voltage is within the limit of the inverter.
Figure 5.11 DC+ Connector Figure 5.12 DC- Connector
Please use approved DC cable for PV system.
Cable type
Cross section（mm²）
Range
Industry generic PV cable
（model:PV1-F）
Recommended value
Figure 5.13 Disassemble the Connector Cap nut Figure 5.14 Insert the Wire into the
Connector Cap nut and contact pin
Figure 5.15 Crimp the contact pin to the wire Figure 5.16 Connector with Cap nut Screwed on
Figure 5.17 Multimeter measurement Figure 5.18 Connect the DC
Connectors to the Inverter
The steps to assemble the DC connectors are listed as follows:
1. Strip off the DC wire for about 7mm, Disassemble the connector cap nut. (see Figure 5.13)
3. Crimp the contact pin to the wire using a proper wire crimper. (see Figure 5.15)
2. Insert the wire into the connector cap nut and contact pin. (see Figure 5.14)
4. Insert metal connector into top of connector, and tighten nut with torque 2.5-3 Nm
(see figure 5.16).
Crimping plier
5. Measure PV voltage of DC input with multimeter, verify DC input cable polar
(see figure 5.17), and ensure each string of PV voltage in range of inverter operation.
Connect DC connector with inverter until hearing a slight clicking sound indicates
connection succeed. (see figure 5.18)
5.3.2 Connect PV side of inverter
Caution:
If DC inputs are accidently reversely connected or inverter is faulty or not
working properly, it is NOT allowed to turn off the DC switch as it will damage
the inverter and even leads to a fire disaster.
The correct actions are:
*Use a clip-on ammeter to measure the DC string current.
*If it is above 0.5A, please wait for the solar irradiance reduces until the
current decreases to below 0.5A.
*Only after the current is below 0.5A, you are allowed to turn off the DC
switches and disconnect the PV strings.
Please note that any damages due to wrong operations are not covered in
the device warranty.

.19..18.
A B C D E F
L2
L1
PE
L3
N
Outside-diameters
13~25mm Cross-section 6~16mm²
60mm
70mm
xx=9mm
N
L1
L2
L3
5. Installation5. Installation

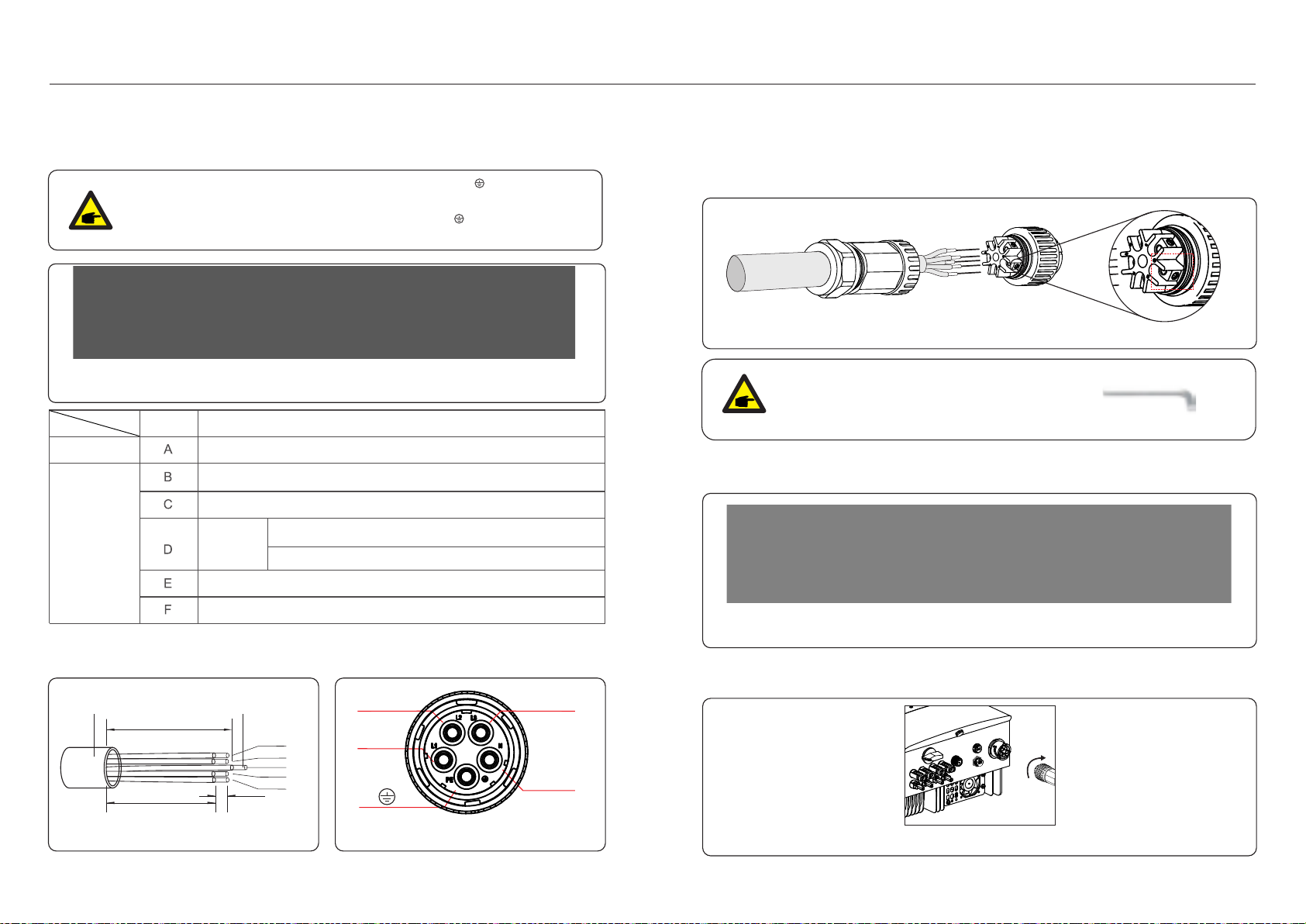

5.3.3 Connect grid side of inverter
The steps of AC gird terminal connector for install as follows:
A) Stripped the insulation sleeve of cable for 70mm, so that bared copper-cored connector
reaches for 9mm. Cable through nut and sleeve of socket element, insert corresponding
terminals and tighten with allen wrench (see figure 5.22).
Figure 5.19 AC connector
Figure 5.20 Stripped and bared wire Figure 5.21 Internal structure of AC connector
Internal of AC connector signs "L1","L2","L3","N" and "PE " five connection
ports (see Figure 5.21). Three live wires are connected the "L1", "L2"and
"L3" terminals respectively; ground wire connects "PE "; neutral wire
connects "N" terminal:
Accessory
AC
connectors
Number Description
Plastic fixture (Auxiliary installation）
Socket element
Adapter
Seal ring Seal ring (thick) suit for 12-18mm cable
Fastening case
Swivel nut
Figure 5.22 Connected cable
B) Clip plastic fixture (Auxiliary tighten) in socket element , tighten adapter in socket
element, then tighten swivel nut with 3-4Nm torque (see figure 5.23).
Figure 5.23 Assembly AC terminal
C) Connect AC connector with inverter, then tighten AC connector for clockwise (see figure
5.24), until hearing a slight clicking sound indicates connection succeed.
Figure 5.24 AC connector to inverter
For all AC connections, 6-16mm², YJV-0.6/1KV cable is required to be used. Please make sure the
resistance of cable is lower than 1.50hm. If the wire is longer than 20m, preferred to 10-16mm² cable.
Tighten cable with 3.0 mm allen wrench( focus
in dotted box, see figure 5.22). Allen screw is
easy to drop off, don't screw out completely.
*The combination of AC connectors has two seal rings, please refer to different diameters of cable
select corresponding seal ring.
* Seal ring (thin) suit for 16-21mm cable
PE

CSI-12K-T400GL01-E 400
Current for protection
device (A)
32
CSI-17K-T400GL01-E
CSI-15K-T400GL01-E
40
32
CSI-20K-T400GL01-E 40
400
400
400
.21..20.
5. Installation
Inverter Rated voltage(V) Rated output
current (A)
To protect the inverter's AC grid connection conductors, Canadian Solar recommends installing
breakers that will protect against overcurrent. The following table defines OCPD ratings for
the Canadian Solar 12-20kW three phase inverters.
5.3.4 Max. over current protection device (OCPD)
Table 5.2 Rating of grid OCPD
5.3.5 Inverter monitoring connection
The inverter can be monitored via Wi-Fi or GPRS. All Canadian Solar communication devices
are optional (Figure 5.25). For connection instructions, please refer to the Canadian Solar
Monitoring Device installation manuals.
GPRS monitoring
Wi-Fi monitoring
Wi-Fi monitoring
Router
Wi-Fi box
Internet
Smart phone monitoring
PC monitoring
Web server
Figure 5.25 Wireless communication function
17.3
21.7
24.6
28.9
5. Installation
5.3.6 Meter Connection(optional)
Figure 5.26 Meter Connection (1)
SET
400 i mp/kW h
L1
21 22 17 18 1 9 20
L1' L3 L3' NL2 L2'
Grid
Load
Choice 1:
SET
640 0 imp/k Wh
Ua
21 22 17 18 1 9 20
Grid
Load
Ub Uc N Ia* Ia Ib* Ib Ic* Ic
CT
Figure 5.27 Meter Connection (2)
Choice 2:
→→→
The meter is optional. There are 2 choices, one meter (choice 1) without CT, and the
other meter (choice 2) with CT; customers can choice according to different
applications and requirements.
The inverter has intergrated export limitation functionality.
To use this function, a power meter must be installed, it should be installed in the load side
or in the grid side, see Figure 5.26 and Figure 5.27. After the inverter power on, please set
the corresponding configuration as sections 7.5.11.1.2 and 7.5.11.1.3.

6. Start & Stop
6.1 Start the Inverter
To start up the Inverter, it is important that the following steps are strictly followed:
1. Switch the grid supply main Switch (AC) ON first.
2. Switch the DC switch ON. If the voltage of PV arrays are higher than start up voltage,
the inverter will turn on. The red LED power will light.
3. When both the DC and the AC sides supply to the inverter, it will be ready to generate
power. Initially, the inverter will check both its internal parameters and the parameters
of the AC grid, to ensure that they are within the acceptable limits. At the same time,
the green LED will flash and the LCD displays the information of INITIALIZING.
4. After 30-300 seconds (depending on local requirement), the inverter will start to
generate power. The green LED will be on continually and the LCD displays
GENERATING.
WARNING:
Do not touch the surface when the inverter is operating. It may be
hot and cause burns.
6.2 Stop the Inverter
To stop the Inverter, the following steps must be strictly followed:
1. Turn off the ac switch.
2. Put the DC SWITCH on the inverter in the position of "OFF".
3. Remove the positive and negative dc lines and remove the ac lines.
5. Installation
.22. .23.
5.3.7 Logic interface connection (For UK and Belgium)

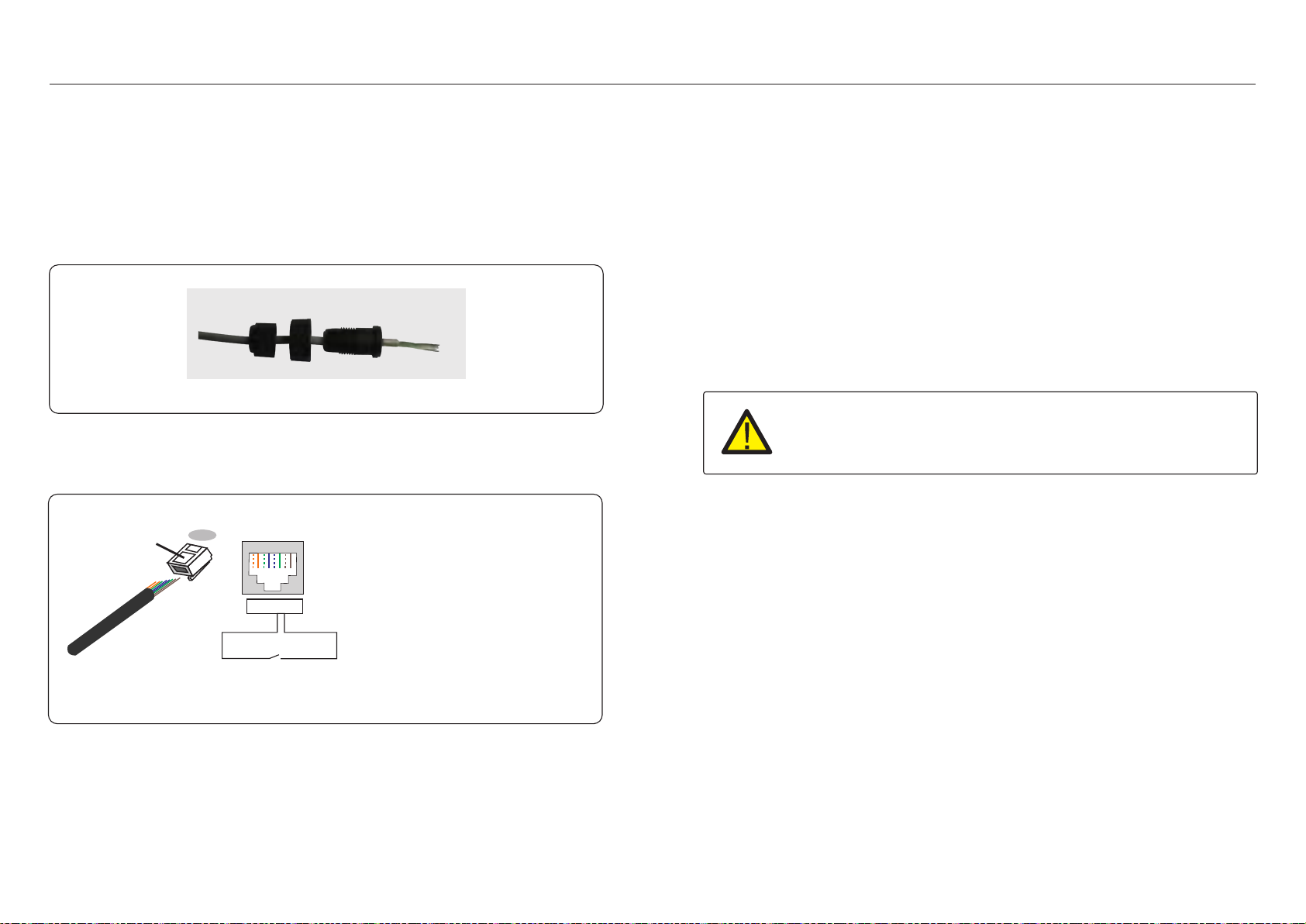

Please follow below steps to assemble RJ45 connector.
1. Insert the network cable into the communication connection terminal of RJ45.
(As shown in figure 5.28)
Figure 5.28 RJ45 communication connection terminals
2. Use the network wire stripper to strip the insulation layer of the communication cable.
According to the standard line sequence of figure 5.29 connect the wire to the plug of
RJ45, and then use a network cable crimping tool to make it tight.
Correspondence between the cables
and the stitches of plug, Pin5 and Pin6
of RJ45 terminal is used for the logic
interface, other Pins are reserved.
Pin 1: Reserved; Pin 2: Reserved
Pin 3: Reserved; Pin 4: Reserved
Pin 5: Switch_input1; Pin 6: Switch_input2
Pin 7: Reserved; Pin 8: Reserved
1--8
Rj45 plug Rj45terminal
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
DRM(logic interface)
Switch_input1 Switch_input2
Figure 5.29 Strip the insulation layer and connect to RJ45 plug
3. Connect RJ45 to DRM (l ) . ogic interface
After wire connection, please refer chapter 7.5.8.1 to enable the logic interface function.
Logic interface is required by Logic interface is required by local regulations in UK and Belgium
that can be operated by a simple switch or contactor. When the switch is closed the inverter can
operated normally. When the switch is opened, the inverter will reduce it’s output power to zero
within 5s. Pin5 and Pin6 of RJ45 terminal is used for the logic interface connection.

5.2 Stop the Inverter
.25..24.
In normal operation, LCD screen alternatively shows inverter power and operation status
(see Figure 7.1). The screen can be scrolled manually by pressing the UP/DOWN keys.
Pressing the ENTER key gives access to Main Menu.
5 sec
Start
Power 3424W
01-01-2014 12:04
Status: Generating
01-01-2014 12:04
Information
Settings
Advanced Info.
Advanced settings
UP/DOWN
UP/DOWN
UP/DOWN
UP/DOWN or
auto-scroll
(10 sec)
Pressing the
ENTER key
gives access to
the main menu.
Pressing the
ESC key
calls back the
previous menu.
Main Menu
Figure 7.1 Operation Overview
7.1 Main Menu
There are four submenus in the Main Menu (see Figure 7.1):
1. Information
2. Settings
3. Advanced Info.
4. Advanced Settings
The Canadian Solar three Phase Inverter main menu provides access to operational data and
information. The information is displayed by selecting "Information" from the menu
and then by scrolling up or down.
7.2 Information 7.2.1 Lock screen
Pressing the ESC key returns to the Main Menu. Pressing the ENTER key locks
(Figure 7.2(a)) or unlocks (Figure 7.2 (b)) the screen.
(b)(a)
Figure 7.2 Locks and Unlocks the Screen of LCD
7. Operation7. Operation
Table 7.1 Information list
V_DC1 350.8V
I_DC1 5.1A
V_A 230.4V
I_ A 8.1A
Status: Generating
Power: 1488W
Grid Frequency
F_Grid 50.06Hz
Total Energy
0258458 kwh
This Month: 0123kwh
Last Month: 0123kwh
Today: 15.1kwh
Yesterday: 13.5kwh
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
10 sec
V_DC1: Shows input 01 voltage value.
I_DC1: Shows input 01 current value.
V_A: Shows the grid's voltage value.
I_A: Shows the grid's current value.
Status: Shows instant status of the Inverter.
Power: Shows instant output power value.
F_Grid: Shows the grid's frequency value.
Total generated energy value.
This Month: Total energy generated this month.
Last Month: Total energy generated last month.
Today: Total energy generated today.
Yesterday: Total energy generated yesterday.
Display Duration Description
Inverter SN
00000000000000
10 sec
Display series number of the inverter.
V_DC2 350.8V
I_DC2 5.1A 10 sec V_DC2: Shows input 02 voltage value.
I_DC2: Shows input 02 current value.
10 sec
V_C 230.4V
I_ C 8.1A V_C: Shows the grid's voltage value.
I_C: Shows the grid's current value.

.27..26.
The following submenus are displayed when the Settings menu is selected:
1. Set Time
2. Set Address
7.3 Settings
7.3.1 Set Time
This function allows time and date setting. When this function is selected, the LCD will
display a screen as shown in Figure 7.3.
NEXT=<ENT> OK=<ESC>
01-01-2016 16:37
Figure 7.3 Set Time
Press the UP/DOWN keys to set time and data. Press the ENTER key to move from one
digit to the next (from left to right). Press the ESC key to save the settings and return to
the previous menu.
7.3.2 Set Address
This function is used to set the address when muti inverters are connected to three monitor.
The address number can be assigned from “01”to “99”(see Figure 7.4). The default address
number of Canadian Solar Three Phase Inverter is “01”.
YES=<ENT> NO=<ESC>
Set Address: 01
Figure 7.4 Set Address
Press the UP/DOWN keys to set the address. Press the ENTER key to save the settings.
Press the ESC key to cancel the change and return to the previous menu.
7.4 Advanced Info - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Enter menu “Advanced Info.” and “Advanced settings” （need password）.
Select “Advanced Info.” from the Main Menu. The screen will require the password as below:
YES=<ENT> NO=<ESC>
Password:0000
Figure 7.5 Enter password
After enter the correct password the Main Menu will display a screen and be able to access
to the following information.
The screen can be scrolled manually by pressing the UP/DOWN keys. Pressing the ENTER
key gives access to a submenu. Press the ESC key to return to the Main Menu.
7.4.1 Alarm Message
The display shows the latest alarm messages (see Figure 7.6). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous
menu.
Alarm001: OV-G-V
Time: 27-11 Data: 7171
Figure 7.6 Alarm Message
7.4.2 Running Message
This function is for maintaince person to get running message such as internal temperature,
Standard No.1,2,etc.
Screens can be scrolled manually by pressing the UP/DOWN keys.
7.4.3 Version
The screen shows the model version and the software version of the Inverter
(see Figure 7.7).
Model: 08
Software Version: D20001
Figure 7.7 Model Version and Software Version
7. Operation7. Operation
1. Alarm Message 2. Running message 3.Version 4. Daily Energy 5. Monthly Energy
6. Yearly Energy 7. Daily Record 8. Communication Data 9. Warning Message

.29..28.
7. Operation7. Operation
7.4.4 Daily Energy
The function is for checking the energy generation for selected day.
Figure 7.8 Select date for daily energy
YES=<ENT> NO=<ESC>
Select: 2015-02-23
Press DOWN key to move the cursor to day, month and year, press UP key to change the digit.
Press Enter after the date is fixed.
2015-02-22: 051.3kWh
2015-02-23: 061.5kWh
Figure 7.9 Daily energy
Press UP/DOWN key to move one date from another.
7.4.5 Monthly Energy
YES=<ENT> NO=<ESC>
Select: 2015-02
Figure 7.10 Select month for monthly energy
2015-02: 0510kWh
2015-01: 0610kWh
Figure 7.11 Month energy
Press UP/DOWN key to move one date from another.
The function is for checking the energy generation for selected month.
Press DOWN key to move the cursor to day and month, press UP key to change the digit.
Press Enter after the date is fixed.
7.4.8 Communication Data
The screen shows the internal data of the Inverter (see Figure 7.14), which is for service
technicians only.
01-05: 01 25 E4 9D AA
06-10: C2 B5 E4 9D 55
Figure 7.14 Communication Data
7.4.6 Yearly Energy
YES=<ENT> NO=<ESC>
Select: 2015
Figure 7.12 Select year for yearly energy
2015: 0017513kWh
2014: 0165879kWh
Figure 7.13 Yearly energy
Press UP/DOWN key to move one date from another.
The function is for checking the energy generation for selected year.
Press DOWN key to move the cursor to day and year, press UP key to change the digit.
Press Enter after the date is fixed.
7.4.7 Daily record
The screen shows history of changing settings. Only for maintance personel.
The display shows the latest warn messages (see Figure 7.15). Screens can be scrolled 100
manually by pressing the UP/ DOWN keys. Press the ESC key to return to the previous menu.
Msg000:
T: 00-00 00:00 D:0000
Figure 7.15 Warning Message
7.4.9 Warning Message

.31..30.
7. Operation7. Operation
7.5 Advanced Settings - Technicians Only
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 7.4 to enter password to access this menu.
7.5.1 Selecting Standard
This function is used to select the grid's reference standard (see Figure 7.16).
YES=<ENT> NO=<ESC>
Standard:G59/3
Figure 7.16
Press the UP/DOWN keys to select the standard (G59/3, UL-480V, VDE0126, AS4777-15,
AS4777-02, CQC380A, ENEL, UL-380V, MEX-CFE, C10/11 and “User-Def” function).
Press the ENTER key to confirm the setting.
Press the ESC key to cancel changes and returns to previous menu.
Select Advanced Settings from the Main Menu to access the following options:
1. Select Standard 2. Grid ON/OFF 3. Clear Energy 4. Reset Password
5. Power Control 6. Calibrate Energy 7. Special Settings 8. STD. Mode Settings
9.Restore Settings 10. HMI Update 11. Internal EPM Set 12. External EPM set
13. Restart HMI 14. Debug Parameter 15.DSP Update 16.Compensation Set
7.5.2 Grid ON/OFF
This function is used to start up or stop the power generation of Canadian Solar Three Phase
Inverter (see Figure 7.18).
Grid ON
Grid OFF
Figure 7.18 Set Grid ON/OFF
Screens can be scrolled manually by pressing the UP/DOWN keys. Press the ENTER key
to save the setting. Press the ESC key to return to the previous menu.
These two functions are applicable by maintenance personnel only, wrong
operation will prevent the inverter from working properly.
7.5.3 Clear Energy
Clear Energy can reset the history yield of inverter
NOTE:
This function is for technicians use only.
Selecting the “User-Def” menu will access to the following submenu (see Figure 7.17),
Figure 7.17
OV-G-V1: 260V
OV-G-V1-T: 1S
NOTE:
The " User-Def" function can be only used by the service engineer and
must be allowed by the local energy supplier.
OV-G-V1: 220---290V OV-G-F1: 50.2-53Hz(60.2-64Hz)
OV-G-V1-T: 0.1---9S OV-G-F1-T: 0.1---9S
OV-G-V2: 220---290V OV-G-F2: 50.2-53Hz(60.2-64Hz)
OV-G-V2-T: 0.1---1S OV-G-F2-T: 0.1---9S
UN-G-V1: 90---210V UN-G-F1: 47-49.5Hz(56-59.8Hz)
UN-G-V1-T: 0.1---9S UN-G-F1-T: 0.1---9S
UN-G-V2: 90---210V UN-G-F2: 47-49Hz(56-59.8Hz)
UN-G-V2-T: 0.1---1S UN-G-F2-T: 0.1---9S
Startup-T:10---600S
Restore-T:10---600S
Below is the setting range for “User-Def”. Using this function, the limits can be changed
manually.
Press the UP/DOWN keys to scroll through items. Press the ENTER key to edit the highlighted
item. Press the UP/DOWN keys again to change the setting. Press the ENTER key to save the
setting. Press the ESC key to cancel changes and returns to the previous menu.
For different countries, the grid standard needs to be set as different according to local
requirements. If there is any doubt, please consult Canadian Solar service technicians
for details.
NOTE

7.5.4 Reset Password
This function is used to set the new password for menu “Advanced info.” and “Advanced
information” (see Figure 7.19).
Figure 7.19 Set new password
YES=<ENT> NO=<ESC>
Password: 0000
Enter the right password before set new password. Press the DOWN key to move the cursor,
Press the UP key to revise the value. Press the ENTER key to execute the setting.
Press the ESC key to return to the previous menu.
7.5.5 Power control
Active and reactive power can be set through power setting button.
There are 5 item for this sub menu:
1. Set output power 2. Set Reactive Power 3. Out_P With Restore
4. Rea_P With Restore 5. Select PF Curve
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.6 Calibrate Energy
Maintenance or replacement could clear or cause a different value of total energy. Use this
function could allow user to revise the value of total energy to the same value as before. If
the monitoring website is used the data will be synchronous with this setting automatically.
(see Figure 7.20).
Figure 7.20 Calibrate energy
YES=<ENT> NO=<ESC>
Energy:0000000kWh
Press the DOWN key to move the cursor, Press the UP key to revise the value. Press the
ENTER key to execute the setting. Press the ESC key to return to the previous menu.
7.5.7 Special Settings
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7. Operation7. Operation
.33..32.
7.5.8 STD Mode settings
7.5.9 Restore Settings
There are 5 items in initial setting submenu.
Thescreenshowsasbelow:
Restore setting could set all item in 7.5.7 special setting to default.
Figure 7.21 Restore Settings
Are you sure?
YES=<ENT> NO=<ESC>
PresstheEnterkeytosavethesettingaftersettinggridoff.
PresstheESCkeytoreturnthepreviousmean.
There are 5 setting under STD. Mode settings.
1. Working mode 2. Power Rate limit 3. Freq. Derate set 4. 10mins OV-G-V set.
5.Initial Settings
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
7.5.8.1 Enable logic interface settings
When select G98 or G99 standard to use the logic interface function, please follow below
settings to enable the DRM. DRM default setting is “OFF” , if DRM set “ON”, but the logic
interface un-connected to the switch or the switch is open, the inverter HMI will display “Limit
by DRM” and the inverter output power will be limited to zero.
1. Select Initial Settings
2. Select DRM and set it “ON”

7.5.10 HMI Update
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
This function is used for updating the LCD program.
7.5.11 Internal EPM Set
NOTE:
To access to this area is for fully qualified and accredited technicians only.
Please follow 7.4 to enter password to access this menu.
7. Operation7. Operation
.35..34.
Select EPM Settings from the Main Menu to access the following options:
1. Mode Select 2.Backflow Power 3.Fail safe ON/OFF 4.Backflow Work Mode
7.5.11.1 Mode Select
There are 3 settings in this menu as below:
1. OFF 2. Meter in Load 3. Meter in Grid
7.5.11.1.1 OFF
Figure 7.22
ON=<ENT> CANCEL=<ESC>
OFF
Press the ENTER key to set done.
Press the ESC key to the previous menu.
This function is used to shut down the Export Power Set.
7.5.11.1.2 Meter in Load
Figure 7.23
ON=<ENT> CANCEL=<ESC>
Meter in Load
Press the ENTER key to set done.
Press the ESC key to the previous menu.
The submenu is used to set meter in Load as shown as 5.3.7 Meter connection(optional).
7.5.11.1.3 Meter in Grid
Figure 7.24
ON=<ENT> CANCEL=<ESC>
Meter in Grid
Press the ENTER key to set done.
Press the ESC key to the previous menu.
The submenu is used to set meter in Load as shown as 5.3.7 Meter connection(optional).
7.5.11.2 Backflow Power
->Set Backflow Power
Figure 7. Set the power 25 backflow
Figure 7.26
YES=<ENT> NO=<ESC>
P_Backflow:-0001W
Press the UP/DOWN keys to set data.Press the ENTER key to set backflow power.
Then press DOWN keys to move the cursor, press UP to change the number.
Press the ESC key to save the settings and return to the previous menu.
This submenu is used for set allowed power that inverter can generate to grid .

.37..36.
7. Operation7. Operation
7.5.11.3 Fail safe ON/OFF
This function is used to remind whether the EPM is ON or not. The default setting is ON.
Figure 7.27 Set the Fail Safe ON/OFF
YES=<ENT> NO=<ESC>
Fail Safe Set:ON
Press the UP/DOWN keys to set ON/OFF.Press the ENTER key to set done .
Press the ESC key to the previous menu.
7.5.11.4 Backflow Work Mode
This submenu is used for set backflow work mode: 01, 02. “01” is the default mode.
Figure 7.28 Set the Backflow work mode
->Backflow Work Mode
Figure 7.29
YES=<ENT> NO=<ESC>
Mode:01
Mode “01”, As shown in the figure 7.31, the average limiting mode, the output power of each
phase is the average of the three-phase load power, and it is more than the phase of the
lowest power in three phases.
Inverter
Meter
Figure 7.30
Mode “02”, As shown in the figure 7.32 the per phase limiting mode, the inverter only
generate the power that equals to one of three-phase load power that is the lowest
load power of a certain phase.
Figure 7.31
Inverter
Meter
7.5.12 External EPM Set
Figure 7.32
->5G-EPM
Others-EPM
This setting should only be turned on when Canadian Solar external EPM device is used.
Two options are available：5G-EPM and Others-EPM.
5G-EPM Failsafe Option should be turned ON when 5G series EPM device is used
Others-EPM Failsafe Option should be turned ON when 2G series EPM device is used
Only one option can be activated each time.
7.5.13 Restart HMI
ThefunctionisusedforrestarttheHMI.
This function is applicable by maintenance personnel only, wrong operation
will prevent the inverter from reaching maximum power.
