CANAWELD MIG/MMA 201 User manual

User Manual
Model: MIG/MMA 201

1
Thank You
From
Canaweld
Thank you for choosing a Canaweld machine, with 30+ years of welding equipment manufacturing
experience overseas, you can feel confident that you have made the right choice.
Canaweld Inc. was started in Canada to manufacture the highest quality welding and cutting
equipment for the North American market. All of our machines are electronically and weld tested
before they leave our factory to ensure the equipment you purchased is ready to work.
Our engineers are continuously working on new equipment to release new models on a regular
basis as well as to upgrade our existing line of machines. Canaweld, is in partnership with some of
the best European welding and cutting equipment manufacturers, to distribute their machines to
the North American market. Our business relationships have been created to offer our customers a
wider range of machines - only the best available for every industry.
This user manual should be read carefully to fully understand the machine you have purchased and
how to maintain it in the best operating condition.
For more information on our full line of products please visit our website or contact a dealer in
your local area, our dealer list can be found on our website –www.canaweld.com
If you require more information on how to use the equipment, please visit our website at
www.canaweld.com and view our tutorials section to find the correct one for your machine.

2
TABLE OF CONTENTS
EQUIPMENT PACKAGE
3
SECTION 1- SAFETY CAUTIONS & SYMBOLS
4-7
SECTION 2- INSTALLATION & SPECIFICATIONS
8-9
SECTION 3- OPERATION OF EQUIPMENT
10-13
SECTION 4- MAINTENANCE & BASIC TROUBLESHOOTING
14-15
SECTION 5- ELECTRICAL SPECIFICATIONS
16-17
SECTION 6- PARTS LIST
18-19
SECTION 7- WARRANTY & SERVICE
20-21
NOTES
22

3
MIG / MMA 201- WELDER PACKAGE
1
2 3 4
5 6
Name
Product Number
Quantity
1. Machine
PLC7580146
1
2. Work/Ground Clamp Set
ALP1980126
1
3. Electrode Holder Set
ALP2280095
1
4. MIG Torch
TGD0180150
1
5. Gas Flow Regulator
TLJ1080187
1
6. Gas Hose
TLJ1080188
1
7. Machine Bag
TGJ2780145
1

4
SECTION 1- SAFETY CAUTIONS & SYMBOLS
CAUTION: READ USER MANUAL
Indicates any section that the user must read the manual to fully understand the machine’s characteristics to avoid
any hazardous situation.
ELECTRIC SHOCK
Touching live electrical parts can cause fatal shocks or severe burns. The electrode and work circuit is electrically live
whenever the output is on. The input power circuit and machine internal circuits are also live when power is on.
Do not touch live electrical parts.
Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical
contact with the work or ground.
Do not remove any machine covers while the machine is powered.
WELDING WORKPLACE
Be mindful of working in cramped positions, scaffolds, or any location where you can fall and become injured.
Wear a safety harness if working above floor level.
Do not work in wet areas, or while wearing wet clothing.
WELDED PARTS
Immediately after welding, all welded parts will be a very high temperature which will cause burns to any exposed
skin that makes contact.
Do not touch parts after welding. Allow for cooling period before picking up.
Allow cooling period before working on equipment.
To handle hot parts, use proper tools and/or wear heavy, insulated welding gloves and clothing to prevent
burns.

5
WELDING FUMES
Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health.
Keep your head out of the fumes stream while welding. Do not breathe the fumes.
If inside, ventilate the area and/or use local forced ventilation at the welding point to remove welding fumes
and gases.
If ventilation is poor, wear an approved air-supplied respirator.
Read and understand the Material Safety Data Sheets (MSDSs) and the manufacturer’s instructions for metals,
consumables, coatings, cleaners, and degreasers.
Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Welding fumes
and gases can displace air and lower the oxygen level causing injury or death. Always have a trained
watchperson nearby.
Do not weld on coated metals, such as galvanized, lead, or cadmium plated steel, unless the coating is removed
from the weld area, the area is well ventilated, and while wearing an air-supplied respirator. The coatings and
any metals containing these elements can give off toxic fumes if welded.
WELDING RAYS
Rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes
and skin.
Wear an approved welding helmet fitted with a proper shade of filter lenses to protect your face and eyes from
welding rays.
Use protective screens or barriers to protect others from flash, glare and sparks; warn others not to watch the
arc.
Wear protective clothing made from durable, flame-resistant material (leather, heavy cotton, or wool) and to
cover any exposed skin, arms, neck area.
WELDING FIRES
Welding creates heat and can lead to fires, as well certain welding forms create sparks which could also ignite
surrounding items and create a fire. The flying sparks, hot workpiece, and hot equipment can cause fires and burns.
Remove all flammables within 35 ft. (10.7 m) of the welding arc. If this is not possible, cover them with approved
covers.
Be alert that welding sparks and hot materials from welding can easily go through small cracks and openings to
adjacent areas. Be aware that welding on a ceiling, floor, bulkhead, or partition can cause fire on the hidden
side.
Watch for fire, and keep a fire extinguisher nearby.

6
GASES
Dangerous gases can be produced during welding, breathing these gases in can be hazardous to your health.
Shut off shielding gas supply when not in use.
Always ventilate confined spaces or use approved air-supplied respirator.
Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can react
with vapors to form highly toxic and irritating gases.
EMF- ELECTRIC MAGNETIC FIELDS
During welding, electric magnetic fields are created and can produce malfunctions in electrical components within the
area.
EMF created by welders may affect wearers of Pacemakers and other Implanted Medical Devices should keep
away.
Implanted Medical Device wearers should consult their doctor and the device manufacturer before going near
arc welding, spot welding, gouging, plasma arc cutting, or induction heating operations.
EXCESSIVE NOISE
Be mindful if your working area creates excessive noise.
Wear approved ear protection if noise level is high.
Any workers close by the area will also be effected by the noise and may also require hearing protection.
GAS CYLINDER/LINE DAMAGE
Shielding gas cylinders contain gas under high pressure. If damaged, a cylinder can explode. Since gas cylinders are
normally part of the welding process, be sure to treat them carefully.
Protect compressed gas cylinders from excessive heat, mechanical shocks, physical damage, slag, open flames,
sparks, and arcs.
Install cylinders in an upright position by securing to a stationary support or cylinder rack to prevent falling or
tipping.
Protect all gas lines from sparks, slag and open flames.
Open the cylinder valve slowly. Then slowly open regulator valve to avoid damage to the regulator.

7
ESD- ELECTRIC STATIC DISCHARGE
An electric static charge can be created during welding and discharged immediately after into any items touched by
the welder after welding.
Put on grounded wrist strap BEFORE handling boards or parts.
Use proper static-proof bags and boxes to store, move, or ship PC boards.
MOVING PARTS
A number of moving parts may be in typical welding machines such as rollers and fans.
Keep hands away from moving parts such as fans.
Keep all doors, panels, covers, and guards closed and securely in place.
Keep away from moving parts.
Keep away from pinch points such as drive rolls.
Secure any loose clothing and hair and keep away from moving parts.

8
SECTION 2- INSTALLATION and OVERVIEW
INSTALLATION
ELECTRICAL
The serial number and rating information is located on the bottom of the machine. Use the rating labels to
determine input power requirements and rated output.
Check whether the voltage value variations are within the acceptable working range with a multi-meter.
(A) The input cable of the machine is ready to be plugged into a 230V 10%
−
+compatible connector / socket or
(B) you can remove the installed plug and have the input cable “hard” wired into the appropriate building
electrical panel.
Electrical installation must meet all National and Local Codes− have only a qualified electrician do the
installation.

9
OVERVIEW
PRODUCT & DESIGN
Our unique electric structure and air channeling design in this series of welding machines are designed to
increase the heat dissipation of the power device improving the duty cycle of the machine.
The unique heat dissipation design leads to less damage done to the power source and control circuits from
overheating due to dust build up from air inducted by fan.
Front and rear panels are inset to help protect against impact damage.
A rubber trim is applied on the leading edge of the machine cover protecting the machine from damage and
creating a seal between the machine and the cover.
The heavy / thick steel base has a corrosion resistant coating applied to extend the life of the machine.
A heavy duty metal cover for protection of internal components to which has been applied a scratch proof
coating for long life and anti-corrosion durability.
Rubber and foam seals have been installed to increase water resistant ability.
FUNCTION
MIG and STICK Welding Processes: Both are possible on the machine.
Hot start arc ignition application is a built –in function: allows for the arc ignition in MMA welding making
ignition easier and more reliable.
Anti-sticking function: reduce working strength in welding.
Self-adaptive arc force technology: improves the performance of the machine in long-cable welding and
enhances long-distance welding.
Advanced arc ignition by scraping: “scratch” start TIG welding without HF arc ignition circuit.
Burn Back Control function: improves the quality of the crater filling and over all welding quality.
PERFORMANCE
Advanced IGBT inverter technology
Inverting frequency of 30~35kHz greatly reduces the volume and weight of the welder.
Large reduction in magnetic and resistance loss enhances the welding efficiency resulting in energy saving.
Working frequency is beyond audio range, eliminating approximately 90% of the noise pollution.
Leading control mode
Advanced control technology allows for various welding applications and greatly improves the welding
performance in a number of welding conditions.
It can be widely used in acid and basic electrode welding.
Designed for easy arc starting, creating less spatter, stable current and good shaping properties.

10
SECTION 3- OPERATION OF EQUIPMENT
OPERATION
After being installed according to the prescribed method, switch the power to on (rear panel) and the POWER
LED will light and the fan will turn on.
Using the rocker switch on the front panel choose the welding process desired (MIg or Stick).
Pay attention to the polarity when making connections of the machine cable (feeder) & work/ ground cables.
MIG OPERATION (Solid Wire Welding)

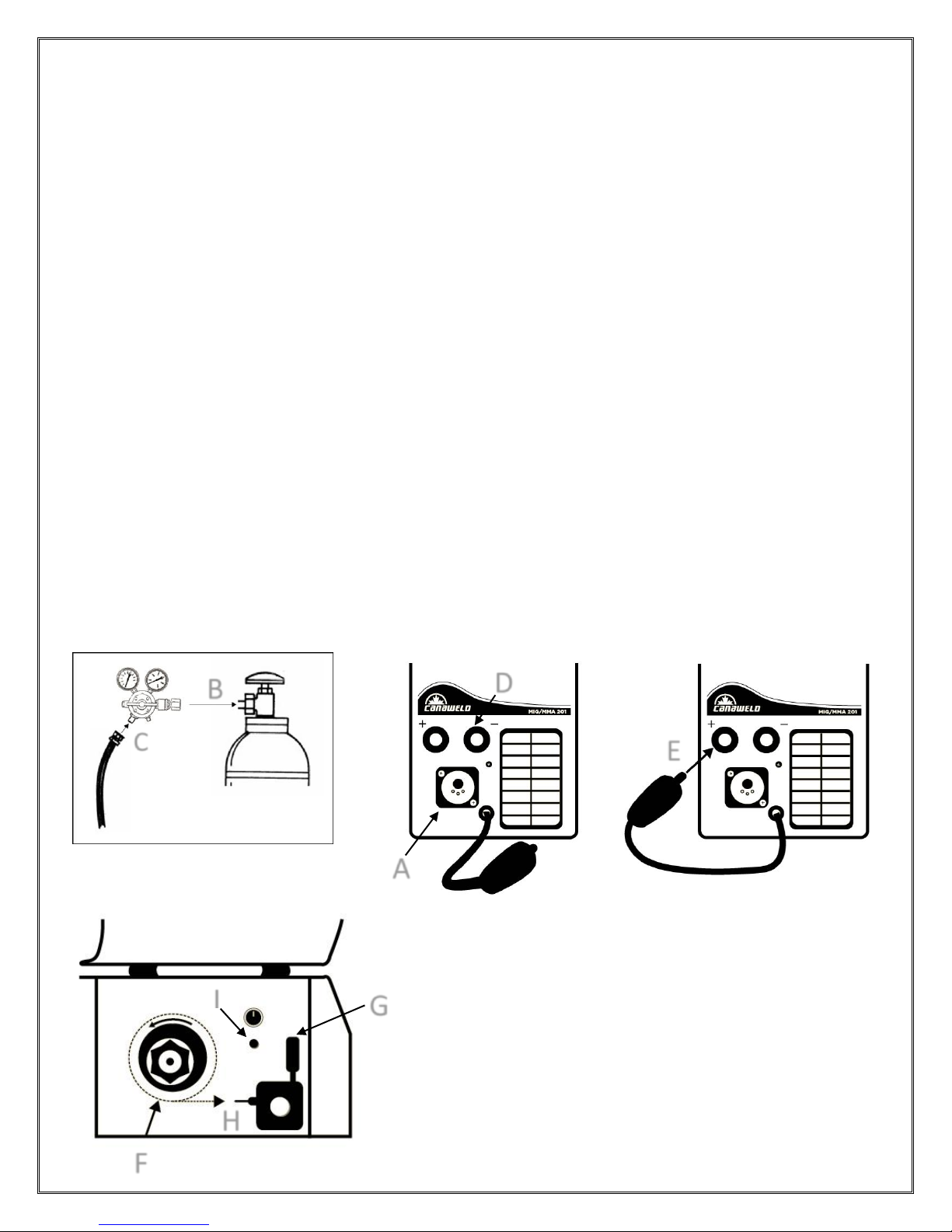

(A) Insert the welding torch into the output socket on the front panel of the machine, and tighten it.
(B) Connect the gas regulator to the welding gas cylinder (solid wire welding, possibly not used for flux
core wire welding) (C) attach the gas hose to the regulator and connect to the gas port on the rear of the
machine (see diagram below). Make sure to open the cylinder valve slowly. Then slowly open regulator
valve to avoid damage to the regulator.
(D) Insert the cable plug from the work / ground clamp into the (-) output terminal on the front panel of
the welding machine, and tighten it clockwise.
(E) Insert the machine cable plug of the wire feeder into the (+) output terminal on the middle plate on
the front panel of the welding machine, and tighten it clockwise.
(F) Install the wire spool on the spindle adapter (under hinged cover on the side of the machine), Spool
is installed to unwind in a counter clockwise direction with the wire feeding off the bottom of the spool.
Ensure that the groove size on the drive roll matches the wire size as well as the contact tip size of the
welding torch. (G) Release the pressure arm of the wire feeder and (H) thread the wire through the guide
tube, and onto the drive roll groove. Close the pressure arm and adjust the pressure arm, ensuring no
sliding of the wire (too high of a pressure will lead to wire distortion, which will affect wire feeding).
(I) Press the manual wire feeding button to thread the wire through the torch and out the contact tip.
B
C
D
A
E
F
G
H
I

11
MIG OPERATION (Flux Core Wire Welding)
(A) Insert the welding torch into the output socket on the front panel of the machine, and tighten it.
(B) Insert the cable plug from the work / ground clamp into the (+) output terminal on the front panel of
the welding machine, and tighten it clockwise.
(C) Insert the machine cable plug of the wire feeder into the (-) output terminal on the middle plate on the
front panel of the welding machine, and tighten it clockwise.
(D) Install the wire spool on the spindle adapter (under hinged cover on the side of the machine), Spool
is installed to unwind in a counter clockwise direction with the wire feeding off the bottom of the spool.
Ensure that the groove size on the drive roll matches the wire size as well as the contact tip size of the
welding torch. (E) Release the pressure arm of the wire feeder and (F) thread the wire through the guide
tube, and onto the drive roll groove. Close the pressure arm and adjust the pressure arm, ensuring no
sliding of the wire (too high of a pressure will lead to wire distortion, which will affect wire feeding).
(G)Press the manual wire feeding button to thread the wire through the torch and out the contact tip.
A
B
C
D
E
F
G

12
MIG welding parameter table (for reference only)
This table is suitable for mild steel MIG/MAG welding. For other materials, consult related materials and welding process
for reference.
Wire size (mm)
Spray arc
Intermediate range
Short arc
A
V
A
V
A
V
0.8
140 - 180
23 –28
110 –150
18 –22
50 –130
14 –18
1.0
180 –250
24 –30
130 –200
18 –24
70 –160
16 –19
1.2
220 –320
25 –32
170 –250
19 –26
120 –200
17 –20
1.6
260 - 390
26 - 34
200 - 300
22 - 28
150 - 200
18 - 21
Application
Medium and heavy plates (filling passes
and fillets) Horizontal and Flat position
Medium plate thickness range, horizontal,
also position welding (Vertical downward)
Thin plates in all position, medium and
heavy plates in fixed position, root passes
STICK OPERATION
(A) Insert the electrode holder cable plug into the (+) socket on the front panel of the welding machine,
and tighten it clockwise.
(B) Insert the cable plug with ground / work clamp into the (-) socket on the front panel of the welding
machine, and tighten it clockwise.
The connection as mentioned above is DCEP connection. Operator can choose DCEN connection according
to workpiece and electrode application requirement. Generally, DCEP connection is recommended for basic
electrode, while there is no special requirement for acid electrode.
A
B

13
Stick welding parameter table (for reference only)
This table is suitable for mild steel stick welding. For other materials, consult related materials and welding process for
reference.
Electrode diameter (mm)
Recommended welding current (A)
Recommended welding voltage(V)
2.0
60 - 100
22.4 - 24.0
2.5
80 - 120
23.2 - 24.8
3.2
108 - 148
23.32 - 24.92
4.0
140 - 180
24.6 - 27.2
5.0
180 - 220
27.2 - 28.8
Control Panel
MIG Welding:
Switch Position 1
Then adjust your welding Voltage with 4 and adjust the speed of wire feed with 5.
Stick Welding:
Switch position 2
Adjust your welding current with 3.
5) Wire feed speed adjustment
6) Main voltage LED
7) Thermostatic protection / Fault LED
Front Panel
1) Welding Process Switch (MIG)
2) Welding Process Switch (Stick)
3) Welding current adjustment
4) Welding voltage adjustment

14
SECTION 4- MAINTENANCE & BASIC TROUBLESHOOTING
MAINTENANCE
Please disconnect power to machine before performing maintenance.
Check periodically whether cable connection is in good condition (esp. plugs). Tighten any loose connections. If
there is oxidization, remove it with sandpaper and then reconnect.
Clean the dust inside the machine periodically with dry and clean compressed air. If welding environment has
heavy smoke and pollution, machine should be cleaned daily. The pressure of the compressed air should be at a
low pressure in order to avoid the small parts inside the machine being damaged.
Avoid water and vapor entering the machine. If this occurs, dry machine internals and check the insulation of
the equipment (including that between the connections and that between the connection and the enclosure).
Only when there is no moisture present, can the machine be used.
Check all cables periodically, to be sure they are in good condition with no worn spots or cracks in outer
insulation. If there is any dilapidation, rewrap it or replace all damaged cables.
Put the machine into clean packing and in a dry location if it is not to be used for an extended period of time.
If machine is in an environment that is in or near chemicals, cover machine when not in use.
Check gas hose periodically, to ensure it is in good condition and has no cracks, if any damage/wear is visible
replace hose.

15
BASIC TROUBLESHOOTING
Problem
Causes
Remedy
There is output current when pulling the torch
trigger, gas feeding but there is no wire feeding out.
1. The wire feeder is clogged.
2. The wire feeder has failed.
3. The control PCB or wire feeding
power PCB inside the machine has
failed.
1. Unclog it.
2. Repair / replace it.
3. Replace it.
When the torch trigger is pulled, there is gas
output, but there is no output current,
1. The earth cable is not well connected
with the workpiece.
2. The wire feeder has failed.
3. The welding torch has failed.
1. Adjust / re-connect clamp.
2. Repair the wire feeder.
3. Repair or replace the
welding torch.
There is no response when pulling the torch trigger.
1. The welding torch is not properly
connected with the wire feeder.
2. The torch trigger fails.
1. Remove and re-connect
torch.
2. Repair or replace the
welding torch.
The welding current is unstable.
1. The pressure arm on the wire feeder
is not properly adjusted
2. The drive roll does not match the
wire size being used.
3. The contact tip of the welding torch is
badly worn.
4. The wire-feeding tube of the welding
torch is badly worn.
5. The electrode is of poor quality.
1. Adjust it to get proper
pressure setting.
2. Make sure the wire and roll
size is a match.
3. Replace it.
4. Replace it.
5. Change electrode supply.
The overheating LED is on.
1. The overheating protection circuit
has reached its limit and shut down
the machine.
1. Ensure the welding machine is
in an open area able to receive
sufficient air flow.
2. Ensure the fan is functioning.
3. Disconnect power source and
inspect if the inside of the
machine is filled with dust –
clean / blow out machine as
necessary.
The torch becomes very hot while welding.
1. Welding torch rating is too low.
2. The torch liner is badly worn or
damaged causing the wire to “drag”
3. Welding area is in tight closed space not
allowing air flow for cooling.
1. Replace torch with larger
higher rated torch.
2. Replace torch liner.
3. Take frequent stop “breaks” to
allow the torch too cool down
or install equipment to direct
fresh airflow to welding area at
contact.
The electrode holder becomes very hot during welding.
1. The rated current of the electrode
holder is smaller than its actual working
current.
1. Replace the electrode holder
with a higher rated one.

16
SECTION 5- ELECTRICAL SPECIFICATIONS
Machine Specifications: MIG/FCAW Process
Input Voltage- Single Phase
230V (+10 / -15%)
Maximum Input Amperage
34A
Output Current Range
40A - 200A
Open Circuit Voltage
52V
Output Voltage Range
16V - 24V
Duty Cycle @ 40˚C
200A @ 35%
190A @ 60%
170A @ 100%
Machine Dimensions
Length: 20 inches
Width: 9.3 inches
Height: 15.2 inches
Weight
34 lbs.
Machine Specifications: STICK Process
Input Voltage- Single Phase
230V (+10 / -15%)
Maximum Input Amperage
38A
Output Current Range
10A - 200A
Open Circuit Voltage
52V
Output Voltage Range
20.4V –28V
Duty Cycle
200A @ 35%
180A @ 60%
160A @ 100%
Machine Dimensions
Length: 20 inches
Width: 9.3 inches
Height: 15.2 inches
Weight
34 lbs.

17

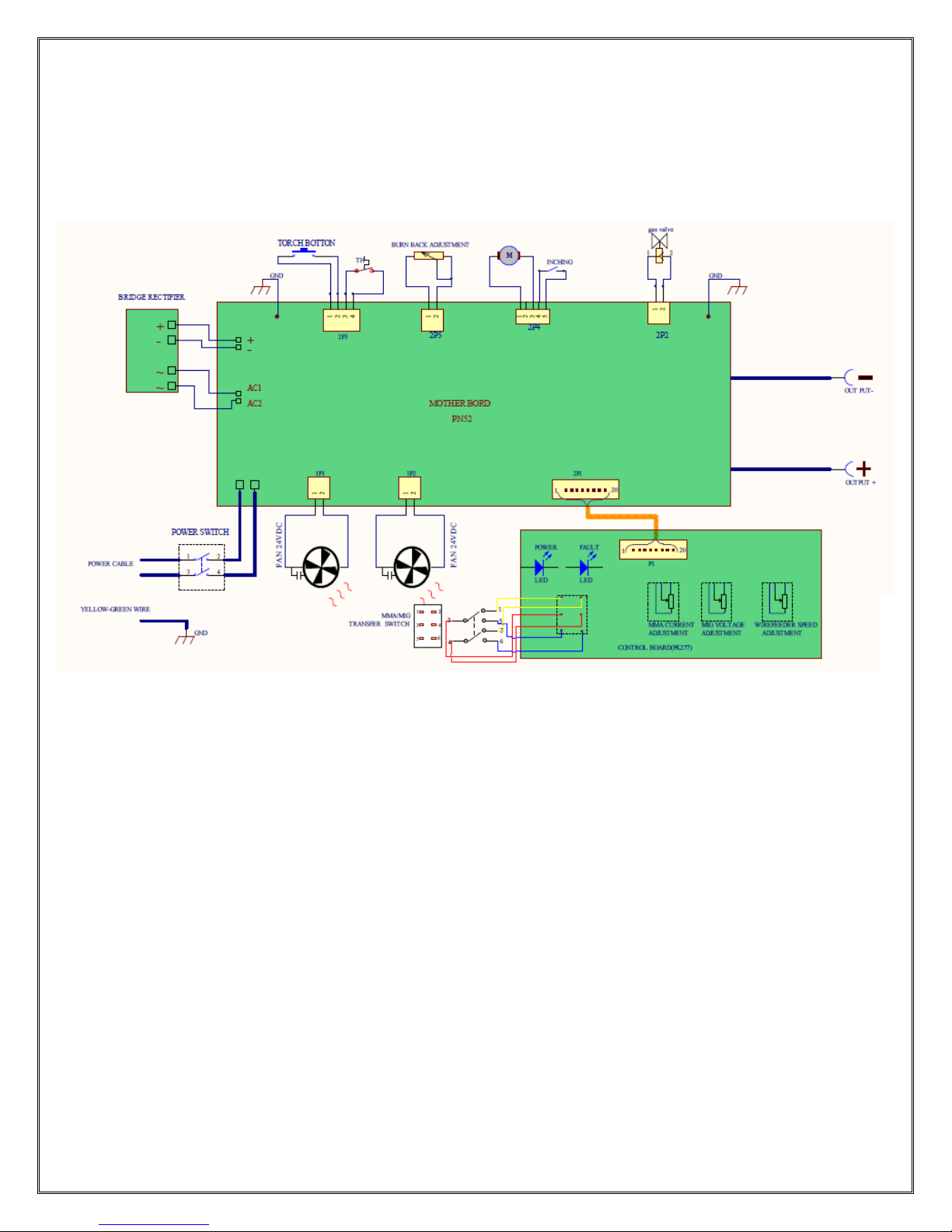

Electrical Schematic Diagram

18
SECTION 6 - PARTS LIST
Name
Product Number
MMA/MIG201
- Quantity
Enclosure -Bottom Plate
CGA2880053
1
Box for Protection PCB
CGA2880055
1
Burn Back Potentiometer
CGB1880056
1
CA-MF 35-70 Panel Plug (Male)
CGB0680070
1
Cap (Red), 15mm
CGA6280072
1
Cap (Red), 20mm
CGA6280073
3
Central Connector
CGB1280075
1
Control PCB PH-178-A0
CGC1480081
1
Control PCB PK-227-A0
CGC1480082
1
Enclosure -Cover Left Side
CGA2880083
1
Enclosure -Cover Right Side
CGA2880084
1
Cam Switch - Single Phase 32A
CGB0780066
1
Fan
CGB1680098
2
Plastic Fan Holder- MIG
CGA9980099
1
Flat Washer (outer diameter 15mm/inner diameter 5.1mm)
CGA2380105
4
Flat Washer (outer diameter 16mm/inner diameter 6.5mm)
CGA2380106
2
Flat Washer (outer diameter 24mm/inner diameter 14mm)
CGA2380107
1
Flat Washer (outer diameter 8mm/inner diameter 4mm)
CGA2380103
2
Front Panel Sticker for MIG/MMA 201 machine
CGA6180110
1
Gas Fitting MALE
CGA3180116
2
Gas Fitting FEMALE
CGA3180117
1
Gas Fitting
CGA3180119
1
Gland
CGA6480122
1
Ground Clamp 300 A (copper)
TGJ0580125
1
Hinge
CGA9980129
2
Insulating Plate
CGA7680132
1
Insulation Paper- MIG
CGA7680135
1
Knob (Black), 15mm
CGB1880141
1
Knob (Black), 20mm
CGB1880142
3
Motor Gearbox and Feeder
CGB1480151
1
Nut (potentiometer), D=9mm
CGA2280152
4
Nut 3.5mm
CGA2280153
1
Nut 5 self-washer
CGA2280154
8
Nut 6mm
CGA2280155
2
Nut- Gas Fitting
CGA2280157
1

19
Name
Product Number
MMA/MIG201
- Quantity
Nut M9.5mm
CGA2280158
1
Package 200A, MIG/MMA 201
CGC9180162
1
Panel Socket (Female) CA-FF 35-70
CGB0680064
1
Enclosure Front Panel- MIG
CGA2880164
1
Enclosure Vertical Panel –MIG
CGA2880167
1
Enclosure-Rear Panel- MIG
CGA2880168
1
Plastic Holder
CGA6380171
3
Plastic Lock
CGA9980172
2
Plastic Zip Tie 3.6*150mm White KSS-CV-150
CGA6680175
2
Primary Diode Bridge Heatsink
CGA1380184
1
Push Button
CGB0780185
1
Reel Hub
CGA9980186
1
Rubber Feet, MIG (height 30mm)
CGA6380192
4
Rubber Gland, 11mm
CGA6480193
3
Rubber Gland, 9.5mm
CGA6480194
1
Screw 4x12 (galvanized or gold color)
CGA2180195
1
Screw 4x30 (preferably silver- galvanized)
CGA2180196
2
Screw M10 (Hexagonal Head Bolt)
CGA2180199
1
Screw M6x35mm (with spring washer and flat washer)
CGA2180201
2
Screw, Allen 8x40
CGA2180206
2
Screw, Philips 3x6
CGA2180209
2
Screw, Philips 4x15 (galvanized)
CGA2180211
3
Screw, Philips 5mm, (black), total length12mm
CGA2180213
10
Screw, Philips 5x12 (black), incl. washers
CGA2180214
14
Screw, Philips 5x15 (black)
CGA2180215
10
Screw, Philips M5x12mm (black), self-screw
CGA2180218
3
Solenoid Valve
CGB1080227
1
Spring Washer 10
CGA2380230
1
Spring Washer 4
CGA2380231
1
Spring Washer 6
CGA2380232
2
Step Washer (Male)
CGA2380134
2
Rocket Switch 2 position- MIG
CGB0780237
1
Thermo switch
CGB2180249
1
