Candy CIDC 61/1 X User manual

2
CONTENT
INTRODUCTION.......................................................................3
SAFETY PRECAUTION..........................................................3-4
MOUNTING INSTALLATION.................................................... 5
INSTALLATION
(VENT INSIDE)............................................. 6
LAMP MODEL INSTALLATION........................................... 7-8
OPERATION........................................................................... 9
MAINTENANCE...................................................................... 10
TROUBLESHOOTING...............................................................11
ENVIRONMENTAL
PROTECTION............................................11
INSTALLATION AND USER’S MANUAL

3
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood use high quality materials, and is made with a
streamlined design. Equipped with large power electric motor and
centrifugal fan, it also provides strong suction power, low noise operation,
non-stick grease filter and easy assembly installation.
SAFETY PRECAUTION
Never let the children operate the machine.
The cooker hood is for home use only, not
suitable for barbecue, roast shop and other
commercial purpose.
The cooker hood and its filter should be
clean regularly in order to keep in good
working condition.
Clean the cooker hood according to the
instruction manual and keep the unit from
danger of burning. There is a fire risk if
cleaning is not carried out in accordance
with the instructions.
Forbid the direct baking from the gas
cooker.
Please keep the kitchen room a good
convection.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order
to avoid a hazard.
There shall be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or
•
•
•
•
•
•
•

4
other fuels;
The air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels;
Regulations concerning the discharge of air
have to be fulfilled.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved.
Children should be supervised to ens ure that
they do not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Do not flame under the range hood.
CAUTION: Accessible parts may become hot
when used with cooking appliance.
The warning shall be in the same part of the
instructions that include details of how to
mount the equipment.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If
in doubt seek advice from a suitably qualified
engineer.
Failure to follow these instructions can result in
death, fire, or electrical shock.
•
•
•
•
•
•
•
•

5
MOUNTING INSTALLATION

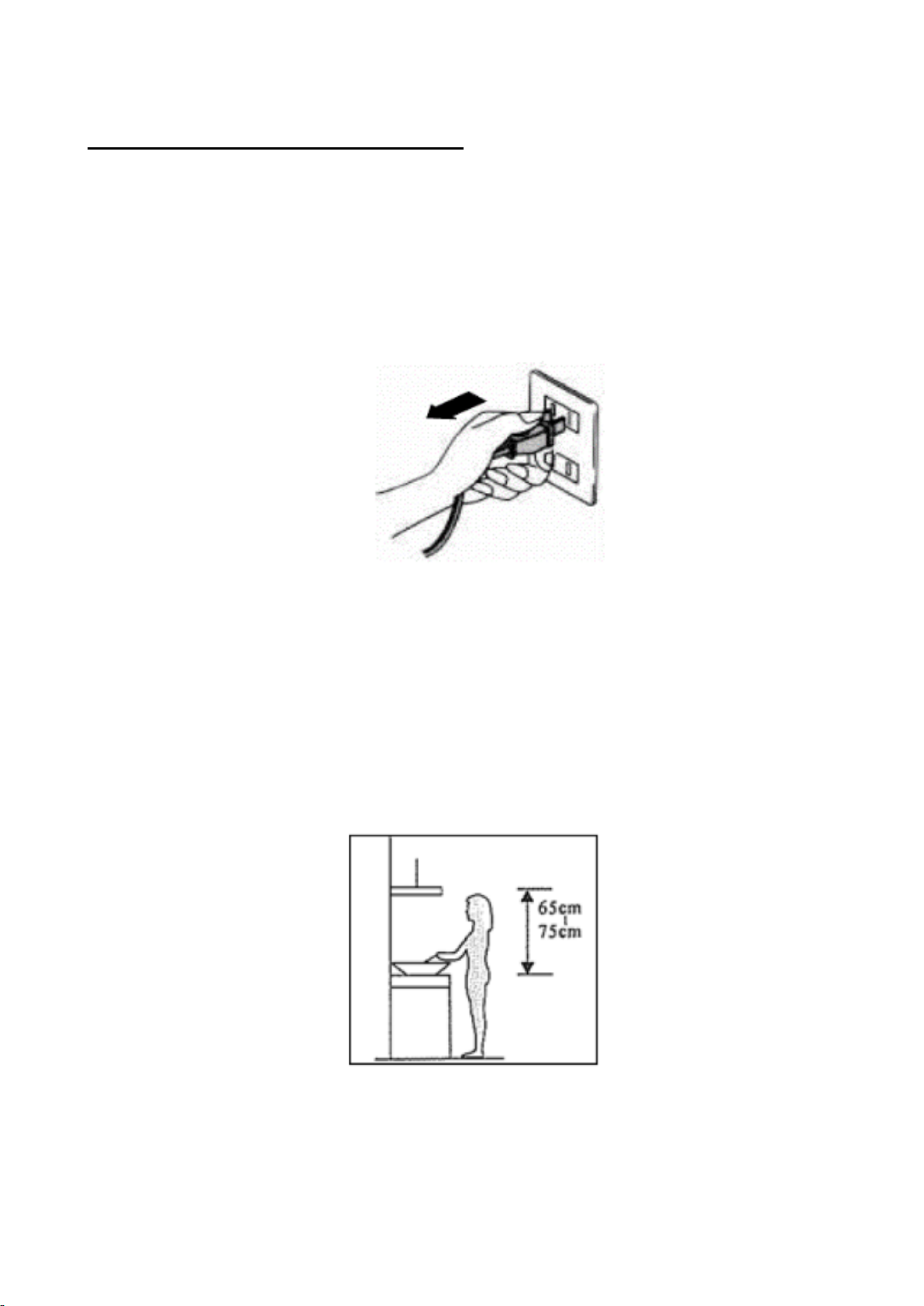

1. Prepare for installation:
a. Before installation, turn the unit off and unplug it from the outlet.
b. The cooker hood should be placed at a distance of 65~75cm above the
cooking plane for best effect.

6

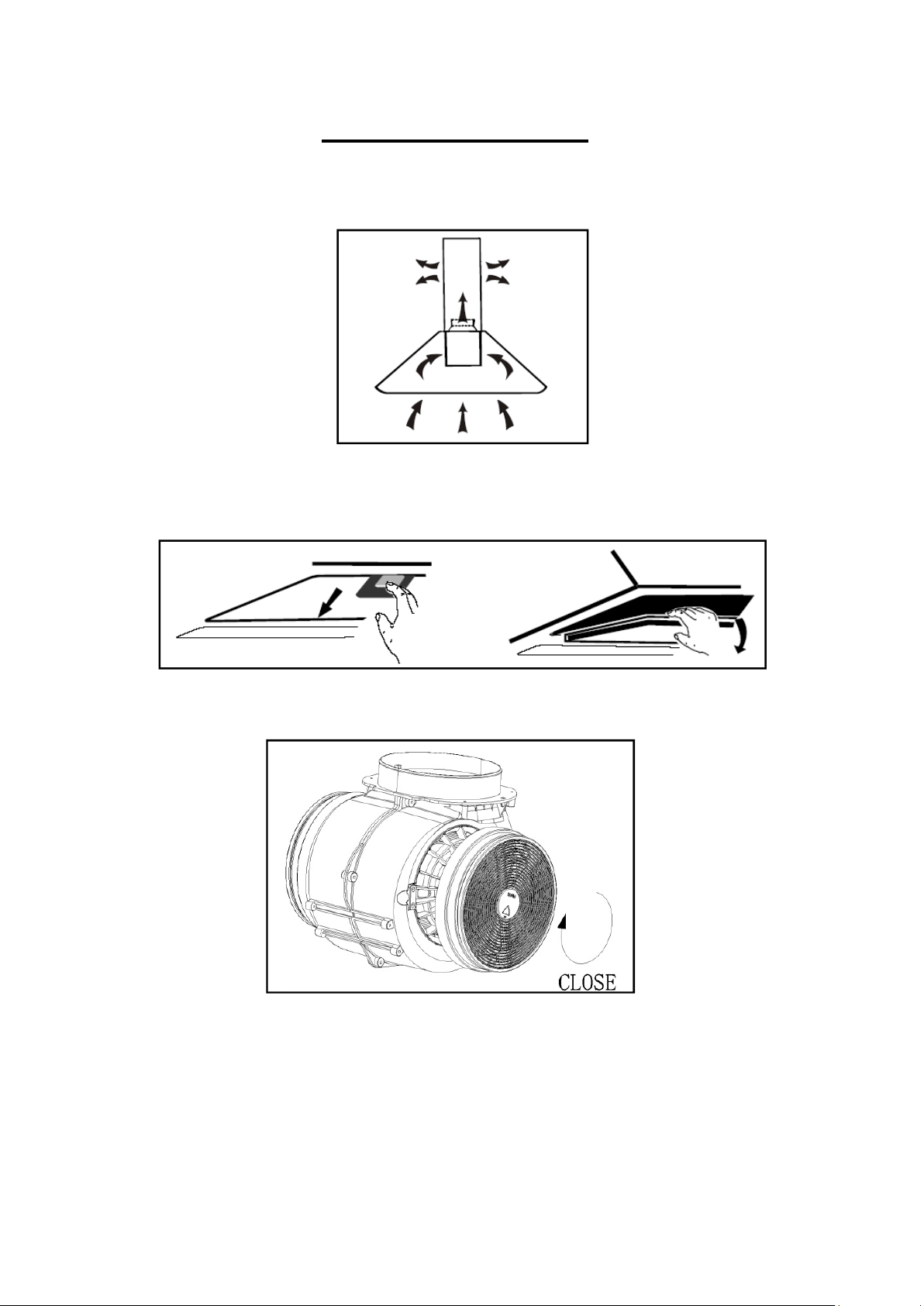

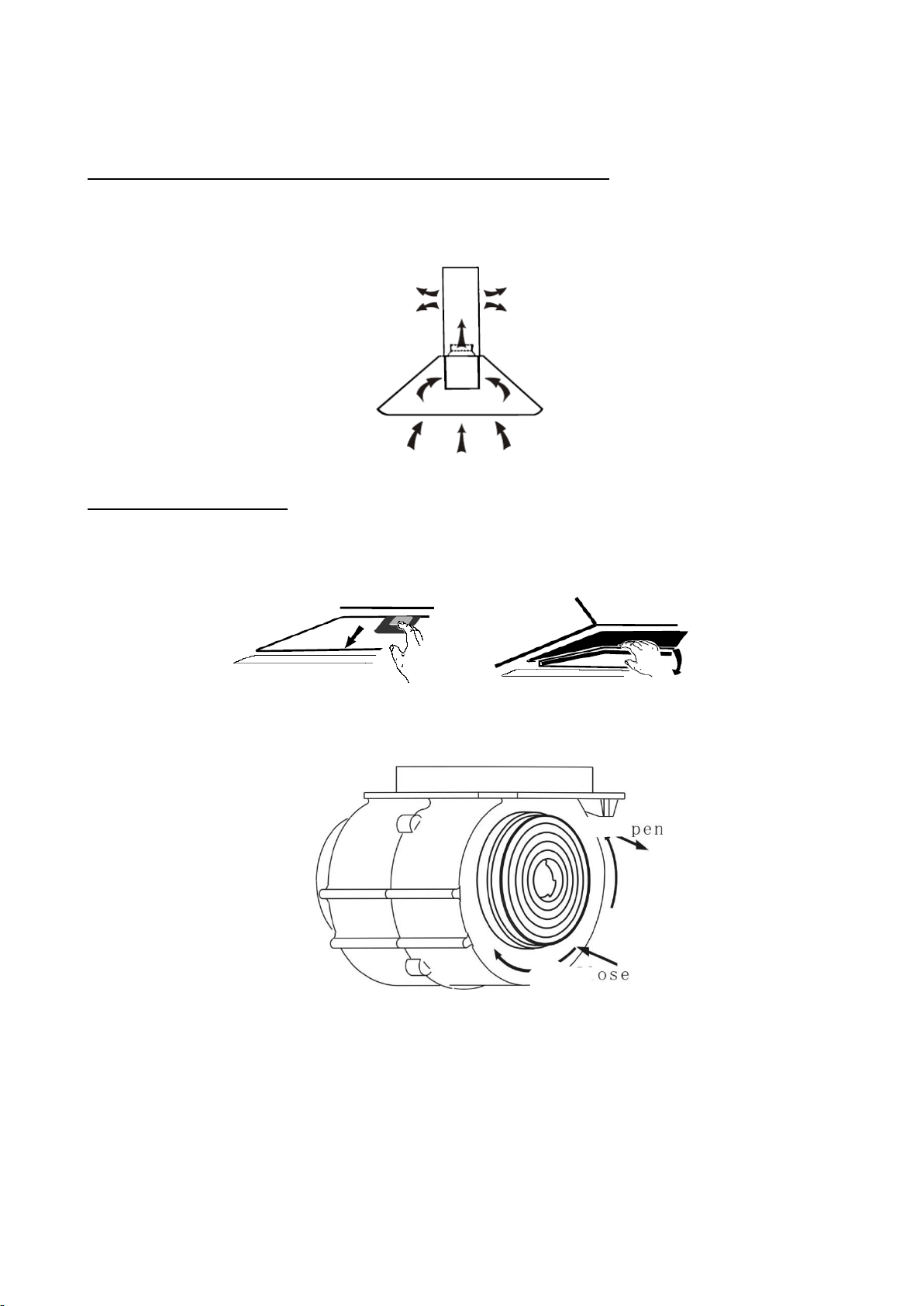

Installation (Vent inside)
If you do not have an outlet to the outside, exhaust pipe is not required and
the installation is similar to the one show in section “Installation (Vent
outside)”.
Activated carbon filter can be used to trap odors.
In order to install the activated carb on filter, the grease filter should be
detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it in clockwise direction.
Repeat the same on the other side.
NOTE:
o Make sure the filter is securely locked. Otherwise, it would
loosen and cause dangerous.
o When activated carbon filter attached, the suction power will
be lower.

7
LAMP HOOD MODEL INSTALLATION

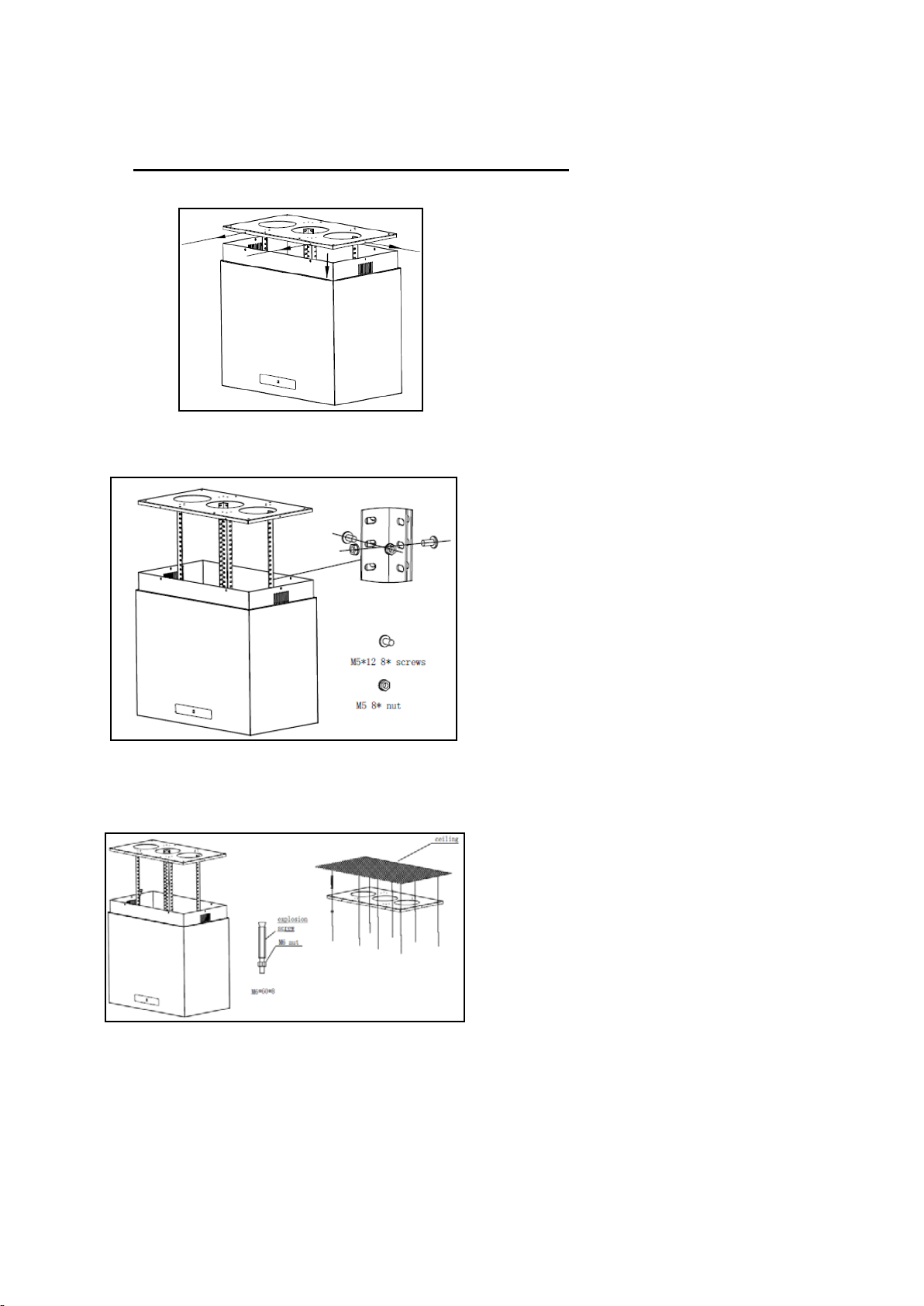

1) Loosen the six 4 x 8 tapping screw
and put down the lower chimney
2) Loosen the eight screw which fixing
on angle bar, and adjust the height of
the need to install, and lock the screw
again.
8 x M5 *12 screws
8 x M5 *12 nut
3) According to the hole location in
hanging panel to fix the explosion
screw on the ceiling, and put up the
cooker hood and lock it with the
explosion screw on the ceiling
8 x M6*60 screws
IMPORTANT: Make sure all
screws are tightly.
IMPORTANT: This stage of the
installation process MUST be
completed by two people.






8

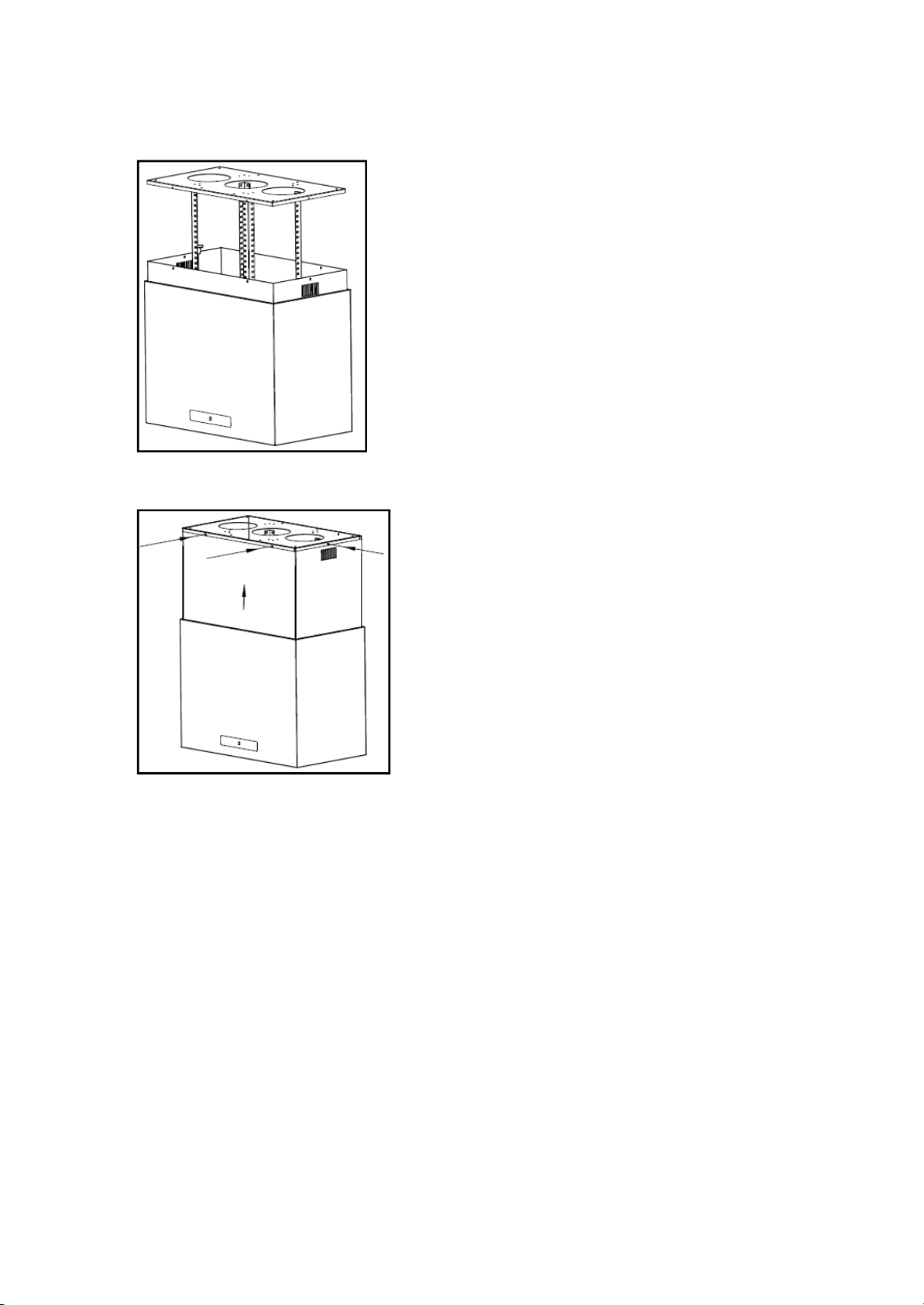

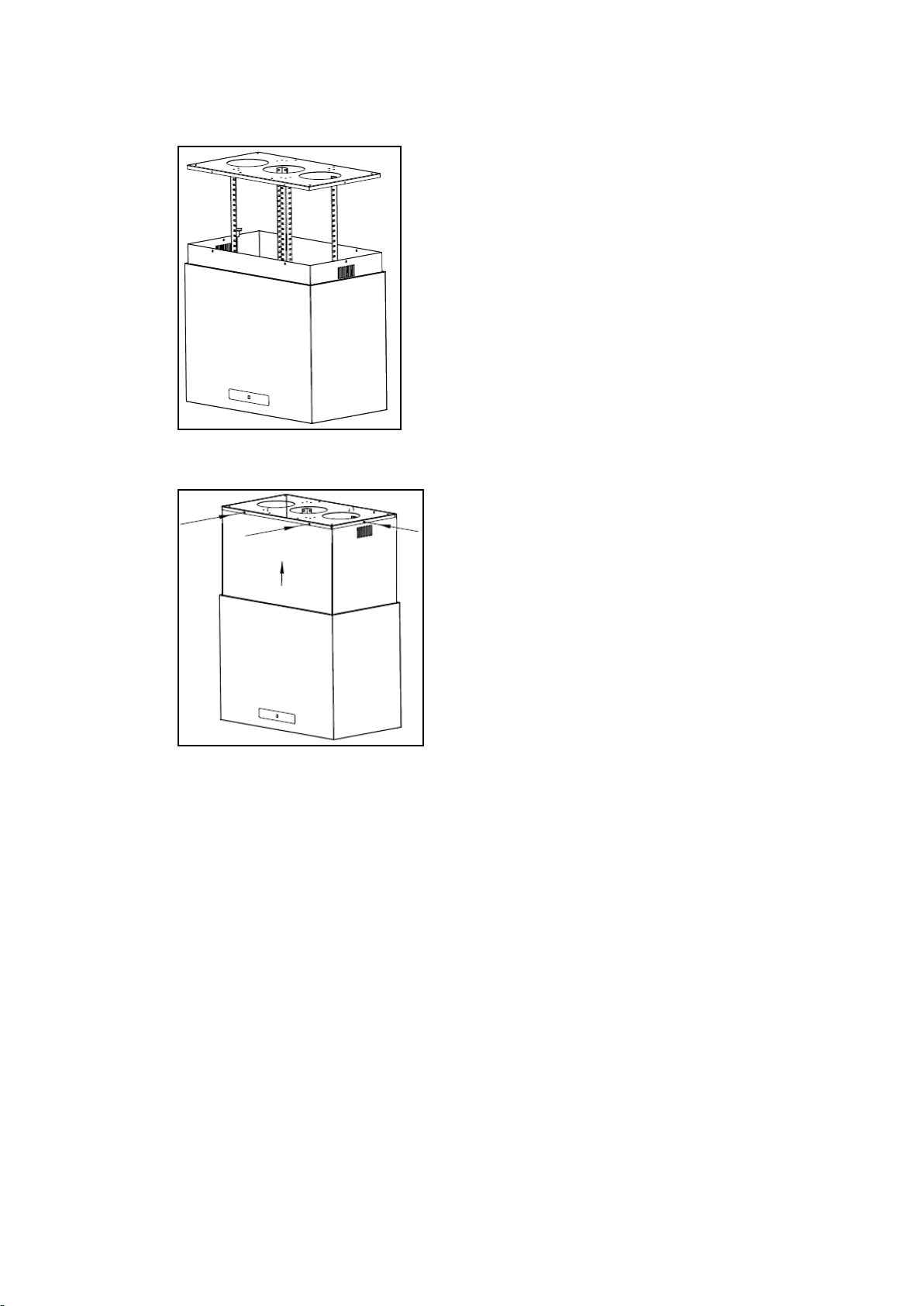

4) Put up the cooker hood and lock it
with the explosion screw on the ceiling
IMPORTANT: This stage of the
installation process MUST be
completed by two people.
5) Put up the upper chimney and fix by
six screws.
.
The electrical connection must correspond to the electrical requirement
noted on the rating plate, which is placed inside the cooker hood. The
appliance should now be connected to the electrical supply.
Check that the appliance is operating correctly by selecting each speed and
switching the light bulbs on and off.
Use a stainless steel cleaner and polish on the stainless steel sections of the
appliance.
If you are using the appliance in recirculation mode, then you should now fit
the carbon filter. See the “fitting the carbon filter" section on page 6.
NOTE: If Low / Medium / High speed buttons are press at the same
time, the unit will only operate at the highest speed.





40

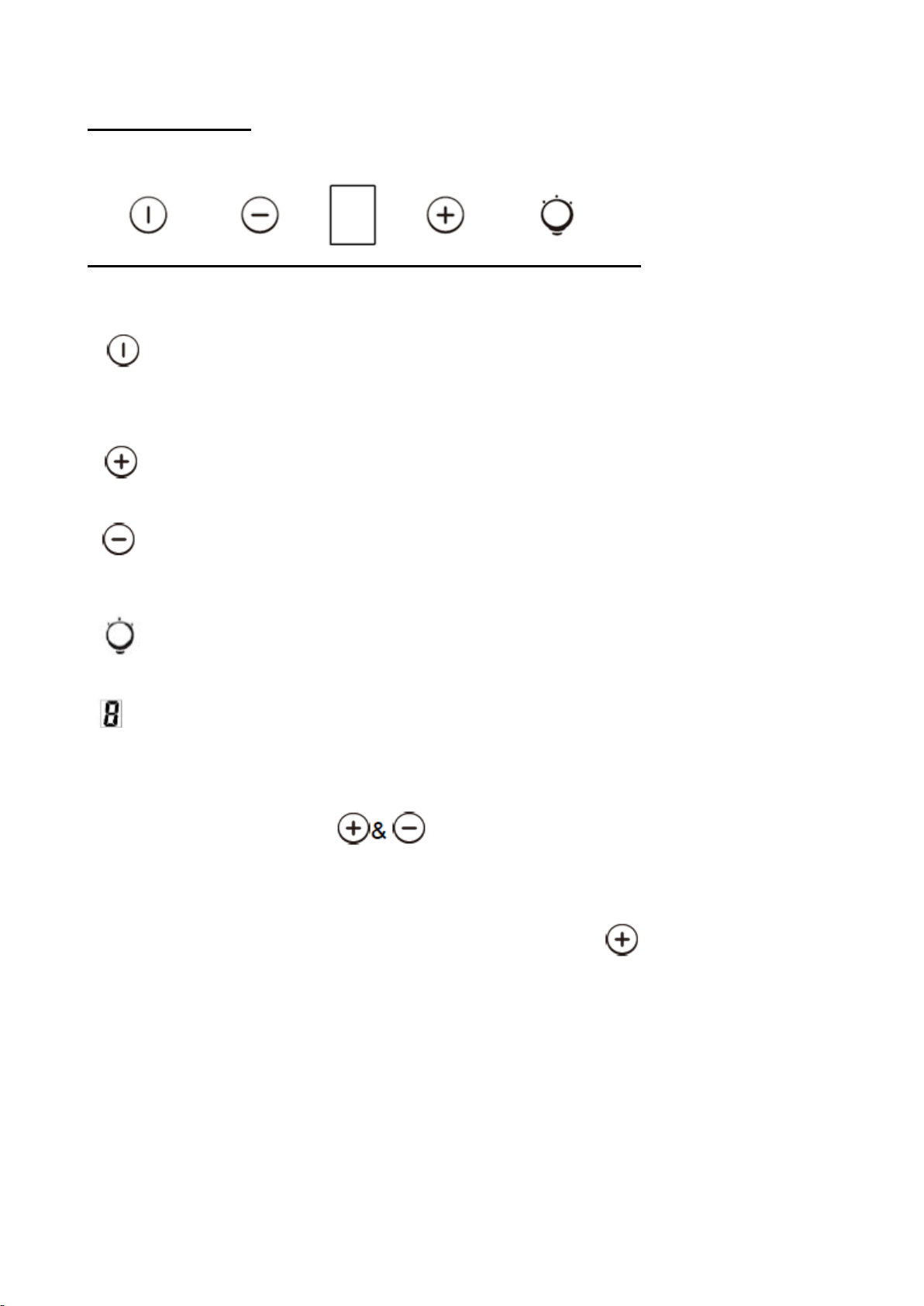

On/Off button
It’s used for turning on/off the fan.
Speed plus button
For increasing the speed of the fan
Speeddecreasebutton
Fordecreasing the speed of the fan.
Lightbutton
Digital display
Fan speed display:"1" for Low speed, "2" for Medium speed,
"3" for High speed, “4” for Booster function.
Quick timer: Press &hold for 1 second,Digital display will
flashing & into 5 minutes countdown, after 5 minutes motor & light
will turn off automatic & Buzzer sound for 1 second.
This hood has a booster function. To activate the booster, Press
to speed 4, enter into highest speed while the hood is in use
and it will increase speed for 5 minutes, before slowing down
again.
9

10
MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household
cleaning detergent. Never use metal pads, chemical, abrasive material or stiff
brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month can prevent any risk of fire.
The filter collects grease, smoke and dust…... so the filter is directly affecting
the efficiency of the cooker hood. If not cleaned, the grease residue (potential
flammable) will saturate on the filter. Clean it with household cleaning
detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to unit that installed as a recirculation unit (not vented to the
outside). This filter traps odours and must be replaced at least once a year
depending on how frequent the cooker hood used.
IV. Changing a light bulb
Remove the screws on the glass, take off the hood glass. Find the
bulb that requires replacement, you will find it located in the light
fixture which is inside the exposed section of the canopy.
Disconnect the light wiring point and remove the bulb holders and
wiring from the hood. Important: It’s not possible to replace the bulbs
individually, it will be necessary to obtain the bulbs, bulb holders and
wiring as a complete part. (LED light: MAX 1.5W)
Fit the replacement bulbs, bulb holders and wiring in the same
manners as the originals. Then reconnect the light wiring point.
