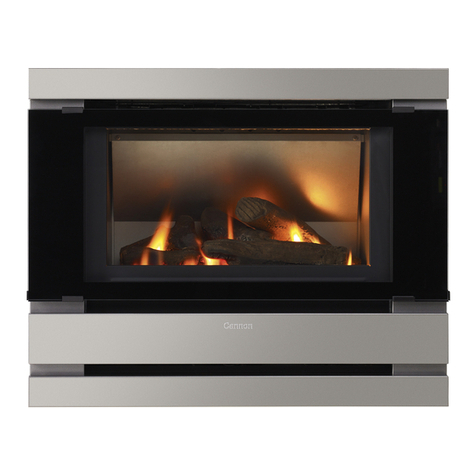

Cannon FITZPIBPWR-02-NG User manual

Cannon
FITZROY PROFILE
INBUILT
Power Flue
USER INSTRUCTIONS
THE HEATER IS APPROVED FOR USE WITH NATURAL AND PROPANE GASES.
PLEASE LEAVE ALL INSTRUCTIONS WITH THE OWNER.
INBUILT MODEL
FITZPIBPWR-02-NG
FITZPIBPWR-02-LP
MAKERS WARRANTY
APPROVED
DESIGN
AUSTRALIAN
GAS
ASSOCIATION
NOTES
Page 9.
ISSUE J. DATED: 2007
F3052 USER INSTRUCTION MANUAL
CANNON FITZROY PROFILE PWR SERIES 2 2007
GAS TYPE NATURAL PROPANE
TEST POINT PRESSURE 1.00 kPa NATURAL
SAMPFORD & STAFF
TELEPHONE [phone]
F3016 REV C
NATURAL 0.72 x 7 x 2
DATE OF MANUFACTURE
SERIAL NUMBER
INJECTORS SIZE
HGC (MJ) 28.0
ELECTRICAL 240VAC 0.5A 50Hz
COMPLIANCE WITH AS3100
ELECTRICAL ACCEPT IN
AGA APPROVAL # 6809
Designed,manufactured,and
distributed by:
PROPANE 1.10 x 2
2.65 kPa PROPANE
Phone: [phone]
Fax [phone]
Email: service@sampford IXL.com.au
FOR SERVICE TO THIS APPLIANCE CONTACT.
52-70 Sparks Avenue
Fairfield Vic. 3078

NOTES
Page 8.

HEATER SPECIFICATIONS
DO NOT USE FIRE WITH BROKEN OR MISSING LOGS.
GAS TYPE :
ENERGY STAR RATING :
GAS CONSUMPTION :
ENERGY OUTPUT :
HEATER TYPE :
OPERATING PRESSURE :
GAS REGULATOR :
MIN INLET PRESSURE :
FAN :
CONTROLLER :
MIN CAVITY DIMENSIONS :
(FOR INSTALLATION INTO A
MASONRY/BRICK FIREPLACE)
POWER REQUIREMENTS :
OPTIONAL ACCESSORIES :
OVERALL DIMENSIONS :
NATURAL GAS & PROPANE GAS
28 MJ/hr NG / 27 MJ/hr PROPANE
4.4
23.4 MJ/hr
HEATER APPROVED TO
AS 4553 / AG 103
NATURAL GAS 1.0 kPa
PROPANE GAS 2.65 kPa
INTEGRAL WITH CONTROLLER (NG)
NATURAL GAS 1.13 kPa
PROPANE GAS 2.75 kPa
THREE SPEED
ELECTRONIC
240 VAC 10 AMP
CONSULT SUPPLIER
REFER FIG 9.
HEIGHT = 610
WIDTH = 710
8
DEPTH = 3 5
IMPORTANT.
THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY AN AUTHORISED SERVICE PERSON.
MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO
EXCESS LINT BUILD UP FROM CARPETING, BEDDING
MATERIALS, PET HAIR, ETC.
IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGE WAYS OF THE APPLIANCE BE
KEPT CLEAN.
DO NOT USE THIS FIRE IF THE GLASS IS CRACKED OR WITH
THE GLASS SAFETY SCREEN REMOVED.
SPECIFICATIONS
Page 7.
565
560
5
48
850 380
430
50
FIG 9.
C.L.
CONTENTS
WARRANTY
CONTENTS
SAFETY WARNINGS
WHAT TO DO IF YOU SMELL GAS
WARNINGS
STANDARDS
USER INSTRUCTIONS
OPERATING INSTRUCTIONS
CLEANING
HEATER SPECIFICATIONS
1
2-3
4-6
7-9

WARRANTY
THE CANNON APPLIANCE IS WARRANTED AGAINST DEFECTS
IN MATERIALS AND WORKMANSHIP FOR A PERIOD OF ONE (1)
YEAR FROM THE DATE OF ORIGINAL PURCHASE, FOR
RESIDENTIAL USE IN AUSTRALIA.
WARRANTY SERVICE, WHICH INCLUDES PARTS AND LABOUR
FOR THE REPLACEMENT OR REPAIR OF DEFECTIVE PARTS,
IS AVAILABLE THROUGH CANNON AUTHORIZED SERVICE
AGENCIES.
CONSUMERS ARE RESPONSIBLE FOR SERVICE PERSON’S
TRAVEL OUTSIDE NORMAL SERVICE AREAS (APPROXIMATELY
SEVENTY 70K RADIUS FROM THE NEAREST CANNON DEALER’S
LOCATION), LOCAL CARTAGE, AND NORMAL MAINTENANCE AS
DESCRIBED IN THIS MANUAL.
ANY PRODUCT SUBJECTED TO MISUSE, ABUSE, NEGLIGENCE,
ACCIDENT OR ALTERATION WILL HAVE IT’S WARRANTY VOIDED.
THE DEFACEMENT OF SERIAL PLATE WILL HAVE IT’S
WARRANTY VOIDED.
IF INSTALLATION IS NOT CARRIED OUT IN ACCORDANCE WITH
THE MANUFACTURER’S INSTRUCTIONS, THIS WARRANTY WILL
BE VOIDED.
THE CUSTOMER MUST KEEP THEIR “TAX INVOICE” AS PROOF
OF PURCHASE OF THIS PRODUCT AND THE COMPLIANCE
CERTIFICATE AS PROOF OF REQUIRED INSTALLATION.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF MANUFACTURE:
DATE INSTALLED:
COMPLIANCE CERTIFICATE No:
DESIGNED, MANUFACTURED AND DISTRIBUTED BY:
SAMPFORD AND STAFF PTY LTD
421 SMITH STREET
FITZROY, VIC, 3065
TEL: [phone]
DON’T RISK YOUR APPLIANCE WARRANTY
ONLY A LICENSED PERSON WILL GIVE YOU A COMPIANCE
CERTIFICATE, SHOWING THAT THE WORK COMPLIES WITH
ALL THE RELEVANT STANDARDS.
AND ONLY A LICENSED PERSON WILL HAVE INSURANCE
PROTECTING THEIR WORKMANSHIP FOR 6 YEARS.
SO MAKE SURE YOU USE A LICENSED PERSON TO INSTALL
THIS APPLIANCE AND ASK FOR YOUR COMPLIANCE
CERTIFICATE TO ENSURE THE MANUFACTURERS
APPLIANCE WARRANTY WILL BE HONOURED.
Page 1. Page 6.
CLEANING ALL CLEANING SHOULD BE CARRIED OUT WHEN THE HEATER IS
COLD. NORMALLY THE HEATER SHOULD ONLY NEED WIPING WITH
A LINT FREE DAMP CLOTH. ANY STUBBORN STAINS CAN BE
REMOVED WITH A NON-ABRASIVE SPRAY ON CLEANER. IF AN
ABRASIVE CLEANER IS USED THE PAINT FINISH WILL BE DAMAGED.
INTERNALLY THE HEATER SHOULD ONLY BE CLEANED BY A
LICENSED SERVICE PERSON LISTED IN THIS MANUAL.
IF YOUR HEATER REQUIRES ATTENTION CONTACT YOUR SUPPLIER
OR LICENSED SERVICE PERSON LISTED IN THIS MANUAL.
USER INSTRUCTIONS

10. THE HEATER MUST BE INSTALLED WITH IT’S INTEGRAL FLUE
CORRECTLY INSTALLED FOR THIS HEATER TO OPERATE
PROPERLY, IF NOT CORRECTLY INSTALLED AND MAINTAINED
VENTING SYSTEM CAN RESULT IN CARBON MONOXIDE (CO)
POISONING AND POSSIBLE DEATH.
11. THE APPLIANCE SHOULD BE INSPECTED PRIOR TO USE,
WITH REGULAR INSPECTIONS (ANNUALLY) TO BE MADE BY A
LICENSED SERVICE PERSON. IT IS IMPORTANT THAT
CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE
KEPT CLEAN, DIRT AND LINT FREE, FOR A SAFE AND
EFFICIENT OPERATION OF THE HEATER.
12. ON THE FIRST LIGHTING YOUR HEATER A SMELL MAY OCCUR
DUE TO IT’S NEW CONDITION. THIS IS NORMAL AND WILL
DISAPPEAR AFTER A FEW HOURS OF USE AT MAXIMUM
CONTROL POSITION.
IMPORTANT.
WHEN THIS HEATER IS OPERATING, THE MESH GUARD IS HOT.
THE MESH GUARD FITTED TO THE HEATER CONFORMS TO
AUSTRALIAN STANDARDS.
FOR PERMENANT PROTECTION OF YOUNG CHILDREN OR THE
INFIRM A SECONDARY GUARD SHOULD BE PLACED AROUND
THE HEATER.
A SECONDARY GUARD IS NOT PROVIDED WITH THIS HEATER
AND MAY BE PURCHASED BY THE OWNER.
STANDARDS. THIS APPLIANCE MEETS THE FOLLOWING STANDARDS:
STANDARDS AUSTRALIA. AS 3100
AS 5601
AS 4553 / AG 103
Page 2.
SAFETY WARNINGS
7. IF REMOVED THE GLASS WINDOW MUST BE PUT BACK ONTO
THE UNIT PRIOR TO OPERATING THE HEATER.
8. INSTALLATION AND REPAIRS SHOULD BE PERFORMED BY A
LICENSED SERVICE PERSON ONLY, REFER TO BACK OF
MANUAL FOR SERVICE NUMBERS.
9. FOR INSTALLATION INTO A COMBUSTIBLE FIREPLACE
CONSTRUCTED FROM TIMBER OR PLASTERBOARD, THE
FLUE WILL NEED TO BE SUPPORTED TO MAINTAIN
CLEARANCES FROM COMBUSTIBLE MATERIALS.
NOTE: WHEN INSTALLING INTO A MOCK FIREPLACE A MOCK
FIREPLACE INSTALLATION KIT MUST BE USED.
5. NEVER ATTEMPT TO BURN PAPER OR OTHER MATERIAL IN
THE HEATER.
6. DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS
APPLIANCE.
USER INSTRUCTIONS
OPERATING INSTRUCTIONS. 6. TO INCREASE THE FAN SPEED TO HIGH, PRESS SWITCH FOR
HIGH SETTING. REFER FIGURE 6.
7. TO TURN THE BURNER TO LOW SETTING, PRESS SWITCH FOR
LOW SETTING. REFER FIGURE 7.
ON LOW BURNER SETTING IT IS MORE EFFICIENT TO OPERATE
THE FAN SPEED ON LOW.
8. IF THE BURNER FAILS TO IGNITE, WAIT 20 SECONDS AND
REPEAT THE IGNITION PROCEDURE. REFER FIGURE 7.
PRESS PRESS
FIG 6.
FIG 7.
FIG 8.
TO TURN
BURNER OFF.
TO TURN
BURNER ON.
Page 5.
NOTE:
IF YOU TURN THE HEATER OFF, WAIT 10 MINUTES BEFORE YOU
TURN THE HEATER BACK ON AGAIN.
THIS WILL ALLOW THE SWITCH WHICH CONTROLS THE IGNITION
TIME TO RESET.
DO NOT USE THIS HEATER IF THE GLASS IS CRACKED OR WITH
THE GLASS REMOVED.
DO NOT USE HEATER WITH BROKEN OR MISSING LOGS.
THE HEATER FLAME SHOULD BE STABLE, NO LIFTING FROM THE
BURNER AND THE LOGS SHOULD GLOW AFTER APPROXIMATELY
15 MINUTES OPERATION ON HIGH SETTING.
THE HEATER IS A FUEL EFFECT UNIT AND IS DESIGNED TO
OPERATE WITH LUMINOUS FLAMES AND MAY EXHIBIT SLIGHT
CARBON DEPOSIT ON THE LOGS. IF ANY EXCESS CARBON
BUILD UP ON LOGS OR THE BURNER FLAME IS UNSTABLE,
CONTACT SAMPFORD AND STAFF IN YOUR STATE.
(SEE PHONE CONTACT PAGE 9.)

SAFETY WARNINGS
PLEASE READ THIS MANUAL BEFORE USING THIS HEATER.
WHAT TO DO IF YOU SMELL GAS.
WARNINGS.
1. TURN OFF THE MAIN GAS SUPPLY.
2. EXTINGUISH ANY OPEN FLAME.
3. OPEN WINDOWS.
4. DO NOT TOUCH ELECTRICAL SWITCHES.
5. DO NOT USE YOUR TELEPHONE.
6. CALL YOUR GAS SUPPLIER IMMEDIATELY FROM YOUR
NEIGHBOUR’S PHONE.
1. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR
PROPERTY DAMAGE. REFER TO OTHER SECTIONS OF THIS
MANUAL FOR CORRECT PROCEDURES, OR CONSULT WITH
PLACE OF PURCHASE, A LICENSED PLUMBER, A GAS
SUPPLIER OR SERVICE AGENT.
2. DUE TO HIGH TEMPERATURES, THE ROOM HEATER SHOULD
BE LOCATED OUT OF TRAFFIC AND AWAY FROM:
FURNITURE.
COMBUSTIBLE MATERIALS.
GASOLINE AND OTHER FLAMMABLE LIQUIDS.
DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIAL
ON OR NEAR THE HEATER.
3. KEEP CURTAINS *, CLOTHING, FURNITURE AND OTHER
FLAMMABLE MATERIALS AT LEAST 900mm FROM THE FRONT
AND SIDES OF THE HEATER.
* AT THE OWNER’S DISCRETION CURTAIN CLEARANCES CAN
BE LESS THAN 900mm AS LONG AS THEY ARE RESTRAINED
FROM THE FRONT, TOP AND SIDES OF THE HEATER.
THE MANUFACTURER TAKES NO RESPONSIBILITY IF
CURTAIN CLEARANCE IS LESS THAN 900mm AND NOT
RESTRAINED.
4. CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD
TAKE CARE TO AVOID BURNS OR CLOTHING IGNITION.
THIS HEATER IS NOT INTENDED FOR USE BY YOUNG
CHILDREN OR INFIRM PERSONS WITHOUT SUPERVISION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE HEATER.
YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE
THAT THEY DO NOT PLAY WITH THE HEATER.
Page 3.
USER INSTRUCTIONS
OPERATING INSTRUCTIONS. 1. PLUG THE POWER CORD INTO THE WALL SOCKET AND TURN ON
THE POWER TO THE HEATER, SEE FIG 1.
REFRAIN FROM USING AN EXTENSION CORD.
2. FOR CONTROL LAYOUT REFER TO FIG 2.
BURNER LOW
POWER OFF
SWITCH 4
BURNER HIGH
SWITCH 3
FAN LOW / POWER ON
SWITCH 2
FAN MED
SWITCH 1
FAN HIGH
3. TO TURN HEATER ON PRESS SWITCH TO POWER ON POSITION.
THERE IS A 30 SECOND DELAY BEFORE THE BURNER IGNITES.
THIS DELAY IS TO ALLOW THE IGNITION SEQUENCE TO TAKE
EFFECT. AT THIS SETTING THE BURNER IS ON LOW.
THE BURNER WILL IGNITE ON BOTH HIGH AND LOW SETTINGS.
REFER FIG 3.
4. TO TURN BURNER TO HIGH SETTING, PRESS SWITCH FOR HIGH
SETTING. REFER FIG 4.
5. TO INCREASE THE FAN SPEED TO MED, PRESS SWITCH FOR MED
SETTING. REFER FIG 5.
FIG 1.
FIG 2.
FIG 3.
FIG 4.
FIG 5.
Page 4.

SAFETY WARNINGS
PLEASE READ THIS MANUAL BEFORE USING THIS HEATER.
WHAT TO DO IF YOU SMELL GAS.
WARNINGS.
1. TURN OFF THE MAIN GAS SUPPLY.
2. EXTINGUISH ANY OPEN FLAME.
3. OPEN WINDOWS.
4. DO NOT TOUCH ELECTRICAL SWITCHES.
5. DO NOT USE YOUR TELEPHONE.
6. CALL YOUR GAS SUPPLIER IMMEDIATELY FROM YOUR
NEIGHBOUR’S PHONE.
1. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE INJURY OR
PROPERTY DAMAGE. REFER TO OTHER SECTIONS OF THIS
MANUAL FOR CORRECT PROCEDURES, OR CONSULT WITH
PLACE OF PURCHASE, A LICENSED PLUMBER, A GAS
SUPPLIER OR SERVICE AGENT.
2. DUE TO HIGH TEMPERATURES, THE ROOM HEATER SHOULD
BE LOCATED OUT OF TRAFFIC AND AWAY FROM:
FURNITURE.
COMBUSTIBLE MATERIALS.
GASOLINE AND OTHER FLAMMABLE LIQUIDS.
DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIAL
ON OR NEAR THE HEATER.
3. KEEP CURTAINS *, CLOTHING, FURNITURE AND OTHER
FLAMMABLE MATERIALS AT LEAST 900mm FROM THE FRONT
AND SIDES OF THE HEATER.
* AT THE OWNER’S DISCRETION CURTAIN CLEARANCES CAN
BE LESS THAN 900mm AS LONG AS THEY ARE RESTRAINED
FROM THE FRONT, TOP AND SIDES OF THE HEATER.
THE MANUFACTURER TAKES NO RESPONSIBILITY IF
CURTAIN CLEARANCE IS LESS THAN 900mm AND NOT
RESTRAINED.
4. CHILDREN AND ADULTS SHOULD BE ALERTED TO THE
HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD
TAKE CARE TO AVOID BURNS OR CLOTHING IGNITION.
THIS HEATER IS NOT INTENDED FOR USE BY YOUNG
CHILDREN OR INFIRM PERSONS WITHOUT SUPERVISION.
YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED
WHEN THEY ARE IN THE SAME ROOM AS THE HEATER.
YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE
THAT THEY DO NOT PLAY WITH THE HEATER.
Page 3.
USER INSTRUCTIONS
OPERATING INSTRUCTIONS. 1. PLUG THE POWER CORD INTO THE WALL SOCKET AND TURN ON
THE POWER TO THE HEATER, SEE FIG 1.
REFRAIN FROM USING AN EXTENSION CORD.
2. FOR CONTROL LAYOUT REFER TO FIG 2.
BURNER LOW
POWER OFF
SWITCH 4
BURNER HIGH
SWITCH 3
FAN LOW / POWER ON
SWITCH 2
FAN MED
SWITCH 1
FAN HIGH
3. TO TURN HEATER ON PRESS SWITCH TO POWER ON POSITION.
THERE IS A 30 SECOND DELAY BEFORE THE BURNER IGNITES.
THIS DELAY IS TO ALLOW THE IGNITION SEQUENCE TO TAKE
EFFECT. AT THIS SETTING THE BURNER IS ON LOW.
THE BURNER WILL IGNITE ON BOTH HIGH AND LOW SETTINGS.
REFER FIG 3.
4. TO TURN BURNER TO HIGH SETTING, PRESS SWITCH FOR HIGH
SETTING. REFER FIG 4.
5. TO INCREASE THE FAN SPEED TO MED, PRESS SWITCH FOR MED
SETTING. REFER FIG 5.
FIG 1.
FIG 2.
FIG 3.
FIG 4.
FIG 5.
Page 4.

10. THE HEATER MUST BE INSTALLED WITH IT’S INTEGRAL FLUE
CORRECTLY INSTALLED FOR THIS HEATER TO OPERATE
PROPERLY, IF NOT CORRECTLY INSTALLED AND MAINTAINED
VENTING SYSTEM CAN RESULT IN CARBON MONOXIDE (CO)
POISONING AND POSSIBLE DEATH.
11. THE APPLIANCE SHOULD BE INSPECTED PRIOR TO USE,
WITH REGULAR INSPECTIONS (ANNUALLY) TO BE MADE BY A
LICENSED SERVICE PERSON. IT IS IMPORTANT THAT
CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE
KEPT CLEAN, DIRT AND LINT FREE, FOR A SAFE AND
EFFICIENT OPERATION OF THE HEATER.
12. ON THE FIRST LIGHTING YOUR HEATER A SMELL MAY OCCUR
DUE TO IT’S NEW CONDITION. THIS IS NORMAL AND WILL
DISAPPEAR AFTER A FEW HOURS OF USE AT MAXIMUM
CONTROL POSITION.
IMPORTANT.
WHEN THIS HEATER IS OPERATING, THE MESH GUARD IS HOT.
THE MESH GUARD FITTED TO THE HEATER CONFORMS TO
AUSTRALIAN STANDARDS.
FOR PERMENANT PROTECTION OF YOUNG CHILDREN OR THE
INFIRM A SECONDARY GUARD SHOULD BE PLACED AROUND
THE HEATER.
A SECONDARY GUARD IS NOT PROVIDED WITH THIS HEATER
AND MAY BE PURCHASED BY THE OWNER.
STANDARDS. THIS APPLIANCE MEETS THE FOLLOWING STANDARDS:
STANDARDS AUSTRALIA. AS 3100
AS 5601
AS 4553 / AG 103
Page 2.
SAFETY WARNINGS
7. IF REMOVED THE GLASS WINDOW MUST BE PUT BACK ONTO
THE UNIT PRIOR TO OPERATING THE HEATER.
8. INSTALLATION AND REPAIRS SHOULD BE PERFORMED BY A
LICENSED SERVICE PERSON ONLY, REFER TO BACK OF
MANUAL FOR SERVICE NUMBERS.
9. FOR INSTALLATION INTO A COMBUSTIBLE FIREPLACE
CONSTRUCTED FROM TIMBER OR PLASTERBOARD, THE
FLUE WILL NEED TO BE SUPPORTED TO MAINTAIN
CLEARANCES FROM COMBUSTIBLE MATERIALS.
NOTE: WHEN INSTALLING INTO A MOCK FIREPLACE A MOCK
FIREPLACE INSTALLATION KIT MUST BE USED.
5. NEVER ATTEMPT TO BURN PAPER OR OTHER MATERIAL IN
THE HEATER.
6. DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS
APPLIANCE WHILE IT IS IN OPERATION.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS
APPLIANCE.
USER INSTRUCTIONS
OPERATING INSTRUCTIONS. 6. TO INCREASE THE FAN SPEED TO HIGH, PRESS SWITCH FOR
HIGH SETTING. REFER FIGURE 6.
7. TO TURN THE BURNER TO LOW SETTING, PRESS SWITCH FOR
LOW SETTING. REFER FIGURE 7.
ON LOW BURNER SETTING IT IS MORE EFFICIENT TO OPERATE
THE FAN SPEED ON LOW.
8. IF THE BURNER FAILS TO IGNITE, WAIT 20 SECONDS AND
REPEAT THE IGNITION PROCEDURE. REFER FIGURE 7.
PRESS PRESS
FIG 6.
FIG 7.
FIG 8.
TO TURN
BURNER OFF.
TO TURN
BURNER ON.
Page 5.
NOTE:
IF YOU TURN THE HEATER OFF, WAIT 10 MINUTES BEFORE YOU
TURN THE HEATER BACK ON AGAIN.
THIS WILL ALLOW THE SWITCH WHICH CONTROLS THE IGNITION
TIME TO RESET.
DO NOT USE THIS HEATER IF THE GLASS IS CRACKED OR WITH
THE GLASS REMOVED.
DO NOT USE HEATER WITH BROKEN OR MISSING LOGS.
THE HEATER FLAME SHOULD BE STABLE, NO LIFTING FROM THE
BURNER AND THE LOGS SHOULD GLOW AFTER APPROXIMATELY
15 MINUTES OPERATION ON HIGH SETTING.
THE HEATER IS A FUEL EFFECT UNIT AND IS DESIGNED TO
OPERATE WITH LUMINOUS FLAMES AND MAY EXHIBIT SLIGHT
CARBON DEPOSIT ON THE LOGS. IF ANY EXCESS CARBON
BUILD UP ON LOGS OR THE BURNER FLAME IS UNSTABLE,
CONTACT SAMPFORD AND STAFF IN YOUR STATE.
(SEE PHONE CONTACT PAGE 9.)

WARRANTY
THE CANNON APPLIANCE IS WARRANTED AGAINST DEFECTS
IN MATERIALS AND WORKMANSHIP FOR A PERIOD OF ONE (1)
YEAR FROM THE DATE OF ORIGINAL PURCHASE, FOR
RESIDENTIAL USE IN AUSTRALIA.
WARRANTY SERVICE, WHICH INCLUDES PARTS AND LABOUR
FOR THE REPLACEMENT OR REPAIR OF DEFECTIVE PARTS,
IS AVAILABLE THROUGH CANNON AUTHORIZED SERVICE
AGENCIES.
CONSUMERS ARE RESPONSIBLE FOR SERVICE PERSON’S
TRAVEL OUTSIDE NORMAL SERVICE AREAS (APPROXIMATELY
SEVENTY 70K RADIUS FROM THE NEAREST CANNON DEALER’S
LOCATION), LOCAL CARTAGE, AND NORMAL MAINTENANCE AS
DESCRIBED IN THIS MANUAL.
ANY PRODUCT SUBJECTED TO MISUSE, ABUSE, NEGLIGENCE,
ACCIDENT OR ALTERATION WILL HAVE IT’S WARRANTY VOIDED.
THE DEFACEMENT OF SERIAL PLATE WILL HAVE IT’S
WARRANTY VOIDED.
IF INSTALLATION IS NOT CARRIED OUT IN ACCORDANCE WITH
THE MANUFACTURER’S INSTRUCTIONS, THIS WARRANTY WILL
BE VOIDED.
THE CUSTOMER MUST KEEP THEIR “TAX INVOICE” AS PROOF
OF PURCHASE OF THIS PRODUCT AND THE COMPLIANCE
CERTIFICATE AS PROOF OF REQUIRED INSTALLATION.
MODEL NUMBER:
SERIAL NUMBER:
DATE OF MANUFACTURE:
DATE INSTALLED:
COMPLIANCE CERTIFICATE No:
DESIGNED, MANUFACTURED AND DISTRIBUTED BY:
SAMPFORD AND STAFF PTY LTD
421 SMITH STREET
FITZROY, VIC, 3065
TEL: [phone]
DON’T RISK YOUR APPLIANCE WARRANTY
ONLY A LICENSED PERSON WILL GIVE YOU A COMPIANCE
CERTIFICATE, SHOWING THAT THE WORK COMPLIES WITH
ALL THE RELEVANT STANDARDS.
AND ONLY A LICENSED PERSON WILL HAVE INSURANCE
PROTECTING THEIR WORKMANSHIP FOR 6 YEARS.
SO MAKE SURE YOU USE A LICENSED PERSON TO INSTALL
THIS APPLIANCE AND ASK FOR YOUR COMPLIANCE
CERTIFICATE TO ENSURE THE MANUFACTURERS
APPLIANCE WARRANTY WILL BE HONOURED.
Page 1. Page 6.
CLEANING ALL CLEANING SHOULD BE CARRIED OUT WHEN THE HEATER IS
COLD. NORMALLY THE HEATER SHOULD ONLY NEED WIPING WITH
A LINT FREE DAMP CLOTH. ANY STUBBORN STAINS CAN BE
REMOVED WITH A NON-ABRASIVE SPRAY ON CLEANER. IF AN
ABRASIVE CLEANER IS USED THE PAINT FINISH WILL BE DAMAGED.
INTERNALLY THE HEATER SHOULD ONLY BE CLEANED BY A
LICENSED SERVICE PERSON LISTED IN THIS MANUAL.
IF YOUR HEATER REQUIRES ATTENTION CONTACT YOUR SUPPLIER
OR LICENSED SERVICE PERSON LISTED IN THIS MANUAL.
USER INSTRUCTIONS

HEATER SPECIFICATIONS
DO NOT USE FIRE WITH BROKEN OR MISSING LOGS.
GAS TYPE :
ENERGY STAR RATING :
GAS CONSUMPTION :
ENERGY OUTPUT :
HEATER TYPE :
OPERATING PRESSURE :
GAS REGULATOR :
MIN INLET PRESSURE :
FAN :
CONTROLLER :
MIN CAVITY DIMENSIONS :
(FOR INSTALLATION INTO A
MASONRY/BRICK FIREPLACE)
POWER REQUIREMENTS :
OPTIONAL ACCESSORIES :
OVERALL DIMENSIONS :
NATURAL GAS & PROPANE GAS
28 MJ/hr NG / 27 MJ/hr PROPANE
4.4
23.4 MJ/hr
HEATER APPROVED TO
AS 4553 / AG 103
NATURAL GAS 1.0 kPa
PROPANE GAS 2.65 kPa
INTEGRAL WITH CONTROLLER (NG)
NATURAL GAS 1.13 kPa
PROPANE GAS 2.75 kPa
THREE SPEED
ELECTRONIC
240 VAC 10 AMP
CONSULT SUPPLIER
REFER FIG 9.
HEIGHT = 610
WIDTH = 710
8
DEPTH = 3 5
IMPORTANT.
THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY AN AUTHORISED SERVICE PERSON.
MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO
EXCESS LINT BUILD UP FROM CARPETING, BEDDING
MATERIALS, PET HAIR, ETC.
IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS
AND CIRCULATING AIR PASSAGE WAYS OF THE APPLIANCE BE
KEPT CLEAN.
DO NOT USE THIS FIRE IF THE GLASS IS CRACKED OR WITH
THE GLASS SAFETY SCREEN REMOVED.
SPECIFICATIONS
Page 7.
565
560
5
48
850 380
430
50
FIG 9.
C.L.
CONTENTS
WARRANTY
CONTENTS
SAFETY WARNINGS
WHAT TO DO IF YOU SMELL GAS
WARNINGS
STANDARDS
USER INSTRUCTIONS
OPERATING INSTRUCTIONS
CLEANING
HEATER SPECIFICATIONS
1
2-3
4-6
7-9

NOTES
Page 8.

Cannon
FITZROY PROFILE
INBUILT
Power Flue
USER INSTRUCTIONS
THE HEATER IS APPROVED FOR USE WITH NATURAL AND PROPANE GASES.
PLEASE LEAVE ALL INSTRUCTIONS WITH THE OWNER.
INBUILT MODEL
FITZPIBPWR-02-NG
FITZPIBPWR-02-LP
MAKERS WARRANTY
APPROVED
DESIGN
AUSTRALIAN
GAS
ASSOCIATION
NOTES
Page 9.
ISSUE J. DATED: 2007
F3052 USER INSTRUCTION MANUAL
CANNON FITZROY PROFILE PWR SERIES 2 2007
GAS TYPE NATURAL PROPANE
TEST POINT PRESSURE 1.00 kPa NATURAL
SAMPFORD & STAFF
TELEPHONE [phone]
F3016 REV C
NATURAL 0.72 x 7 x 2
DATE OF MANUFACTURE
SERIAL NUMBER
INJECTORS SIZE
HGC (MJ) 28.0
ELECTRICAL 240VAC 0.5A 50Hz
COMPLIANCE WITH AS3100
ELECTRICAL ACCEPT IN
AGA APPROVAL # 6809
Designed,manufactured,and
distributed by:
PROPANE 1.10 x 2
2.65 kPa PROPANE
Phone: [phone]
Fax [phone]
Email: service@sampford IXL.com.au
FOR SERVICE TO THIS APPLIANCE CONTACT.
52-70 Sparks Avenue
Fairfield Vic. 3078
