Cannon WOBURN 10560G Technical manual

NOTE: This appliance is fitted with a battery
powered ignition system. Should the ignition
system start to spark slowly - or not at all, the
battery will need replacing. See the section on
battery replacement.
WOBURN
Use and Installation Instructions
The cooker must be installed in accordance with the regulations in force
and only used in a well ventilated space.
Read these instructions prior to using the cooker and retain them for
future reference.
Part no. 4866200122-01
Alkaline
AA

PAGE
Introduction 3
For Your Safety 4
Hotplate 6
Grill 8
Main Oven 10
Main Oven Cooking Chart 12
The “Slow Cook” Setting 14
Top Oven 15
Top Oven Cooking Chart 16
Care and Cleaning/Battery Replacement 18
Something Wrong with your cooker? 21
Installation Instructions 22
Service Information Back Cover
2
CONTENTS
Our policy is one of continual improvement in design and development,
therefore strict accuracy of illustrations and descriptions cannot be
guaranteed.
This appliance conforms to the following EEC Directive:
Gas Appliances
90/396/EEC

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET
CAREFULLY.
Your new cooker is guaranteed and will give lasting service. The guarantee is only
applicable if the cooker has been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a
window or use an extractor fan) and that persons who may be sensitive to the odour
avoid any fumes. It is suggested that any pets be removed from the room until the
smell has ceased. This odour is due to any temporary finish and also any moisture
absorbed by the insulation.
REPLACING A BATTERY
The battery is not covered by the guarantee. Use an alkaline AA battery. The battery
holder is located in the plinth panel below the oven door. Open the oven door fully.
Press the tag on the left hand side of the battery holder/cover and withdraw it just
enough to get access to the battery. Fit the new battery with the end marked “+” on
the same side of the battery holder as the red lead. Replace the battery holder by
pushing it firmly into the hole in the plinth.
DISPOSAL OF YOUR PRODUCT
To minimise the risk of injury to children please dispose of your product carefully and
safely. Remove all doors and lids (where fitted). Remove the mains cable (where fitted)
by cutting off flush with the appliance and always ensure that no plug is left in a
condition where it could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the
disposal of your product.
3
INTRODUCTION

Please read the precautions below before using your cooker.
ALWAYS . . .
ALWAYS make sure you understand the controls before using the cooker.
ALWAYS check that all controls on the cooker are turned off after use.
ALWAYS stand back when opening an oven door to allow heat to disperse.
ALWAYS use dry, good quality oven gloves when removing items from the ovens.
ALWAYS take care when removing items from the top oven/grill when the main
oven is on, as the contents may be hot.
ALWAYS keep the oven and grill doors closed when the cooker is not in use.
ALWAYS place pans centrally over the hotplate burners and position them so
that the handles cannot accidentally be caught or knocked or become
heated by other burners.
ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can
cause a fire.
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS refer servicing to CORGI registered appliance service engineers.
4
FOR YOUR SAFETY

NEVER . . .
NEVER leave children unsupervised where the cooker is installed as all surfaces
will get hot during and after use.
NEVER allow anyone to sit or stand on any part of the cooker.
NEVER store items that children may attempt to reach above the cooker.
NEVER heat up unopened food containers as pressure can build up causing
the container to burst.
NEVER store chemicals, food stuffs, pressurised containers in or on the cooker,
or in cabinets immediately above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3 full of oil, and never use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
NEVER place flammable or plastic items on or near the hotplate.
NEVER use proprietary spillage collectors on the hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other times over or near to the hotplate or oven/
grill doors.
NEVER wear garments with long flowing sleeves whilst cooking.
NOTE: The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Always ensure that the kitchen is well
ventilated; keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
In particular when using the grill or more than one hotplate burner, open a window if
a mechanical ventilation device is not operating.
5
FOR YOUR SAFETY

The hotplate lid is fitted with a safety device which cuts off the gas supply to the
hotplate burners unless the lid is fully open. Do not use the safety device as a means of
controlling the hotplate burners.
The hotplate has two high speed burners and two simmering burners which will
accommodate pans between 100mm (4”) and 230mm (9”) diameter. All pans should
be positioned centrally over the burners.
TO USE THE HOTPLATE
1. Remove any items or spillage from the top of the lid and then raise it to its fully open
position.
2. Press the ignition button and then push in and turn the control knob of the
chosen burner anti-clockwise to the large flame symbol. Continue to press
the ignition button until the sparks light the gas.
3. Turn the control knob anti-clockwise to the desired setting.
Only turn the control knob between the large flame symbol and the small flame
symbol for adjusting the setting.
4. To turn off, turn the control knob fully clockwise to the symbol O.
DO NOT use the hotplate unless all pan supports are in position.
DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.
Each burner is fitted with a spark ignitor for lighting the gas. To ensure rapid lighting of
the burners every time they are used, the ignitors must be kept clean and dry. Remove
any food spillage or cleaning materials from the ignitor using a small nylon brush such
as a tooth brush. Access to the ignitor can be achieved by lifting off the loose burner
parts carefully when the burners are cool.
When the hotplate burner bodies and caps are removed for cleaning, be careful not to
drop any food particles or cleaning materials into the burner bases, to avoid the
possibility of blocking the gas jets.
If aluminium based pans are used, a silvery deposit may appear on the top edge of the
pan support fingers. See ‘Care and Cleaning’ section for cleaning information.
When the hotplate burners are turned down, a slight ‘popping’ noise may be heard. This
is perfectly normal.
6
HOTPLATE

7
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Never fill chip pans more than one third full with oil or fat.
2. Never leave oil or fat unattended during the heating or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the
hot oil or fat. Frozen foods in particular will cause frothing and spitting if
added too quickly.
5. Always keep the outside of the pan clean and free from streaks of oil or
fat.
HOW TO DEAL WITH A FAT FIRE
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp cloth to extinguish the
fire. Do not use water or a fire extinguisher as the force of it may
spread the burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving it.
HOTPLATE

8
TO USE THE GRILL
1. Open the top oven/grill door and remove the grill pan.
2. Remove the heat shield from the rear of the shelf for maximum grilling area.
3. Place shelf in chosen position. Refer to grilling chart.
4. Press the ignition button and then push in and turn the control knob clockwise to
the large flame symbol. Continue to press the ignition button until the sparks light
the gas.
5. Slide the grill pan along the shelf towards the rear of the grill compartment
until it stops.
6. Turn the control knob to the desired setting. Only turn the control knob
between the large flame symbol and the small flame symbol when adjusting the
setting.
7. To turn off, turn the control knob anti-clockwise to the symbol O.
The grill cannot be used at the same time as the top oven.
An odour may be noticed when first using the grill – this should cease after a short
period of use.
DO NOT use the grill with the door closed.
DO NOT cover the grill pan or grid with aluminium foil as this can hold fat, intensify
the heat and create a fire hazard.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
GRILL
ABC
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED.
YOUNG CHILDREN SHOULD BE KEPT AWAY.
GRILL PAN AND HANDLE

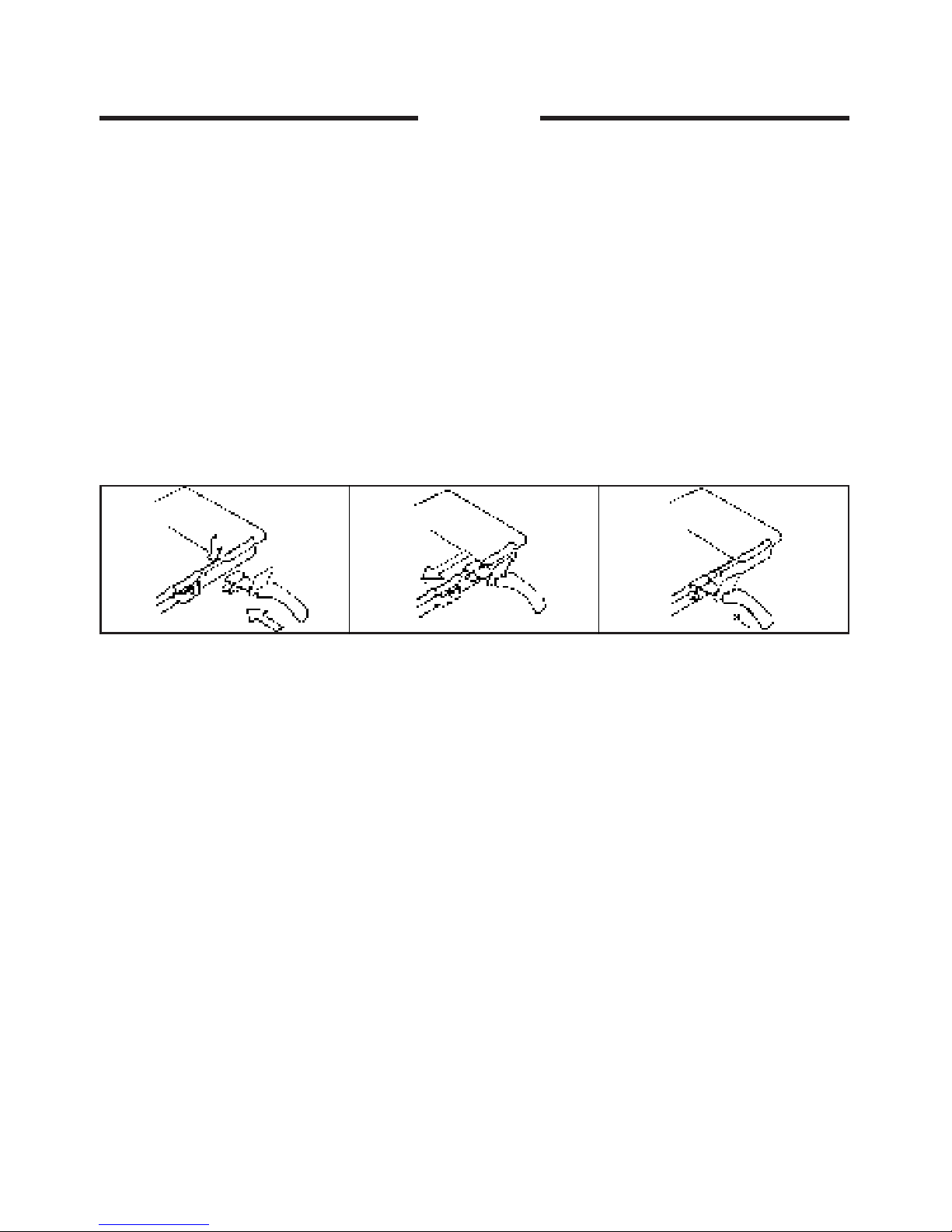

The grill pan handle is detachable from the pan to facilitate cleaning and storage. The
handle can be fixed as follows :
1. Remove the screw and washer from the grill pan bracket.
2. Tilt the handle over the recess. (A)
3. Slide the handle towards the centre of the pan. (B)
4. Locate the handle over the bracket. (C)
For a fixed handle, replace the screw and washer and ensure they are fully tightened.If a
detachable handle is required, do not replace the screw and washer.
Warning : Ensure when using the grill pan handle in the detachable manner it is
centralised and secure.
The grill pan can be stored in the top compartment with the handle attached by
placing the shelf in the middle or lower position and tilting the grill pan over the rear
edge of the shelf.

The following chart is a guide. Grilling can be started from cold but for best results
preheat for approximately two minutes. Most cooking is done with the
heat on full, but it may be desirable to reduce it for thicker pieces of meat or for
keeping food warm.
For au gratin dishes eg. Macaroni Cheese and meringue toppings eg. Baked Alaska,
place the dish on the floor of the grill compartment. The base of the grill pan can be
used for warming fruit garnishes on the reduced setting.
NOTE: Strong detergents used in dishwashers may damage the grill pan grid
finish; clean in soapy water as described in CARE AND CLEANING section.
Always ensure that the grill pan handle is correctly fitted to the grill pan.
If necessary tighten any loose screws with a screwdriver.
9
GRILL

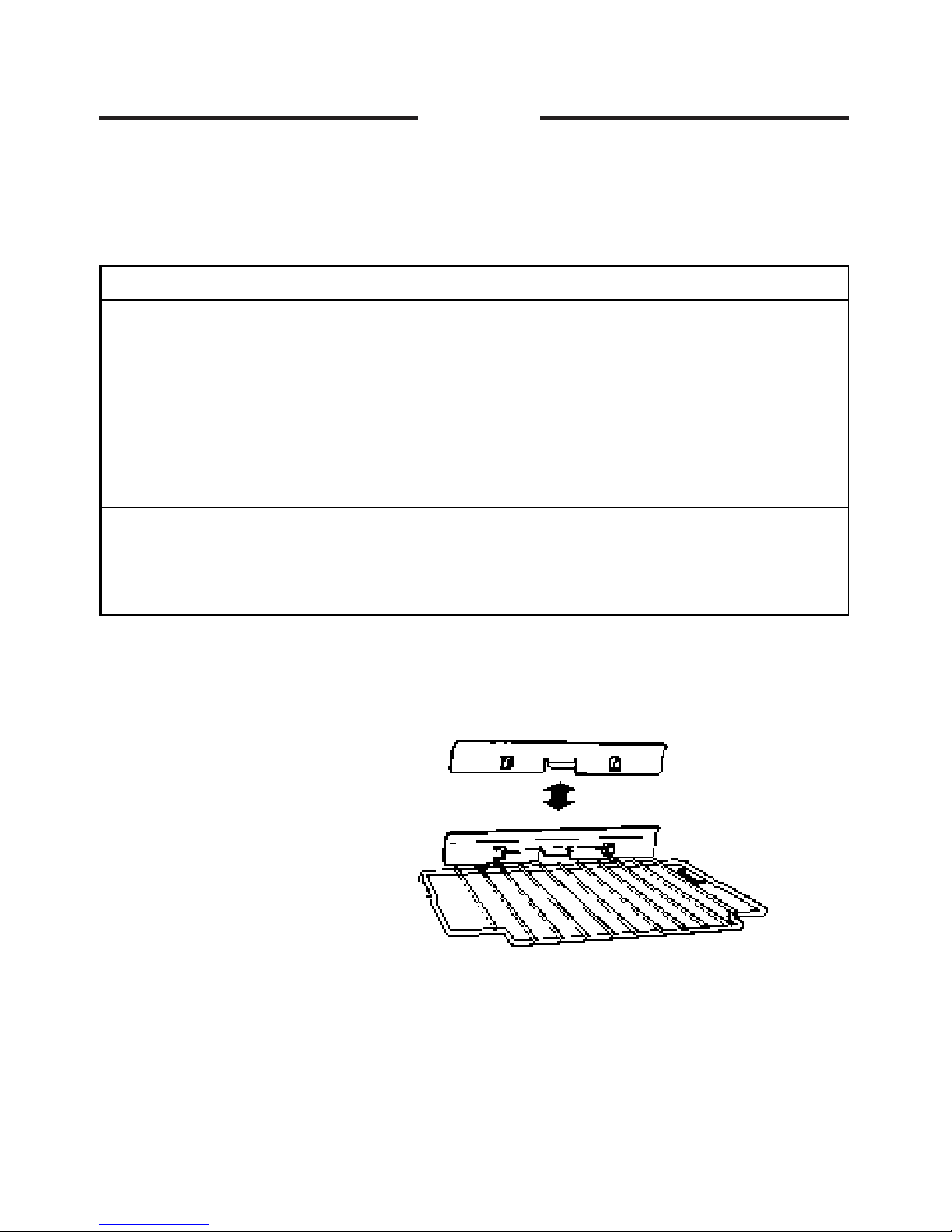

Shelf Position Food
Toast, pikelets/crumpets, bacon, thin sausages,
beefburgers, tomato halves, steak (rare and medium),
kippers, gammon, kidneys and toasted snacks.
Toast, toasted snacks, thick sausages, beefburgers,
fish fingers, steak (well done) and gammon, chops (with heat
turned down for part of cooking time).
Whole fish, fish fillets and fish steaks (on base of pan).
Chicken portions (with heat turned down for part of
cooking time).
HIGH POSITION
CENTRE POSITION
LOW POSITION
REMOVE HEAT SHIELD
FROM SHELF WHEN
GRILLING FOR MAXIMUM
GRILLING AREA.

The oven has different heat zones – the thermostat settings refer to the temperature
on the middle shelf position; above this shelf it is hotter and below it is cooler. Two
shelves provide five possible cooking levels enabling full use of the
different temperatures inside the oven.
Each shelf has a safety stop to prevent if from being pulled out too far when attending
to food. Shelves are removed from the oven by pulling them out to the stop and then
lifting them at the front to withdraw.
The baking dish and grill pan without the handle can be used in the oven. The
maximum size of baking tray that should be used is 300mm x 350mm (12” x 14”).
TO USE THE MAIN OVEN
1. Place oven shelves in the chosen positions (refer to cooking charts).
3. Push in and turn the oven control knob fully anti-clockwise. Press the ignition
button until the spark lights the gas.
4. Turn the control knob clockwise to the required setting (refer to cooking
chart). There is a delay of about one minute whilst the safety device
operates before the burner comes on full.
5. To turn off, turn the control knob fully clockwise the the symbol O.
Never place dishes on the oven base over the burner.
An odour may be noticed when first using the oven – this should cease after a short
period of use.
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the burner
control and do not attempt to re-ignite the burner for at least one minute.
10
MAIN OVEN

COLD START COOKING
Anything requiring long slow cooking such as casseroles and rich fruit cakes can be
put into a cold oven. Satisfactory results can also be obtained with creamed mixture,
rich pastries or yeast mixtures, but for perfection we recommend preheating the oven
for about 15 minutes at the gas mark you require for cooking.
ROASTING OF LARGE POULTRY
The maximum weight of poultry that can be accommodated is 11.5kg (25 lbs) of
suitable shape.
It is important to check that the bird DOES NOT overhang the burner at the back of the
oven.
STORAGE AND RE-HEATING OF FOOD
It is vitally important to strictly adhere to the basic principles of food handling and
hygiene to prevent the possibility of bacterial growth.
1. If food is to be frozen or not served immediately, cool it in a clean container
as quickly as possible.
2. Completely thaw frozen food in the refrigerator before re-heating.
3. Re-heat food thoroughly and quickly either on the hotplate or in a hot oven,
Mk. 6, and then serve immediately.
4. Only re-heat food once.
‘COOK CHILL’ DISHES
These should always be placed in a pre-heated oven ideally on the first or
second shelf position. Follow the packet instructions for cooking time.
ALUMINIUM FOIL
If using Aluminium Foil:
1. Remember that it is important to increase the cooking time by one third.
2. Never allow the foil to touch the sides of the oven.
3. Never cover the oven interior with foil.
4. Never cover the oven shelves with foil.
11
MAIN OVEN

The following times and setting are for guidance only. You may wish to alter the setting to give a
result more to your satisfaction. When a different setting to that shown below is given in a recipe, the
recipe instructions should be followed. Allow 15 minutes preheat for best results. Always turn the
thermostat knob to Mark 9 before selecting the required Gas Mark.
Shelf position 1 is the highest.
12
MAIN OVEN COOKING CHART
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
STARTERS
Patés and Terrines 3 or 4 4 11/2- 2 hrs
FISH
Oily Fish (whole) 4 or 5 3
White Fish (fillets & steaks) 4 or 5 3 25 - 30 mins.
MEAT AND POULTRY
Veal 5 4 25 mins per lb + 25 mins
Beef 4 or 5 4 25 - 30 mins per lb + 25 mins
Ham 5 4
Lamb 5 4 30 - 35 mins per lb + 30 mins
Pork 5 4 40 mins per lb + 40 mins
Chicken 5 4 25 mins per lb + 25 mins
Duckling & gosling 5 4 25 mins per lb + 25 mins
Turkey 4 or 5 4 or 5 15 - 20 mins per lb + 20 mins
Game birds 6 4
Casseroles 3 3 or 4 11/2- 6 hrs. (depending on type of meat)
PUDDINGS
Milk Puddings 3 3 or 4
Baked Custard 3 3 or 4 45 mins in bain-marie
Baked sponges 4 3 40 - 50 mins
Baked Apples 3 4
Meringue puddings 1 4 or 5 15 mins or until 'tinged' with brown
Apple Pie 1x9" (230mm) 6 3 45 - 55 mins stand dish on a baking tray
Fruit crumbles 5 or 6 3 35 - 45 mins
25 mins - 1 hr, depending on recipe
and size of fish
40 mins per lb covered in foil
+ 40 mins per lb uncovered
50 mins. Remove bacon for last 15 mins.
Add extra 15 mins if roasting brace
21/4- 21/2hrs stand dish on a baking tray and
started with warm milk
30 - 45 mins depending on the size
and type of apples

13
MAIN OVEN COOKING CHART
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
CAKES, PASTRIES AND BISCUITS
Small cakes - 2 trays 5 2 & 4 17 - 25 mins
- 1 tray 5 2 or 3 only "
Victoria sandwich 2x8" (205mm) 4 2 & 4 25 - 35 mins
5 2 20 - 25 mins. 2 tins side by side
Christmas cake 2 3 or 4 4 - 6
1
/
2
hrs depending on recipe
Madeira cake 7" (180mm) 4 3 1
1
/
4
- 1
1
/
2
hrs
Rich Fruit cake 9" (230mm) 2 3 3 - 3
1
/
2
hrs.
Shortcrust pastry 6 2 or 3 15 mins - 1 hr depending on recipe
Rich Shortcrust pastry - 1 tray 5 2 20 - 40 mins depending on recipe
Flaky & puff pastry - 2 trays 7 1 & 3 10 - 30 mins depending on recipe
- 1 tray 2 or 3 " " " "
Choux pastry - éclairs 1 tray 6 2 35 - 40 mins
Scones - 2 trays 7 2 & 4 10 - 15 mins
- 1 tray 2 or 3 "
Shortbread - 7" (180mm) round 2 4 55 - 1hr depending on thickness
Biscuits - 2 trays 4 1 and 3 15 - 20 mins depending on recipe
- 1 tray 2 or 3 " " " "
YEAST MIXTURES
Bread 7 or 8 3 or 4 45 - 50 mins
Rolls 7 or 8 2 or 3 15 - 20 mins
Chelsea buns 5 2 or 3 30 - 40 mins
MISCELLANEOUS
Yorkshire Pudding - large 7 1 or 2 45 - 50 mins
- individual 7 1 or 2 25 - 30 mins
Soufflés 4 3 30 mins
Meringues
Baked Potatoes 4 or 5 3 1
1
/
2
- 3 hrs until soft, depending on size
2 - 5 hrs starting on shelf 4 until 'set'
and then on the baseplate until dried
out - turn when necessary.
Fatless sponge 2x7" (180mm) -
3 egg mix
4 &
baseplate
When baking with two trays or tins on two levels, the top tray is removed first and the lower tray
moved up to the top position for a few minutes longer.
Soft Margarine – Use the oven settings recommended by the margarine manufacturer and not those
indicated on the cooking chart.
Slow Cook

The ‘Slow Cook’ setting on the main oven thermostat is used for slow cooking, keeping
food warm and warming plates for short periods.
USING THE ‘SLOW COOK’ SETTING FOR SLOW COOKING
1. All dishes cooked by the ‘Slow Cook’ setting should be cooked for a minimum 6
hours.
They will ‘hold’ at this setting for a further hour but marked deterioration in
appearance will be noticed in some cases.
2. Joints of meat and poultry should be cooked at Mk. 6 for 30 minutes before
turning to the ‘Slow Cook’ setting and never be cooked lower than the middle shelf
position.
3. Joints of meat over 6 lbs (2.7kg) and poultry over 4 lbs 8oz (2 kg) should not
be cooked using the ‘Slow Cook’ setting.
4. Always stand covered joints on a rack over the meat tin to allow good air
circulation.
5. A meat thermometer should be used when cooking pork joints and poultry.
The internal temperature of the food should reach at least 88oC.
6. This method is unsuitable for stuffed meat and stuffed poultry.
7. Always bring soups, casseroles and liquids to the boil before putting in the
oven.
8. Cover casseroles with foil and then the lid to prevent loss of moisture.
9. Always thaw frozen food completely before cooking.
10. Root vegetables will cook better if cut into small pieces.
11. Adjust seasonings and thickenings at the end of the cooking time.
12. Use the zones of heat in the oven, e.g. meringues and milk puddings can be
cooked lower in the oven whilst other dishes requiring greater heat can be
cooked above them.
13. Egg and fish dishes need only 1-5 hours cooking and should be included in
day cooking sessions, when they can be observed from time to time.
14. Dried red kidney beans must be boiled for a minimum of ten minutes after
soaking, before inclusion in any dish.
14
THE ‘SLOW COOK’ SETTING

The top oven can be used to cook small quantities of food or used in conjunction with
the main oven to provide additional cooking space.
The shelf in the top oven has a heat shield fitted at the rear. The shield can be removed
for cleaning and grilling, but must be replaced when using the oven. The shelf can be
used in three different positions. It has a safety stop to prevent it from being pulled
out too far when attending to food. The shelf is removed from the oven by pulling it
out to the stop and then lifting at the front to withdraw.
The baking dish and grill pan without the handle can be used in the oven. The
maximum size of baking tray that should be used is 300mm x 350mm (12” x 14”).
TO USE THE TOP OVEN
1. Check that the heat shield is fitted to the shelf.
2. Place the top oven shelf in the chosen position. (refer to cooking chart).
3. Push in and turn the top oven/grill control knob fully anti-clockwise. Press the
ignition button until the spark lights the gas.
4. Turn the control knob clockwise to the required setting. (refer to cooking
chart).
5. There is a delay of about one minute whilst the safety device operates before the
burner comes on full.
6. To turn off, turn the control knob clockwise to the symbol O.
NOTE: It is normal for a slight resistance to be felt when turning the control knob
to the oven settings.
GUIDANCE ON USING THE TOP OVEN
1. Best results are obtained by pre-heating the oven for about 15 minutes.
2. The tray or dish on which the food is to be cooked, should be pushed to the
back of the shelf.
3. Food which is higher than or will rise above 125mm (5”) cannot be cooked
in the top oven.
Never place dishes on the oven base over the burner.
An odour may be noticed when first using the oven – this should cease after a short
period of use.
15
TOP OVEN

The following times and setting are for guidance only. You may wish to alter the setting to give a
result more to your satisfaction. When a different setting to that shown below is given in a recipe, the
recipe instructions should be followed. Allow 15 minutes preheat for best results. Always turn the
thermostat knob to Mark 1 before selecting the required gas Mark.
Shelf position 1 is the highest.
16
TOP OVEN COOKING CHART
Gas Shelf
Food Mark Position Approx. Cooking Time and Comments
FISH
Oily and white fish 5 2 20-30 mins.
MEAT AND POULTRY
Beef (medium) 4 or 5 3 25-30 mins per lb + 25-30 mins
Ham (covered in foil) 5 3 40 mins per lb + 40 mins
Lamb 5 3 30-35 mins per lb + 30 mins
Pork 5 3 40 mins per lb + 40 mins
Chicken 5 3 25 mins per lb + 25 mins
Duckling & Goose 5 3 25 mins per lb + 25 mins
Turkey 4 315-20 mins per lb + 15-20 mins
Casseroles 3 3 2-4 hrs. depending on meat used.
VEGETABLES
Baked jacket potatoes 5 2 11/2 - 2 hrs.
PUDDINGS
Milk Puddings (500ml/1pt) 3 2 11/2 - 2 hrs.
Baked Custard (500ml/1pt) 3 2 45 mins - 1 hr. in bain-marie of cold water.
Baked Sponge Puddings 4 2 30 - 45 mins
Baked Apples 3 2 45 mins - 1 hr. depending on size
Meringue Topped Puddings 1 2 25 mins until tinged with brown
Apple Tart (1 x 205mm/8”) 6 2 60 mins
Fruit Crumble 5 2 45 - 50 mins
If using aluminium foil:
1. Remember it is important to increase the cooking time by one third.
2. Do not allow the foil to touch the sides of the oven.
3. Do not cover the oven interior with foil.
4. Do not cover the oven shelves with foil.
Push dish right to
back of shelf.

17
TOP OVEN COOKING CHART
Gas Shelf
Food Mark Positions Approx. Cooking Time and Comments
CAKES, PASTRIES AND BISCUITS
Small Cakes (16 per tray) 5 2 20 - 25 mins.
Victoria sandwich (2 x 180mm / 7”) 4 2 25 - 30 mins.
Swiss Roll (3 egg quantity) 6 2 10 - 12 mins.
Christmas cake (1 x 205mm / 8”) 2 2 4 - 5 hrs depending on recipe
Madeira cake (1 x 180mm / 7”) 4 2 1 hr.
Rich Fruit cake (1 x 180mm / 7”) 2 2 21/4- 21/2hrs.
Gingerbread 3 2 11/2- 13/4hrs.
Scones - 16 per tray 7 2 12 - 15 mins.
Shortbread (1 x 180mm / 7”) 2 2 45 mins. – 1 hr. depending on thickness
Biscuits 4-6 2 15 - 25 mins.
Shortcrust Pastry 6 2 15 mins. – 1 hr. depending on recipe
Rich Short Crust 5 2 20 - 30 mins.
Flaky/Puff Pastry 7 2 10 - 30 mins. depending on recipe
Choux Pastry 6 2 25 - 35 mins.
YEAST MIXTURES
Bread - rolls, plait 7 2 or 3 25 - 35 mins
Tea breads etc. 5 2 25 - 30 mins
MISCELLANEOUS
Yorkshire Pudding - small 7 2 20 - 25 mins
- large 7 2 30 - 40 mins
Meringues 1 3 21/2- 4 hrs. turn when necessary
Soft Margarine – Use the oven settings recommended by the margarine manufacturer and not those
indicated on the cooking chart.

Clean the cooker regularly and wipe up spills soon after they occur to prevent
them from becoming burnt on. Never use biological washing powder, caustic
cleaners, harsh abrasives, scouring pads, steam cleaners, aerosol cleaners or oven
chemical cleaners of any kind.
Before moving your cooker ensure that it is cool and note that it is heavy
(approximately 70 kg 155 lbs), so you may require assistance. To move the cooker
forward, open the top oven/grill door and with both hands positioned under the roof
of the compartment, lift and pull forward. Replace by pushing the cooker backwards.
Check that the cooker is level. Take care to ensure that any floor covering is not dam-
aged.
MAIN OVEN HEAT CLEAN LININGS
The oven roof, back and side linings are coated with a special enamel which has a
continuous cleaning action. The higher the oven temperature the more effective the
action. In most cases this cleaning operation will proceed during normal cooking.
However, if roasting is done frequently, or high temperatures are not used regularly, it
may be necessary to run the oven empty at Mark 8 for about two hours.
It should not normally be necessary to clean the linings with water, but if desired, wipe
them over with a soapy cloth, followed by a wipe with a damp clean cloth.
REPLACING A BATTERY
The battery is not covered by the guarantee. Use an alkaline AA battery. The battery
holder is located in the plinth panel below the oven door. Open the oven door fully.
Press the tag on the left hand side of the battery holder/cover and withdraw it just
enough to get access to the battery. Fit the new battery with the end marked “+” on
the same side of the battery holder as the red lead. Replace the battery holder by
pushing it firmly into the hole in the plinth.
18
CARE AND CLEANING

19
CARE AND CLEANING
COOKER FINISH CLEANING METHOD
Vitreous Enamel
Hotplate, pan supports,
hotplate front trim,
burner caps, roasting dish,
grill pan, main oven base,
inside of grill compartment,
inside of doors.
Cloth wrung out in warm soapy water. Stubborn
stains can be removed with a cream paste,
liquid cleaner or by rubbing with fine steel wool
soap pads.
Check that the cleaning agent is approved by the
Vitreous Enamel Association.
Paint
Side trims, plinth, fascia
bottom trim, fascia end
caps, side panels, door
handles
Wash with a cloth wrung out in warm soapy water
only.
DO NOT USE ABRASIVES.
Aluminium
Hotplate side trims, hotplate
burner bodies, lid rear trim,
rear flue grille.
Similar to paint cleaning above. Use a nylon brush to
remove any cleaning materials, water or dirt from
the hotplate burner bodies.
Glass As for enamel cleaning. Polish with a clean dry cloth
or kitchen roll.
Chromium Plating
Oven shelves, grill pan grid,
grill pan handle support
Wipe with a cloth wrung out in warm soapy water.
A fine steel wool soap pad e.g. Brillo, Ajax, or a
chrome or stainless steel cleaner may be used.
Plastic
Grill pan handle, control
knobs
Wipe with a cloth wrung out in warm soapy water.
Stubborn stains can be removed with a cream
cleaner.

CARE AND CLEANING
Take particular care not to damage the inner surface of the door inner glass that
is coated with a heat reflective layer. Do not use scouring pads, or abrasive
powder, which will scratch the glass. Ensure that the glass panel is not subjected
to any sharp mechanical blows.
Stubborn stains can be removed by using a fine steel wool soap pad.
For slight soiling
the inner glass panel may be cleaned, while still warm, without removing it from the
door. After cleaning, rinse and dry with a soft cloth.
CLEANING THE DOORS
SIDE OPENING DOORS
Cleaning the door glass is the same as the drop down doors, except take care to
support the weight of the inner glass when removing and refitting.
DROP DOWN DOORS
Remove the door inner glass as follows.
1. Open the door fully and unscrew the two screws securing the glass panel so that
the securing brackets can be turned. There is no need to remove the screws
completely.
2. Turn the brackets so that the glass can be
removed and cleaned at the sink (Fig. 1.)
3. The inside of the outer door glass can now be cleaned while still fitted to the
cooker.
NEVER OPERATE THE COOKER WITHOUT THE INNER DOOR GLASS
IN POSITION.
Refit the door inner glass as follows.
1. NOTE: The inner door glass has a special reflective coating on one side. Replace
the door inner glass so that the statement: “IMPORTANT THIS FACE TOWARDS
THE OVEN” can be read from the inner side of the door.
2. Turn the two securing brackets back to their
original position to retain the glass and tighten
the screws. (Fig. 2.)
Glass
Fig. 1.
Fig. 2.
Glass
20
