CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
CONTENTS
1INTRODUCTION 1
A. Scope ............................................................................................................................. 1
B. Overview ........................................................................................................................ 1
2 ITEM DESCRIPTIONS 3
A. Lower Control Chassis .................................................................................................. 3
B. Upper Bath Vessel Housing ........................................................................................... 3
C. Cables & hoses, etc. ....................................................................................................... 4
3UNPACKING AND INSTALLATION 5
A. Unpacking ...................................................................................................................... 5
B. Checking for damaged/missing items ............................................................................ 5
C. Physical arrangements ................................................................................................... 5
D. Liquid and pneumatic connections ................................................................................ 6
E. Platform/pump assembly ................................................................................................ 6
F. Electrical connections ..................................................................................................... 8
G. Selecting a bath liquid .................................................................................................... 9
4GENERAL OPERATIONS 11
A. Filling the bath with liquid .......................................................................................... 11
B. Application of power ................................................................................................... 12
1. Cold start .......................................................................................................... 12
2. Warm start ......................................................................................................... 13
C. Self-test sequence ........................................................................................................ 13
D. Normal display and keypad indications....................................................................... 15
E. LED indicators ............................................................................................................. 17
F. Adjusting the liquid level in the bath ............................................................................ 17
G. Setting the target (desired) bath temperature ............................................................... 18
H. Calibration at a given target temperature .................................................................... 19
I. Menu selections ............................................................................................................. 20
1. Celsius or Fahrenheit operation ........................................................................ 20
2. Bath temperature calibrations and offsets ........................................................ 21
3. Communication options.................................................................................... 22

ii
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
5COMMUNICATIONS 25
A. Downloading firmware updates................................................................................... 25
B. Full duplex (POINT-TO-POINT) operations ............................................................... 25
C. Half duplex and polled (multi-drop) operations .......................................................... 26
D. Commands, queries, responses and reports ................................................................. 26
6MAINTENANCE 31
A. Preventative (scheduled) maintenance ........................................................................ 31
Cleaning of painted surfaces and front panel ....................................................... 31
Cleaning the fans and heat sinks .......................................................................... 31
Cleaning the bath window .................................................................................... 32
Draining the bath liquid ........................................................................................ 32
Cleaning the inside of the bath vessel .................................................................. 33
7WARRANTY/RETURN INFORMATION 35
Products limited warranty................................................................................................. 35
Reagent and chemical warranty........................................................................................ 35
Returning a product to CANNON®.................................................................................. 36
AAPPENDIX A—REPLACEMENT PARTS LIST 37
Accessories ....................................................................................................................... 37
BAPPENDIX B—TROUBLESHOOTING GUIDE 39

1
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
CHAPTER
11
11
1
INTRODUCTION
A. Scope
Manual
The intent of this manual is to assist the user of the TE-3000 in the
general installation, operation, maintenance, and simple field repair of the
unit. This operations manual contains sections dealing with descriptions
of equipments, unpacking and installation, general front panel operations,
remote control/response operations, preventative maintenance, and
simple failure analysis and fault isolation.
Diagnostics/repair
Detailed diagnostics and repair should be performed in conjunction with
or solely by CANNON®Instrument Company. Please consult
CANNON®Instrument Company for further assistance beyond the
content of this manual.
B. Overview
TE-3000 features
The TE-3000 is a state of
the art, microprocessor
controlled and
thermoelectrically
cooled, constant tempera-
ture liquid bath. It is
totally self-contained in
two stackable bench-top
units which together
occupy a foot print less
than 15 by 20 inches. The
TE-3000 does not
contain any fluorocar-
bons or refrigeration
components and the only
moving parts are four
ball-bearing cooling fans
and a long-life vibratory
air pump. It can obtain
any temperature between
+30 degrees to -30
degrees Celsius and
remain stable at that
temperature within .01
degrees under normal
operating conditions.
Figure 1: The TE-3000

2
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
Temperature control
The principals of operation for this instrument are the latest in science
and technology. Custom-developed Peltier Cells are arranged on the back
and sides of the bath vessel. Newly designed high density air heat
sinks on the outer surfaces (hot side) of these Peltier Cells are cooled by
muffin fans running at half of their rated voltage. The bath liquid (2.5
liters) is constantly circulated by recycled bath vapors to ensure uniform
temperature distribution and stability. The temperature is controlled (both
heating and cooling) with a custom designed 16 bit digital pulse width
modulator running at a very high frequency.
Calibration
The TE-3000 can be calibrated to any temperature reference standard for
any desired Celsius or Fahrenheit temperature. The controls for entering
the target (desired) temperature and the calibration at this temperature are
very simple and straight forward. The instrument remembers these
calibration corrections for every possible temperature as well as the latest
desired temperature so that upon power-up, the bath will
adjust to these last known and entered parameters.
Networking/communication
The TE-3000 was designed for the future with built in capability for
remote control and networking with a new family of instruments. With
this remote interface capability, it is now possible to obtain quality
assurance data via a computer network. The TE-3000 was also designed
to ensure that its capabilities may be easily changed or updated with new
operating firmware via a remote download over this same network.

3
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
CHAPTER
22
22
2
ITEM DESCRIPTIONS
A. Lower Control Chassis
The Control Chassis for the TE-3000 is the base unit of the instrument
upon which the Upper Bath Vessel Housing sits.
The Control Chassis contains all of the power conditioning and supplies,
air pump, and electronics needed for the operation of the TE-3000. The
mains power input, two power connectors to the Upper Bath Vessel,
communication (RS-232 and RS-485) connectors, address selection
switch, download demand switch, two air pump connections to the Upper
Bath Vessel, and the bath fluid pump switch reside on the rear panel of
the Lower Control Chassis.

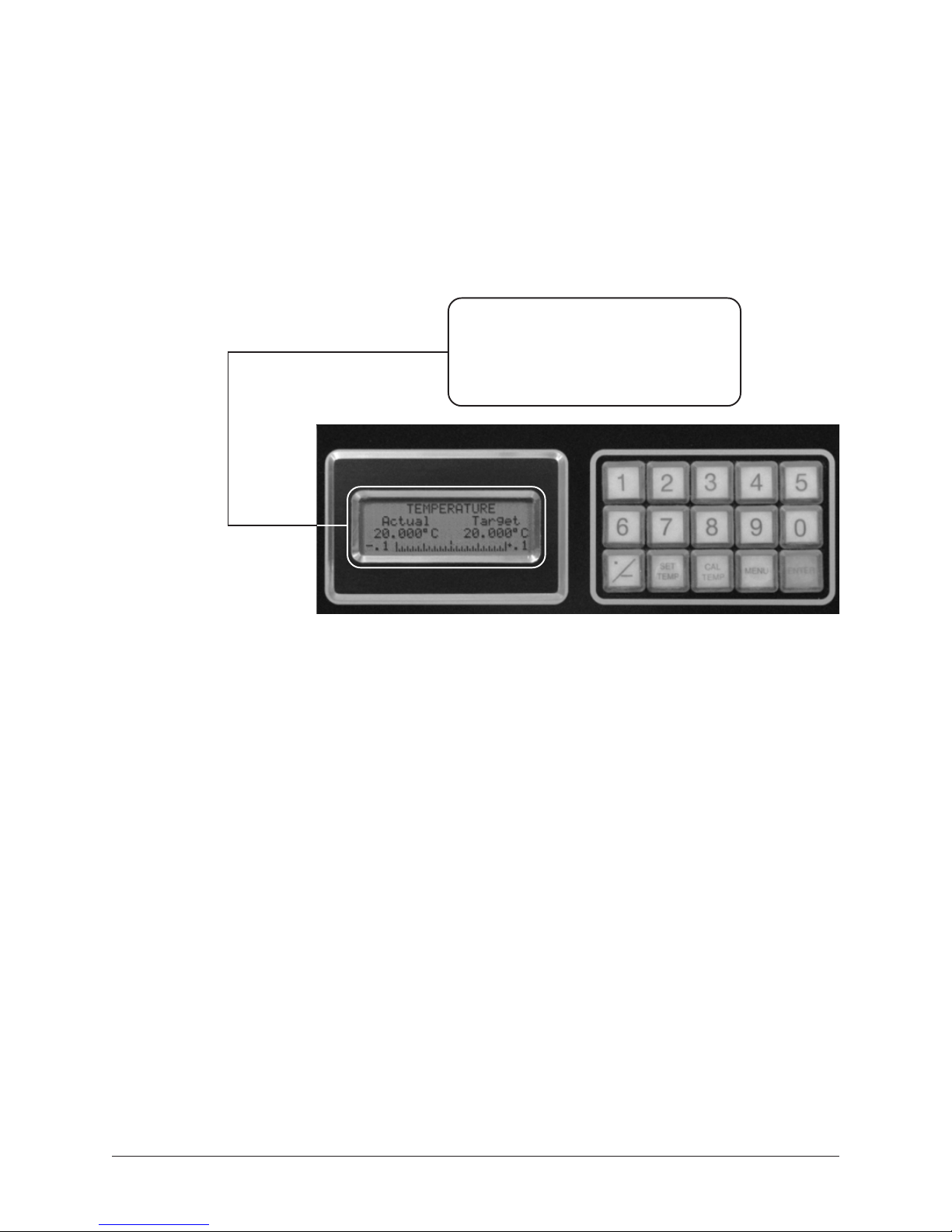

Figure 2: TE-3000 Front panel
The front panel contains:
1DC power indicator lamp
2two lighted power switches (bath & lighting)
3liquid crystal display
415-keypad switch array
5two LED indicators (heating and cooling)
B. Upper Bath Vessel Housing
The Bath Vessel Housing for the TE-3000 sits on top of the Lower
Control Chassis. It contains a rectangular aluminum bath vessel with a
four pane, specially designed glass window attached to the elongated
front surface.
1
2
3
4
5

4
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
The Bath Vessel Housing also contains the thermoelectric modules,
finned heat sinks, fans, and fluorescent lamps with ballasts. The rear
panel has two power connectors from the Lower Control Chassis, two air
pump connectors from the Control Chassis, and the bath fluid overflow
jar along with integral pump and tubing connections.
C. Cables & hoses, etc.
The TE-3000 system includes several cables, hoses, and accessories
which are necessary for operation of the system.
Power cables
1.) Two large diameter power cables (AC and DC) with circular connec-
tors on their ends are provided to take power from the lower Control
Chassis up to the upper Bath Vessel Housing. The sex and type of
these connectors constrain their use in only one way - the proper
configuration.
Air hoses
2.) Two small diameter silicon air hoses (tube assemblies) with twist and
lock pneumatic connectors on their ends are provided to supply and
return recirculated bath vapors from/to the upper Bath Vessel to/from
the lower Control Chassis. The sex and type of these connectors
constrain their use in only one way - the proper configuration.
Overflow jar
3.) One glass jar with lid is provided to catch the bath overflow liquid
and is to be mounted on the rear overflow jar support along with
three pieces of small diameter silicon tubing and an in-line pump
with connector. For instructions on assembling the overflow jar
support and connecting the Reciprocating Pump, see page 7. The
plastic lid for the jar has a hole into which the 3" tubing is inserted.
The other end of the 3" tubing is connected to the bath overflow
outlet. The 6" tube connects the fitting at the bottom of the jar to the
bottom of the air pump, and the top of the air pump is connected to
the 11" tubing which then rises to the top of the Bath Vessel housing
and mates to the bath fluid return pipe.
RTD sensor
4.) One Platinum RTD sensor assembly is provided, with the probe and
part of the cable contained under the top plate of the upper Bath
Vessel Housing. This cable has a metal, bayonet style, connector on
one end to be plugged into the back of the lower Control Chassis.
Miscellaneous accessories
5.) Two hole covers, one 1/4-20 cap nut, and one mercury thermometer
holder are provided.

5
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
CHAPTER
33
33
3
UNPACKING AND
INSTALLATION
A. Unpacking
The TE-3000 should be inspected immediately upon arrival. If the
shipping containers have been damaged externally, the shipping company
should be advised of this condition immediately.
The contents should be carefully removed and placed on a stable bench
or table for further inspection. Retain all original shipping materials and
containers which will be needed if the return of the instrument is neces-
sary for warranty repair/replacement.
B. Checking for damaged/missing items
After all items have been removed from the shipping container and
placed on a bench or table, the items should be compared to the packing
list.
Inspect each component for signs for damage. Report damages to the
shipper and to the CANNON®Instrument Company immediately.
Damaged items
Retain all packing materials until the instrument is connected and func-
tioning properly. If any component(s) must be returned to
CANNON® Instrument Company, the damaged item(s) should be pack-
aged in the original shipping container. Refer to the final chapter of this
manual for instructions on returning defective equipment. Customers
outside the United States should contact the local CANNON®agent for
procedures on returning products to CANNON® .
If an item is missing, please notify CANNON®Instrument Company
immediately.
C. Physical arrangements
Sections A through C in the previous chapter dealing with item descrip-
tions should be read prior to this section. The final placement for the TE-
3000 should be a level, strong, and stable bench or table surface.
Occasional access to the rear of the unit should be conveniently permit-
ted. The bath requires adequate ventilation for the integral cooling fans so
a space of at least eight inches should be provided between the rear and
both sides of the TE-3000 and any wall or other obstruction. A clearance

6
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
area on the right side of the unit is necessary to allow access to the rear
pump switch. An electrical service MAINS power outlet must be located
within nine feet of the TE-3000.
The lower Control Chassis should be placed on the table first followed by
the upper Bath Vessel Housing which is placed on top of the Control
Chassis. The rear mounted alignment bolt on the top rear of the lower
Control Chassis must mate with the hole in the alignment bracket on the
bottom rear of the upper Bath Vessel Housing (see Figure 3). A 1/4-20
hex nut is provided to secure this mating arrangement and should only be
finger-tightened.
D. Liquid and pneumatic connections
The pneumatic connections on the TE-3000 provide the bath agitation
and subsequent stirring by recirculating the bath vapors. Two silicon tube
assemblies are provided which have plastic quick-connect bayonet style
connectors on their ends. These tubes are connected from the air in/out
connections on the bottom Control Chassis to the air out/in connections
on the upper Bath Vessel Housing. There are female connectors on both
ends of one hose and male (black o-ring visible) connectors on both ends
of the other hose. The hose with the female connectors mates with a male
connector on the lower chassis and a male connector on the upper housing.
The hose with the male connectors mates with a female connector on the
lower chassis and a female connector on the upper housing. They all secure
with an insertion and a 1/8 turn lock.
E. Platform/pump assembly
The platform and pump assembly may be completed with the following
items provided by CANNON®:
Overflow Platform & assembly screws (2)
Reciprocating Pump
Pre-cut tubing (approx. 11", 6" & 3" lengths)
Figure 3:
TE-3000 rear view with alignment bolt highlighted

7
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
If the rear platform is not yet attached to the bath unit, you should attach
it using the two 6-32 screws provided. The tabs which will hold the
overflow jar in place should be facing upward.
Procedure 1. After the platform is securely in place, attach the 11" tubing to the
bath intake at the top rear of the bath unit by pushing the tubing
firmly over the intake nozzle. Then attach the other end of the tube to
the top of the Reciprocating Pump (next to the electric connector
cable) in the same way.
2. Remove the plastic nipple adaptor from the opposite end of the
Reciprocating Pump and insert the pump end into the small hole on
the Overflow Platform so the pump rests on the platform.
3. Reattach the nipple adaptor removed in Step 2 (this holds the unit in
place).
4. Attach the electric connector cable from the Reciprocating Pump to
the receptacle marked PUMP on the Control Unit. To connect the
cable, make sure to align it correctly with the Bath Unit female
connector (tab upwards), then push until the cable connection
“clicks” into place.
5. Attach one end of the 6" tube to the bottom connection on the
Reciprocating Pump.
6. Attach the 3" tube to the bath
unit overflow outlet located
above the Overflow Platform.
Place the Overflow Jar on the
platform, inserting the other
end of the 3" tube through the
lid of the jar.
7. Attach the other end of the 6"
tube to the connector on the
underside of the Overflow Jar.
Make sure that all connections
are secure.
Figure 4:
Positioning the overflow jar

8
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
F. Electrical connections
Two large diameter electrical cables
deliver power from the lower Control
Chassis up to the upper Bath Vessel
Housing (see Figure 5). Both of these
cables have circular plastic power con-
nectors on their ends. The cable with
three large rectangular pins carries DC
power to the Bath Vessel Housing from
the Control Chassis and the cable with
nine smaller circular pins carries AC
power to the Bath Vessel Housing. Both
of these cables have a male connector on
one end and its female counterpart on the
other (see Figure 6). Determining which connector mates is fairly simple
but ensure a good connection by
turning the locking ring on every
plug until a small “click” is felt.
Sensor connections
The small black cable with a metal
LEMO connector carries the
temperature sensor signal from the
upper Bath Vessel Housing down
to the lower Control Chassis
(labeled PROBE). This connec-
tion is keyed and it operates as a
bayonet with a simple push in (no
twisting). The red dot on the plug
must be facing upward or inser-
tion will not be permitted. When this connector is properly inserted, a
small “click” can be felt. Removal is accomplished with a simple pull on
the knurled section of the plug.
PUMP connections
The small wire cable from the liquid pump with a gray plastic REDEL
connector mates with the connector on the lower Control Chassis labeled
PUMP. This connection is keyed and it operates as a bayonet with a
simple push in (no twisting). The keyway must be facing upward or
insertion will not be permitted. When this connector is properly inserted,
a small “click” can be felt. Removal is accomplished with a simple pull.
POWER connection
The MAINS power cord provided with the instrument will have an IEC
connector on one end and the appropriate wall outlet connector on the
other.
DC
AC
Figure 5: AC/DC cable connections
Figure 6:
Cable locking mechanism

9
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
G. Selecting a bath liquid
The “Ideal” Bath Liquid
The “ideal” bath liquid would have a low viscosity, high heat capacity,
and low vapor pressure over a wide range of temperatures. This liquid
would also have a very high flash point and be relatively inexpensive. If
the liquid were to be used in kinematic viscosity measurements where
visual observation is important, it would be clear and colorless.
Unfortunately, there is no one “ideal” liquid to use when a wide tempera-
ture range is needed. No single liquid meets all of the above require-
ments.
Temperature Ranges
The kind of liquid used in the TE-3000 Temperature Bath depends upon
the desired temperature range of the instrument. The table below lists
several different operating ranges and the liquids suitable for use in those
ranges:
SDIUQILHTAB0003-ET
EGNARERUTAREPMET SDIUQILHTABELBATIUS
C°01+otC°03-lohoclAlyhteM
C°02+otC°01-lohoclAlyporposI
lohoclAlyhtE
C°03+otC°5+sliOytisocsiVwoL,retaW
CAUTION Methyl alcohol (methanol) is very close to the “ideal” liquid; it can be
used at all temperatures in the TE-3000 operating range. However,
methanol may not be suitable for some laboratories because of its low
flash point and degree of toxicity.
Isopropyl alcohol is less toxic than methyl alcohol and somewhat less
volatile. However, it becomes very viscous at low temperatures, making
it difficult to maintain good temperature control.
CAUTION Silicone fluids CANNOT be used in the TE-3000 Constant Temperature
Bath. NEVER place a silicone liquid in the TE-3000.
CAUTION Do not attempt to use water as a bath fluid for operation at temperatures
of 2°C or lower.
Bath Liquid Guidelines
When selecting a liquid for use in the TE-3000, keep the following
guidelines in mind:

10
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
YTISOCSIV tahtoserutarepmetgnitarepohtabtawolyrevebdluohsytisocsiV
.htabehtnistneidargerutarepmetetanimileylevitceffenacgnirritsetaredom
YTICAPACTAEH
.yticapactaehhgihahtiwdiparsselerahtabehtnisegnahcerutarepmeT
rehtotsoM.sdiulfcinagrotsomfoyticapactaehehteciwttuobasahretaW
.retawfoyticapactaehehtfoflahtuobaevahlliwsdiulfhtabrofseciohc
tanoitareporofdiulfhtabasaretawesuottpmettaTONoD(
).rewolroC°2foserutarepmet
YTILITALOV
.tnemhsinelpertneuqerferiuqerlliwelitalovylevitalersihcihwdiuqilA
gniloocasecudorpecafrushtabehttanoitaropavedipar,eromrehtruF
.tluciffideromlortnocerutarepmetgnikam,tceffe

11
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
CHAPTER
44
44
4
GENERAL OPERATIONS
A. Filling the bath with liquid
Prior to filling the TE-3000 with liquid, you should ensure that the bath
overflow liquid reservoir, pump, and hoses are properly in place. For
detailed installation procedure, please see the previous Chapter 3.D
The TE-3000 should be filled through one of the top instrument holes
with a clear, alcohol type, liquid. This alcohol may be either wood or
grain based.
CAUTION Do not use silicone fluid!
The dilution of this alcohol should be such to permit adequate stirring at
the lowest operating temperature. Excessive water dilution will cause the
liquid to appear cloudy at cold temperatures and thus impair the visibility
in the bath.
Using room temperature alcohol, carefully pour the liquid into a funnel
sitting in one of the instrument holes at the very top of the Bath Vessel
Housing. As the bath liquid approaches the very top of the bath vessel,
the overflow liquid will spill down the overflow tube into the jar.
Bath volume changes
The amount of “extra” liquid available in the overflow jar will depend
upon what temperatures you will be operating the bath. Also, some bath
liquid will be displaced by the addition of instruments and thermometers
into the bath - and thus cause the level to rise.
The bath liquid will expand if warmer than room temperatures are
desired. An empty jar at room temperature will fill up with the expanded
liquid as the temperature rises. In this case, you would only install
enough bath liquid to have the level just below the bath top edge and no
liquid in the jar. Do not overfill the bath.
The bath liquid will contract if colder than room temperatures are
desired. An almost full jar at room temperature will be depleted with the
compressed liquid as the temperature falls. In this case, you would fill the
bath and about half of the over flow jar with the room temperature liquid
and after the insertion of the instruments, the jar would be almost full.
The purpose of the previous explanations is to illustrate that the steady
state room temperature condition of the bath must be such that you
should never spill any liquid and this level should be maintained with
time after some of the alcohol evaporates.

12
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
Experience will further define the necessary levels to be maintained in
the overflow jar. But in all cases, for proper temperature control the level
of the liquid inside the bath should be about 1/2" above the top edge of
the white baffle.
B. Application of power
Prior to the application of mains power to the TE-3000, ensure that all
tubing and power connectors are properly installed between the upper
Bath Vessel Housing and the lower Control Chassis. The bath liquid
should be in place along with the overflow jar and tubing. Also be certain
that the mains voltage and frequency specified on the rear identification
label matches your mains voltage.
The power cord should have the appropriate power plug to permit
plugging the cord into the mains power outlet on the wall. The other end
contains an IEC connector which plugs into the power inlet receptacle on
the rear of the lower Control Chassis. Be CERTAIN that you are plug-
ging into the correct mains voltage as defined on the rear panel identifi-
cation label. Both front panel power switches should be OFF while this
power cord is being installed.
Turning on the TE-3000
Turn on the main BATH power switch. The LIGHTS switch is operable
only if the BATH power is on. You should hear a long "beep” followed
by a short “beep” and the bath electronics will enter one of two possible
start-up procedures.
1. Cold start
This is the normal start-up mode for the bath and it occurs when the
power was previously off for a period greater than about two seconds.
The five LEDs in the lower row of keys will turn on and then off, a short
“beep” tone will be heard, and the display on the front panel will initially
and briefly show the following:
TE-3000
Cannon Inst. Co., USA
Ver. X.XX MM/DD/YY
Following this display, the bath will indicate that it is executing a cold
start, thus:
POWER UP
Cold Start
Initiating Self Test
After this display the bath will automatically enter the self-test sequence
as specified in the following Section 4.C.

13
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
2. Warm start
This is the abnormal start-up mode for the bath and it occurs only if the
power was previously off for a period less than about two seconds, or if a
fault was detected in the microprocessor. The display will show the
following and the lights on the bottom row of the keyboard should flash
alternating.
POWER UP
Warm Start
Consult User’s Guide
If this condition is ever discovered, the BATH power switch should be
turned off. After waiting several seconds, turn the BATH power switch to
the ON position and wait for the display to indicate either a warm or cold
start again. If the bath comes up in a cold start condition and starts its
normal self-test sequence, it is possible that a momentary power interrup-
tion caused the warm start condition and no further action is required. If
the bath continues to enter the warm start condition, the user should
consult CANNON®Instrument Company for further assistance.
C. Self-test sequence
The self-test sequence is entered immediately after the TE-3000 powers
up in a cold start condition. The tests performed in sequence and the
accompanied displays are as follows:
Testing Display



Testing 32k RAM ...

 Test Passed 
Testing Pulse Width
Modulator.....

 Test Passed 
Testing A/D .....
Calibrating ....OK
Consistency ....OK

14
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
Testing Voltage Levels......
Positive Supply..OK
Negative Supply..OK
Diagnostic Report
All tests PASSED
Entering Normal
Operation
Following this “all tests passed” report, the TE-3000 will enter into the
normal display condition (see the following Section D) provided that the
RTD temperature sensor is in place. If the RTD sensor is unplugged at
any time after the completion of the self-test routine, the following
display will be shown.
The RTD sensor has
been disconnected.
Please reconnect it
to reset the Bath.
If any test fails during this power-up self-test sequence, it will be noted
on the display for that particular test. The displays will resemble the
previous sequence shown above but if any failure is encountered, the OK
will be replaced by BAD and PASSED will be replaced by FAILED!.
All test sequences will be activated, however at the conclusion of the test
sequence, the ENTER key will flash and the final screen will show:
Diagnostic Report
Some tests failed!
SEE OWNER’S MANUAL
Press ENTER to go on
If you wish to continue with the operation of the bath even though the
report issued states that a failure was encountered, you may press the
ENTER switch. The following display will be briefly shown and the bath
will enter the normal display condition (see the following Section D).
Attempting Normal
Operation.
PROCEED WITH CAUTION

15
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
D. Normal display and keypad indications
The normal or “quiescent” LCD (liquid crystal display) for the TE-3000
bath is shown in the following example:
TEMPERATURE
Actual Target
12.340°C -20.000°C
Cooling
Cooling indication
In the above example, the target temperature is much colder than the
actual temperature of the bath so the display indicates that it is cooling.
The COOLING indicator (green LED) on the right side of the front panel
should be fully illuminated.
Heating indication
In the following example, the target temperature is much warmer than the
actual temperature of the bath so the display indicates that it heating. The
HEATING indicator (red LED) on the right side of the front panel should
be illuminated.
TEMPERATURE
Actual Target
-23.450°C -20.000°C
Heating
Figure 7:
TE-3000
Control Chassis
front panel
LIQUID CRYSTAL DISPLAY KEYPAD OPTIONS

16
CANNON®TE-3000 Thermoelectric Constant Temperature Bath
Version 1.1c — May, 2005; CANNON®Instrument Company
2139 High Tech Road • State College, PA 16803 • USA
Temperature scale
In the following example, the target temperature is within .1 degrees of
the actual temperature of the bath so the display indicates a scale on the
bottom line and the actual temperature is shown on this scale with a dark
marker. For target temperatures colder than +10 degrees Celsius, the
COOLING indicator (green LED) on the right side of the front panel will
indicate various intensities and the HEATING indicator (red LED)
will be extinguished. For target temperatures warmer than +10 degrees
Celsius, the COOLING indicator (green LED) on the right side of the
front panel will indicate various intensities and the HEATING indicator
(red LED) will flash on and off with a one second interval.
TEMPERATURE
Actual Target
-20.003 C -20.000 C
-.1 |...|...|...|...|+.1
Keypad
The keypad on the front panel of the TE-3000 (see Figure 8) consists of
fifteen keys - white numbers 0 through 9, a white combination “minus
sign” and “decimal point” key (-/.), a yellow SET TEMP[erature] key, a
yellow CAL[ibrate] TEMP[erature] key, a yellow MENU key, and an
orange ENTER key. The bottom row of five keys (non-numerical keys)
have the capability of being illuminated to assist the operator by indicat-
ing possible key entry choices.
All keypad lights are off during normal operation of the bath. The only
key entry possibilities at this time are the yellow keys. Depression of any
key other than a yellow key will result in a long “beep” to indicate an
improper entry. If any yellow key is depressed, the appropriate instruc-
tions are provided on the LCD and are discussed in later sections of this
manual. If no further action is taken by the operator in any menu or other
screen mode within five minutes, the display will automatically revert
back to the normal (quiescent) display as shown above.
Figure 8: TE-3000 LCD display when controlling at target temperature
(dark marker at midpoint of scale)
I
