Canon opture 10 User manual

Canon Digital Video Camcorder
Instruction Manual
Camescope video numerique
Manuel d'instruction
Videocamara digital
Manual de Instrucciones
Dptura 20 /cptura 10
PUB.DIM-536
I English I
IFran~aisl
!Espaiioll
MiniIWDi
9
itai
Video
Cassette rJ
~
BUBBLE JEr DIREcr PRINT
DIREa
This instruction manual covers the OPTURA20 and OPTURA 10. Please note that
illustrations
and explanation in this manual are based on the OPTURA20.
Ce manuel d'instruction traite des modeles OPTURA20 et OPTURA 10. Veuillez noter
que les illustrations et les explications contenues dans ce manuel sont basees sur Ie
OPTURA20.
Este manual de instrucciones cubre la OPTURA20, y la OPTURA 10. Tenga en cuenta
que las ilustraciones y las explicaciones de este manual se basan en la OPTURA20.

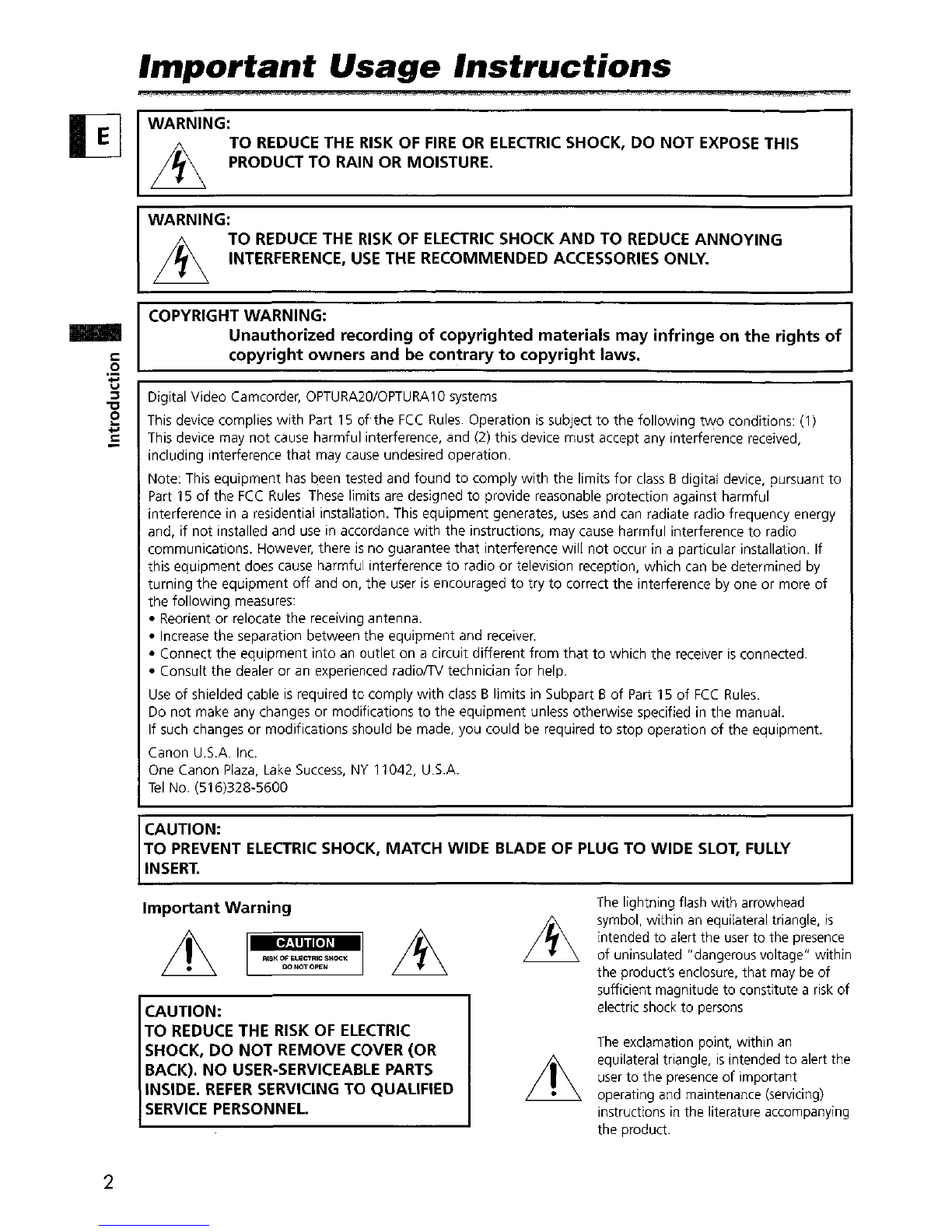

Important Usage Instructions
WARNING:
/D, TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
~ PRODUCT TO RAIN OR MOISTURE.
WARNING:
/D" TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING
~ INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
COPYRIGHT
WARNING:
_Unauthorized recording of copyrighted materials may infringe on the rights of
§copyright owners and be contrary to copyright laws.
~
~ Digital Video Camcorder, OPTURA20/0PTURA10 systems
g This device complies with Part 15 ofthe FCC Rules Operation is subject to the folloWing two conditions: (1)
.E This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference
that may cause undesired operation,
Note:
This equipment has been tested and found to comply with the limits for class Bdigital device, pursuant to
Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful
interference
in aresidential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and
use in accordance with the instructions, may cause harmful interference to radio
communications. However, there
is no guarantee that interference will not occur in aparticular installation. If
this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
•Reorient
or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into
an outlet on acircuit different from that to which the receiver is connected.
•Consult the dealer
or an experienced radiolTV technician for help,
Use of shielded cable is required to comply with class Blimits in Subpart B of Part 15 of FCC Rules_
Do not make any changes or modifications to the equipment unless otherwise specified in the manual.
If
such changes or modifications should be made, you could be required to stop operation of the equipment
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. [phone]
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
2
Important Warning
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK,
DO NOT REMOVE COVER (OR
BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within
an equilateral triangle, is
intended to alert the user to the presence
of uninsulated "dangerous voltage" within
the product's enclosure, that
may be of
sufficient magnitude to constitute a
risk of
electric
shock to persons
The exclamation point, within an
equilateral triangle, is intended to alert the
user to the presence of important
operating
and maintenance (servicing)
instructions
in the literature accompanying
the product

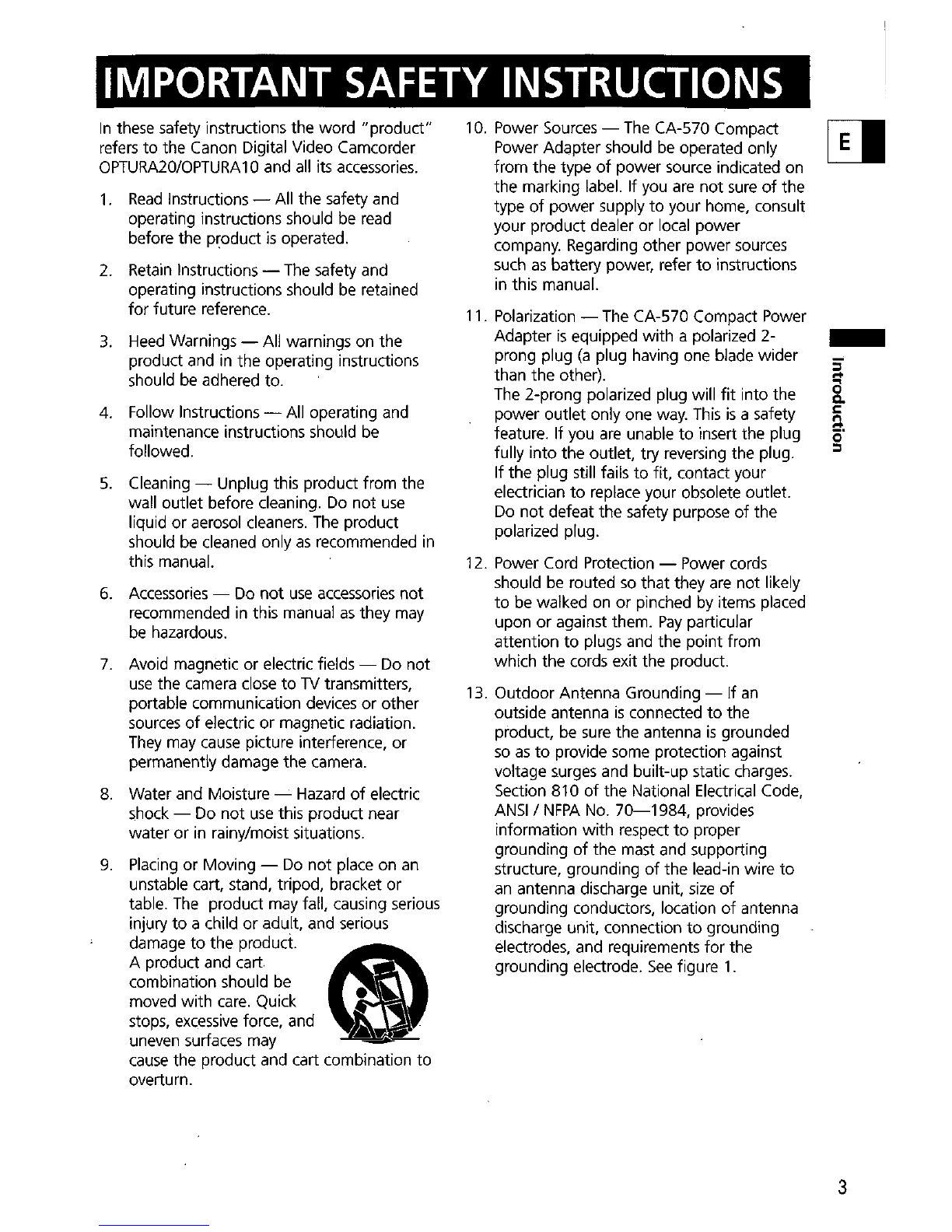

IMPORTANT SAFETY INSTRUCTIONS
In these safety instructions the word "product"
refers to the Canon Digital Video Camcorder
OPTURA20/0PTURA10 and
all its accessories.
1. Read Instructions -All the safety and
operating instructions should be
read
before the product is operated.
2. Retain Instructions -The safety and
operating instructions should
be retained
for future reference.
3. Heed Warnings -All warnings on the
product and
in the operating instructions
should be adhered to.
4. Follow Instructions -All operating and
maintenance instructions should be
followed.
5. Cleaning -Unplug this product from the
wall outlet before cleaning.
Do not use
liquid or aerosol cleaners. The product
should be cleaned only
as recommended in
this manual.
6. Accessories -Do
not use accessories not
recommended in this manual as they may
be hazardous.
7. Avoid magnetic or electric fields -Do not
use the camera close to TV transmitters,
portable communication devices
or other
sources
of electric or magnetic radiation.
They may
cause picture interference, or
permanently damage the camera.
8. Water and Moisture ---'- Hazard of electric
shock -Do
not use this product near
water
or in rainy/moist situations.
9. Placing or Moving - Do not place on an
unstable cart, stand, tripod, bracket or
table.
The product may fall, causing serious
injury
to achild or adult, and serious
damage
to the product. (I)
Aproduct and cart. ~
combination should be
moved with care. Quick •
stops,
excessive force, and •• ~ .
uneven surfaces may
~
cause the product and cart combination to
overturn.
10. Power
Sources - The CA-570 Compact
Power Adapter should
be operated only
from the type
of power source indicated on
the marking label. If you are not sure of the
type
of power supply to your home, consult
your product dealer or local power
company. Regarding other power sources
such as battery power, refer to instructions
in this manual.
11. Polarization -The CA-570 Compact Power
Adapter
is equipped with apolarized 2-
prong plug
(a plug having one blade wider
than the other).
The 2-prong polarized plug will
fit into the
power outlet only one
way. This is asafety
feature. If you
are unable to insert the plug
fully into the outlet, try reversing the plug.
If the plug still fails to fit, contact your
electrician
to replace your obsolete outlet.
Do not defeat the safety purpose of the
polarized plug.
12. Power Cord Protection -Power cords
should
be routed so that they are not likely
to be walked on or pinched by items placed
upon
or against them. Pay particular
attention
to plugs and the point from
which the cords exit the product.
13. Outdoor Antenna Grounding
-If an
outside antenna
is connected to the
product, be
sure the antenna is grounded
so as to provide some protection against
voltage surges and built-up static charges.
Section 810
of the National Electrical Code,
ANSI / NFPA No. 70--1984, provides
information with respect
to proper
grounding
of the mast and supporting
structure, grounding
of the lead-in wire to
an antenna discharge unit, size of
grounding conductors, location of antenna
discharge unit, connection
to grounding
electrodes, and requirements for the
grounding electrode.
See figure 1.
-
3

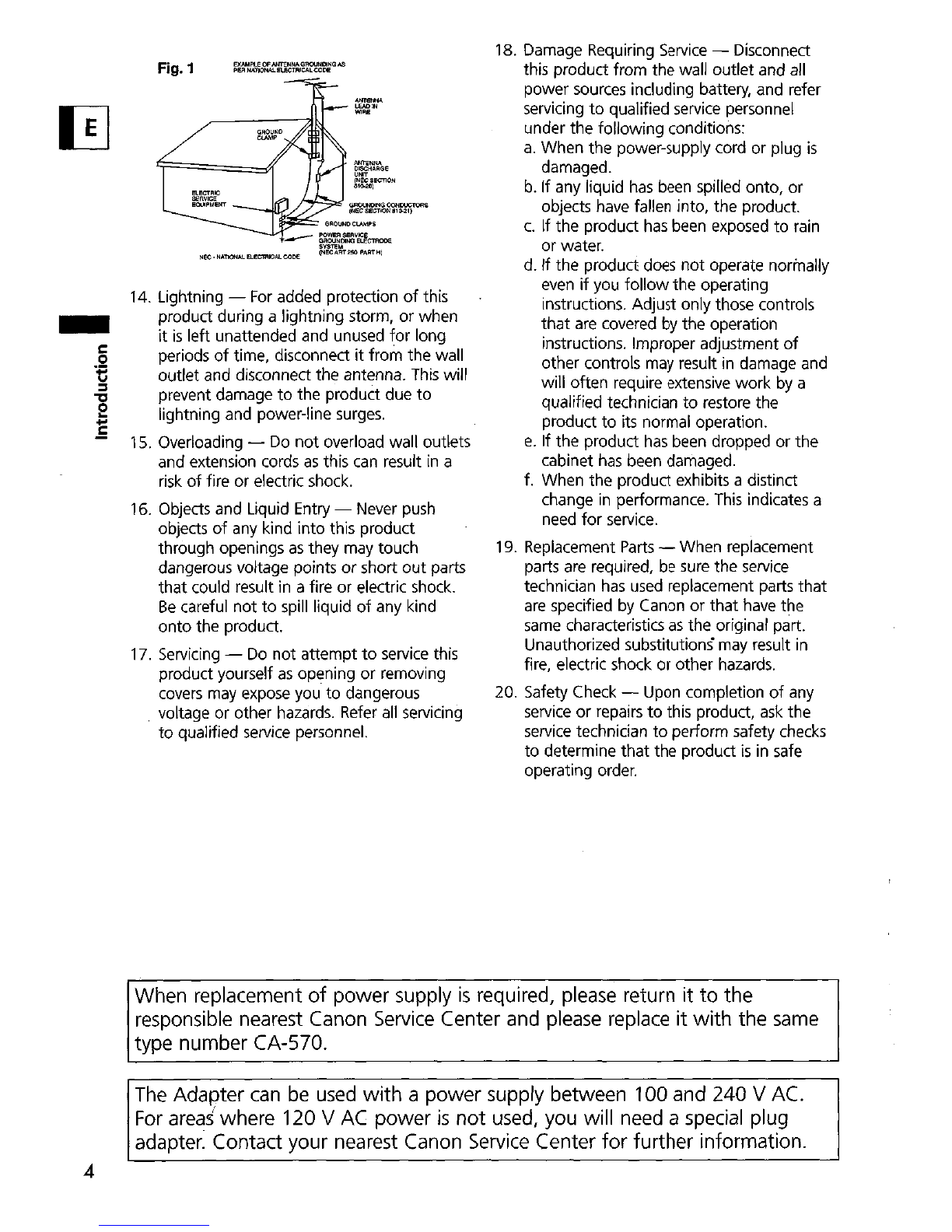

-14. Lightning -
For added protection of this
product during alightning storm, or when
it is left unattended and unused for long
periods
of time, disconnect it from the wall
outlet and disconnect
the antenna. This will
prevent damage
to the product due to
lightning and power-line surges.
15. Overloading -Do
not overload wall outlets
and extension cords
as this can result in a
risk
of fire or electric shock.
16. Objects and Liquid Entry -Never push
objects
of any kind into this product
through openings
as they may touch
dangerous voltage points
or short out parts
that could result in afire or electric shock.
Be careful not to spill liquid of any kind
onto the product.
17. Servicing -Do
not attempt to service this
product yourself
as opening or removing
covers may expose you
to dangerous
voltage or other hazards. Refer
all servicing
to qualified service personnel.
18. Damage Requiring Service -Disconnect
this product from the wall outlet and all
power sources including battery, and refer
servicing
to qualified service personnel
under the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If any liquid
has been spilled onto, or
objects have fallen into, the product.
c. If the product has been exposed to rain
or water.
d. If
the product does not operate normally
even
if you follow the operating
instructions. Adjust only those controls
that are covered by the operation
instructions. Improper adjustment
of
other controls may result in damage and
will often require extensive
work by a
qualified technician
to restore the
product
to its normal operation.
e. If the product has been dropped or the
cabinet has been damaged.
f. When the product exhibits adistinct
change in performance. This indicates a
need
for service.
19. Replacement
Parts -When replacement
parts are required, be sure the service
technician
has used replacement parts that
are specified by Canon or that have the
same characteristics
as the original part.
Unauthorized substitutions" may result in
fire, electric shock
or other hazards.
20. Safety Check -Upon completion
of any
service
or repairs to this product, ask the
service technician
to perform safety checks
to determine that the product is in safe
operating order.
4
When replacement of power supply is required, please return it to the
responsible nearest Canon
Service Center and please replace it with the same
type number CA-570.
The Adapter can be used with apower supply between 100 and 240 VAC.
For areas where 120 V AC power is not used, you will need aspecial plug
adapter. Contact your nearest Canon Service Center
for further information.

Reference Guide
The following manuals are supplied with the camcorder:
oDigital Video Camcorder OPTURA20/0PTURA10 Instruction Manual,
This manual explains the camcorder operations from basic video recording to the
use of the full range of features.
o DIGITAL VIDEO SOLUTION DISK Software Instruction Manual
This manual explains how to download images from the memorycard to a
computer using
the supplied USB cable. You can add sample images for Card Mix
and My Camera settings from the supplied DIGITAL VIDEO SOLUTION DISK.
o Windows XP Users Only
DV NETWORK SOLUTION DISK Software Instruction Manual
This manual explains how to download/upload images fromfto the memory card
using aDV
(IEEE1394) cable. You can also perform videoconference and file transfer
over
the Internet using the provided software. Available functions depend upon
the camcorder model of your contact and networking environment.
Trademark Acknowledgements
• Canon and Bubble Jet are registered trademarks of Canon Inc.
•MiOiDt'T is atrademark.
• S;;; logo is atrademark.
•Windows
lBl
is either aregistered trademark or trademark of Microsoft Corporation in
the United States and/or other countries.
•
Other names and products not mentioned above may be registered trademarks or
trademarks of their respective companies.
-
5

-
6

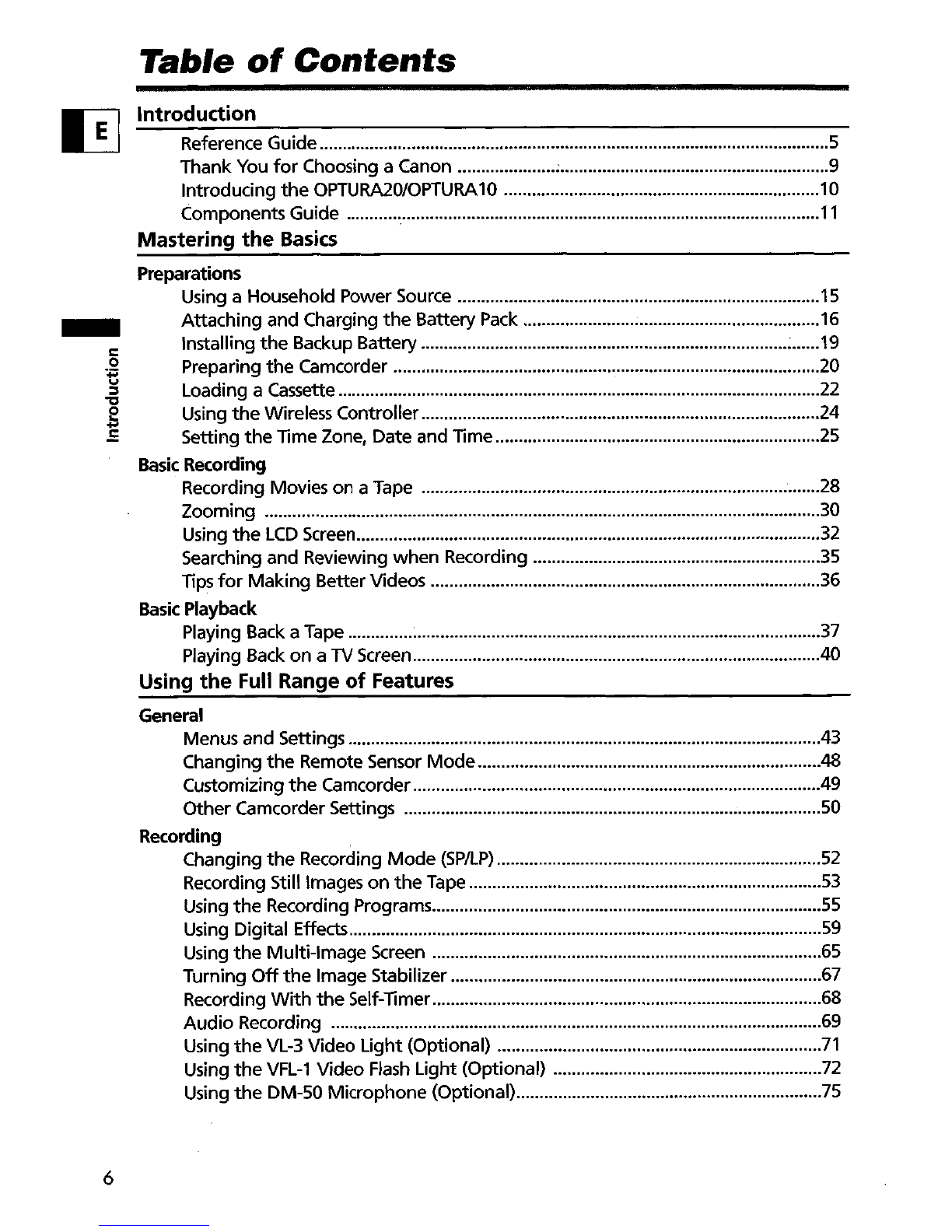

Table of Contents
Introduction
Reference Guide 5
Thank You for Choosing aCanon ; 9
Introducing
the OPTURA20/0PTURA10 10
Components Guide
11
Mastering the Basics
Preparations
Using aHousehold Power Source 15
Attaching and Charging the Battery Pack 16
Installing
the Backup Battery :19
Preparing
the Camcorder 20
Loading aCassette 22
Using
the Wireless Controller 24
Setting
the Time Zone, Date and Time 25
Basic Recording
Recording Movies
on aTape 28
Zooming 30
Using
the LCD Screen 32
Searching and Reviewing
when Recording .35
Tips
for Making Better Videos .36
Basic Playback
Playing Back aTape 37
Playing Back
on a TV Screen 40
Using the Full Range of Features
General
Menus and Settings 43
Changing
the Remote Sensor Mode 48
Customizing the Camcorder 49
Other Camcorder Settings 50
Recording
Changing
the Recording Mode (SP/LP) 52
Recording Still Images on the Tape .53
Using
the Recording Programs 55
Using Digital Effects 59
Using the Multi-Image Screen 65
Turning
Off the Image Stabilizer 67
Recording
With the Self-Timer 68
Audio Recording 69
Using
the VL-3 Video Light (Optional) 71
Using the VFL-1 Video Flash Light (Optional) 72
Using
the OM-50 Microphone (Optional) 75

Manual Adjustments
Adjusting
the Focus Manually 76
Adjusting Exposure
Manually 78
Setting
the Shutter Speed 79
Setting
the White Balance 81
Playback
Magnifying the Image ·83
Displaying
the Data Code 84
Photo SearchlDate Search 86
Returning
to aPre-marked Position 87
Editing
Recording to a VCR or Digital Video Device 88
Recording
from Analog Video Devices (VCR, TV or Camcorder) 90
Recording
from Digital Video Devices (DV Dubbing) 91
Converting Analog Signals into Digital Signals (Analog-Digital Converter) 93
Replacing Existing Scenes (AV Insert) 95
Audio Dubbing 97
Connecting to a Computer Using aDV (IEEE1394) Cable 100
Using a Memory Card
Inserting and Removing the Memory Card 101
Selecting the Image QualitylSize 102
Recording Still Images
on a Memory Card 105
Recording Panoramic Images (Stitch Assist Mode)
111
Recording Motion JPEG Movies on a Memory Card l13
Playing Back a Memory Card 115
Protecting Images 118
Erasing Images 119
Selecting Still Images
for Printing (Print Order) 120
Printing
with the Direct Print Function 122
Combining Images (Card Mix) 128
Copying Still Images 132
Formatting a
Memory Card 134
Connecting
to aComputer Using a USB Cable 135
Creating aStart-up Image 136
Memory Card Information 137
Additional Information
Screen Displays 140
List
of Messages 144
Maintenance 147
Troubleshooting 150
System Diagram
153
Optional Accessories 154
Specifications 157
Index 159
-
7

CAMERA
-
~P.!~~~!~~ .. ~~~.~~ .
Operating Mode
Position of the Position of the
POWER Switch TAPE/CARD Switch
CAMERA CAMERA
~ (TAPE)
PLAY (VCR) PLAY (VCR)
~ (TAPE)
CARD CAMERA CAMERA
Od (CARD)
CARD PLAY (VCR) PLAY (VCR)
Od (CARD)
Available functions
depend upon the operating mode. It is indicated as follows:
:Function can be used
in this mode.
:Function
cannot be used in this mode.
8
~!~~~ .. ~¥.~.~~.~~ .. ~.~.~ .. ~~!~.~~~~.~~ .
o CD :Reference page number.
o rJ :Functions to be operated on the body of the camcorder.
oB :Functions to be operated on the wireless controller.
Om: Additional topics that complement the basic operating procedures.
o II :Precautions related to the camcorder operation.
oCapital letters are used to refer to buttons on the camcorder or the wireless
controller.
o [] are used to refer to menu items displayed on the screen.
o"Screen" refers to the LCD and the viewfinder screen.
The serial
number of this product can be found at the battery attachment unit of
the camcorder. Write down the number and other information here and retain this
book as a permanent record of your purchase to aid identification in case of theft.
Date of Purchase: Model Name: OPTURA2010PTURA10
Purchased From: Serial No.:
Dealer Address:
Dealer Phone No.:

Thank You for Choosing a Canon
The Canon OPTURA2010PTURA 10 provides a full range of options and functions. We
recommend reading this manual thoroughly before you use the camcorder. It will help
you to become more familiar with your camcorder, and learn how to operate it'
properly.
We suggest that you master the basic operations of the camcorder first, before
moving on to its full range of features.
55-800 Shoulder Strap Lens Cap and Lens
Cap Cord
(iIi1""ff3e)
BP-512 Battery Pack,
~
BP-508 Battery Pack
Two
AA Batteries
Lithium
Button
Battery CR2025
WL-D79 Wireless
Controller
IFC-300PCU USB Cable SDC-8M SD Memory Case for SD Memory
Card (containing Card
sample images)
DIGITAL VIDEO
SOLUTION DISK
DVNETWORK
SOLUTION
DISK
9

Introducing the OPTURA20/0PTURA 10
Show your creativity by using the special
effects and faders. The multi-image
screen captures moving subjects in 4, 9 or
16 sequences of still images.
Simply slide Canon's VFL-1 Video Flash
Light, OM-50 Directional Stereo
Microphone or VL-3 Video Light into the
accessory shoe; the camcorder provides
power and connections.
The OPTURA20 and OPTURA10
incorporate amegapixel CCD, allowing
recording of high-resolution still images
on amemory card.
c
o
.'8
~
"'C
,g Stabilizes your recordings even in long
.E telephoto shots.
-
Allows recording even in dark places.
The Night mode adjusts automatically to
the optimum shutter speed.
You can record images on a SO Memory
Card or MultiMediaCard. Images
recorded in Stitch Assist mode can be
merged into one panoramic scene with
the supplied software.
With the OPTURA20's Super Night mode
(in CAMERA mode) and Low Light Plus
mode (in CARD CAMERA mode), you can
keep on shooting without turning the
lights on. The assist lamp (White LED)
lights up to illuminate the subject.
You can print still images by connecting
to aCanon printer with Direct Print
function.
Allows transfer of memory card data to a
computer with built-in USB port. You can
organize and edit images on your
computer using the supplied software.
Just press the photo button to capture
still images like photographs.
You can personalize your camcorder by
customizing the start-up image and
camcorder sounds.
The DV terminal allows high-quality
transfer with virtually no deterioration in
quality of images. You can edit images
by connecting the camcorder to a PC
with IEEE1394 terminal. Windows XP
users can use the supplied software to
perform videoconference and fi Ie
transfer over the Internet*.
*Windows Messenger 4.5 or higher required.
10

Components Guide
E
5"
r+
a
0-
s:::::
n
r+
o·
:::s
-
Battery attachment unit
(p. 16) /Serial number
Strap mount (p. 21)
Program selector (p. 55)
EXP button (p. 78)
FOCUS (00) button
(p.76)/
DATA CODE button
(p.84)
button (p. 16)
/.
I
POWER indicator
Card access indicator
(p.105)
MENU button (p. 43)
'-- Selector dial (p. 39, 43)
I~
REC SEARCH -button (p. 35) /
I©(record review) button (p. 35) /
Ii
~~ (rewind) button (p. 37) /
CARD -button (p. 115)
I REC SEARCH + button (p. 35) /
Ir--- ~ (fast forward) button (p. 37) /
II CARD + button (p. 115)
CARD MIX button (p. 128) / ",/ I ~ •(stop) button (p. 37) /
SLIDE SHOW button (p. 116)/ , / / INDEX SCREEN button (p. 116)
~(stitch aSSiS~s::~ _~iJEN ~ 1
I ~ ~~~@ 0~.e~~ I ~/11 (play/pause) button (p. 37)
DIGITAL EFF.ECTS ~cQ ae ~-- REC PAUSE (LINE-IN) button (p. 90,91) /
button (p. 59) I ~ ~~ ~ (self-timer) button (p. 68)
~~~~~~~ ON/OFF
Digital effects EFFECTS
ON/OFF button
(p.59)
LCD panel
OPEN button (p. 32)
LCD screen
~3.5inch
~2.5inch
(p.32)
11

Viewfinder (p. 20)
POWER switch (p. 8)
Start/stop button (p. 28)
Focus
ring
(p.76)
Built-in speaker
(p.39)
Cassette compartment
(p.22)
Cassette compartment
cover (p. 22)
~. r. Diopter adjustment
~I lever(p.20)
\ti \ .
~ Zoom lever (p. 30)
CAMERA ]
~:~Y(vCR)
PHOTO button
(p. 53,105)
-
12

~:~:;;~~~:~1 __ 4_0)_ \ •..... _ ..•... ::_
DV IN/OUTterminal ~ ~
:I.:::rminal (p. 69)~ ~DV
I~MIC
~H~~~E indicator ~~~
DC IN terminal (p. 15)~ ..... !__
AV IN/OUT terminal--------
(p. 40) /0 (phones)
terminal (p. 39, 70)
Bottom view
Stereo microphone
(p.69)
-
13

-
14
CD
~
®
@
®
®
@
®
(J)
®
®
®
@
@
@-_........-..I
CD PHOTO button (p. 53, 105)
(g) D. EFFECTS (Digital effects) button (p. 59)
®START/STOP button (p. 28)
@ ~ SELF T. button (p. 68)
®TV SCREEN button (p. 140)
®DATA CODE button (p. 84)
(j) SEARCH SELECT button (p. 86)
®ZERO SET MEMORY button (p. 87)
®12bit AUDIO OUT button (p. 99)
@AUDIO DUB. button (p. 98)
@REC PAUSE button (p. 90)
@ REW~ button (p. 37)
@AV INSERT button (p. 96)
Q1l Digital effects O~/OFF button (p. 59)
@Transmitter
@Zoom buttons (p. 30)
@Select buttons (p. 43)
@~@
/ ~®
@
@
@
@
@
@
@
@
@
@
@
@
@
@)
®
@MENU button (p. 43)
@SET button (p. 43)
@Search buttons (p. 86)
@PLAY ~ button (p. 37)
@FF ~ button (p. 37)
@ +I"~button (p. 38)
@ STOP. button (p. 37)
@x 2 button (p. 38)
@REMOTE SET button (p. 48)
@SLOW I~button (p. 38)
@AV-+ DV button (p. 94)
@) -I ....... button (p. 38)
®PAUSE .. button (p. 38)
® ~ INDEX button (p. 116)
@SLIDE SHOW button (p. 116)
@CARD -1+buttons (p. 115)

Using a Household, Power Source
You can operate the camcorder from ahousehold power source using the supplied
power adapter. The power adapter converts current from a power outlet (100-240 V
AC, 50/60 Hz) to the DC current used by the camcorder.
1. Turn the POWER switch to OFF.
2. Connect the power cord to the
pow'er adapter.
3. Plug the power cord into a power
outlet.
4. Connect the power adapter to the
camcorder's DC IN terminal. -
5. After use, turn off the camcorder and disconnect the power adapter
from the camcorder. Unplug the power cord from the power outlet and
disconnect
it from the adapter.
o Turn off the camcorder before connecting or disconnecting the power adapter.
o If the adapter is used close to a T\/, it may cause picture interference. Move the
adapter away from the
TV or the antenna cable.
oDo not connect any products that are not expressly recommended to the
camcorder's
DC IN terminal or to the power adapter.
o You may hear some noise from the power adapter during use. This is not a
malfunction.
15

-
16
Attaching and Charging the Battery Pack
Charge the battery pack with the supplied power adapter before you use the
camcorder for the first time and subsequently when the message "CHANGE THE
BATTERY PACK" appears.
1. Turn the POWER switch to OFF.
2. Move the viewfinder upward.
3. Attach the battery pack to the
camcorder.
• Remove the terminal cover of the battery
pack.
•Align the end of the battery pack with the
line on the camcorder,
press lightly and slide
it in the direction of the arrow until it clicks.
4. Connect the power cord to the
adapter.
5. Plug the power cord into a power
outlet.
6. Connect the power adapter to the
camcorder's
DC IN terminal.
7. When'charging is complete,
disconnect
the power adapter from
the camcorder. Unplug the power
cord from the power outlet and
disconnect
it from the adapter.
8. Remove the battery pack after use.
Press the BAD. button to remove the battery.
o The battery pack may be defective when the CHARGE indicator flashes rapidly.
o The CHARGE indicator informs you about the charge status.
0-500/0: Flashes once every second
More than
50
0
/0: Flashes twice every second
100
0
/0: Glows steadily
o Do not disconnect and reconnect the power cord while charging abattery
pack.
The battery pack may not be charged correctly even if the CHARGE
indicator glows steady. The battery pack may also not be charged correctly
when apower outage occurs during charging.
Remove the battery pack and
attach
it back to the camcorder.

'bglll109L4"2k'i>.c1iD~!i2gRdwfJa¥J)wa~lm~£"'"""JiC;lm!i"m%~_~~_;J' :;W@_£_
Below times are approximate and vary according to the charging, recording or
playback conditions.
Charging Time
Battery Pack Charging Time
BP-508 (OPTURA10) 110 min.
BP-512 (OPTURA20/optional) 120 min.
BP-511 (Optional) 120 min.
BP-522 (Optional) 210 min.
BP-535 (Optional) 310 min.
• Charge the battery pack in temperatures between 41 ° F and 104° F (5° C and 40° C).
• A lithium ion battery pack can be charged at any charge state. Unlike conventional
battery
packs, you do not need to completely use or discharge it before charging.
Recording Time -
-
BP-512 (Supplied) 150 min. 110 min. 80 min.
60 min.
BP-511 (Optional) 150 min. 110min.
80 min.
60 min.
BP-522 (Optional) 320 min. 230 min. 175 min. 125 min.
BP-535 (Optional) 520 min. 370 min. 280 min. 200 min.
L.:L.:..L&.:..a~
BP-508 (Supplied) 80 min. 65 min. 45 min.
35 min.
BP-512 (Optional) 150 min. 115 min. 80 min.
65 min.
BP-511 (Optional) 150 min. 115 min. 80 min.
65 min.
BP-522 (Optional) 320 min. 235 min. 175 min. 130 min.
BP-535 (Optional) 520 min. 375 min. 280 min. 205 min.
Battery
Pack Maximum Recording Time Typical Recording Time*
Using the viewfinder Using the LCD Using the viewfinder Using the LCD
*Approximate times for recording with repeated operations such as start/stop, zooming, power
on/off.
Actual time may be shorter.
• We recommend that you prepare battery packs 2to 3 times longer than you think you
might need.
• To conserve battery charge, turn off the camcorder instead of leaving it in record pause
mode.
Playback Time
Battery Pack
IiIiIWfN
(iIi1ml~1
(Using the LCD)
BP-508 (OPTURA10) - 70 min.
BP-512 (OPTURA20/optional) 130 min. 140 min.
BP-511 (Optional) 130 min. 140 min.
BP-522 (Optional) 260 min. 295 min.
BP-535 (Optional) 430 min. 470 min.
17

Howm"
rh
power is left?
The battery symbols indicate the charge status of the battery
pack.
When
the battery pack is empty, "CHANGE THE BATIERY PACK"
appears
for 4 seconds and CD starts flashing.
The battery charge indicators are
not constant- they vary
according
to the condition under which battery pack and
camcorder are
used.
-
18
RatteQ"in
rk
Handling PrerautionS
DANGER!
Treat the battery pack with care.
•Keep
it away from fire (or it might explode.)
•Do
not expose the battery pack to temperature higherthan 140
0F(600
C). Do
not leave it near aheater or inside acar in hot weather.
•Do
not try to disassemble or modify it.
•Do
not drop or knock it.
•Do
not get it wet.
oCharged battery packs continue to discharge naturally. Therefore, charge them on
the day of use, or the day before, to ensure afull charge.
oAttach the terminal cover whenever abattery pack is not in use. Contact to metallic
objects may
cause ashort circuit and damage the battery pack.
oDirtyterminals may cause a poor contact between the battery pack and the
camcorder. Wipe the terminals with asoftcloth.
o Since storing acharged battery pack for along time (about 1year) can shorten its
lifecycle
or affect performance, we recommend to discharge the battery pack fully
and
to store it in adry place at temperatures no higherthan 86· F(30· C). If you do
not use the battery pack for long periods, charge and discharge it fully at least once
ayear.
If you have more than 1battery pack, perform these precautions at the
same time for all battery packs.
oAlthough the battery pack's operating temperature range is from 32· F to 104· F
(0· C to 40· C), the optimal range is from 50· F to 86· F(10· C to 30· C). At cold
temperatures, performance
will temporarily decline. Warm it in your pocket before
use.
o Replace the battery pack if the usable time after full charge diminishes substantially
at normal temperatures.

Installing the Backup Battery
The backup battery allows the camcorder to retain date, time and other camcorder
settings
while the power source is disconnected. Power the camcorder from a
household
power source or with abattery pack when replacing the backup battery to
retain the setting.
-
1. Open the backup battery cover.
2. Insert the lithium battery with the
+side facing outward.
+
3. Close the cover.
•
WARNING!
•The
battery used in this device may present a fire or chemical burn hazard if
mistreated. Do not recharge, disassemble, heat above 2120F(1000 C) or
incinerate the battery.
•Replace
the battery with a CR202S made by Panasonic, Hitachi Maxell, Sony,
Sanyo, or with Duracell202S'. Use of other batteries may present arisk of fire or
explosion.
oDo not pick up the battery using tweezers or other metal tools as this will
cause ashort circuit.
oWipe the battery with aclean dry cloth to ensure proper contact.
o Keep the battery out of reach of children. If it is swallowed, seek medical
assistance immediately.
The battery case may break and the battery fluids may
damage stomach and intestines.
oDo not disassemble, heat or immerse the battery in water to avoid the risk of
explosion.
•
The backup battery has alife span of about a year. ~ flashes to inform you that
:#~
it needs to be replaced.
19

Preparing the Camcorder
Adj'W.ing the Viewfinder (pigptetAdjustmeotl
Do not leave the viewfinder exposed to direct sunlight as it may melt (due to
concentration of light by the lens). Adjust the angle of the viewfinder to prevent
sunlight from entering.
•
1. Turn on the camcorder and keep the ,..-----------------,
LCD panel closed to adjust the
viewfinder.
2. Adjust
the diopter adjustment lever.
-
~.!:l Attaching the Iens Cap _3 mr_mn!£GJUi£GJUltmJl1Jt_._tl!l~ __ ,,= _
";: :a
.l!l m1. Attach the cord to the lens cap_
III cu
~ ~ 2. Pass the grip belt through the loop
on
the cord.
Press the buttons on the lens cap when
attaching/removing it. Hook
the lens cap on
the grip belt while you
are recording, and
place it over the
lens when you have finished.
fastening the Grip Relt
Hold the camcorder with your right
hand and adjust
the belt with your left.
Adjust the grip belt so that you can reach the
zoom lever and photo button
with your index
finger, and the start/stop button
with your
thumb.
20
