Thank you for purchasing a Canon product.
The Canon Speedlite 220EX is a compact flash unit automatically
compatible with E-TTL II, E-TTL, and TTL autoflash.
Read this instruction manual while also referring to your
camera’s instruction manual.
Before using the Speedlite, read this instruction manual and your camera’s
instruction manual to familiarize yourself with the Speedlite operations.
The basic operation is as easy as with normal AE shooting.
When the 220EX is attached to an EOS camera, almost all automatic
exposure control for flash photography is handled by the camera.
Although the 220EX is an external flash unit, it works automatically and
seamlessly just like the camera’s built-in flash.
It is automatically compatible with the camera’s flash metering
mode (E-TTL ll, E-TTL, or TTL).
The camera controls the Speedlite automatically in the following flash metering
modes:
1. E-TTL II autoflash (evaluative flash metering with preflash reading/lens
distance information)
2. E-TTL autoflash (evaluative flash metering with preflash reading)
3. TTL autoflash (off-the-film metering for real-time flash metering)
Regarding the camera’s available flash metering modes, refer to the
“External Speedlite” specification in the “Specifications” of your
camera’s instruction manual.
The camera instruction manual’s chapter on flash photography will refer
to cameras having 1 and 2 above as a Type-A camera (compatible
with E-TTL II or E-TTL). And cameras having 3(compatible with only
with TTL) are called Type-B cameras.
* This instruction manual assumes that you are using the Speedlite with a
Type-A camera.
For Type-B cameras, see page 4.
220EX_E.fm Page 2 Tuesday, December 20, 2005 8:44 PM
COPY

3
Conventions Used in this Manual ..................................... 4
Nomenclature...................................................................... 5
Installing the Batteries ....................................................... 6
Attaching to the Camera .................................................... 7
Turn on the Power Switch.................................................. 8
Fully Automatic Flash Shooting ........................................ 9
Automatic Flash in Each Shooting Mode ....................... 10
7FE Lock...................................................................... 11
FHigh-Speed Sync......................................................... 11
Troubleshooting Guide .................................................... 12
Specifications ................................................................... 13
Contents
220EX_E.fm Page 3 Thursday, December 15, 2005 11:28 AM
COPY

4
The operation procedures in this instruction manual assume that both
the camera and Speedlite’s power switches are ON.
Icons are used in the text to indicate the respective buttons and
settings. They match the same icons found on the camera and
Speedlite.
The (1) / (3) icons indicate that the respective function remains
in effect for 8 sec. or 16 sec.
Reference page numbers are indicated by (p.**).
This instruction manual uses the following alert symbols:
:The Caution symbol indicates a warning to prevent shooting
problems.
: The Note symbol gives supplemental information.
Conventions Used in this Manual
Using a Type-B Camera
With a Type-B camera, TTL autoflash will be used for flash photography. FE
lock and high-speed sync (FP flash) cannot be used. If the <a> lamp
on the 220EX (see the next page) does not light, it means the camera is
Type B.
220EX_E.fm Page 4 Tuesday, December 20, 2005 11:46 AM
COPY

5
* The 220EX’s AF-assist beam is compatible with only the EOS camera’s center
AF point.
The effective range of the flash is approx. 0.7 - 5 m / 2.3 - 16.4 ft.
Nomenclature
Battery compartment
cover (p.6)
Mounting foot (p.7)
Locking pin (p.7)
<a>
E-TTL lamp (Red) (p.8)
Flash exposure
confirmation lamp
(Green) (p.9)
<J>
Pilot lamp (Red)/
Test firing button (p.8)
<F>
High-speed sync
lamp (p.11)
<F>
High-speed sync
(FP flash) button (p.11)
Power switch (p.8)
L : Power OFF
K : Power ON
Mounting foot’s
lock lever (p.7)
Contacts (p.7)
*AF-assist beam emitter
Flash head
220EX_E.fm Page 5 Tuesday, December 20, 2005 11:46 AM
COPY

6

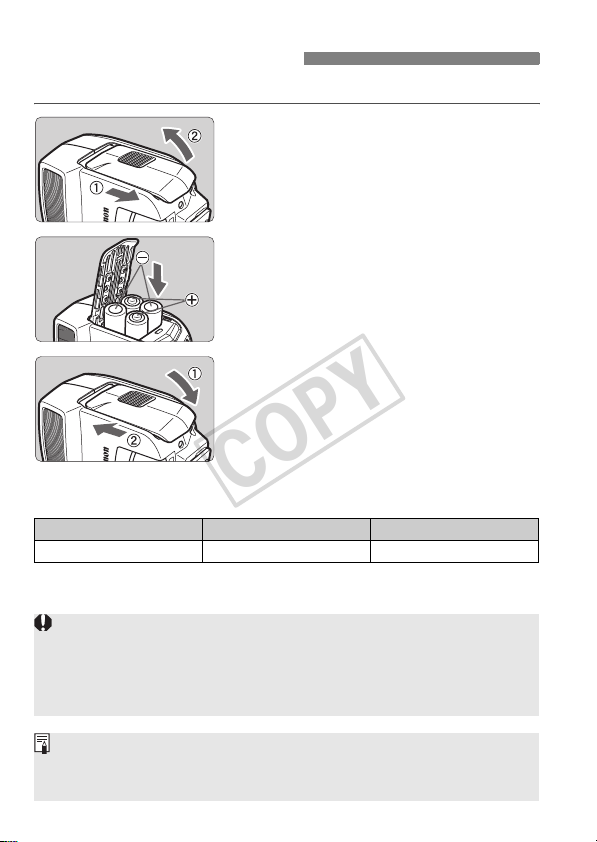

Use four size-AA batteries.
1Open the cover.
Slide the battery compartment cover
as shown by the arrow, then flip up
the edge.
2Insert the batteries.
Make sure the + and - battery
contacts are properly oriented as
shown in the compartment.
3Close the cover.
Push down the cover and slide it
back.
Based on a new set of batteries and Canon’s testing standards.
Installing the Batteries
Recycling Time and Flash Count
Battery Type Recycling Time Flash Count
Size-AA alkaline batteries Approx. 0.1 - 4.5 sec. Approx. 250 - 1700
To avoid overheating and degrading the flash head, do not fire more than
20 continuous flashes. After 20 continuous flashes, allow a rest time of at
least 10 min.
Use a new set of four batteries of the same brand. When replacing the
batteries, replace all four at one time.
Using size-AA batteries other than the alkaline type may cause improper
battery contact due to the irregular shape of the battery contacts.
Size-AA Ni-MH or lithium batteries can also be used.
220EX_E.fm Page 6 Thursday, December 15, 2005 11:28 AM
COPY

7

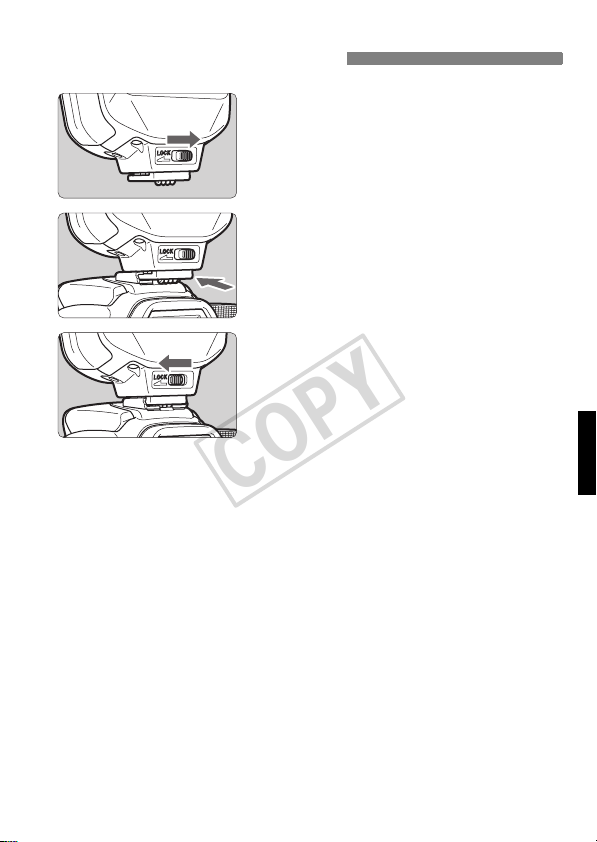

1Slide the lever to the right.
2Attach the Speedlite.
Slip the Speedlite’s mounting foot into
the camera’s hot shoe all the way.
3Secure the Speedlite.
Slide the mounting foot’s lock lever to
the left. The locking pin will then
protrude to secure the Speedlite to
the camera.
To detach the Speedlite, slide the
mounting foot’s lock lever to the right
and detach.
Attaching to the Camera
220EX_E.fm Page 7 Thursday, December 15, 2005 11:28 AM
COPY

8
1Turn on the power switch.
Set the power switch to <K>. The
flash will then start recycling.
XThe <a> lamp will light.
2Check that the flash is ready.
When the flash is ready, the
<J> lamp will light.
To fire a test flash, press the test firing
button (pilot lamp).
To save battery power, the power will turn off automatically after 90 sec.
of idle use. To turn on the Speedlite again, press the camera’s shutter
button halfway.
Turn on the Power Switch
About Auto Power Off
A test flash cannot be fired while the camera’s operation timer 4or 0is
active.
220EX_E.fm Page 8 Thursday, December 15, 2005 11:28 AM
COPY

9
When the camera’s shooting mode is set to <U> (Full Auto) or <V>
(Program AE), E-TTL II/E-TTL fully automatic flash photography will be
enabled, making it as easy as normal AE shooting in the <U> or <V>
mode.
1Focus the subject.
Press the shutter button halfway to
focus.
XThe shutter speed and aperture will
be displayed in the viewfinder.
Check that the <Q> icon is lit in the
viewfinder.
2Take the picture.
XRight before the shot is taken, a
preflash is fired, then the main flash is
fired.
XIf a standard flash exposure was
obtained, the flash exposure
confirmation lamp will light for about 2
sec.
Fully Automatic Flash Shooting
If the flash exposure confirmation lamp does not light, move closer to the
subject and take the picture again. With a digital camera, you can also
increase the camera’s ISO speed.
220EX_E.fm Page 9 Thursday, December 15, 2005 11:28 AM
COPY

10
Just set the camera’s shooting mode to <X> (shutter-priority AE),
<W> (aperture-priority AE), or <O> (manual exposure), and you can
use E-TTL II/E-TTL autoflash.
* 1/X sec. is the camera’s maximum flash sync speed.
In the <Z> or <Y> mode, the result will be the same as shooting in the
<V> (Program AE) mode.
Automatic Flash in Each Shooting Mode
X
Select this mode when you want to set the shutter speed manually.
The camera will then automatically set the aperture matching the
shutter speed (30 sec. - 1/X* sec.) to obtain a standard exposure.
If the aperture display blinks, it means that the background
exposure will be underexposed or overexposed. Adjust the shutter
speed until the aperture display stops blinking.
W
Select this mode when you want to set the aperture manually.
The camera will then automatically set the shutter speed (30 sec. - 1/
X* sec.) matching the aperture to obtain a standard exposure.
If the background is dark like a night scene, a slow sync speed will be
used to obtain a standard exposure of both the main subject and
background. Standard exposure of the main subject is obtained with
the flash, while a standard exposure of the background is obtained
with a slow shutter speed.
Since a slow shutter speed will be used for low-light scenes, using
a tripod is recommended.
If the shutter speed display blinks, it means that the background
exposure will be underexposed or overexposed. Adjust the
aperture until the shutter speed display stops blinking.
O
Select this mode if you want to set both the shutter speed and aperture
manually.
Standard exposure of the main subject is obtained with the flash. The
exposure of the background is obtained with the shutter speed (buLb,
30 sec. - 1/X* sec.) and aperture combination you set.
220EX_E.fm Page 10 Thursday, December 15, 2005 1:05 PM
COPY

11

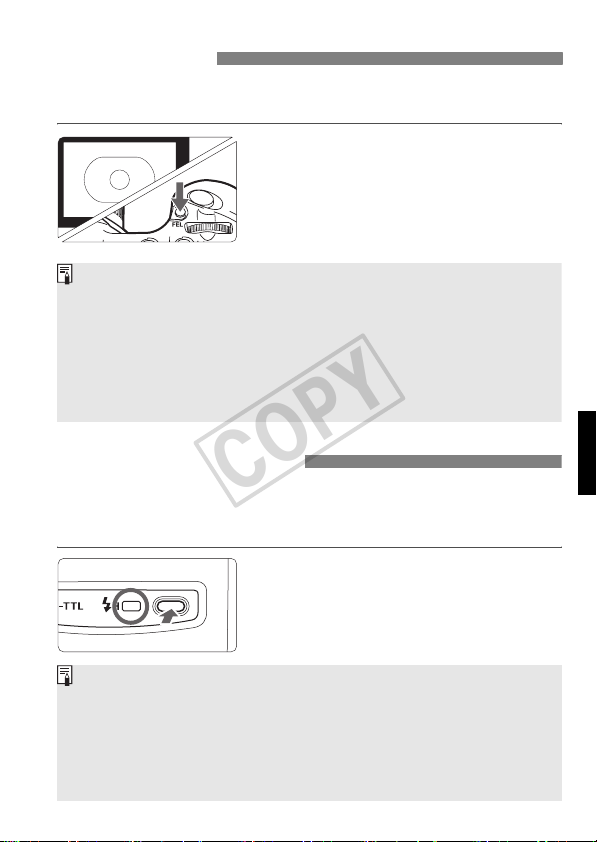

FE (flash exposure) lock locks the correct flash exposure reading for any part of
the scene. After focusing the subject, you press the camera’s < 7 > button.
Press the <7> button. (3)
Aim the subject at the center of the
viewfinder and press the <
7 > button.
XThe Speedlite will fire a preflash and
the required flash output for the
subject is retained in memory.
7FE Lock
The FEL display will be shown in the viewfinder for 0.5 sec.
Each time you press the <7> button, a preflash will be fired and the
FE lock will be set again.
If the camera does not have a <7> button, press the <P> button.
If the subject is too far away and underexposure will result, the <Q> icon
will blink in the viewfinder. Move closer to the subject and try the FE lock
again.
If the subject is too small, FE lock might not be very effective.
With high-speed sync (FP flash), the flash can synchronize with all
shutter speeds. This is convenient when you want to use aperture
priority for fill-flash portraits.
Press the <F> button and the
<F> lamp will light.
In the viewfinder, check that the <F>
icon is lit.
FHigh-Speed Sync
If the flash exposure confirmation lamp does not light, move closer to the
subject and take the picture again. With a digital camera, you can also
increase the camera’s ISO speed.
If the shutter speed is slower than the maximum flash sync speed, <F>
will not be displayed in the viewfinder.
With high-speed sync, the faster the shutter speed, the shorter the flash
range will become.
220EX_E.fm Page 11 Tuesday, December 20, 2005 11:49 AM
COPY

12
The flash does not fire.
• The batteries are installed in the wrong orientation.
Install the batteries in the correct orientation. (p.6)
• The batteries are exhausted.
If the flash recycling time takes 30 sec. or longer until the pilot
lamp lights, replace the batteries. (p.6)
• The Speedlite is not attached securely to the camera.
Attach the Speedlite’s mounting foot securely to the camera. (p.7)
• The electrical contacts of the Speedlite and camera are dirty.
Clean the contacts. (p.7)
The power turns off by itself.
• After 90 sec. of idle operation, auto power off took effect.
Press the shutter button halfway or press the test firing button.
(p.8)
The bottom of the picture looks dark.
• The subject is too close to the camera.
Keep at least 0.7 m/2.3 ft away from the subject.
The flash exposure becomes underexposed or overexposed.
• There was a highly reflective object (glass window, etc.) in the
picture.
Use FE lock. (p.11)
• You used high-speed sync.
Since high-speed sync makes the effective flash range shorter,
check the Guide No. and set the shutter speed. (p.11)
The picture is really blurred.
• The shooting mode was set to <W>, and the scene was dark.
Use a tripod or set the shooting mode to <V>. (p.10)
Troubleshooting Guide
220EX_E.fm Page 12 Thursday, December 15, 2005 11:28 AM
COPY

13
•Type
Type: On-camera, E-TTL II/E-TTL/TTL autoflash Speedlite
Compatible cameras: Type-A EOS cameras (E-TTL II/E-TTL autoflash)
Type-B EOS cameras (TTL autoflash)
Guide No.: 22/72 (ISO 100, in meters/feet)
Maximum flash coverage: EF28mm lens
Flash duration: 1.4 ms or shorter
• Exposure Control
Exposure Control Type: E-TTL II/E-TTL/TTL autoflash
Flash range: Normal flash: Approx. 0.7 - 15.7 m / 2.3 - 51.5 ft.
(With EF50mm f/1.4 lens, High-speed sync: Approx. 0.7 - 7.6 m / 2.3 - 24.9 ft.
at ISO 100) (at 1/250 sec.)
FE lock: Enabled with FE lock button
High-speed sync: Provided
Flash exposure confirmation: Flash exposure confirmation lamp lights
• Flash Recycling
Recycling time/
Flash ready indicator: Approx. 0.1 - 4.5 sec. / Pilot lamp lights
• AF-Assist Beam
Compatible AF point: Center AF point only
Effective range: Approx. 0.7 - 5 m / 2.3 - 16.4 ft.
• Power Source
Power source: Four size-AA alkaline batteries
Battery life: Approx. 250 - 1700 flashes
Power saving: Power off after 90 sec. of idle operation
• Dimensions (W x H x D): 65 x 92 x 61.3 mm / 2.6 x 3.6 x 2.4 in.
•Weight Approx. 160 g / 5.6 oz. (excluding batteries)
All the specifications above are based on Canon’s testing standards.
The camera’s specifications and external appearance are subject to change
without notice.
Specifications
220EX_E.fm Page 13 Tuesday, December 20, 2005 11:49 AM
COPY

14
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modifications to the equipment unless otherwise
specified in the instructions. If such changes or modifications should be made,
you could be required to stop operation of the equipment.
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
220EX_E.fm Page 14 Wednesday, February 8, 2006 10:06 PM
COPY

15
This mark indicates that the product complies with Australia’s EMC
regulations.
220EX_E.fm Page 15 Wednesday, February 8, 2006 10:06 PM
COPY

This Instructions booklet is dated February 2006. For information on the
camera’s compatibility with system accessories marketed after this date, contact
your nearest Canon Service Center.
220EX_E.fm Page 16 Friday, December 23, 2005 5:03 PM
COPY

220EX_CS.fm Page 1 Monday, December 10, 2007 4:53 PM
COPY

2
感谢您购买佳能产品。
佳能闪光灯220EX是自动兼容E-TTL II、E-TTL和TTL自动闪光系统的小型
闪光灯。
阅读此使用说明书的同时也请参考相机的使用说明书。
使用闪光灯之前，请阅读此使用说明书和相机的使用说明书以熟悉闪光灯的操
作。
基本操作与普通的自动曝光拍摄同样简单。
当220EX安装到EOS相机时，几乎所有闪光摄影的自动曝光控制都由相机来处
理。
尽管220EX是外接闪光灯，它可以像相机的内置闪光灯一样自动、无缝运行。
它自动兼容相机的闪光测光模式 （E-TTL ll、E-TTL或TTL）。
在以下闪光测光模式下，相机自动控制闪光灯。
1. E-TTL II自动闪光 （带有预闪读数/镜头距离信息的评价闪光测光）
2. E-TTL自动闪光 （带有预闪读数的评价闪光测光）
3. TTL自动闪光 （实时闪光测光的胶片平面反射光测光）
有关相机的可用闪光测光模式，请参阅相机使用说明书 “规格”中 “外
接闪光灯”规格部分。
相机使用手册中有关闪光摄影的章节将具备上述1和2测光模式的相机称
为A型相机 （兼容E-TTL II或E-TTL）。而将具备3（仅兼容TTL）测光模
式的相机称为B型相机。
*此使用说明书假定您正在使用安装于A型相机上的闪光灯。
对于B型相机，请参阅第4页。
220EX_CS.fm Page 2 Friday, January 27, 2006 7:52 PM
COPY

3
本说明书中使用的约定.......................................................... 4
部件名称 ............................................................................... 5
安装电池 ............................................................................... 6
把闪光灯安装到相机上.......................................................... 7
打开电源开关 ........................................................................ 8
全自动闪光拍摄..................................................................... 9
在各种拍摄模式下的自动闪光 ............................................. 10
7 闪光曝光锁 ................................................................. 11
F高速同步......................................................................... 11
故障排除指南 ...................................................................... 12
规格..................................................................................... 13
目录
220EX_CS.fm Page 3 Friday, January 27, 2006 7:52 PM
COPY
