Canon CN-E30-105mm User manual

ENGLISH
ENGLISH
The English version is the operation manual for counties other than Japan.
GENERAL SAFETY INFORMATION ......4
Product Conguration .......................................6
Names of Parts .................................................7
F.B. (Back Focus) Adjustment ...........................8
Available Accessories .....................................10
Dimensions of Parts ........................................12
Specications .................................................. 13
Appendix
External view ................................. apx. 2

2
ENGLISH
3
FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Do not make any changes or modications to the equipment unless otherwise specied in
the manual. If such changes or modications should be made, you could be required to stop
operation of the equipment.
Canadian Radio Interference Regulations
CAN ICES-3(B)/NMB-3(B)

2
3
European Union (and EEA) only.
This symbol indicates that this product is not to be disposed of with your
household waste, according to the WEEE Directive (2002/96/EC) and your
national law. This product should be handed over to a designated collection
point, e.g., on an authorized one-for-one basis when you buy a new similar
product or to an authorized collection site for recycling waste electrical and
electronic equipment (EEE). Improper handling of this type of waste could
have a possible negative impact on the environment and human health due to
potentially hazardous substances that are generally associated with EEE. At
the same time, your cooperation in the correct disposal of this product will contribute to the
effective usage of natural resources. For more information about where you can drop off your
waste equipment for recycling, please contact your local city ofce, waste authority, approved
WEEE scheme or your household waste disposal service.
Your cooperation in the correct disposal of this product will contribute to the effective usage
of natural resources and will avoid incurring administrative sanctions according to art. 50 and
following of Italian legislative decree 22/97.
For more information regarding return and recycling of WEEE products, please visit
www.canon-europe.com/environment.
(EEA: Norway, Iceland and Liechtenstein)

4
5
GENERAL SAFETY
INFORMATION
The safety warnings and cautions provided on
the product or in this operation manual must
be observed.
Failure to observe these warnings and
cautions provided to guard against hazards
may result in injury or accident.
Read this operation manual carefully to
familiarize yourself with its contents and
ensure that you can operate the product
properly.
Also, store this manual in a safe place where
it can easily be referenced whenever required.
This operation manual uses the following
symbols and terms to identify hazards to
protect you and others by preventing the
occurrence of accidents.
WARNING
This indicates a potentially hazardous
situation which, if not heeded, may result in
death or serious injury to you or others. Be
sure to heed all warning notices to ensure
safe operation at all times.
CAUTION
Indicates hazardous situations which, if not
heeded, may result in minor or moderate
injury to you or other persons, or damage to
your property.
NOTE
Emphasizes essential information which, if not
heeded, may render the product unworkable
or cause it to function improperly.
Also, provides helpful information for
operation.
HANDLING THE
PRODUCT
WARNING
1. Do not stare at the sun or other source of
high-intensity light through the lens. Doing
so could injure your eyes.
CAUTION
1. Make sure all mountings are tightened
securely. If any of these mountings
becomes loose, the lens may fall, possibly
causing injury.
2. Inspect all mountings periodically (about
every 6 months to 1 year) to make sure
they are securely tightened, and tighten
any loose parts. Otherwise, the lens may
fall, possibly causing injury.
3. If it becomes necessary to repair this
product, or to perform any operations or
adjustments not mentioned in this operation
manual, contact Canon’s representative or
the dealer who originally supplied the lens.
NOTE
1. Protect the lens from strong impacts or
shocks. Striking or dropping the lens may
result in a malfunction.
2. Do not bring the lens, kept in a very cold
ambient temperature, into a warm room,
because the lens may fog on the inside or
condensation may occur.
In these cases, the lens cannot be used
until these problems clear.
If the lens must be used under such
conditions, countermeasures are
recommended.

4
5
TO THE CUSTOMER
1. Canon shall bear no responsibility for
damage resulting from improper operation
of this product by the customer.
2. Canon shall make no guarantees about
the product quality, functions, or operation
manual and its marketability and suitability
for the customer’s purpose.
Moreover, Canon shall bear no
responsibility for any damage, direct or
incidental, that results from usage for the
customer’s purpose.
3. Canon shall make no guarantees about the
results obtained using this product.
4. The product specications, conguration,
and appearance are subject to change
without prior notice.
5. For further information on repairs,
maintenance, or adjustments not
mentioned in this operation manual,
contact your Canon dealer or your Canon
sales representative.
6. Note that Canon may be unable to
undertake servicing or repair of a product
if it is modied without consulting Canon or
your Canon sales representative.
MAINTENANCE AND
INSPECTION
NOTE
1. Gently blow or brush away dust or dirt on
the lens surface using a lens blower or a
soft lens brush. Remove any ngerprints or
other stains with a soft clean cotton cloth
moistened with commercially available lens
cleaning uid or lens cleaning paper.
Be careful not to rub dust across the lens,
as the lens surface may be scratched.
2. A periodic inspection about once a year is
recommended.
The inspection and maintenance interval
depends on the operating conditions, the
frequency of use, and the environment. If
required, overhaul the lens.
STORAGE
CAUTION
1. Always attach the lens cap (or hood
cap) and the dust cap before storing the
lens. Storing the lens without these caps
attached may present a re hazard. (Very
bright light, such as sunlight, may be
focused by the lens and cause a re.)
NOTE
1. If the lens becomes damp because of
use in fog, mist, or drizzle, wipe off the
moisture with a soft dry cloth and seal the
lens together with an effective desiccant
in a vinyl bag to remove moisture that has
entered the interior.
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
Canon Europe Ltd
3 The Square, Stockley Park, Uxbridge, Middlesex, UB11 1ET UK
All rights reserved. No part of this operation manual may be reproduced or copied in any form or by any
means without the written permission of Canon Inc.

6
7
Lens cap
Reference Guide
Operation Manual
Lens body
Zoom/focus lever (short)
Zoom/focus lever (long)
Rear lens cap*
* The shape of the rear lens cap for the SP type differs from the gure above.

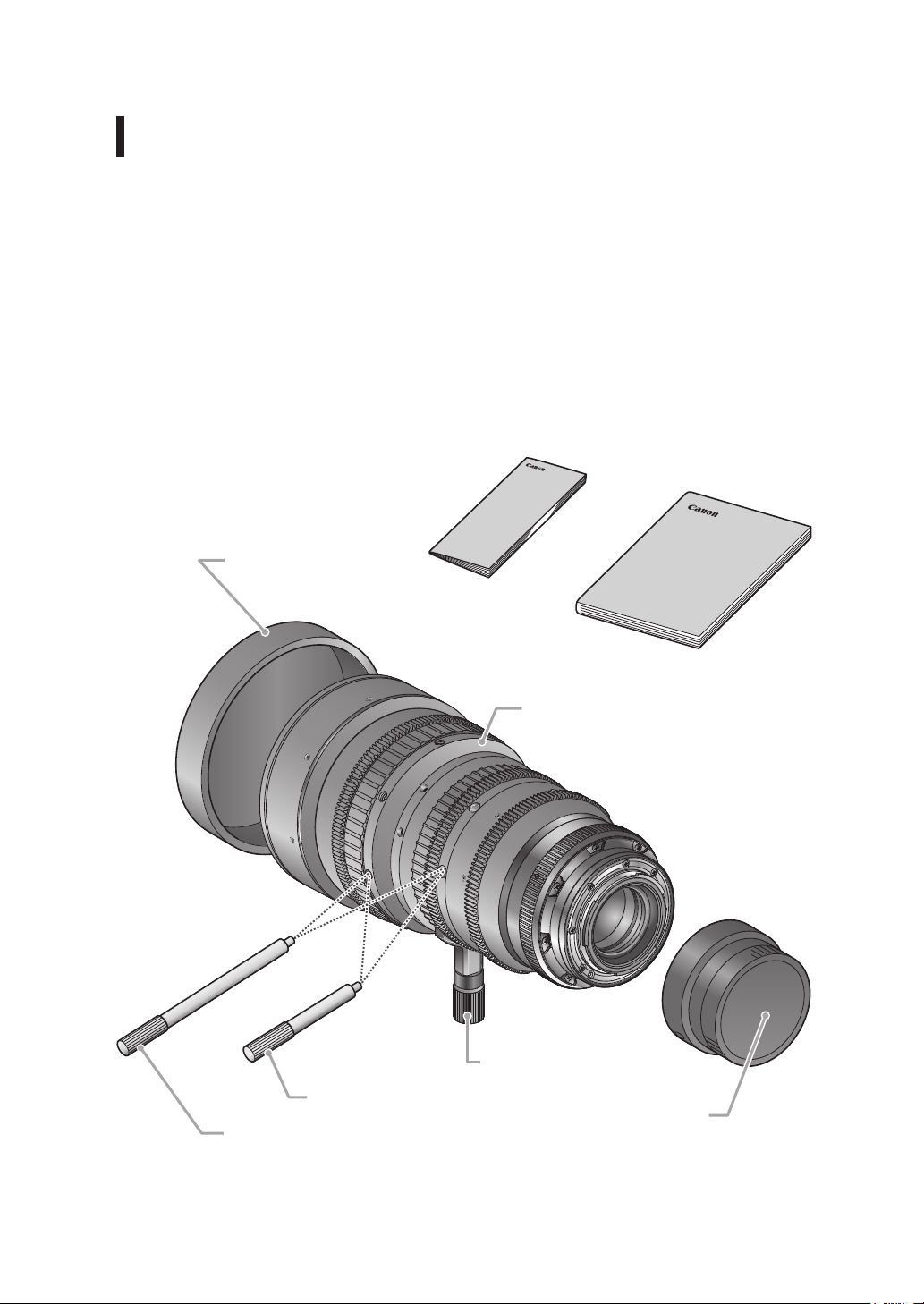

Product Conguration
Two types of the CN-E30-105mm T2.8 L are available for the positive lock mount (S type)
and the Canon EF mount (SP type). Figures in this manual are for the S type lens unless
otherwise mentioned.
Lens body ...................................................1
Zoom/focus lever (short) ............................1
Zoom/focus lever (long) ..............................1
Attachment holder ......................................1
Lens cap .....................................................1
Rear lens cap .............................................1
Operation Manual .......................................1
Reference Guide ........................................1
Attachment holder

6
7

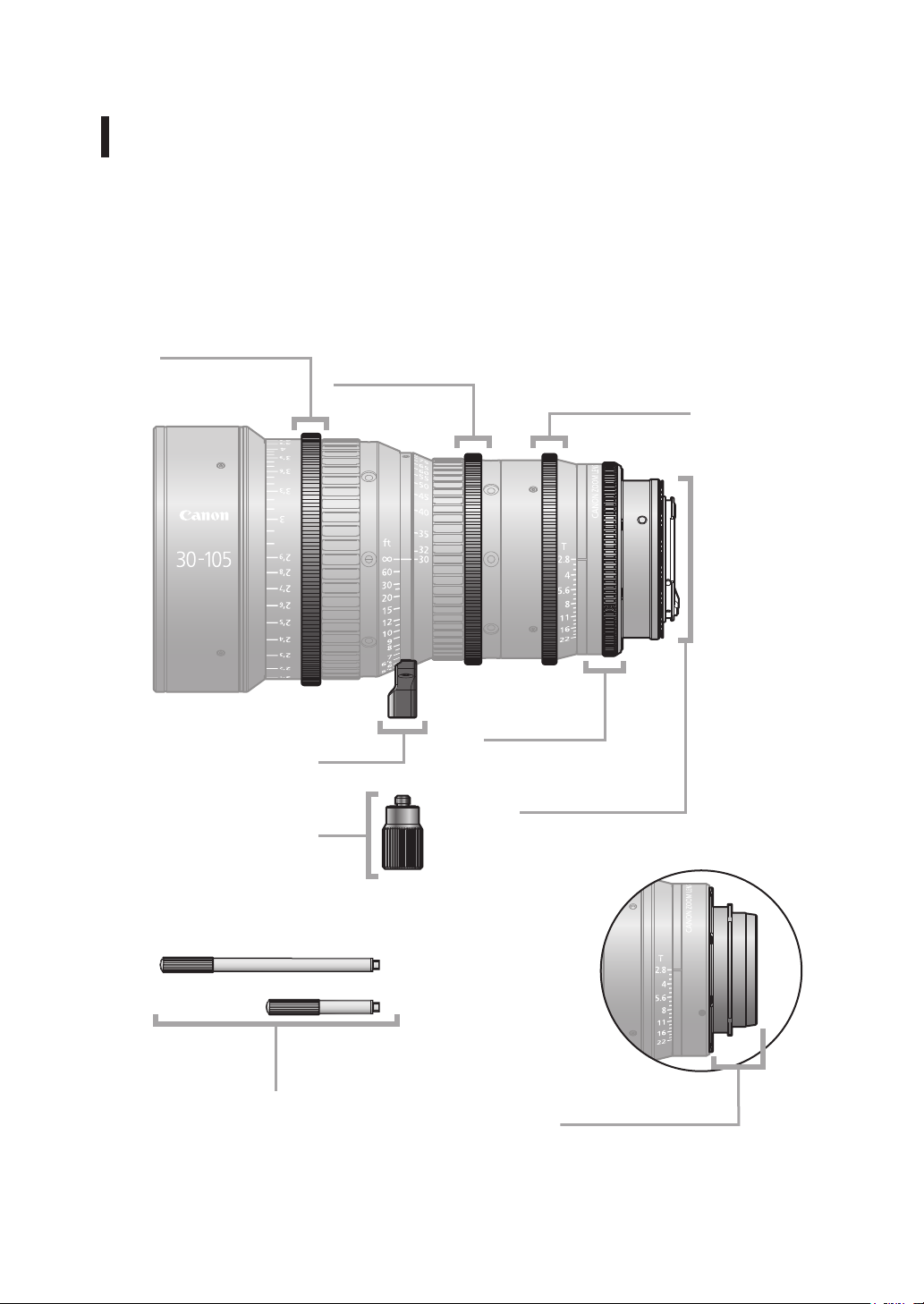

Names of Parts
Focus drive gear
Number of teeth: 133
Module: 0.8 metric module
P.C.D.: 106.4 mm
Angular rotation: 300°
Zoom drive gear
Number of teeth: 111
Module: 0.8 metric module
P.C.D.: 88.8 mm
Angular rotation: 93.5°
Iris drive gear
Number of teeth: 111
Module: 0.8 metric module
P.C.D.: 88.8 mm
Angular rotation: 55°
Lens holder
Attachment holder
F.B. adjuster
cover
EF mount (S type)
Zoom/focus levers PL mount (SP type)

8
9

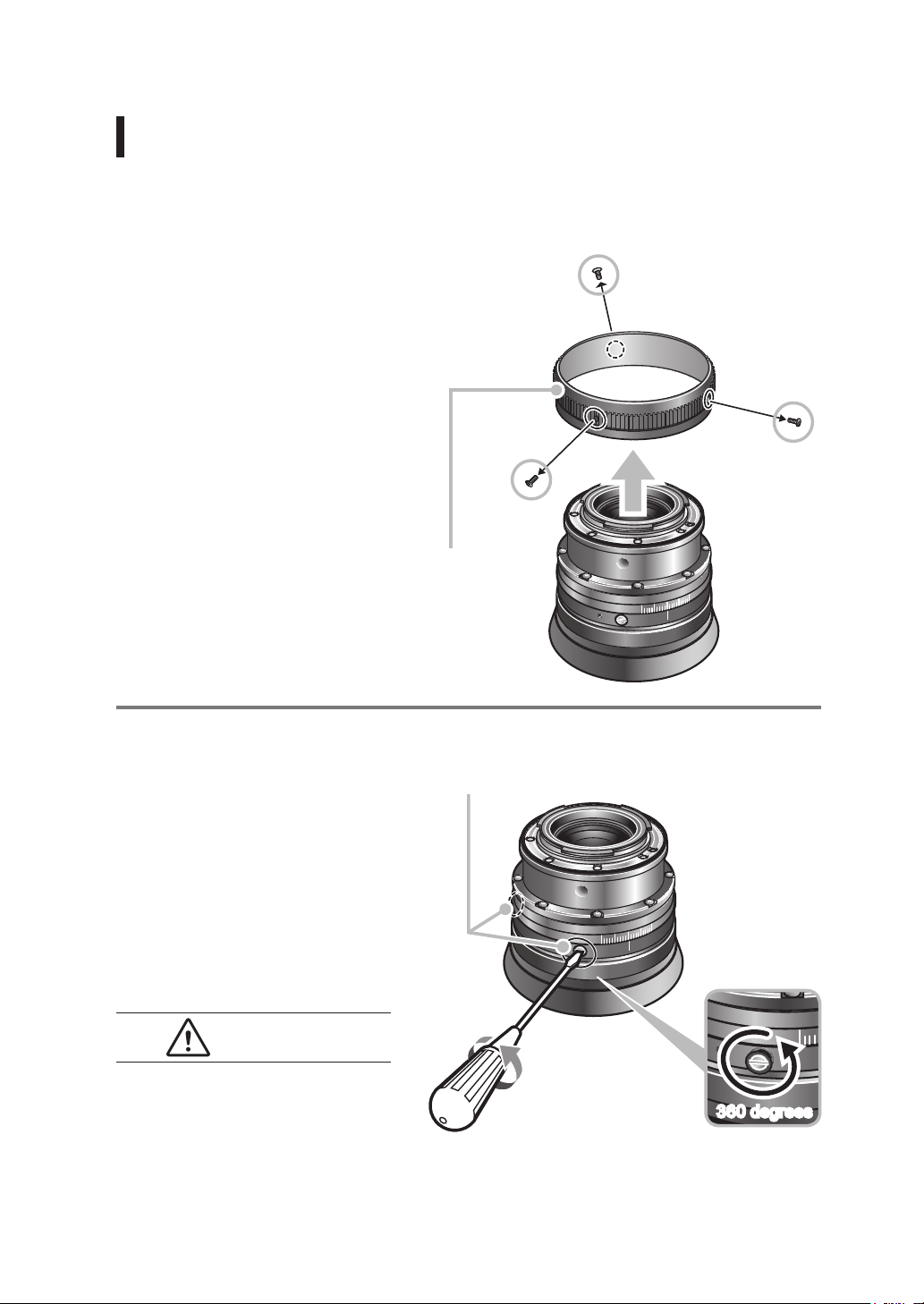

F.B. (Back Focus) Adjustment
F.B. (back focus) of this lens can be adjusted in the following procedures.
Before starting, select an object with sharp contrast at a distance* that facilitates the
adjustment work.
* Recommended object distance range: 6 to 12 ft.
1
Remove three screws
and remove the F.B.
adjuster cover as in the
right gure.
Note: Be sure to keep the
screws for later reattachment.
2
Mount the lens on the
camera and turn two
F.B. adjuster screws
counterclockwise one
revolution as in the right
gure.
CAUTION
Be sure to securely mount the lens on
the camera mount.
Note: Be sure not to remove
the screws.
Screws x 3
F.B. adjuster
cover
Screws x 2
360 degrees

8
9
3
Turn the iris ring to set the iris to fully open (T2.8).
4
Turn the zoom ring to set the lens to the telephoto end,
then turn the focus ring to bring the object into focus.
5
Turn the zoom ring to
set the lens to the wide
angle end, then turn the
F.B. adjuster to bring the
object into focus.
Note: Be sure not to move the focus
ring at this time.
6
Repeat steps 4 and 5 two or three times.
7
Secure the F.B. adjuster and reattach the F.B. adjuster
cover following the reverse procedure.
F.B. adjuster
Use the index
mark and
adjuster scale
for back focus
adjustment.

10
11
Available accessories
A variety of professional camera accessories are available using Φ15 mm and Φ19 mm rod
adaptors.
(When using a Φ19 rod, attach the supplied attachment holder to the lens holder.)
CAUTION
Be sure to use the lens holder when mounting the lens on a
camera. Be sure to avoid applying excessive weight to the lens
mount when the lens is mounted on a lens support.

10
11
CAUTION Mount the S type (EF mount) lens to the camera by following
the steps below.
1
Attach the lens to the
camera tightly so that
both mounting surfaces
are in complete contact.
Refer to the operation manual for the
respective camera for the detailed
information.
2
Secure the attachment
holder on the lens
support using the
clamping screw supplied
with the lens support.
3
Push the lens toward
the camera until both
mounting surfaces are
in complete contact and
clamp the lens support to
the rods.
Lens support

12
13
Dimensions of parts
Unit: mm
S type (EF mount)
SP type (PL mount)
Spur gear specications
Focus drive gear Zoom drive gear Iris drive gear
Number of teeth 133 111 111
Module 0.8 metric module 0.8 metric module 0.8 metric module
P.C.D. 106.4 mm 88.8 mm 88.8 mm
Angular rotation 300 degrees 93.5 degrees 55 degrees

12
13
Specications
CN-E30-105mm T2.8 L S CN-E30-105mm T2.8 L SP
Lens Mount Canon EF PL
Focal Length 30 to 105 mm
Maximum T-stop T2.8 (f = 30 to 105)
Iris Blades 11 pieces
Coverage
Super 35mm
Image Circle / H x V
(1.78:1)
Φ27.5 mm /
24.0 x 13.5 mm
Angular Field of View
(H / V) at wide angle end 43.6 / 25.4 degrees
Angular Field of View
(H / V) at telephoto end 13.0 / 7.4 degrees
Coverage
EOS C300
Image Circle / H x V
(1.78:1)
Φ28.2 mm /
24.6 x 13.8 mm
Angular Field of View
(H / V) at wide angle end 44.6 / 25.9 degrees
Angular Field of View
(H / V) at telephoto end 13.4 / 7.5 degrees
Coverage
EOS C500
Image Circle / H x V
(1.9:1)
Φ29.6 mm /
26.2 x 13.8 mm
Angular Field of View
(H / V) at wide angle end 47.2 / 25.9 degrees
Angular Field of View
(H / V) at telephoto end 14.2 / 7.5 degrees
Minimum Object Distance
(M.O.D.) 0.6 m / (from the image sensor)
Object
Dimensions at
M.O.D.
Super 35mm 32.3 x 18.2 cm at wide angle end
9.3 x 5.2 cm at telephoto end
EOS C300 33.1 x 18.6 cm at wide angle end
9.6 x 5.4 cm at telephoto end
EOS C500 35.3 x 18.6 cm at wide angle end
10.2 x 5.4 cm at telephoto end
Focus Angular Rotation 300 degrees
Zoom Angular Rotation 93.5 degrees
Spur Gear Module 0.8 metric module
Front Diameter Φ114 mm
Length 218 mm 210 mm
Weight 2.2 kg
* A variety of professional camera accessories compatible with the Φ15 mm and Φ19 mm rod
system can be used with this lens.
* This lens is compatible with EOS cameras that have a Super 35mm or equivalent sensor, or
an APS-C image sensor. The lens is not compatible with cameras that have a 35-mm full-size
sensor or an APS-H sensor.

14
Reference Information
This lens is a full manual lens for shooting movies.
• This lens is developed primarily for movie production, and have a color balance typical for
movies. This means that the color reproduction is warmer than that of EF lenses which
are basically used to shoot still images. Therefore, when using both types of lens together,
adjust the color balance (redo the white balance etc.) as necessary.
• In general, the depth of eld becomes shallow and the focusing range becomes extremely
narrow near the widest aperture and when shooting a subject at close range. In addition,
this tendency increases for lenses with longer focal lengths. When shooting images,
carefully check the focusing condition using the zoom mode of the nder or other means,
and shoot a sufcient number of test images before performing focus operations.
(for EF mount Lens only)
• The T-numbers of this lens are indicated on the iris ring of the lens. On the other hand,
the iris information from this lens to the camera uses the F-number in consideration of use
together with conventional EF lenses. Therefore, the camera side displays a different value
(F-number) from the indication on the iris ring of the lens.
• Information of the focal length displayed on the camera side omits the gures below the
decimal point.
