Canon EF-M 18-55mm f3.5-5.6 IS STM User manual

EN-1
❶
❷
❹
❸
Wide end
Telephoto end
Zoom ring
EN EF-M LENS Instructions
EF-M 18-55mm f/3.5-5.6 IS STM
①
②
③
④⑤
⑥
⑦

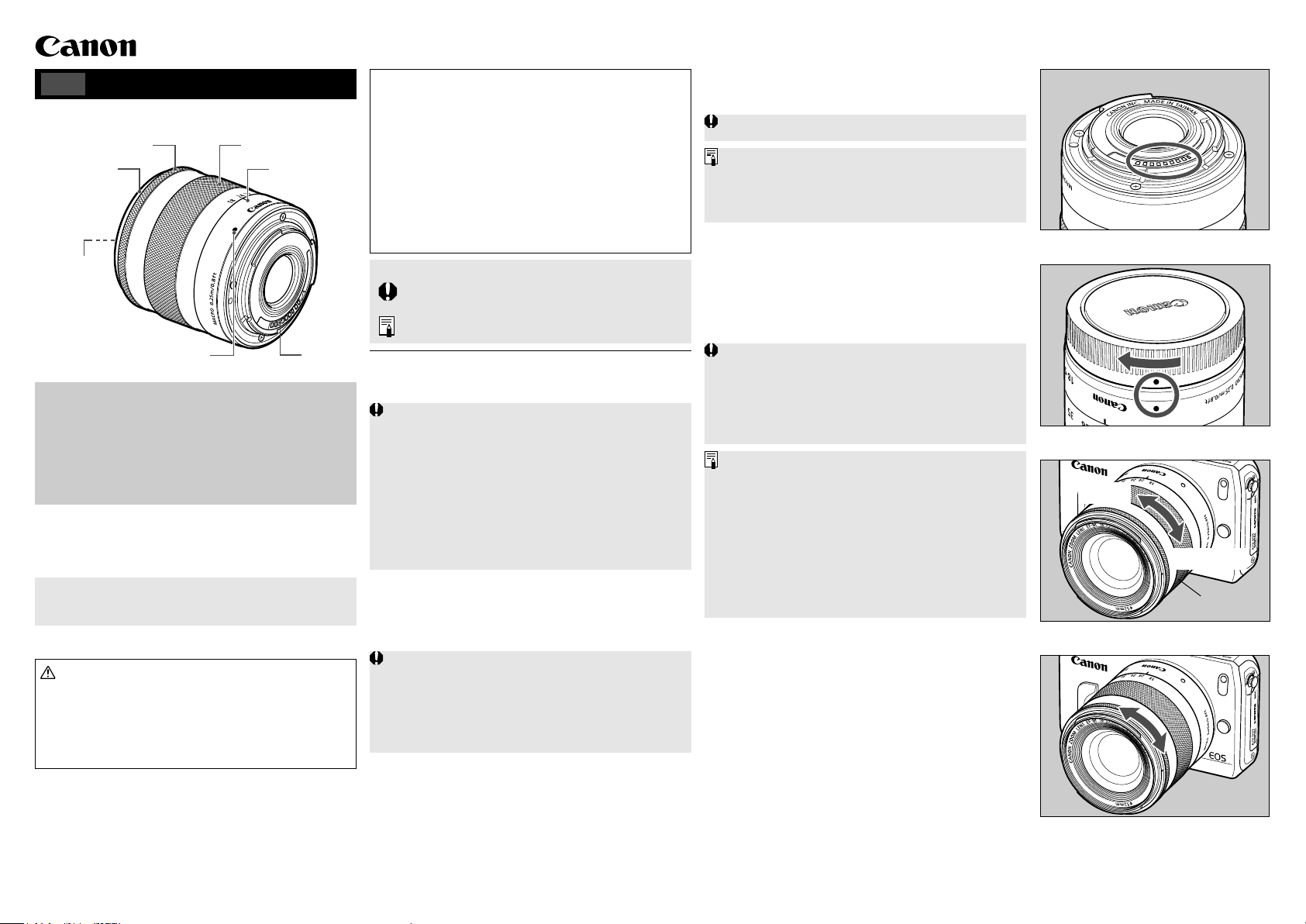

Nomenclature
①Focusing ring
②Hood mount
③Filter Mounting Thread
④Lens mount index
⑤Contacts
⑥Zoom position index
⑦Zoom ring
Thank you for purchasing a Canon product.
The Canon EF-M 18-55mm f/3.5-5.6 IS STM lens is a 3x
standard zoom lens developed for interchangeable-lens digital
cameras compatible with EF-M lenses*.
* Only the following cameras are compatible with EF-M lenses (as
of September 2012):
EOS M
• "IS" stands for Image Stabilizer.
• "STM" stands for stepping motor.
Safety Precautions
• Do not look at the sun or a bright light source through the
lens. Doing so could result in vision loss or blindness.
• Whether it is attached to the camera or not, do not leave
the lens under the sun without the lens cap attached. This
is to prevent the lens from concentrating the sun’s rays, which
could cause a fire.
Handling Cautions
• If the lens is taken from a cold environment into a warm
one, condensation may develop on the lens surface and
internal parts. To prevent condensation in this case, first
put the lens into an airtight plastic bag before taking it from a
cold to warm environment. Then take out the lens after it has
warmed gradually. Do the same when taking the lens from a
warm environment into a cold one.
• Do not leave the lens in excessive heat such as in a car in
direct sunlight. High temperatures can cause the lens to
malfunction.
• Please also refer to the handling cautions found in your
camera’s instructions.
Conventions used in this instruction
Warning to prevent lens or camera malfunction or
damage.
Supplementary notes on using the lens and taking
pictures.
1. Mounting and Detaching the Lens
See your camera’s instructions for details on mounting and
detaching the lens.
•After detaching the lens, place the lens with the rear end
up to prevent the lens surface and contacts from getting
scratched. (fig.❶)
•If the contacts get soiled, scratched, or have fingerprints on
them, corrosion or faulty connections can result. The camera
and lens may not operate properly.
•If the contacts get soiled or have fingerprints on them, clean
them with a soft cloth.
•If you remove the lens, cover it with the dust cap. To attach
it properly, align the lens mount index and the index of the
dust cap as shown in the diagram, and turn clockwise. (fig.❷)
To remove it, reverse the order.
2. Zooming
Turn the lens’ zoom ring to adjust the size of the photo field or
subject. (fig.❸)
• For wide shots, turn the zoom ring toward the wide end.
• For close-ups, turn the zoom ring toward the telephoto end.
•Be sure to finish zooming before focusing. Zooming after
focusing can affect the focus.
•Blurring may temporarily occur if the zoom ring is quickly
rotated.
•Zooming during still image exposure will result in delayed
focus. This causes any streaks of light that are captured
during exposure to be blurred.
3. Manual Focus
When the camera’s focus mode is set to [MF], focus manually by
turning the focusing ring (fig.❹).
Quickly rotating the focusing ring may result in delayed focus.
•Focus mode is set using the camera. Please refer to the
camera’s instructions.
•After autofocusing in [AF+MF] mode, focus manually by
pressing the shutter button halfway and turning the focusing
ring (full-time manual focusing).
4. Image Stabilizer
This lens is equipped with an Image Stabilizer. This function
corrects camera shake, allowing users to capture sharp images.
Also, the Image Stabilizer automatically provides optimal image
stabilization depending on shooting conditions (such as shooting
still subjects and following shots). Please set the Image Stabilizer
ON or OFF using the camera settings. See your camera’s
instructions for details.
•The Image Stabilizer cannot compensate for a blurred shot
caused by a subject that moved.
•The Image Stabilizer may not be fully effective if you shoot
from a violently shaking vehicle or other transportation.
•The Image Stabilizer consumes more power than normal
shooting, so fewer shots can be taken if you use the
function.
•When shooting a still subject, it compensates for camera
shake in all directions.
•It compensates for vertical camera shake during following
shots in a horizontal direction, and compensates for
horizontal camera shake during following shots in a vertical
direction.
•When you use a tripod, the Image Stabilizer should be
turned off to save battery power.
•Even with a monopod, the Image Stabilizer will be as
effective as during hand-held shooting.
However, depending on the shooting environment, the
Image Stabilizer effect may be less effective.
■ Dynamic IS Function (Movie shooting only)
The EF-M 18-55mm f/3.5-5.6 IS STM is equipped with dynamic IS,
effective when shooting while walking since it expands the IS range.
• Achieves effective IS at the wide end.
• Automatically activates when the camera is set to Movie
Shooting.
CEL-ST5ZA210

EN-2
❺
©CANON INC. 2012
5. Hood (sold separately)
The EW-54 hood cuts out unwanted light and protects the front of
the lens from rain, snow, and dust.
To attach the hood, align the hood’s attachment position mark with
the red dot on the front of the lens, then turn the hood as shown
by the arrow until the lens’ red dot is aligned with the hood’s stop
position mark. (fig.❺)
The hood can be reverse-mounted on the lens for storage.
•If the hood is not attached properly, vignetting (darkening of
the perimeter of the picture) may occur.
•When attaching or detaching the hood, grasp the base of
the hood to turn it. To prevent deformation, do not grasp the
rim of the hood to turn it.
6. Filters (sold separately)
You can attach filters to the filter mounting thread on the front of
the lens.
Only one filter may be attached.
Specifications
Focal Length/Aperture 18-55mm f/3.5-5.6
Lens Construction 11 groups, 13 elements
Minimum Aperture f/22-36*
Angle of View
Diagonal:74°20′-27°50′
Vertical:45°30′-15°40′
Horizontal:64°30′-23°20′
Min. Focusing Distance 0.25 m/0.82 ft.
Max. Magnification 0.25x (at 55 mm)
Field of View
Approx. 168x260-61x92 mm/
6.61x10.24-2.40x3.62 inch
(at 0.25 m/0.82 ft.)
Filter Diameter 52 mm
Max. Diameter and Length 60.9x61.0 mm/2.40x2.40 inch
Weight Approx. 210 g/7.4 oz
Hood EW-54 (Sold Separately)
Lens Cap E-52 II
Dust Cap Lens Dust Cap EB
Case LP814 (Sold Separately)
* Applies to 1/3-stop increments. With 1/2-stop increments, it will be
f/22-38.
• Equivalent to 29-88 mm in the 35mm film format.
• The lens length is measured from the mount surface to the front end
of the lens. Add 20 mm when including the lens cap and dust cap.
• The size and weight listed are for the lens only, except as indicated.
• Extenders cannot be used with this lens.
• Aperture settings are specified on the camera. The camera
automatically compensates for variations in the aperture setting
when the camera is zoomed in or out.
• All data listed is measured according to Canon standards.
• Product specifications and appearance are subject to change
without notice.
