Canon Digital Trinity
The EOS Rebel XSi’s CMOS sensor captures images
with exceptional clarity and tonal range and offers
the most pixels in its class. This APS-C size sensor
(22.2 x 14.8mm) is complemented by Canon’s
DIGIC III Image Processor, which enhances image
quality and speeds up all the camera’s operations.
The sensor and processor work in concert with
Canon’s superlative EF and EF-S lenses, forming the
ultimate Digital Trinity.
14-bit Tonal Conversion
The EOS Rebel XSi features 14-bit analog to digital
signal conversion, generating data with incredibly
smooth tones. With this rich 14-bit gradation the
EOS Rebel XSi offers RAW images of the highest
quality to complement 8-bit JPEGs.
Noise Reduction
The EOS Rebel XSi’s sensor features narrow-gap
microlenses and noise reduction circuits to improve
performance at high ISOs, and optimized photo
diode configurations for improved performance at
all ISOs. You’ll notice the results immediately.
Auto Lighting Optimization
The EOS Rebel XSi’s
Auto Optimization
feature analyzes the
photographic scene and
compensates automati-
cally, brightening dark
faces, boosting contrast
and brightening high-
lights in flat light, and
adjusting exposure
when flash output is
insufficient.
3.5 fps Continuous Shooting
The EOS Rebel XSi operates with such effortless
speed that operation is nothing short of intuitive.
With instant startup times, speedy AF and impercep-
tibleshutter lag, the EOS Rebel XSi is one of the fast-
est cameras available today, shooting up to 3.5 frames
per second, in bursts of 45 JPEGs or 6 RAW files.
Spot Metering
The EOS Rebel XSi features a spot meter, which
analyzes 4% of the composition, plus Center-
weighted average metering and partial metering for
accurate exposure no matter the situation.
EOS Rebel XSi:
Infinite Possibilities
Canon is thrilled to introduce the new
EOSRebel XSi, a Digital SLR that brings a new
level of performance and technology to all
photographers. With the EOS Rebel XSi,
every aspect of the photographic
experience is enhanced. Its new 12.2-
megapixel CMOS sensor, 3.0-inch LCD
with Live View Function and an Image
Stabilized lens work together to create
stunningimages, easily. With unprece-
dented sophistication and supreme usability,
the EOS Rebel XSi inspires you and promises
go-anywhere, shoot anything photography
for everyone.
Huge 3.0" LCD Monitor
The EOS Rebel XSi has a giant, bright 3.0-inch TFT
LCD monitor with 230,000 pixels and a viewing
angle of 170˚. It’s perfect for Live View Function
composition or viewing camera settings like AF,
ISO, Metering, AF Point selection and flash options.
Live View Function
The EOS Rebel XSi is the first EOS Rebel series to
feature Canon’s Live View Function technology.
With Live View Function, you never have to bring
the camera to your eye: it’s easy to compose and
shoot images right on the 3.0-inch LCD monitor.
Higher Magnification Viewfinder
The EOS Rebel XSi also has an improved, high
magnification viewfinder with a sensor to disable
the LCD monitor when the camera is brought to the
eye. All relevant shooting information, including
ISO, are displayed right in the viewfinder.
SD & SDHC Memory Cards
The EOS Rebel XSi uses popular SD and
SDHC memory cards. Tiny, inexpensive and
available in increasingly large capacities,
these cards are a perfect complement to
the EOS Rebel XSi’s compact design.
Optical Image Stabilizer Lenses
Canon’s Optical Image Stabilizer tech-
nology makes handheld photography
possible in more low-light situations
by counteracting camera shake for crisp, clear
images. With Optical Image Stabilizer in the lens,
Canon can equip each lens with the stabilizer it
needsfor effective shake correction. Other systems
arelimited byhow far they can move an image sensor,
and asa result their stabilization is less effective as
telephoto lengths get longer. Also, stabilized images
can be seen right in the viewfinder–impossible
with some other stabilizer systems.
Underexposed AE exposure
with Auto Lighting Optimization
*Optical Image
Stabilzer refersto
lens function only.
*
©2008 Paul Markow

EF/EF-S Lenses
Like other EOS Digital SLR cameras,
the EOS Rebel XSi is compatible
with over 50 Canon lenses in the
EF lineup, ranging from ultra-wide
angle to super telephoto lenses,
including Canon’s EF-S series lenses
that are manufactured specifically
for APS-C sized digital sensors such
as the one in the EOS Rebel XSi.

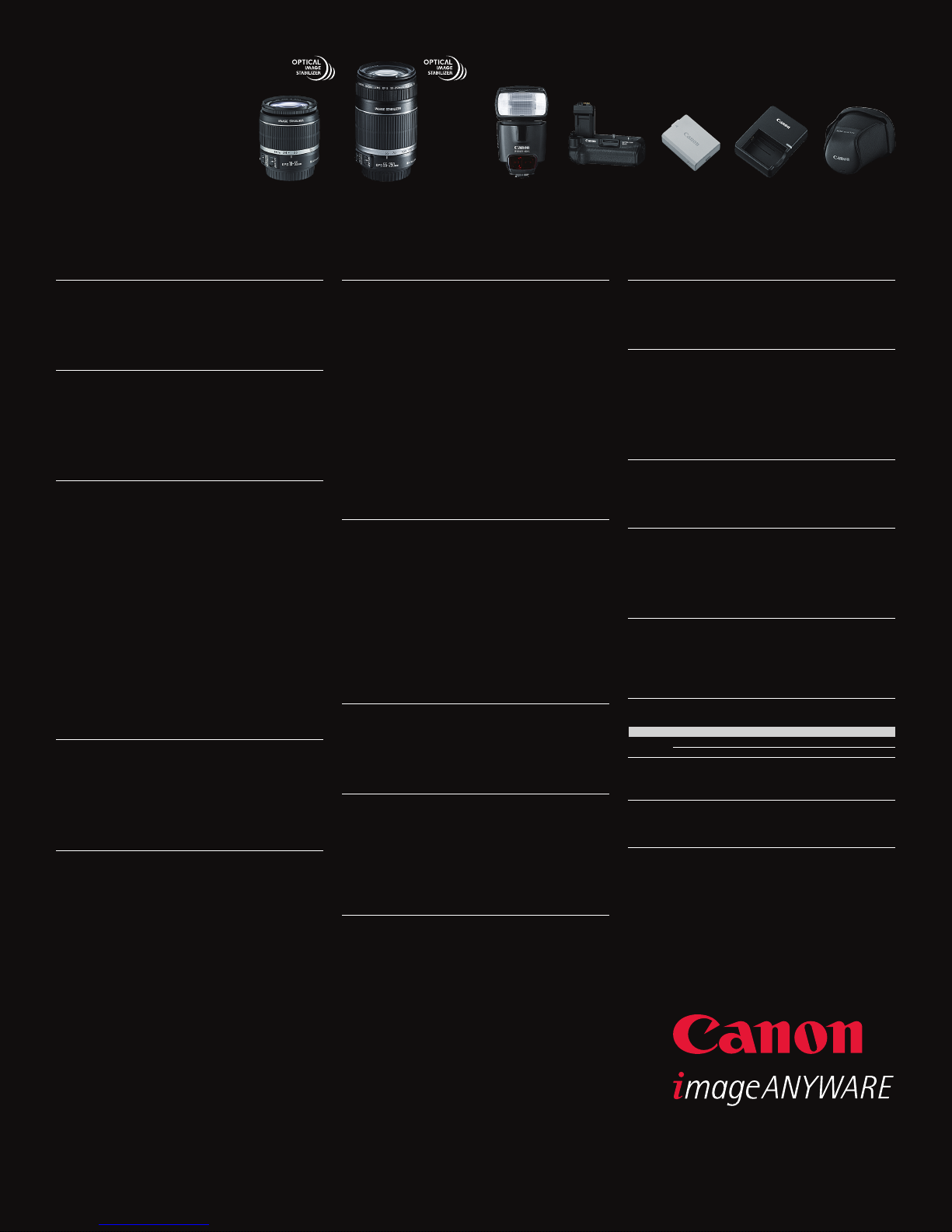

Speedlite / Accessories
EF-S 18-55mm
f/3.5-5.6 IS
EF-S 55-250mm
f/4.5-5.6 IS
Speedlite
430EX
Battery Grip
BG-E5
Battery Pack
LP-E5
Battery Charger
LC-E5
Semi-Hard Case
EH19-L
0118W239 01/08 ©2008 CANON U.S.A., INC. PRINTED IN U.S.A.
1-800-OK-CANON /www.canoneos.com
Canon U.S.A., Inc. One Canon Plaza, Lake Success, NY 11042 U.S.A.
Canon Canada, Inc. 6390 Dixie Road, Mississauga, Ontario L5T 1P7 Canada
Canon Latin America, Inc. 703 Waterford Way, Suite 400, Miami, FL 33126 U.S.A.
Canon Mexicana, S. de R.L. de C.V.Blvd. Manuel Ávila Camacho No. 138, Piso 17
Col. Lomas de Chapultepec, C.P. 11000 México, D.F. México
TYPE
Type: Digital AF/AE SLR with built-in flash
Recording Media: SD/SDHC memory card
Image Sensor Size: 0.87 x 0.58 in./22.2 x 14.8mm (APS-C size sensor)
Compatible Lenses: Canon EF and EF-S lenses
Lens Mount: Canon EF mount
Lens Focal Length Conversion Factor: 1.6x
IMAGE SENSOR
Type: High-sensitivity, high-resolution, single-plate, CMOS sensor
Effective Pixels: Approx. 12.20 megapixels
Total Pixels: Approx. 12.40 megapixels
Aspect Ratio: 3:2 (Horizontal : Vertical)
Color Filter System: RGB primary color filters
Low-pass Filter: Fixed position in front of the CMOS sensor
Dust Delete Feature: (1) Auto Sensor Cleaning, (2) Dust Delete Data,
(3) Manual Sensor Cleaning
RECORDING SYSTEM
File Format: Design rule for Camera File System 2.0 and Exif 2.21
Recording Format: JPEG, RAW, and RAW+JPEG simultaneous recording
provided. The RAW and JPEG images are saved as separate files in the
SD/SDHC memory card.
Image Compression: JPEG, RAW (Canon .CR2)
FileSize:JPEG/Large(4272 x2848): approx. 4.3MB (Fine), approx. 2.2MB
(Normal); JPEG/Medium (3088 x 2056): approx. 2.5MB (Fine), approx.
1.3MB (Normal); JPEG/Small (2256 x 1504): approx. 1.6MB (Fine), 0.8MB
(Normal); RAW (4272 x 2848): approx. 15.3MB Exact file sizes depend on
the subject, ISO speed, Picture Style, etc.
File Numbering: (1) Continuous numbering (2) Auto reset (3) Manual reset
(the image numbering is reset to 0001, a new folder is created
automatically)
Color Space: Selectablebetween sRGB and Adobe RGB
Picture Style: Six preset Picture Style settings plus three user-defined
custom Picture Style settings with individual adjustments for Sharpness,
Contrast, Color saturation, Color tone, Filter effect, Toning effect for black &
white images
Automatic Image Brightness Correction: Set by default in Basic Zone modes.
In Creative Zone modes, settable with C.Fn-06 (Auto Lighting Optimizer)
Highlight Tone Priority: Enabled (C. Fn-05)
Interface: USB 2.0 Hi-Speed, mini-B port.NTSC/PAL for video output
WHITE BALANCE
Settings: Auto, Daylight, Shade, Cloudy, Tungsten Light, White
Fluorescent Light, Flash, Manual (Custom white balance of white or neutral
gray object)
Auto White Balance: Auto white balance, taken from the image sensor
Color Temperature Compensation: Whitebalance bracketing: up to +/
–
3
levels in 1-step increments;
Whitebalance correction: blue/amber bias +/
–
9 levels, magenta/green
bias +/
–
9levels
AUTOFOCUS
Type:TTL-CT-SIR AF-dedicated CMOS sensor
AF points: 9AF points: Center AF point is cross type with high-precision
horizontal line sensor
AF Working Range: EV – 0.5–18 (ISO 100 at 73°F/23°C)
Focusing Modes: Autofocus: One-Shot AF, Predictive AI Servo AF, AI Focus
AF (automatic switching between One-Shot/Predictive AI Servo AF);
Manual Focus (MF)
AF Point Selection: Automatic selection, Manual AF point selection
Selected AF Point Display: Superimposed display in viewfinder; also visible
on LCD monitor
AF-assist Beam: Intermittent firing of built-in flash; Effective range: approx.
13.1 ft./4.0m at center, approx. 11.5 ft./3.5m at periphery
EXPOSURE CONTROL
Metering Modes: Max. aperture TTL metering with 35-zone SPC,
(1) Evaluative metering (linked to all AF points), (2) Partial metering
(approx. 9% at center of viewfinder), (3) Spot metering (approx. 4% of
viewfinder, (4) Center-weighted average metering
Metering Range: EV 1–20 (ISO 100 at 73°F/23°C with EF 50mm f/1.4
USM lens)
Exposure Control Systems: Program AE (shiftable), Shutter-priority AE,
Aperture-priority AE, Depth-of-field AE (non-shiftable), Full auto (Program
AE, non-shiftable), Programmed image control modes (Portrait, Landscape,
Close-up, Sports, Night Portrait, Flash OFF), Manual exposure (including
bulb), E-TTL II autoflash program AE
ISO Speed Range: Basic Zone: equivalent to ISO 100–800* set automatical-
ly; Creative Zone: equivalent to ISO 100–1600* (in 1/3-stop or whole stop
increments), Auto * Standard output sensitivity. Recommended exposure index.
Exposure Compensation: (1) User-set with multi-controller (2) AEB (Auto
Exposure Bracketing); Bracketing range: +/
–
2stops in 1/3- or 1/2-stop
increments
AE Lock: Auto: Applied in One-Shot AF mode with evaluative metering when
focusis achieved
User-set: Applied with AE lock button
VIEWFINDER
Type: Eye-level SLR pentamirror
Coverage: Approx.95% horizontally and vertically
Magnification: 0.87x (
–
1dpt with 50mm lens at infinity)
Eyepoint: Approx. 19mm
Dioptric Adjustment Correction:
–
3.0 to +1.0 diopter
Mirror: Quick-return half mirror (Transmission: reflection ratio of 40:60, no
mirror cut-off with EF 600mm f/4L IS USM or shorter lenses)
Viewfinder Information: AF (AF points, focus confirmation light), Exposure
(shutter speed, aperture, AE lock, exposure level, ISO speed, spot metering
circle, exposure warning) Flash (flash ready, high-speed sync, FE lock, flash
exposure compensation, Red-eye correction light), Image (monochrome
shooting, white balance correction, maximum burst, SD memory card infor-
mation)
Depth-of-Field Preview: Enabled with depth-of-field preview button;
possible in Live View Function
SHUTTER
Type: Focal-plane shutter with all speeds electronically controlled
Shutter Speeds: 1/4000 to 60 sec. (1/3-stop increments), X-sync at 1/200 sec.
Shutter Release: Soft-touch electromagnetic release; shutter lag-time
approx. 0.1 sec.
Self-Timer: 10 sec.delay, 2 sec. delay, continuous shooting
Remote Control: Remote Switch RS-60E3
BUILT-IN FLASH
Type: Auto pop-up, retractable, built-in flash in the pentamirror
Guide Number: 43 ft./13m (ISO 100)
Recycling Time: Approx. 3 sec.
Flash-ready Indicator: Flash-ready indicator lights in viewfinder
Flash Coverage: 17mm lens focal length (equivalent to 27mm in 35mm format)
Flash Metering System: E-TTL II autoflash
Flash Exposure Compensation: +/
–
2 stops in 1/3- and 1/2-stop increments
EOS External Flash or Dedicated Speedlite: E-TTL II autoflash with EX Series
Speedlites
LCD MONITOR
Type: TFT color, liquid-crystal monitor
Monitor Size: 3.0 in. diagonal with a viewing angle of approx. 170° vertical-
ly and horizontally
Pixels: Approx. 230,000 pixels
Coverage: Approx. 100%
Brightness Control: 7levels provided
DRIVE SYSTEM
Drive Modes: Single, Continuous, Self-timer/Remote control
Continuous Shooting Speed: Approx. Approx. 3.5 fps
Max. Burst During Continuous Shooting: JPEG: approx. 53 frames (Large/Fine);
RAW: approx. 6 frames; RAW+JPEG: approx. 4 frames (Large/Fine)
LIVE VIEW FUNCTION
Shooting Modes: (1) Live View shooting, (2) Remote Live View shooting
(with a computer installed EOS Utility)
Focusing: (1) Manual focus; (2) Autofocus: Quick mode: AF using AF sensor,
Live View momentarily cancelled; Live mode: AF directly from CMOS sensor
Metering Modes: Evaluative metering with the image sensor
Grid Display: Provided
Exposure Display: Simulated exposure displayed in real-time
Frame Rate: 30 fps(22 fps in magnified mode)
PLAYBACK
ImageDisplayFormat: Singleimage,9-imageindex,Jump (1/10/100 images or
shooting date), Magnified zoom (approx. 1.5x to 10x enabled in 15 steps),
Histogram, Auto rotate, Rotate
Highlight Alert: Provided (overexposed highlight areas blink)
IMAGE PROTECTION AND ERASE
Protection: Singleimageor all images in the memory card can be protected
orcancel the image protection
Erase: Single image, select images, all images in a SD/SDHC card or unprotected images
Direct Printingfromthe Camera: Enabled with the Print/Share button
CompatiblePrinters:CPand SELPHY Compact PhotoPrinters,PIXMA Photo
Printers and PictBridge compatible printers (via USB Interface Cable IFC-200PCU)
MENUS
Menu Categories: (1) Shooting (2) Playback (3) Setup (4) Custom function/My Menu
LCD Monitor Languages: 20 languages provided (English, German, French,
Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish,
Greek, Russian, Polish, Hungarian, Czech, Simplified/Traditional Chinese,
Korean, Japanese)
POWER SOURCE
Battery: One dedicated Battery Pack LP-E5
Number of Shots:
Configuration No Flash Used 50% with Flash
LP-E5
Normal Temperature (73°F/23°C) Approx. 600 Approx. 500
Low Temperature (32°F/0°C) Approx. 500 Approx. 400
The abovefigures comply with CIPA testing standards and apply when a fully-
charged Battery Pack LP-E5 is used.
DIMENSIONS AND WEIGHT (Body Only)
Dimensions (W x H x D): 5.1 x 3.8 x 2.4 in./128.8 x 97.5 x 61.9mm
Weight: 16.8 oz./475g
OPERATING ENVIRONMENT
OperatingTemperatureRange: 32–104°F/0–40°C
OperatingHumidity Range: 85% or less
• Allthe specifications above are based on Canon's Standard Test Method.
•The camera's specifications and physical appearance are subject to change with-
out notice.
All images simulated.
Canon and DIGIC, EOS and EOS Rebel are registered trademarks of Canon Inc. in the United
States and may also be registered trademarks or trademarks in other countries.
IMAGEANYWARE is a trademark of Canon U.S.A., Inc. Microsoft, Windows and Windows Vista
are trademarks or registered trademarks of the Microsoft Corporation in the United States
and/or other countries. Mac is a trademark of Apple, Inc., registered in the United States
and other countries. All other products and brand names are registered trademarks, trade-
marksor service marks of their respective owners.
SPECIFICATIONS
