Canon PowerShot SX1 IS User manual

Canon III
11111111111111
CDI-E406
~werShot SXT/S
Camera User Guide
p.9
Ensure that you read the Safety Precautions (pp. 252 -261).

Confirming the Package Contents
The following items are included in the package. If something is
missing please contact the retail outlet at which you purchased the
product.
D
ca "Canon Customer
Support" Leaflet
oLens Hood
LH-DC50
oLens Cap
eInterface Cable
IFC-400PCU
D
o
CD Warranty Card
0Neck Strap
NS-DC7
e AA-size Alkaline
Batteries (x4)
~ Canon Digital Camera
Solution Disk
G
·~~- .-
' ..... "0' .... '
\ -.' ,;
'", ,/
'1) User Guides
· rn Camera User Guide (this guide)
· rn Direct Print User Guide
(Connecting the camera to aprinter)
· rn Software Starter Guide
(Connecting the camera to acomputer)
8 Wireless Controller 9 Lithium Battery
WL-DC300 (CR2025) for
Wireless Controller
oStereo Video Cable
STV-250N
~
oCamera
See the PDF manuals available on the Canon website.
http://web.canon.jp/imaging/information-e.html
· met) ZoomBrowser EX/lmageBrowser Software User Guide
IAmemory card is not included.

Let's Get Started! 11

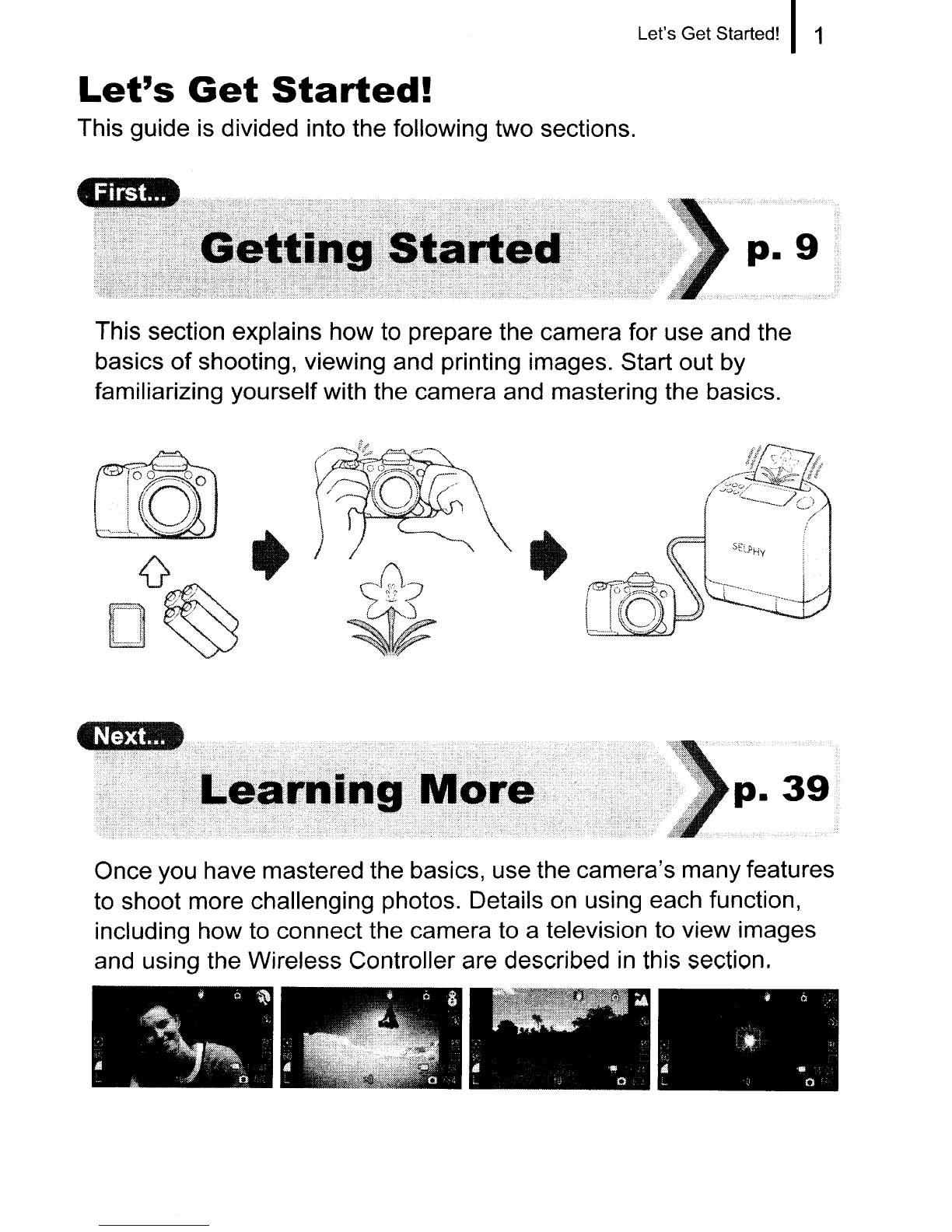

Let's Get Started!
This guide is divided into the following two sections.
This section explains how to prepare the camera for use and the
basics of shooting, viewing and printing images. Start out by
familiarizing yourself with the camera and mastering the basics.
Next .•.
.'.,."- ',".,".'" .'''' .. '.' .'. - .-'.' .-:" - .: --,' ,,',',--',,' -.,,', _·c· """",-.-:::',.
LeCirningMore ..
Once you have mastered the basics, use the camera's many features
to shoot more challenging photos. Details on using each function,
including how to connect the camera to atelevision to view images
and using the Wireless Controller are described in this section.

2ITable of Contents

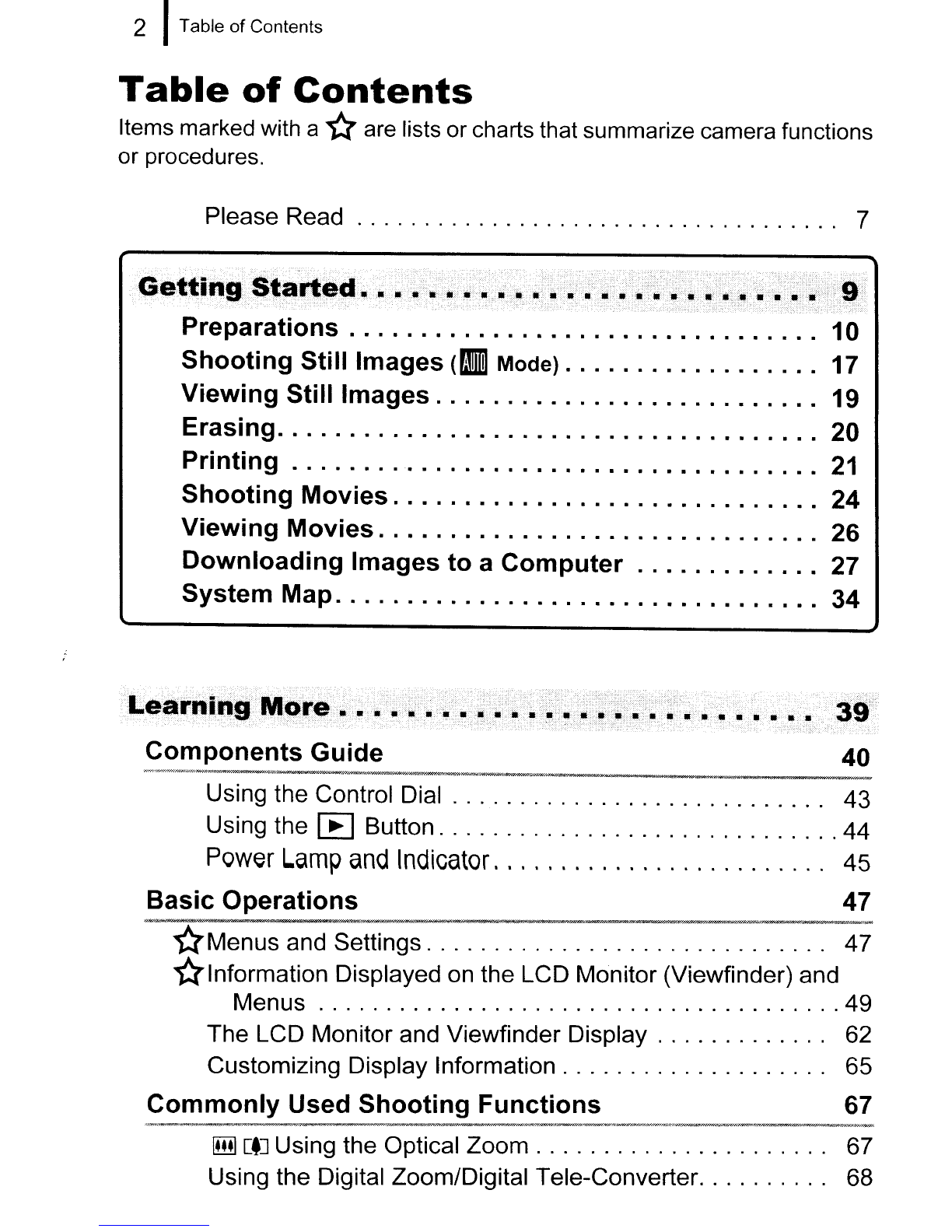

Table of Contents
Items marked with a 1::r are lists or charts that summarize camera functions
or procedures.
Please Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 7
Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 10
Shooting Still Images al~ Mode) ................ .. 17
Viewing Still Images. . . . . . . . . . . . . . . . . . . . . . . . . .. 19
Erasing 20
Printing ........ .. . . . . . . . . . . . . . . . . . . . . . . . . . . .. 21
Shooting Movies. ........................... .. 24
Viewing Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 26
Downloading Images to a Computer . . . . . . . . . . . .. 27
System Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 34
te'arn'i.tt"NI~~~~> ". 39';-:
Components Guide 40
·'~"'·,:·;'--»:W";·J«?>~X,,",·""'1"''''''''~_»;'~~_W~~_« __ ~_'--~'C 6'''W'<~~·_'_:o;,:",,_l ... _,_. _.IH: _._. _
Using the Control Dial .......................... .. 43
Using the
[8 Button 44
Power Lamp and Indicator. . .. .. . . .. .. . ... . .. . .. . .. 45
Basic Operations 47
-...r.T ~ 6lil. ~- il:iOl:l S"._'·'~I~'5i.m. <oI<""""'''''' '¥!'
1::r Menus and Settings. ........................... .. 47
1::r Information Displayed on the LCD Monitor (Viewfinder) and
Menus 49
The LCD Monitor and Viewfinder Display ...........
.. 62
Customizing Display Information . . . . . . . . . . . . . . . . . .
.. 65
Commonly Used Shooting Functions 67
.-<-;_._'.-1.'.0.,-) ",.",.~ __ """"~_9'..s __ ;q_"..._.-u.k "'?OO'l'l?O'_~_~_,.;v""",..p,,,,_
IillI [tJ Using the Optical Zoom. ................... .. 67
Using the Digital Zoom/Digital Tele-Converter. .......
.. 68

Table of Contents I3
~ Using the Flash. ........................... .. 72
~ Shooting Close-ups (Macro/Super Macro) . . . . . . . .. 73
i ~ Using the Self-Timer. ....................... .. 75
8Changing the Aspect Ratio. . . . . . . . . . . . . . . . . . . .. 80
Changing the Recording Pixels (Still Images) . . . . . . . .
.. 81
Changing the Compression (Still Images) ........... .. 83
Setting the Image Stabilizer Function . . . . . . . . . . . . . .
.. 84
11501 Adjusting the ISO Speed. .................... .. 86
Reducing Camera Shake When Shooting (Auto ISO Shift) 87
Shooting Using the Mode Dial 89
Mode Dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 89
-" Movie Shooting ...... .. 90
Setting the Recording Functions. . . . . . . . . . . . . . . . . .
.. 95
Shooting Modes for Specific Scenes. . . . . . . . . . . . . . .
.. 97
PProgram AE ............................. .. 101
Tv Setting the Shutter Speed . . . . . . . . . . . . . . . . . . .. 102
Av Setting the Aperture. . . . . . . . . . . . . . . . . . . . . . . .. 104
MManually Setting the Shutter Speed and Aperture.. 106
[Q Shooting Panoramic Images (Stitch Assist). . . . . .. 108
Various Shooting Methods 110
~ Continuous Shooting. ....................... .. 110
Setting the Flash .............................
.. 112
Checking the Focus and People's Expressions. .....
.. 115
Switching between Focus Settings ...............
.. 119
EB Selecting an AF Frame Mode. . . . . . . . . . . . . . . . . .. 120
Selecting aSubject to Focus On (Face Select and Track) 124
Shooting with Servo AF . . . . . . . . . . . . . . . . . . . . . . . .
.. 126
Shooting Hard-to-Focus Subjects (Focus Lock, AF Lock,
Manual Focus, Safety MF). ................... .. 127
Focus Bracketing (Focus-BKT Mode) .............
.. 132
Locking the Exposure Setting (AE Lock) ...........
.. 133
Locking the Flash Exposure Setting (FE Lock) ......
.. 135
Ii' Adjusting the Exposure Compensation "136
Shooting while Brightening Dark Areas (i-Contrast)
.. "137
Auto Exposure Bracketing (AEB Mode). . . . . . . . . . . .
.. 138

4ITable of Contents
Switching between Metering Modes . . . . . . . . . . . . . . .. 139
Adjusting the Tone (White Balance) ..............
.. 141
Shooting in aMy Colors Mode. . . . . . . . . . . . . . . . . . . .. 144
Changing the Colors and Shooting . . . . . . . . . . . . . . .
.. 147
Categorizing Images Automatically (Auto Category). .
.. 152
CSaving Custom Settings. . . . . . . . . . . . . . . . . . . . . .. 153
Registering Functions to the
~1tV' Button 154
Setting My Menu .............................
.. 156
Playback/Erasing 158
_ .... >!o>'..:-:_..w.-_~ . ,e,,~ ..... ......, . _«,~~.>«.o.:'1- '-': :«OOOO~l< 11:1' ""w':->:
QViewing Magnified Images . . . . . . . . . . . . . . . . . . . .. 158
~Viewing Images in Sets of 12 (Index Playback) ... .. 159
Checking the Focus and People's Expressions
(Focus Check Display). ......................
.. 160
~ Jumping to Images. . . . . . . . . . . . . . . . . . . . . . . . . .. 162
Organizing Images by Category (My Category). . . . . .
.. 164
Trimming aPortion
of an Image. . . . . . . . . . . . . . . . . . .. 167
Viewing Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 170
Editing
Movies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 174
Rotating Images
in the Display . . . . . . . . . . . . . . . . . . .. 177
Playback with Transition Effects .................
.. 178
Automated Playback (Slide Shows). . . . . . . . . . . . . . .
.. 179
Red-Eye Correction Function. ...................
.. 185
Brightening Dark Areas (i-Contrast). . . . . . . . . . . . . . .
.. 190
Adding Effects with the My Colors Function . . . . . . . .
.. 192
Re5iling Image5 ............................... 194
~ Attaching Sound Memos to Images ... . . . . . . . . . .. 196
Sound-Only Recording (Sound Recorder). . . . . . . . . .
.. 197
Protecting
Images. ........................... .. 199
Erasing
Images. ............................. .. 203
Print Settings/Transfer Settings 2~
Setting the DPOF Print Settings ................. .. 209
Setting the DPOF Transfer Settings ..............
.. 217
Configuring the Camera 219
Power Saving Function ........................ .. 219

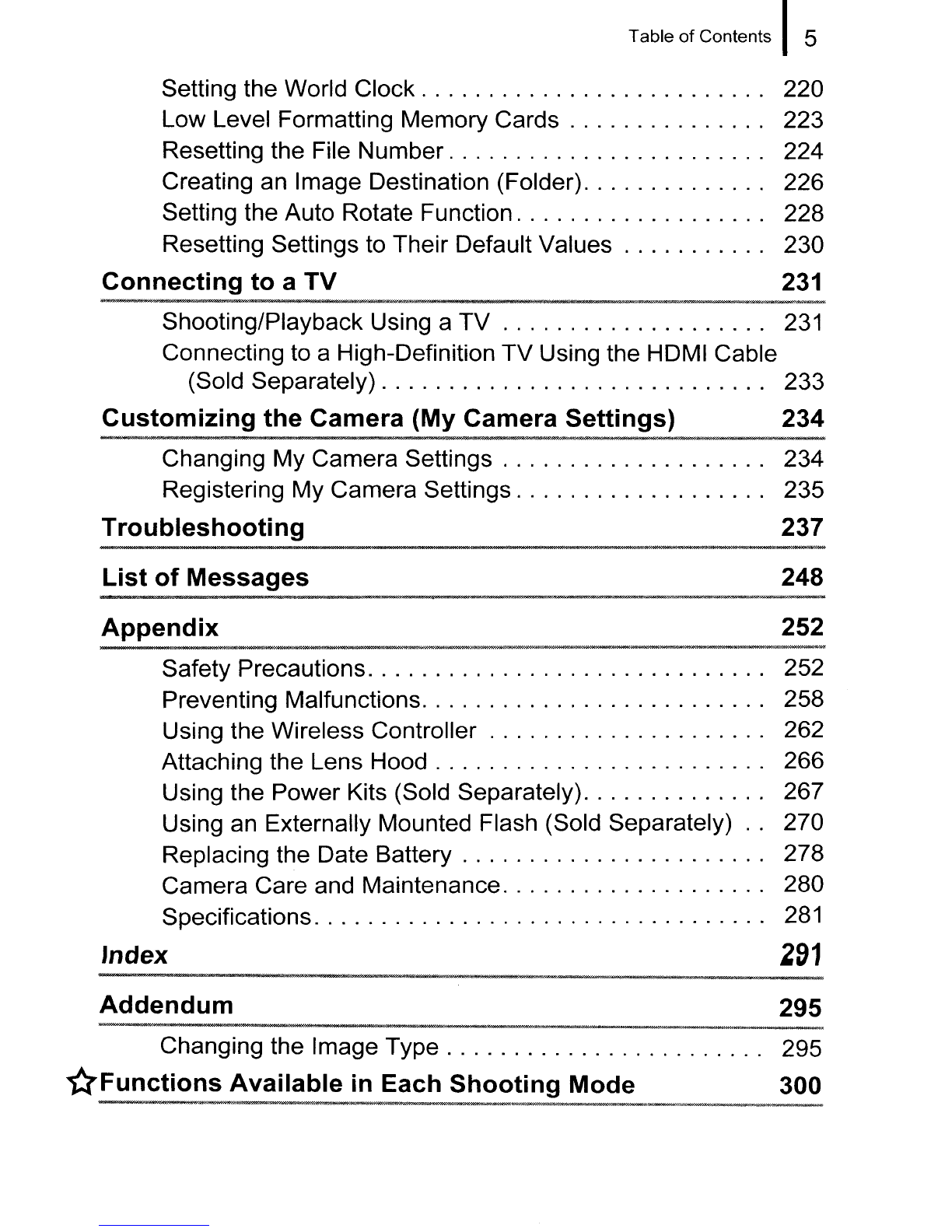

Table of Contents I5
Setting the World Clock. . . . . . . . . . . . . . . . . . . . . . . . .. 220
Low Level Formatting Memory Cards . . . . . . . . . . . . .
.. 223
Resetting the File Number. . . . . . . . . . . . . . . . . . . . . .
.. 224
Creating an Image Destination (Folder). . . . . . . . . . . .
.. 226
Setting the Auto Rotate Function. . . . . . . . . . . . . . . . .
.. 228
Resetting Settings to Their Default Values .........
.. 230
Connecting to a TV 231
_ ;w'.w=>'~ __ ' ~~ '" J/:<S;S __ ,,,,,,,;,:,~~"'''l:'';&S'\
Shooting/Playback Using a TV . . . . . . . . . . . . . . . . . . .. 231
Connecting to aHigh-Definition TV Using the HDMI Cable
(Sold Separately) ...........................
.. 233
Customizing the Camera (My Camera Settings) 234
n,,=,' lll'R ~;s~ 'ill "S:S J %?:I/:
Changing My Camera Settings .................. .. 234
Registering My Camera Settings. . . . . . . . . . . . . . . . .
.. 235
Troubleshooting 237
List of Messages 248
Appendix 252
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 252
Preventing Malfunctions. .......................
.. 258
Using the Wireless Controller . . . . . . . . . . . . . . . . . . .
.. 262
Attaching the Lens
Hood. . . . . . . . . . . . . . . . . . . . . . . .. 266
Using the Power Kits (Sold Separately). ...........
.. 267
Using an Externally Mounted Flash (Sold Separately)
.. 270
Replacing the Date Battery .....................
.. 278
Camera Care and Maintenance. .................
.. 280
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 281
Index 291
Addendum 295
Changing the Image Type. ..................... .. 295
*Functions Available in Each Shooting Mode 300
m.,o, _.".,.,~ _

6IAbout this Guide
About this Guide ,
Symbol Conventions in this Guide
, '721
[Q]-. Mode:
» p.300 Shooting (101)/
Playback (11:B I)
Av "table Shooting Modes
11 Raise t_~e flash
Some functions may not be available in certain shooting modes.
If there is no notation to that effect, the function may be used in all modes.
I ~ Using the Flash
This mark denotes issues that may affect the camera's
operation.
This mark denotes additional topics that complement the basic
operating procedures.
Explanations
in this guide are based on the camera's default settings
at time of purchase.
The illustrations and screenshots used
in this guide may differ from
the actual camera.
r ... y~u can use SO me~~ry ~~rd~~OHC (SO High Capacity) memory
ISd1'''' cards, MultiMediaCards, MMCplus cards and HC MMCplus cards in
;t. I:I:i:I this camera. These are collectively referred to a. s m .. em.ory cards in
this guide.
~_.-~. """",_\<l __ ~ '~_'_"<':""U"'<'W·""" __ """""<"!'·-' _

Please Read I7

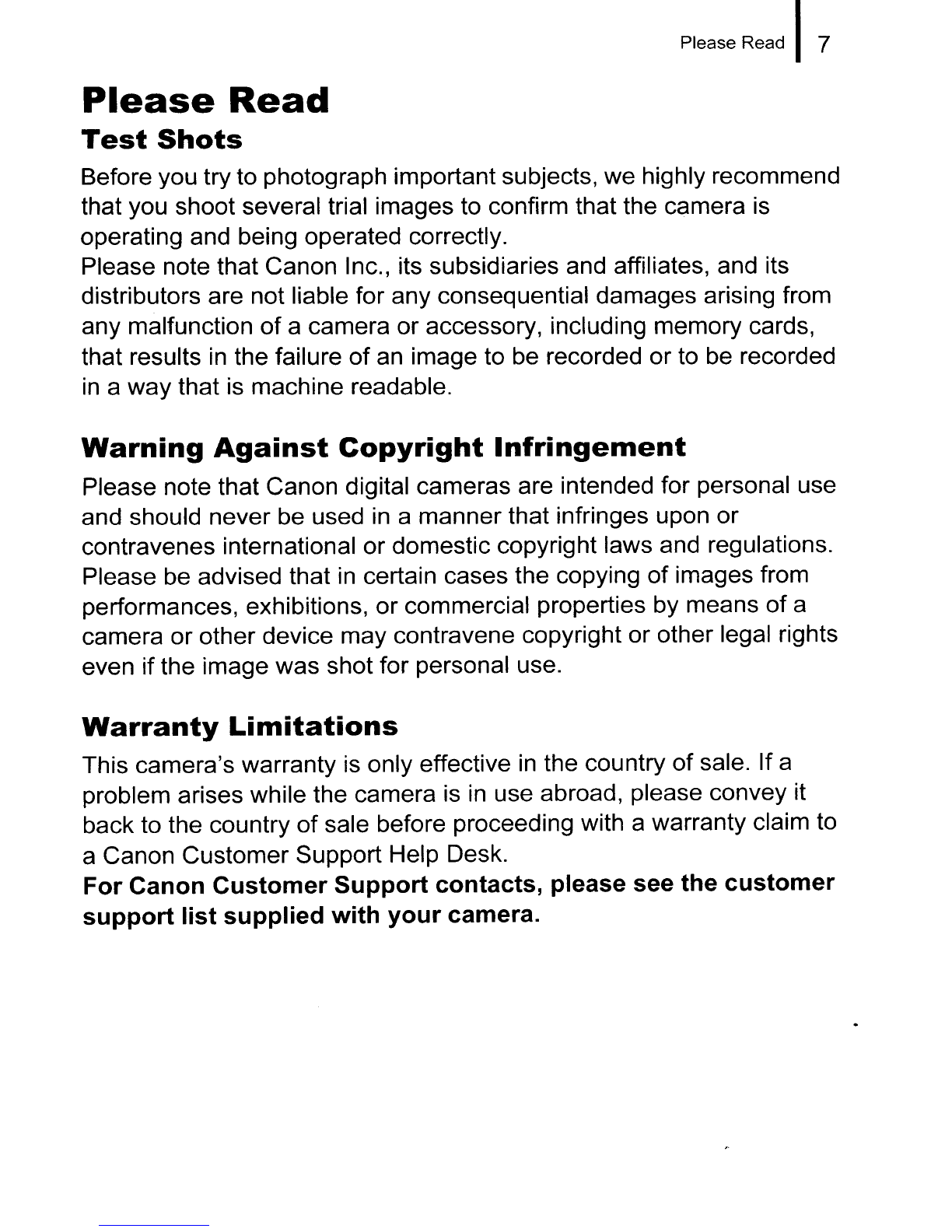

Please Read
Test Shots
Before you try to photograph important subjects, we highly recommend
that you shoot several trial images to confirm that the camera is
operating and being operated correctly.
Please note that Canon Inc., its subsidiaries and affiliates, and its
distributors are not liable for any consequential damages arising from
any malfunction of acamera or accessory, including memory cards,
that results in the failure of an image to be recorded or to be recorded
in away that is machine readable.
Warning Against Copyright Infringement
Please note that Canon digital cameras are intended for personal use
and should never be used in amanner that infringes upon or
contravenes international or domestic copyright laws and regulations.
Please be advised that in certain cases the copying of images from
performances, exhibitions, or commercial properties by means of a
camera or other device may contravene copyright or other legal rights
even if the image was shot for personal use.
Warranty Limitations
This camera's warranty is only effective in the country of sale. If a
problem arises while the camera is in use abroad, please convey it
back to the country of sale before proceeding with awarranty claim to
aCanon Customer Support Help Desk.
For Canon Customer Support contacts, please see the customer
support list supplied with your camera.

8IPlease Read

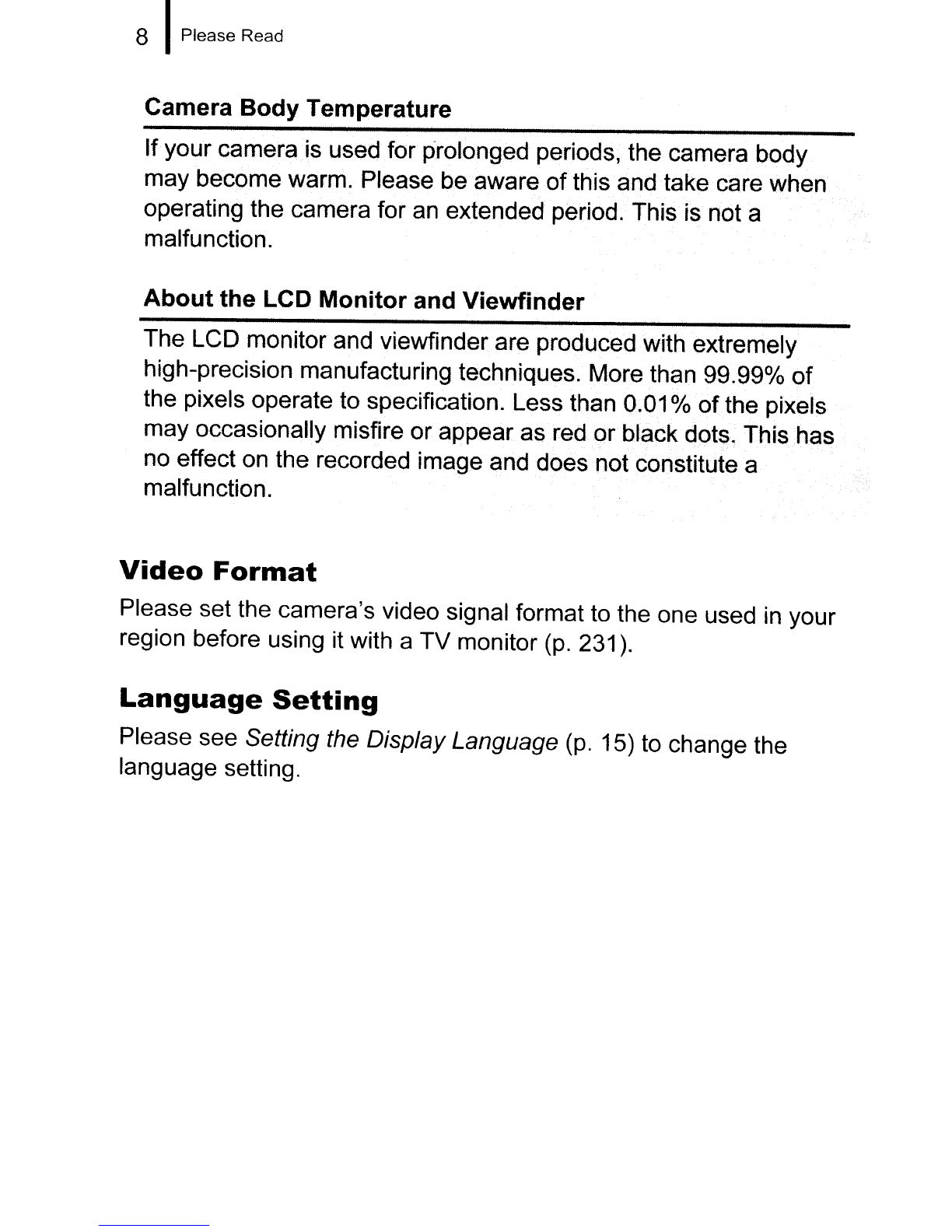

Camera Body Temperature
If your camera is used for p'rolonged periods, the camera body
may become warm. Please be aware
of this and take care when
operating the camera for an extended period. This is not a
malfunction.
About the LCD Monitor and Viewfinder
The LCD monitor and viewfinder are produced with extremely
high-precision manufacturing techniques. More than
99.990/0 of
the pixels operate to specification. Less than 0.01 0 10 of the pixels
may occasionally misfire
or appear as red or black dots. This has
no effect on the recorded image and does not constitute a
malfunction.
Video Format
Please set the camera's video signal format to the one used in your
region before using it with a
TV monitor (p. 231).
Language Setting
Please see Setting the Display Language (p. 15) to change the
language setting.

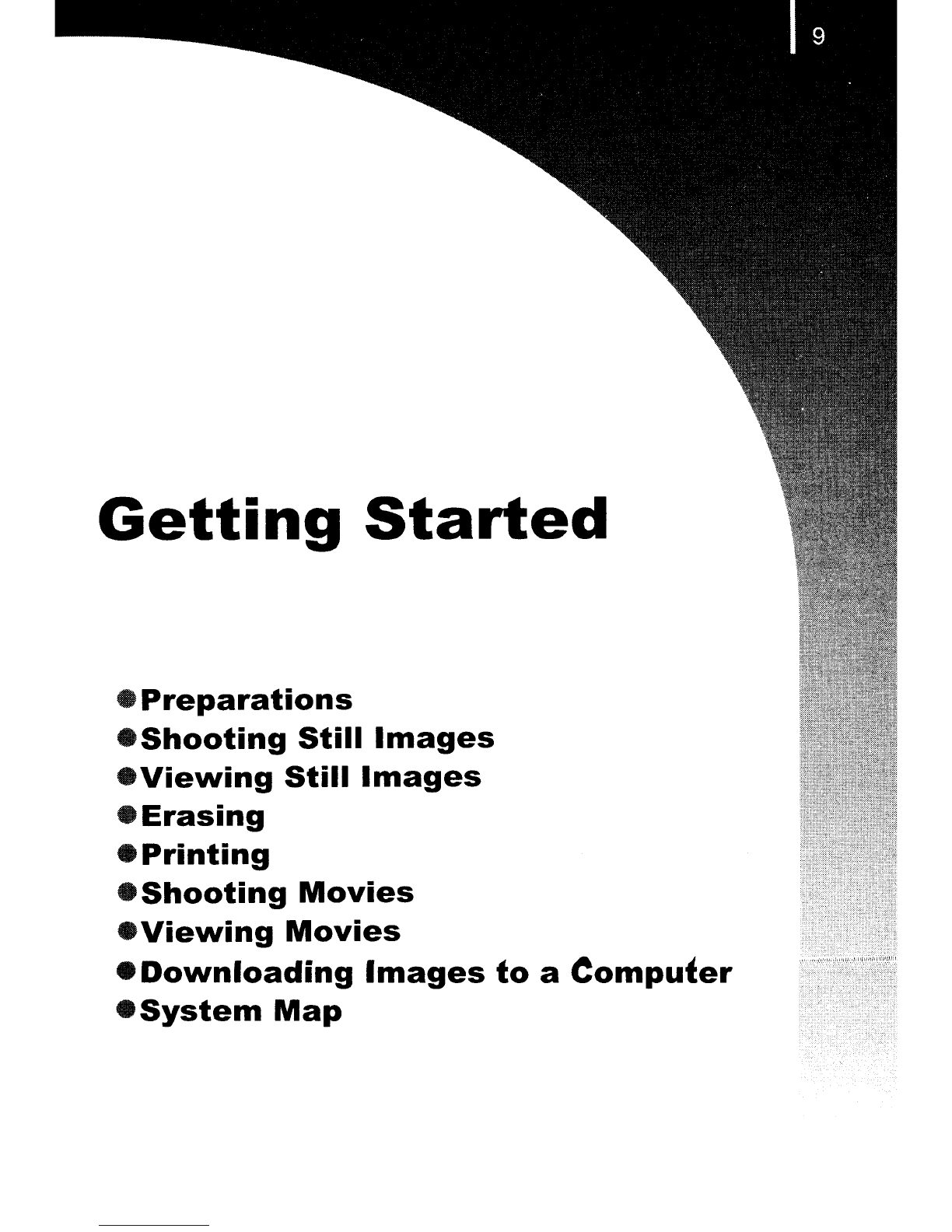

Getting Started
• Preparations
.Shooting Still Images
eViewing Still Images
eErasing
.Printing
• Shooting Movies
eViewing Movies
e Downloading Images to a Computer
eSystem Map

Insert the four ""
supplied AA-size
alkaline batteries.
Positive end (+)
Cover Lock
10 IPreparations
Negative end (-)-_
3. CIOSA thA eOVQr (@), and press downward as you slide
it until it clicks into place (@).
Slide the cover
in the direction
shown
((~))
2. Install four batteries.
I Installing the Batteries and Memory Card
1. Slide the cover lock (CD) and hold it open while sliding
the cover (@) and opening it (@).

Preparalions 111
rc;-~ Write Protect Tab
(only SO and SOHC
memory cards)
• Confirm that the write protect tab is
unlocked (only SO and SOHC
memory cards).
• Check the card for the correct
orientation.
UTake care that you do not drop the batteries.
2. Insert the memory card until it clicks into place.
To Remove the Batteries
Open the cover and remove the batteries.
I Installing the Memory Card
1. Slide the cover (CD) and open it (@).

Ensure that the memory card is correctly oriented before
inserting it in the camera. Inserting it backward may cause the
camera to fail to recognize the memory card or to malfunction.
Attaching/Removing the Lens Cap
Press both sides of the lens cap (CD),
and remove it (@).
•To avoid losing the lens cap, we
recommend clipping it to the neck
strap after removing it (p. 13).
•When not in use, store the camera
with the lens cap attached.
~ -. Be sure. toremove the lens cap before turning on the
" camera.
121 Preparations
To Remove the Memory Card
Push the memory card with your finger until the memory card clicks
and then release it.
3. Close the cover (@) and slide until it clicks (@).

Attaching the Neck Strap
In order to··avoid.dropping the camera, we recommend
attaching the neck strap before using the camera.
Pull the strap tight in the buckle so
that it does not slip. Perform the
same steps on the other side of the
camera.
You can also clip the lens cap to
the strap.
Preparations 113
2. Tilt it forward 180 degrees
toward the lens
or backward
90 degrees.
When the LCD monitor is tilted 180
degrees toward the lens, the
displayed image is automatically
flipped and reversed (Reverse
Display function).
*The Reverse Display function can be set to off (p. 55).
You can use the LCD monitor to compose pictures before shooting,
operate menus
or play back images. You can position the LCD monitor
in the following ways.
1. Move it right or left.
I Opening the LCD Monitor

141 Pr~parations
Q Button
~
MENU Button
Control Dial
,...--Power Button
Always keep the LCD monitor closed with the display facing the
camera body when the camera is not
in use. When you push
the LCD monitor until you hear the clicking sound, the LCD
monitor will automatically turn off, and the image will display
in
the viewfinder.
The Date/Time settings menu will appear the first time the power is
turned on.
1. Press the power button.
2. Select the month, day, year
and time, and the display
order.
1. Use the .. or .. button to
select an option.
2. Use the" or .. button to
set the value.
•You can also set the value by using the control dial.
3. Press the @ button.
3. Fold the LCD monitor back against
the camera body until it clicks into
place.
When the LCD monitor clicks into place, the
image will display normally (not reversed).
I Setting the Date and Time

Preparations 115
You can change the language displayed in the LCD monitor menus
and messages.
I Setting the Display Language
[B Button
~:rr-@ Button
pf;~'
~~GpJl~
~
.... /+/ .. /. Buttons
[j] The date/time setting screen will appear when the capacity of
the lithium date/time battery is depleted (p. 278).
To Change a Previously Set Date/Time
Use the following procedures to display the DatelTime settings menu,
and then perform Steps 2and 3on the previous page.
1. Press the MENU button.
2. Use the" or .. button to
select the (i] (Set up) menu.
3. Use the .... or +button to
select [Date/Time].
4. Press the @button.
~ Qri+-MENU Button
cu...=::::::::::::::=-.Jli~
1. Press the [B (Playback) button.
2. Hold down the @button and press the MENU button.
3. Use the .... ,+, .. or .. button to select alanguage.
4. Press the @button.

Displays when sound
data recorded with the
sound recorder is present.
C-+f-MENU Button
e:t=~~~:u-
Please note that formatting (initializing) amemory card erases
all data, including protected images (p. 199) and sound data
recorded with the sound recorder (p. 197).
16 IPreparations
1. Press the power button.
2. Select [Format].
1. Press the MENU button.
2. Use the • or + button to
select the iii menu.
3. Use the ... or ... button to
select [Formst].
4. Press the @ button.
3. Format a memory'card.
1. Use the • or + button to
select [OK).
2. Press
the @ button.

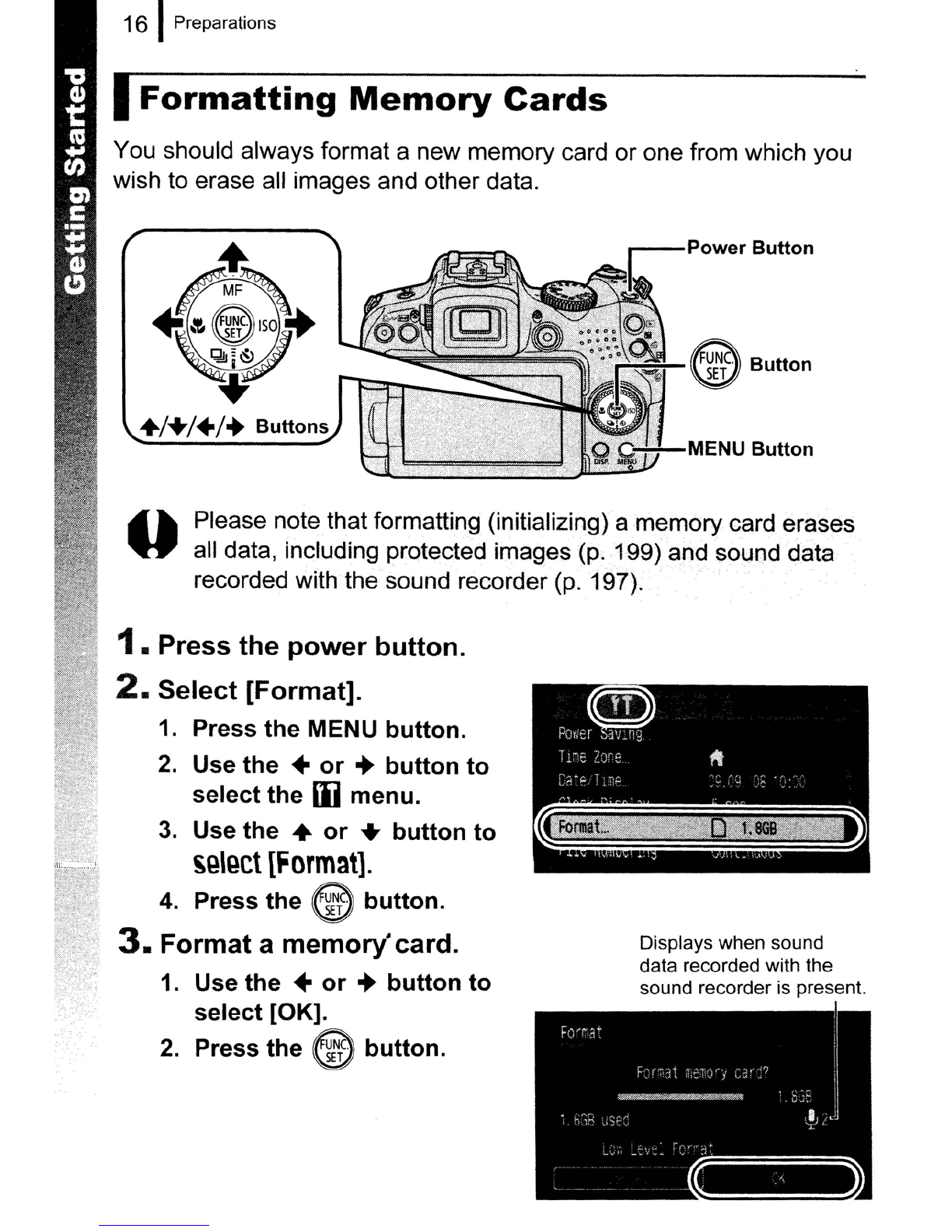

You should always format anew memory card or one from which you
wish to erase all images and other data.
I Formatting Memory Cards

Viewfinder
Power Button
r----Shutter Button
Shooting Still Images 117
Mode Dial
~
• ZA .<C I<C ",;.:e:",:",~_,:; _, __ » __ ~_---""
4. Press the shutter button lightly (halfway) to focus.
•When the camera focuses, it beeps twice.
•If
lI] blinks red, we recommend shooting with aflash (p, 72) (the
message "Raise the flash" also appears
in W> mode).
3. Aim the camera at the
subject.
1. Press the power button.
•The start-up sound will play and the start-up image will display in
the LCD monitor. However, when switching to the viewfinder
display and starting, the start-up image is not displayed and there
is no startup sound.
•Pressing the power button again turns the power off.
2. Select a shooting mode.
1. Set the mode dial to W>.
Avoid ing Camera Shake
Keep your arms tight against your body
.while holding the camera firmly by the
sides. Using atripod is also effective.

181 Shooting Still Images

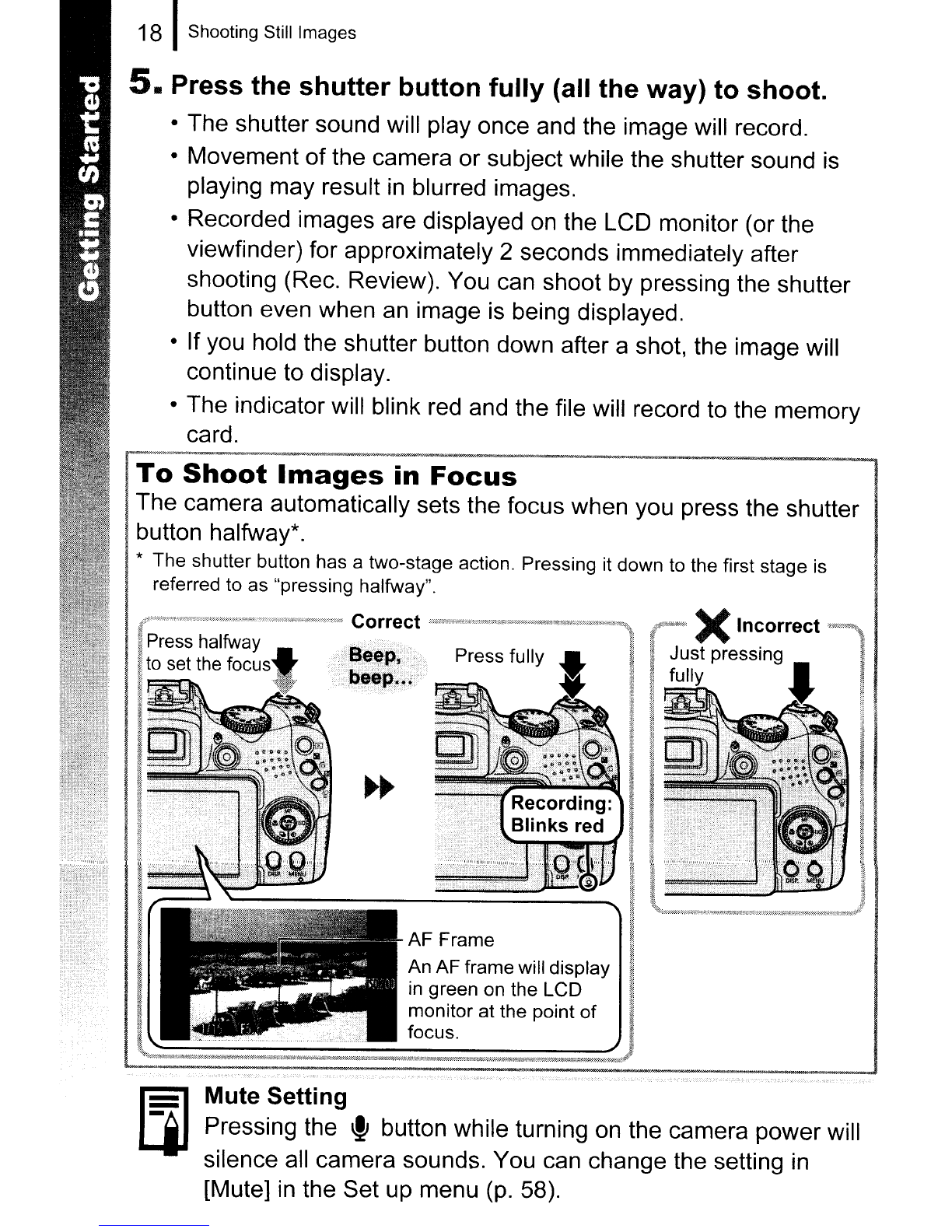

5. Press the shutter button fully (all the way) to shoot.
•The shutter sound will play once and the image will record.
•Movement
of the camera or subject while the shutter sound is
playing may result in blurred images.
•Recorded images are displayed
on the LCD monitor (or the
viewfinder) for approximately 2seconds immediately after
shooting (Rec. Review). You can shoot by pressing the shutter
button even when an image is being displayed.
•If you hold the shutter button down after ashot, the image will
continue to display.
•The indicator will blink red and the file will record to the memory
card.
To Shoot Images in Focus
The camera automatically sets the focus when you press the shutter
button halfway*.
*The shutter button has atwo-stage action. Pressing it down to the first stage is
referred to as "pressing halfway".
AF Frame
An AF frame will display
in green on the LCD
monitor at the point of
focus.
Mute Setting
Pressing the
~ button while turning on the camera power will
silence all camera sounds. You can change the setting
in
[Mute] in the Set up menu (p. 58).
