Safety Precautions
The precautions noted within this guide are intended to instruct you in the safe and
correct use of the products and to prevent injuries or damage to yourself, other
persons and property. Please read and ensure that you understand them before
proceeding to other sections of the guide.
Trademark Acknowledgments
• Microsoft®and Windows®are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
• Other names and products not mentioned above may be registered trademarks or trademarks of their
respective companies.
Copyright © 2005 Canon Inc. All rights reserved.
This symbol indicates topics that could lead to death or serious injury if ignored
or handled incorrectly.
Do not play the supplied CD-ROM(s) in any CD player that does not support data CD-ROMs. Playing the
CD-ROM(s) in an audio CD player (music player) could damage the speakers. It is also possible to suffer
from hearing loss from listening with headphones to the loud sounds of a CD-ROM played on a music CD
player.
Disclaimer
• While every effort has been made to ensure that the information contained in this guide is accurate and
complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change
the specifications of the hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken
operation or malfunction of the camera, the software, memory cards, personal computers, peripheral
devices, or use of non-Canon memory cards.
Symbols Used in This Document
Indicates important items or prohibited actions that should always be observed when
operating the machine. These should always be read to avoid damage to the
machine or improper operation.
Indicates items for reference or supplementary information that should be noted by
users.
Warning
Warning

4
Read This First
About the Manuals
These user guides describe how to connect the printer to a computer and
print images.
Printer User Guide
Contains the information necessary to print from your
computer, including printer preparation and handling
notes, names of parts, installation of necessary software
and the printer driver, and connection of the printer to
your computer. Please read before using the printer.
This user guide
Describes how to print using the software provided on the
supplied CD-ROM (Canon CP Printer Solution Disk).
Screen shots from Windows XP are used for illustration. Operations and screen
shots may differ according to your operating system or its version.
For detailed procedures on using the software, refer to the [Help] accompanying
each software application.
If a problem occurs, refer to the following:
• Trouble with the printer itself: See the Printer User Guide.
• Printing problems: See this user guide.

5
Printing Flow Diagram
Follow the steps outlined below to prepare the printer and install the
necessary software on your computer to enable printing.
Prepare the printer.
Insert the paper cassette and ink cassette into the printer.
See the Printer User Guide.
Install the software and printer driver on your
computer.
Install the necessary software and printer driver on your
computer from the CP Printer Solution disk.
See the Printer User Guide.
Connect the printer to your computer.
Connect the printer with a commercially available USB cable,
and then turn on the printer.
See the Printer User Guide.
Printing.
Print in a variety of layouts.
See
Printing Single Images onto Single Sheets (➡p.7),
Printing on 8-Label Sheets (➡p.10),
Printing with Custom Image Layouts (➡p.20)
in this user guide.

6
Printing
This section describes how to print with Easy-PhotoPrint, PhotoRecord, and
PhotoStitch. These software applications are included on the Canon CP
Printer Solution Disk. They simplify the printing process.
Before printing, verify that the printer is on, and that the printer is properly
connected to your computer with a USB cable.
• Printers and computer displays use different color reproduction methods,
and lighting conditions and display settings affect the appearance of
colors on your computer’s display. Therefore, the colors in prints may
differ from what you see on the screen. This is not a printer problem.
• Do not change the spool settings. The status monitor may not function
correctly.
• For how to install the software, see the Printer User Guide.
• Camera information such as scene and photographic conditions are
embedded in images captured with cameras compatible with Exif 2.2
(referred to as Exif Print).
• Easy-PhotoPrint and PhotoRecord allow you to print clearer, better-
looking images, because they automatically optimize print quality (as the
default setting) for images captured with cameras that support Exif 2.2,
as well as other images.
• PhotoStitch enables you to merge multiple images to create a panoramic
image.
• PhotoRecord enables you to print with custom image layouts. This is
useful for creating greeting cards and so on.

7
Printing Single Images onto Single Sheets
This example prints a single image, fit to a whole sheet, with no borders.
1 Double-click the [Easy-PhotoPrint] icon on the desktop to start the
program.
If the [Easy-PhotoPrint] icon does not appear on the desktop, click the [Start]
menu and select [Programs] or [All Programs], followed by [Canon Utilities],
[Easy-PhotoPrint] and [Easy-PhotoPrint].
2 Select the folder in which the image you want to print is saved.
Follow the displayed
instructions.

8
3 Click the image you want to print.
The color of the frame around the thumbnail you selected will change to be
blue.
To change the number of copies, click the [▼] and [▲] buttons under the image.
4 Click the [2 Paper Selection] tab, then select the name of the
printer model and paper size to use.
You can create panoramic images (➡p.13) by merging multiple images,
and then printing them on wide paper.
Number of copies

9
5 Click the [3 Layout/Print] tab and select a layout.
6 Click [Print] in the top right of the window.
Printing starts.
With borderless printing, a slight border is trimmed from the image
during printing.
If you stop printing while printing is in progress, paper is ejected to the
paper handling slot and a printing error may occur. This is not a
malfunction, but a mechanism for protecting the print head.
If you interrupt printing while it is in progress, be sure to check the printer
status.
•If the ON/OFF button lights green:
You can continue to print.
•If the ON/OFF button lights red:
Temporarily remove paper from the paper handling slot. Turn the
printer off and then back on again. Confirm that the ON/OFF button
lights green before printing again.
Note that when printing is interrupted, one print’s equivalent of the ink
cassette’s ink sheet is used.

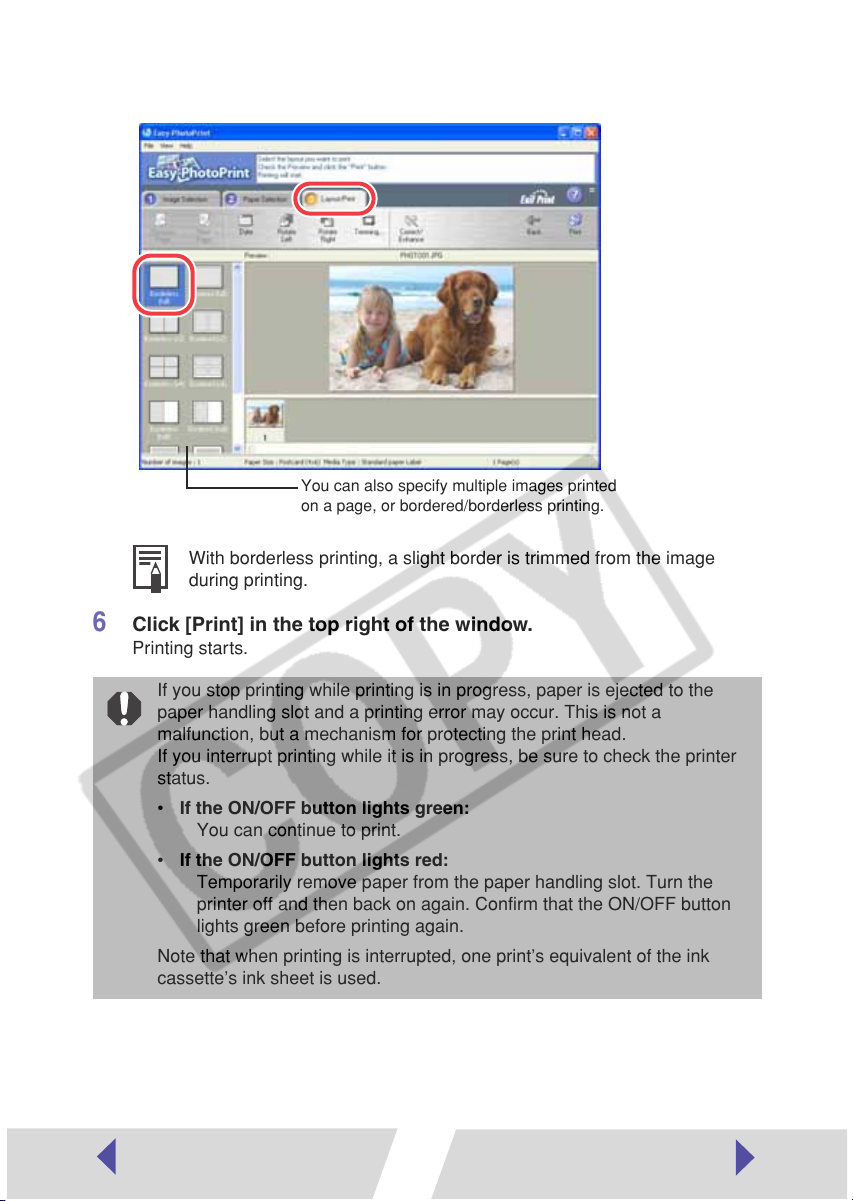

You can also specify multiple images printed
on a page, or bordered/borderless printing.

10
Printing on 8-Label Sheets

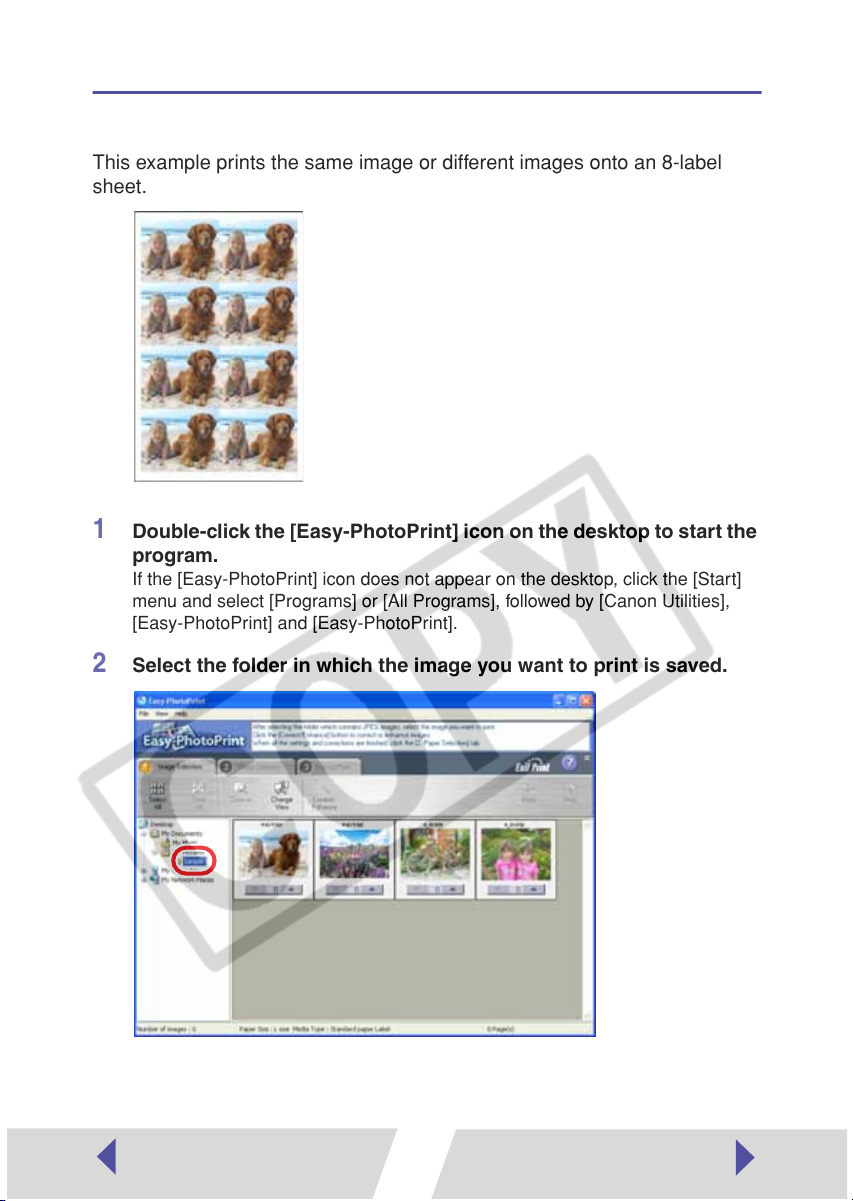

This example prints the same image or different images onto an 8-label
sheet.
1 Double-click the [Easy-PhotoPrint] icon on the desktop to start the
program.
If the [Easy-PhotoPrint] icon does not appear on the desktop, click the [Start]
menu and select [Programs] or [All Programs], followed by [Canon Utilities],
[Easy-PhotoPrint] and [Easy-PhotoPrint].
2 Select the folder in which the image you want to print is saved.

11
3 Click the image you want to print.
The color of the frame around the thumbnail you selected will change to blue.
To print the same image on all labels, click the [▼] and [▲] buttons below the
image to specify “8”.
To print different images, make sure the total number of copies is “8”.
4 Click the [2 Paper Selection] tab, and then select [8 stickers].

12
5 Click the [3 Layout/Print] tab, and then select a layout.
6 Click [Print] in the top right of the window.
Printing starts.

13
Merging Images to Print a Panorama
You can create panoramic images by merging multiple images, and then
printing them on wide paper.
1 Click the [Start] menu and select [Programs] or [All Programs],
followed by [Canon Utilities], [PhotoStitch] and [PhotoStitch].
2 Click the [PhotoStitch 3.1] icon in the PhotoStitch Launcher
window.
When you use images captured with a Canon digital camera in Stitch Assist
mode, PhotoStitch determines the order and direction of the composition
automatically, simplifying the composition process.

14
3 Click [Open].
4 Select the images you want to merge in the window that is
displayed, and then click the [Open] button.
5 Merge the images following the instructions in the guidance panel
at the top of the PhotoStitch window.
6 Save your panoramic image, and then click the to close
PhotoStitch.
7 Print the panoramic image.
To print the merged images, see Printing Single Images onto Single
Sheets (➡p.7).
Follow the displayed
instructions.

15
Printing Part of an Image (Trimming)
You can select and then print a portion of an image. This is useful when you
only want to print part of an image, or if the part you are most interested in is
not at the center of the image.
1 Double-click the [Easy-PhotoPrint] icon on the desktop to start the
program.
If the [Easy-PhotoPrint] icon does not appear on the desktop, click the [Start]
menu and select [Programs] or [All Programs], followed by [Canon Utilities],
[Easy-PhotoPrint] and [Easy-PhotoPrint].
The Image Selection window is displayed.
2 Select the folder in which the image you want to trim is saved.
Since a slight border is trimmed from the image during borderless printing, we
recommend that you select an area that is slightly larger than the part of the
image you want to print.

16
3 Click the image you want to trim.
The color of the frame around the thumbnail you selected will change to blue.

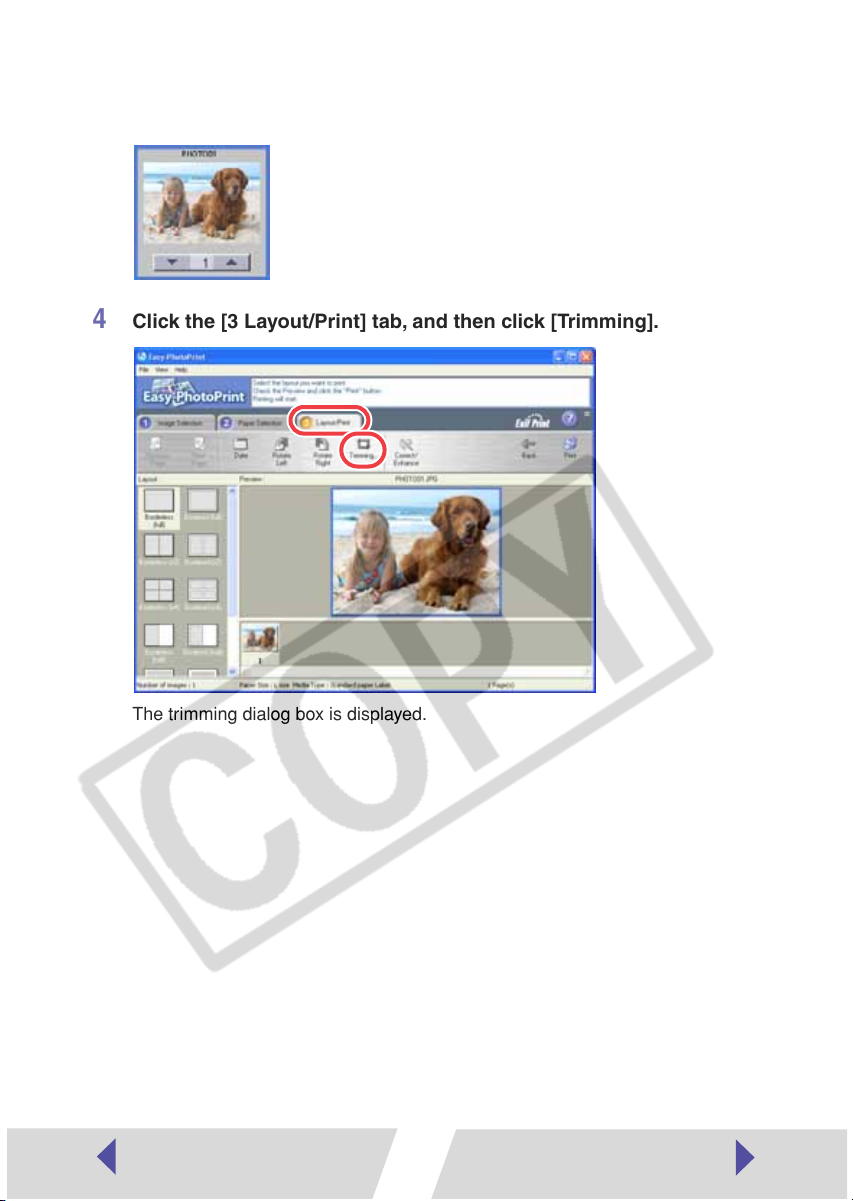

4 Click the [3 Layout/Print] tab, and then click [Trimming].
The trimming dialog box is displayed.

17
5 Select the area you want to print.
The area inside the white trimming frame is the area that will be printed. You
can drag the edge of the trimming frame to change its size, or drag inside the
frame to move it.
6 Click the [OK] button to close the trimming dialog box.

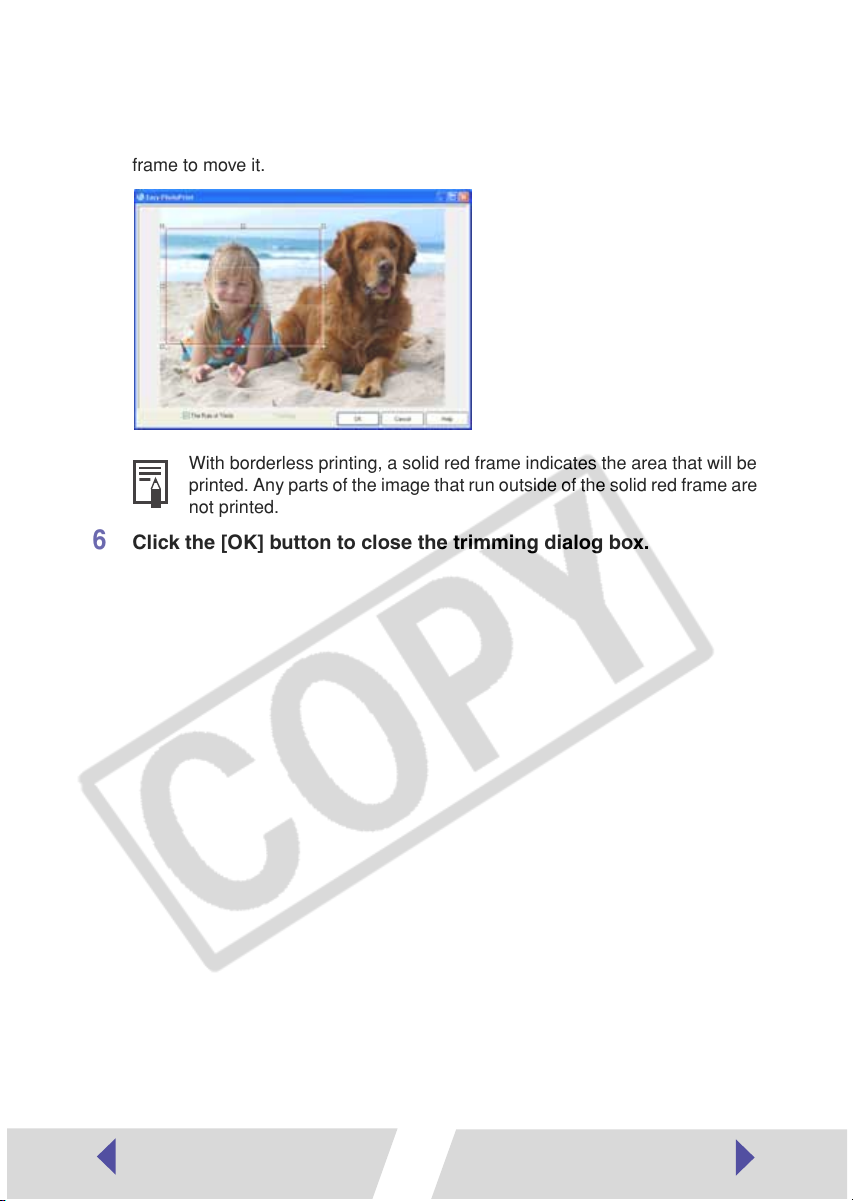

With borderless printing, a solid red frame indicates the area that will be
printed. Any parts of the image that run outside of the solid red frame are
not printed.

18
Correcting and Enhancing Images

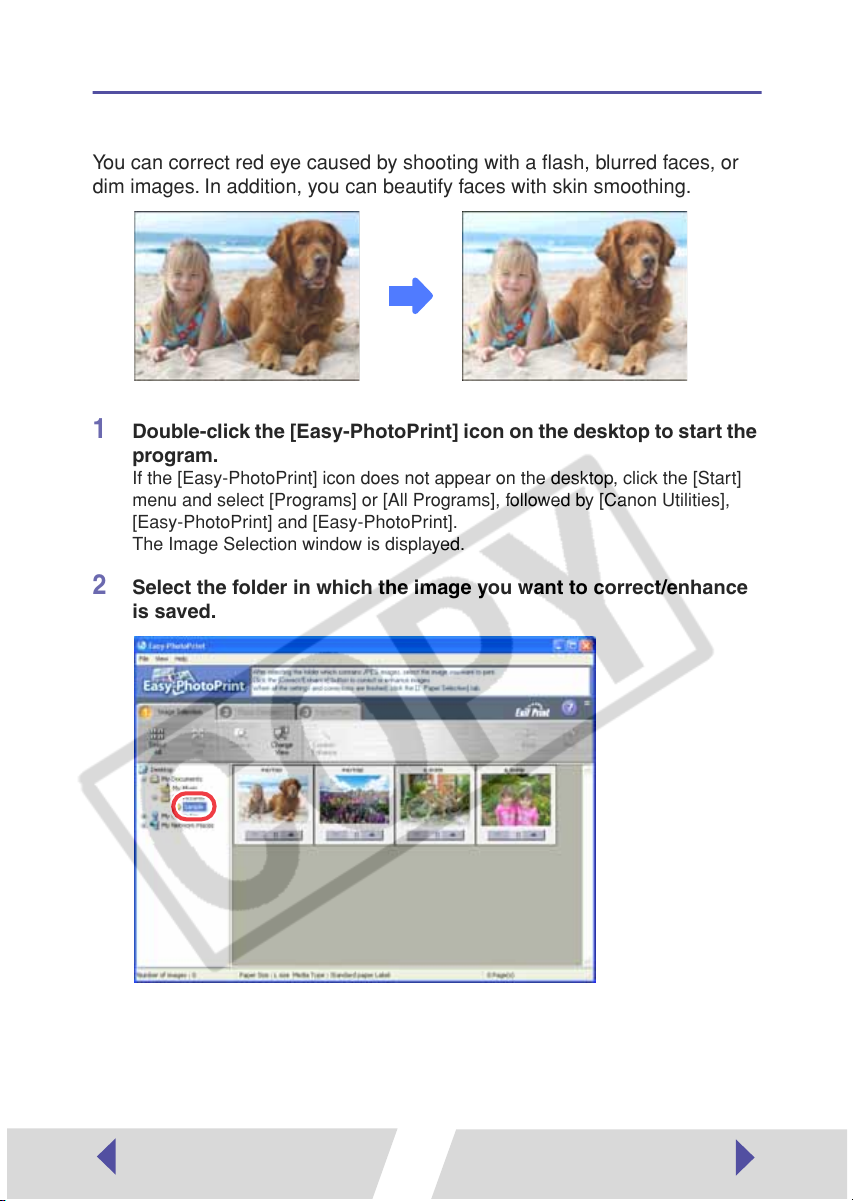

You can correct red eye caused by shooting with a flash, blurred faces, or
dim images. In addition, you can beautify faces with skin smoothing.
1 Double-click the [Easy-PhotoPrint] icon on the desktop to start the
program.
If the [Easy-PhotoPrint] icon does not appear on the desktop, click the [Start]
menu and select [Programs] or [All Programs], followed by [Canon Utilities],
[Easy-PhotoPrint] and [Easy-PhotoPrint].
The Image Selection window is displayed.
2 Select the folder in which the image you want to correct/enhance
is saved.

19
3 Click the image you want to correct/enhance, and then click
[Correct/Enhance].
The screen for correcting/enhancing the selected image is displayed.
4 Correct/enhance the image.
5 Click [Finish] in the top right of the window to save the corrections/
enhancements and close the corrections/enhancement window.
For details on correction/enhancement, see the [Help] menu.
Follow the displayed
instructions.

20

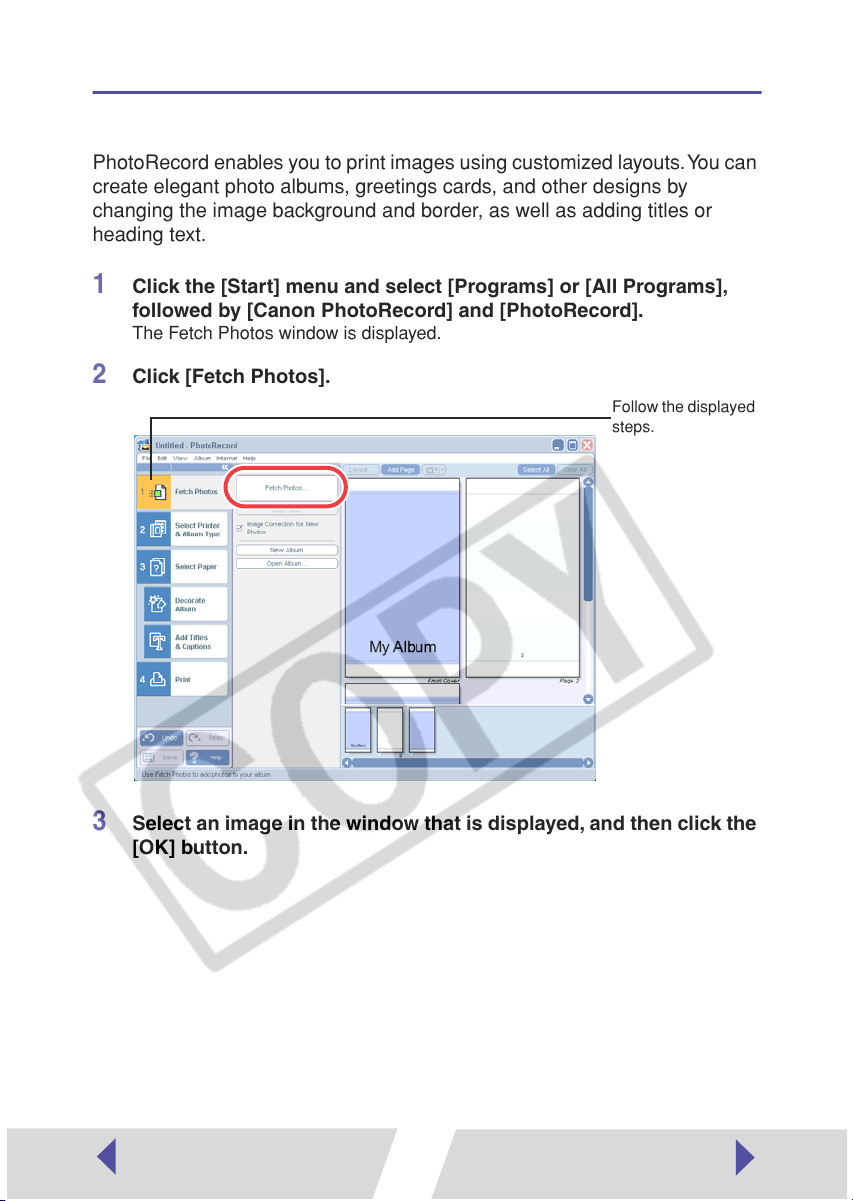

Printing with Custom Image Layouts
PhotoRecord enables you to print images using customized layouts.You can
create elegant photo albums, greetings cards, and other designs by
changing the image background and border, as well as adding titles or
heading text.
1 Click the [Start] menu and select [Programs] or [All Programs],
followed by [Canon PhotoRecord] and [PhotoRecord].
The Fetch Photos window is displayed.
2 Click [Fetch Photos].
3 Select an image in the window that is displayed, and then click the
[OK] button.
Follow the displayed
steps.
