Digital Movie 50

22
Contents
Safety advice.............................................Page 23
Unpacking................................................. Page 28
Installation ................................................ Page 28
Breaking in ................................................ Page 28
Setting up the remote control ...................Page 29
Connection Terminal .................................Page 29
Connection ...............................................Page 30
Operation ................................................. Page 31
Playback via Bluetooth .............................. Page 32
Display indications .................................... Page 33
Extended functions ................................... Page 34
IR learning function................................... Page 35
Troubleshooting ........................................ Page 36
Declaration of conformity ......................... Page 39
Further Information...................................Page 40
Guarantee ................................................. Page 41
License information ................................... Page 43
English
Welcome to the world of pure music
We are delighted that you have chosen a Canton loudspeaker. Our products combine high quality
components with many years of development experience and meticulous production methods. In order
to get the best out of your loudspeaker you need to observe a few points, as detailed in the Operating
Instructions.
We hope you enjoy listening to pure music!
The user is responsible for ensuring that the
loudspeaker is correctly positioned and con-
nected. Canton cannot accept any respon-
sibility for damages or accidents caused by
inappropriate positioning or connection.

23
English
Safety advice
Please follow the safety advice when positioning and maintaining
your DM System.
Choose a level
surface
Avoid moisture Avoid vibrations
Avoid direct sunlight
Keep away from
heat sources
Protect against
extreme cold
Do not use aggressive,
alcohol-based or
abrasive cleaning agents
Do not open housing
Do not reach inside
the speaker
Ensure easy access
to the mains plug
Unplug the device during
thunderstorms
Never touch the power
cable with wet hands
In case of overload turn
the volume down
Ensure correct polarity
for battery and remote
operation
Do not discard in
household rubbish

24
Important Safety Instructions
Notices
Read and follow all instructions.
Keep these instructions.
Heed all warnings.
Use this apparatus only in moderate climates (not in tropical climates).
Indoor use only. Do not use outdoors or in humid rooms.
To reduce the risk of fire and electric shock, do not expose this apparatus to rain or moisture.
Do not use this apparatus near water.
The apparatus shall not be exposed to dripping or splashing.
Strong fluctuations in temperature lead to condensation (water droplets) forming inside the apparatus. Wait until the moisture has
evaporated before starting up the apparatus (min. 3hours).
Objects filled with liquids (such as vases) shall not be placed on the apparatus.
No naked flame source, such as lighted candles, should be placed on or beside the apparatus.
English
CAUTION:
Replaceable Lithium batteries! Caution: Danger
of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
CAUTION
Danger of explosion!
CAUTION:
Do not ingest battery. Chemical burn hazard. Danger of life!
CAUTION
Danger of life!
CAUTION
Risk of electric shock.
Do not open!
CAUTION:
To reduce the risk of re and electric shock,
do not open the device.
There are no serviceable parts inside.
Refer all servicing to qualied service personnel only.

25
Do not install the apparatus near any heat sources such as radiators, heat registers, stoves, or other apparatus (incl. amplifiers)
that produce heat.
Prevent exposure to direct sunlight.
Observe a free space of at least 5cm around the apparatus.
Do never defeat the safety purpose of a polarized or ground plug: A polarized plug has two blades with one wider than the other. The
wide blade is provided for your safety. When the provided plug doesn’t fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
To prevent electric shock, do not use the plug with an extension cord, receptacle, or other outlet unless the blades can be fully inserted
to prevent blade exposure.
Never touch signal- and power cords with wet hands.
Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles,
and the point where they exit from the apparatus.
Where the mains plug or an appliance coupler is used as the disconnect device, the mains plug of the power cord or appliance coupler
shall be remain readily operable.
Unplug this apparatus during lightning storms or when unused for long periods of time.
To completely disconnect this apparatus from the mains, disconnect the supply cord plug from the receptacle.
Power down the apparatus before connecting or disconnecting any cable.
Always pull the plugs and not the cables.
Install this apparatus in accordance with the manufacturer’s instructions.
Always choose a level surface. The apparatus has to be in perfect vertical alignment.
English

26
Notices
Do not use force on operating elements, connections and cables.
The apparatus may only be operated with the voltage and frequency specified on the apparatus or the name plate.
Do not insert any objects or body parts into the apparatus openings. Live components inside the enclosure could get touched and /or
damaged. This could lead to short circuiting, electric shock and fire.
Only use attachments and accessories specified by the manufacturer and / or provided with the apparatus.
Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Clean the apparatus only with a clean, dry cloth.
Do not use aggressive, alcohol-based or abrasive cleaning agents.
To reduce the risk of electric shock, do not open the housing! There are no serviceable parts inside.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
Do not make any modification to the apparatus or the accessory. Unauthorized alterations may affect the safety, regulatory compliance,
or the system performance. In this case, the operating licence/warranty can expire.
Turn down the volume level immediately if sound distortions, such as unnatural knocking, beating or
high-frequency clicking can be heard.
To prevent possible hearing damage, do not listen at high volume levels for long periods.
Important Safety Instructions
English

27
Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it
away from children.
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can
cause severe internal burns in just 2 hours and can lead to death!
If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
Batteries must be inserted correctly, as shown on the polarity imprint. Incorrectly replaced batteries might cause damage.
Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed of at a battery collection point.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Only use batteries or rechargeable batteries specified for this apparatus.
The batteries supplied are not rechargeable batteries and may therefore not be recharged.
The apparatus and/or the accessory bag may contain small parts that may be a choking hazard. Therefore not suitable
for children under age 3.
This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that
may be of sufficient magnitude to constitute risk of fire and electric shock.
This symbol is intended to alert the user to the presence of important operating and maintenance instructions in the literature
accompanying this product.
This symbol denotes equipment with Class II Protection Rating. These devices are deemed to be fully protected against the risk
of electric shock during normal use by means of double or reinforced insulation, and therefore require no earth conductor.
English

28
English
Installation
The Canton Digital Movie should be positioned underneath the
screen on a flat surface. Capacity up to 40 kg.
Unpacking
Unpack the box carefully and check that all the following
parts are present:
• 1x Canton Soundbar DM 50
• 1x Remote control inc. battery
• 1x Mains cable
• 1x optical digital audio cable
• 1x stereo RCA cable
• 1x digital RCA cable
Breaking in
Maximum sound quality requires a breaking-in
time of 15 –20 operating hours.
• During this time operate the loudspeaker at
normal volume
• Avoid high noise levels
• Listen to a variety of music

29
Connections DM
1Power Inlet
2Output – Ext. Subwoofer
3Input – TV (optical)
4Input – DVD (coaxial)
5Input – AUX (analogue)
6Jack service (Canton)
Setting up the
remote control
Place the battery supplied in the remote control. Be careful
to ensure that it is correctly inserted according to the polarity
markings (+/–). You should only use the battery specified for
this system (CR 2032).
Note
The batteries provided are designed for test use and may
therefore have a shorter lifespan.
Connection Terminal
DM 50
SUB OUT
Ser vice
Remote control
English
CR 2032
DM Soundbar

30
Connection
Please ensure that all electrical components are switched off before connecting. Your Digital Movie System has three optional inputs. In principle
it is enough to connect one of these inputs to your TV and all further devices to your TV. To achieve the best possible sound we recommend that
you connect your satellite receiver, Blu-Ray or DVD player directly to the DM System. The following options are possible, depending on the type
and fittings of the source used:
SUB
DIGITAL MOVIE
DVD
DVDTV
TV
AUX
AUX
TV – Digital input (optical)
Modern TV devices have an optical audio output (Toslink). Connect this with the input
marked “TV” on the DM System. This connection guarantees optimal signal transmis-
sion and best sound quality.
DVD – Digital input (coaxial)
To transmit the DVD sound signal connect the digital coaxial output of your Blu-Ray or
DVD player with the jack marked “DVD” on the DM System. To transmit the picture
signal your DVD player must also be connected to the TV. The input marked “DVD”
on the DM System can be selected if your TV does not have an optical output.
AUX – Analogue input
If your TV only has an audio output marked “Pre-Out” then connect it using the
shielded stereo RCA cable plugged into the analogue input on the DM System marked
“AUX”. Otherwise this input can be used to connect video recorders or game consoles.
SUB – Analogue output
Use this output when you want to connect an external active subwoofer. SUB OUT
is not active in the basic setting and needs to be activated using the remote control.
See page 34 Extended functions.
English

31
Operation
Remote control
1Power
On – LED shines green
Standby – LED shines red
2Mute
3Input
4Volume
5Play Mode
Stereo – for music
Surround – virtual surround sound for home cinema
6Sound
Bass – Adjustment via Volume control (+6... –6 dB)
Treble – Adjustment via Volume control (+6... –6 dB)
7Bluetooth Pairing
Connection with a Bluetooth-enabled source
STEREO
SURROUND
BASS
TREBLE
BLUETOOTH
PAIRING
ON
STANDBY
MUTE
English

32
Playback via Bluetooth
Registration requirements
- Bluetooth must be activated on the
mobile end device
- The mobile end device must support
Bluetooth 2.0 at least
- The mobile end device must be within range of
the DM System (max. 10 m)
Registration process
- Select
BT
input
- Press the “Bluetooth-Pairing“ button
-
BTP
appears on the display
- You now have 30 seconds to register your mobile
end device
- Start the search run on your mobile end device
- Select “DM 50” as the playback device
- Once confirmed, the connection will be made
automatically and will appear as
Con
in the
display
- If the connection fails the message
FAI
will appear
- If the mobile device requires an access code
enter 0000
Operating a mobile end device
- The device most recently connected to the DM
System connects automatically when Bluetooth
is activated and the input for Bluetooth playback
has been selected. In this case the message
Con
will appear.
- Start the playback of a medium on your mobile
end device and the sound will automatically be
generated by the DM System.
English
BT
BTP
Con Fai
- Canton DM 50 -
BLUETOOTH
PAIRING

33
Display indications
The DM System has a multifunctional display that lights up blue for approx. 5 seconds in response to a remote control
command. The possible readouts and their meanings are shown below. The standby mode of the DM System is indicated
by a red LED light. When your DM System is in operation this LED is green.
Input
Soundmode
Playmode
TV Input (optical)
TV
Volume (0 – 99)
V30
Stereo
ST
Pairing Mode
BTP
DVD Input (coaxial)
DVD
Mute
MUT
Surround
SUR
Connection established
CON
AUX input (analogue)
AUX
Bass level (+/– 6)
B 6
Disconnected
DIS
Bluetooth
BT
Treble level (+/– 6)
T 6
Error message
FAI
Bluetooth
English

34
Extended functions

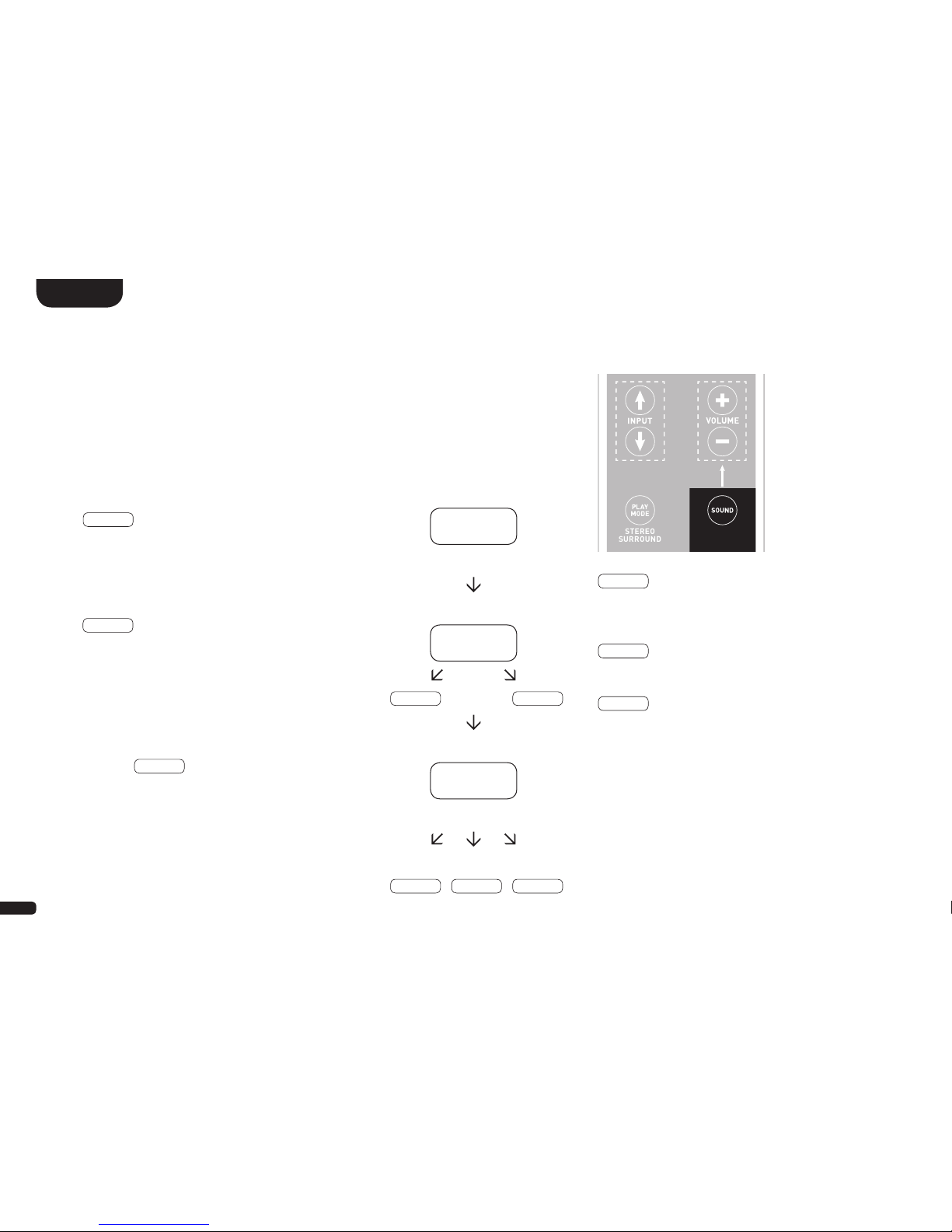

The menu for extended sound functions offers you the chance to correct out-of-synch
playback, to activate the output for an external subwoofer and to adjust the playback
to suit the selected location.
STEREO
SURROUND
BASS
TREBLE
BLUETOOTH
PAIRING
ON
STANDBY
MUTE
STEREO
SURROUND
BASS
TREBLE
BLUETOOTH
PAIRING
ON
STANDBY
MUTE
If you press and hold the key marked “Sound” on
the remote control for longer than 3 seconds you
will enter the “Extended functions” menu and the
display
LIP
will appear on the Soundbar.
You can now use the Volume +/- keys to delay the
playback in 10 ms steps.
Press the “Sound” key briefly once more and the
display
sub
will appear
The Volume +/- keys can also be used to switch
the output for an external subwoofer on or off.
Please note: when the Sub-Out is activated the
playback of the Soundbar will be filtered at 80 Hz.
Press the “Sound” key again briefly one more time
and the display
eq
will appear
Now use the Volume +/- keys to choose between
three pre-set equalizer settings to adjust the play-
back to suit the location.
EQ-1
for a free-standing DM 50 e.g. on a
sideboard with a flat-screen TV on the wall
(factory setting).
EQ-2
for a set-up where a flat-screen TV
is positioned on top of the DM 50.
EQ-3
for a set-up where the DM 50 is in
a rack or on a shelf.
Exit menu
Press and hold the “Sound” key again for longer
than 3 seconds to exit the “Extended functions”
menu.
If the Soundbar does not receive any input instruc-
tion from the remote control within a period of 30
seconds the menu navigation returns automatically
to normal mode.
Lip
sub
EQ
EQ1 EQ2 EQ3
on off
English

35
IR learning function
The DM 50 can learn the infrared code of your TV remote control and therefore allows you to control the functions of the Soundbar and
TV device via your remote control. You can allocate the instructions for the Soundbar to any key of the TV remote control. When choosing
a key make sure that the instructions for the Soundbar do not conflict with the TV device. We recommend that you deactivate the internal
loudspeaker of the TV device once the Soundbar is connected.
1Hold the TV remote control in position
2Switch the Soundbar on
3Press and hold the “On/Standby” key of the Soundbar
remote control for approx. 5 seconds
4The display shows a flashing
IRL
5Press the chosen function on the Canton
remote control e.g. “Volume +”
6Now the display shows a flashing
v
7Within 20 seconds press the key you wish to allocate
to this function on the TV remote control
8Once this has been successfully allocated the display
will show
OK
and you can continue with the
programming of the next key function, e.g. “Volume –“
9If the display shows
FAI
this means the allocation
has failed and you should repeat steps 4 to 8
Exit menu
Press and hold the “On/Standby” key again for
longer than 5 seconds to exit the “IR learning
function” menu.
If the Soundbar does not receive any input instruc-
tions from the remote control within a period of
60 seconds the menu navigation returns to normal
mode automatically.
STEREO
SURROUND
BASS
TREBLE
BLUETOOTH
PAIRING
ON
STANDBY
MUTE
STEREO
SURROUND
BASS
TREBLE
BLUETOOTH
PAIRING
ON
STANDBY
MUTE
TV remote control
English

36
Troubleshooting
Here is an overview of the most common problems. If you have any further questions please contact your Canton dealer,
call our Service Hotline on [phone] or send us an e-mail at [e-mail].
Problem Possible cause Solution
DM System does not
turn on.
Power cable not connected to the power outlet
and /or DM System
Check connection.
Sound reproduction
too soft.
Volume of DM System set too low. Increase the volume using the “Volume” button.
Increase the volume of the source device.
DM System does not
respond to remote
control.
The battery is empty. Replace battery, observe correct polarity at insertion.
No sound
reproduction.
1. Sound format of the source device wrongly
selected (Digital input “TV” and “DVD”)
1. Please check the correct setting of your source device (see
Page 6). “DTS” or “Dolby Digital” coded output formats
cannot be reproduced.
2. Source device not producing any signal. 2. Digital output on the source device not activated (please
refer to device instructions).
3. Cable not correctly connected/faulty cable. 3. Check the connection of the source device to the DM
System and change the cable where necessary.
English

37
Problem Possible cause Solution
DM System hums. 1. Signal lines from source device to DM System
too long.
1. Use shorter signal line.
2. Signal line used is not fault-protected or the
protection has been damaged (defective).
2. Change signal line for a fault-protected line.
3. Ground loop (ripple pickup) generated. 3. A ground loop can be generated when two or more
devices connected via a signal line (cinch) are plugged
into separate sockets (e.g. amplifier and computer). Plug
all devices connected to the DM System into a multiple
socket output using safety plugs.
4. Another piece of equipment on the same
circuit has no interference suppression
(e.g. fridge).
4. Switch off possible sources of interference to test; unplug
the device concerned to see if the humming noise disap-
pears or connect the source of interference to a different
circuit (L1, L2 or L3). (Where necessary take advice from
your electrician.) Insert a special “ferrite common mode
filter” (available from specialist retailers) between the
amplifier and the DM System to eliminate the humming.
Turn the power plug round to reduce the so-called ripple
voltage (particularly important if the source device is not
earthed).
English

38
Problem Possible cause Solution
No playback via
Bluetooth.
1. There is no connection between the
DM System and the mobile end device.
1. Connect your mobile end device as described.
2. The mobile end device is paired but
no playback takes place.
2.1. The mobile end device must be connected again.
2.2. You are out of range.
2.3. Set the volume on the mobile end device to maximum.
2.4. Increase the volume of the DM System.
2.5. Ensure that interference sources like a WLAN router
or laptop are not set up in direct proximity of the DM
System.
2.6. Concurrent operation of WLAN and Bluetooth from a
mobile end device is not possible without interferences
in most cases. (Disable WLAN at your mobile device.)
English

39
English
EU – Declaration of Conformity
marking
We, Manufacturer /Importer
Canton Elektronik GmbH & Co. KG · Neugasse 21–23 · 61276 Weilrod / Niederlauken · Germany
confirm and declare under our sole responsibility that the product
DM 50
(Virtual-Surroundsound System with 3 Signal Inputs, one Output, and Bluetooth®functionality,
internal Universal Mains Power Supply and Infrared Remote Control)
is in conformity with the directives of the European Parliament and of the Council
Operation is permitted within all countries of the European Union.
A complete Declaration of Conformity is placed at: www.canton.de/en/doc.htm
Directive 1999/5/EC (Radio and Telecommunications Terminal Equipment)
Directive 2006/95/EC (Low Voltage Directive)
Directive 2011/65/EU (Restriction of the use of certain Hazardous Substances)
Directive 2002/96/EC (Waste of Electric and Electronic Equipment)
Directive 2009/125/EC (Ecodesign requirements for Energy-related Products)
Authorized Signature: .......................................................................
Date: April 03rd 2013 Name: Günther Seitz Function: CEO

40
DeutschEnglish
Information for “normal use”
All Digital Movie Systems are designed for indoor use and must
not be used outdoors or in wet conditions. The devices must not
be modified or altered in any way. Connect the Digital Movie
System up as described in the instructions and pay attention
to the warning notices. Only operate the device with the mains
voltage and frequency specified on the rating plate.
Information about environmentally friendly operation
(Use the stand-by function to minimise electricity usage and
operating costs)
To reduce the electricity usage of the device when not in use
press the “On/Standby” button. This saves electricity.
For a complete Declaration of Conformity please refer to:
http://www.canton.de/en/doc.htm
Further Information
All electrical and electronic equipment sold in the European
Union must carry a CE mark to show that the device in
question complies with the legal requirements (e.g. electro-
magnetic compatibility or safety requirements).
In line with the regulations governing the disposal of old
electrical and electronic equipment, all devices that carry
this symbol should not be disposed of in general household
waste. Please contact your local recycling centre or the local
authorities to find out about free disposal where applicable.
This serves to protect the environment and public health as
well as saving (scarce) resources through recycling.
