Canvas 064-4021-4 User manual

ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.
WOODHAVEN
46” MEDIA FIREPLACE
PRODUCT NO. 064-4021-4

We believe in the power of décor and its
ability to make up the fabric of your home.
That’s why CANVAS® collections draw
inspiration from Canadians and the way
they live.
From on-trend furniture pieces to holiday
décor and all your outdoor living essentials,
CANVAS® makes it easy to refresh your space
to reflect your unique style and the way you
live every day.
We would love to hear from you and welcome
your thoughtful feedback. Visit our website
at canadiantire.ca to tell us about your
experience, and share your photos with us
using #myCANVASstyle.
Show us how you bring CANVAS® products
to life. We can’t wait to see!

WOODHAVEN 46” MEDIA FIREPLACE 3
Safety Information 3
Parts List 7
Before You Begin Assembly 12
Step-by-step Guide 13
Technical Data 40
Operating Instructions 41
Troubleshooting 49
Caring for Your Item 51
Warranty 51
TABLE OF CONTENTS
When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electric shock and injury to persons, including the
following:
• If the information in this manual is not followed exactly, an electric shock or fire
may result causing property damage, personal injury or loss of life.
• This appliance is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Keep combustible material, such as furniture, pillows, bedding, papers,
clothes and curtains, at least 3’ (0.9 m) from the front of the heater and keep
them away from the sides and rear.
• Extreme caution is necessary when any heater is used near children, by
individuals with disabilities, or whenever the fireplace is left operating and
unattended.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar covering. Arrange cord away from trac areas and where it will not be
tripped over.
• Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the appliance.
• This appliance has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint or flammable vapours or liquids are used or stored.
• This fireplace should not be used as a drying rack for clothing. Christmas
stockings or decorations should not be hung on it or near it.
WARNING! TO REDUCE THE RISK OF SERIOUS INJURY,
READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE
ASSEMBLING AND USING THE PRODUCT.

WOODHAVEN 46” MEDIA FIREPLACE4
TOOLS REQUIRED
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
Use this appliance only as described in the manual. Any other use is not recommended
by the manufacturer and may cause fire, electric shock or injury to persons. Read all
instructions before installing or using the fireplace.
1. Read all instructions before using
this heater.
2. Do not use this heater outdoors.
3. This heater is not intended for use in
bathrooms, laundry areas and similar
indoor locations. Never locate the heater
where it may fall into a bathtub or other
water container.
4. Do not run the power cord under
carpeting. Do not cover the power
cord with throw rugs, runners, or the
like. Arrange the power cord away from
trac areas and where it will not be
tripped over.
5. To disconnect the heater, turn controls to
o, then remove the plug from the outlet.
6. Connect to properly grounded outlets
only. Always plug heater directly into a
wall outlet/receptacle. Never use with
an extension cord or relocatable power
tap (outlet/power strip). Failure to do so
can result in fire damage to the outlet
and/or the plug.
7. To prevent a possible fire, do not block
firebox air intakes or the exhaust in any
manner. Do not operate the firebox on
soft surfaces, like a bed, where openings
may become blocked.
8. There is a thermostat limiter inside the
heater. When the inner temperature is
too high or abnormal heating occurs,
the thermostat protective device cuts
o the power supply to avoid fireplace
damage and reduce the risk of fire.
Cross-head Screwdriver 2 People

WOODHAVEN 46” MEDIA FIREPLACE 5
9. Use this heater only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock,
or injury to persons.
10. If possible, always unplug this
appliance when not in use.
11. Do not operate any heater with
a damaged cord or plug or after
the heater malfunctions.
12. Do not operate any heater if it has
been dropped or damaged in any
manner. Disconnect power at service
panel and have heater inspected by a
reputable electrician before reusing.
13. Any repairs to this fireplace should
be carried out by a qualified service
person.
14. Under no circumstances should this
fireplace be modified. Parts removed
for servicing must be replaced prior
to operating this fireplace again.
15. This appliance, when installed,
must be electrically grounded in
accordance with local codes: with
the current CSA C22.2 Canadian
Electrical Code or follow the National
Electrical Code, ANSI/NFPA N0.70.
16. The heater must not be located
immediately below a wall outlet/
receptacle.
17. Do not slide insert on top of wood
to avoid scratching wood surface.
18. Do not place any objects on top of
insert or air intake vents as this will
cause unit to overheat and can cause
a fire.
This product must be grounded. If it should
malfunction or break down, grounding provides
a path of least resistance for electric current and
reduces the risk of electric shock. This product
is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance
with all local codes and ordinances.
This heater is for use on 120 V circuits and has a
grounded plug. An adaptor is available from your
local electronics store or online supplier for connecting three-blade grounding type
plugs to two-slot receptacles. The green grounding lug extending from the adaptor
must be connected to a permanent ground such as a properly grounded outlet box.
The adaptor should not be used if a three-slot grounded receptacle is available.
NOTE: The use of grounded adaptors are banned in certain jurisdictions in Canada
due to safety concerns. Use of grounded adaptors on two-slot receptacles is unsafe
and should only be installed by a certified electrician. Check with local laws to ensure
compliance with legal requirements.
A
B
Grounding Pin
Grounding Pin
Adaptor
Metal Screw
Cover of Grounded Outlet Box
Cover of Grounded Outlet Box

WOODHAVEN 46” MEDIA FIREPLACE6
FCC / IC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Modifications not approved by the party responsible for compliance could void user’s
authority to operate the equipment.
CAN ICES-3 (B)/NMB-3(B).
This Class B digital apparatus complies with Canadian ICES-003.

WOODHAVEN 46” MEDIA FIREPLACE 7

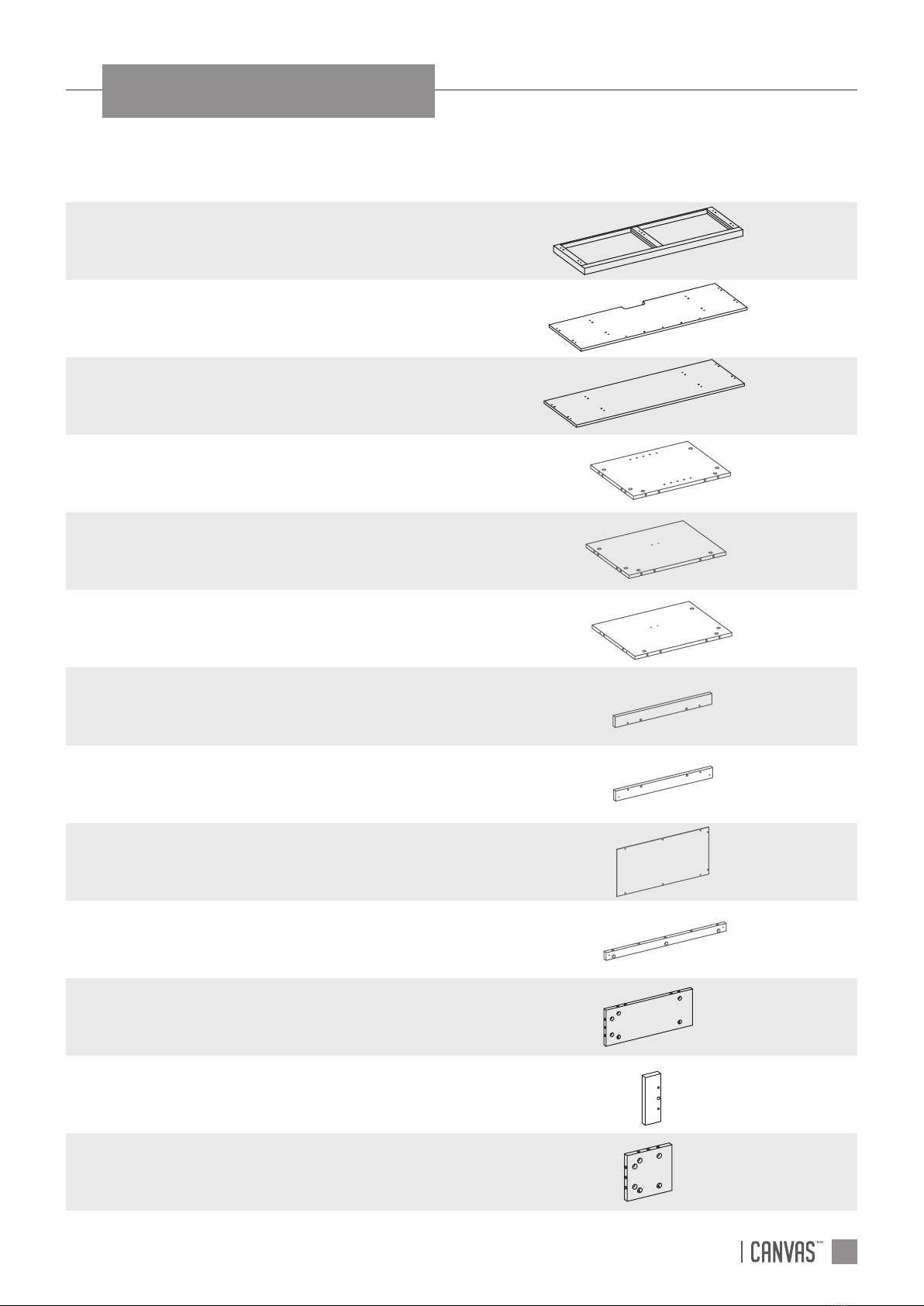

PARTS LIST
ITEM DESCRIPTION THUMBNAIL QUANTITY
12 Upper Side Panel Moulding 2
1Top Panel 1
2Media Shelf 1
3Bottom Panel 1
4Side Panel 2
5Left Partition Panel 1
6Right Partition Panel 1
7Lower Side Panel Moulding 2
8Middle Stile 2
9Lower Back Panel 2
10 Middle Crossbar 1
11 Upper Side Panel 2
13 Upper Partition Panel 1

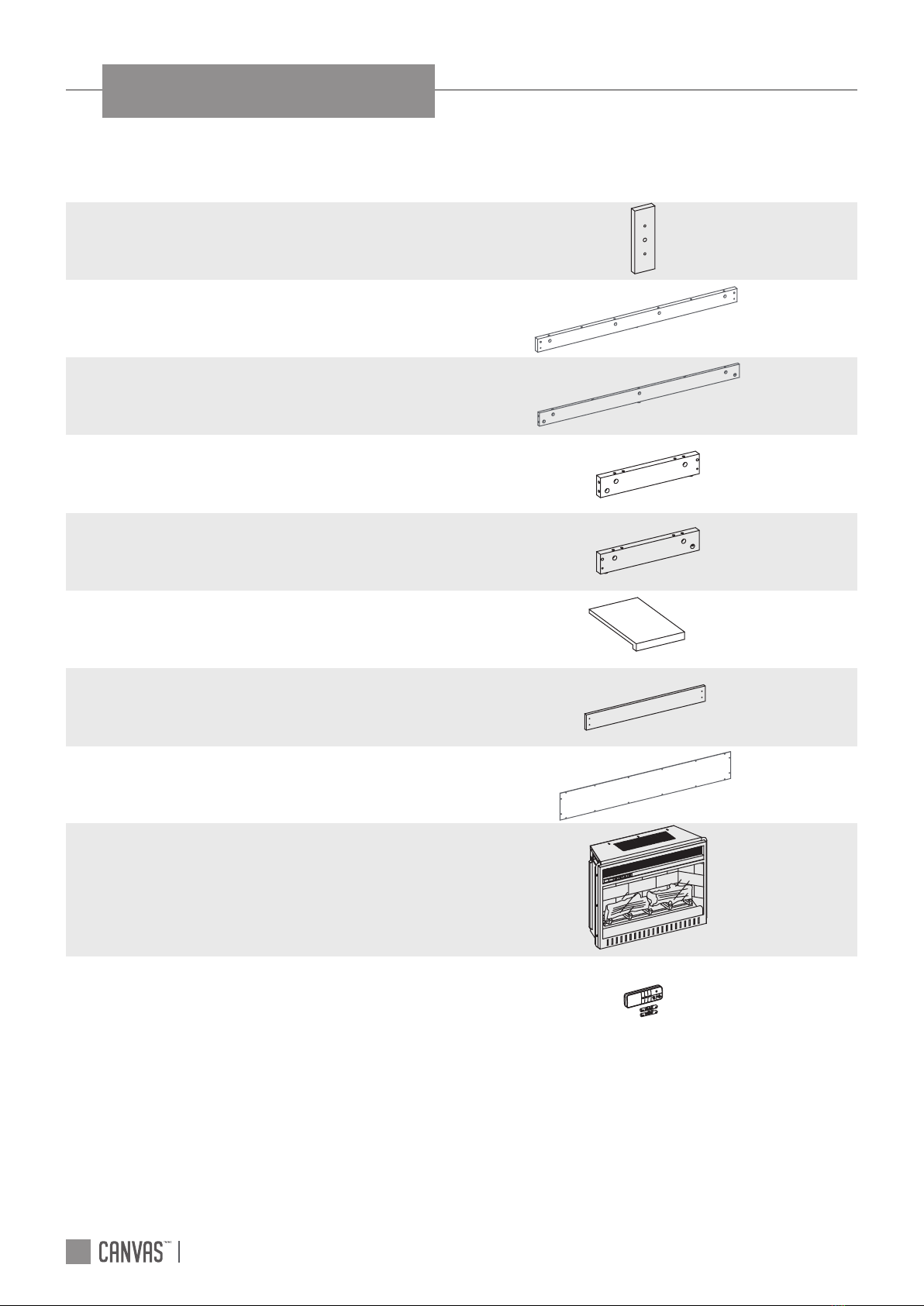

WOODHAVEN 46” MEDIA FIREPLACE8
PARTS LIST
ITEM DESCRIPTION THUMBNAIL QUANTITY
14 Upper Partition Moulding 1
15 Front Skirting 1
16 Back Skirting 1
17 Left Skirting 1
18 Right Skirting 1
19 Adjustable Shelf 2
20 Firebox Support 1
21 Upper Back Panel 1
22 Fireplace Insert 1
23 Remote Control with Batteries 1

WOODHAVEN 46” MEDIA FIREPLACE 9

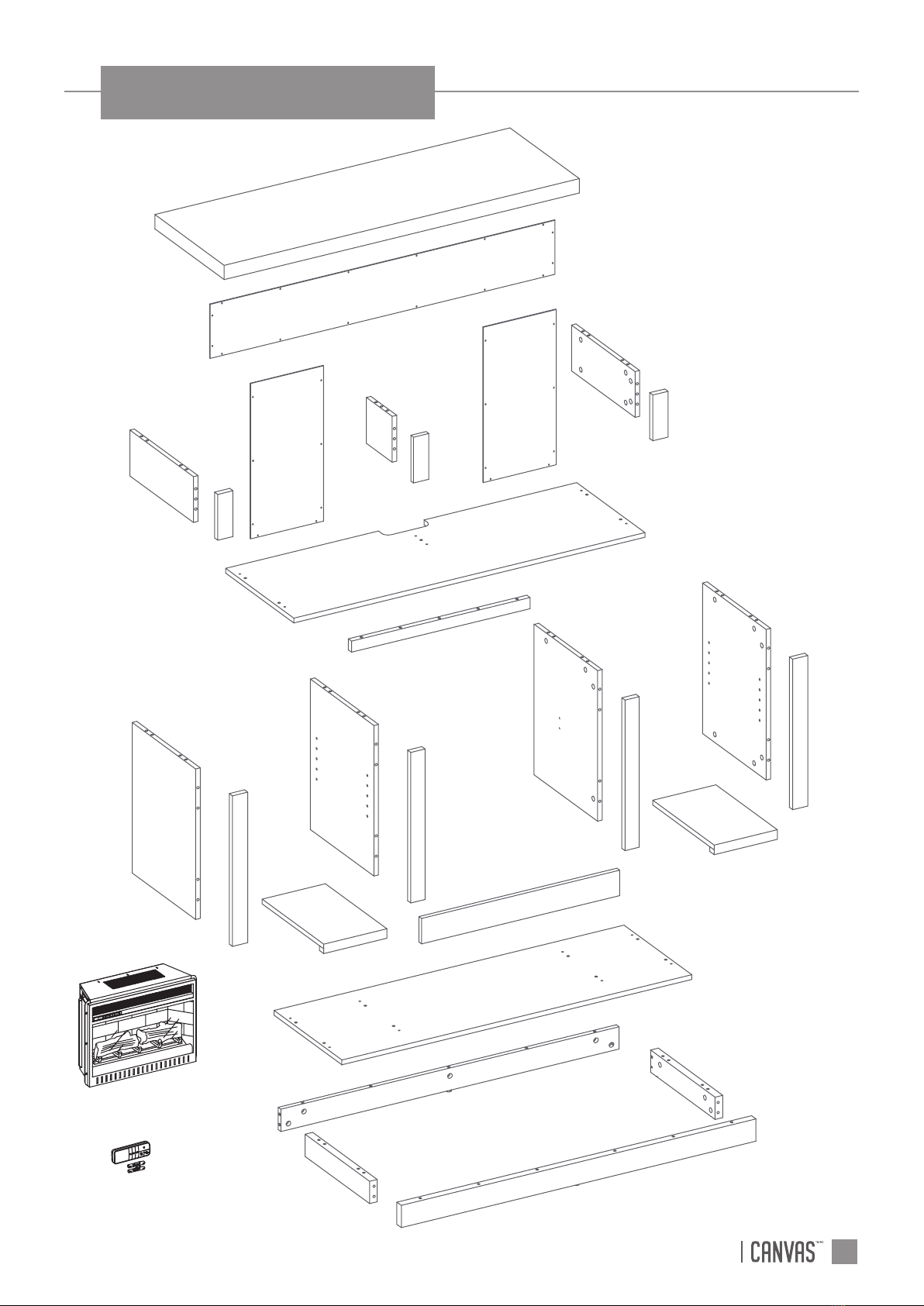

EXPLODED PARTS
3
19
19
20
15
16
22
23 17
18
4
7
7
8
8
9
9
10
4
1
2
21
11
11
12
12
13
14
5
6
2x
2x
2x
2x
2x
2x
2x

WOODHAVEN 46” MEDIA FIREPLACE10
HARDWARE LIST
ITEM DESCRIPTION THUMBNAIL QUANTITY
AWood Dowel M8x30mm 51
BCam Lock 56
GWasher Head Screw M3.5x15mm 32
ITouch-up Pen 1
CCam Bolt 56
DScrew M3.5x12mm 4
EScrew M4x50mm 4
FPan Head Screw M5x12mm 8
HMending Plate 2

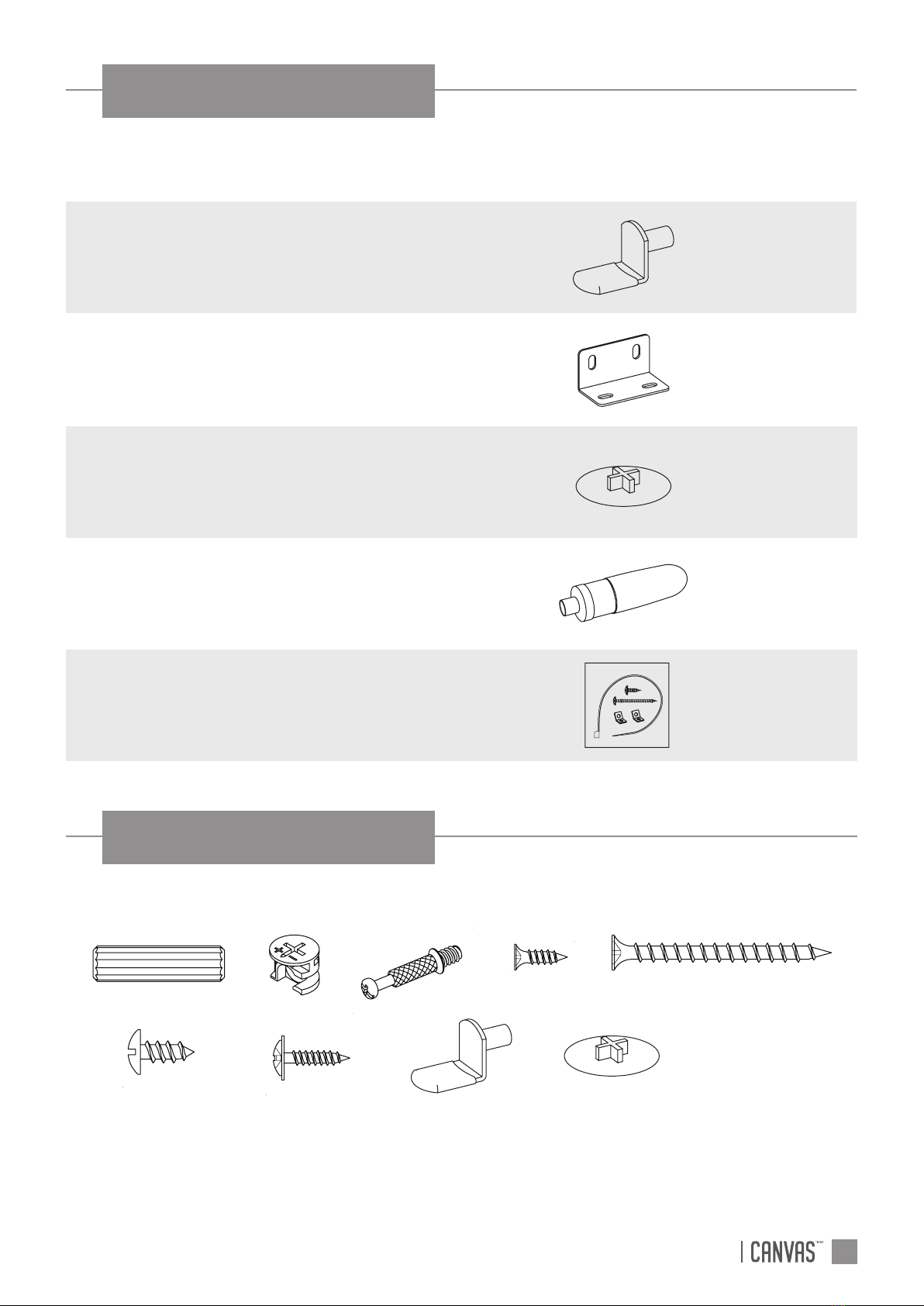

WOODHAVEN 46” MEDIA FIREPLACE 11
HARDWARE LIST
EXTRA HARDWARE BAG
ITEM DESCRIPTION THUMBNAIL QUANTITY
JShelf Support 8
KL-shaped Bracket 2
LCam Lock Cover 30
MGlue 2
NTipping Restraint Hardware Kit 2

WOODHAVEN 46” MEDIA FIREPLACE12
BEFORE YOU BEGIN ASSEMBLY
MAKE SURE ALL PARTS ARE PRESENT
Compare all pieces to the parts and hardware lists, and
make sure you have all tools required for assembly.
REMOVE PACKAGING MATERIALS
Place packing materials back in the box. Do not dispose of
packaging materials until assembly is complete.
READ EACH STEP CAREFULLY
Make sure you understand each step. If you have any questions,
contact CANVAS® customer service at 1-888-670-6684 (toll free).
?
ASSEMBLE IN A CLEARED AREA
Place all parts from the box on the floor in front of you on a clean,
dry, level surface to protect the product as it is being built.

WOODHAVEN 46” MEDIA FIREPLACE 13
STEP-BY-STEP GUIDE
2x1 Cx17 1x1

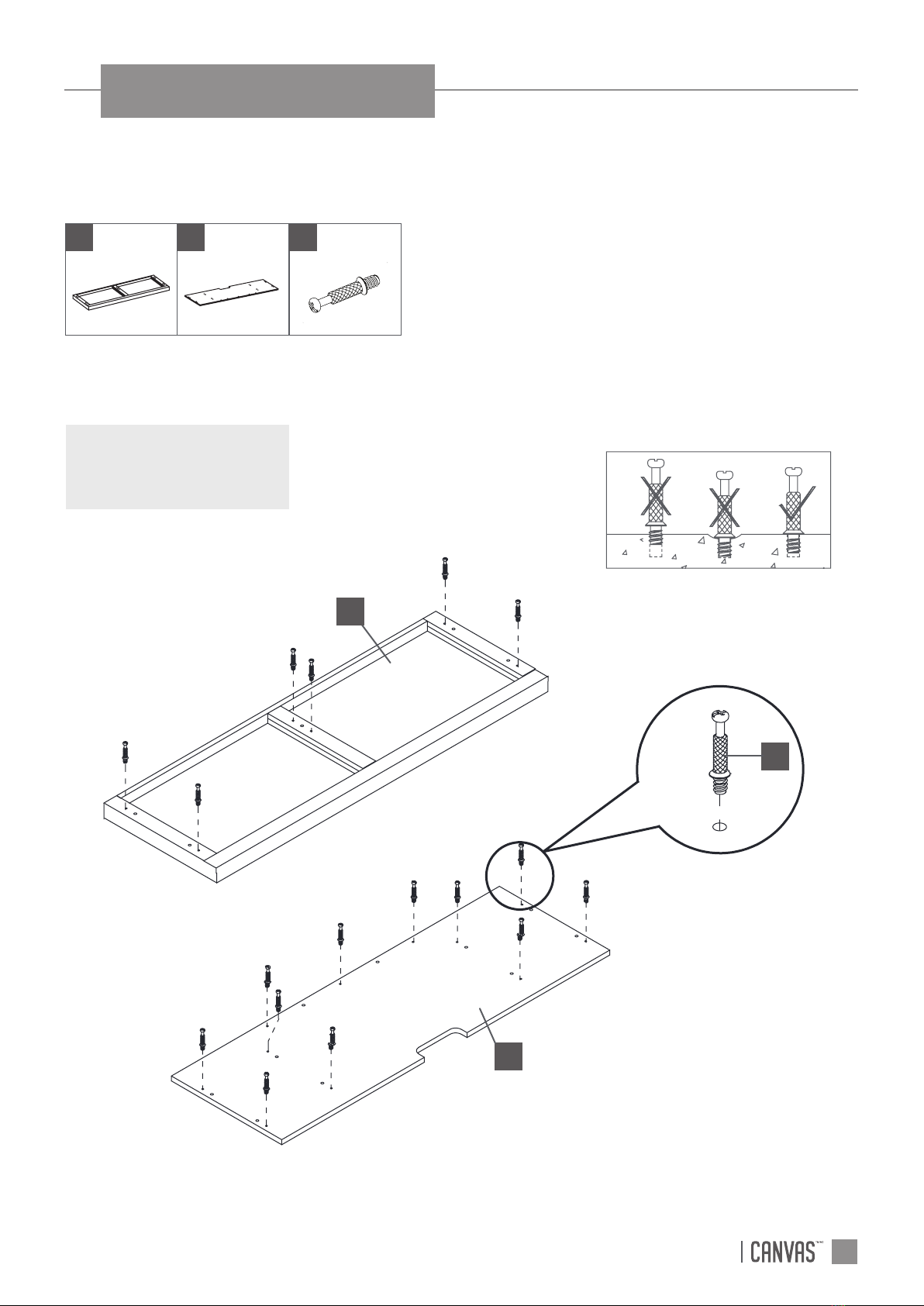

STEP 1
NOTE:
Ensure cam bolts are flush
all the way and straight.
Securely screw the cam bolts Cinto the designated small holes on the top panel 1
and media shelf 2 using a cross-head screwdriver.
1
2
C

WOODHAVEN 46” MEDIA FIREPLACE14
STEP-BY-STEP GUIDE

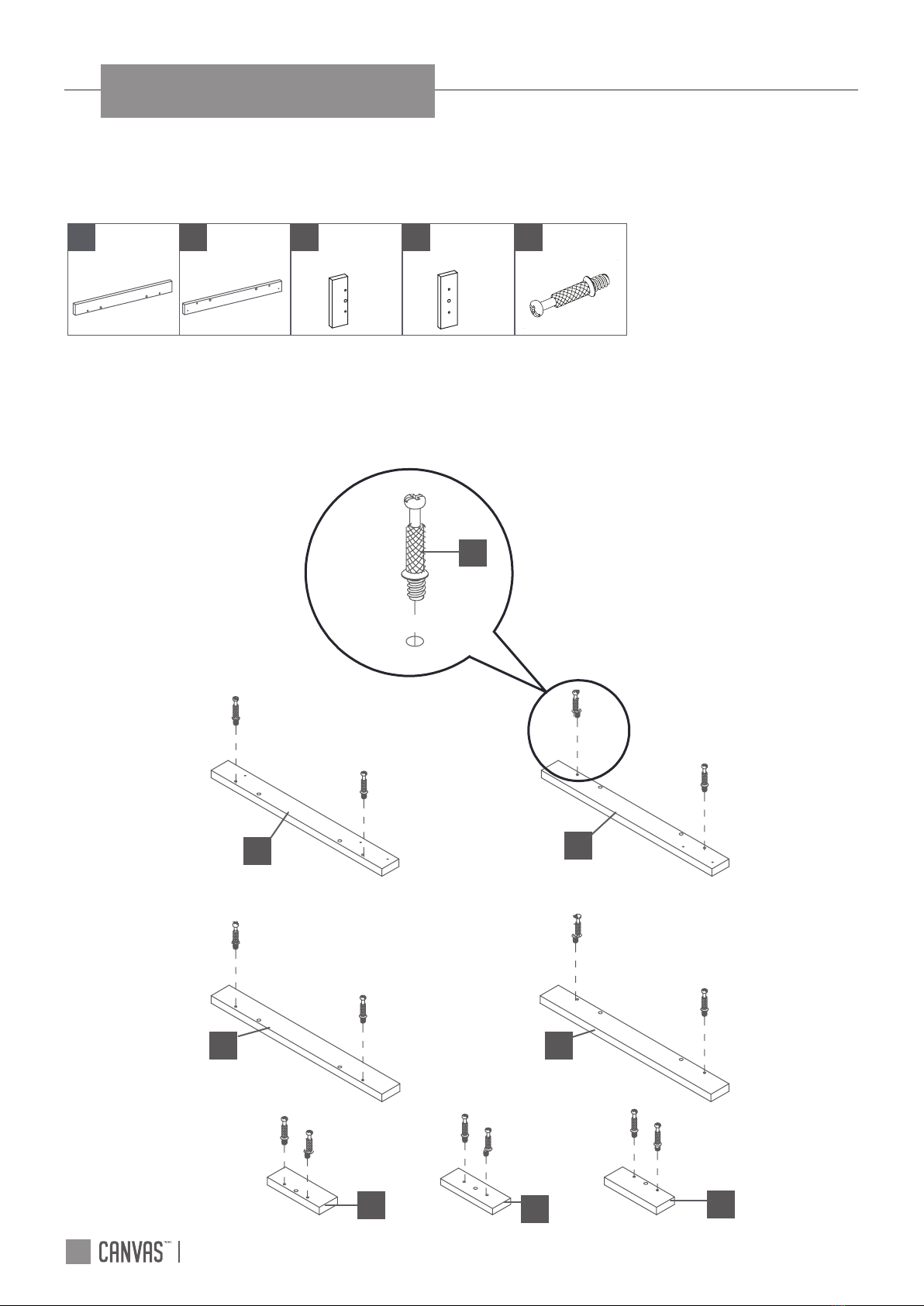

STEP 2
Securely screw the cam bolts C into the designated small holes on the lower side
mouldings 7, middle stiles 8, upper side mouldings 12 and upper partition panel 14
using a cross-head screwdriver.
7x2 8x2 12 14 C
x2 x1 x14
3
C
88
7 7
12 12
14

WOODHAVEN 46” MEDIA FIREPLACE 15
STEP-BY-STEP GUIDE
5x1 6A M
x1 x24 x1
4x2
STEP 3
Glue the wood dowels Ainto the inner holes on the side panels 4 and lower partition
panels (5 and 6).
NOTE: It is very important to use a small amount of glue Mon ends of dowels and
wipe away excess glue immediately.
44
5 6
A
M

WOODHAVEN 46” MEDIA FIREPLACE16
STEP-BY-STEP GUIDE

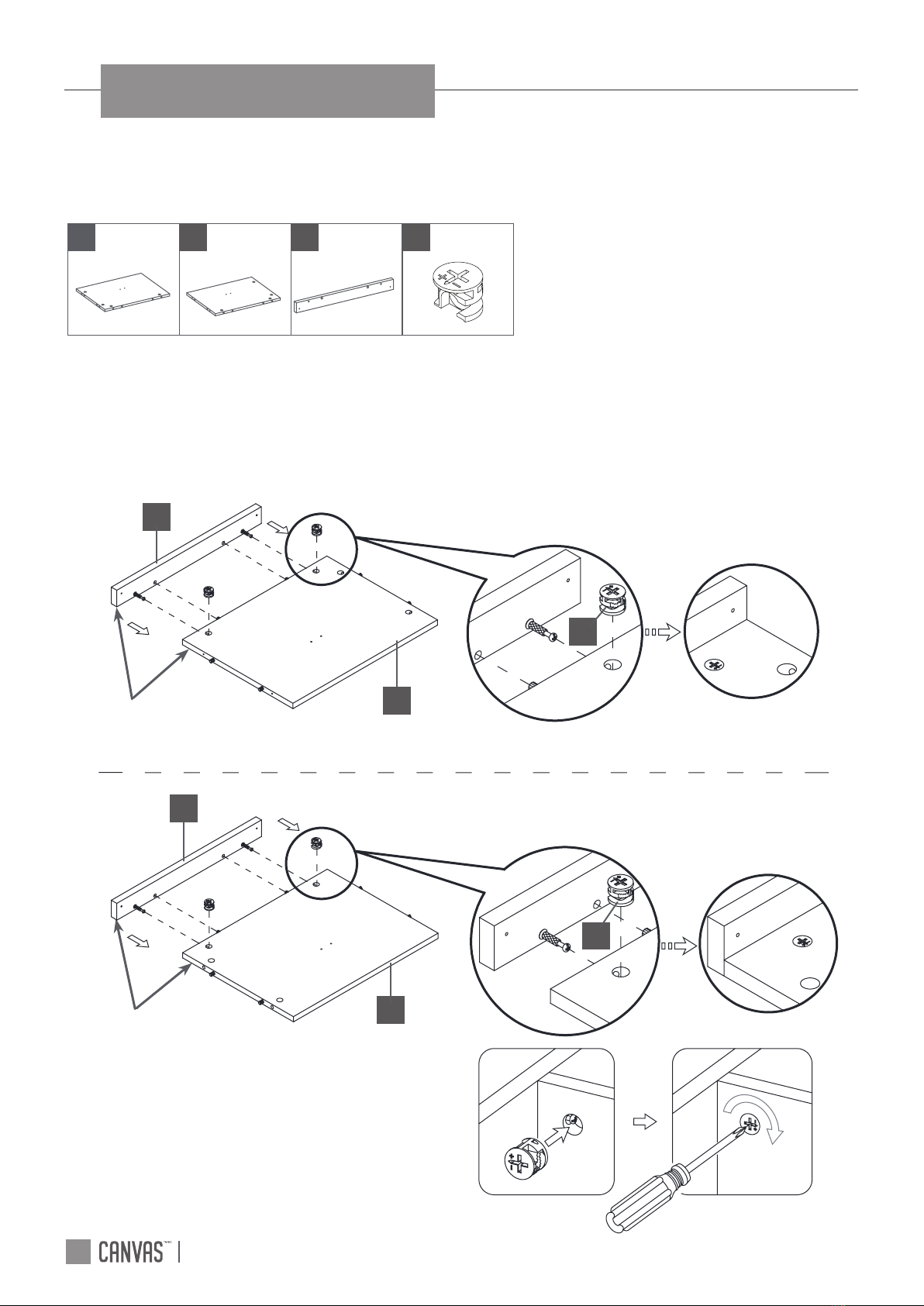

STEP 4
Attach one middle stile 8 to the left partition panel 5by engaging two cam locks B.
Repeat the same procedure to attach the other middle stile 8to the right partiton
panel 6.
5x1 6x1 8x2 Bx4
The outer edges
are flush with each
other.
The outer edges
are flush with each
other.
5
B
B
8
8
6

WOODHAVEN 46” MEDIA FIREPLACE 17
STEP-BY-STEP GUIDE
7x2 Bx4 4x2

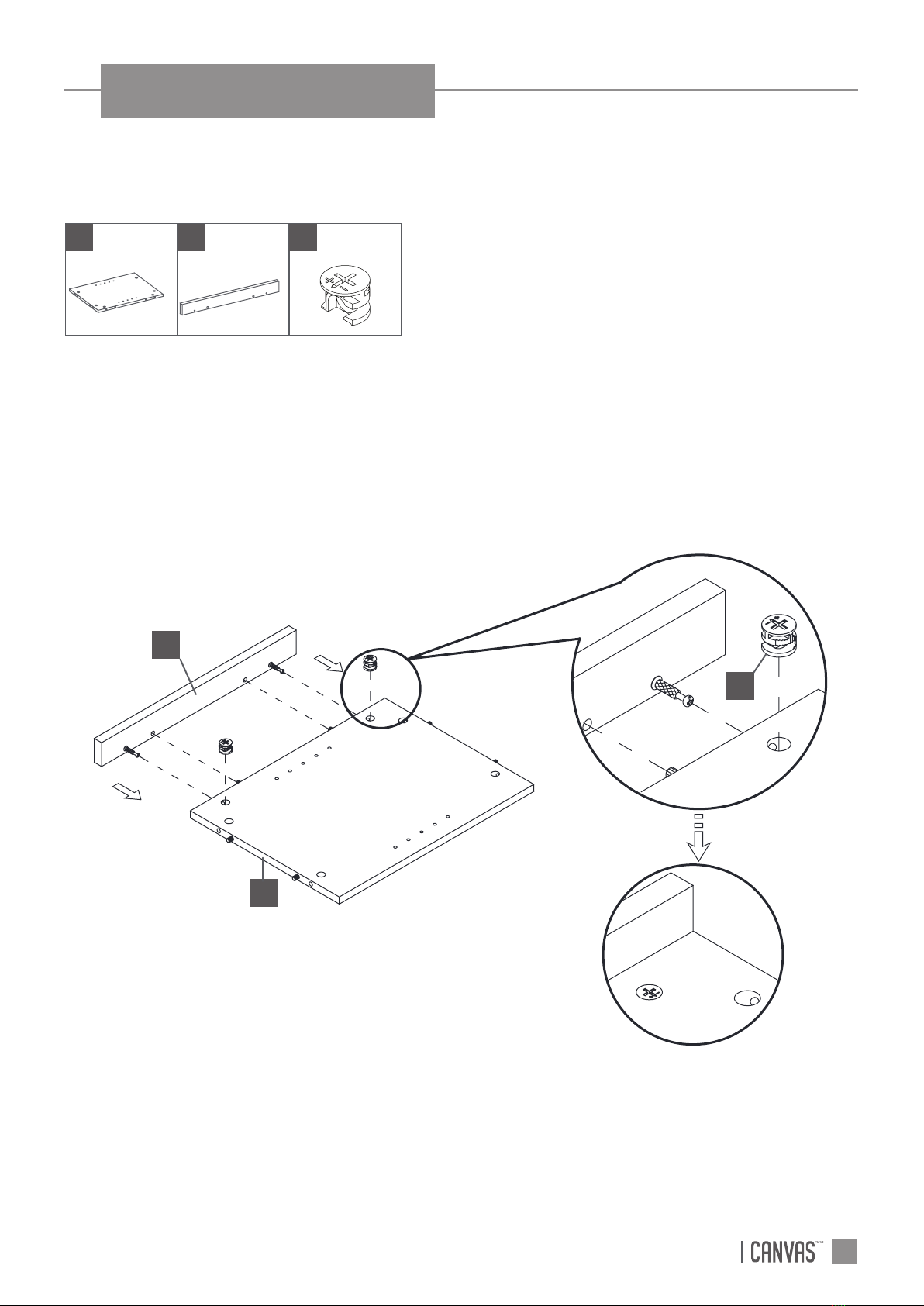

STEP 5
Attach one lower side moulding 7to one side panel 4by engaging two cam locks B.
Make sure the outer edges are flush with each other.
Repeat the same process for the other side panel.
7
B
4
x 2

WOODHAVEN 46” MEDIA FIREPLACE18
STEP-BY-STEP GUIDE
STEP 6
Glue two wood dowels Ainto the inner holes on the middle crossbar 10 and attach
it to the media shelf 2 by engaging three cam locks B.
2x1 10 x1 Ax2 B M
x3 x1
The cam locks
face inward.
3
B
A
M
10
2

WOODHAVEN 46” MEDIA FIREPLACE 19
STEP-BY-STEP GUIDE
15 x1 17 18 C
x1 x1 x15
3x1
STEP 7
Securely screw the cam bolts Cinto the designated small holes on the bottom panel
3, front skirting 15 and side skirtings (17 and 18) using a cross-head screwdriver.
3
17
C
18
15

WOODHAVEN 46” MEDIA FIREPLACE20
STEP-BY-STEP GUIDE
STEP 8
Glue the wood dowels A into the drilled holes on the skirting boards (15, 16, 17 and
18) as shown.
15 x1 16 17
x1 x1 18 x1 A M x12 x1
3
A
A
A
M
15
16
17
18
