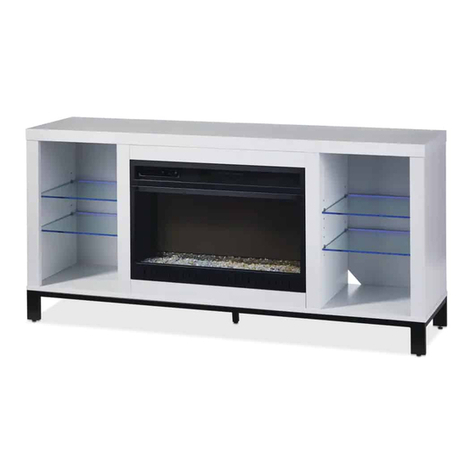

58” HANOVER MEDIA FIREPLACE
MODEL NO. 064-4016-8
ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684
OR

We believe in the power of décor and its
ability to make up the fabric of your home.
That’s why CANVAS® collections draw
inspiration from Canadians and the way
they live.
From on-trend furniture pieces to holiday
décor and all your outdoor living essentials,
CANVAS® makes it easy to refresh your
space to reflect your unique style and the
way you live every day.
We would love to hear from you and
welcome your thoughtful feedback. Visit our
website at canadiantire.ca to tell us about
your experience, and share your photos with
us using #mycanvasstyle.
Show us how you bring CANVAS® products
to life. We can’t wait to see!
INSPIRED BY CANADA

HANOVER MEDIA FIREPLACE 3
Safety Information 4
Parts List 6
Step-by-step Guide 10
Operating Instructions 47
Cleaning and Maintenance 54
Troubleshooting 55
Warranty Information 56
TABLE OF CONTENTS
When using electrical appliances, basic precautions should always be followed
to reduce the risk of fire, electric shock and injury to persons, including the
following:
• If the information in this manual is not followed exactly, an electric shock or fire
may result causing property damage, personal injury or loss of life.
• This appliance is hot when in use. To avoid burns, do not let bare skin touch hot
surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers,
clothes and curtains, at least 3’ (0.9 m) from the front of the heater and keep
them away from the sides and rear.
• Extreme caution is necessary when any heater is used near children or by with
individuals with disabilities and whenever the fireplace is left operating and
unattended.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar covering. Arrange cord away from traffic areas and where it will not be
tripped over.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening
as this may cause an electric shock or fire, or damage the appliance.
• This appliance has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint or flammable vapours or liquids are used or stored.
This fireplace should not be used as a drying rack for clothing.
Christmas stockings or decorations should not be hung on it or near it.
WARNING! TO REDUCE THE RISK OF SERIOUS INJURY,
READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE
ASSEMBLING AND OPERATING THIS FIREPLACE.

4HANOVER MEDIA FIREPLACE
SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION
Use this appliance only as described in the manual. Any other use is not recommended
by the manufacturer and may cause fire, electric shock or injury to persons. Read all
instructions before installing or using the fireplace.
1. Read all instructions before using
this heater.
2. Do not use this heater outdoors.
3. This heater is not intended for use in
bathrooms, laundry areas and similar
indoor locations. Never locate the heater
where it may fall into a bathtub or other
water container.
4. Do not run the power cord under
carpeting. Do not cover the power
cord with throw rugs, runners, or the
like. Arrange the power cord away from
traffic areas and where it will not be
tripped over.
5. To disconnect the heater, turn controls to
off, then remove the plug from the outlet.
6. Connect to properly grounded outlets
only. Always plug heaters directly into
a wall outlet/receptacle. Never use with
an extension cord or relocatable power
tap (outlet/power strip).
7. To prevent a possible fire, do not block
firebox air intakes or the exhaust in any
manner. Do not operate the firebox on
soft surfaces, like a bed, where openings
may become blocked.
8. There is a thermostat limiter inside the
heater. When the inner temperature
Cross-head
Screwdriver
2 people
TOOLS REQUIRED
Pliers

5
HANOVER MEDIA FIREPLACE
overheats or abnormal heating occurs,
the thermostat protective device cuts
off the power supply to avoid fireplace
damage and reduce the risk of fire.
9. Use this heater only as described
in this manual. Any other use not
recommended by the manufacturer
may cause fire, electric shock,
or injury to persons.
10. If possible, always unplug this
appliance when not in use.
11. Do not operate any heater with
a damaged cord or plug or after
the heater malfunctions.
12. Do not operate any heater if it has
been dropped or damaged in any
manner. Disconnect power at service
panel and have heater inspected by a
reputable electrician before reusing.
13. Any repairs to this fireplace should
be carried out by a qualified service
person.
14. Under no circumstances should this
fireplace be modified. Parts having
to be removed for servicing must
be replaced prior to operating this
fireplace again.
15. Only connect to properly grounded
outlets.
16. This appliance, when installed,
must be electrically grounded in
accordance with local codes, with
the current CSA C22.2 Canadian
Electrical Code or follow the National
Electrical Code, ANSI/NFPA N0.70.
17. The heater must not be located
immediately below a wall outlet/
receptacle.
18. Do not slide insert on top of wood
to avoid scratching wood surface.
19. Do not place any objects on top of
insert and top air intake vents as this
will cause unit to overheat and can
cause a fire.
A 15 A, 120 V, 60 Hz circuit with a properly grounded
outlet is required. Preferably, the fireplace should be on a
dedicated circuit as other appliances on the same circuit
may cause the circuit breaker to trip or the fuse to blow
when the heater is in operation. The unit comes standard
with a 6’ (1.8 m) three-wire cord, exiting from the rear
of the fireplace. Do not exceed the current rating of
the current tap. Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or
relocatable power tap (outlet/power strip).

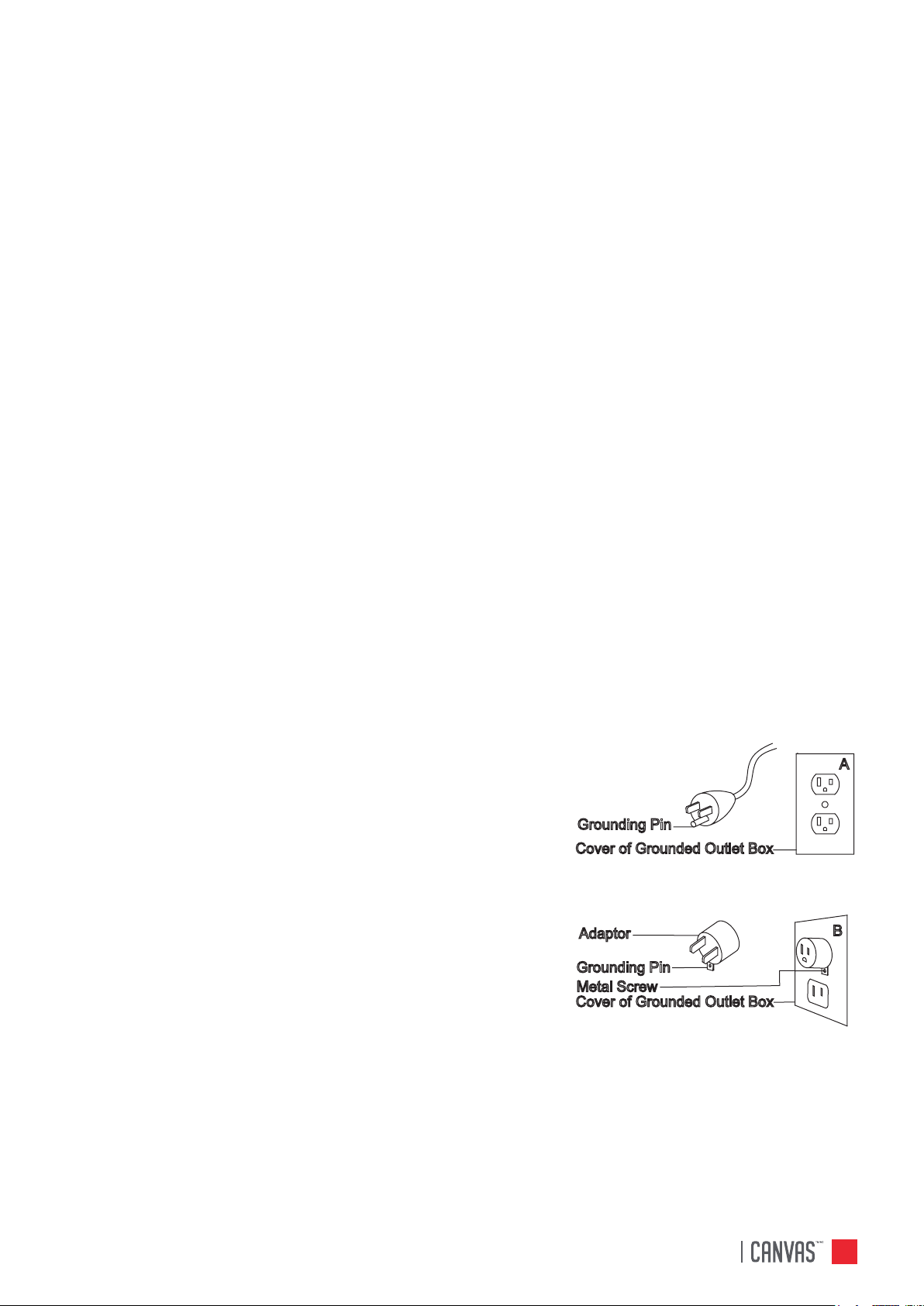

• This heater is for use on a 120 V outlet. The cord
has a plug as shown. See illustration for grounding
instructions. An adaptor as shown in Fig. B is available
for connecting three-blade grounding type plugs to two-slot receptacles. The green
grounding plug extending from the adaptor must be connected to a permanent ground
such as a properly grounded outlet box. The adaptor should not be used if a three-slot
grounded receptacle is available.
NOTE: The use of grounding adaptors is banned in certain jurisdictions in Canada due
to safety concerns. The use of grounding adaptors for use with two-slot receptacles is
unsafe and they should only be installed by a certified electrician. Check with local laws
to ensure compliance with legal requirements.
SAVE THESE INSTRUCTIONS
A
B
Grounding Pin
Grounding Pin
Adaptor
Metal Screw
Cover of Grounded Outlet Box
Cover of Grounded Outlet Box

6
PARTS LIST
ITEM DESCRIPTION QUANTITY
A Top Panel 1
B Lower Left Side Panel 1
C Lower Right Side Panel 1
D Middle Shelf 1
E Bottom Panel 1
F Bottom Front Stretcher 1
G Bottom Rear Stretcher 1
H Bottom Front Moulding 1
I Lower Left Partition Panel 1
J Lower Right Partition Panel 1
K Middle Front Stretcher 1
L Middle Stile 2
M Lower Left Side Moulding 1
N Lower Right Side Moulding 1
O Upper Side Panel 2
P Upper Side Panel Moulding 2
Q Upper Partition Panel 1
R Upper Partition Panel Moulding 1
S Left Door Panel 1
T Right Door Panel 1
U Adjustable Shelf 2
V Firebox Support 1
W Upper Back Panel 1
X Lower Side Back Panel 2
Y Wood Door Panel 2
WH100-23C2D-RS Fireplace Insert 1
00RC006 Remote Control with Battery 1
HANOVER MEDIA FIREPLACE

7
AB C
DF
E
GI
H
JK L
M N O
PQR
STU
VWX
YWH100-23C2D-RS
00RC006
HANOVER MEDIA FIREPLACE

8
PARTS LIST
ITEM DESCRIPTION QUANTITY
AA Large Wood Dowel 54 + (6)
BB Cam Lock 57 + (6)
CC Cam Bolt 57 + (6)
DD Short Flat-head Screw 12 + (2)
EE Medium Flat-head Screw 4 + (1)
FF Long Flat-head Screw 12 + (2)
GG Large Flat-head Screw 4 + (1)
HH Short Pan-head Screw 8 + (1)
II Washer-head Screw 42+ (5)
JJ Small Wood Dowel 4 + (1)
KK Door Roller 4
LL Bolt 8 + (1)
MM Door Sliding Guider 2
NN Triangle Metal Plate 2
OO Floor Leveller 2
PP Long Pan-head Screw 8 + (1)
QQ Shelf Support 8 + (1)
RR Large Metal Bracket 2
SS Handle 2
TT Handle Bolt 4
UU Cam Lock Cover 26 + (3)
VV Rubber Bumper 6 + (1)
WW Acrylic Stopper 1
XX Small Metal Bracket 2
YY Glue 2
ZZ Touch-up Pen 1
ZZZ Tipping Restraint Hardware 2
Hardware indicated in brackets ( ) are extra if needed.
HANOVER MEDIA FIREPLACE

9
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
PP
OO
RR
SS
TT
UU
VV
WW
XX
QQ
YY
ZZ
ZZZ
HANOVER MEDIA FIREPLACE

10
STEP 1

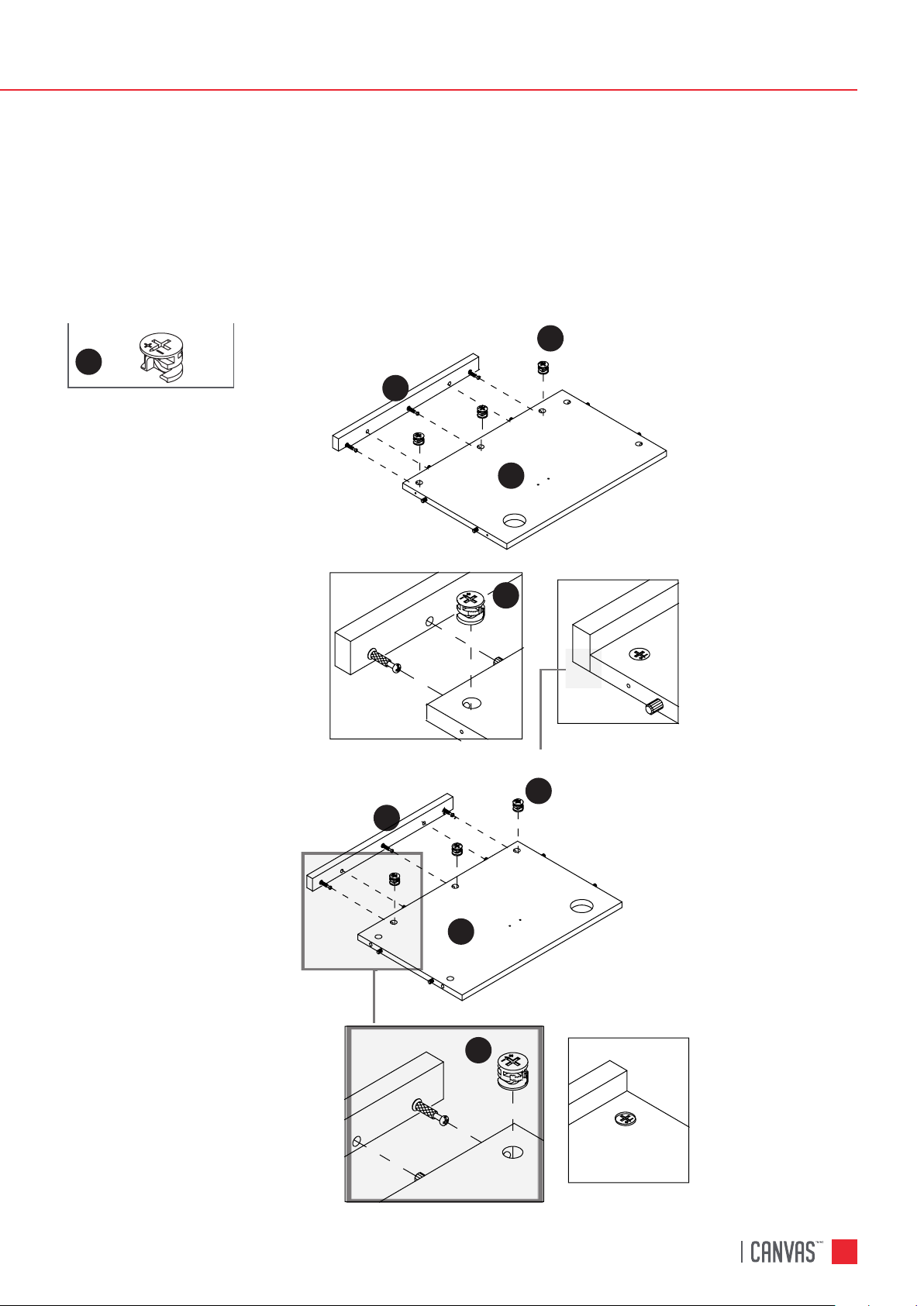

REQUIRES D, B, C, CC
Securely screw the CAM BOLTS (CC) into the designated small holes on the MIDDLE
SHELF (D) and LOWER SIDE PANELS (B and C) using a cross-head screwdriver.
X 20
Not actual size
STEP-BY-STEP GUIDE
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
D
BC
HANOVER MEDIA FIREPLACE

11
X 12
STEP 2
REQUIRES L, M, N, CC
Securely screw the CAM BOLTS (CC) into the designated small holes on the MIDDLE
STILES (L) and LOWER SIDE MOULDINGS (M and N) using a cross-head screwdriver.
CC
CC
CC
CC
CC
CC
CC
CC
CC
CC
L
N
M
Not actual size
L
HANOVER MEDIA FIREPLACE

12
STEP 3

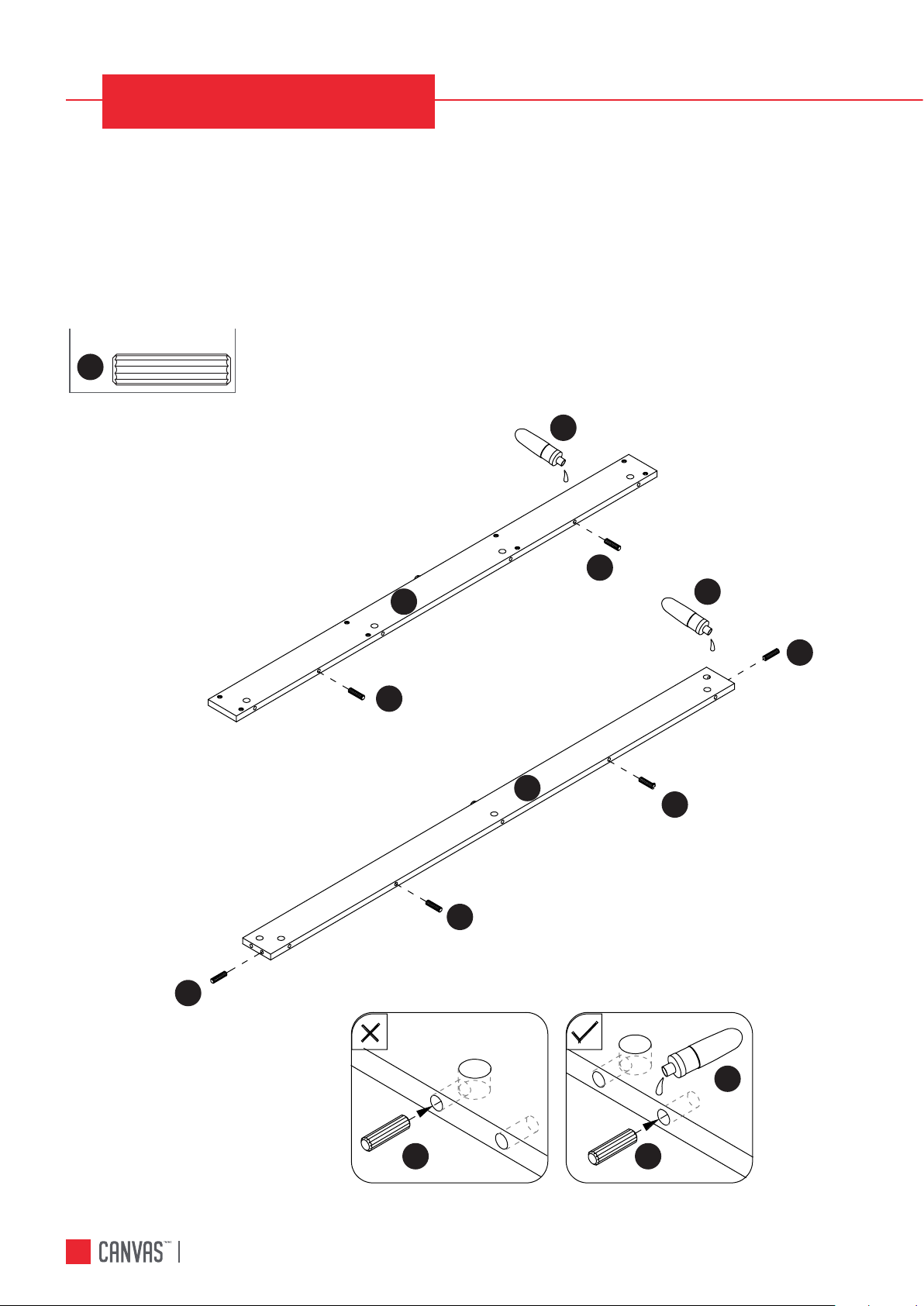

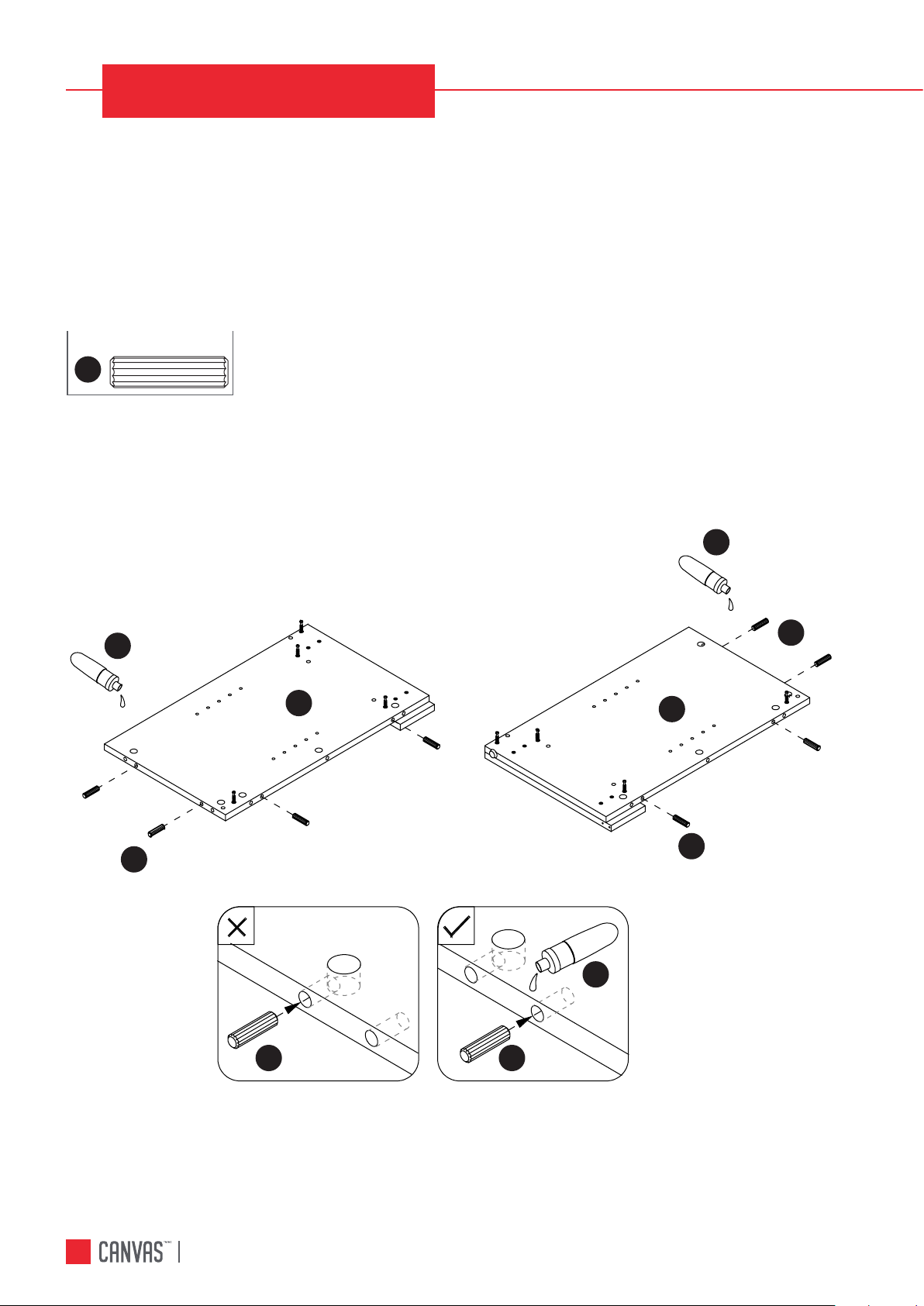

REQUIRES B, C, AA, YY
Glue the WOOD DOWELS (AA) into the inner holes on the LOWER SIDE PANELS (B
and C) as shown.
STEP-BY-STEP GUIDE
X 8
AA
C
B
AA
AA
AA
AAAA
Not actual size
HANOVER MEDIA FIREPLACE
YY
YY
YY

13
B
C
N
STEP 4
REQUIRES M, N, B, C, BB
Attach the LOWER LEFT SIDE MOULDING (M) to the LOWER LEFT SIDE PANEL (B)
by engaging the CAM LOCKS (BB).
Repeat the same procedure to attach the LOWER RIGHT SIDE MOULDING (N) to the
LOWER RIGHT SIDE PANEL (C).
X 6
BB
BB
Not actual size
M
BB
BB
BB
HANOVER MEDIA FIREPLACE
The outer edges are flush

14
STEP 5

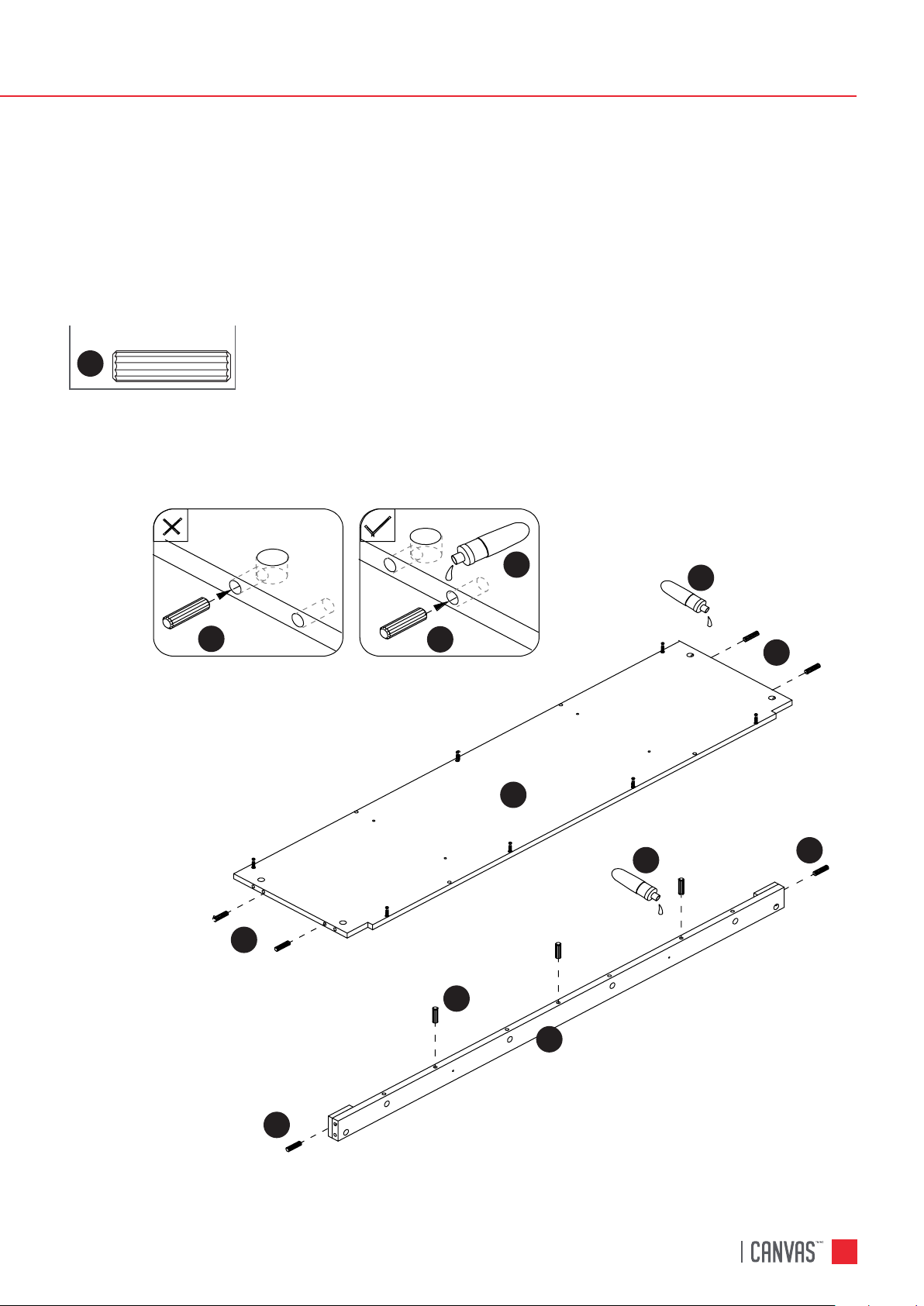

REQUIRES I, J, AA, YY
Glue the WOOD DOWELS (AA) into the inner holes on the LOWER PARTITION
PANELS (I and J) as shown.
X 12
AA
Not actual size
STEP-BY-STEP GUIDE
JI
AA
AA
HANOVER MEDIA FIREPLACE
AA AA
YY YY
YY
AA AA

15
I
L
J
BB
BB
STEP 6
REQUIRES L, I, J, BB
Attach the MIDDLE STILES (L) to the LOWER PARTITION PANELS (I and J) by
engaging the CAM LOCKS (BB).
X 6
BB
Not actual size L
BB
BB
HANOVER MEDIA FIREPLACE
The outer edges are flush

16
O
P
Q
AA
AA
AA
AA
AA
AA
AA
AA
STEP 7

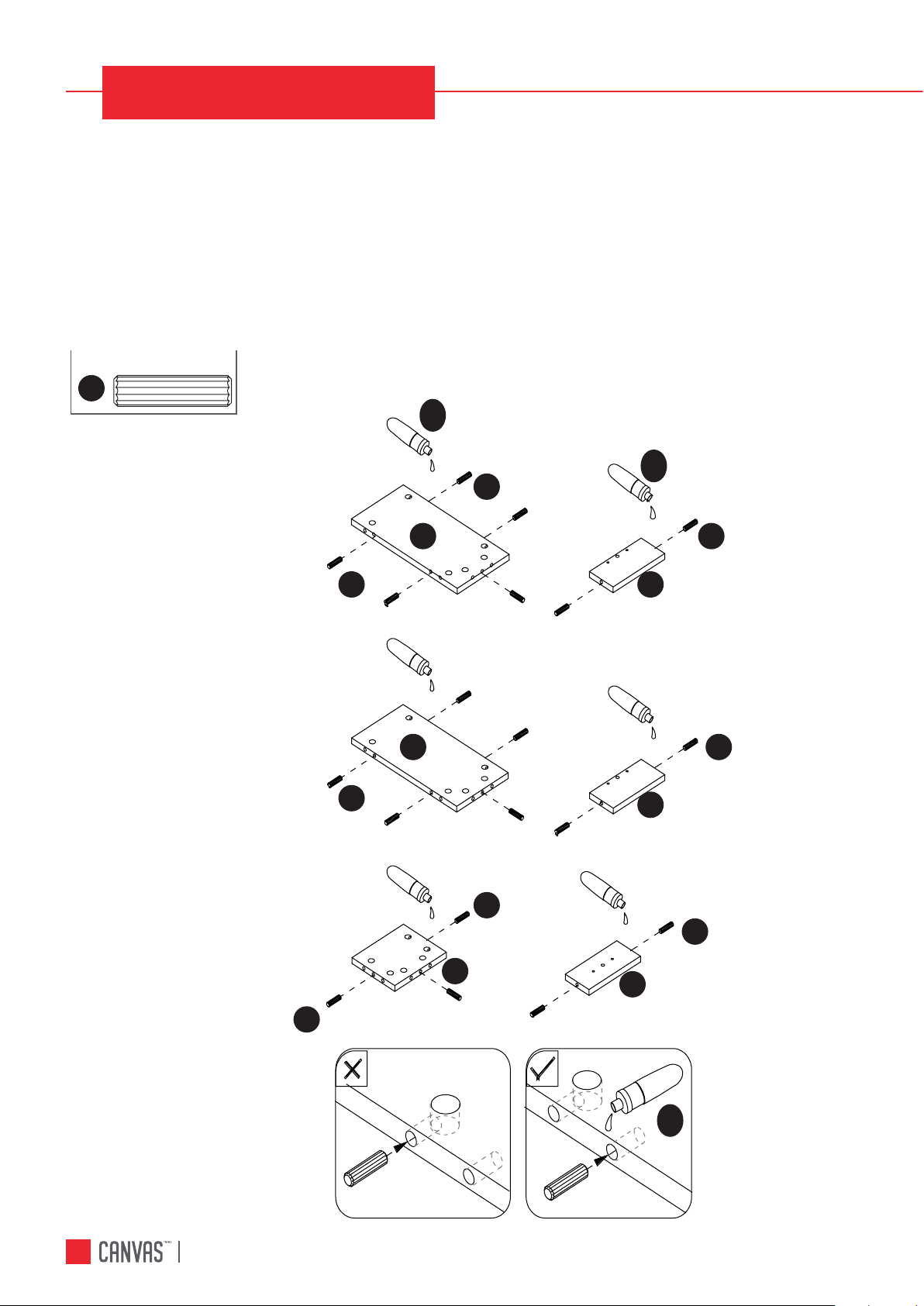

REQUIRES O, P, Q, R, AA, YY
Glue the WOOD DOWELS (AA) into the inner holes on the UPPER SIDE PANELS and
MOULDINGS (O and P) and the UPPER UPPER PARTITION PANEL AND MOULDING
(Q and R).
X 19
AA
Not actual size
STEP-BY-STEP GUIDE
O
P
R
HANOVER MEDIA FIREPLACE
YY
YY
YY

17
O
R
CC
CC
BB
STEP 8
REQUIRES O, P, Q, R, BB, CC

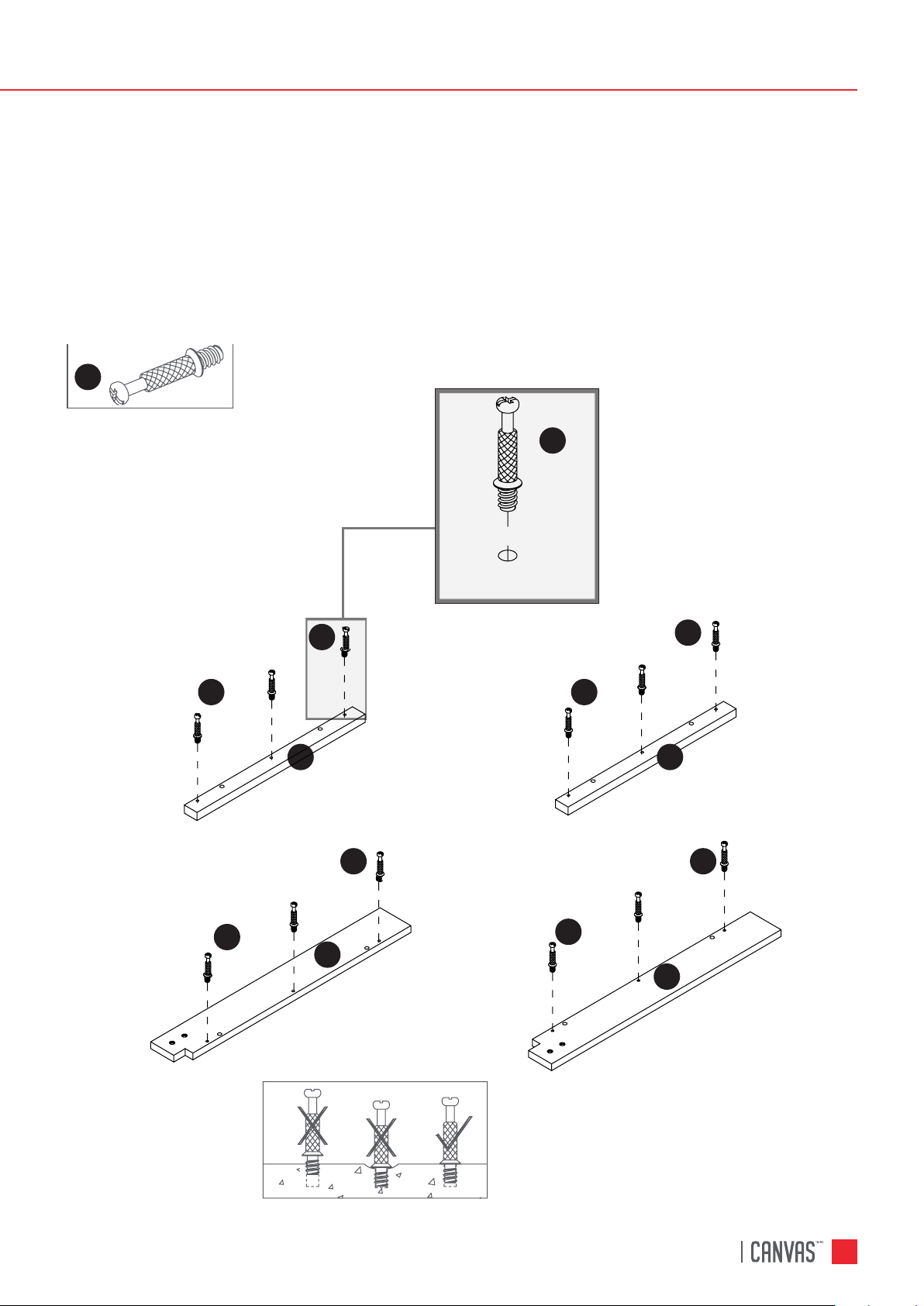

Securely screw the CAM BOLTS (CC) into the designated small holes on the UPPER
SIDE MOULDINGS (P and R).
Attach the UPPER SIDE PANEL MOULDINGS (P) to the UPPER SIDE PANELS (O) by
engaging the CAM LOCKS (BB).
Attach the UPPER PARTITION PANEL MOULDING (R) to the UPPER PARTITION
PANEL (Q) by engaging the CAM LOCKS (BB).
X 6
BB
Not actual size
P
X 6
CC
P
CC
CC
Q
BB
R
HANOVER MEDIA FIREPLACE
CC
O
BB
P
P
R
P
O

18
X 13
STEP 9
REQUIRES A, E, CC
Securely screw the CAM BOLTS (CC) into the designated small holes on the TOP
PANEL (A) and BOTTOM PANEL (E), using a cross-head screwdriver.
CC
CC
CC
CC
CC
CC
CC
CC
A
E
Not actual size
STEP-BY-STEP GUIDE
HANOVER MEDIA FIREPLACE

19
E
K
AA
AA
AA
AA
YY
AA
STEP 10
REQUIRES E, K, AA, YY
Glue the WOOD DOWELS (AA) into the inner holes on the MIDDLE FRONT
STRETCHER (K) and BOTTOM PANEL (E) as shown.
X 9
AA
Not actual size
AA
HANOVER MEDIA FIREPLACE
YY
YY
AA

20
F
G
AA
AA
AA
AA
AA
AA
STEP 11
REQUIRES F, G, AA, YY
Glue the WOOD DOWELS (AA) into the inner holes on the BOTTOM FRONT
STRETCHER (F) and BOTTOM REAR STRETCHER (G) as shown.
X 6
AA
Not actual size
STEP-BY-STEP GUIDE
HANOVER MEDIA FIREPLACE
YY
YY
YY
AAAA
